FriendlyElec

W500 5″ LCD Display | 800×480 | Capacitive Touch | RGB 24-bit | Android Linux

$35.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

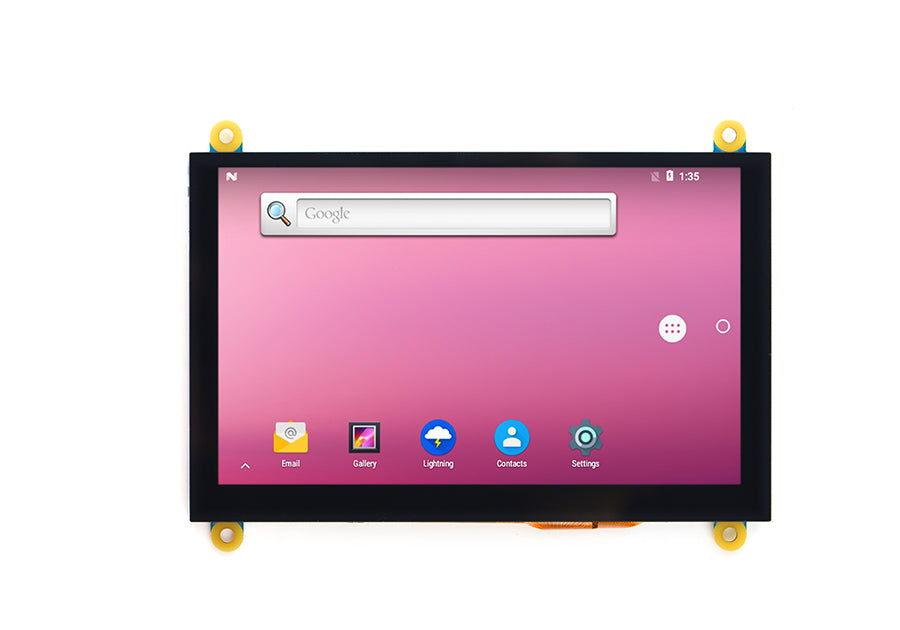

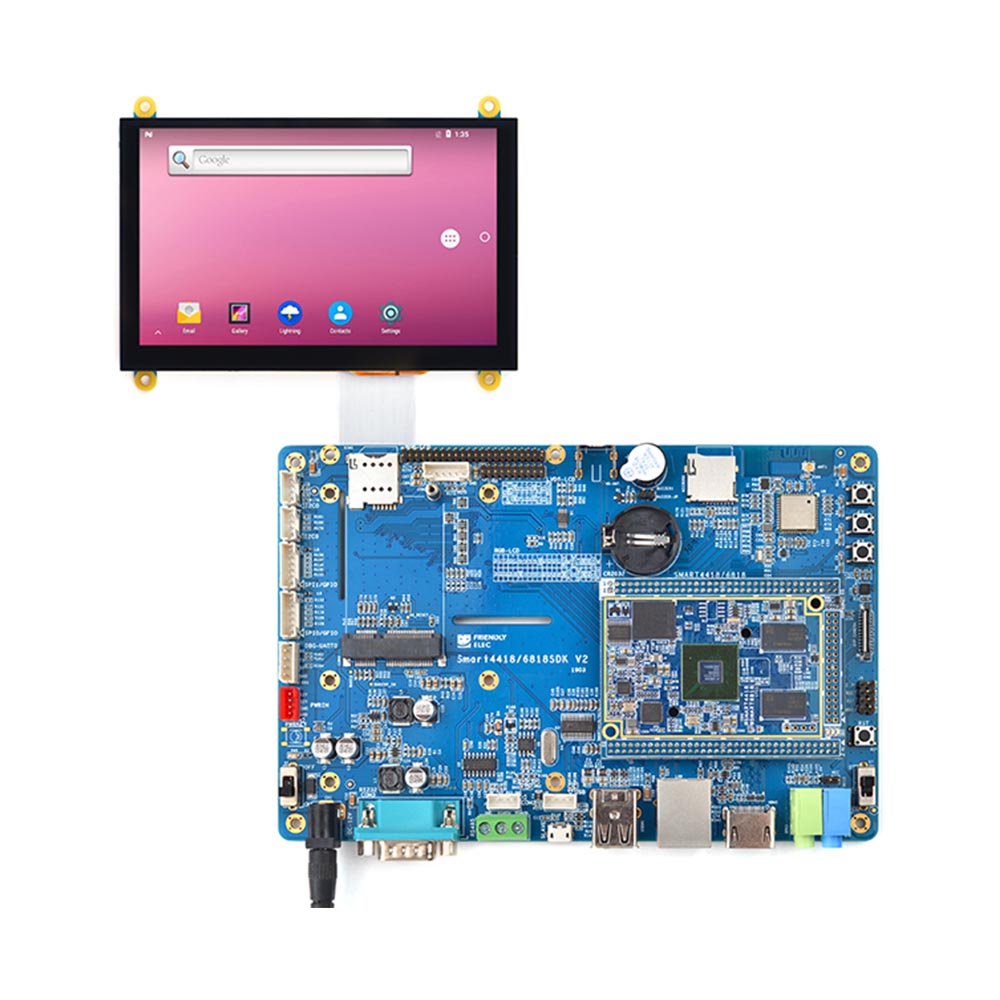

The W500 5″ LCD Display Module by Friendly Elec is a compact TFT LCD with capacitive touch panel designed for embedded systems, HMI interfaces, and development boards running Android or Linux.

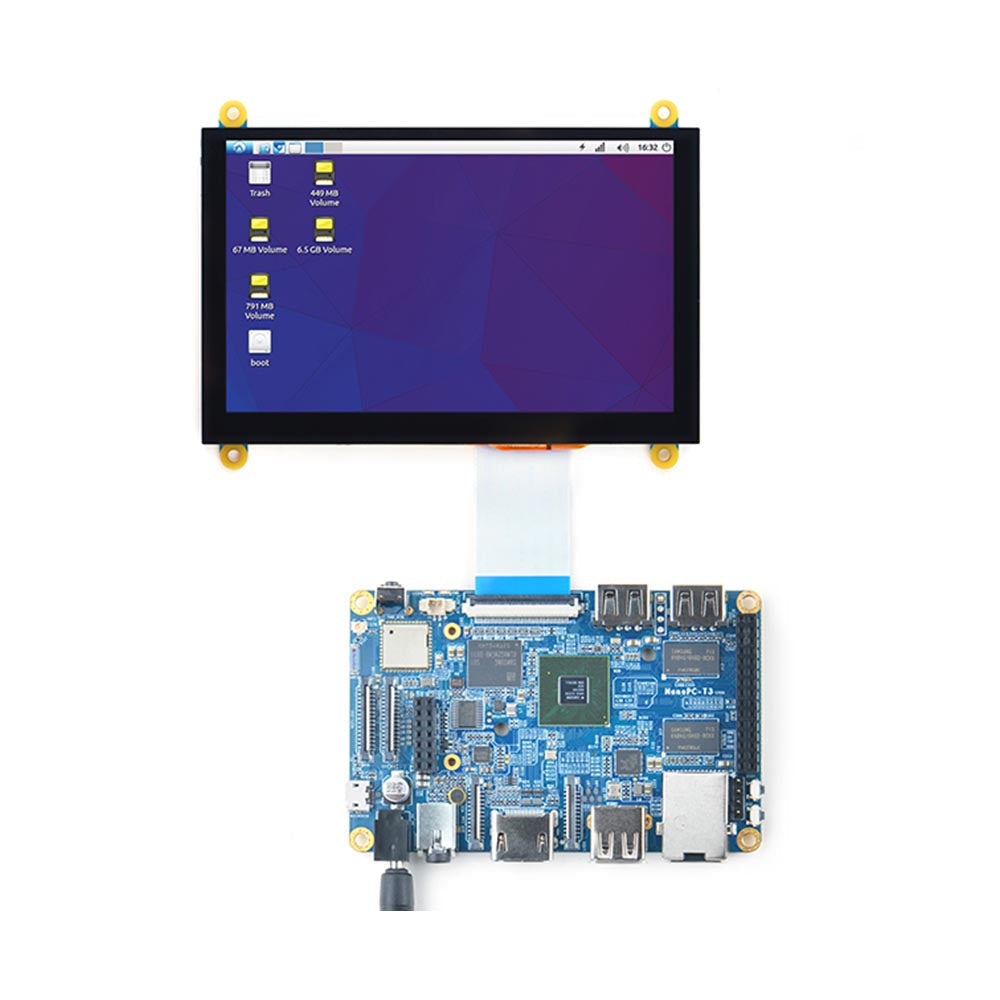

With a native resolution of 800 × 480 and a 24-bit RGB interface, the W500 delivers clear visuals while maintaining simple integration with a wide range of FriendlyELEC ARM-based boards.

✔ 5″ TFT LCD • 800×480 Resolution
✔ Five-Point Capacitive Touch Panel

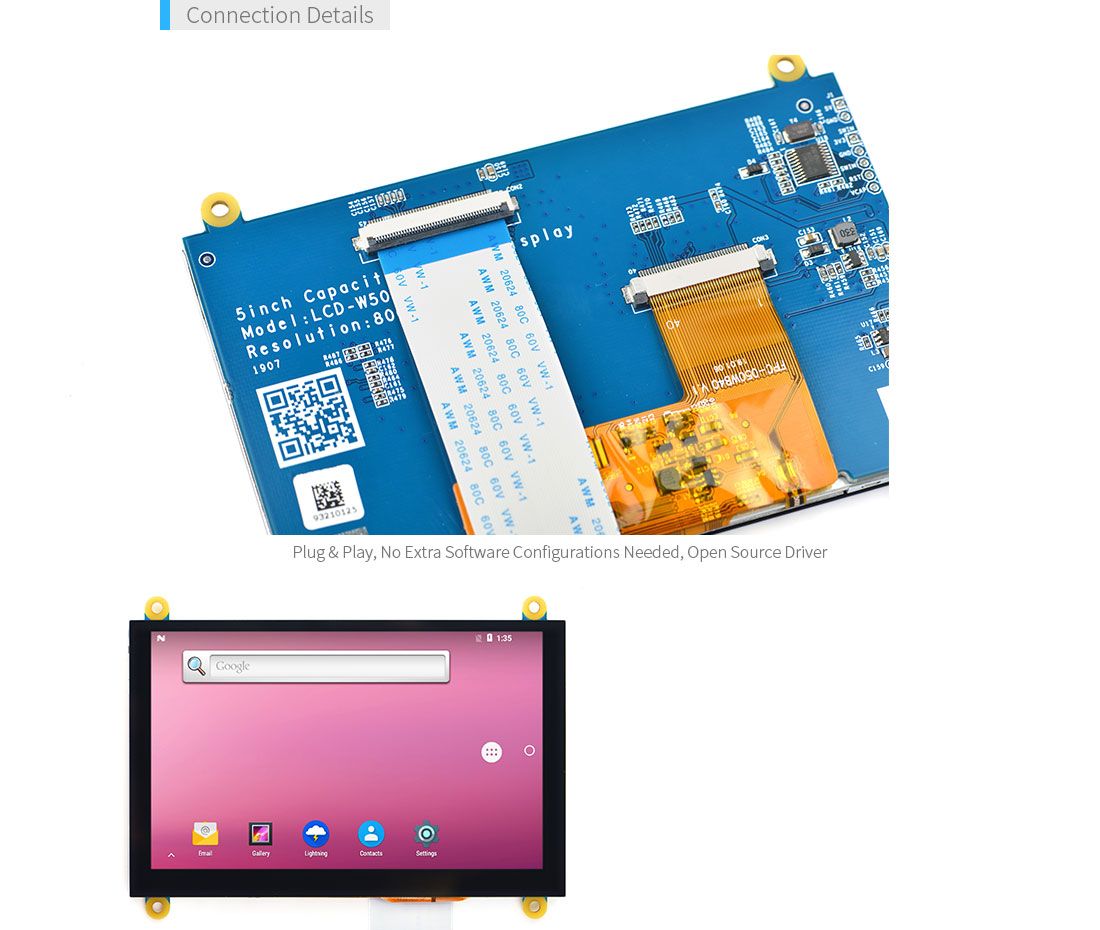

✔ Open-Source Driver • Android & Linux Support

Display Specifications

5-inch TFT LCD panel
Resolution: 800 × 480
Technology: TFT

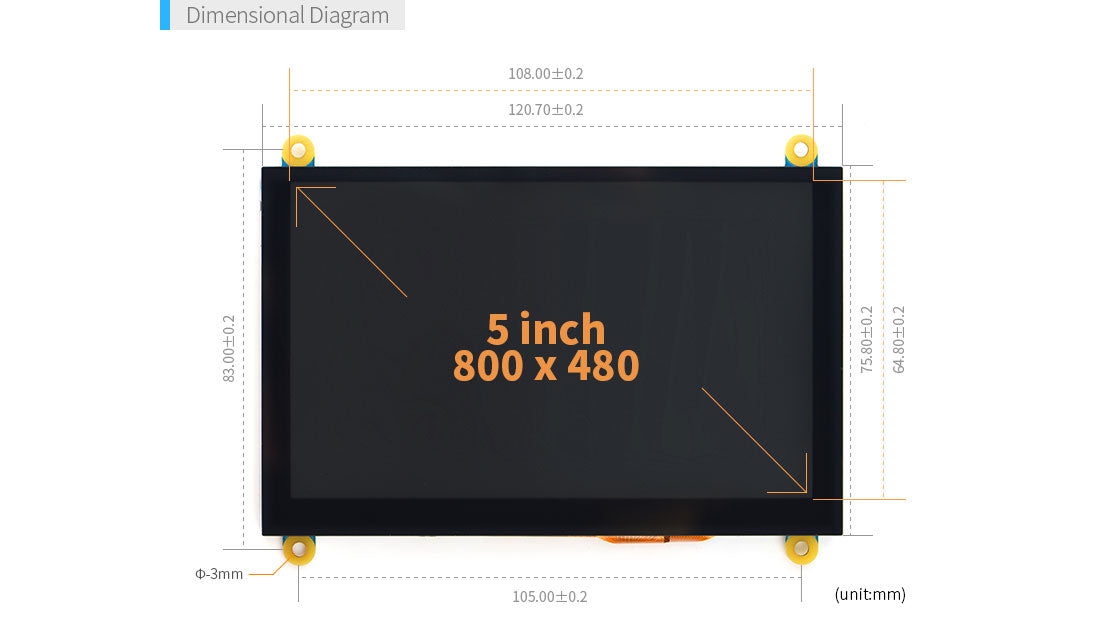

Display area: 108.0 × 64.8 mm

Touch & Interface

Five-point capacitive touch

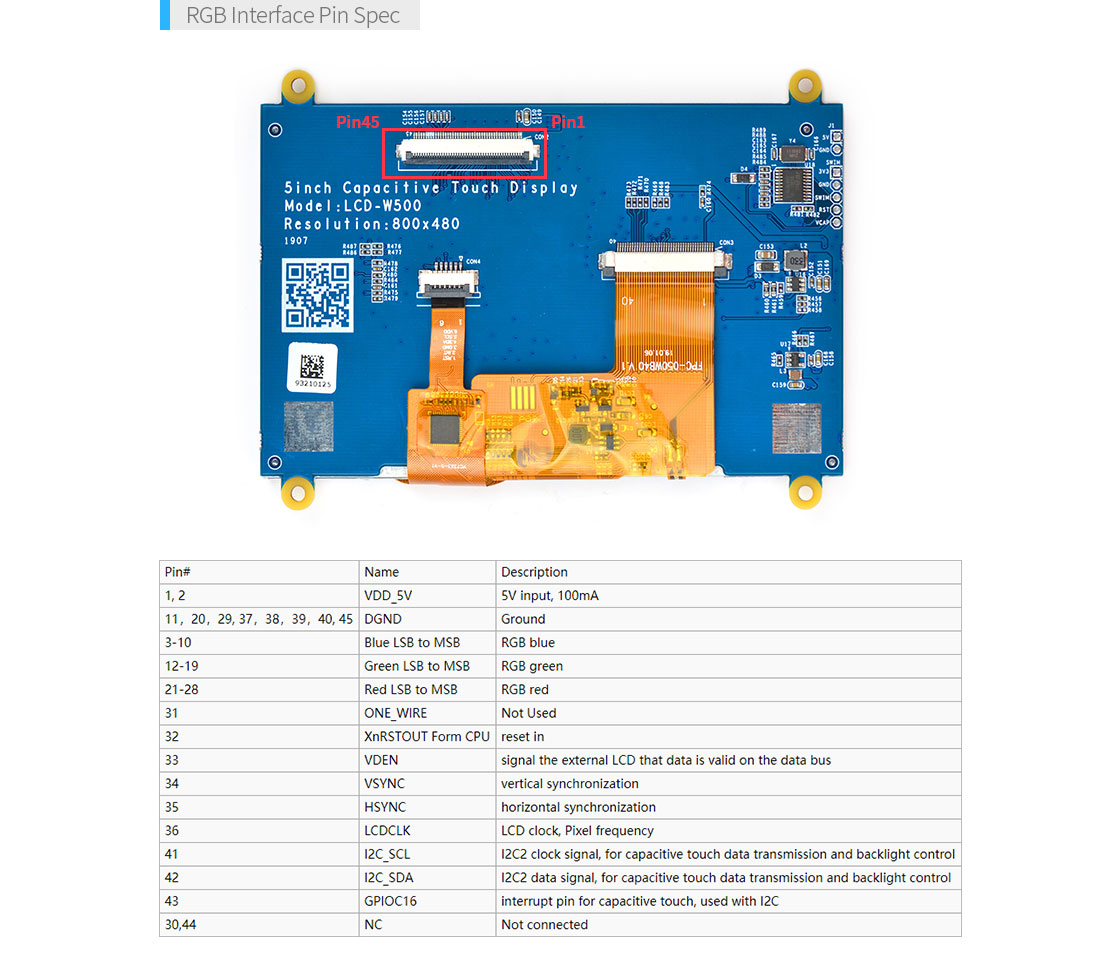

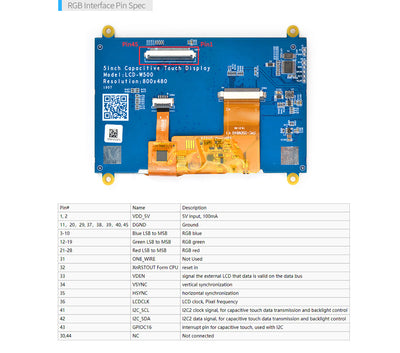

24-bit RGB interface
Backlight adjustable via I2C

Power & Environment

Operating voltage: 3.3V
Operating temp: −20 °C to +70 °C
Storage temp: −30 °C to +80 °C

Mechanical & Compatibility

Touch panel size: 120.7 × 75.8 × 4.75 mm
Backlight: 12 white LEDs
Weight: approx. 463 g

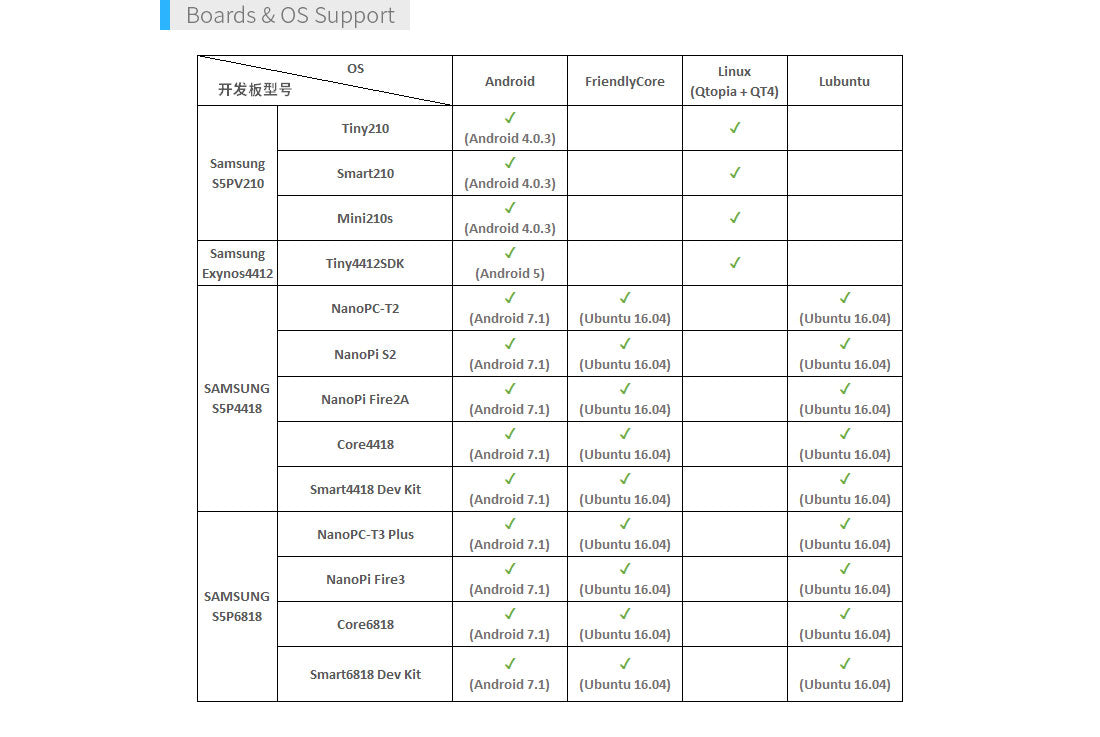

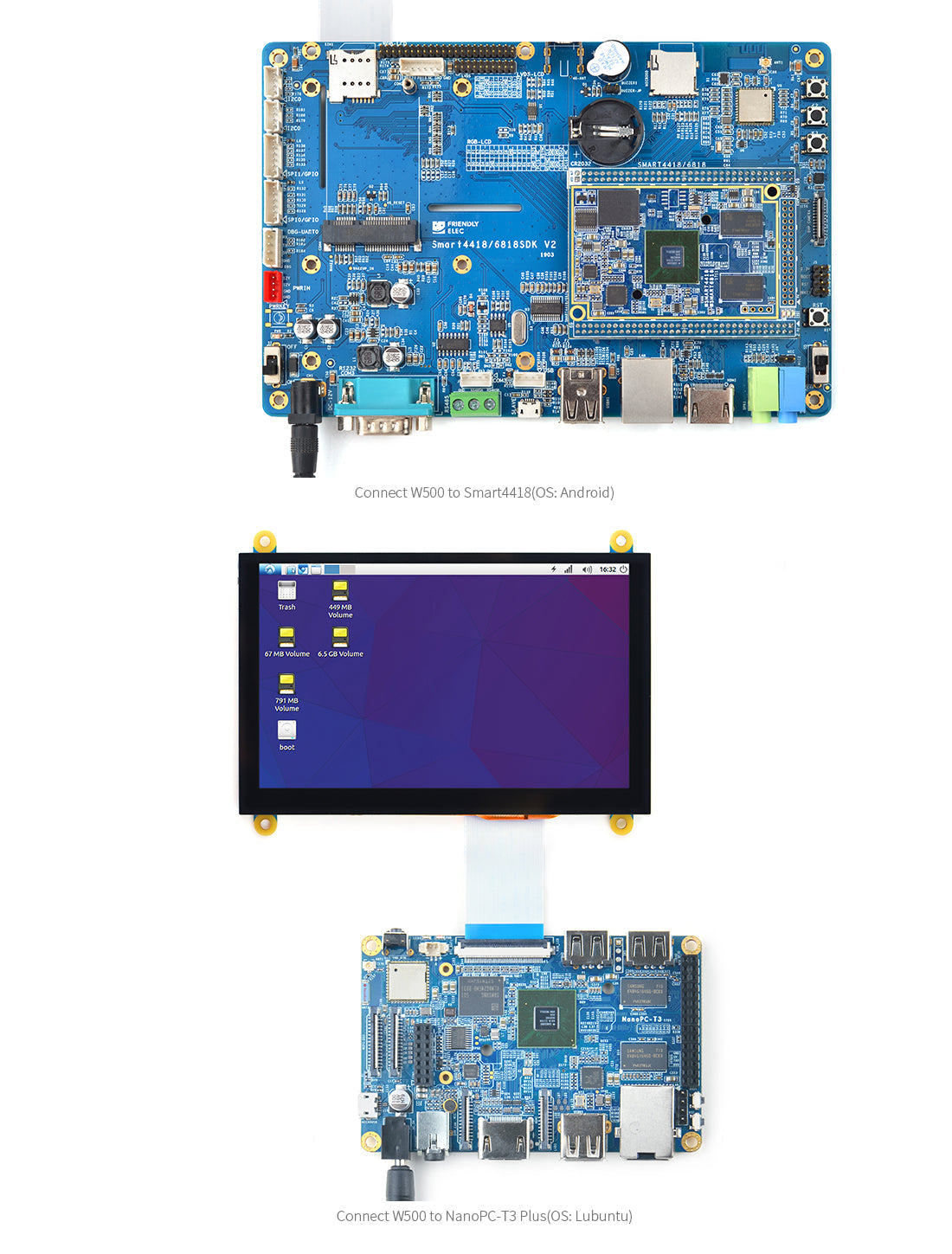

Compatible with FriendlyELEC 4412 / 210 / 4418 / 6818 boards

The W500 is well suited for embedded HMIs, control panels, industrial displays, and development platforms where open-source drivers and long-term software support are required.

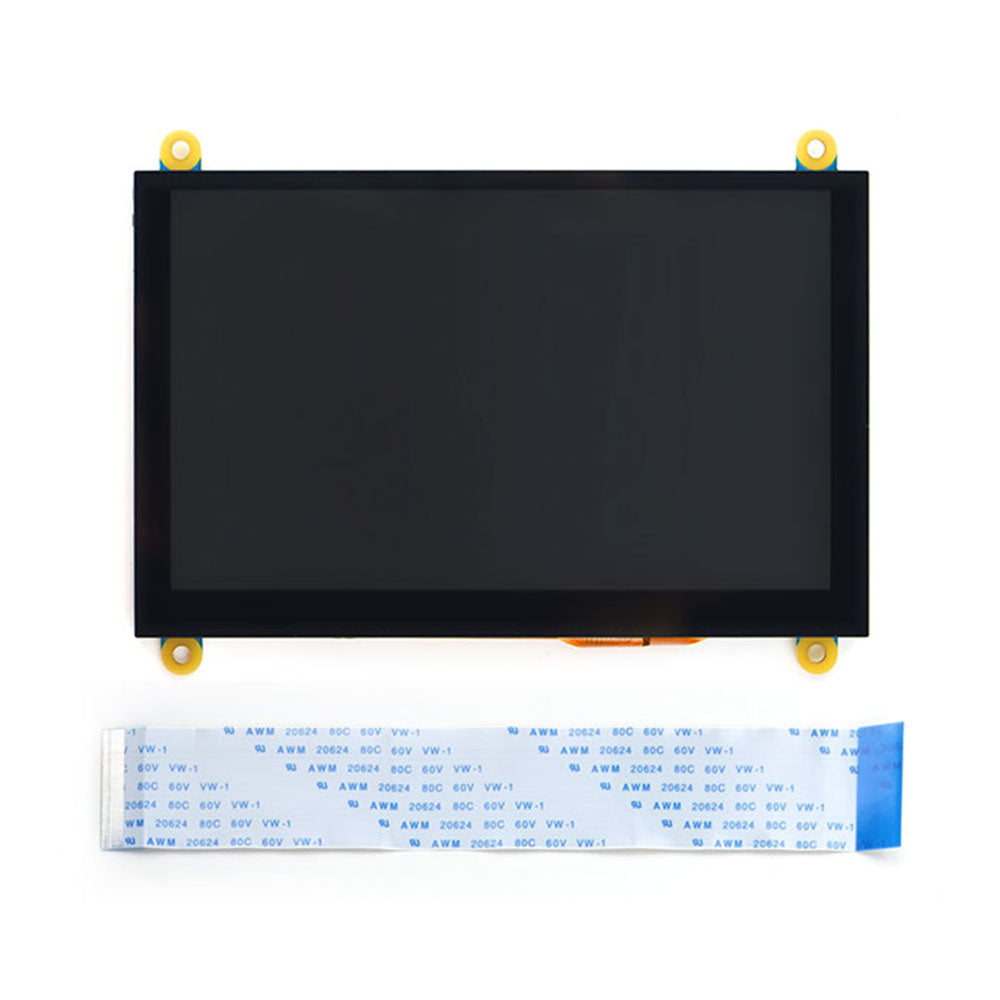

This product is a display module only. Host boards, cables, and mounting accessories are not included unless stated otherwise.
