S701 7″ Capacitive Touch LCD | 800×480 | RGB Interface | Five-Point Touch

$53.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

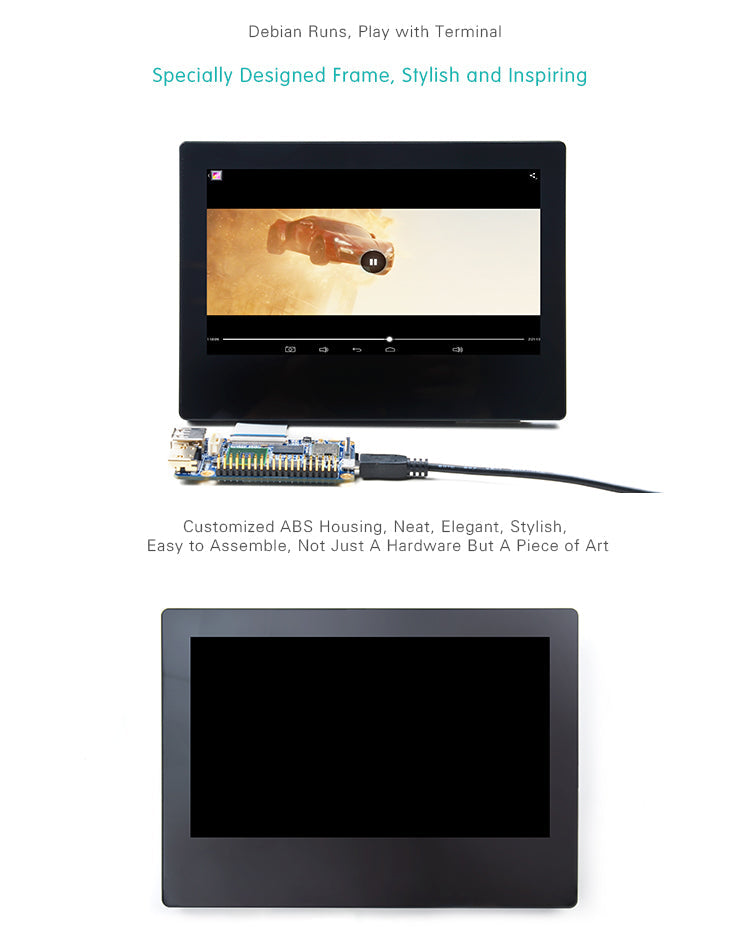

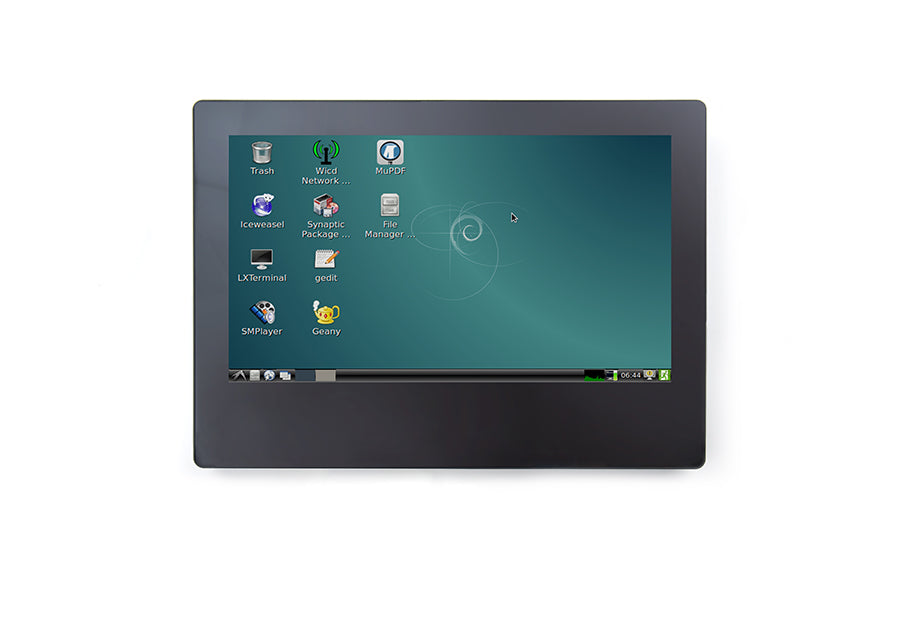

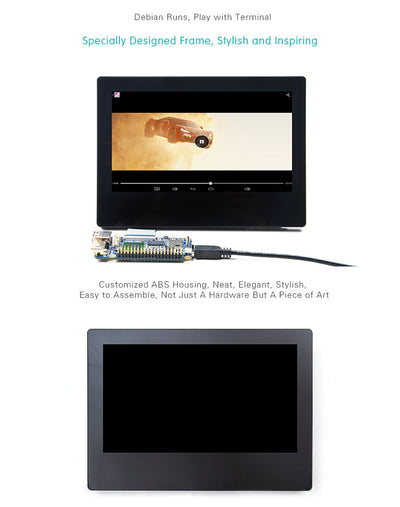

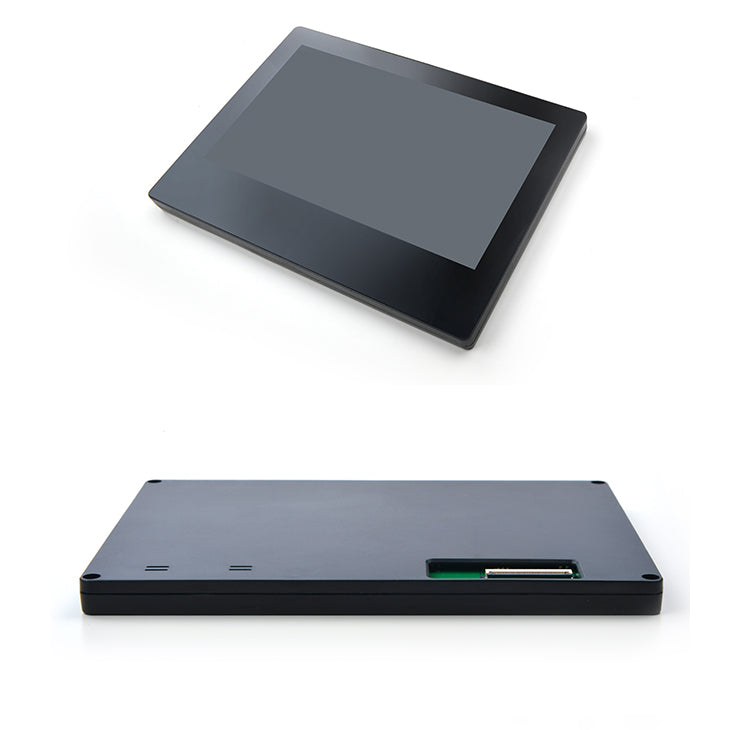

The S701 7″ Capacitive Touch LCD is a compact full-color TFT display module designed for embedded multimedia, HMI applications, and development platforms such as FriendlyELEC NanoPi.

With its 800 × 480 resolution and five-point capacitive touch panel, the S701 delivers a smooth, tablet-like user experience suitable for video playback, UI navigation, and interactive control interfaces.

✔ 7″ TFT LCD • 800×480 Resolution
✔ Five-Point Capacitive Touch
✔ RGB Interface • LED Backlight

Display Specifications

Screen size: 7 inches
Resolution: 800 × 480
Panel type: TFT full color
Backlight: LED

Touch & Optics

Five-point capacitive touch panel
Dot pitch: 0.0642 × 0.1790 mm
Active area: 154.08 × 85.92 mm

Interface & Power

RGB display interface
Supply voltage: 5V

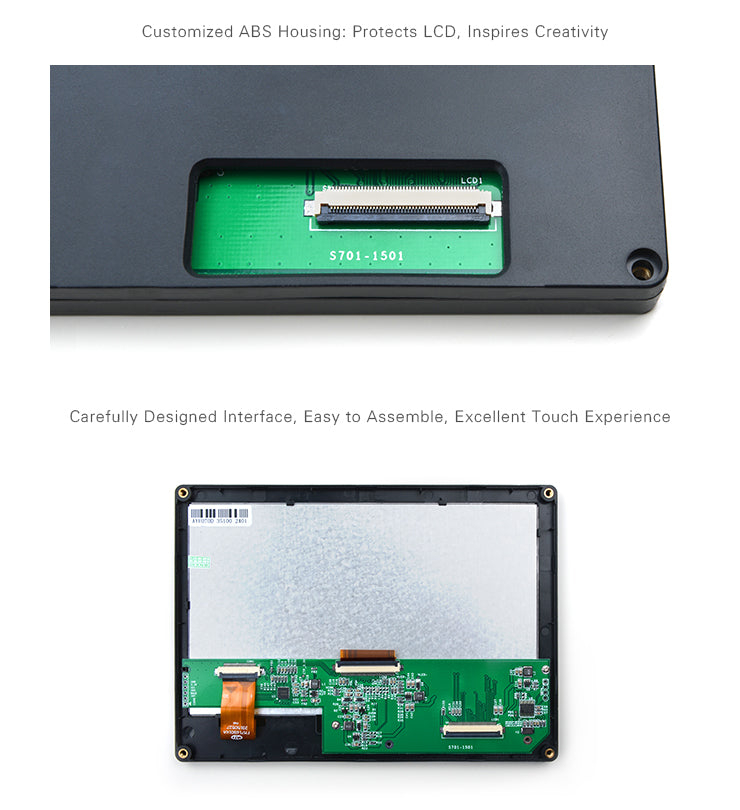

Slim module design

Mechanical Design & Use Cases

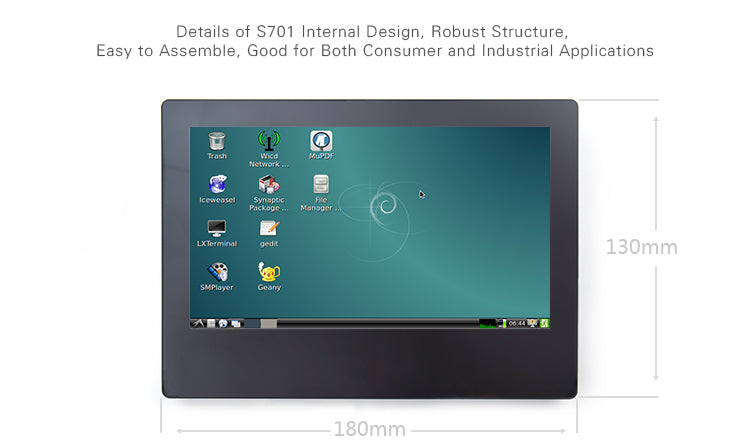

Module dimensions: 164.9 × 100.0 × 5.7 mm
Designed for handheld and panel-mounted applications
Ideal for HMIs, media panels, dashboards, and embedded tablets

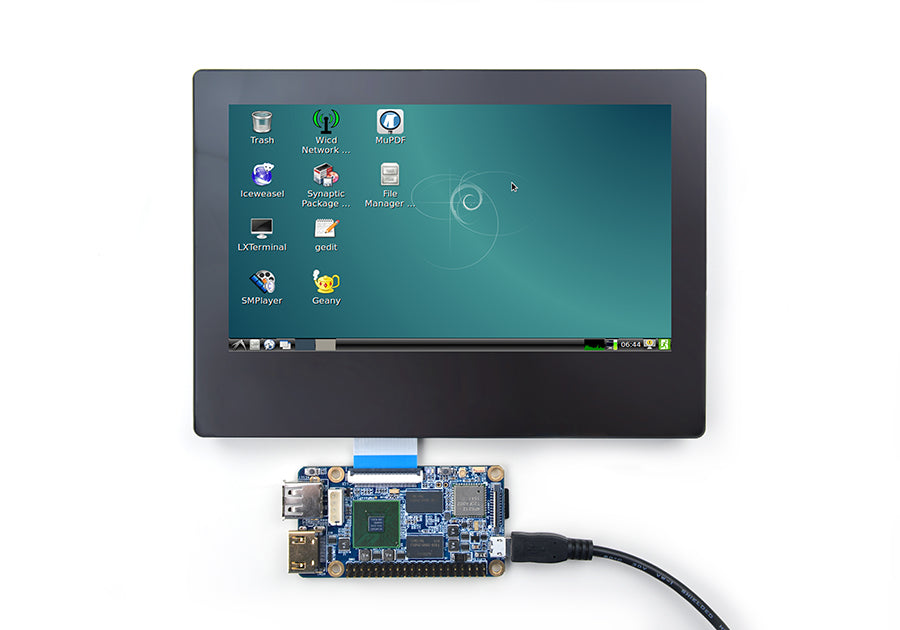

The S701 pairs well with NanoPi-based Cortex-A platforms, offering a responsive capacitive touch experience for UI-driven embedded systems.

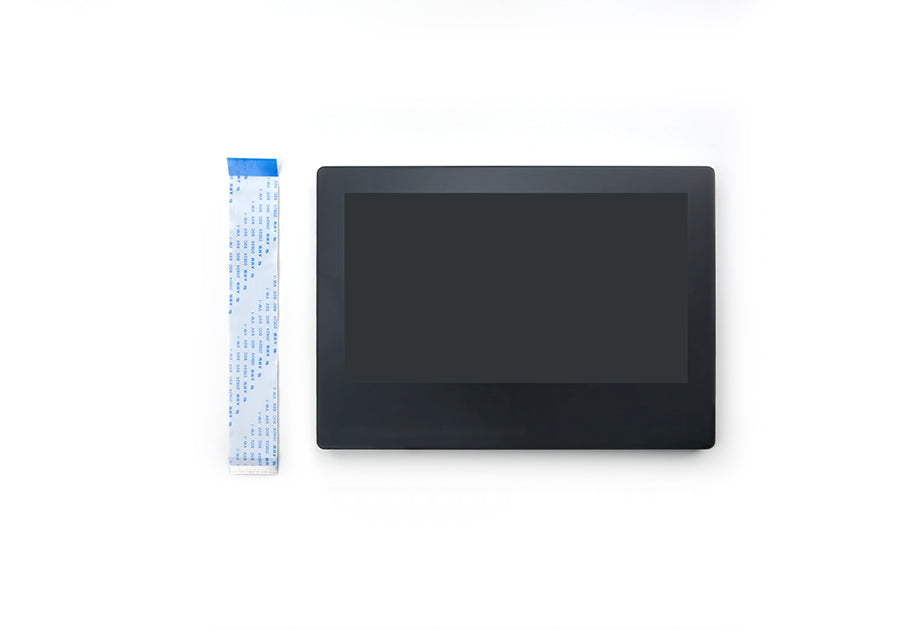

This product is supplied as a display module only. Host boards, RGB cables, and mounting accessories are not included unless specified.
