RV1109 Face Recognition Access Control Board | Triple Camera PoE | Fi-1109

$62.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

RV1109 Face Recognition Access Control Board 1GB RAM 8GB eMMC Fi-1109



Fi-1109 is a compact and efficient face recognition board built on the Rockchip RV1109 dual-core processor. Designed for low-power smart vision systems, it features a built-in 1.2 TOPS NPU and supports up to 3 cameras for enhanced facial recognition capabilities.

With 1080p MIPI display output, integrated Wi-Fi/Bluetooth, and full access control interfaces, it is ideal for cost-effective facial recognition terminals, intercom systems, and intelligent gates.

Key Features:

  • Processor: Rockchip RV1109, dual-core Cortex-A7, up to 1.5GHz

  • AI Capability: Built-in NPU with 1.2 TOPS performance

  • Display Support: MIPI interface, up to 1920×1200 resolution

  • Camera Support: Up to 3 camera modules

  • Connectivity:

    • 4 × USB 2.0 (1 external, 3 internal)

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

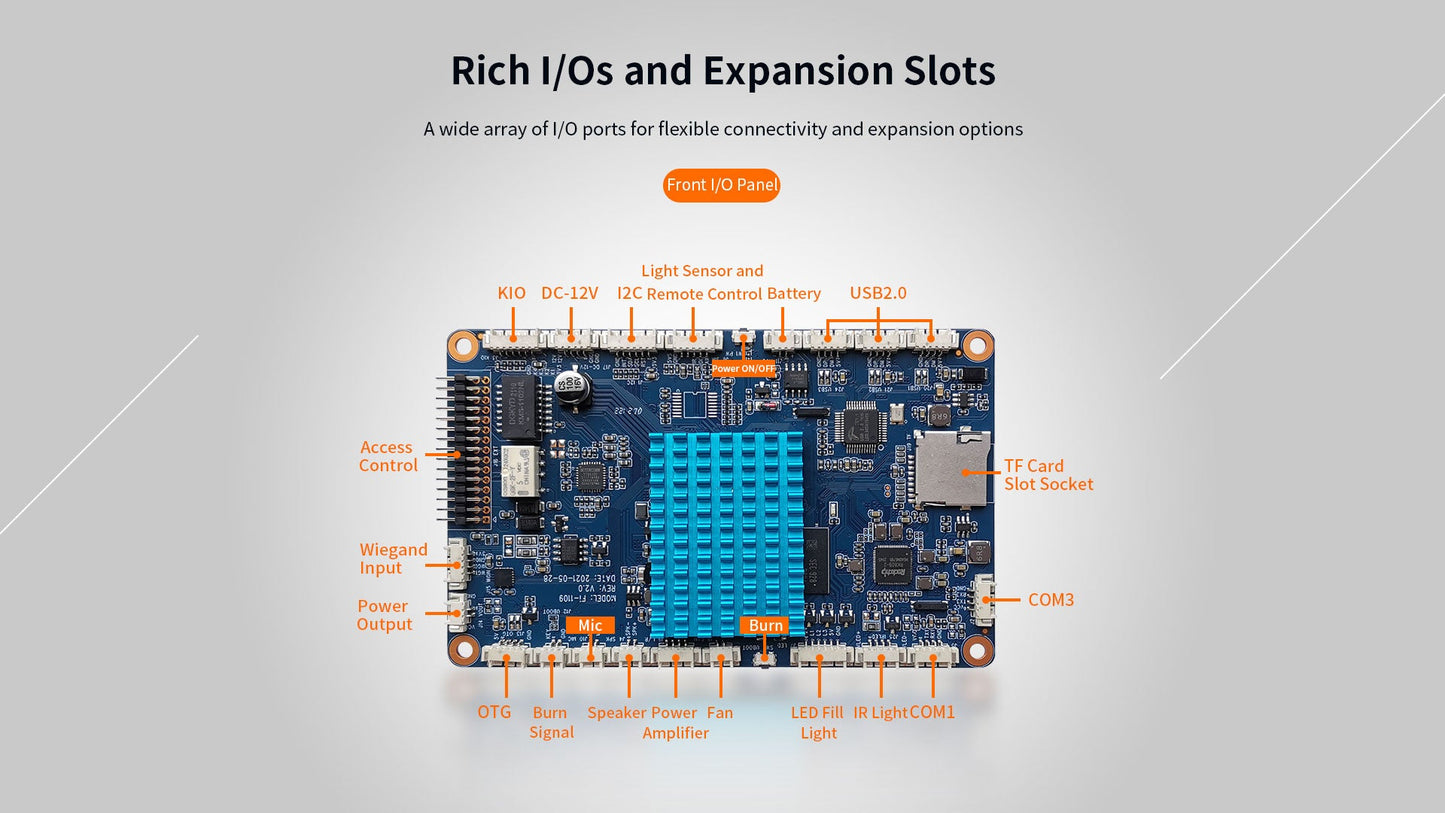

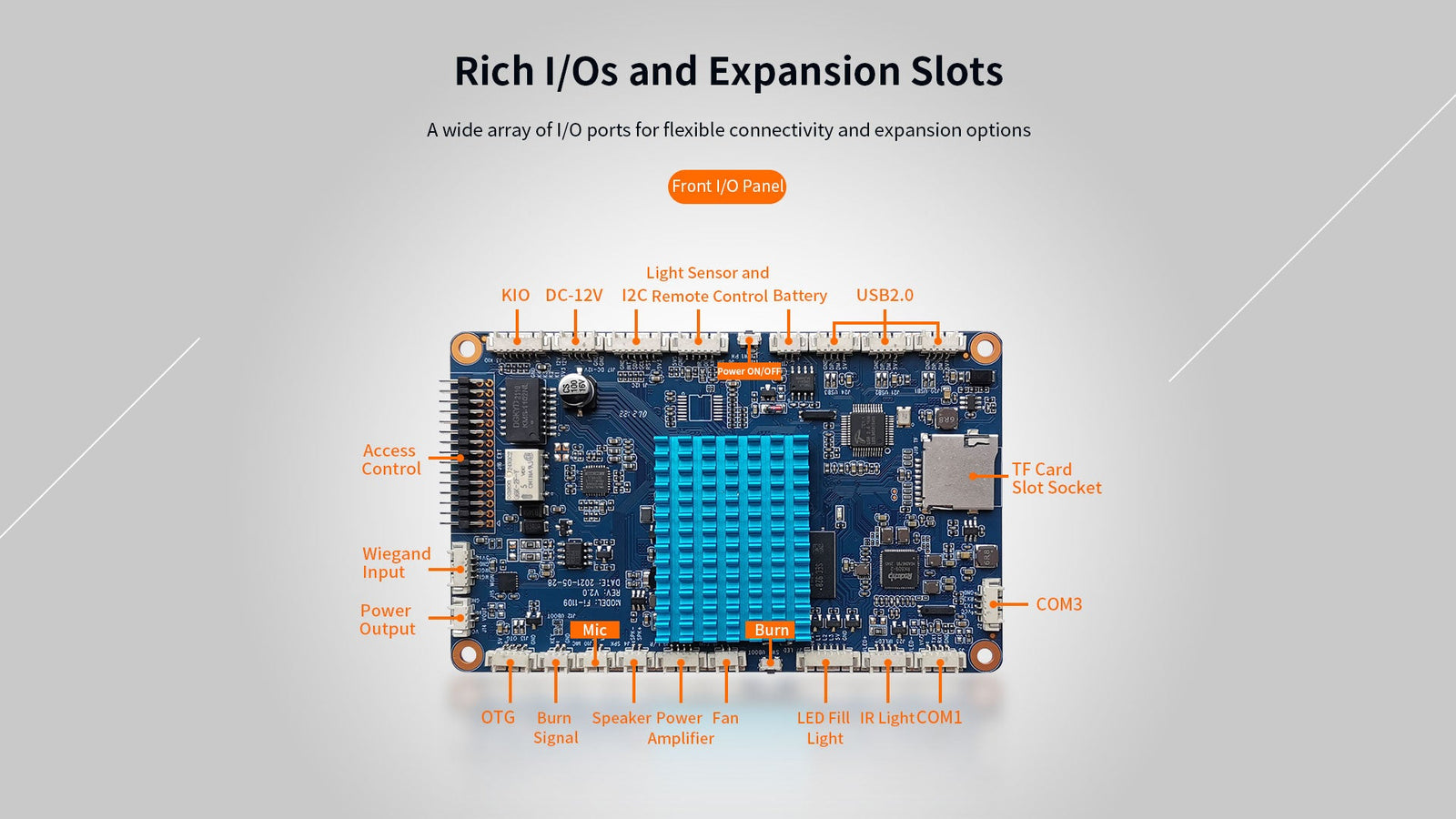

  • I/O Interfaces: RS-232, RS-485, Wiegand, relay control

  • Lighting Control: Fill light and indicator interface

  • Memory & Storage: Default 1GB RAM, 8GB eMMC (supports up to 2GB/128GB)

  • Power Supply: 9V–15V wide voltage DC input

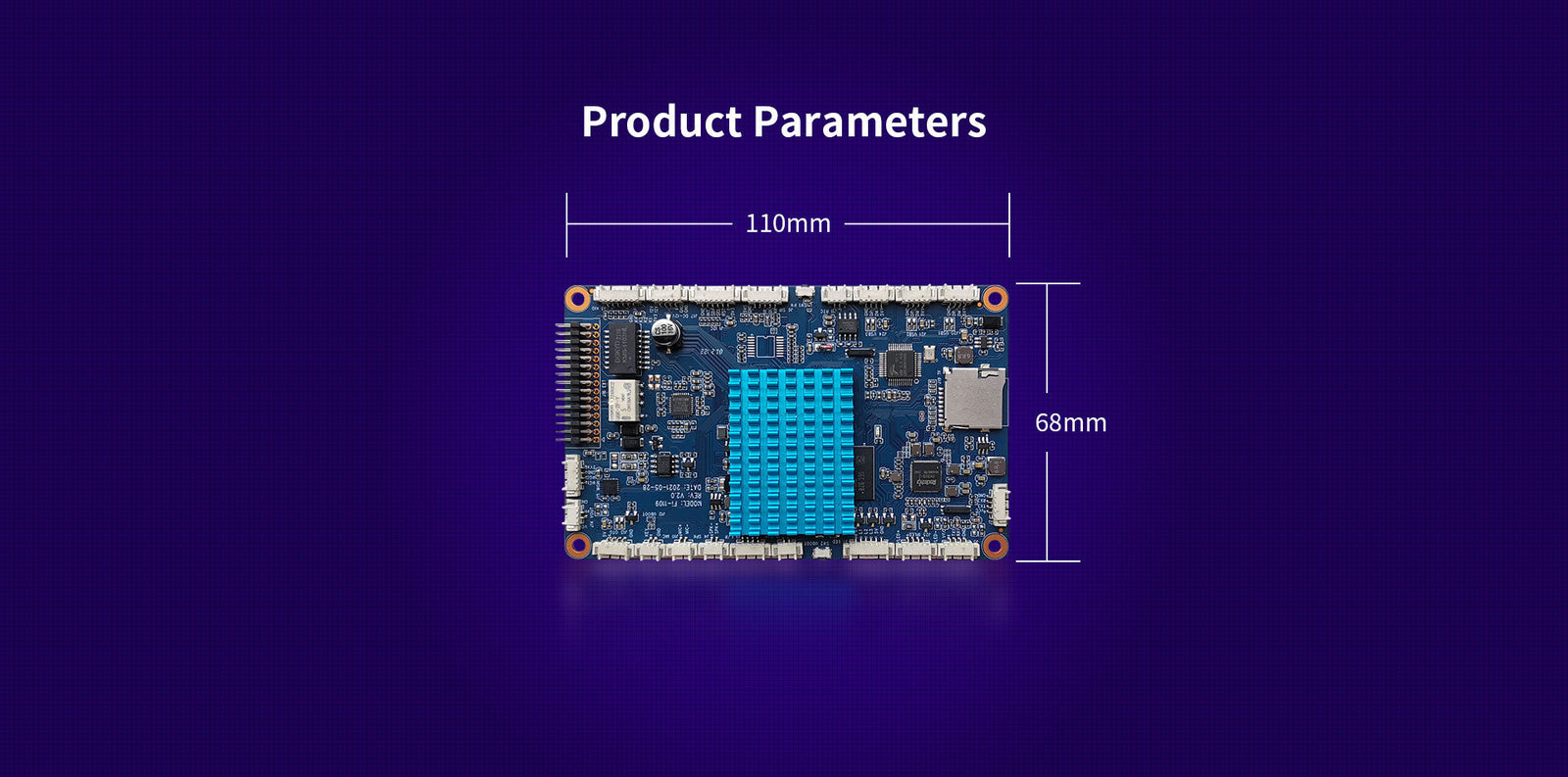

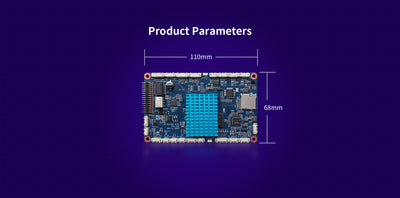

  • Form Factor: 110mm × 68mm

Technical specifications are loading…
