RK3568 Smart HMI Android Motherboard | SATA RS232 | H-3568

$87.00

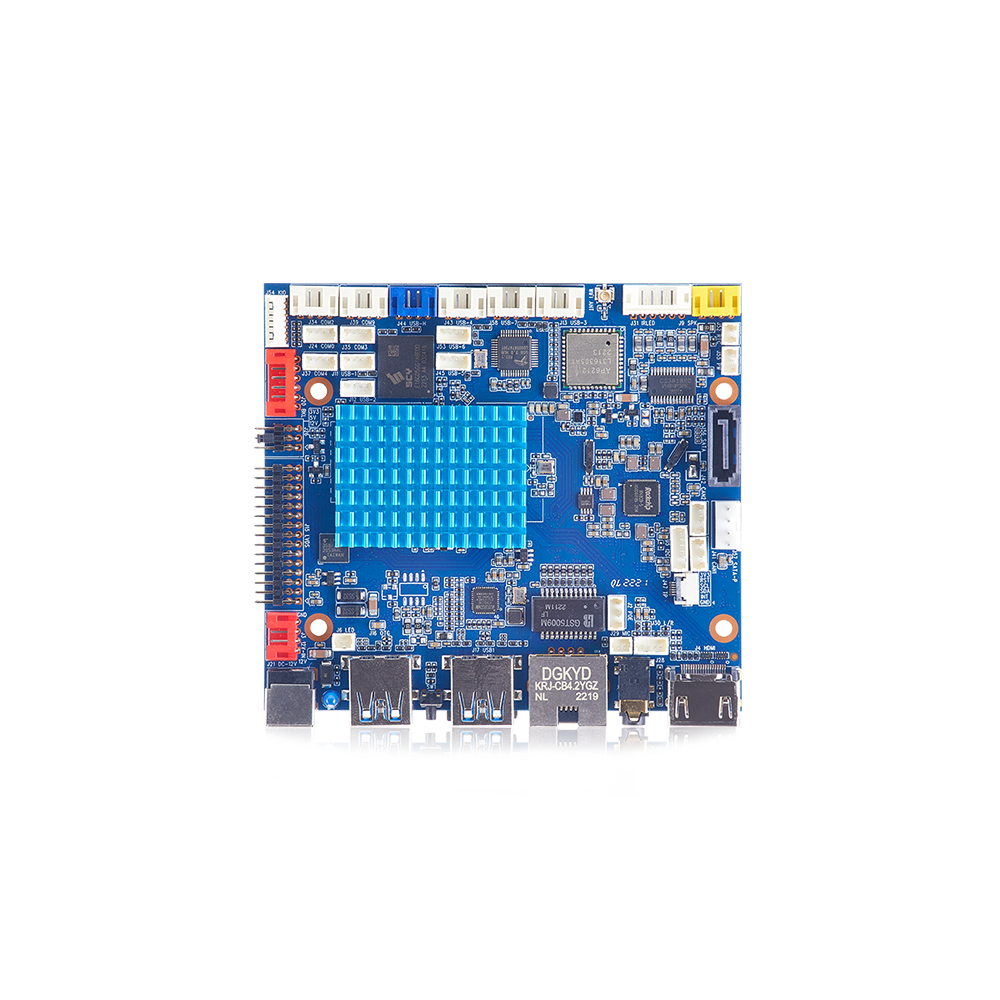

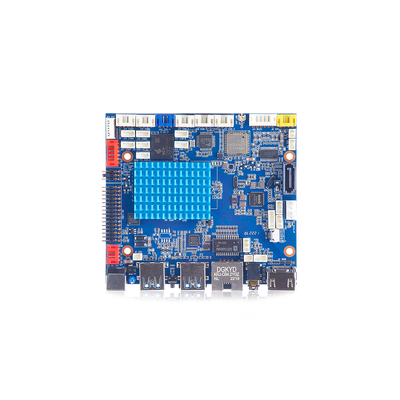

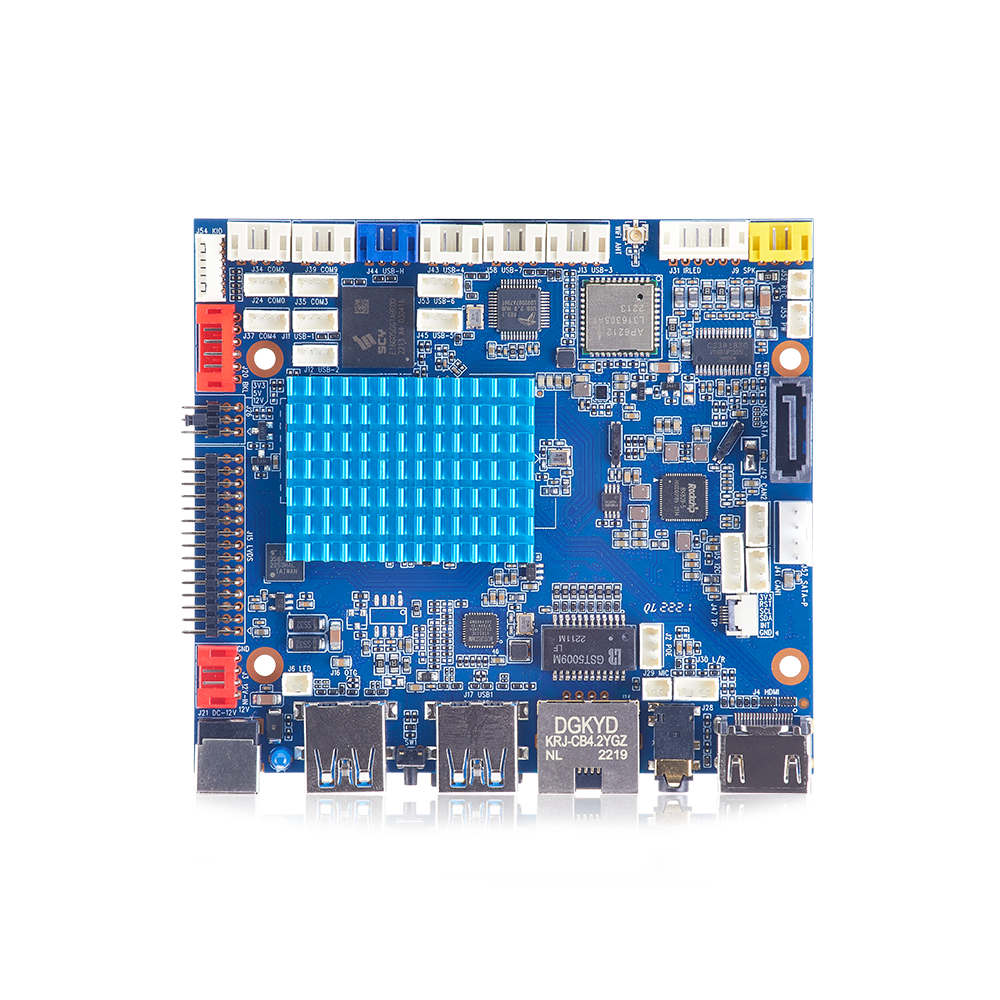

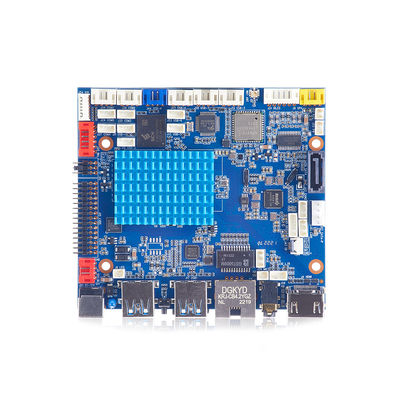

RK3568 Smart HMI Motherboard 2GB RAM 8GB eMMC H-3568

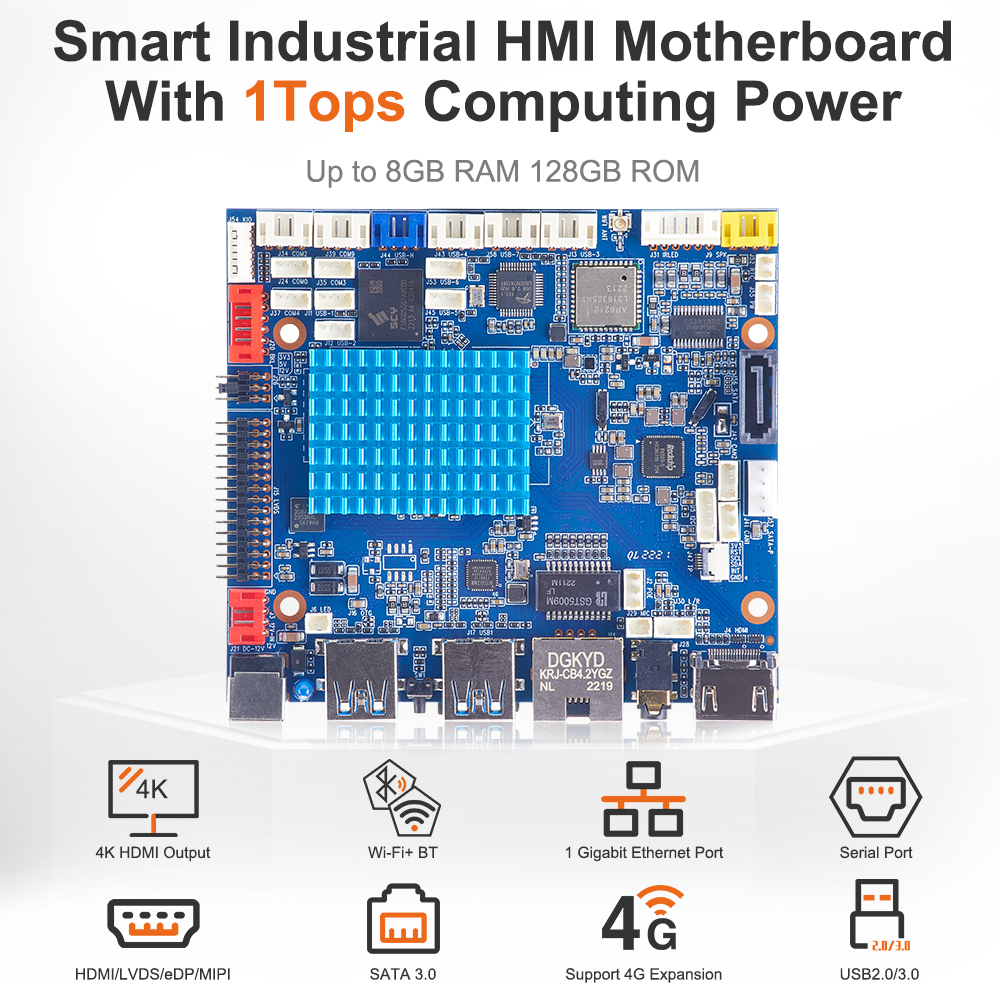

H-3568 is a next-generation Smart HMI motherboard built around the Rockchip RK3568 quad-core processor. With support for CAN interfaces, SATA, and 4K display, this board is ideal for industrial-grade touch terminals, smart panels, and AI-driven HMI applications.

Rich serial and USB interfaces, along with built-in NPU and POE support, make it an all-in-one choice for embedded edge solutions.

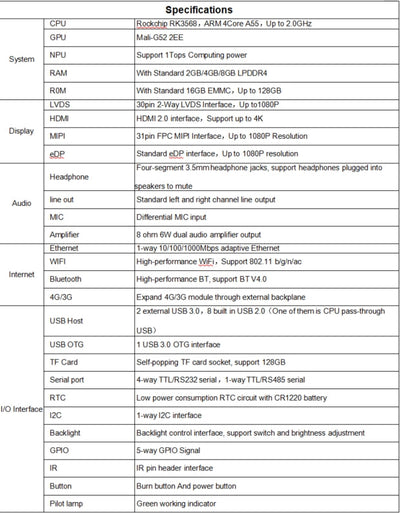

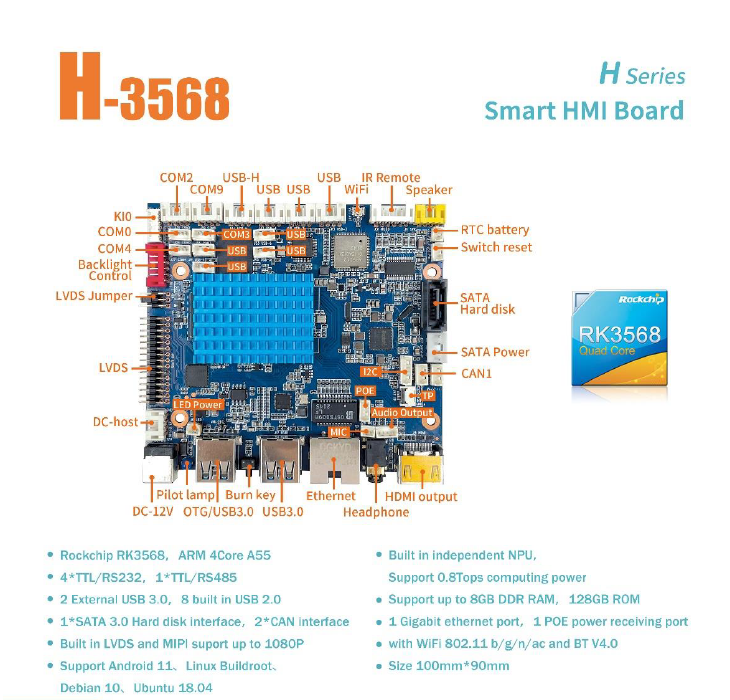

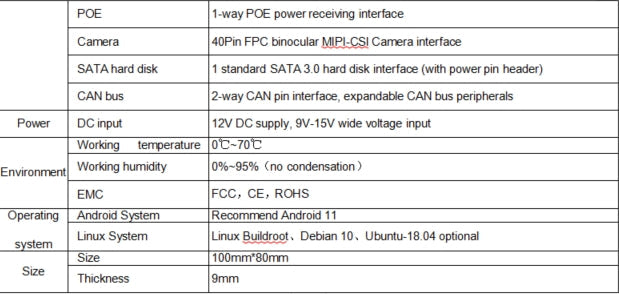

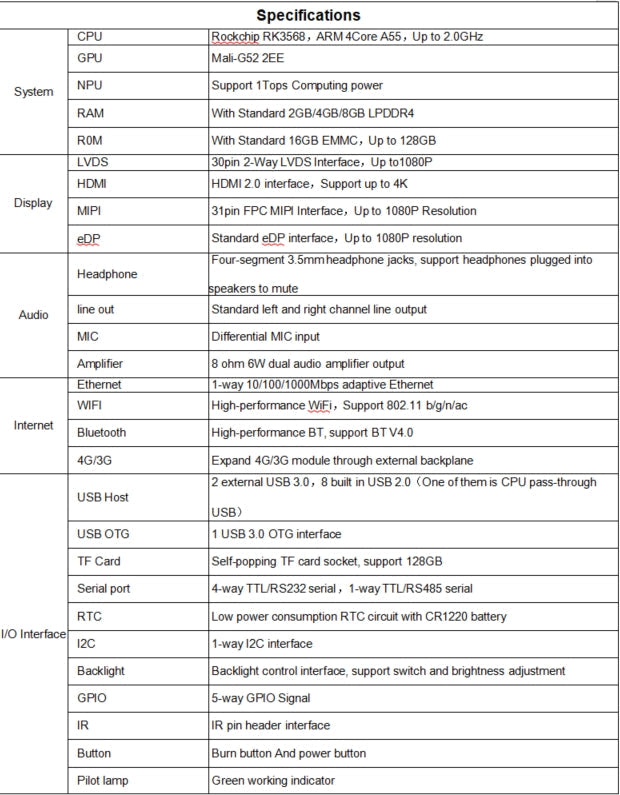

Key Features:

  • Processor: Rockchip RK3568, ARM quad-core Cortex-A55

  • AI Capability: Built-in NPU with 1 TOPS performance

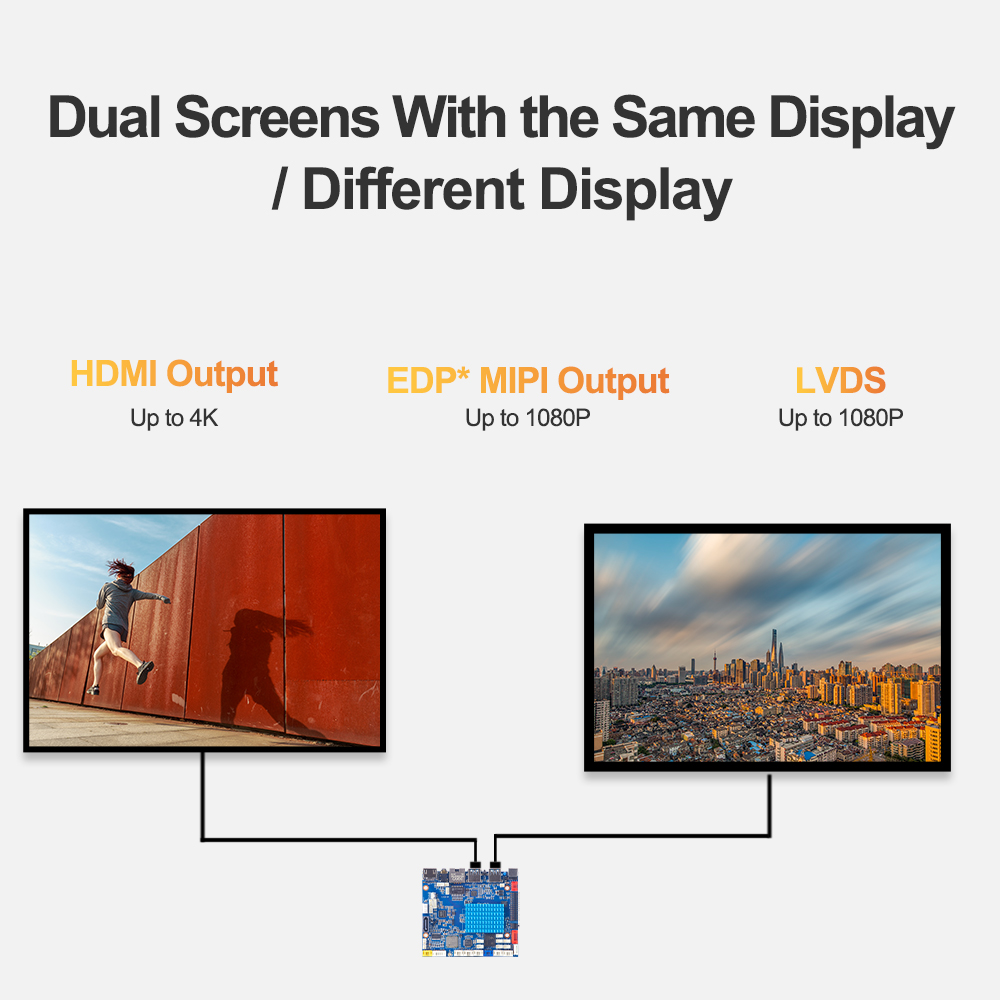

  • Display Support: HDMI, MIPI, LVDS (up to 1080p)

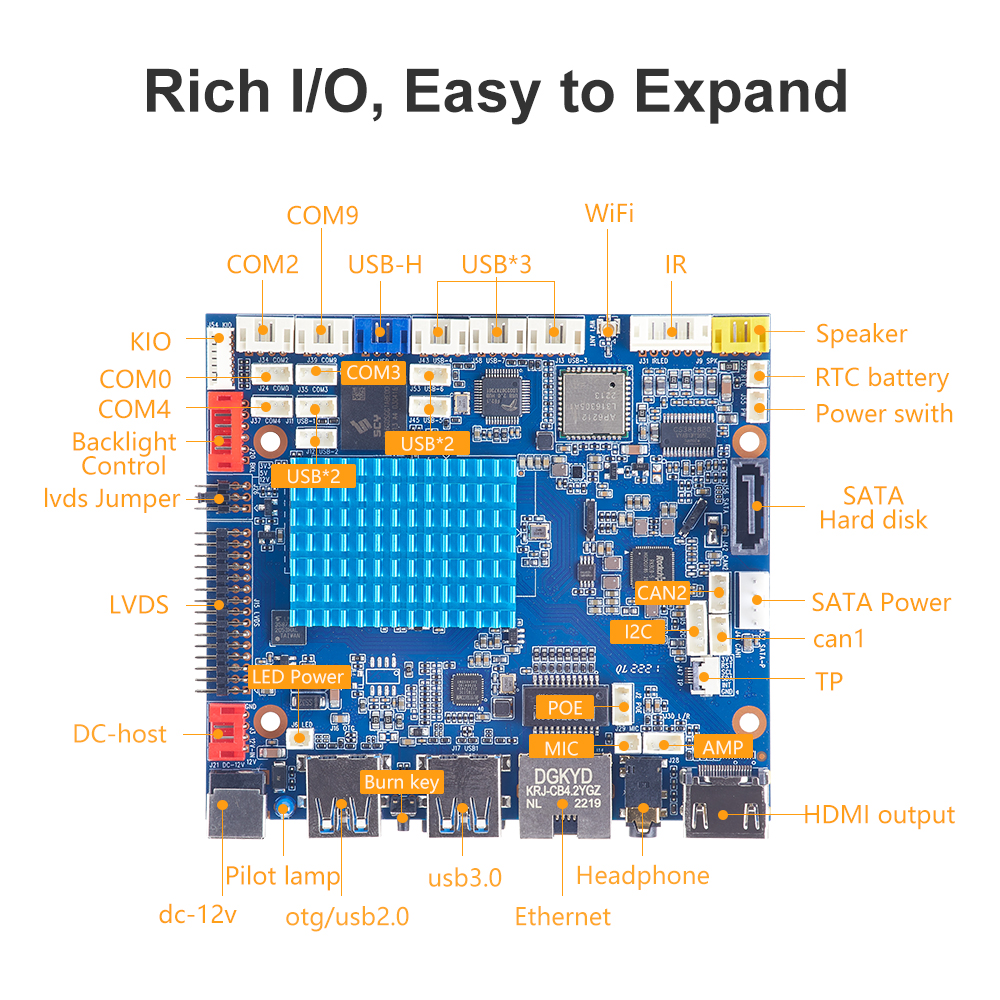

  • Connectivity:

    • 2 × USB 3.0 (external), 8 × USB 2.0 (internal)

    • 1 × Gigabit Ethernet

    • 1 × POE-powered Ethernet port

    • Wi-Fi 802.11 b/g/n/ac

    • Bluetooth 4.0

  • Expansion:

    • 1 × SATA 3.0

    • 2 × CAN interfaces

  • Serial Ports: 4 × TTL/RS232, 1 × TTL/RS485

  • Memory & Storage: 2GB RAM, 8GB eMMC (supports up to 8GB/128GB)

  • Power Supply: 9V–15V wide voltage DC input

  • Form Factor: 100mm × 80mm
