RK3568 Industrial Android Development Board | Dual Gigabit CAN | D-3568

$101.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

RK3568S AIoT Development Board 2GB RAM 16GB eMMC D-3568

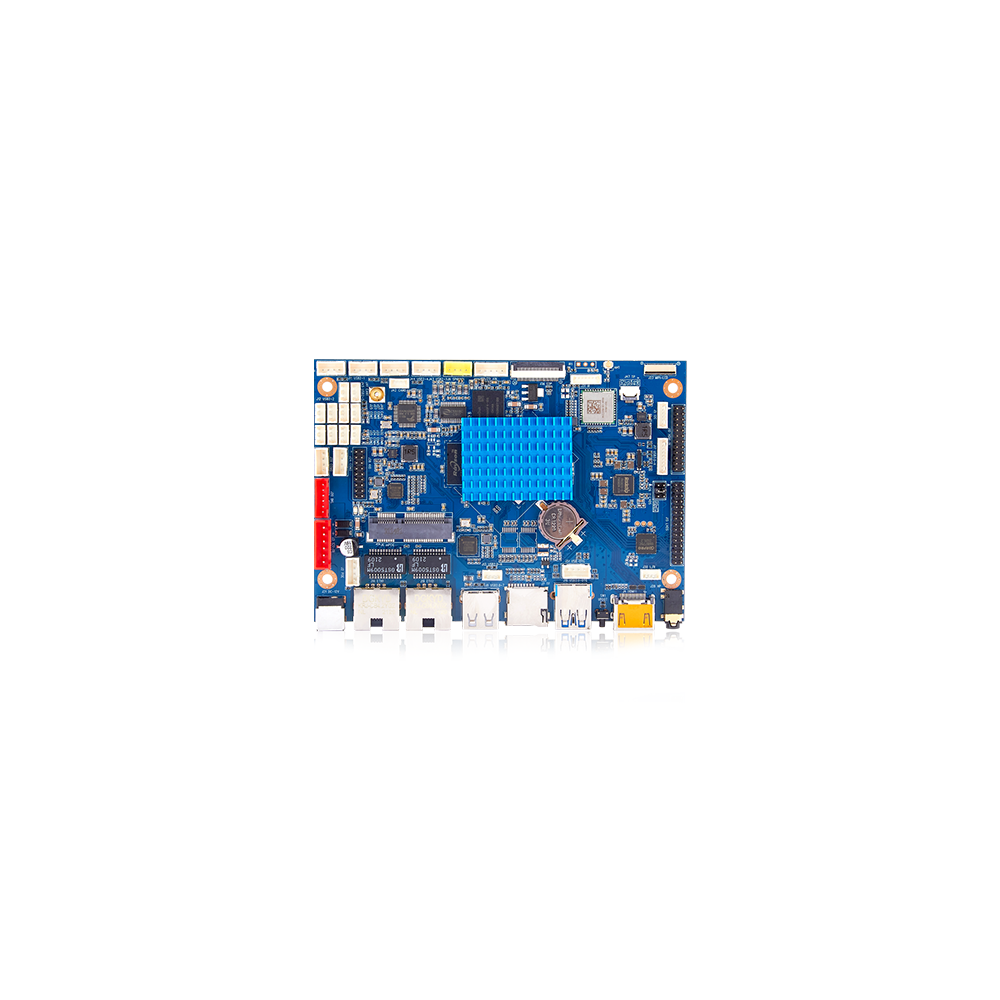

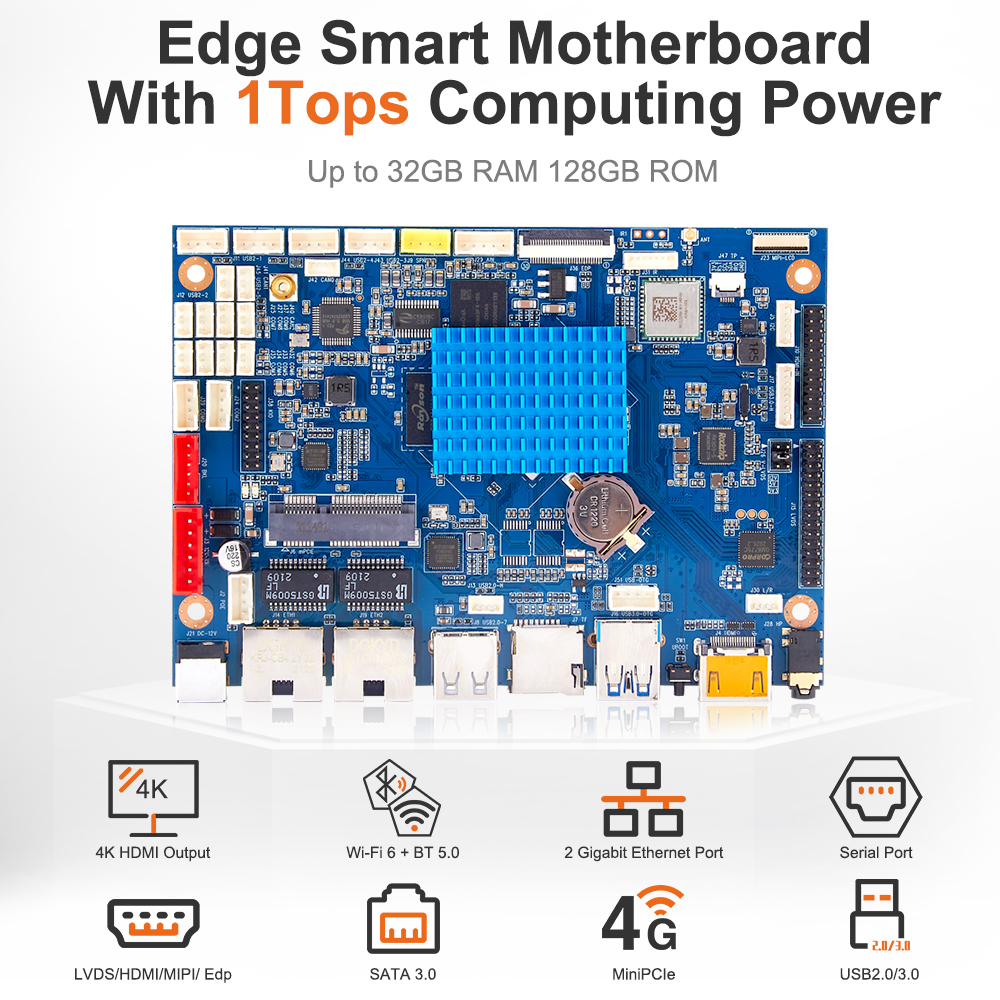

D-3568 is an advanced development board for AIoT and edge computing applications. Powered by the RK3568 quad-core processor and NPU, it includes dual 1000M Ethernet, CAN interfaces, Mini PCIe for 4G, and extensive USB and serial I/O, offering an ideal platform for industrial gateways, automation, and AI projects.

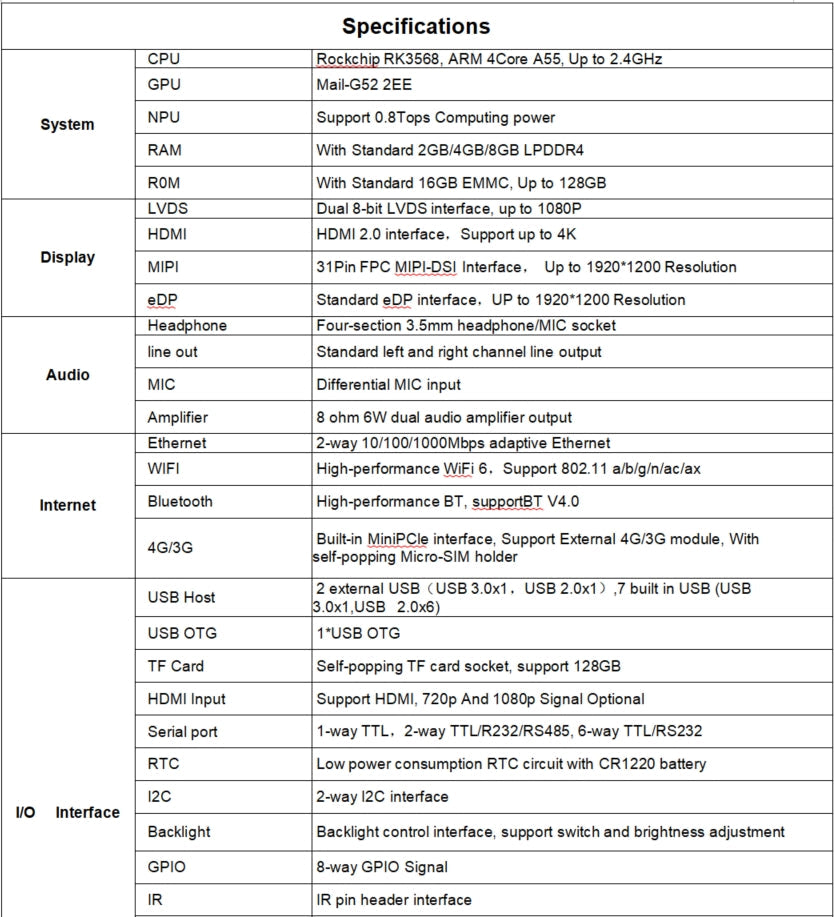

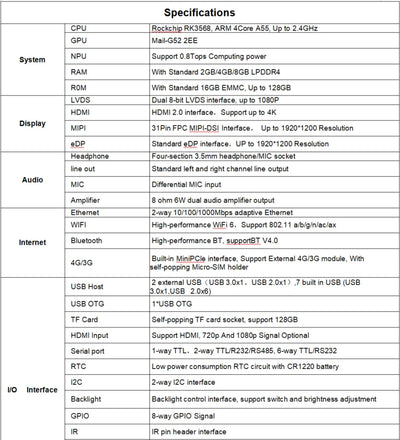

Key Features:

  • Processor: Rockchip RK3568, ARM quad-core Cortex-A55 CPU.
  • Memory: 2GB LPDDR4 RAM (expandable to 4GB or 8GB).
  • Storage: 16GB eMMC flash (expandable up to 128GB).

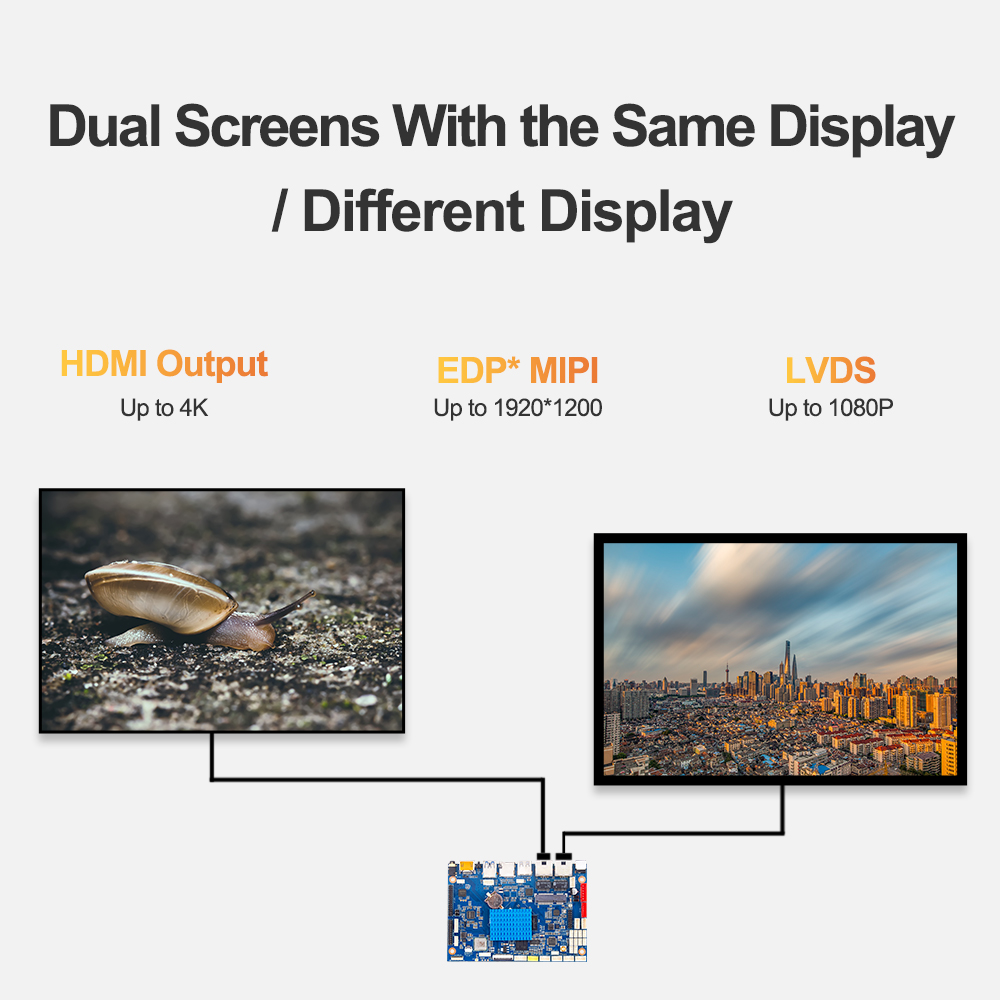

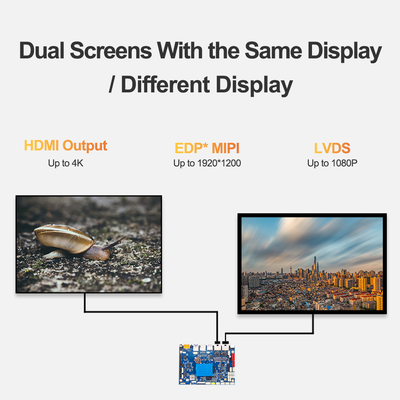

  • Display Support: HDMI output up to 4K resolution; built-in LVDS and EDP display support up to 1080P.
  • Networking: Supports Wi-Fi 6 and Bluetooth 5.0.

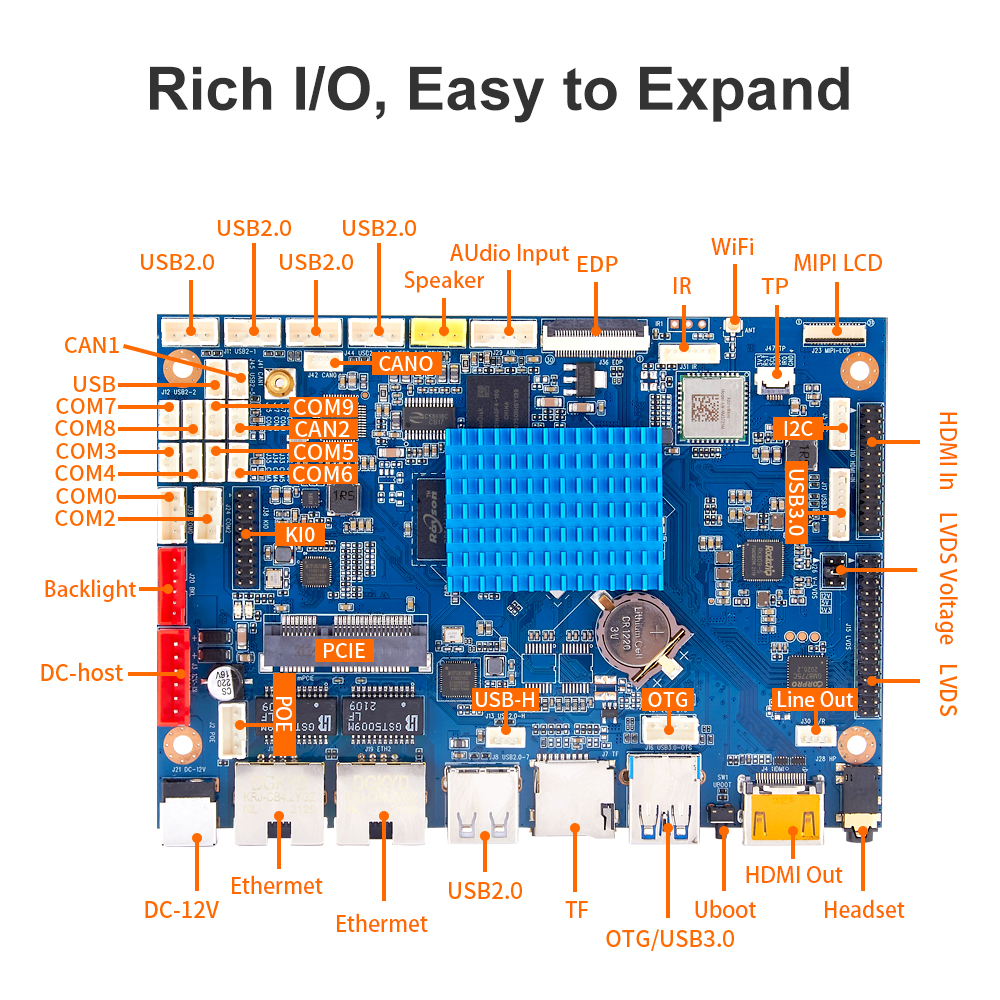

  • Interfaces: Multiple USB ports (8x USB 2.0, 1x USB 3.0), RS232, RS485, TTL serial ports, and Mini PCIe interface for 4G/5G modules.
  • Operating Systems: Compatible with Android 11 and various Linux distributions.

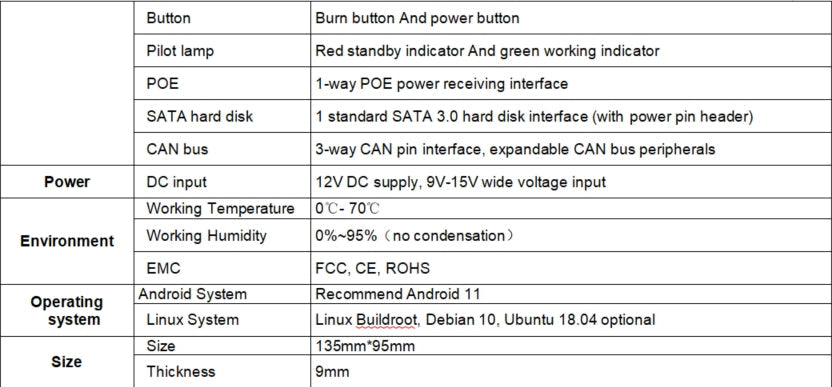

  • Power Supply: 12V DC input, with a range of 9V to 15V.
  • Connectivity:

    • 8 × USB 2.0, 1 × USB 3.0

    • 2 × Gigabit Ethernet

    • 1 × POE-powered port

    • Wi-Fi 6

    • Bluetooth 5.0

  • Serial Ports: Up to 8 × RS232 (1 configurable as RS485)

  • Expansion: 3 × CAN headers, Mini PCIe for 4G/5G module

  • Memory & Storage: 2GB RAM, 16GB eMMC (up to 8GB/128GB supported)

  • Form Factor: 120mm × 120mm

This board is suitable for applications such as edge computing, artificial intelligence projects, and other embedded system developments.


SKU: D-3568
