RK3568 Face Recognition Access Control Board | Binocular MIPI | Fi-3568

$82.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

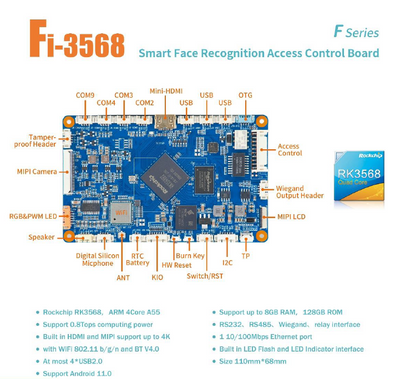

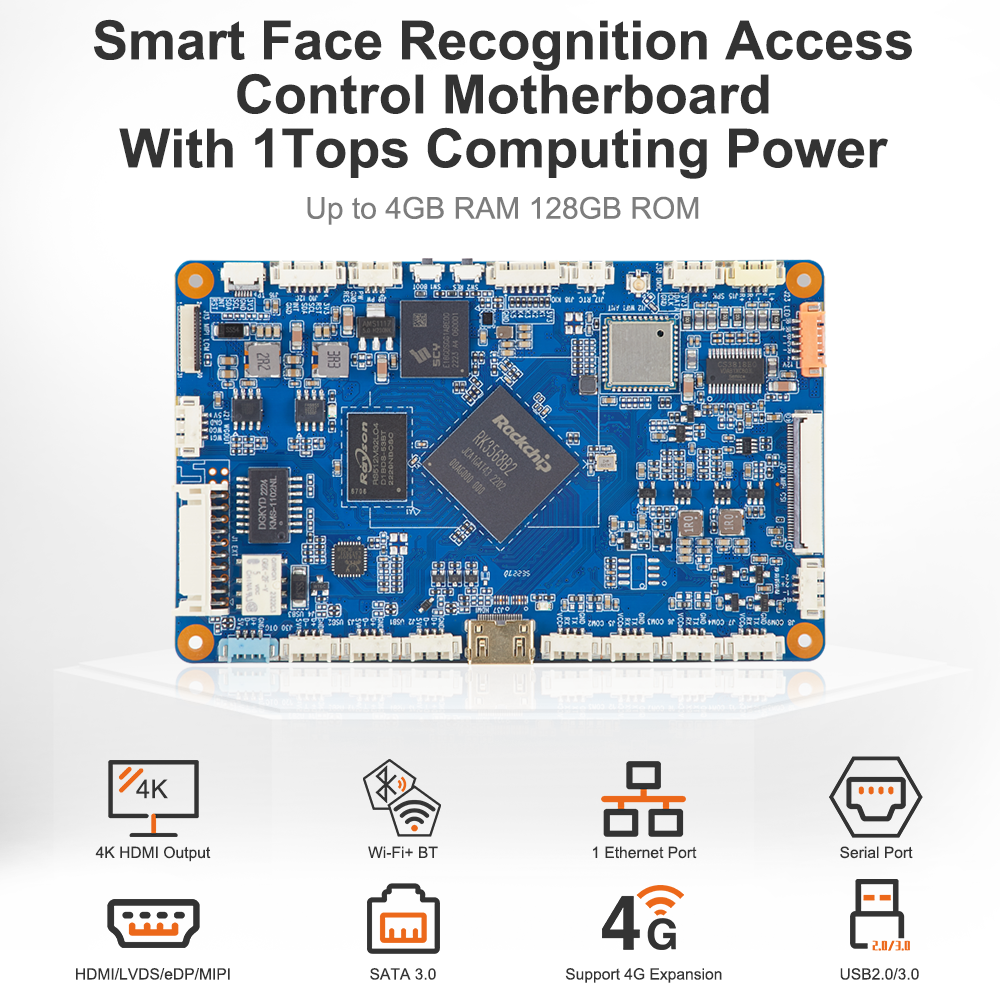

RK3568 Face Recognition Access Control Motherboard 2GB RAM 16GB eMMC Fi-3568

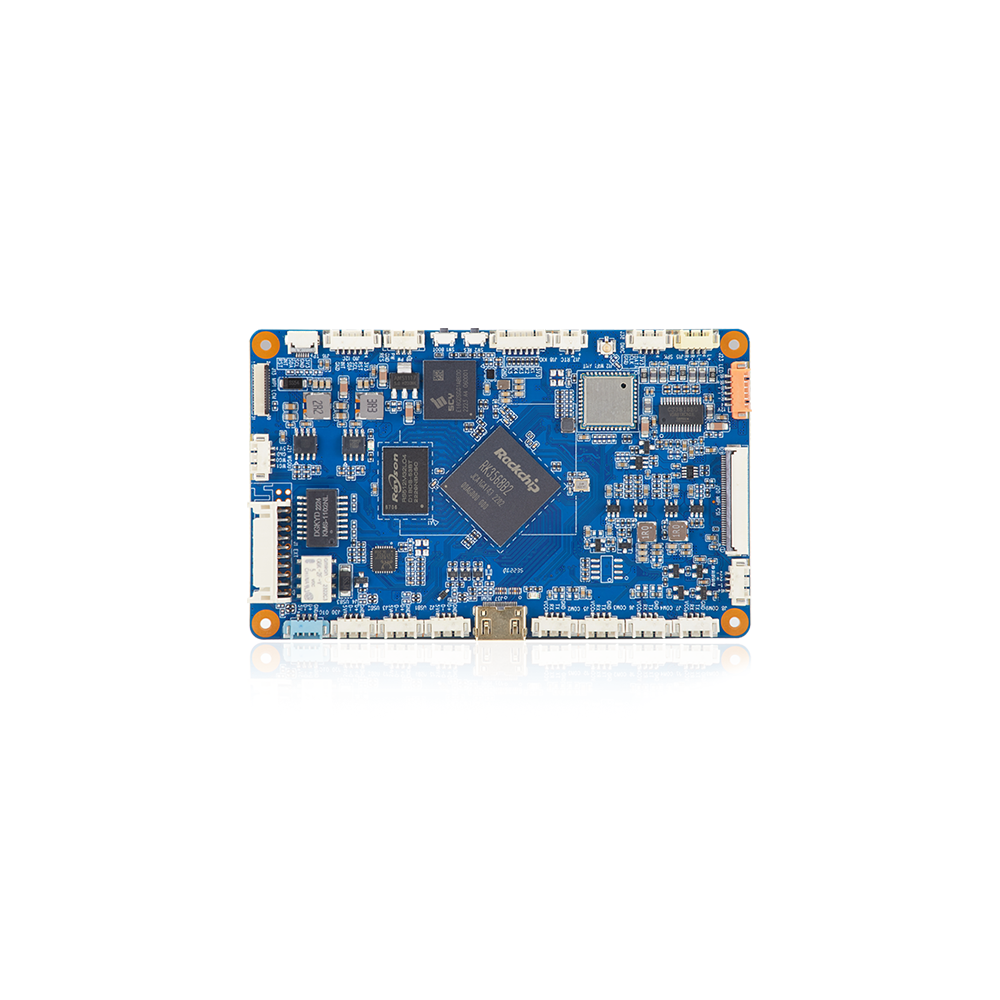

Fi-3568 is a powerful face recognition motherboard based on the Rockchip RK3568 quad-core processor. With a built-in 1 TOPS NPU, support for 4K HDMI and MIPI display, and comprehensive I/O options, it is designed for advanced access control terminals and AI vision systems.

This board delivers strong performance in a compact layout, supporting both mainstream display protocols and rich communication interfaces.

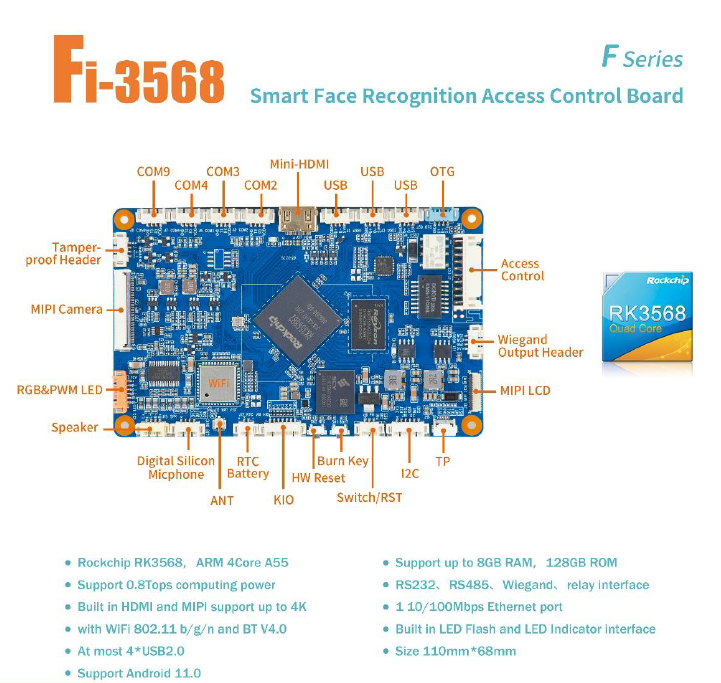

Key Features:

  • Processor: Rockchip RK3568, ARM quad-core CPU

  • AI Capability: Built-in NPU with 1 TOPS performance

  • Display Support: HDMI, MIPI-DSI, optional RGB LCD (up to 4K resolution)

  • Connectivity:

    • 4 × USB 2.0

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

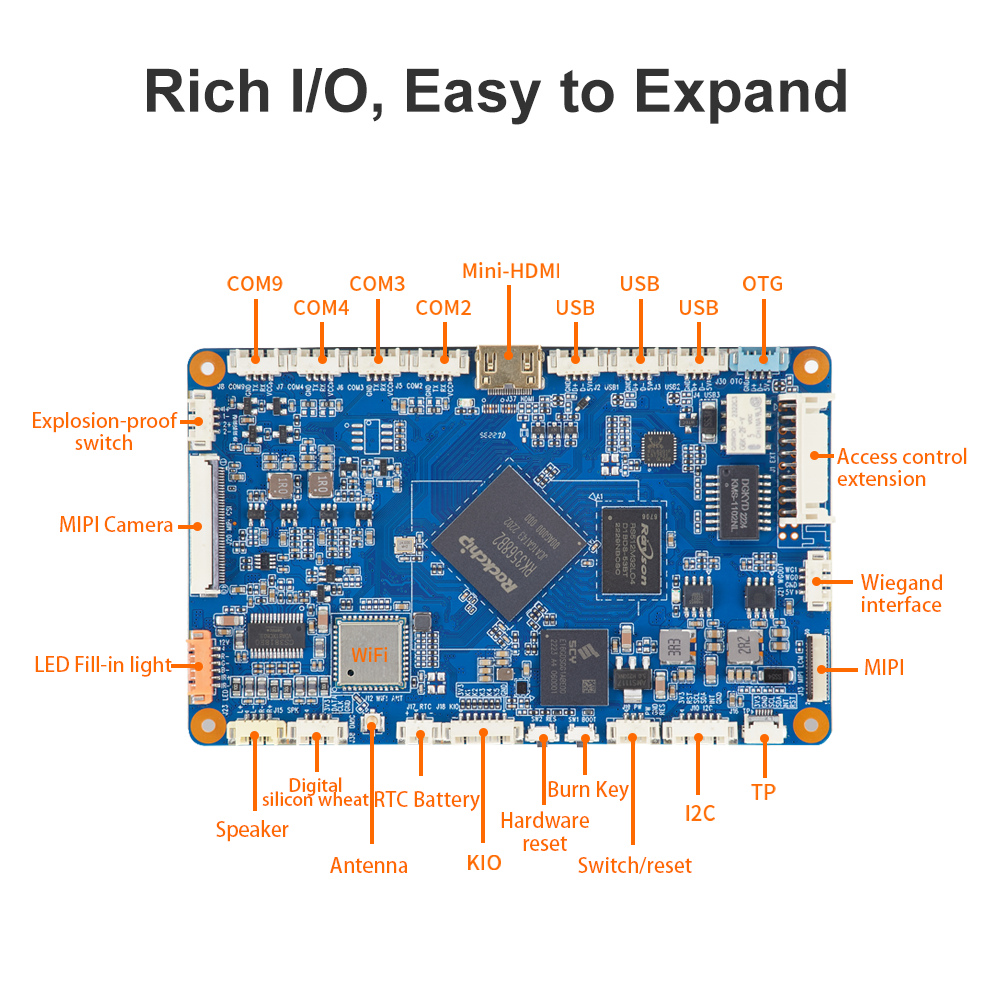

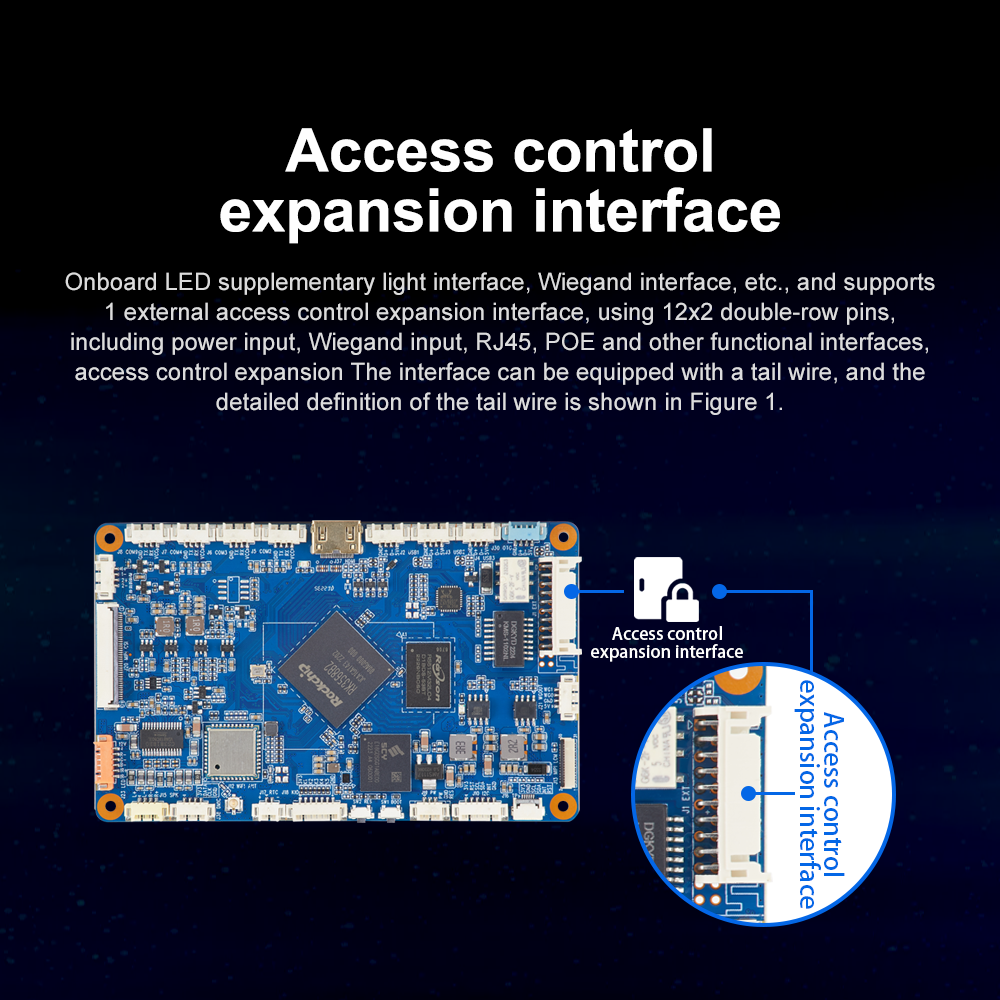

  • I/O Interfaces: RS-232, RS-485, Wiegand, relay control

  • Lighting Control: Integrated fill light and LED interface

  • Memory & Storage: 2GB RAM, 16GB eMMC (up to 8GB/128GB supported)

  • Power Supply: 9V–15V wide voltage DC input

  • Form Factor: 110mm × 68mm

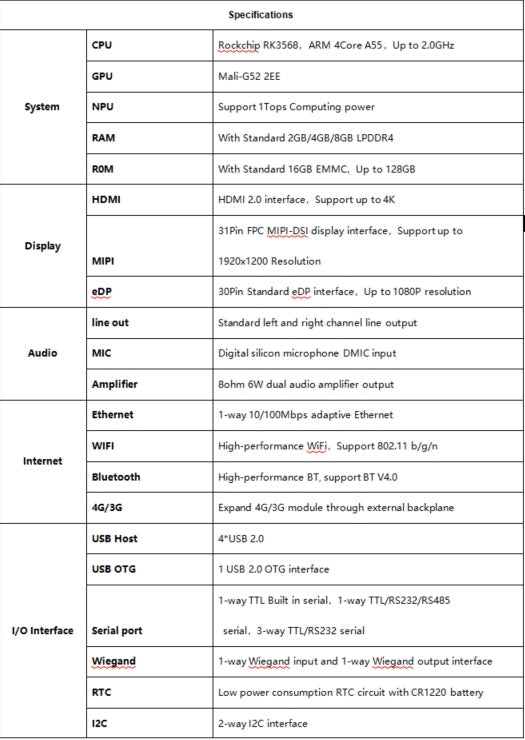

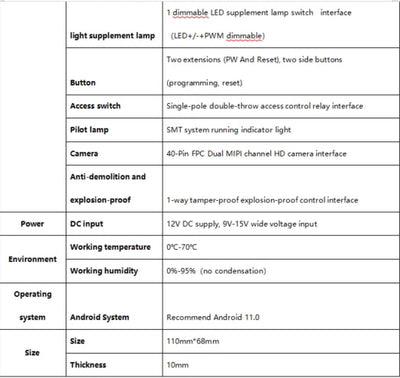

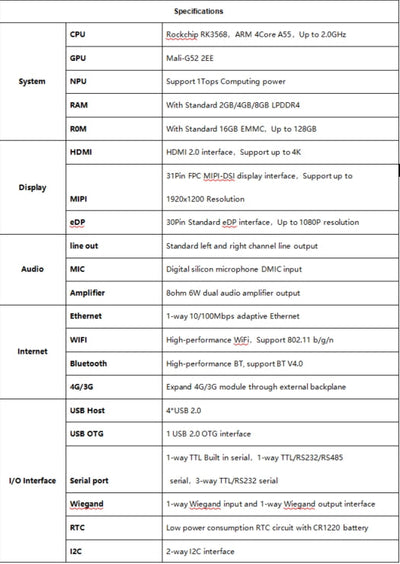

Technical specifications are loading…
