RK3566 Smart Vending Machine Android Board | CAN PCIe | K-3566

$90.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

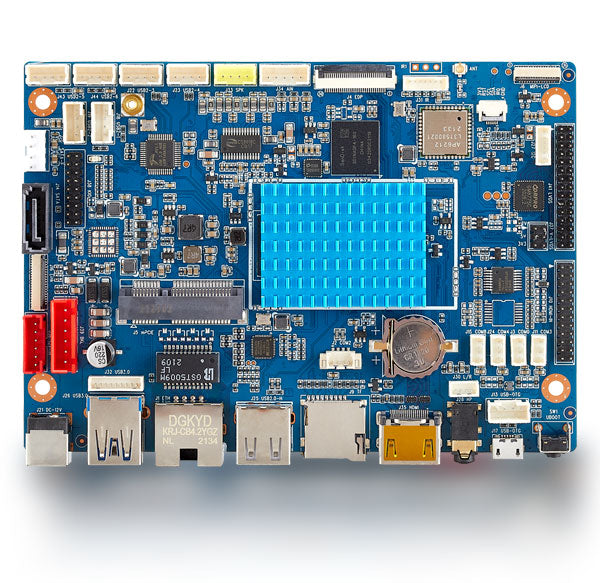

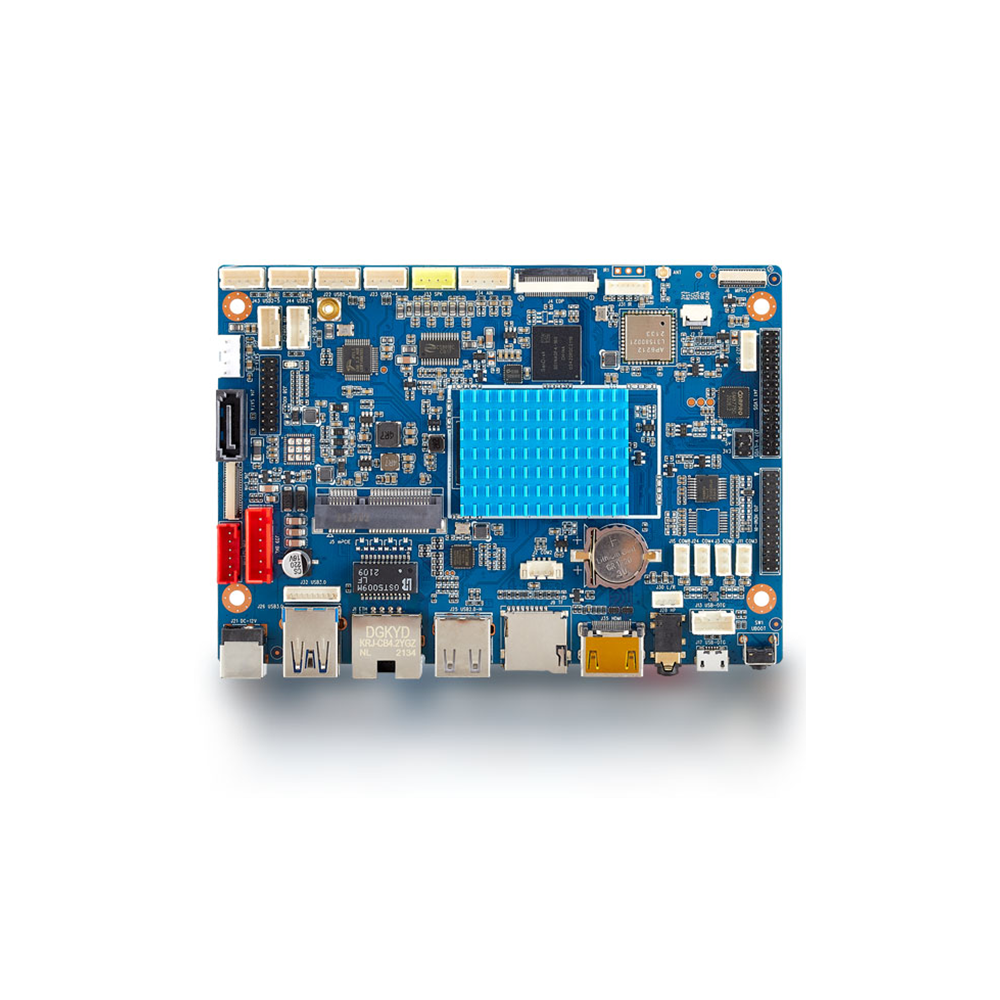

RK3566 Smart Vending Machine Board 2GB RAM 16GB eMMC K-3566

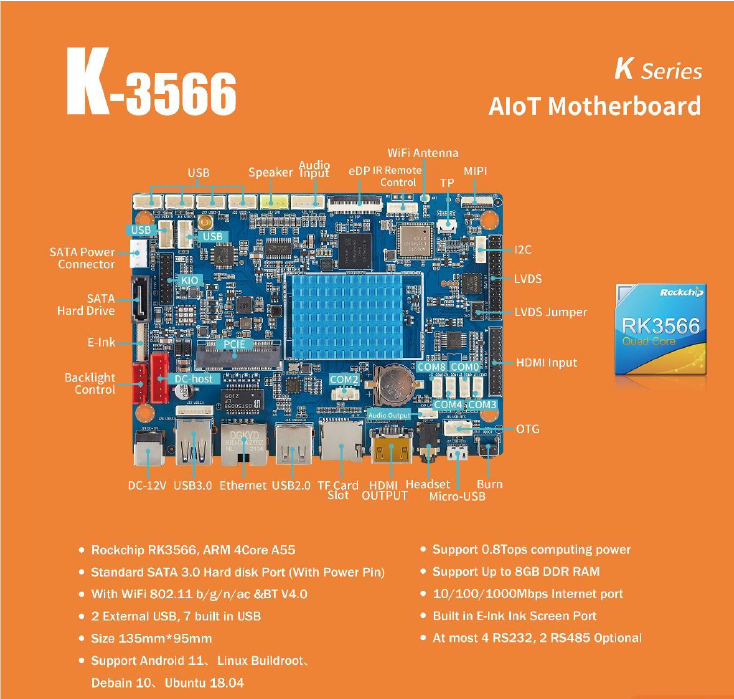

K-3566 is a next-gen smart vending motherboard based on the Rockchip RK3566 quad-core processor with integrated NPU for AI tasks. With support for E-Ink, SATA, and dual RS485, it’s ideal for edge computing, interactive retail, and cloud-based vending terminals.

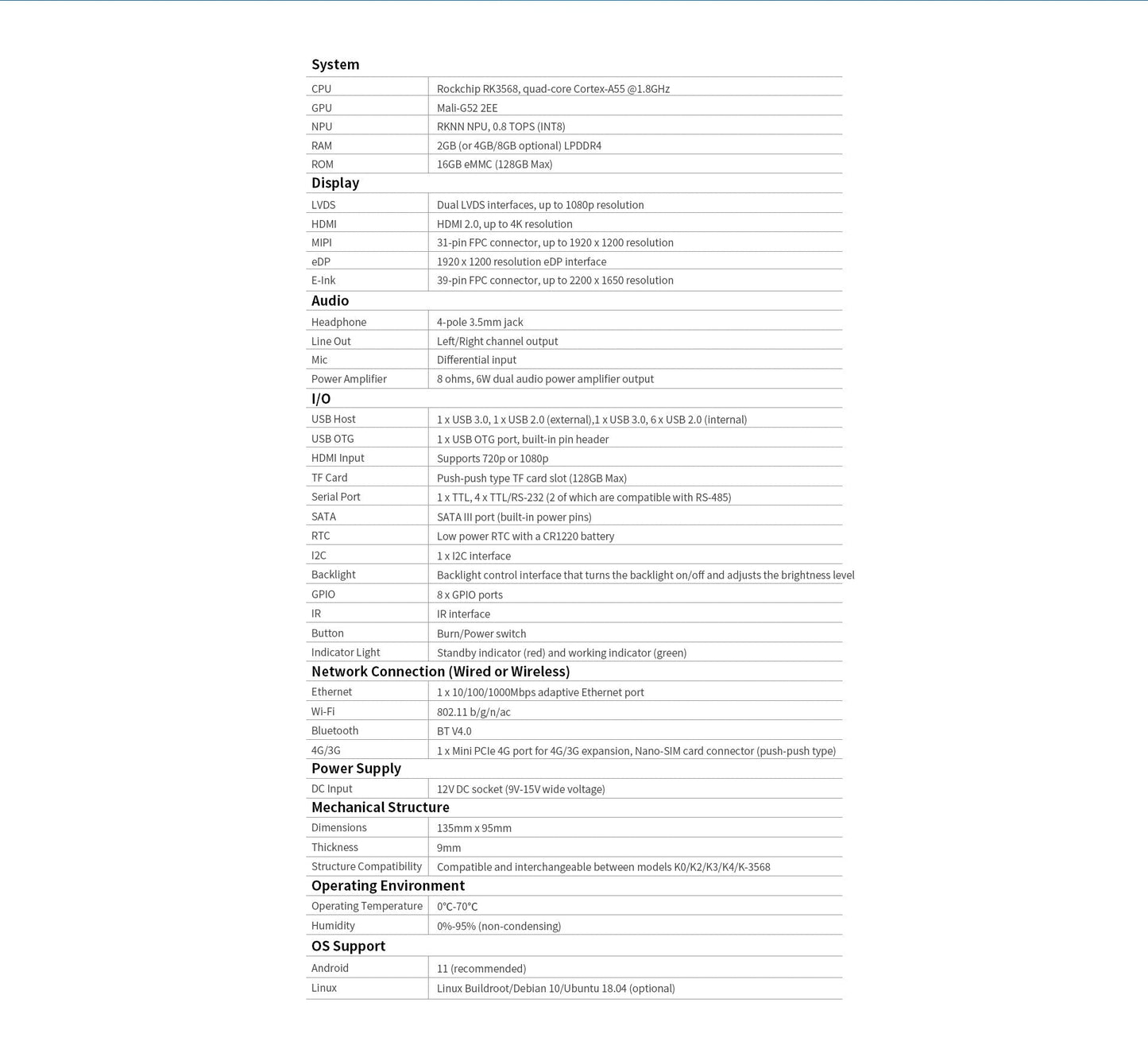

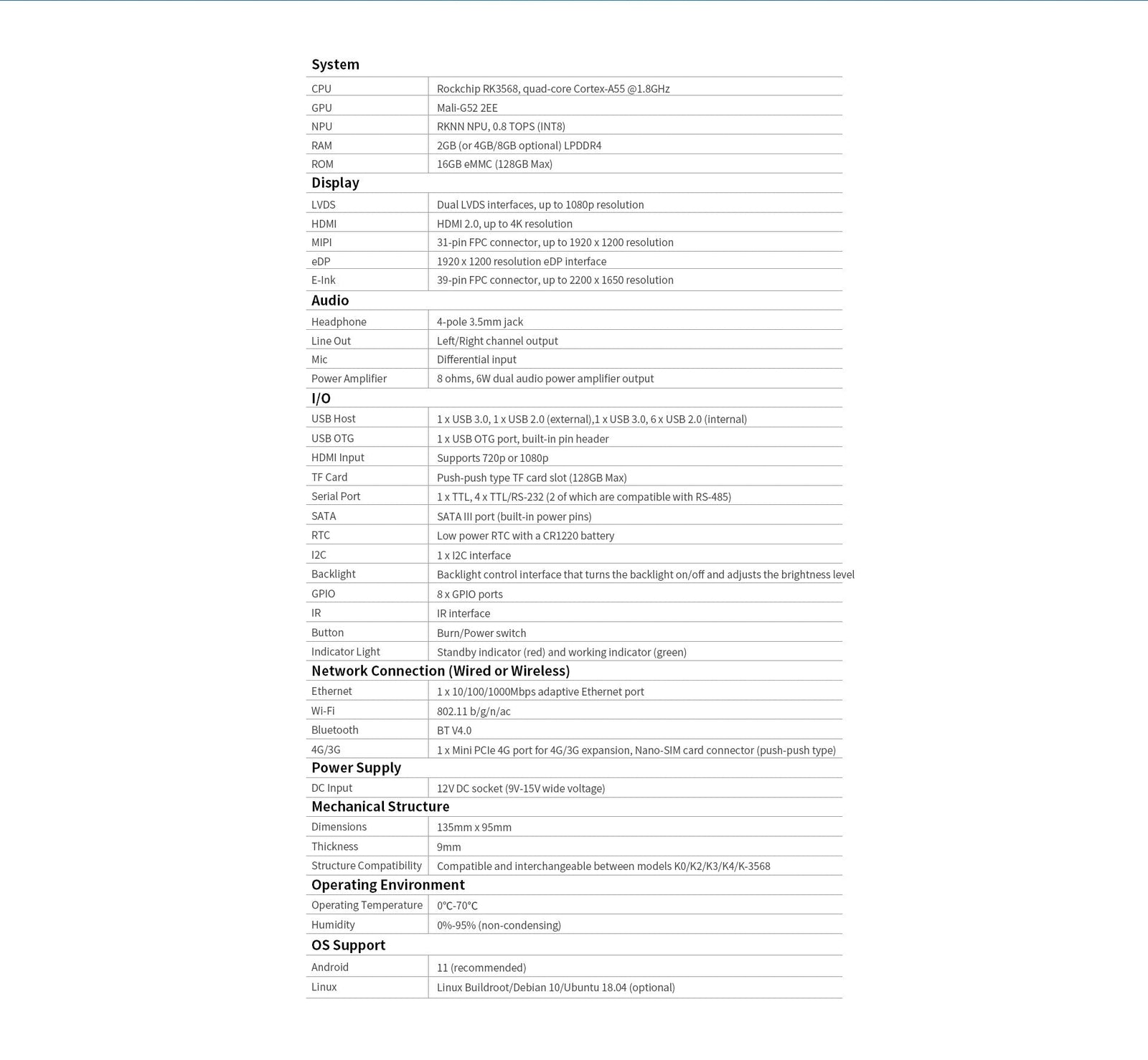

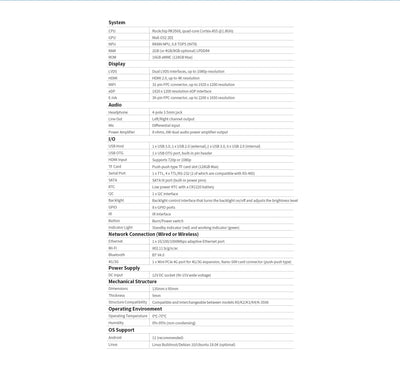

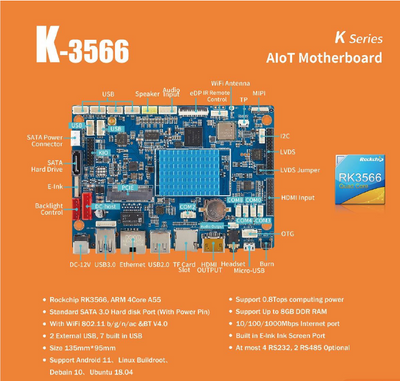

Key Features:

  • Processor: Rockchip RK3566, ARM quad-core Cortex-A55, up to 1.8GHz

  • AI Capability: Built-in NPU, 0.8 TOPS performance

  • Display Support: LVDS, EDP, and E-Ink (up to 1080p resolution)

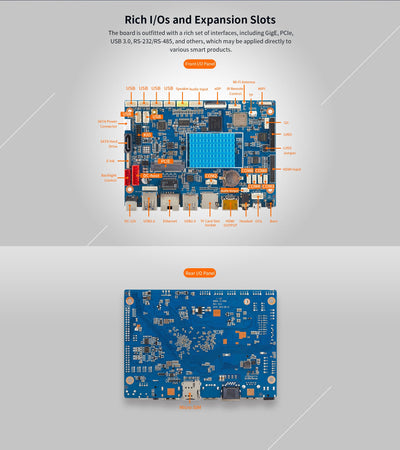

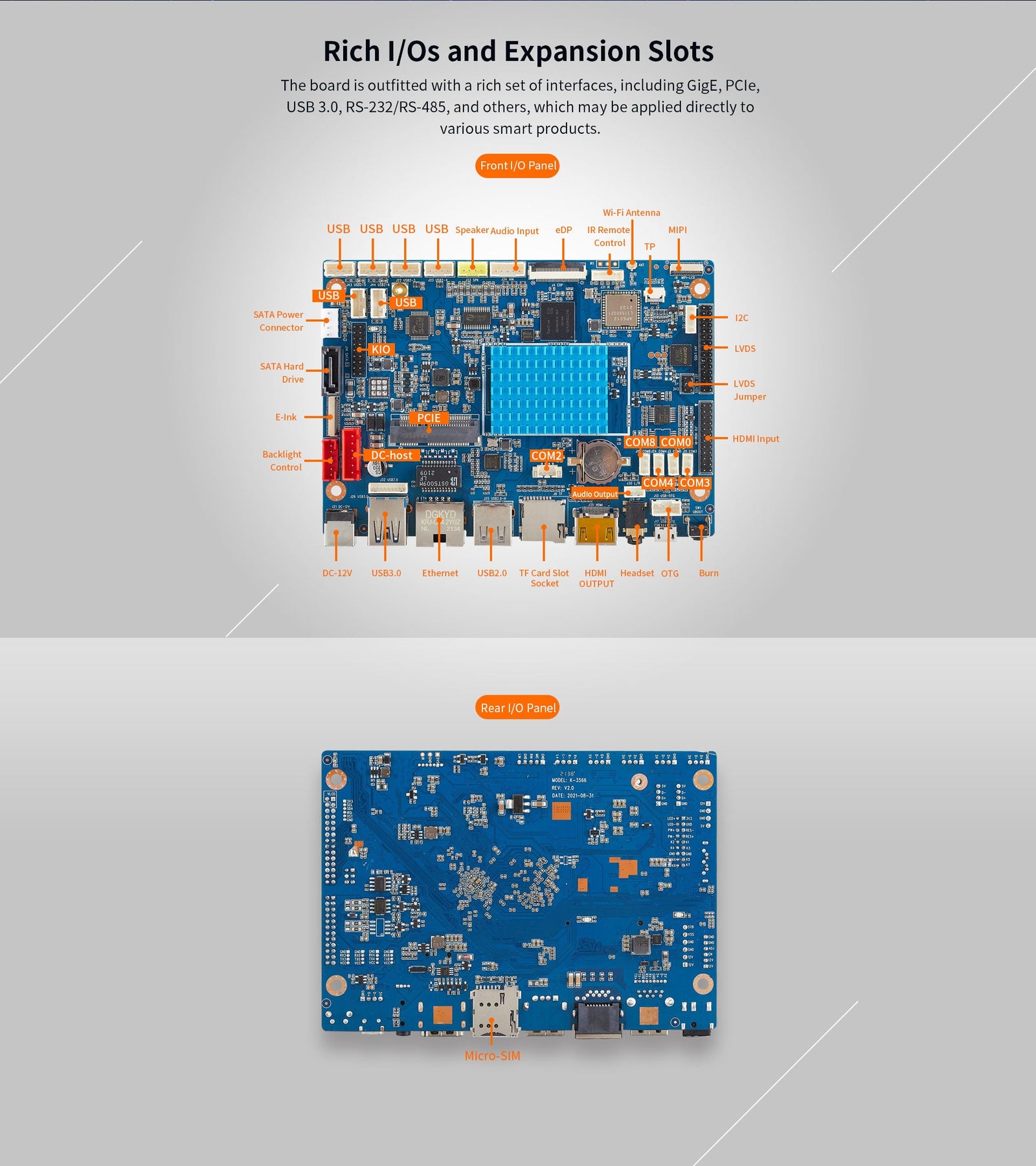

  • Connectivity:

    • 7 × USB 2.0

    • 2 × USB 3.0

    • 1 × SATA III port

    • Wi-Fi 802.11 b/g/n/ac

    • Bluetooth 4.0

  • Serial Ports: 4 × RS-232, 2 × RS-485 (optional)

  • Expansion: Mini PCIe slot for 4G module

  • Memory & Storage: 2GB RAM, 16GB eMMC (supports up to 8GB/128GB)

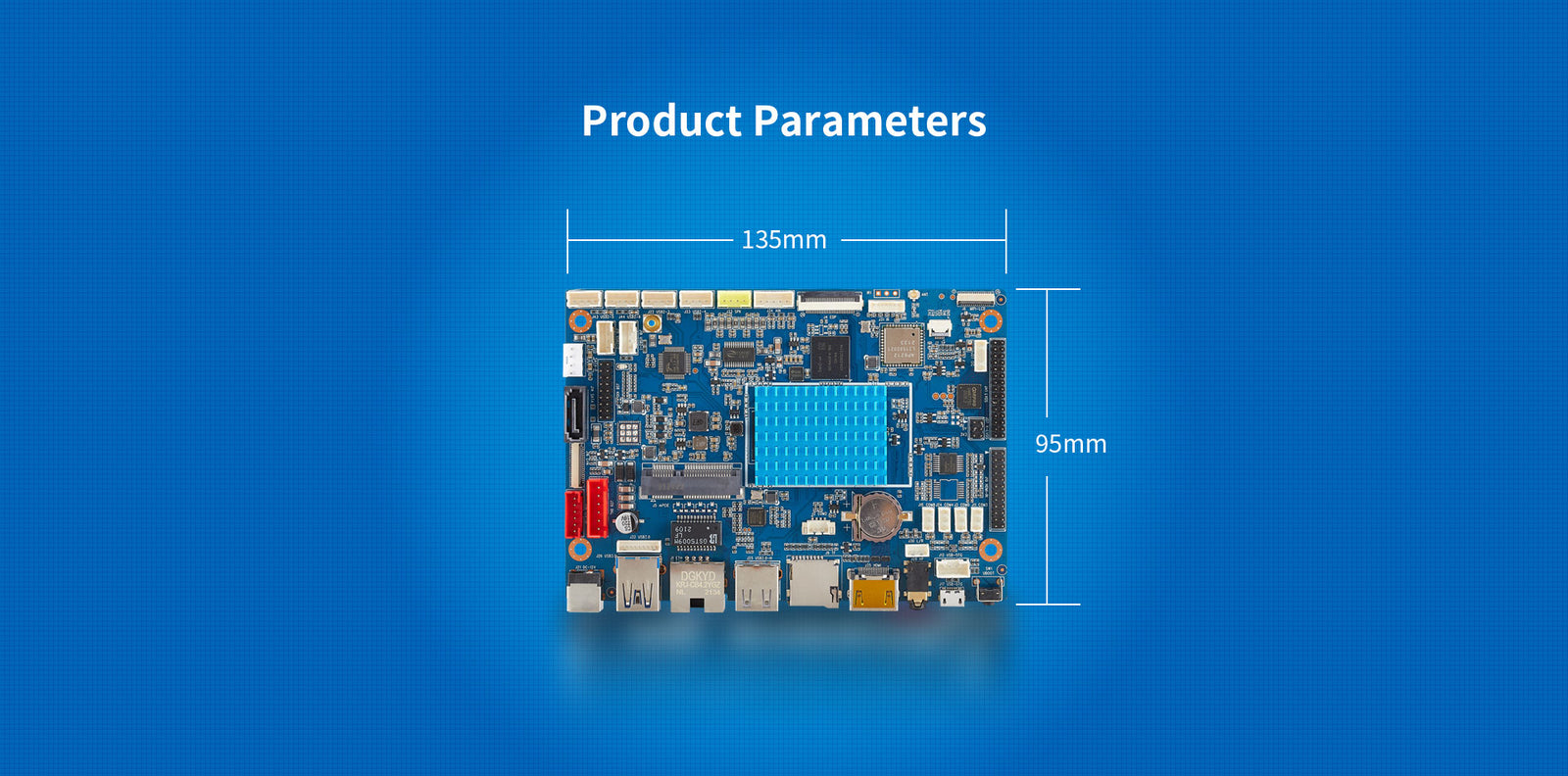

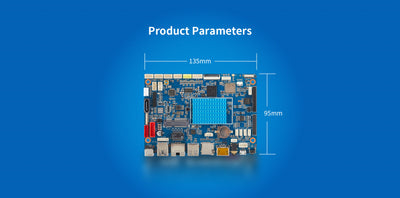

  • Form Factor: 135mm × 95mm, 9mm ultra-thin design
