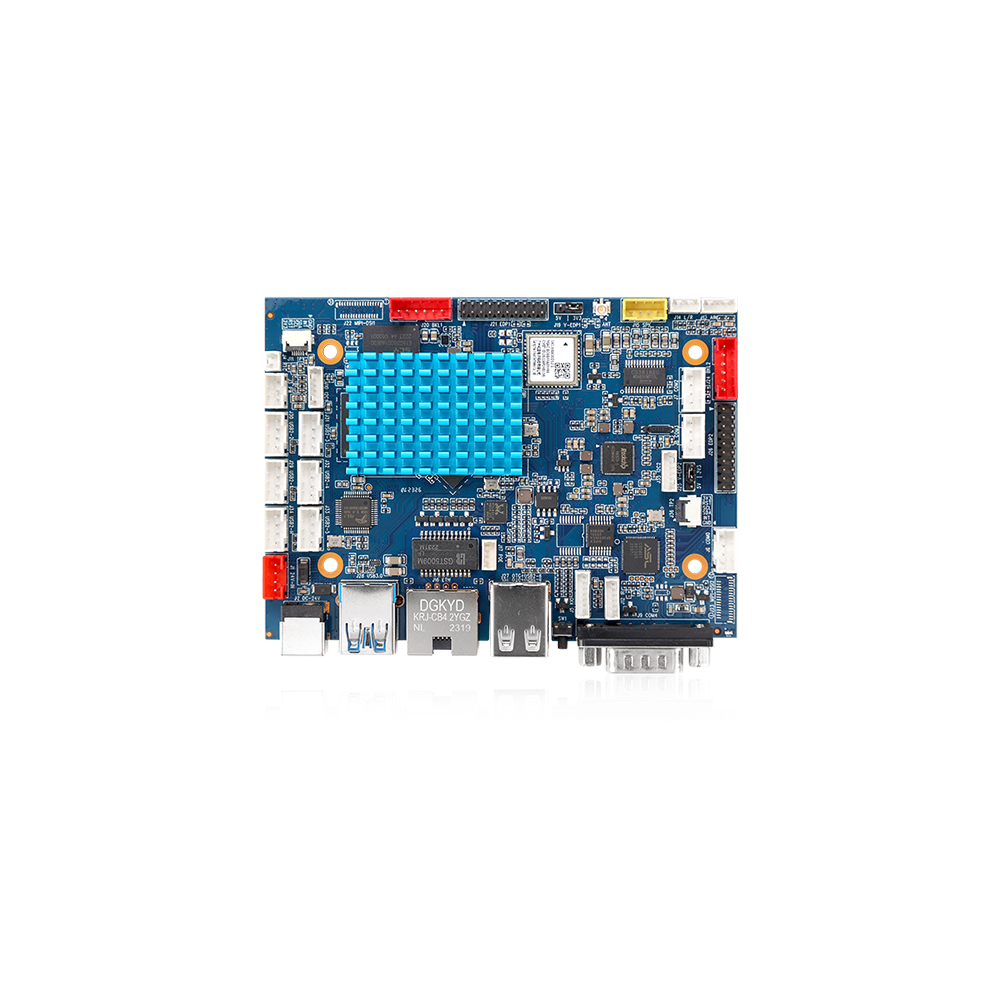

RK3566 Smart AI Scale Single Board Computer 2GB RAM 16GB ROM AW-Y3566

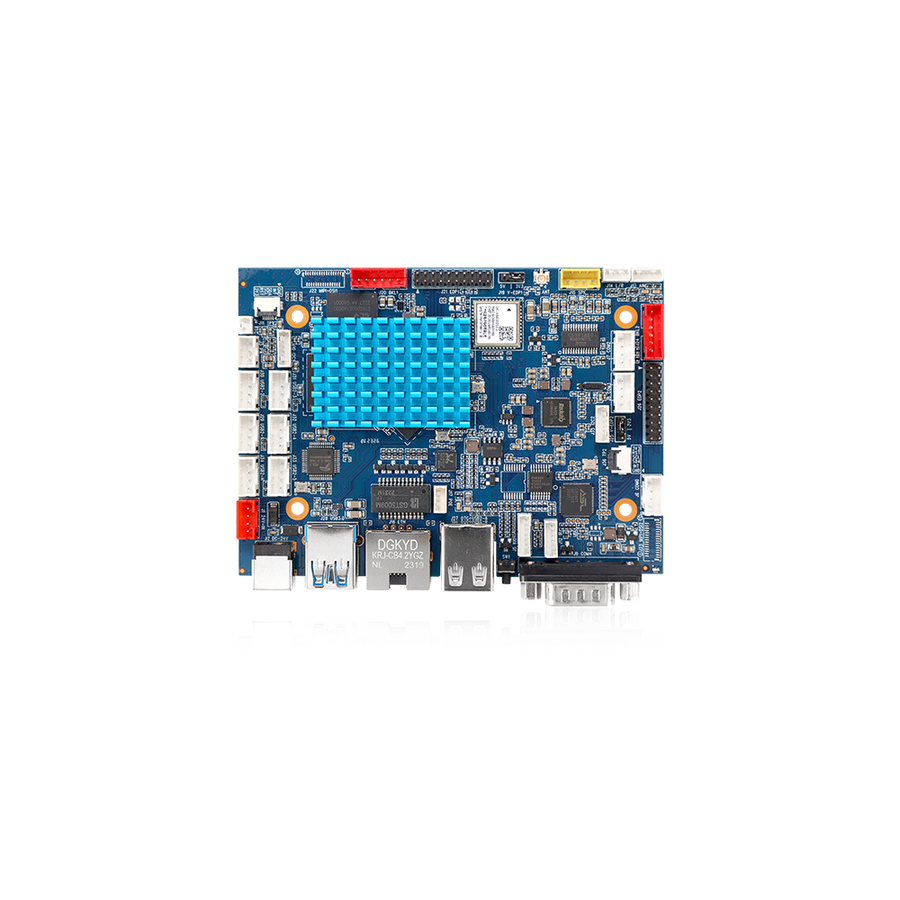

AW-Y3566 is a compact AI-powered single board computer designed for smart scale and embedded vision applications. It features the efficient Rockchip RK3566 processor with integrated NPU, making it ideal for lightweight AI inference tasks at the edge.

This board combines robust performance, rich I/O, and flexible display support in a small footprint, making it a great fit for intelligent weighing systems, retail terminals, and industrial devices.

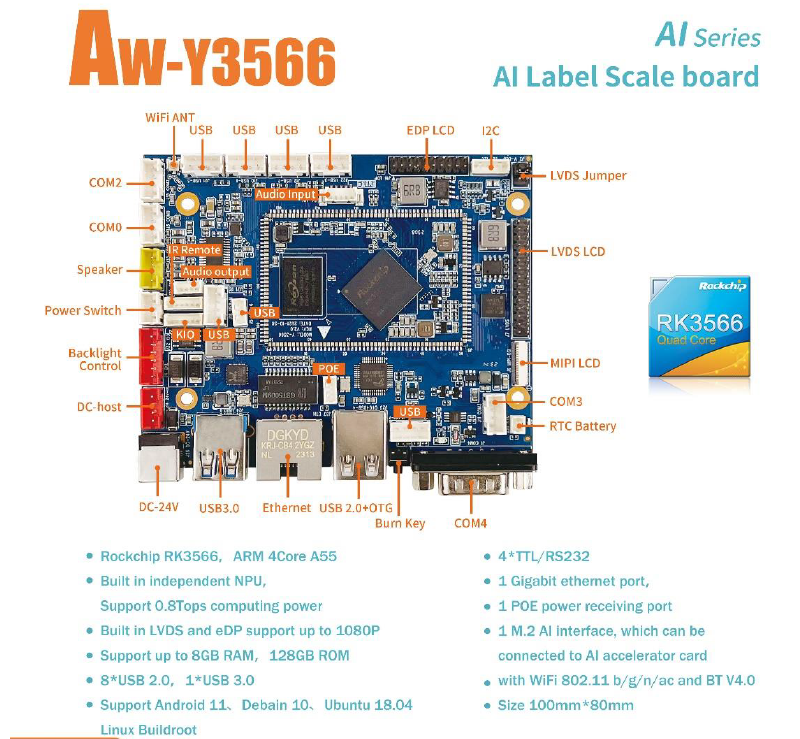

Key Features:

  • Processor: Rockchip RK3566, ARM quad-core Cortex-A55

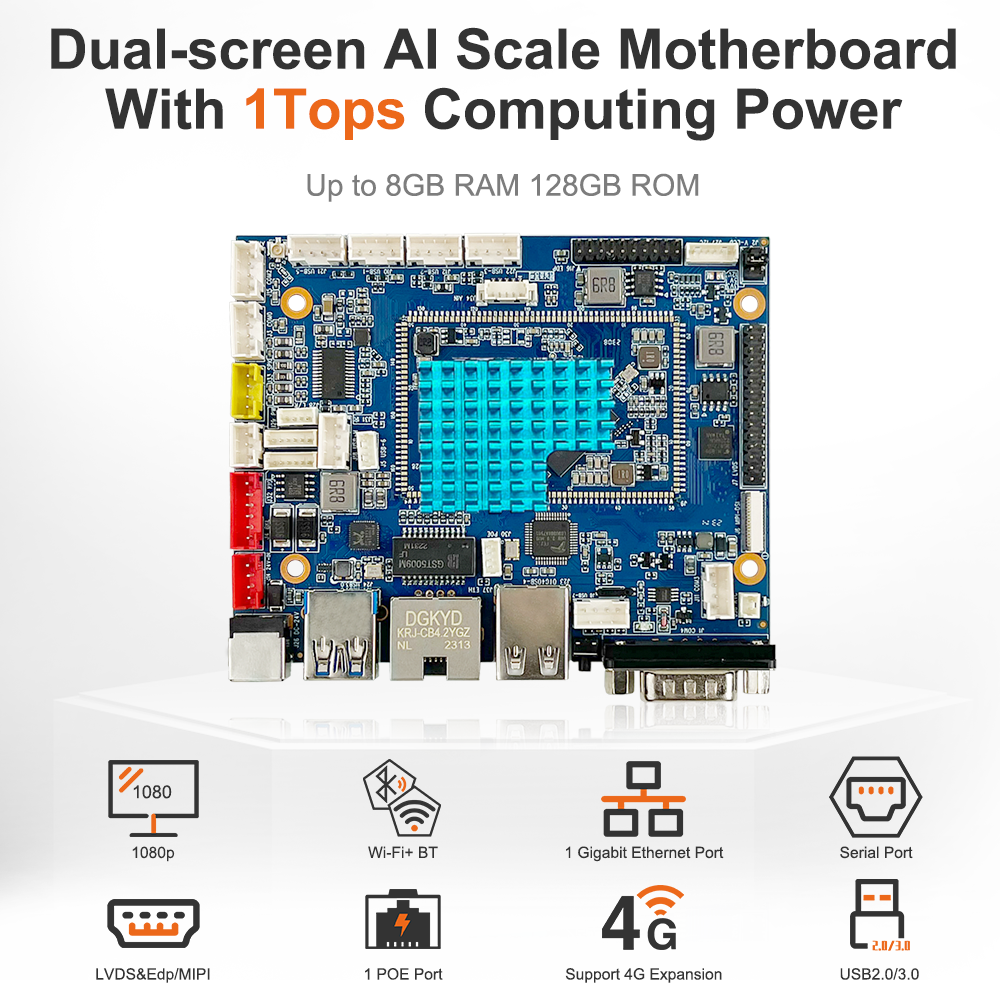

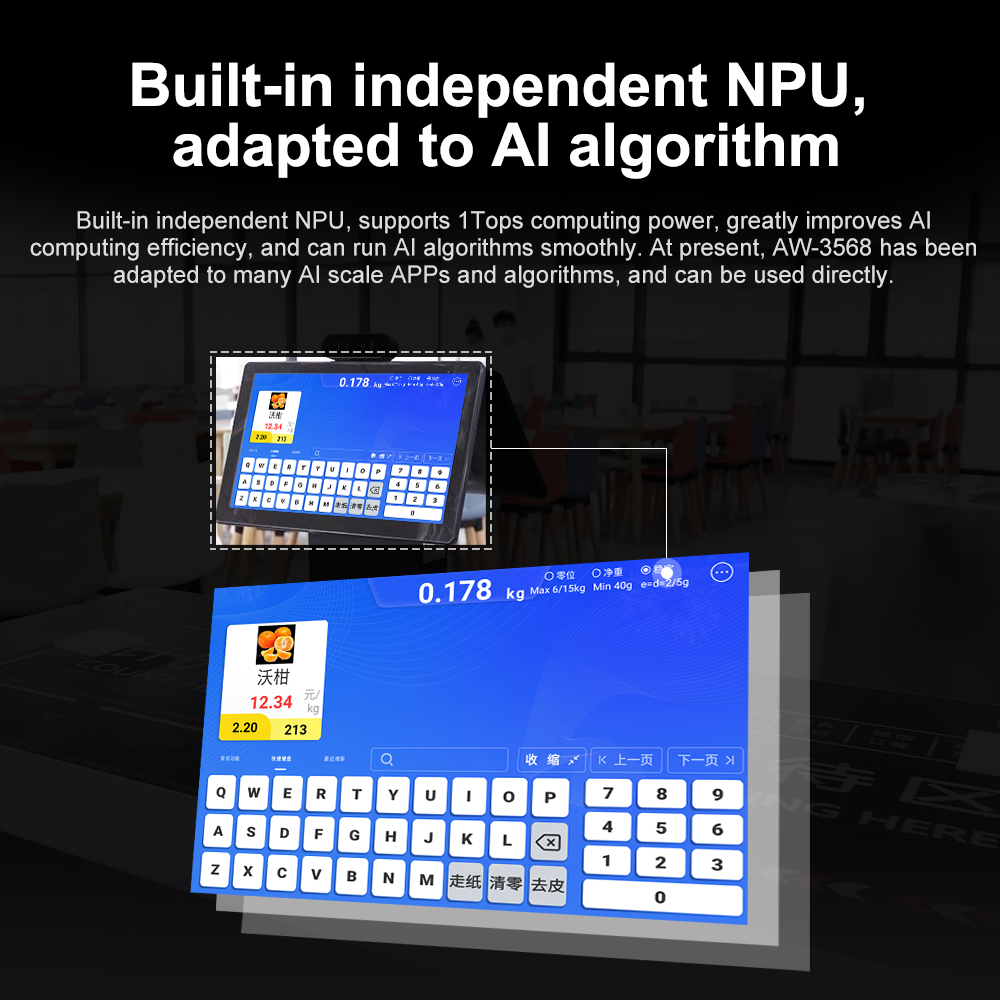

  • AI Capability: Built-in independent NPU with up to 1 TOPS computing power

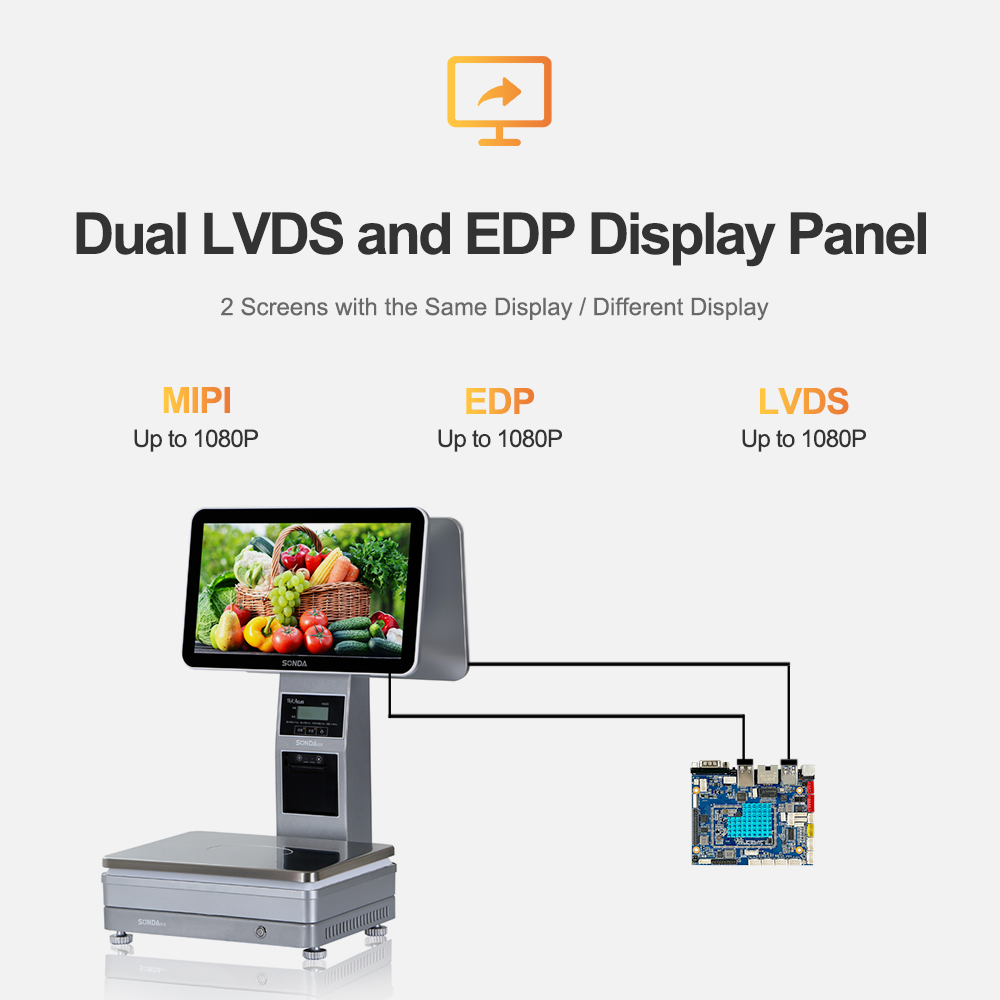

  • Display Support: LVDS, MIPI-DSI, and eDP interfaces

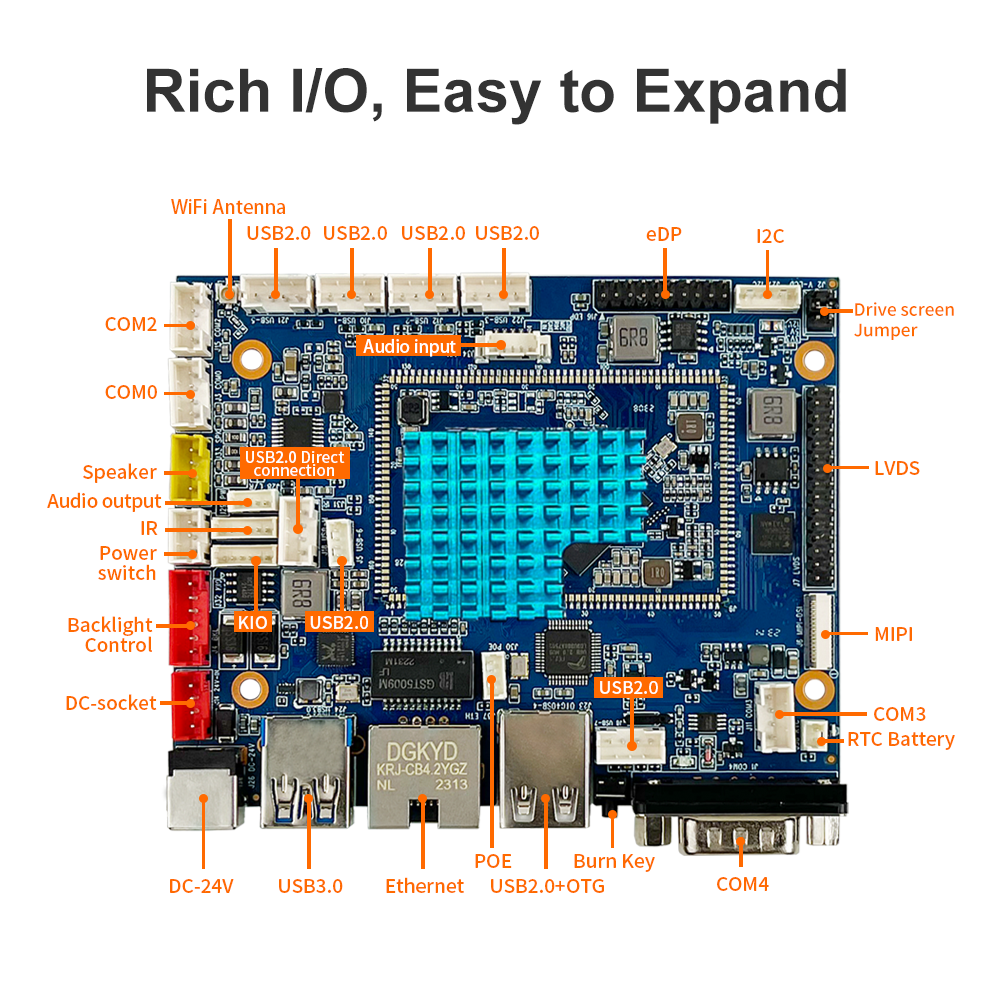

  • Connectivity:

    • 9 × USB2.0

    • 1 × USB3.0

    • 1 × Gigabit Ethernet

    • 1 × POE-powered RJ45 port

  • Wireless: WiFi 802.11b/g/n/ac and Bluetooth 5.2

  • Serial Ports: Up to 4 × RS232

  • Memory & Storage: Supports up to 8GB RAM and 128GB storage (default: 2GB RAM / 16GB eMMC)

  • Power: 12V–24V wide voltage DC input

  • Form Factor: Compact 100mm × 80mm size

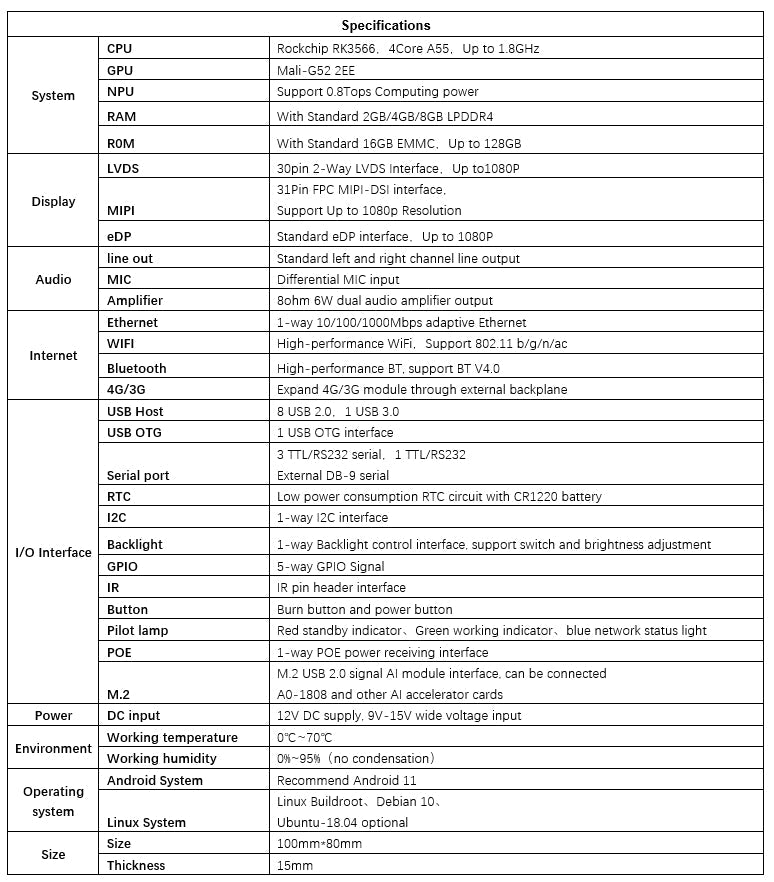

Technical specifications are loading…
