RK3399 Smart HMI Android Motherboard | Industrial Panel PC Core | SST-3399

$124.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

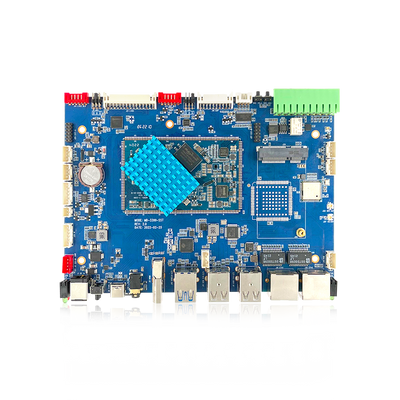

RK3399 Smart HMI Motherboard 2GB RAM 16GB eMMC SST-3399

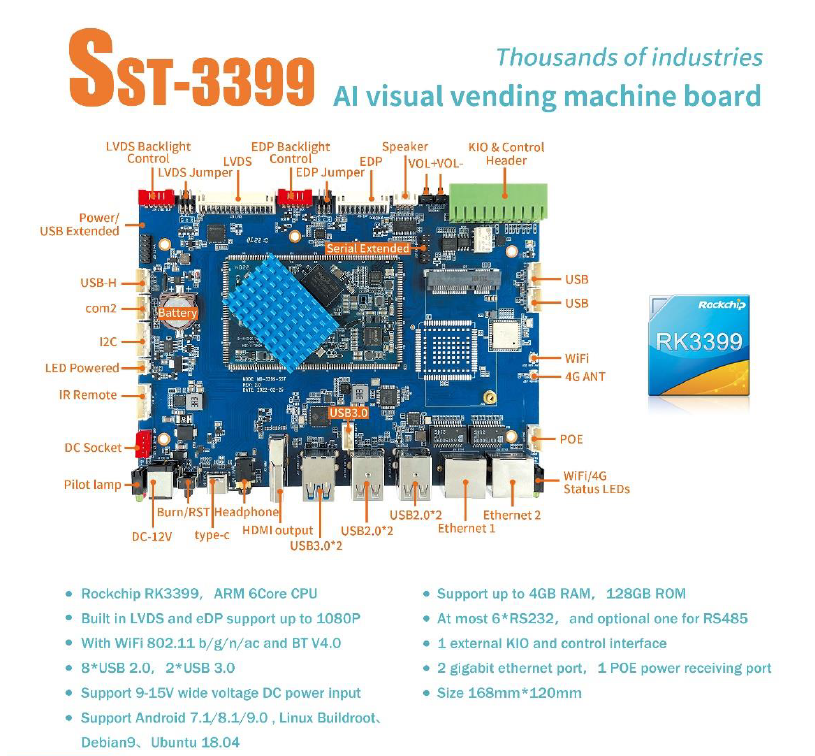

SST-3399 is a robust Android motherboard tailored for AI vision and HMI applications. Powered by the RK3399 hexa-core processor, it supports dual-screen output via LVDS, eDP, and HDMI, dual Gigabit LAN, POE, and multiple RS232 serial ports — ideal for vending machines, mobile robots, and industrial IoT gateways.

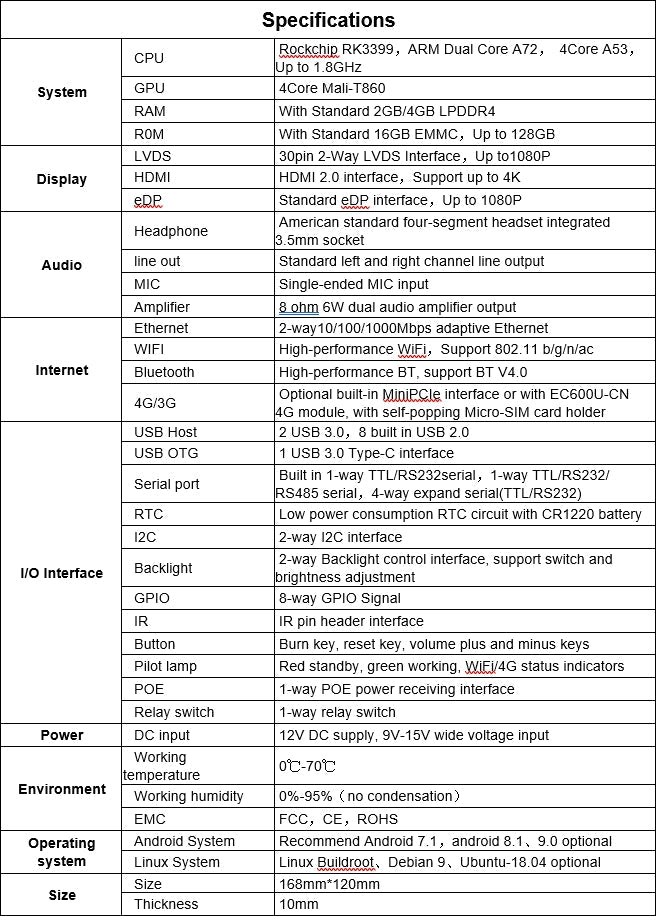

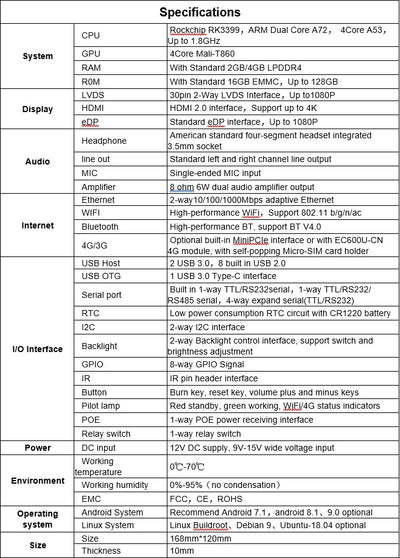

Key Features:

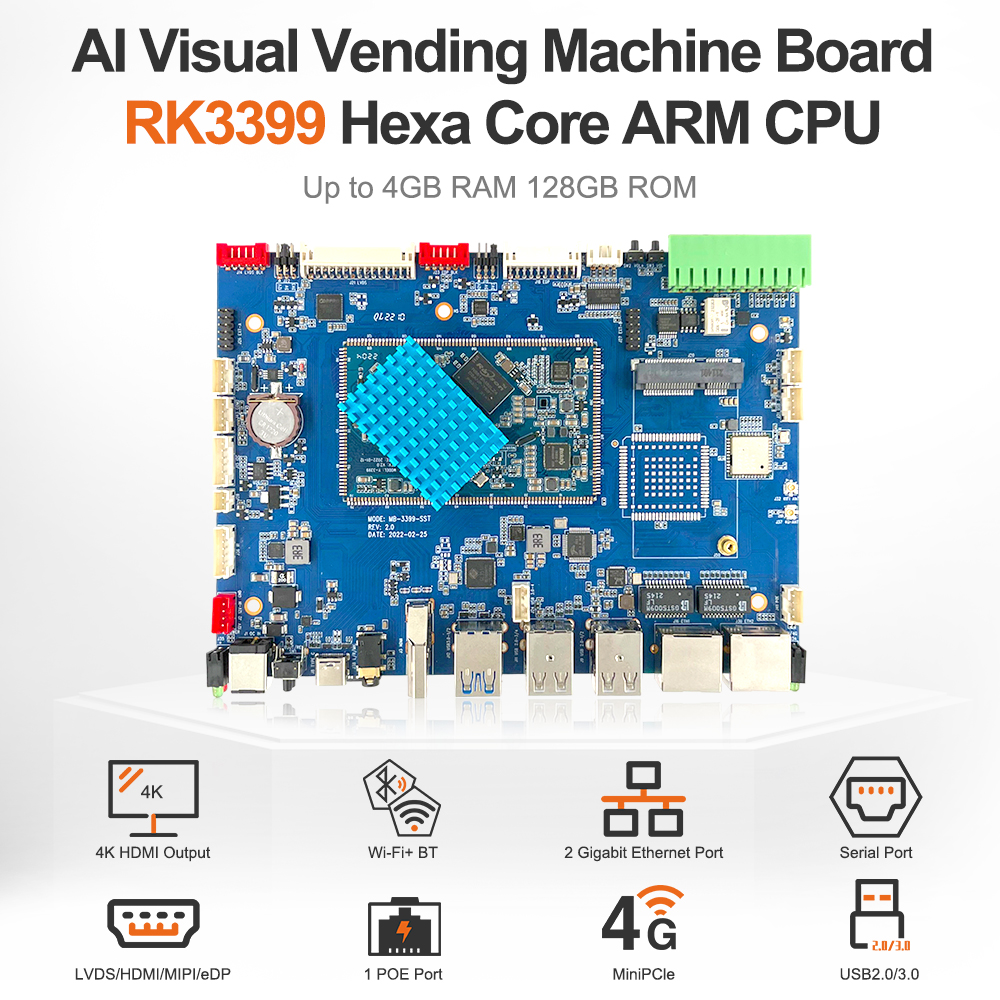

  • Processor: Rockchip RK3399, ARM dual-core Cortex-A72 + quad-core Cortex-A53

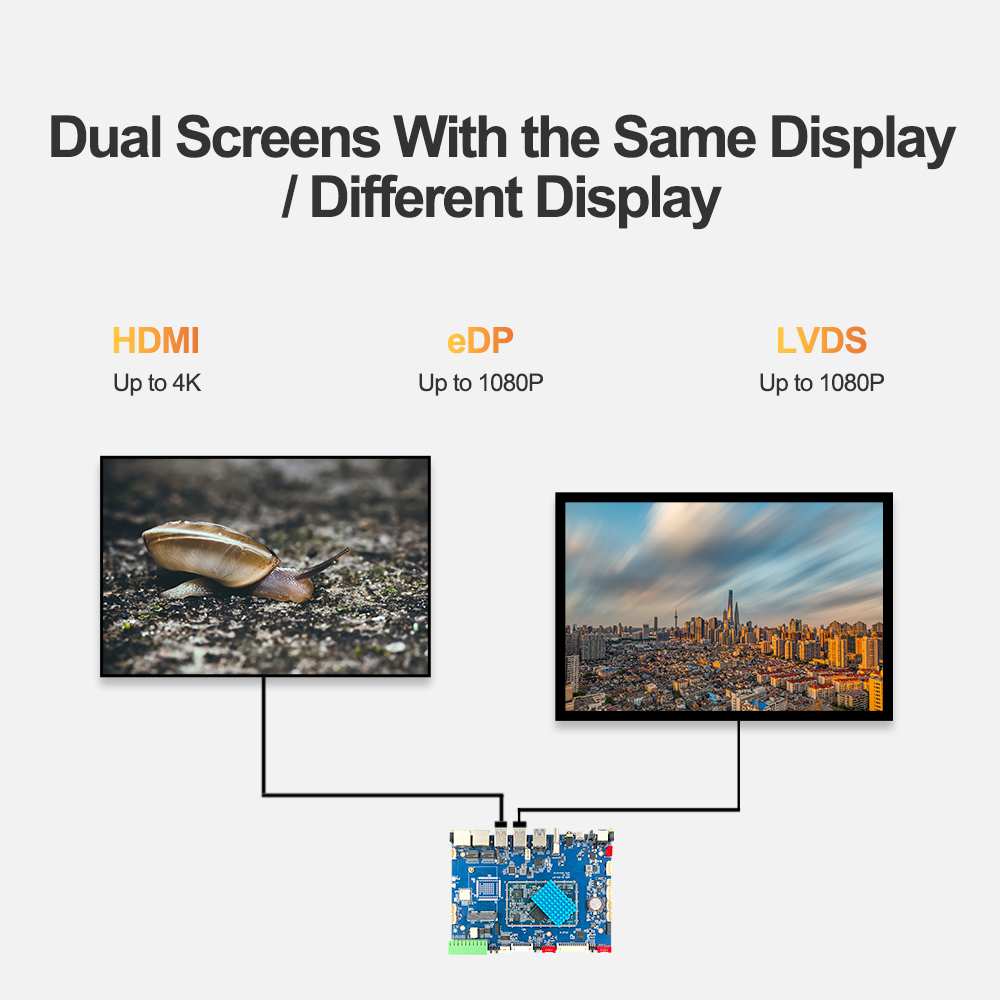

  • Display Support: HDMI, LVDS, eDP (up to 1080p)

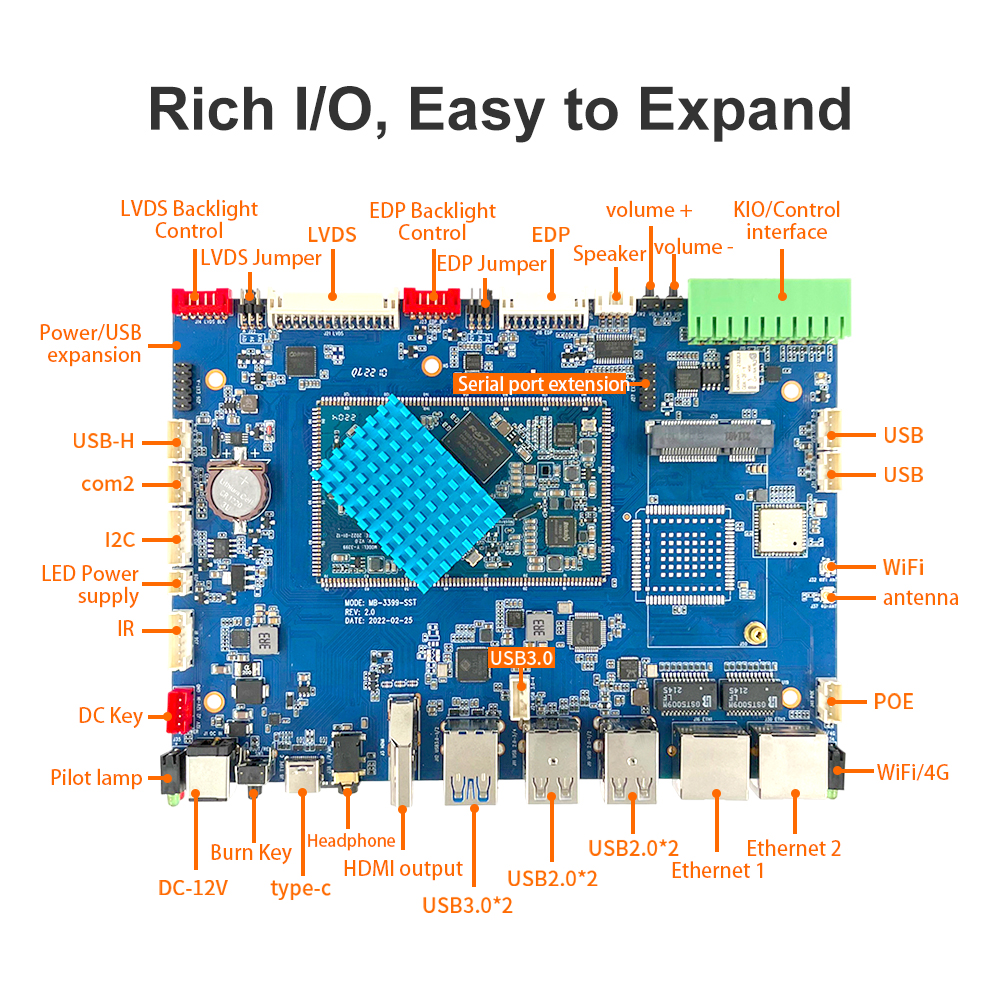

  • Connectivity:

    • 8 × USB 2.0

    • 2 × USB 3.0

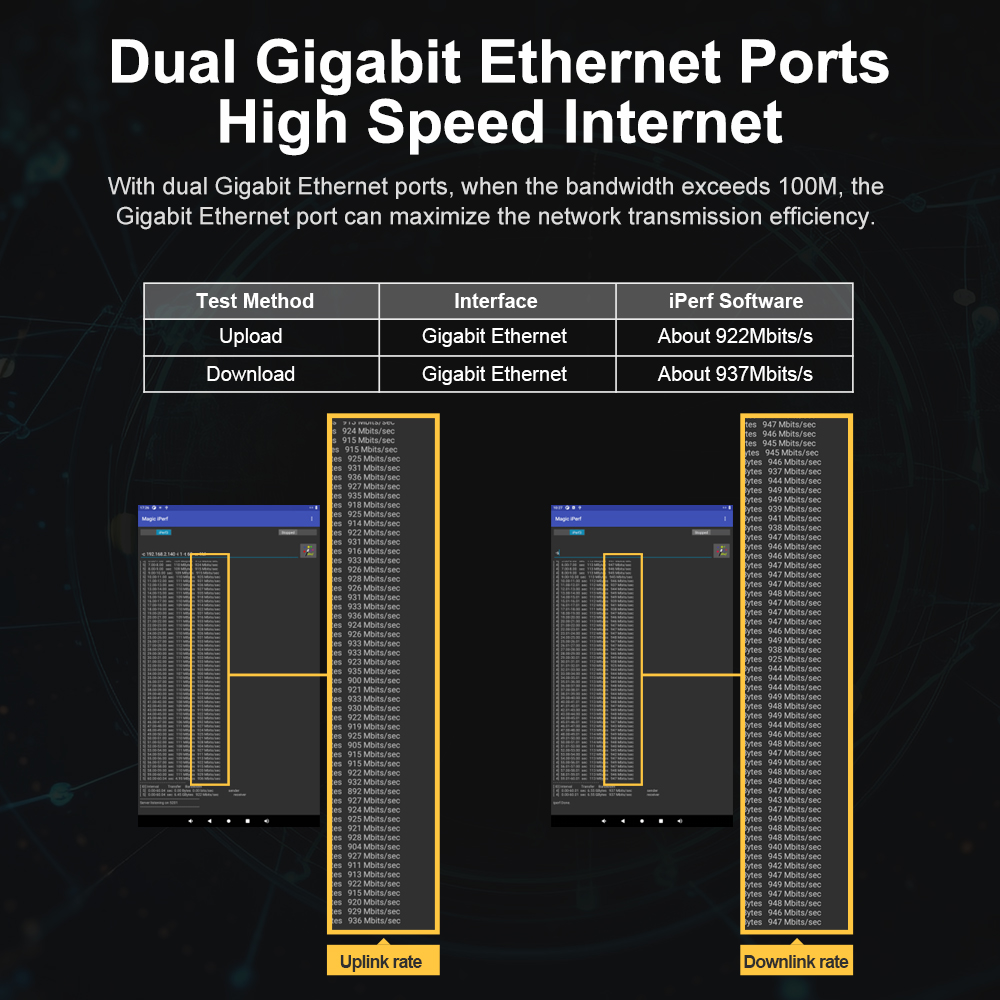

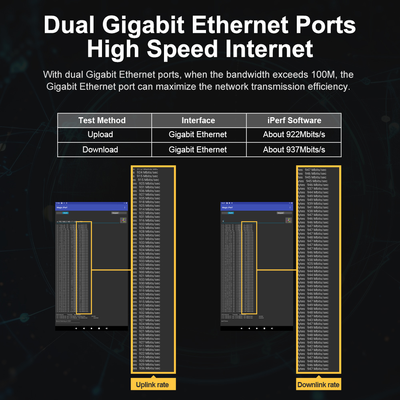

    • 2 × Gigabit Ethernet

    • 1 × POE-powered port

    • Wi-Fi 802.11 b/g/n/ac

    • Bluetooth 4.0

  • Serial Ports: Up to 6 × RS232, optional RS485

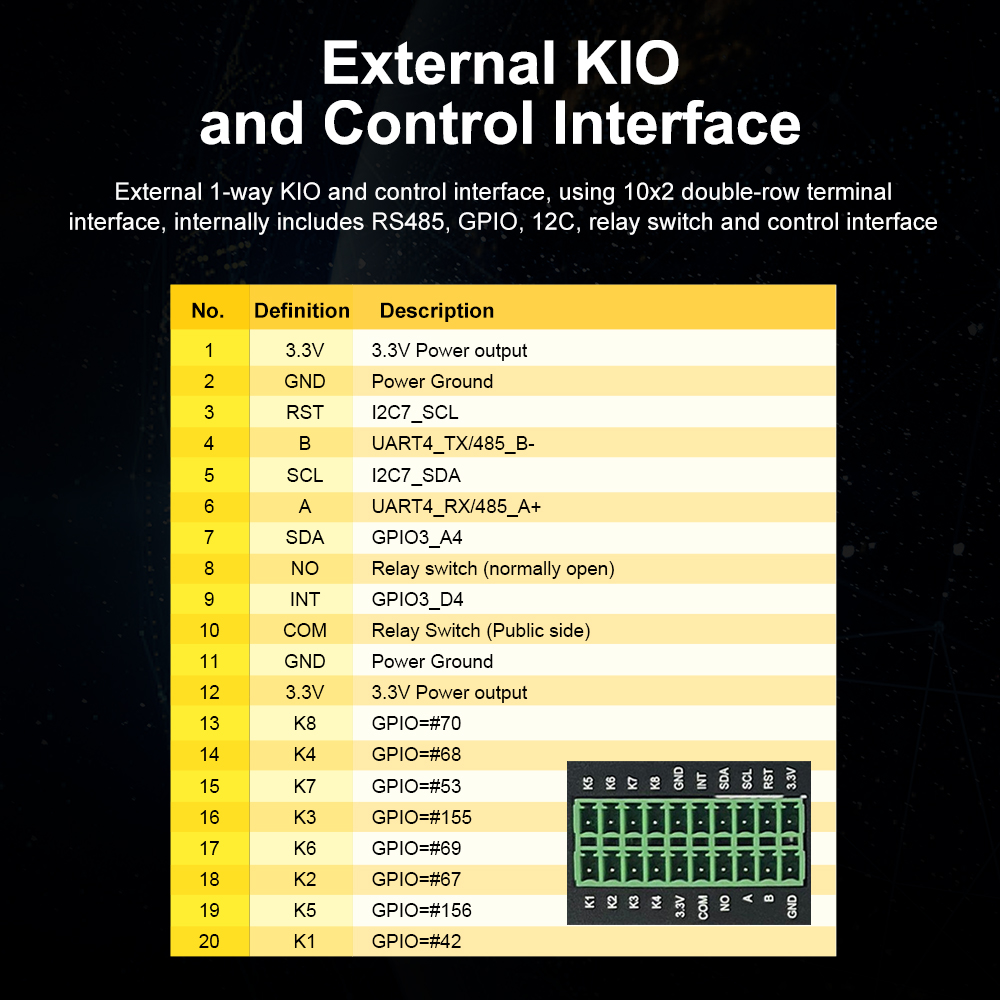

  • Additional I/O: External KIO/control interface

  • Memory & Storage: 2GB RAM, 16GB eMMC (up to 4GB/128GB supported)

  • Power Supply: 9V–15V wide voltage DC input

  • Form Factor: 168mm × 120mm
