RK3399 Face Recognition & Face Payment Access Control Board | MIPI LVDS | F4

$103.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

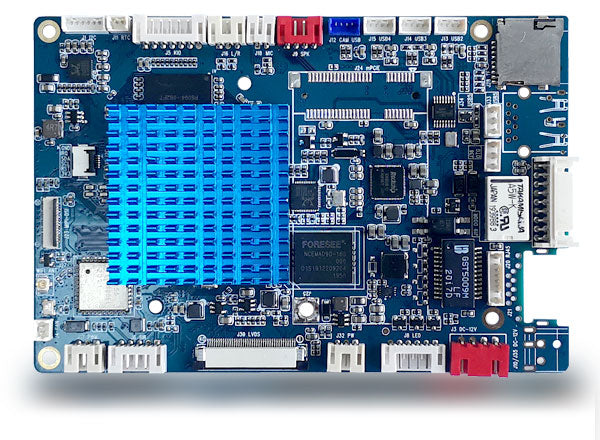

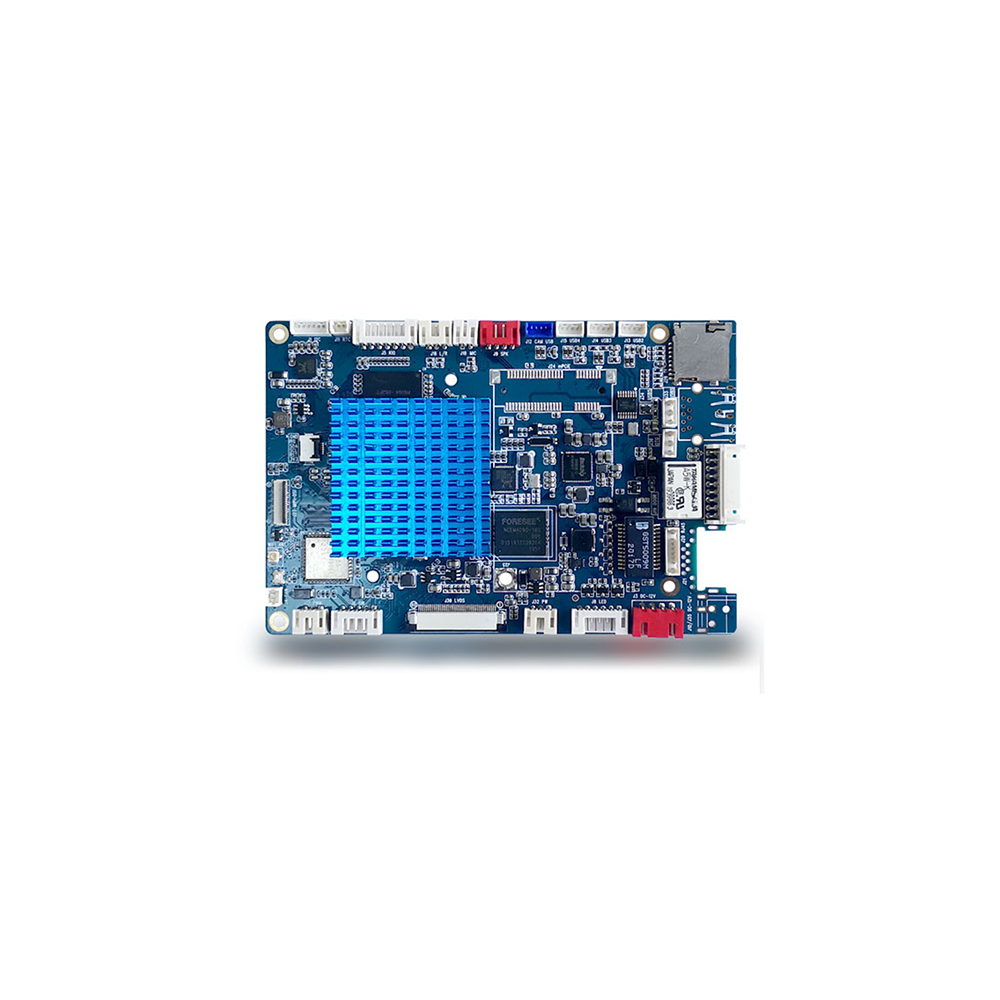

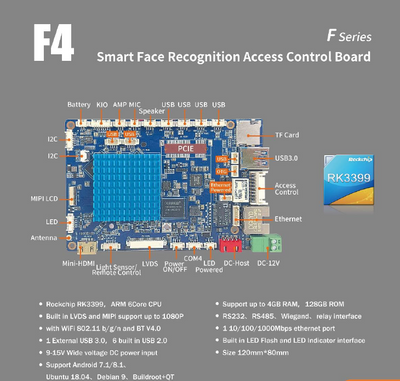

RK3399 Face Recognition Access Control Board 2GB RAM 16GB eMMC F4



F4 is a high-performance face recognition board powered by the Rockchip RK3399 hexa-core processor, combining dual Cortex-A72 and quad Cortex-A53 cores. It supports advanced 4K video decoding, delivers strong GPU performance, and offers extensive peripheral support — ideal for AI-enabled security terminals and edge devices.

With robust I/O and advanced multimedia support, the F4 board is suitable for complex access control systems with high visual and interface requirements.

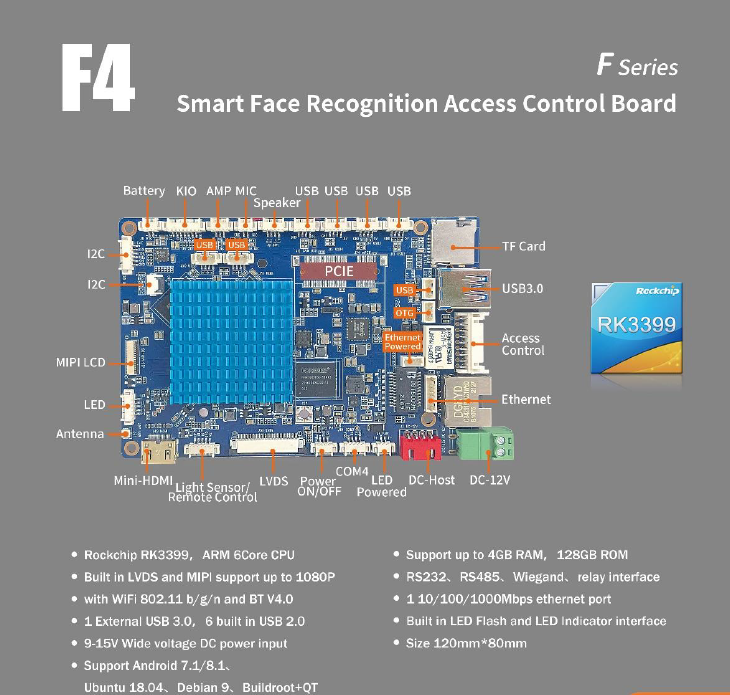

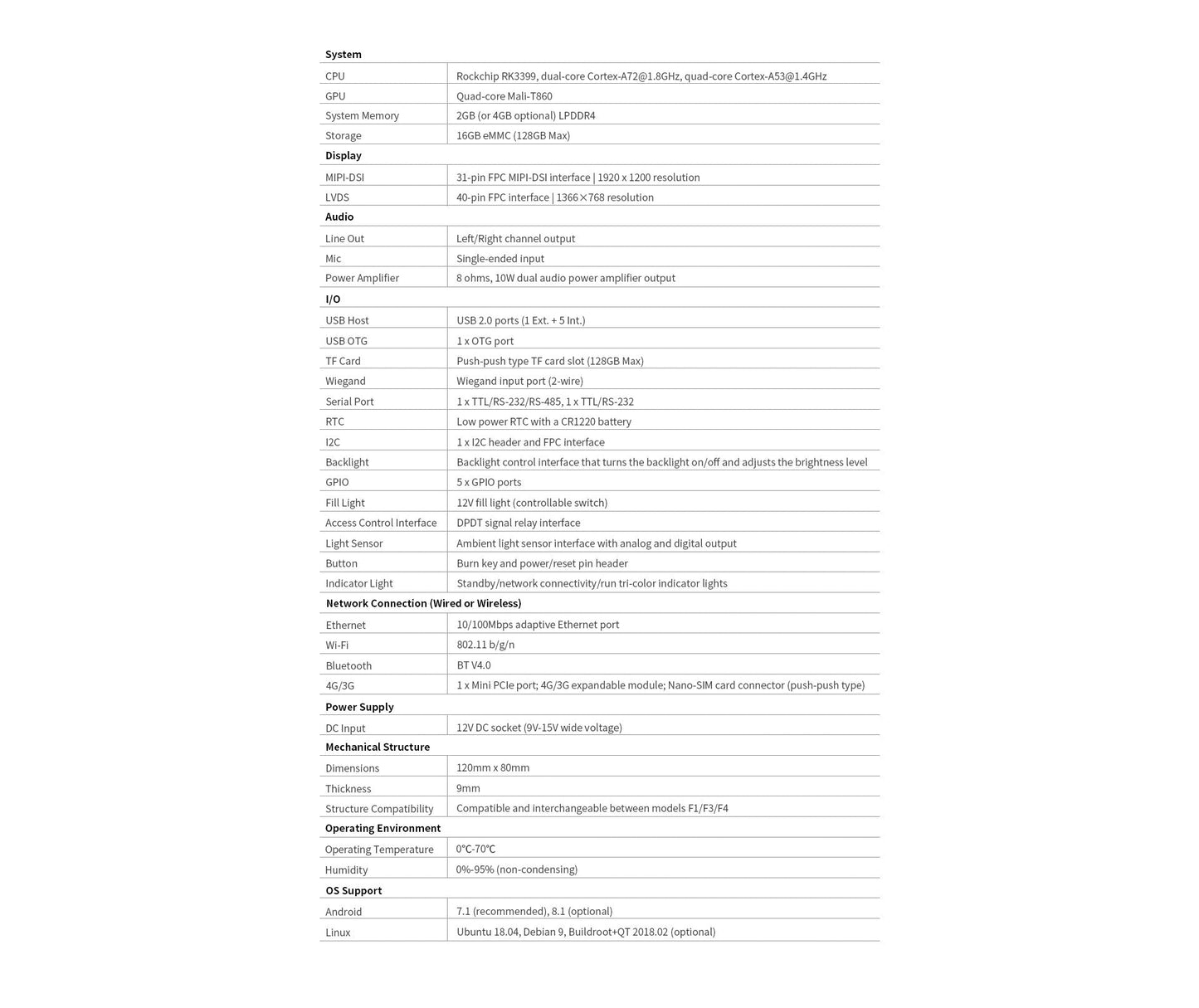

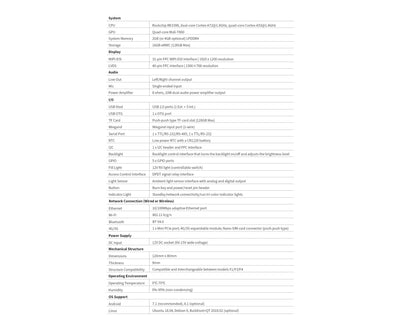

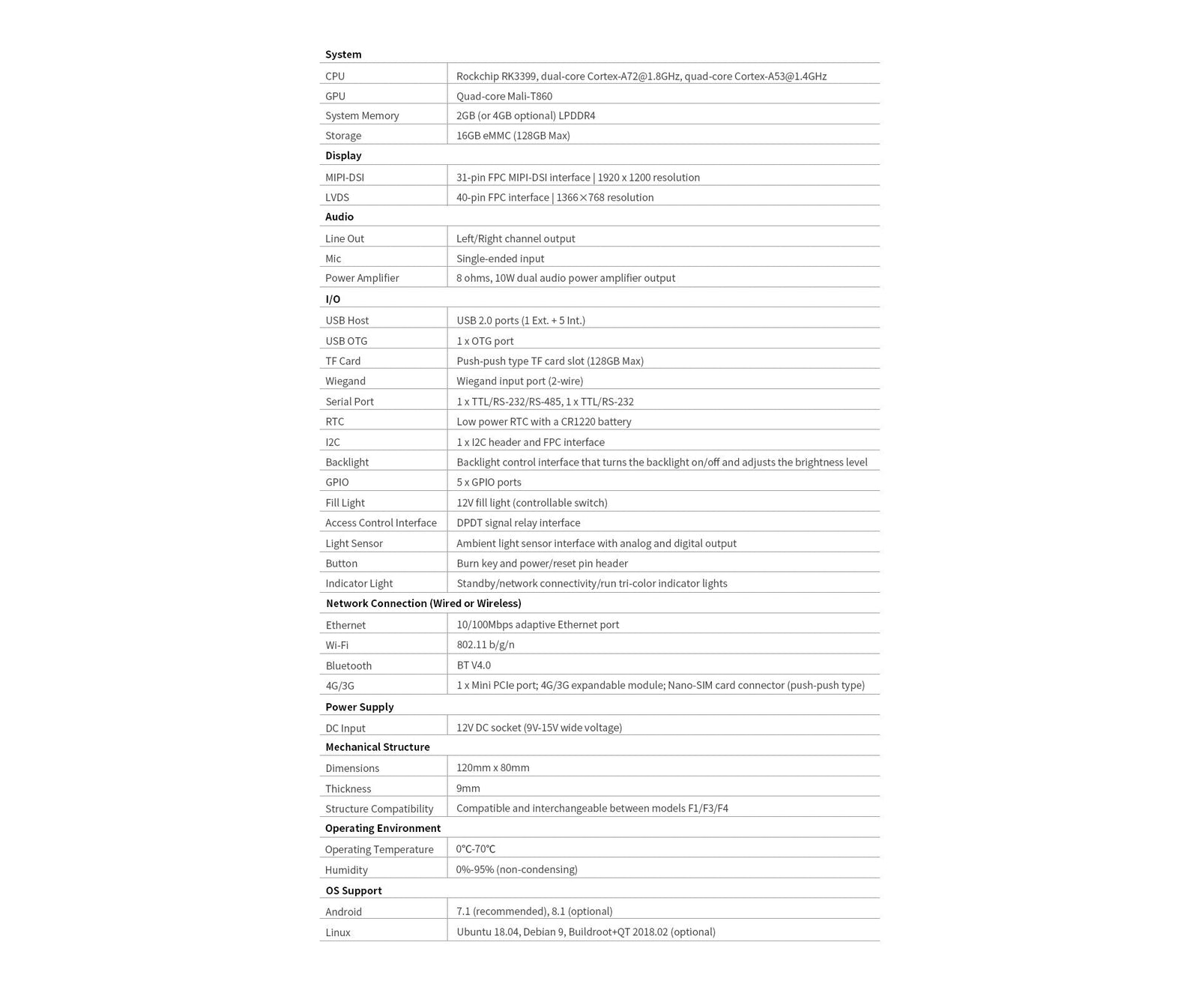

Key Features:

  • Processor: Rockchip RK3399, dual-core Cortex-A72 + quad-core Cortex-A53

  • Graphics: Mali-T860 GPU, supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11

  • Display Support: LVDS and MIPI for 4K UHD decoding

  • Connectivity:

    • 6 × USB ports (1 OTG, 5 internal)

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

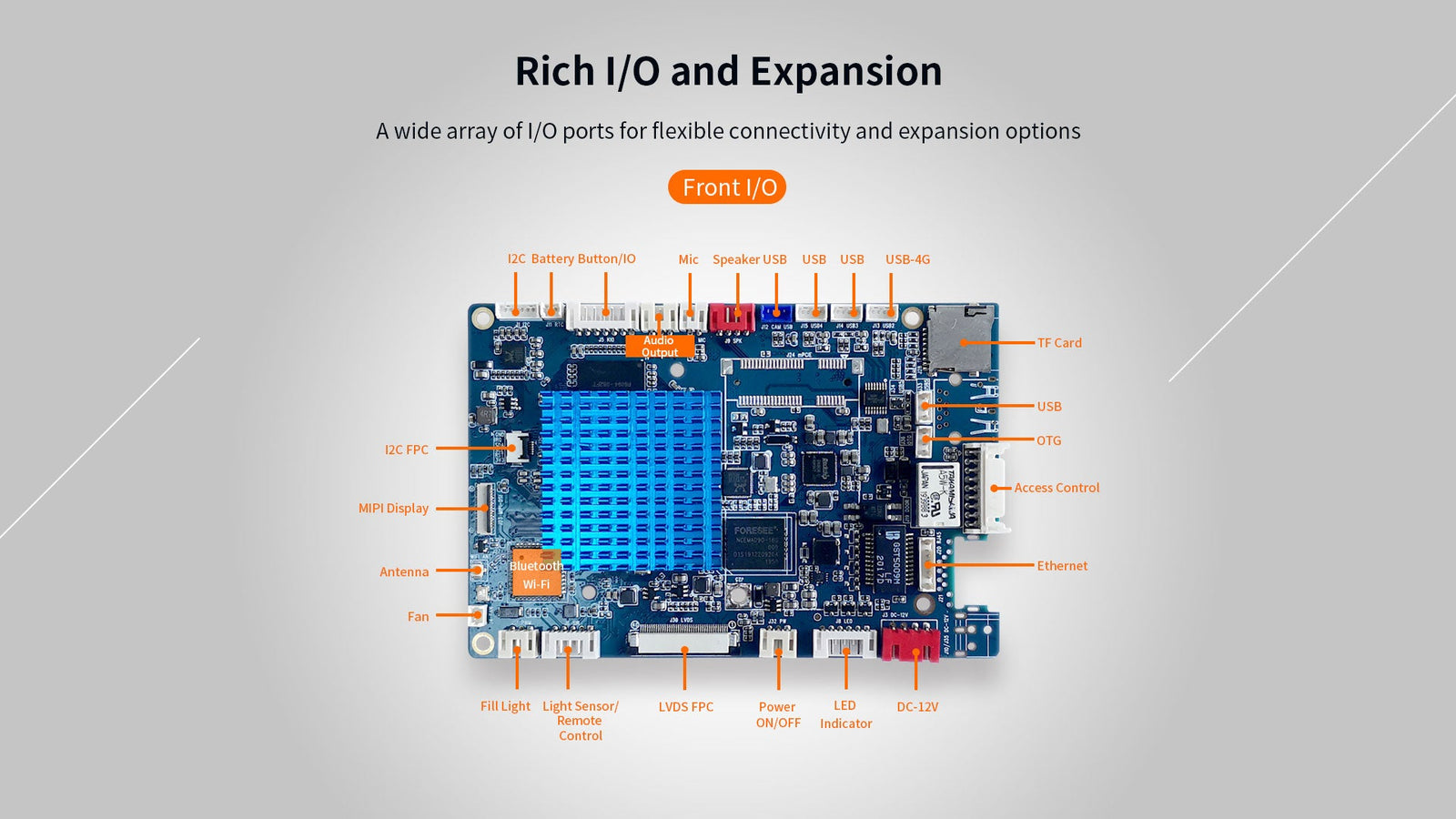

  • I/O Interfaces: RS-232, RS-485, Wiegand, relay control

  • Lighting Control: Fill light and indicator interfaces

  • Memory & Storage: Default 2GB RAM, 16GB eMMC (supports up to 4GB/128GB)

  • Power Supply: 9V–15V wide voltage DC input

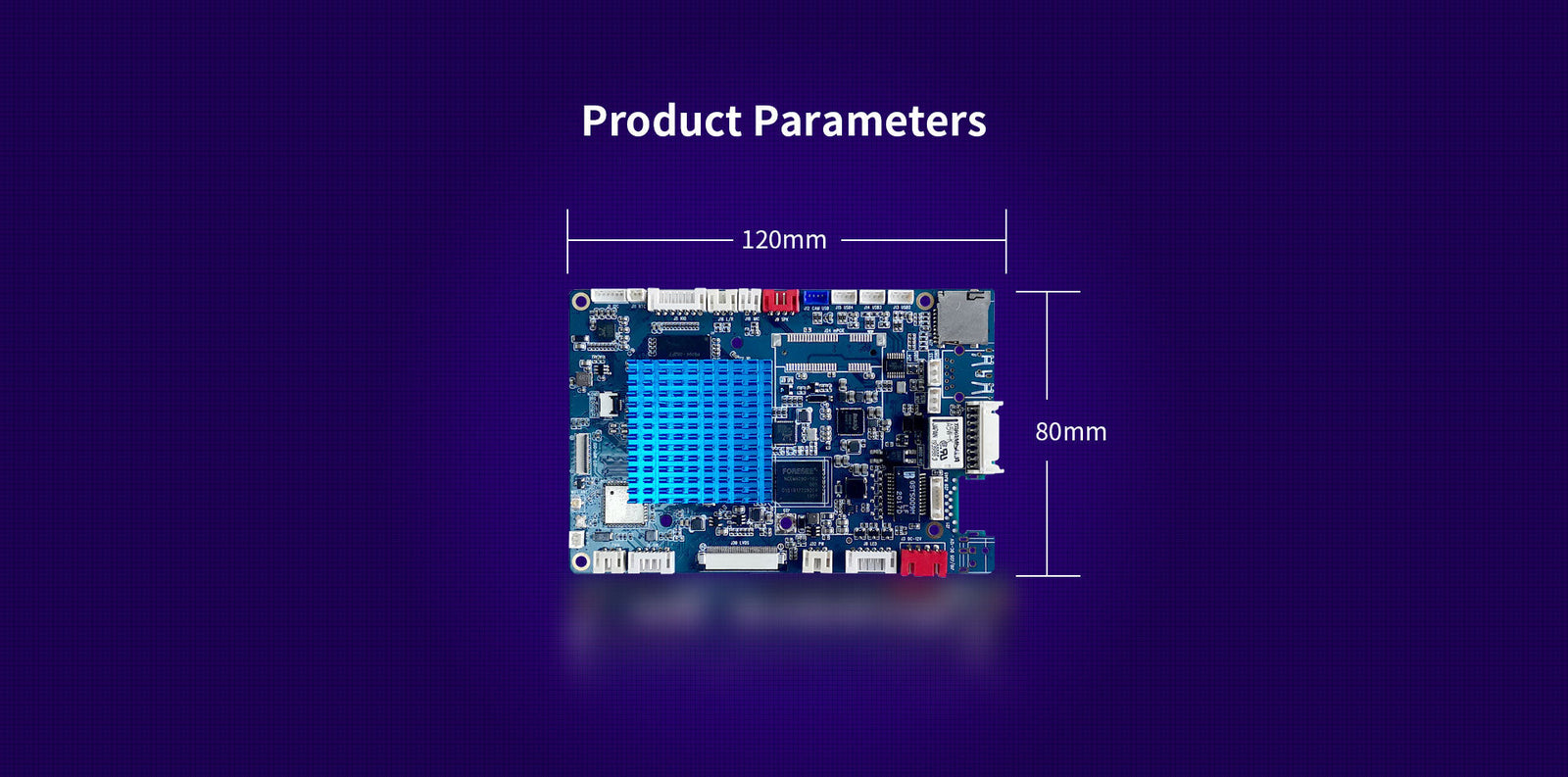

  • Form Factor: 120mm × 80mm
