RK3368 Smart Vending Machine Android Board | HDMI-IN PCIe | K2

$87.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

RK3368 Smart Vending Machine Board 1GB RAM 16GB eMMC K2

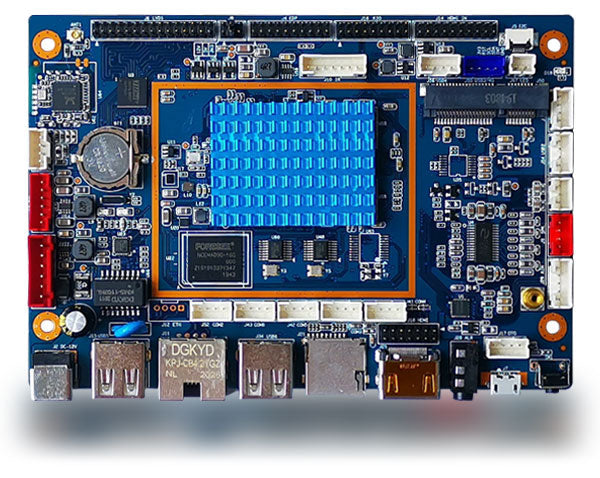

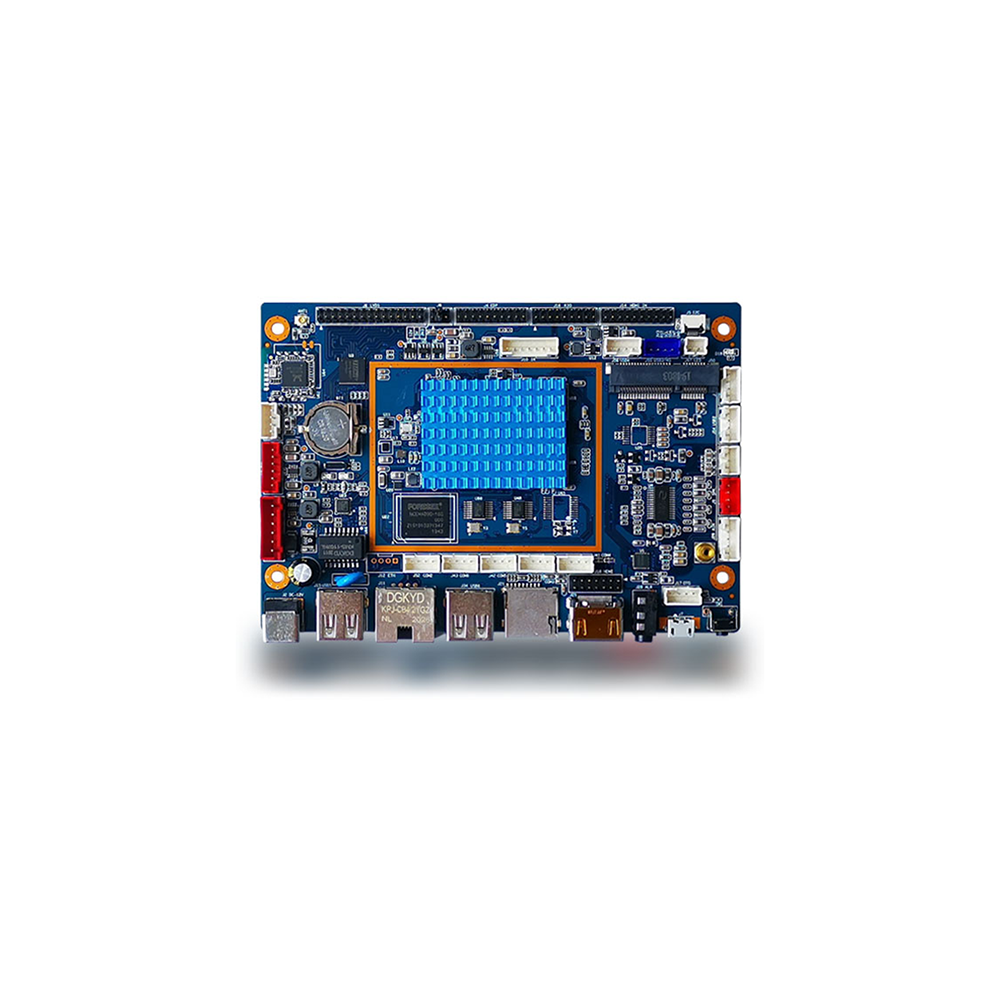

K2 is a smart vending machine board based on the Rockchip RK3368 octa-core processor, designed for media-rich interfaces in compact kiosks and vending solutions. With support for 4K video decoding, E-Ink/LVDS/EDP display interfaces, and robust serial expansion, it excels in embedded and retail environments.

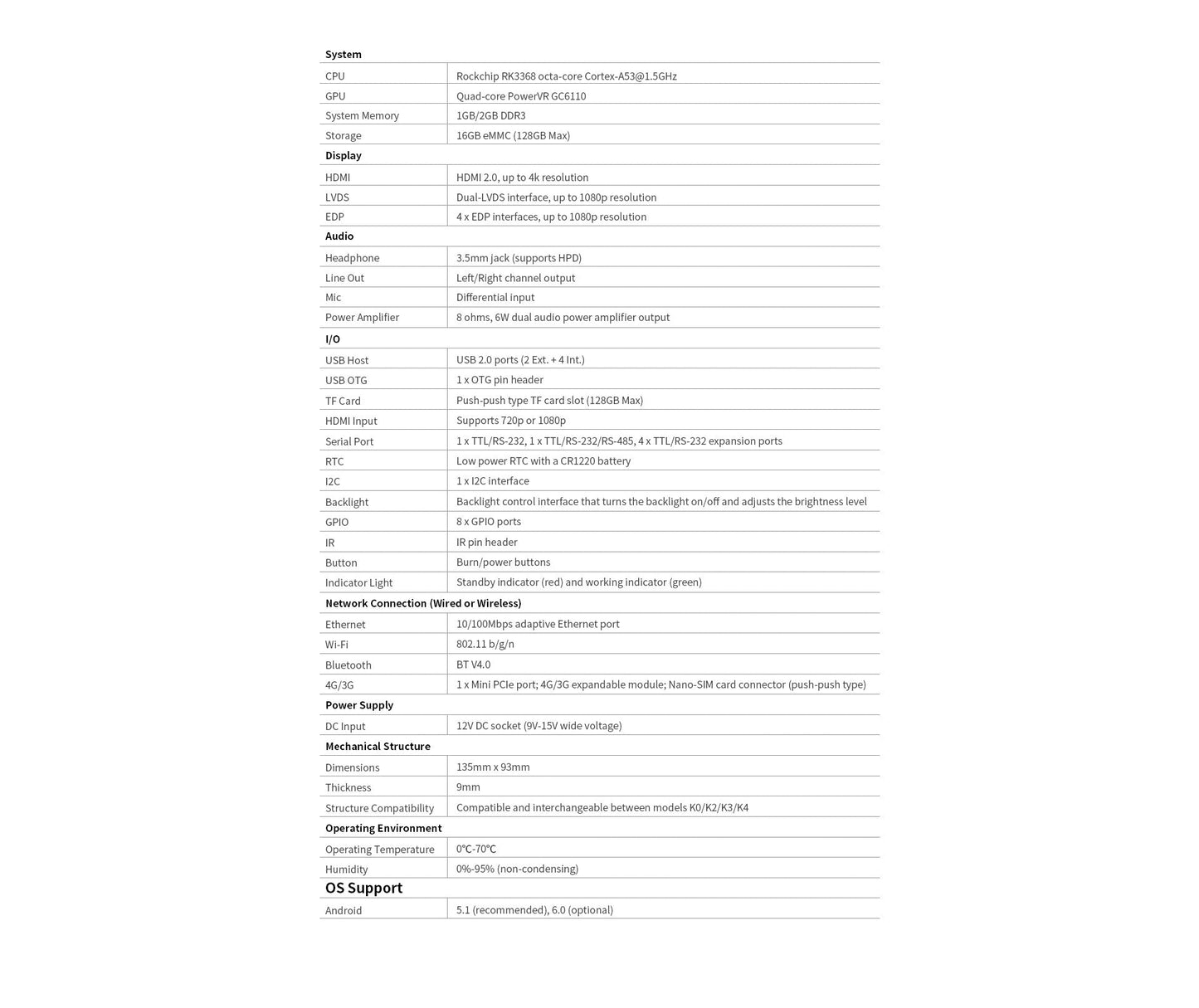

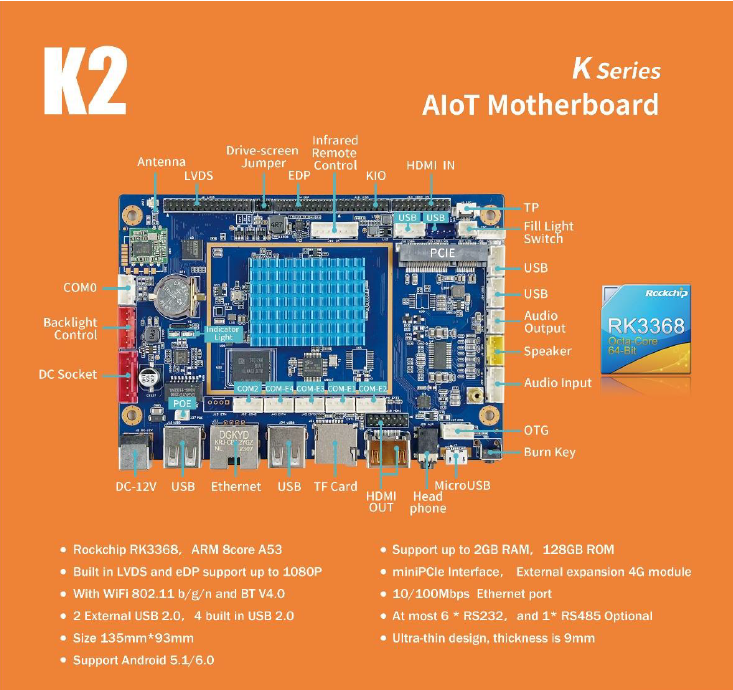

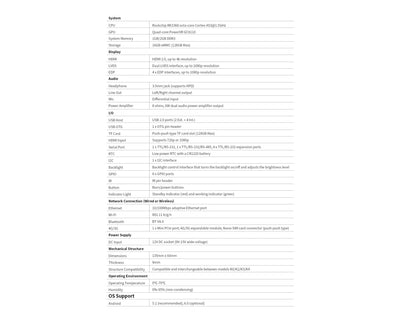

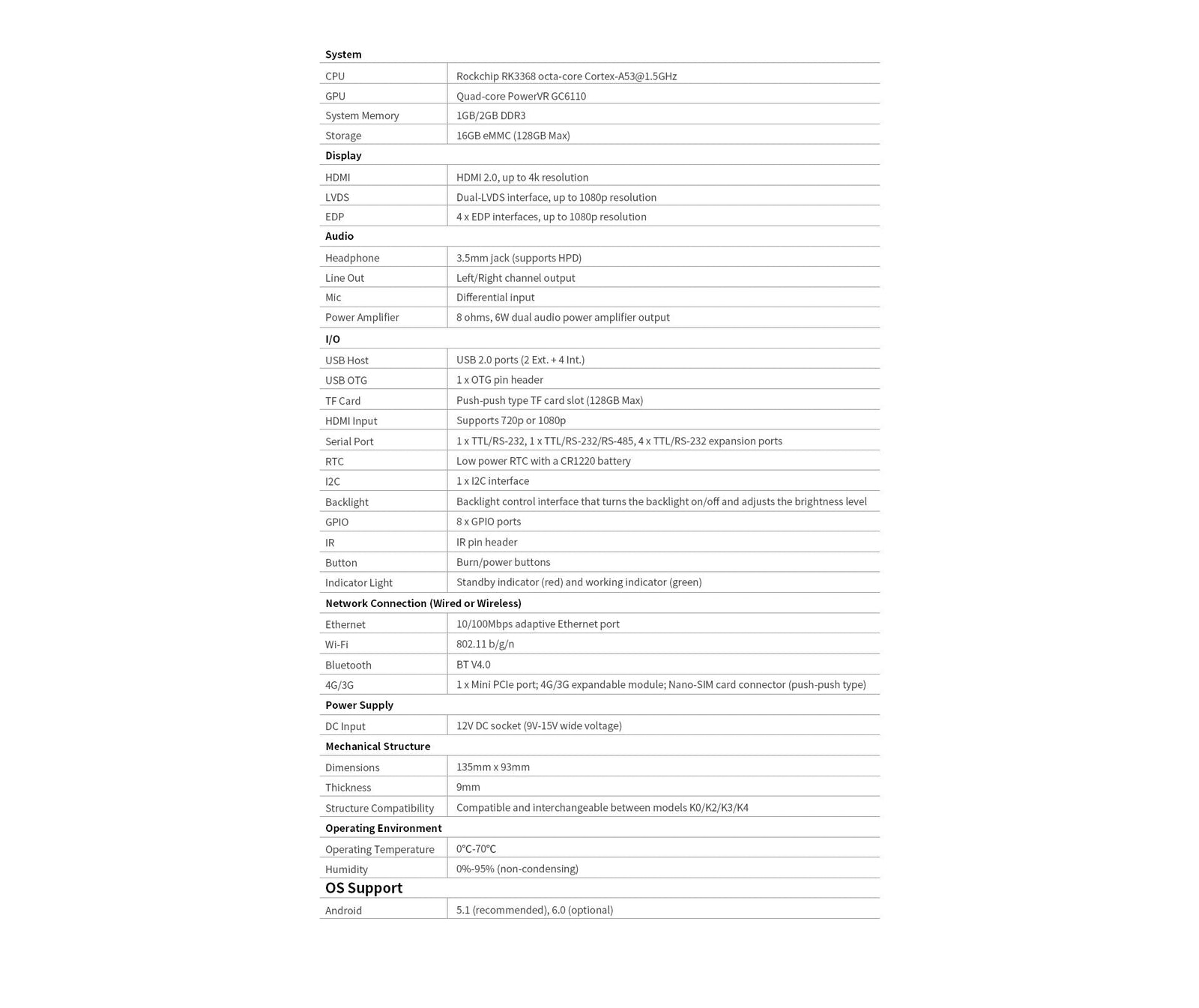

Key Features:

  • Processor: Rockchip RK3368, ARM octa-core Cortex-A53, up to 1.5GHz

  • Graphics: PowerVR GC6110 GPU, supports 4K and 1080p decoding

  • Display Support: LVDS and EDP (1080p), optional E-Ink interface

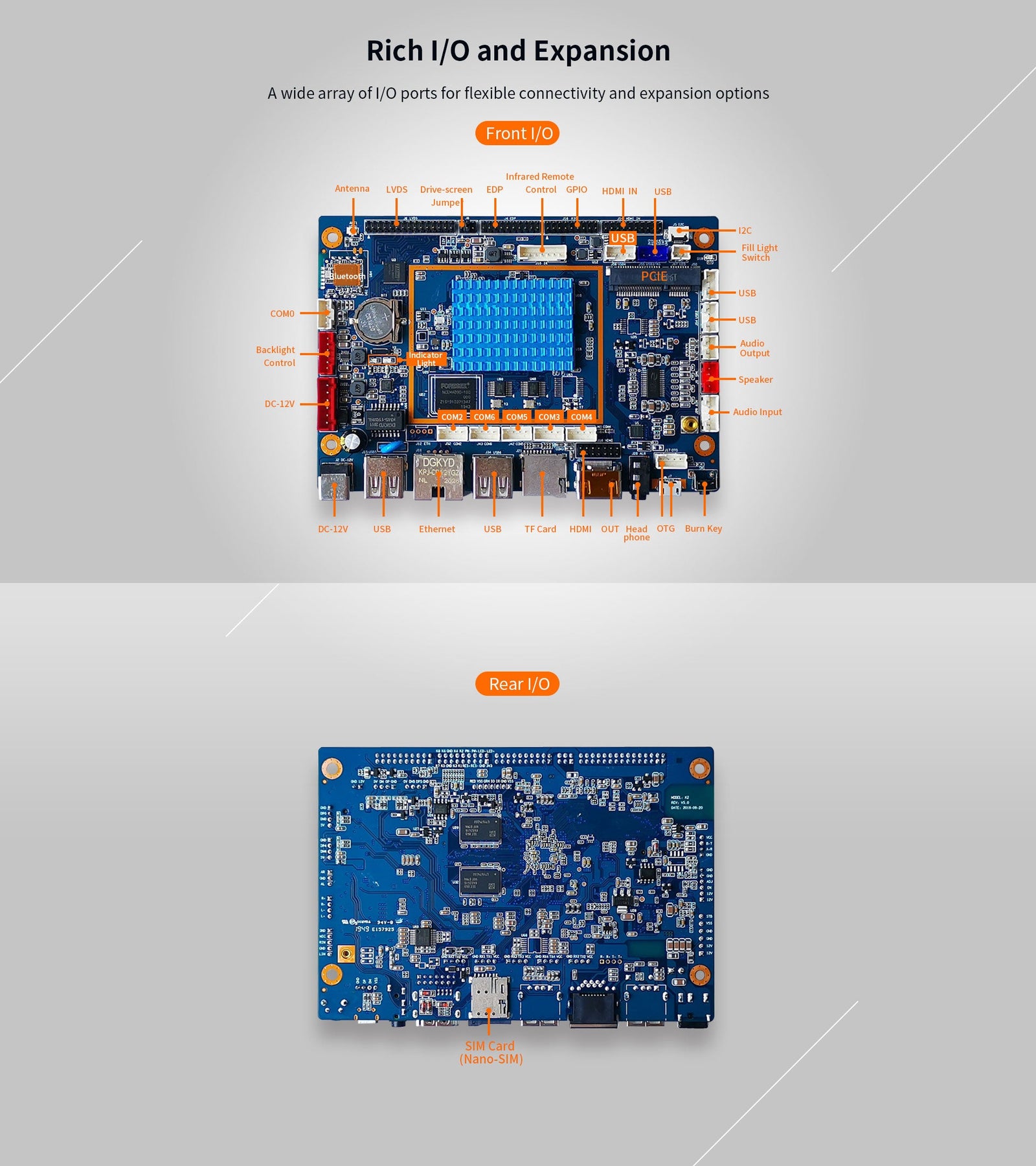

  • Connectivity:

    • 6 × USB 2.0 (2 external, 4 internal)

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

  • Serial Ports: 6 × RS-232, 1 × RS-485 (optional)

  • Expansion: Mini PCIe slot for 4G module

  • Memory & Storage: 1GB RAM, 16GB eMMC (supports up to 2GB/128GB)

  • Power Supply: 9V–15V wide voltage DC input

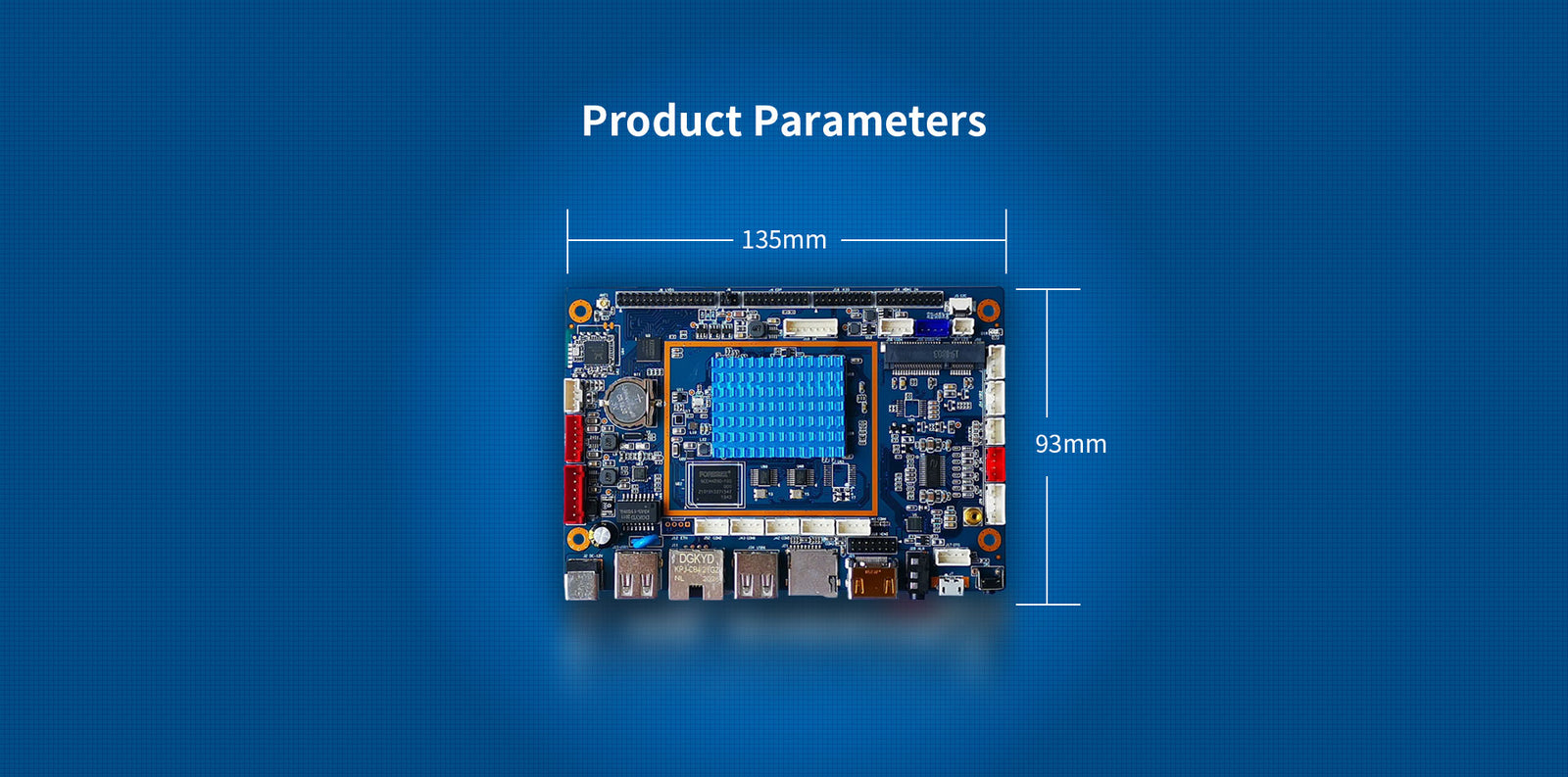

  • Form Factor: 135mm × 93mm, 9mm ultra-thin design
