RK3368 Smart Display Android Board | HDMI-IN LVDS eDP | M2

$82.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

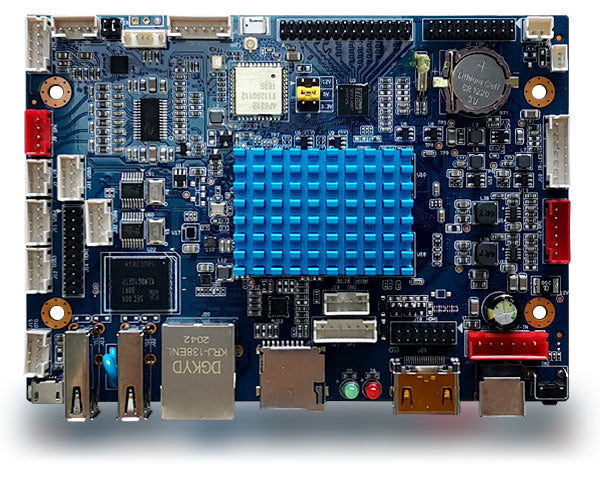

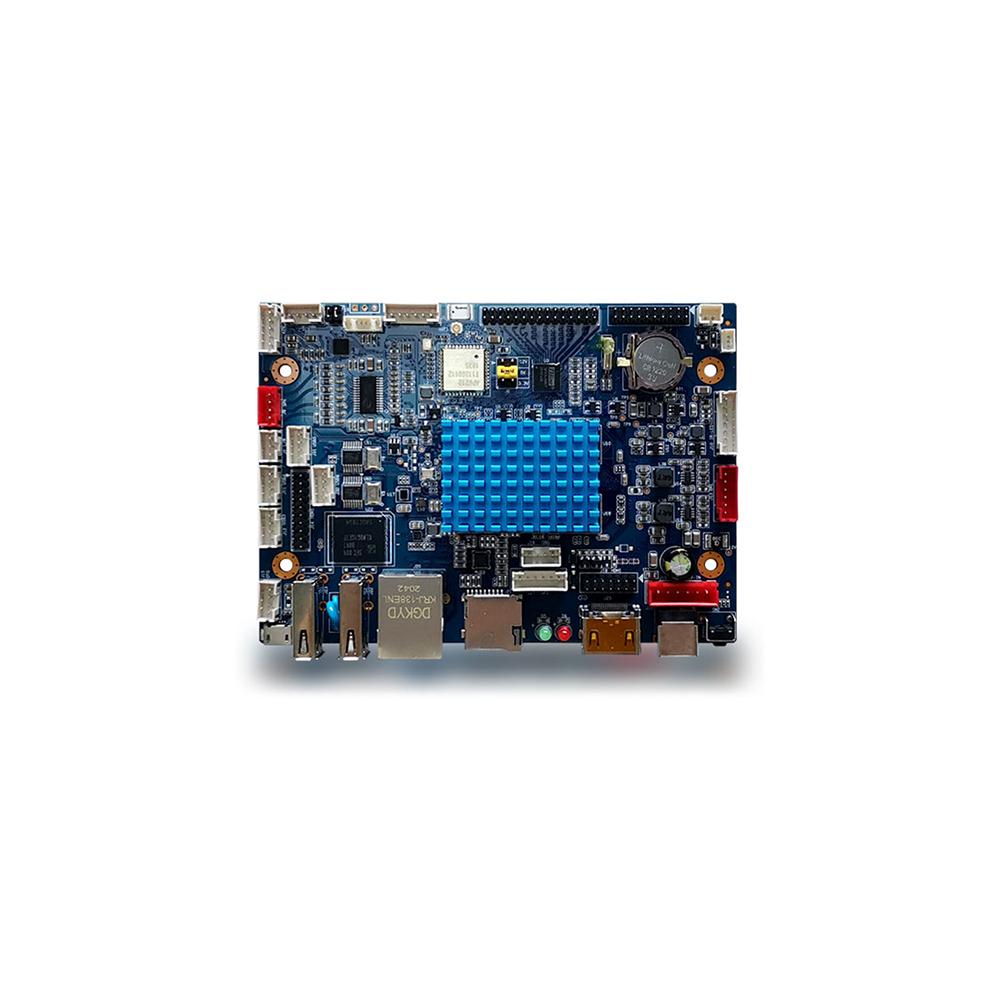

RK3368 Smart Display Board 1GB RAM 8GB eMMC M2

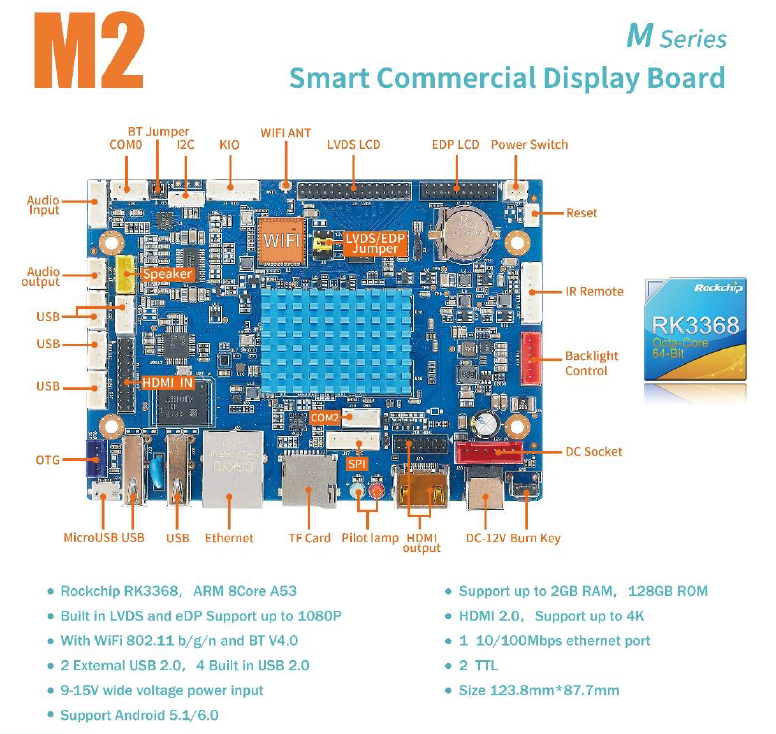

The M2 Android development board is powered by Rockchip RK3368 processor and integrated octa-core Cortex-A53 processor, with dominant frequency up to 1.5GHz. The integrated GC6110 graphics processing unit (GPU) supports OpenGL ES 1.1/2.0/3.1 and can achieve 4K and 1080P hardware video decoding, respectively. Various onboard display and expansion interfaces are available for secondary development of openAPI SDK, which can be quickly used in various industries.

The M2 is an Android embedded development board designed for smart commercial display applications. It is powered by the Rockchip RK3368 processor, featuring an octa-core ARM Cortex-A53 CPU with a dominant frequency of up to 1.5GHz.


Key Features:

  • Processor: Rockchip RK3368, octa-core ARM Cortex-A53, up to 1.5GHz.

  • Graphics: Integrated PowerVR G6110 GPU, supporting OpenGL ES 1.1/2.0/3.1, capable of hardware decoding for 4K and 1080p videos.

  • Memory: 1GB RAM.

  • Storage: 8GB eMMC flash.

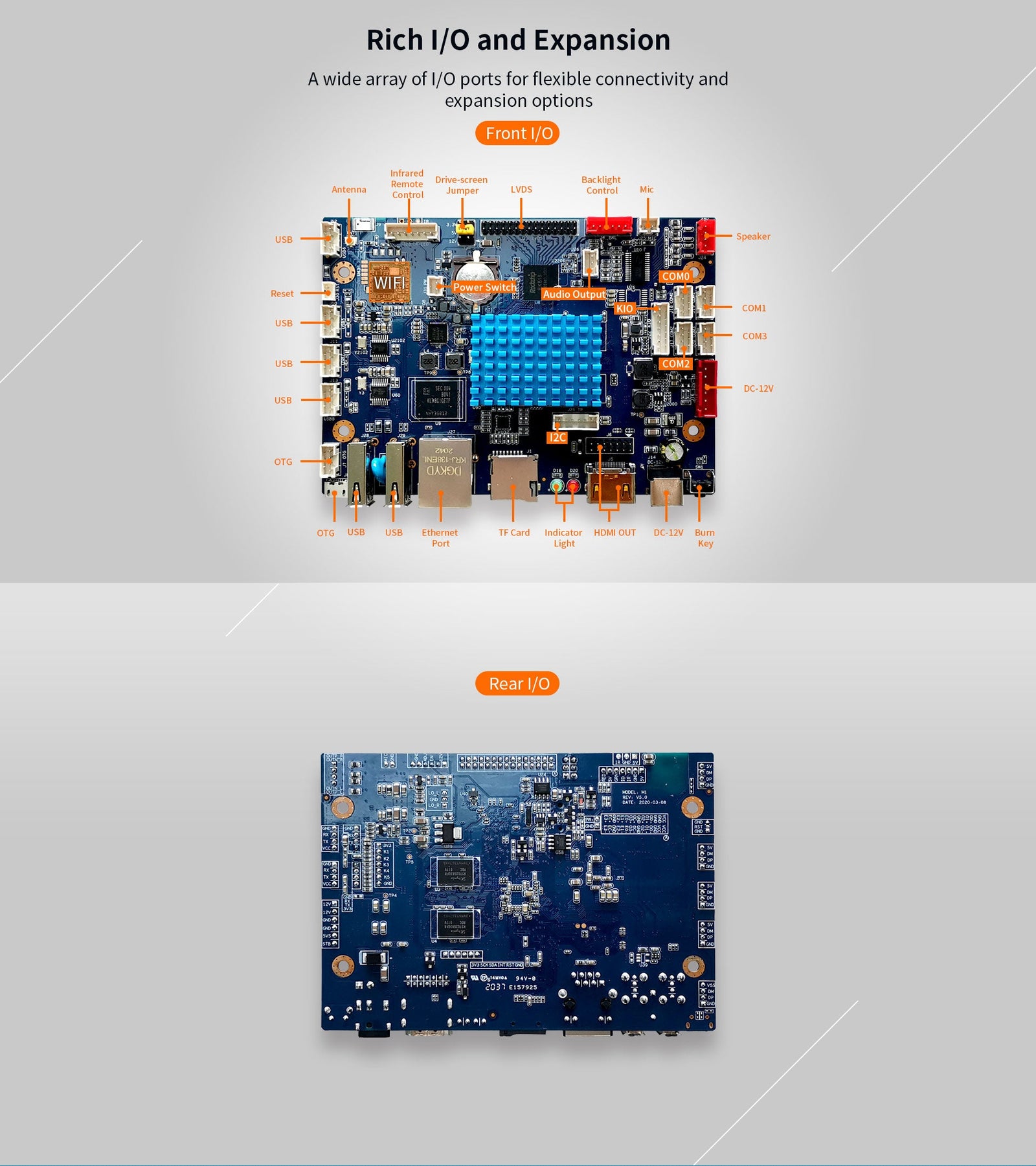

  • Display Support: Multiple interfaces including HDMI, LVDS, and eDP, supporting resolutions up to 1080p.

  • Connectivity: Various options such as USB ports, RS232, and RS485 serial communications.

  • Operating System: Compatible with Android 5.1.

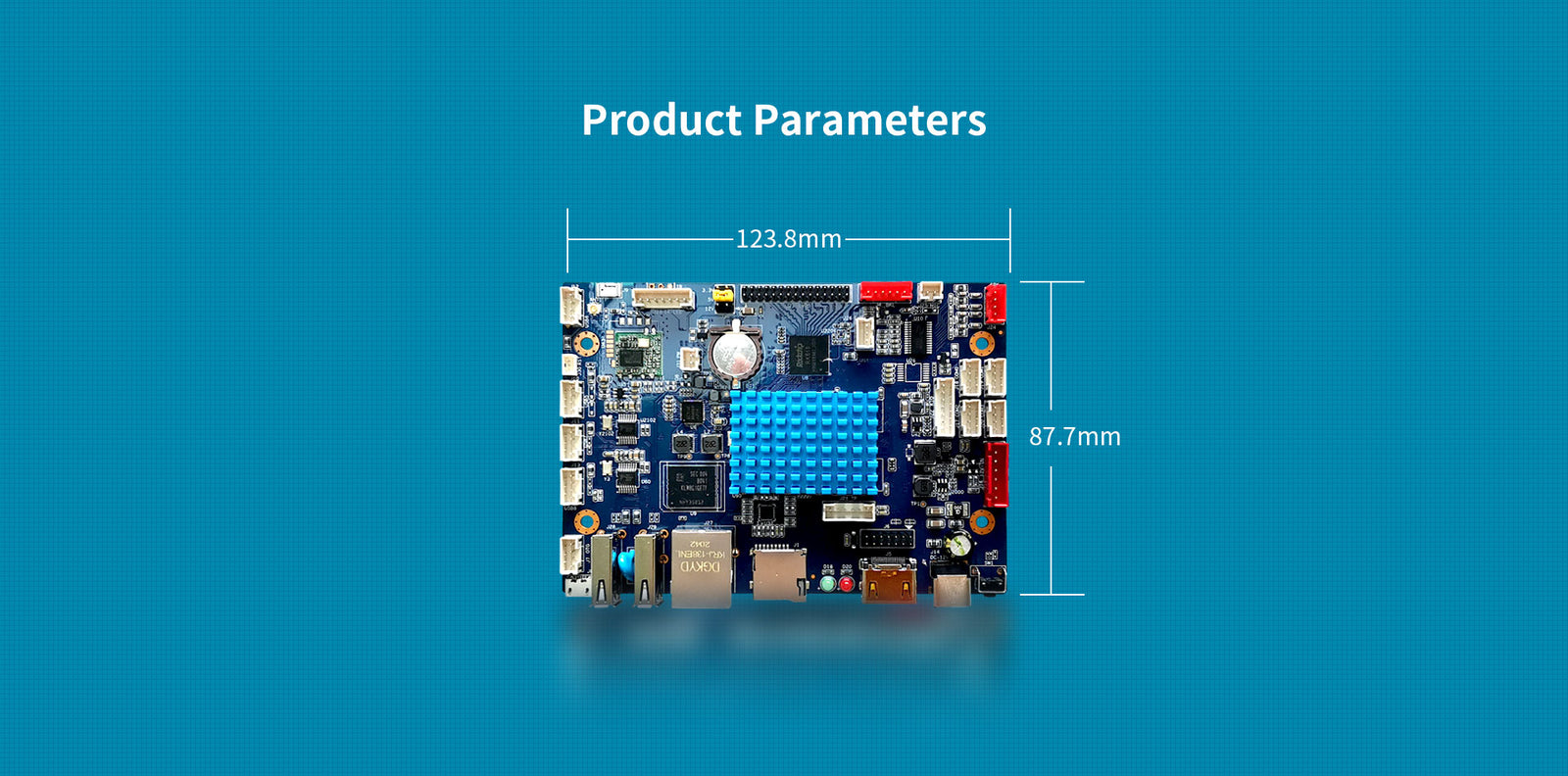

  • Dimensions: 123.8mm*87.7mm
