RK3288 Smart HMI Single Board Computer | LVDS eDP MIPI HDMI | H3

$76.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

RK3288 Smart HMI Single Board Computer 2GB RAM 8GB eMMC H3

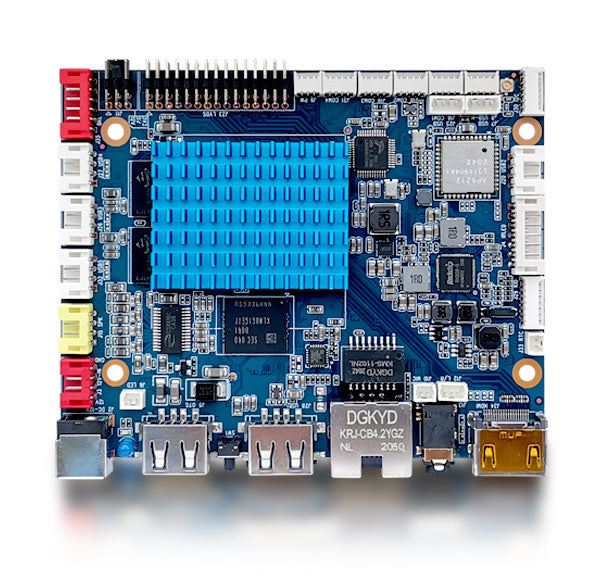

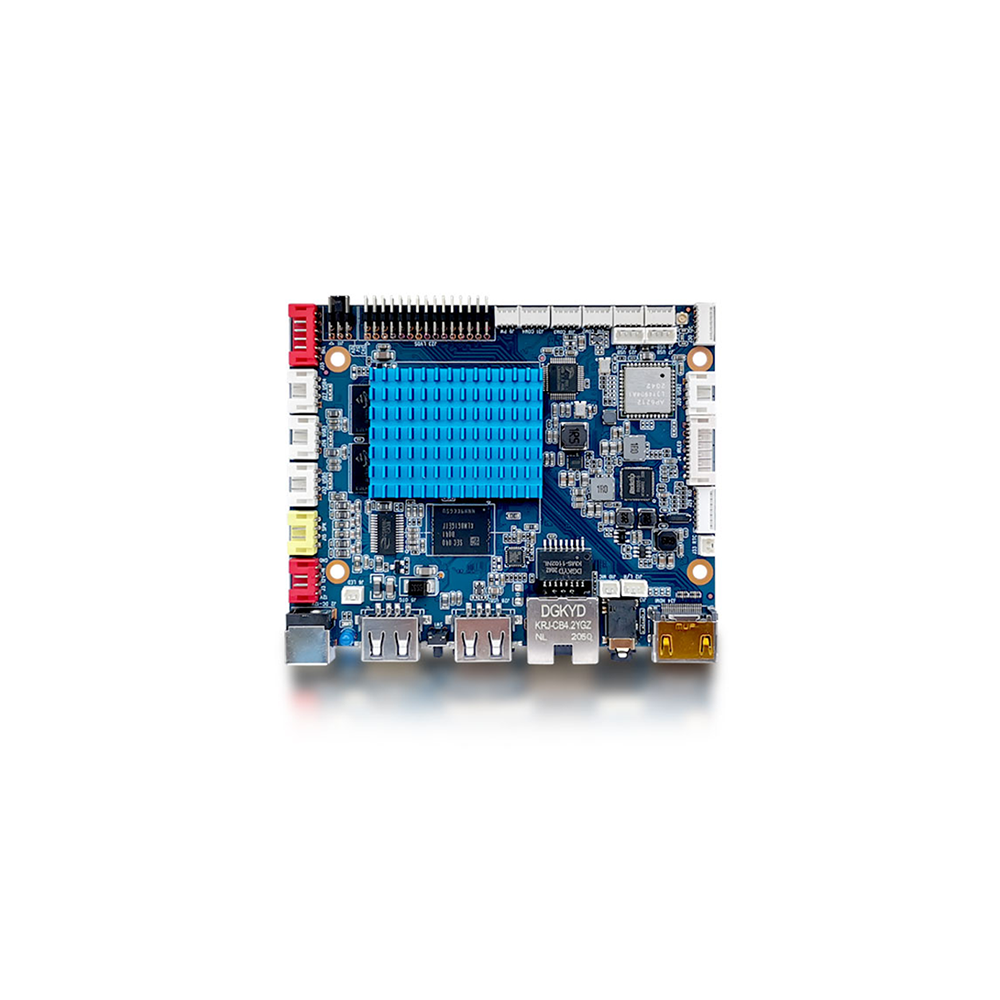

H3 is a versatile Smart HMI board built on the Rockchip RK3288 quad-core processor. With high-performance 4K video decoding, dual display interfaces, and extended USB and serial ports, the H3 board is well-suited for industrial control panels, touch interfaces, and interactive terminals.

Its compact design and wide power input make it a reliable choice for embedded display systems across various sectors.

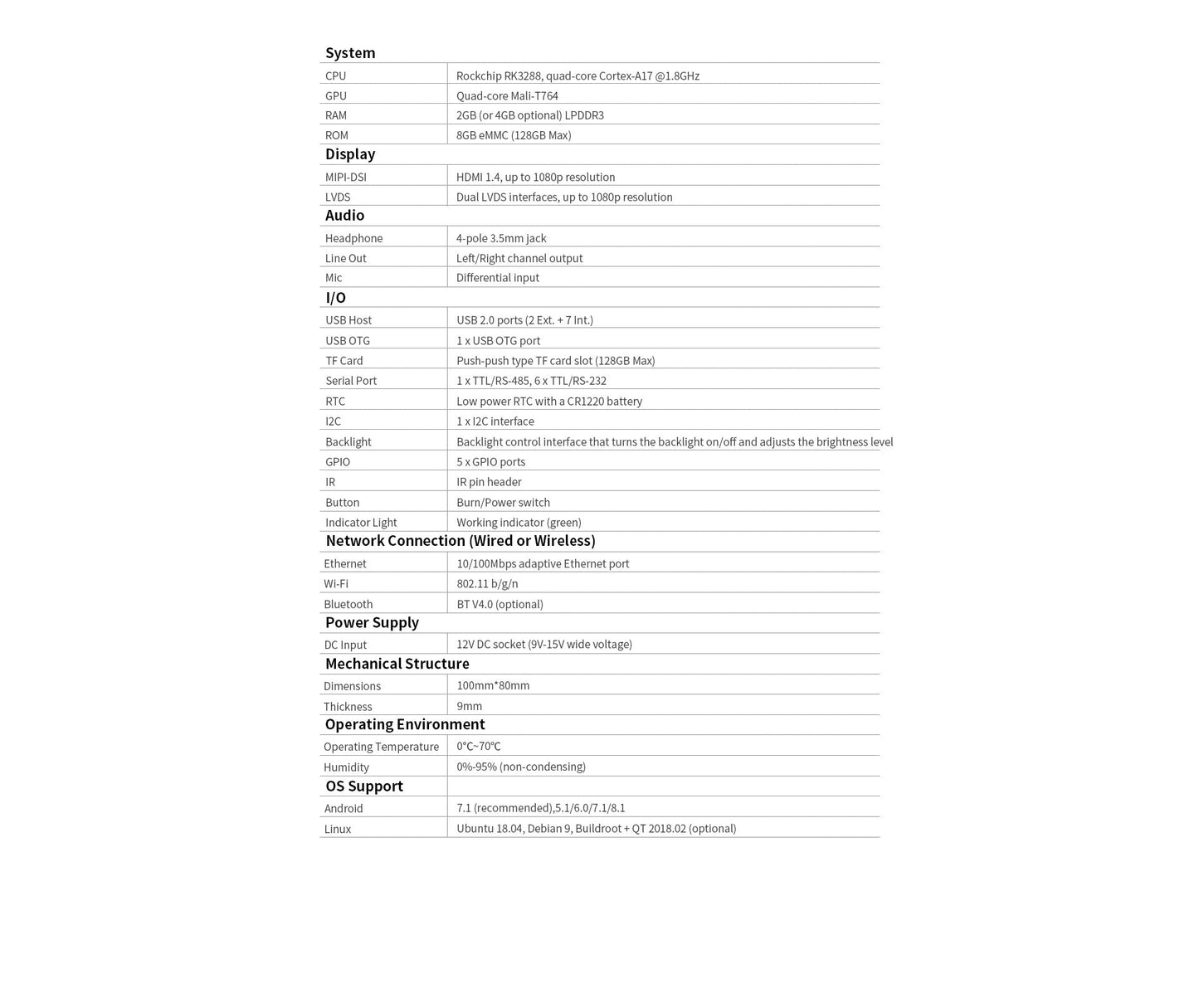

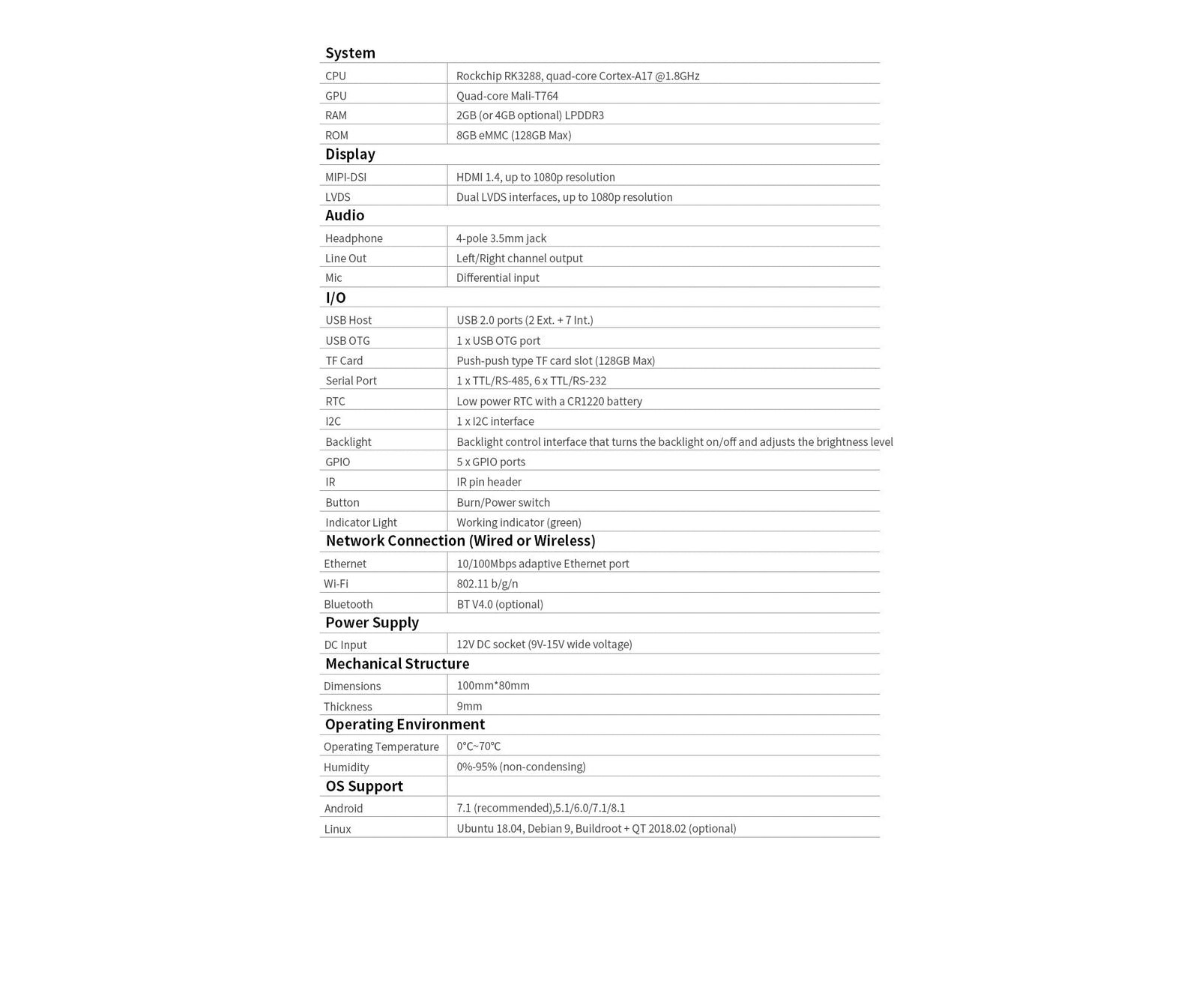

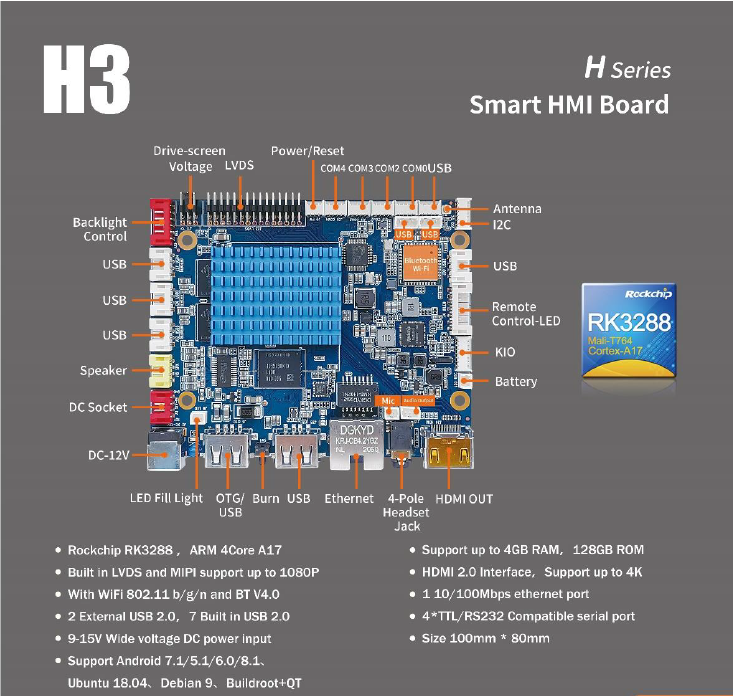

Key Features:

  • Processor: Rockchip RK3288, ARM quad-core Cortex-A17, up to 1.8GHz

  • Graphics: Mali-T764 GPU, supports OpenGL ES 1.1/2.0/3.1

  • Display Support: HDMI 1.4 and LVDS (up to 1080p)

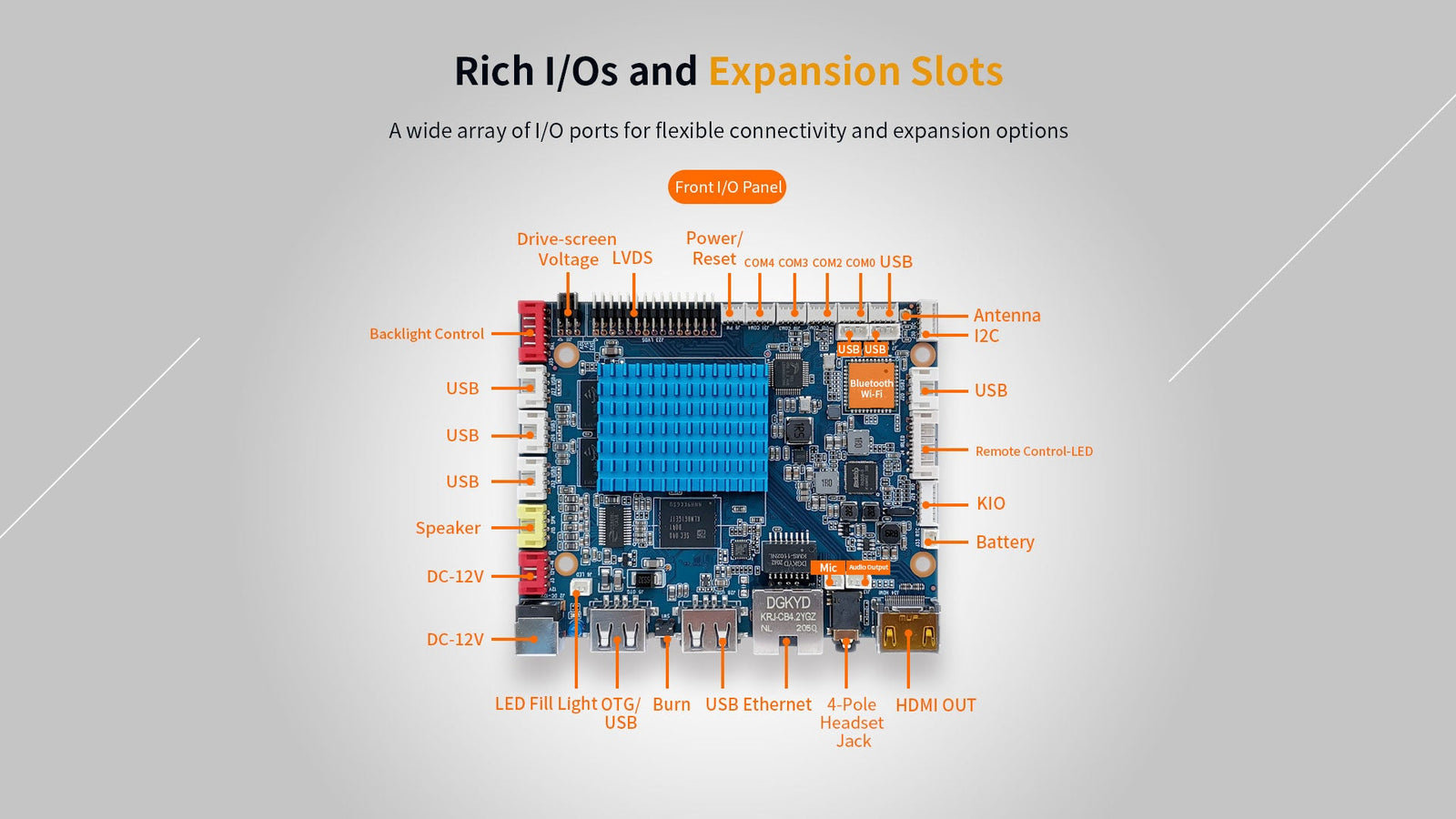

  • Connectivity:

    • 9 × USB 2.0 ports (2 external, 7 internal)

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

  • Serial Ports: 6 × TTL/RS-232, 1 × TTL/RS-485

  • Memory & Storage: 2GB RAM, 8GB eMMC (supports up to 4GB/128GB)

  • Power Supply: 9V–15V wide voltage DC input

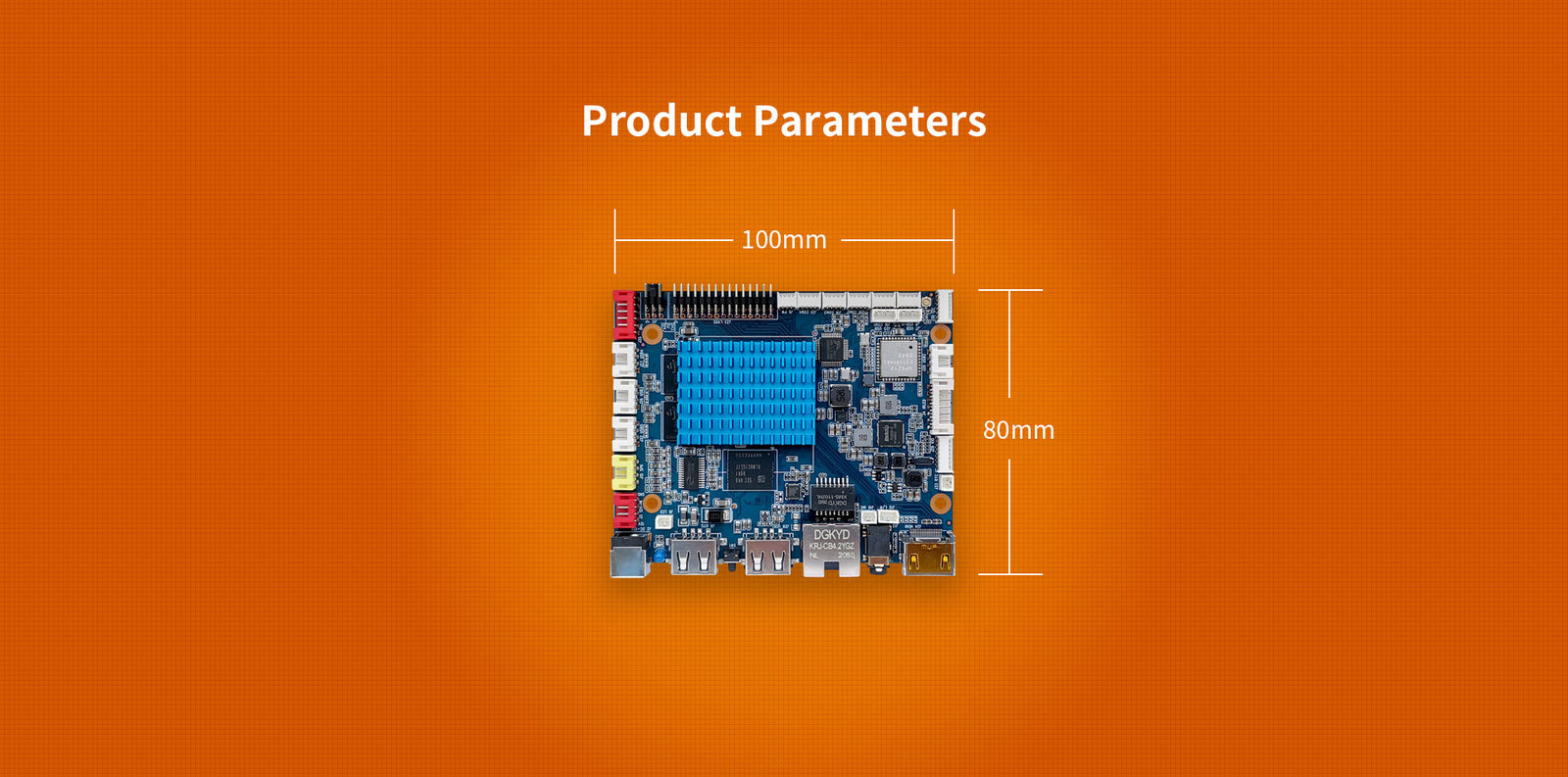

  • Form Factor: 100mm × 80mm
