RK3288 Smart Display Android Board | HDMI-IN LVDS eDP | M3

$91.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

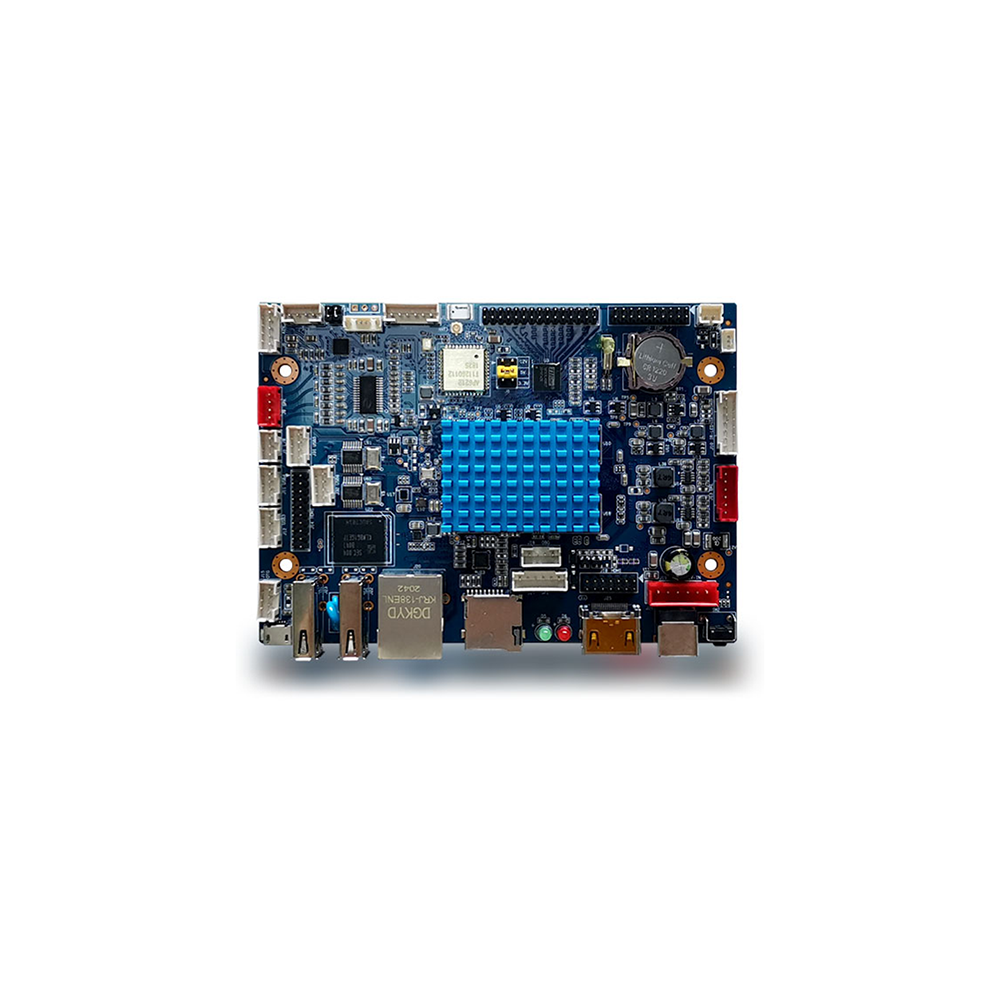

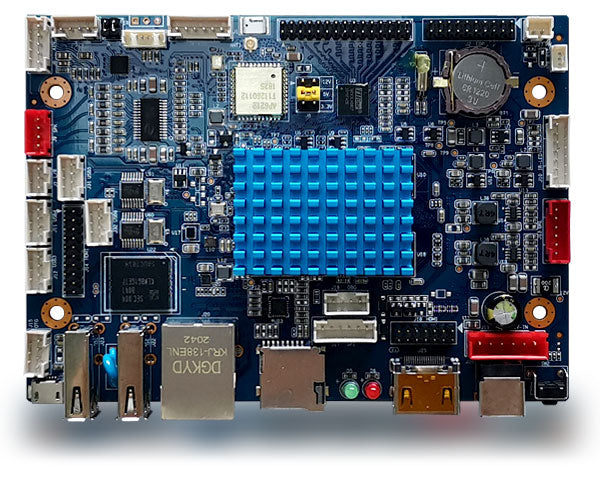

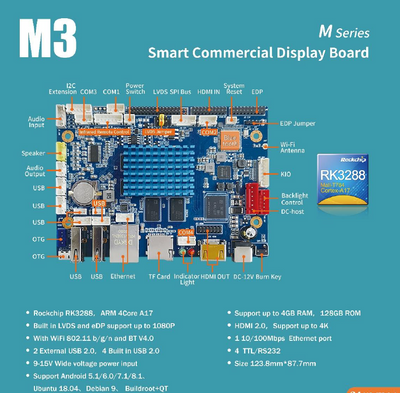

RK3288 Smart Display Board 2GB RAM 8GB eMMC M3

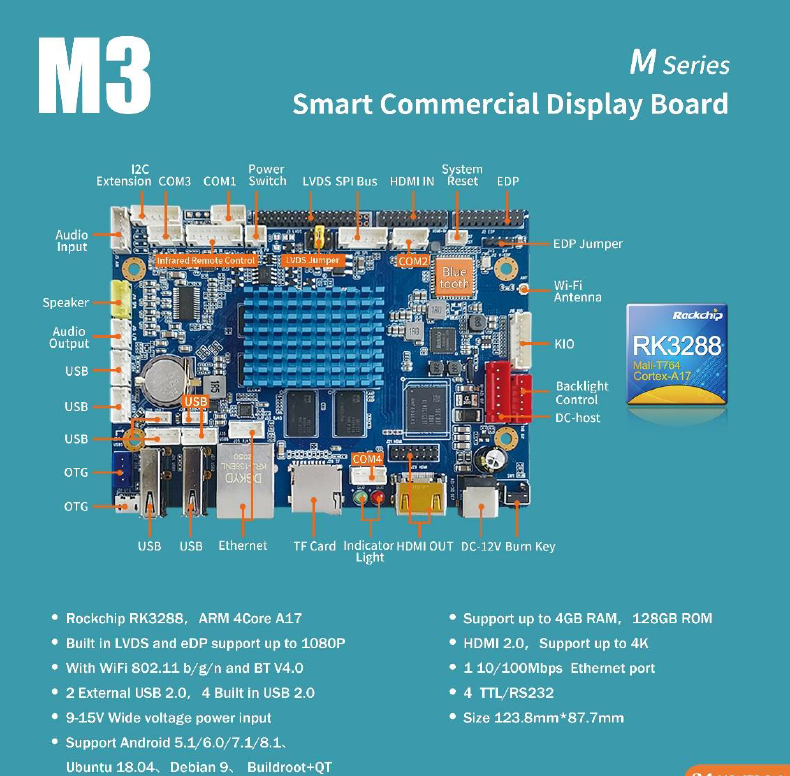

M3 is an Android-based smart display board powered by the Rockchip RK3288 quad-core processor. With support for 4K/1080p video playback, it integrates HDMI, LVDS, and eDP display interfaces along with wireless and serial communication. Ideal for smart vending machines, signage, and AIoT terminals, M3 is highly adaptable for embedded display development.



Key Features:

  • Processor: Rockchip RK3288, ARM quad-core Cortex-A17, up to 1.8GHz

  • Graphics: Mali-T764 GPU, supports OpenGL ES 1.1/2.0/3.1

  • Display Support: HDMI, LVDS, and eDP (up to 1080p)

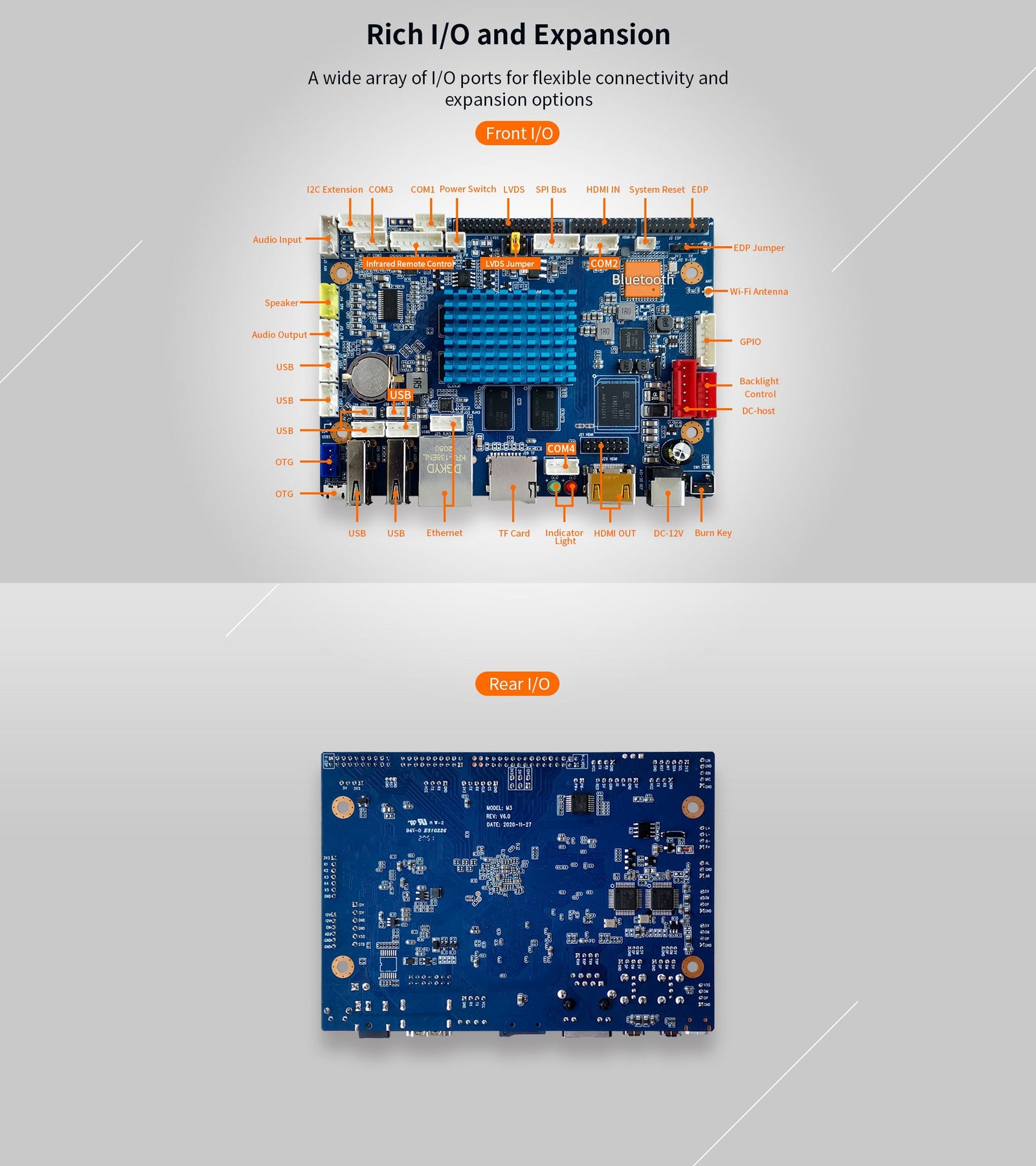

  • Connectivity:

    • 6 × USB 2.0 (2 external, 4 internal)

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

  • Serial Ports: RS232 and RS485 support

  • Memory & Storage: 2GB RAM, 8GB eMMC

  • Power Supply: 9V–15V wide voltage DC input

  • Form Factor: 135mm × 90mm

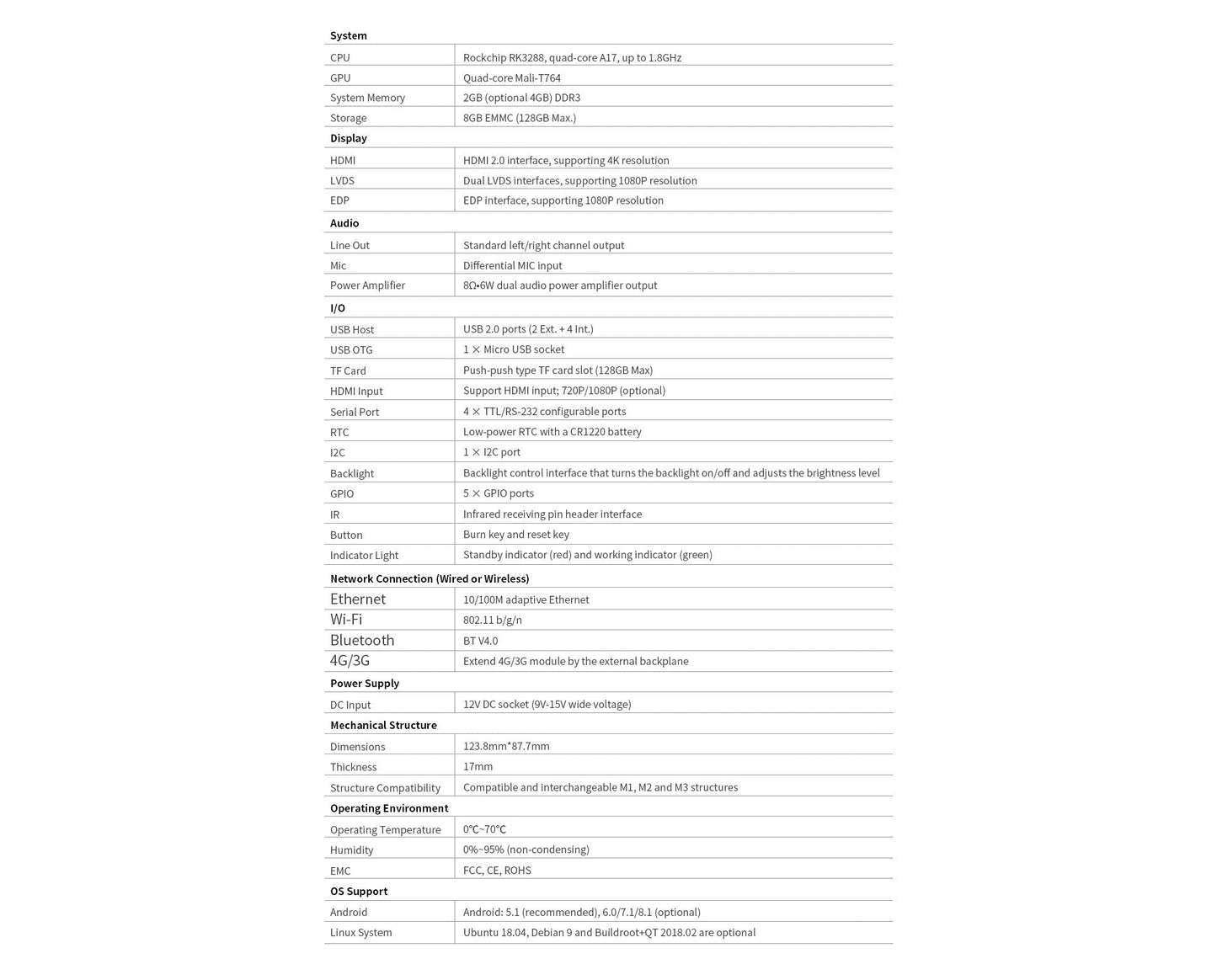

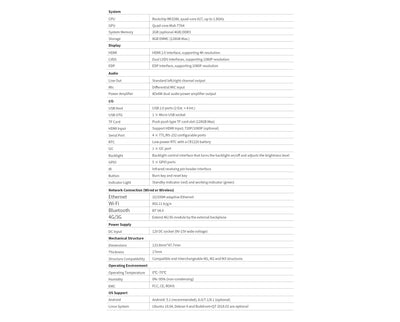

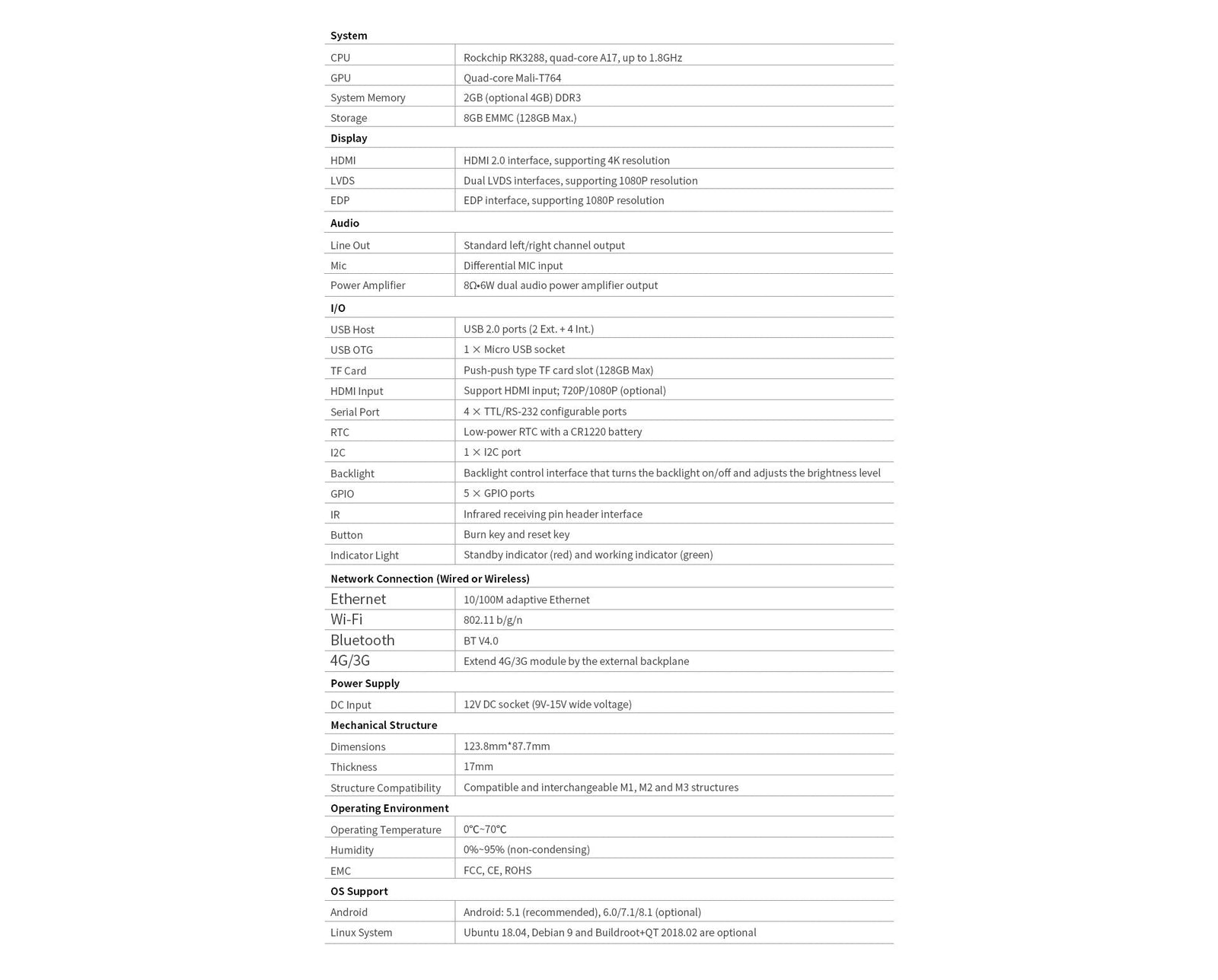

Technical specifications are loading…
