RK3288 Industrial IoT Gateway Motherboard | Core + Base Board | GW-3288

$103.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

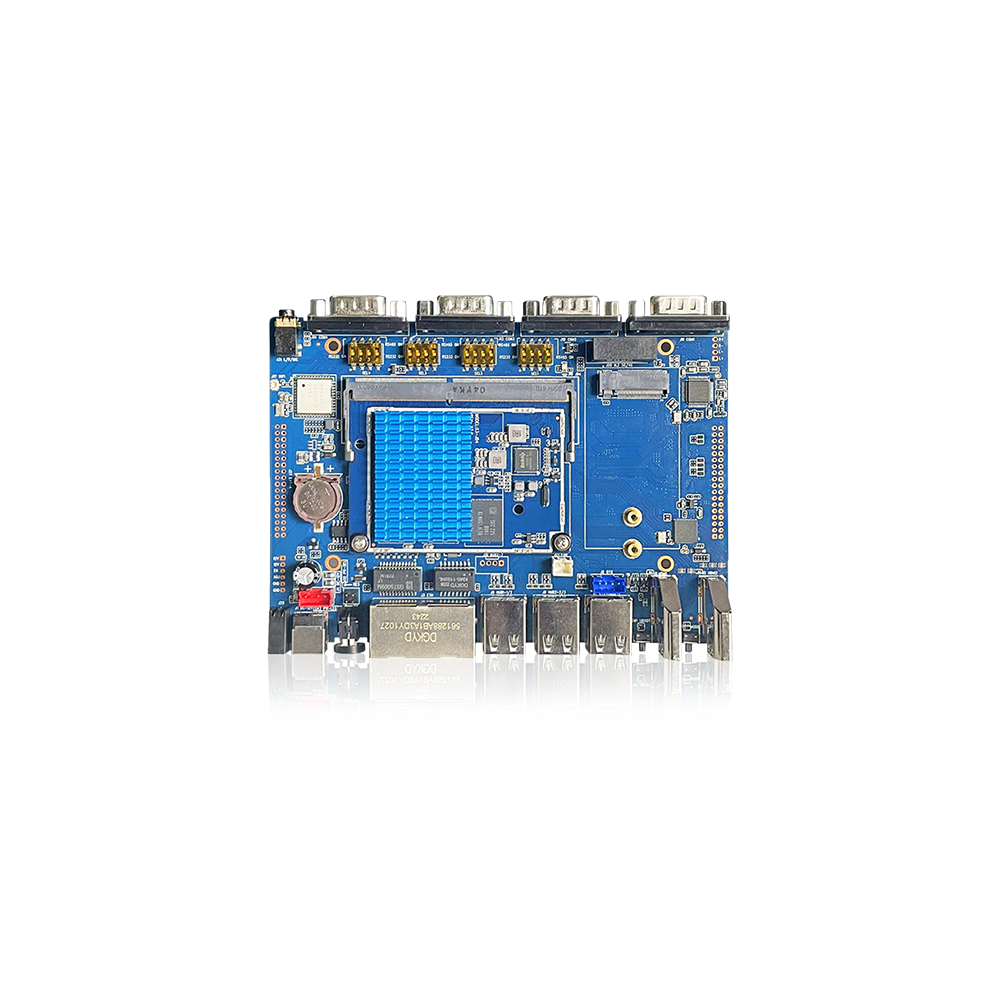

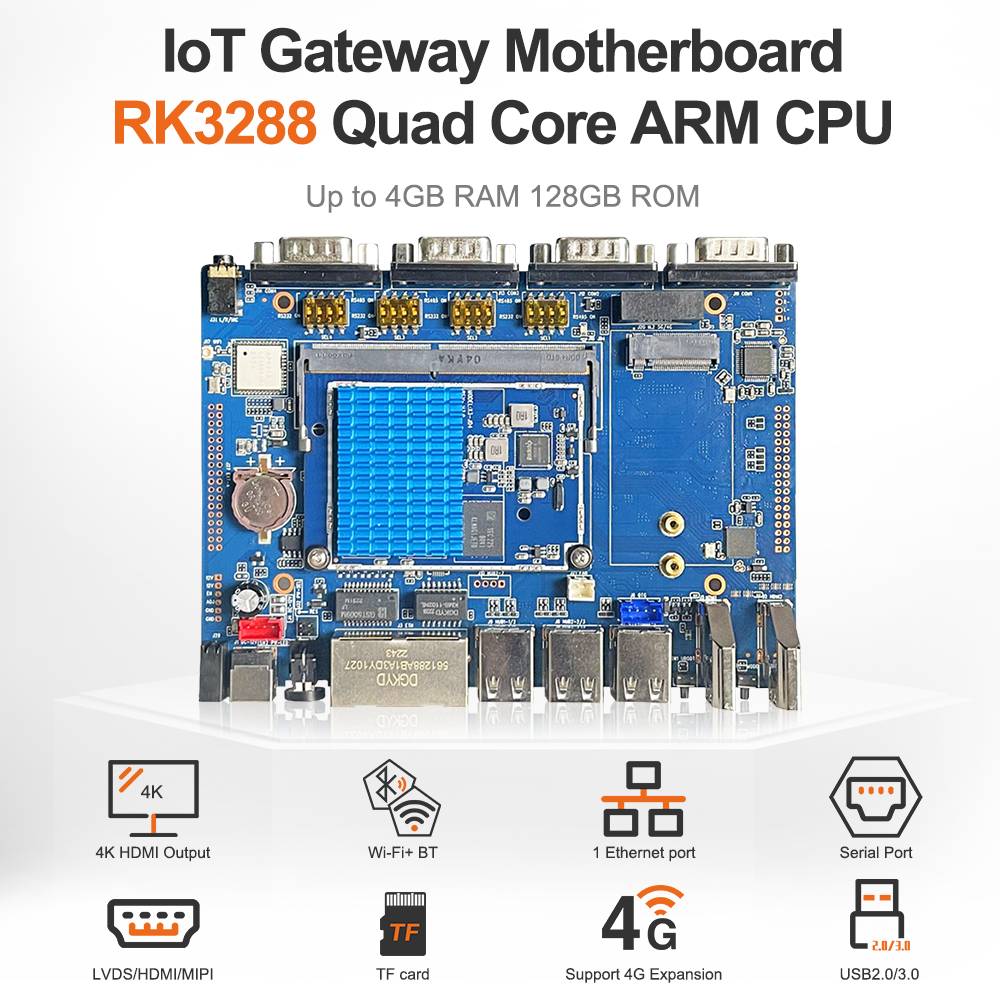

RK3288 IoT Gateway Motherboard 2GB RAM 16GB eMMC GW-3288



GW-3288 is a high-performance IoT gateway motherboard designed for networking and smart data transmission applications. Powered by the Rockchip RK3288, it supports dual Ethernet, multiple serial ports, and extensive USB expansion, making it ideal for industrial gateways, protocol converters, and automation systems.

With built-in Wi-Fi, Bluetooth, and 4G/5G expansion capability, it is engineered for reliable long-term deployment.

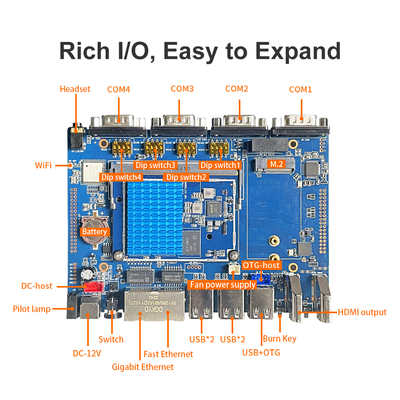

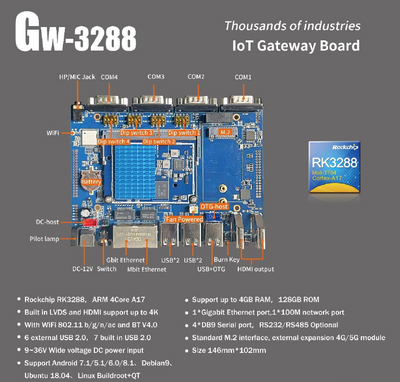

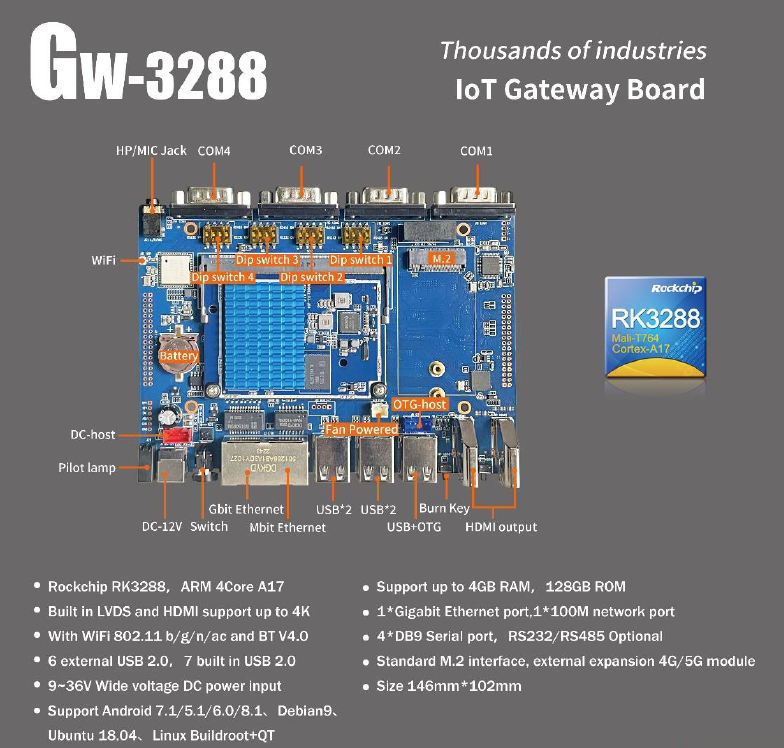

Key Features:

  • Processor: Rockchip RK3288, ARM quad-core Cortex-A17

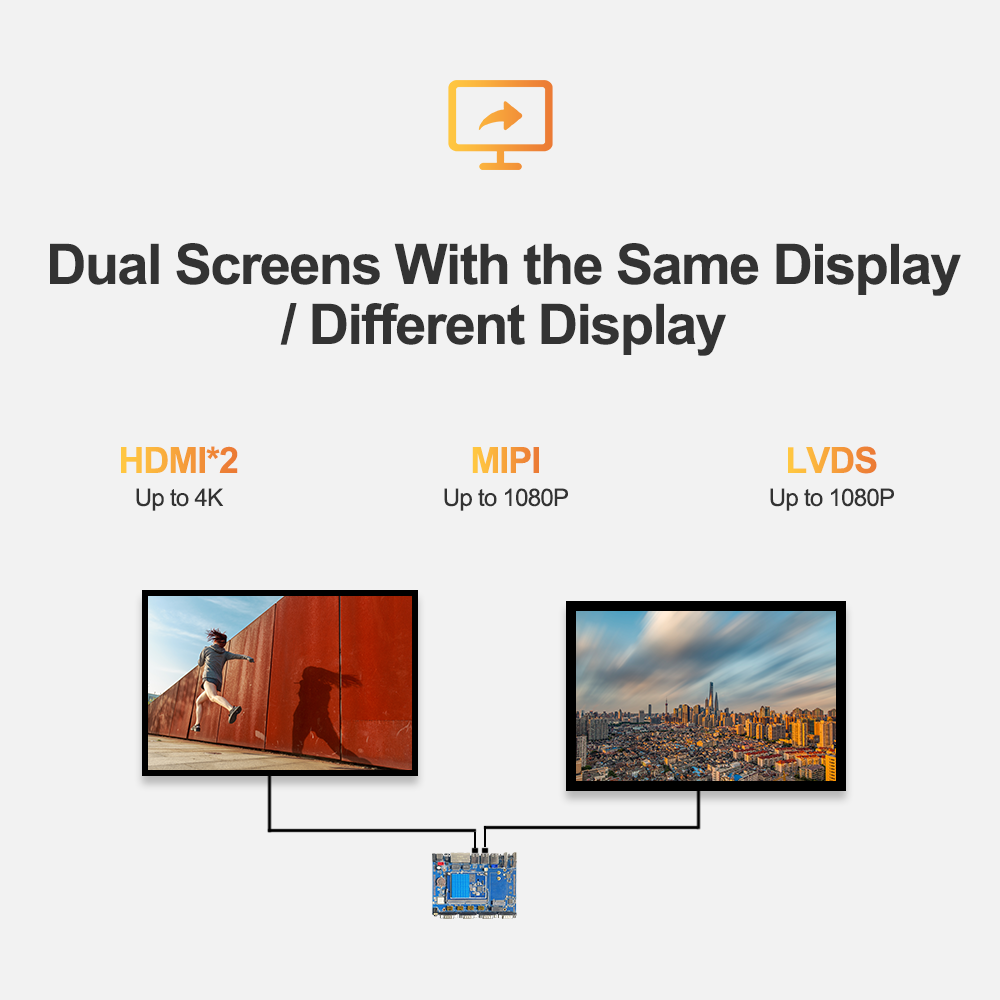

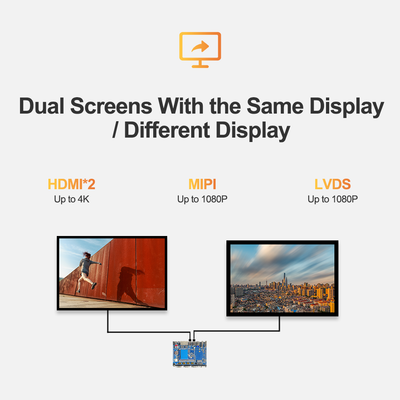

  • Display Support: HDMI and LVDS interfaces (up to 4K resolution)

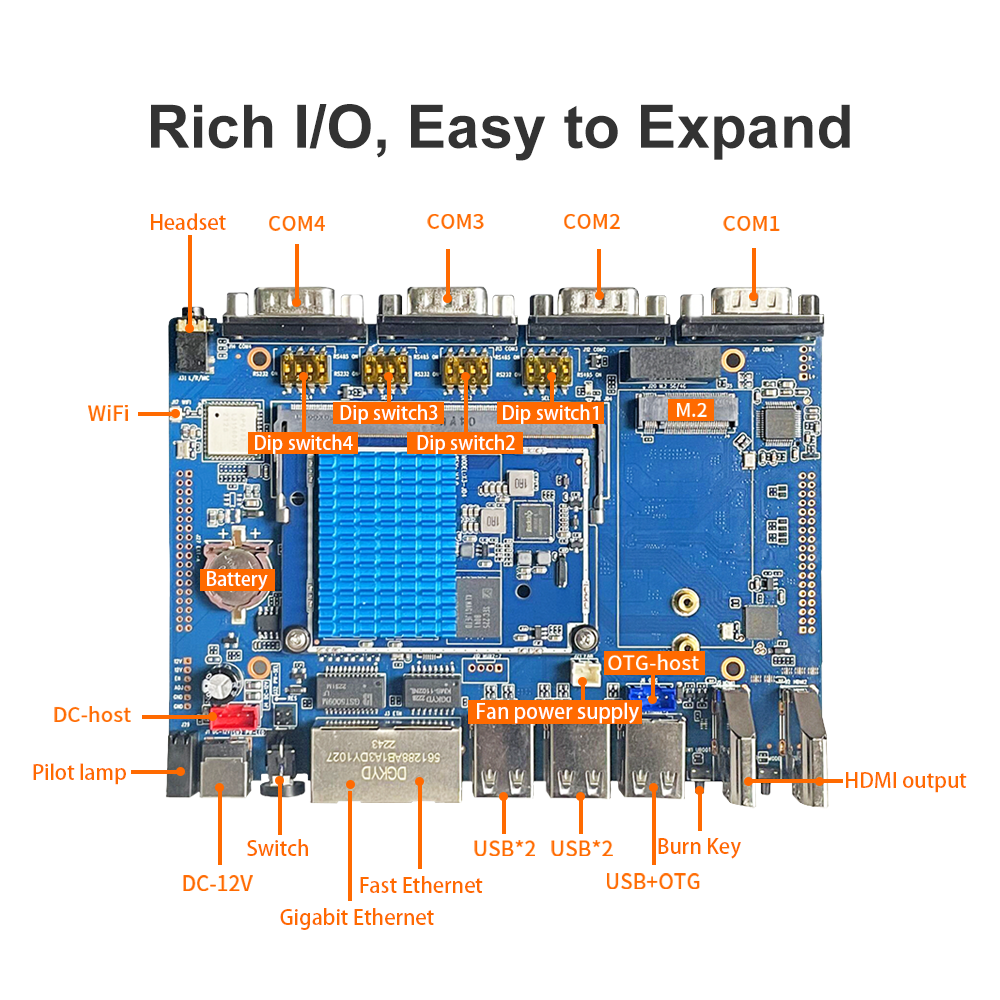

  • Connectivity:

    • 13 × USB 2.0 (6 external, 7 internal)

    • 1 × Gigabit Ethernet + 1 × 100M Ethernet

    • Wi-Fi 802.11 b/g/n/ac

    • Bluetooth 5.2

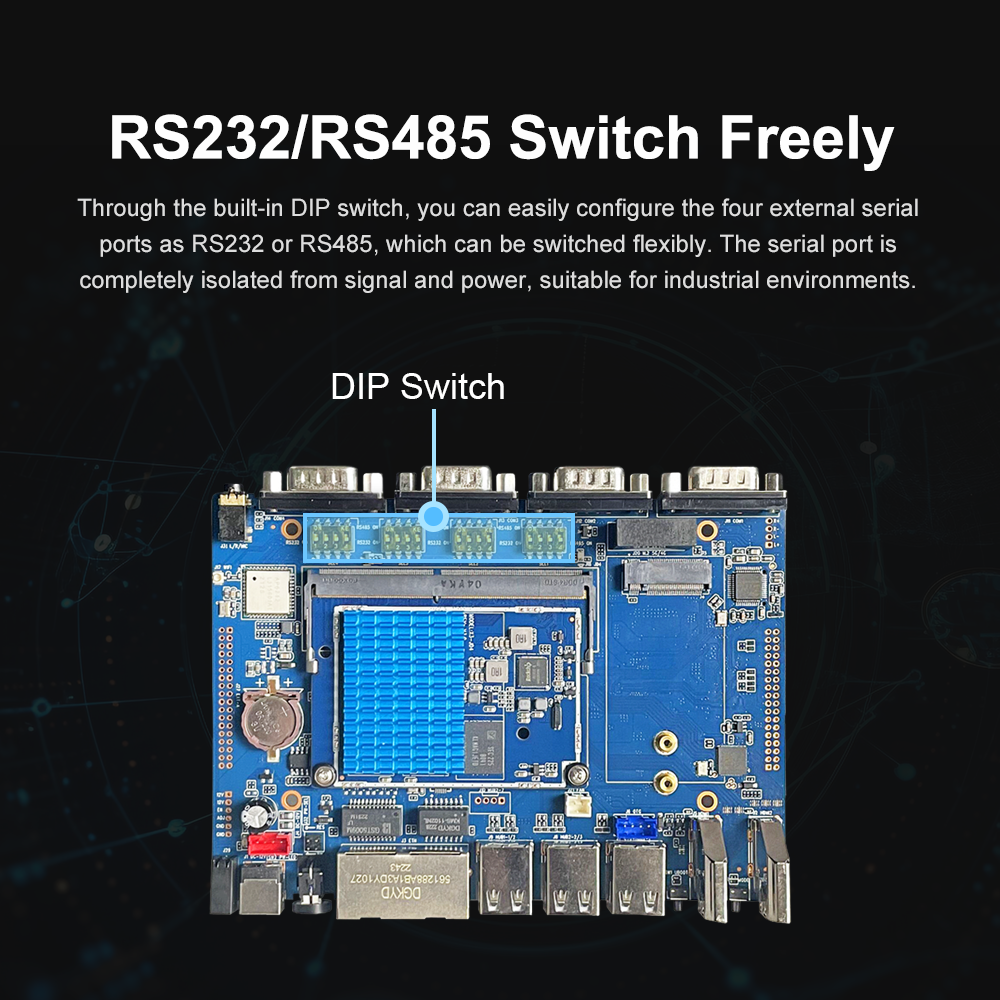

  • Serial Ports: 4 × DB9 ports, configurable RS232/RS485

  • Expansion: Standard M.2 slot for 4G/5G module

  • Memory & Storage: 2GB RAM, 16GB eMMC (supports up to 4GB/128GB)

  • Power Supply: 9V–36V wide voltage DC input

  • Form Factor: 146mm × 102mm
