RK3288 Face Recognition & Face Payment Access Control Board | MIPI LVDS | F3

$81.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

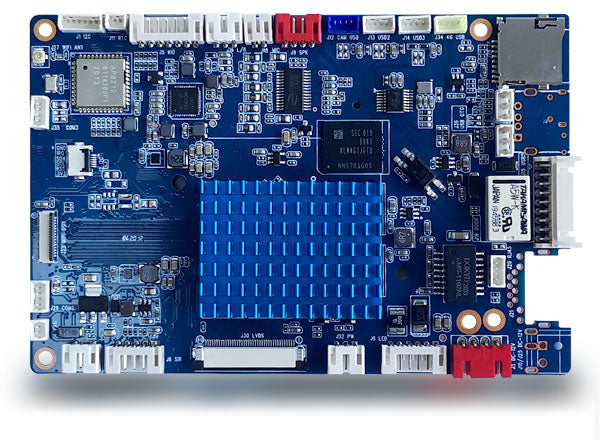

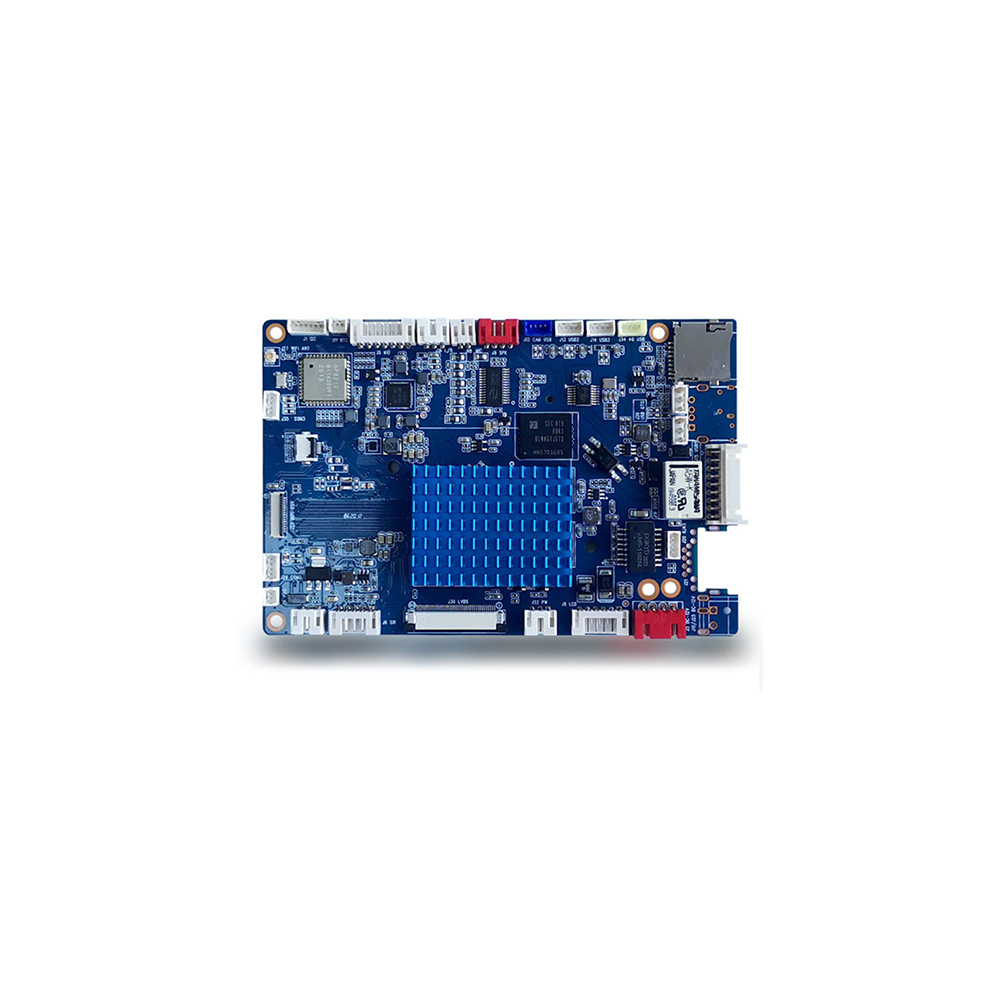

RK3288 Face Recognition Access Control Board 2GB RAM 16GB eMMC F3

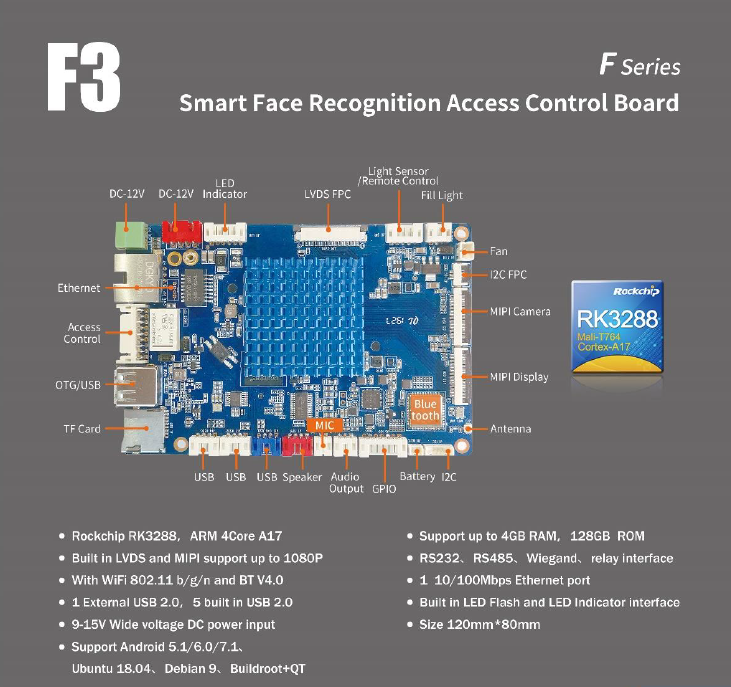

F3 is a performance-driven face recognition motherboard built on the Rockchip RK3288 quad-core processor. With support for 4K and 1080p video decoding, integrated wireless connectivity, and multiple expansion interfaces, it is ideal for intelligent security and access control systems.

Its balance of processing power and I/O versatility makes it a great fit for facial recognition terminals, time attendance systems, and interactive kiosks.

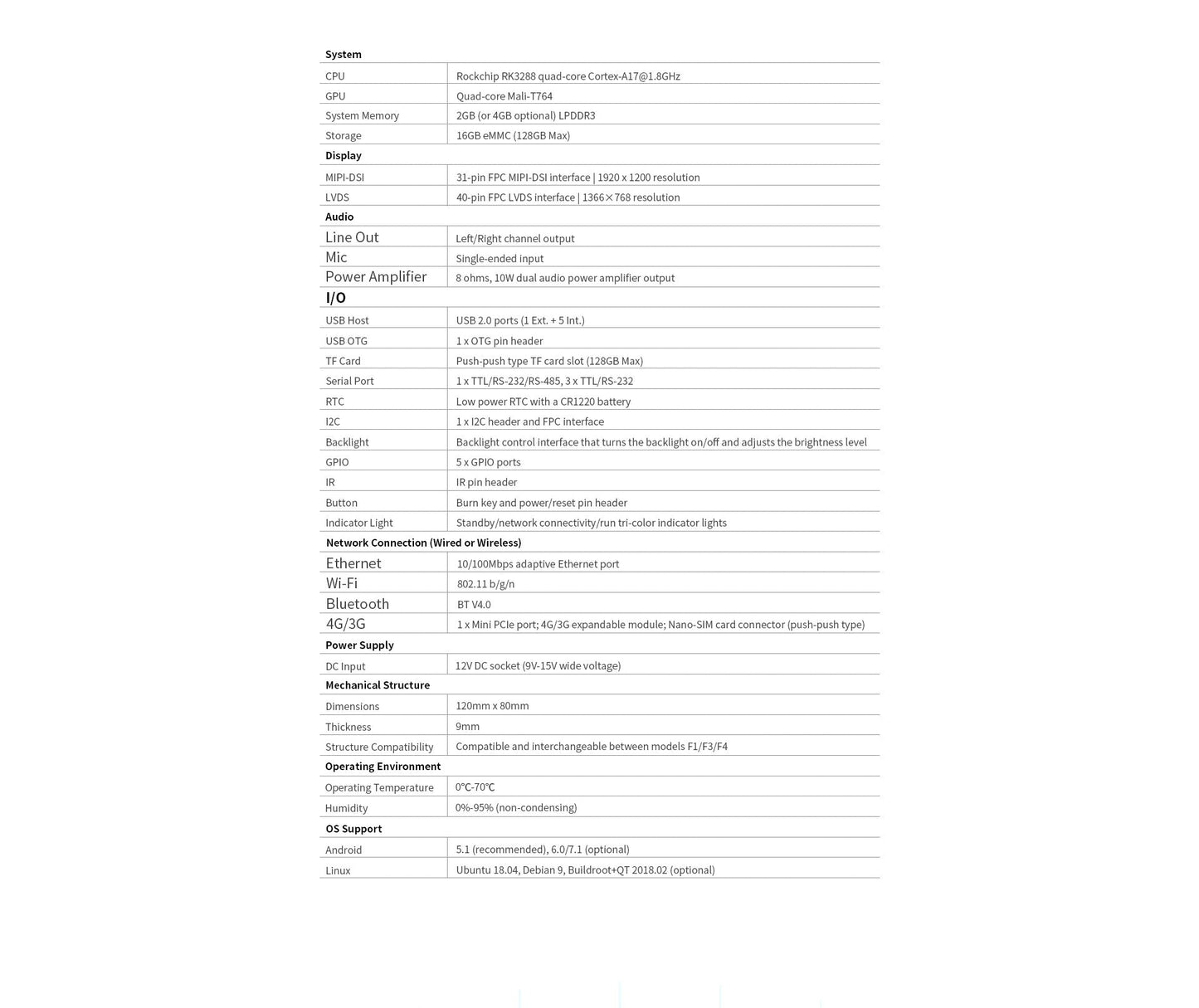

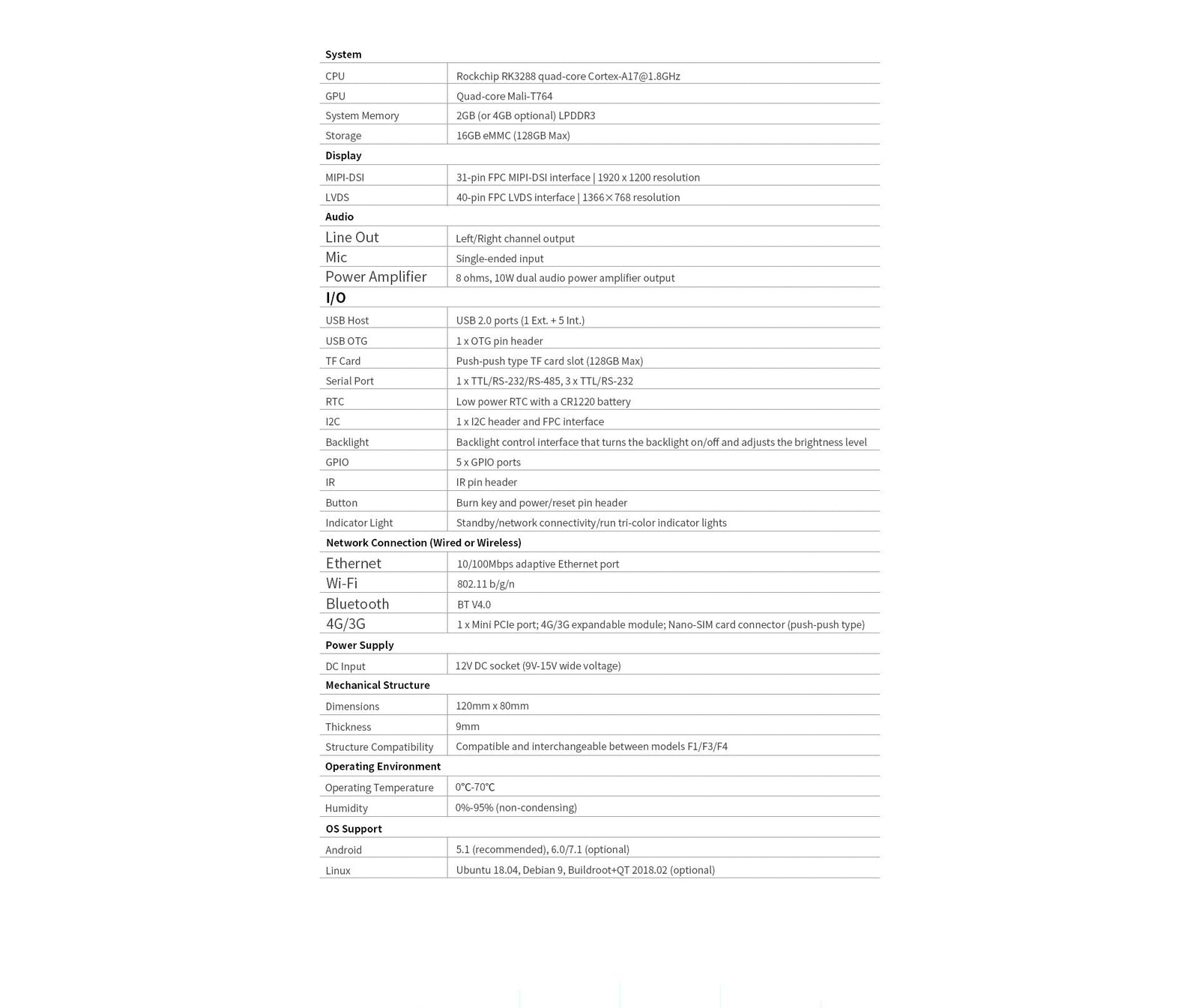

Key Features:

  • Processor: Rockchip RK3288, ARM quad-core Cortex-A17, up to 1.8GHz

  • Graphics: Mali-T764 GPU, supports OpenGL ES 1.1/2.0/3.1

  • Display Support: LVDS and MIPI for 1080p FHD output

  • Connectivity:

    • 4 × USB 2.0 (1 external, 3 internal)

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

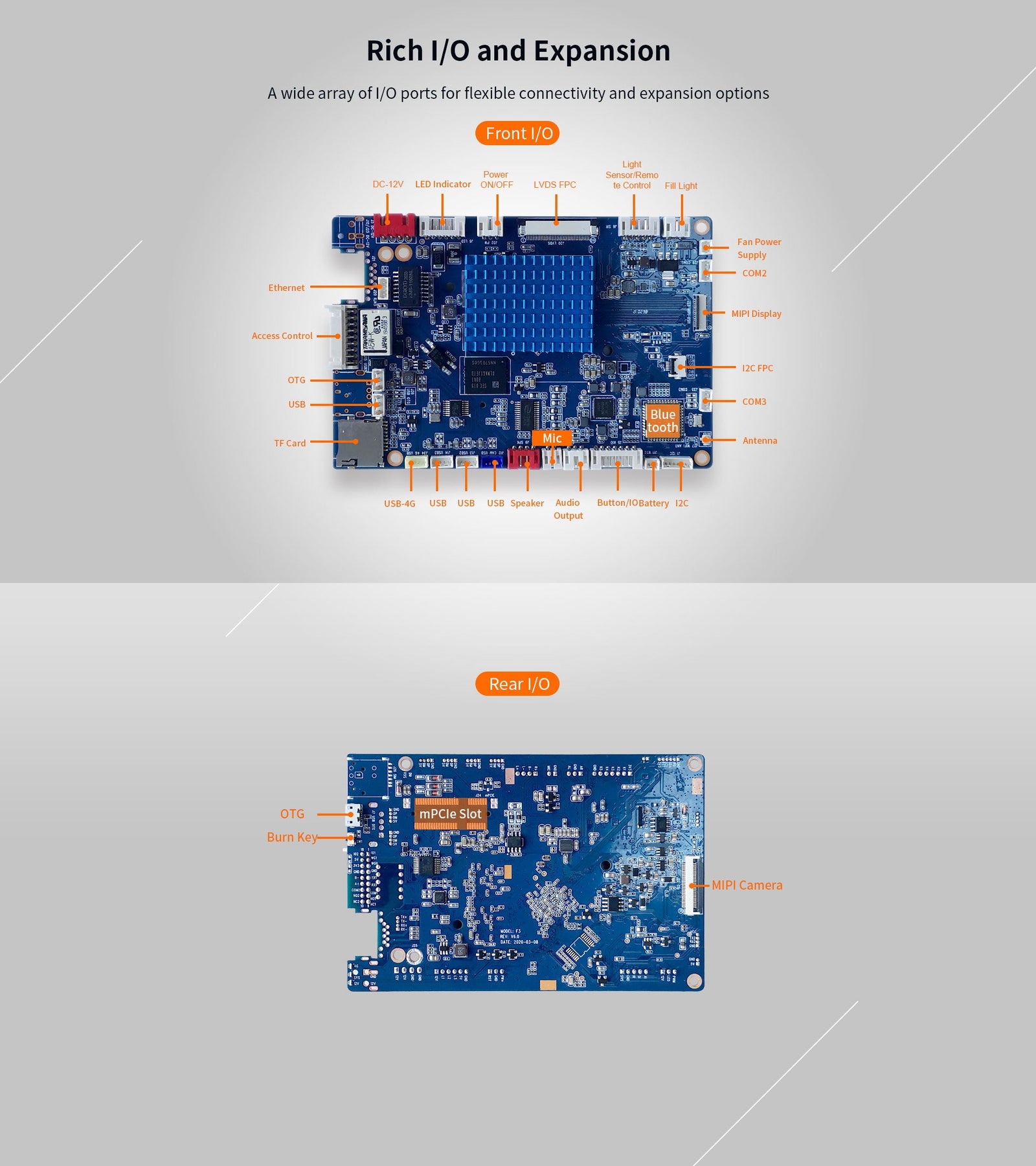

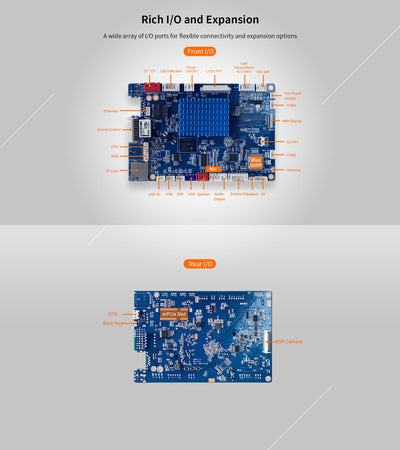

  • I/O Interfaces: RS-232, RS-485, Wiegand, relay control

  • Lighting Control: Fill light and indicator interfaces

  • Memory & Storage: Default 2GB RAM, 16GB eMMC (supports up to 4GB/128GB)

  • Power Supply: 9V–15V wide voltage DC input

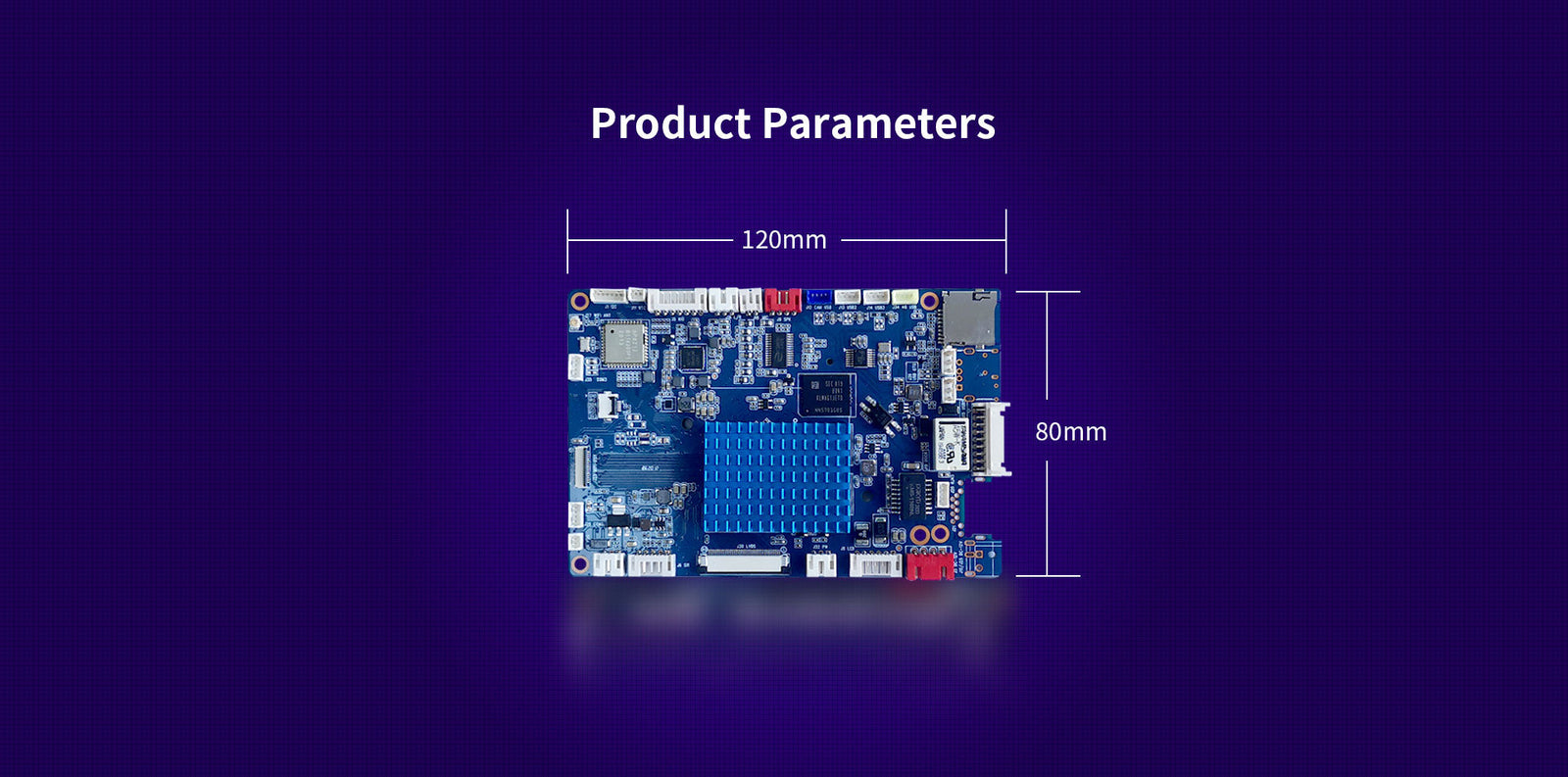

  • Form Factor: 120mm × 80mm
