RK3288 Face Recognition Access Control Board | Dual Screen | F3X

$86.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

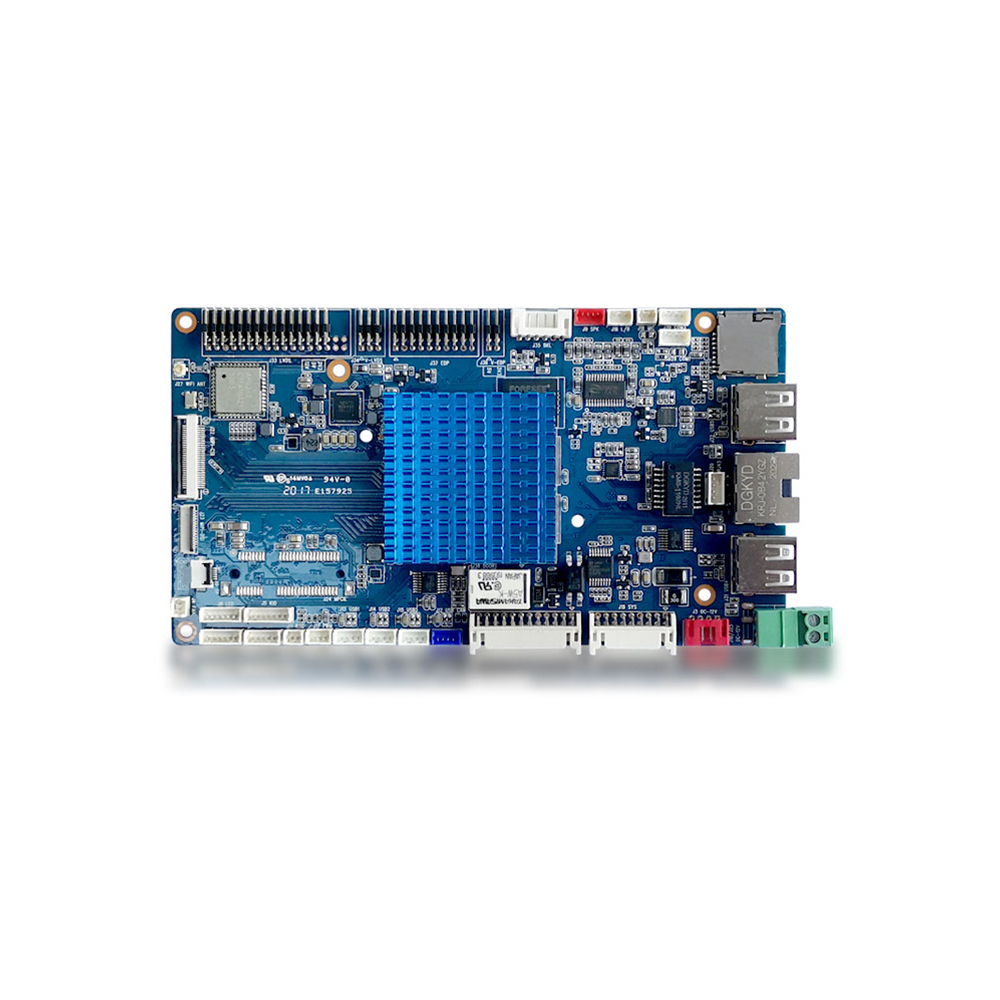

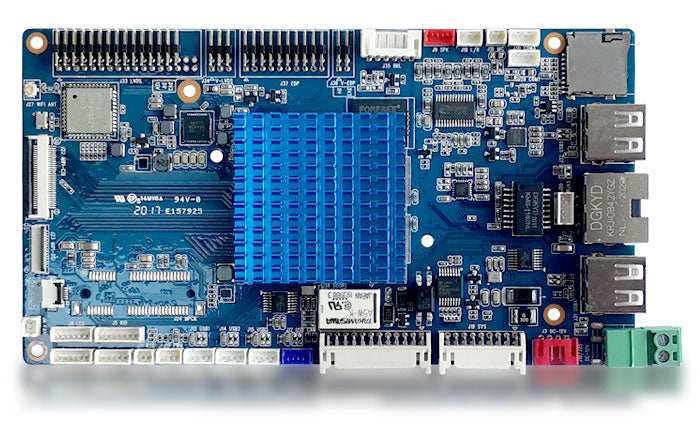

RK3288 Face Recognition Access Control Board 2GB RAM 16GB eMMC F3X

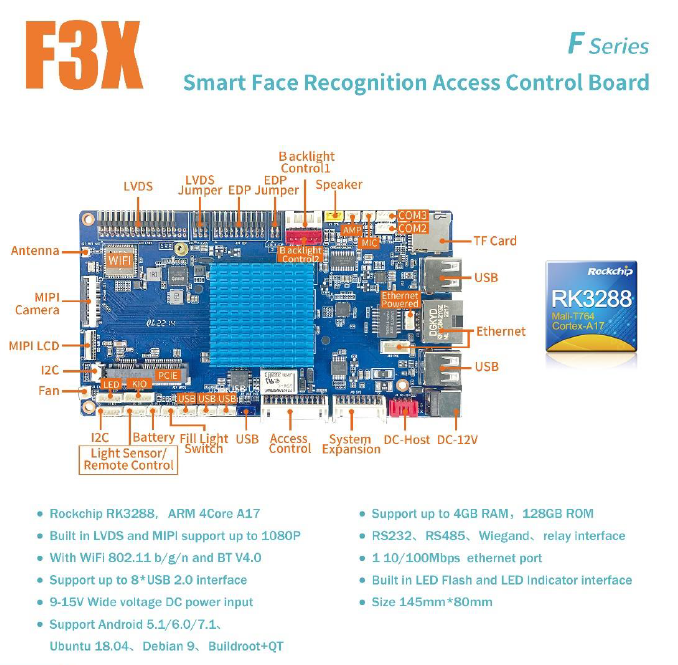

F3X is an enhanced version of the F3 board, featuring the same RK3288 Cortex-A17 processor with improved USB expansion and a slightly larger form factor. It supports 4K/1080P hardware decoding and provides rich I/O interfaces for access control systems requiring multiple peripherals.

Its extra USB ports and robust design make it ideal for advanced terminals with camera, sensor, and biometric modules.

Key Features:

  • Processor: Rockchip RK3288, ARM quad-core Cortex-A17, up to 1.6GHz

  • Graphics: Mali-T764 GPU, supports OpenGL ES 1.1/2.0/3.1

  • Display Support: LVDS and MIPI for 1080p FHD output

  • Connectivity:

    • 8 × USB 2.0

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

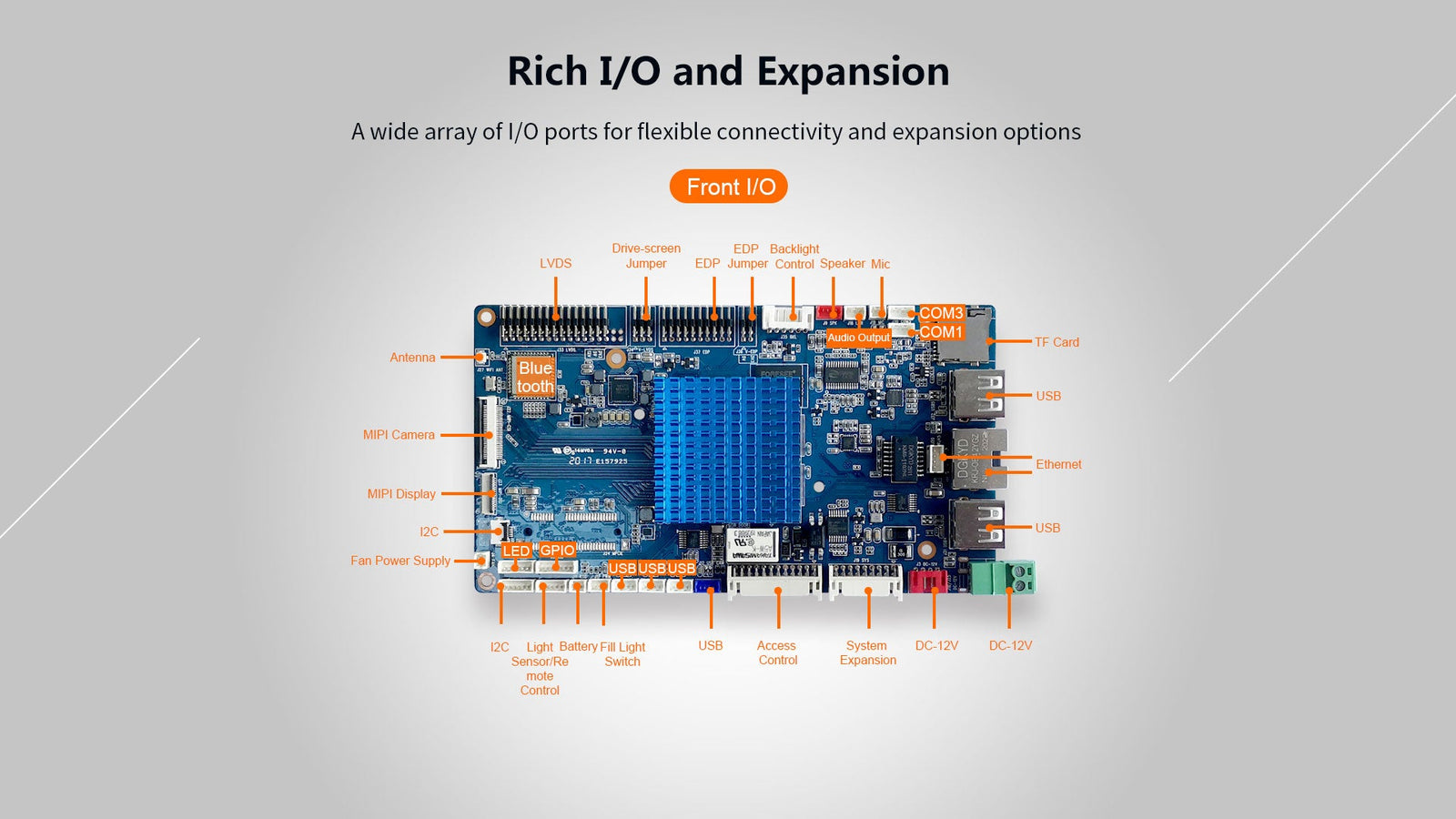

  • I/O Interfaces: RS-232, RS-485, Wiegand, relay control

  • Lighting Control: Fill light and indicator interfaces

  • Memory & Storage: Default 2GB RAM, 16GB eMMC (supports up to 4GB/128GB)

  • Power Supply: 9V–15V wide voltage DC input

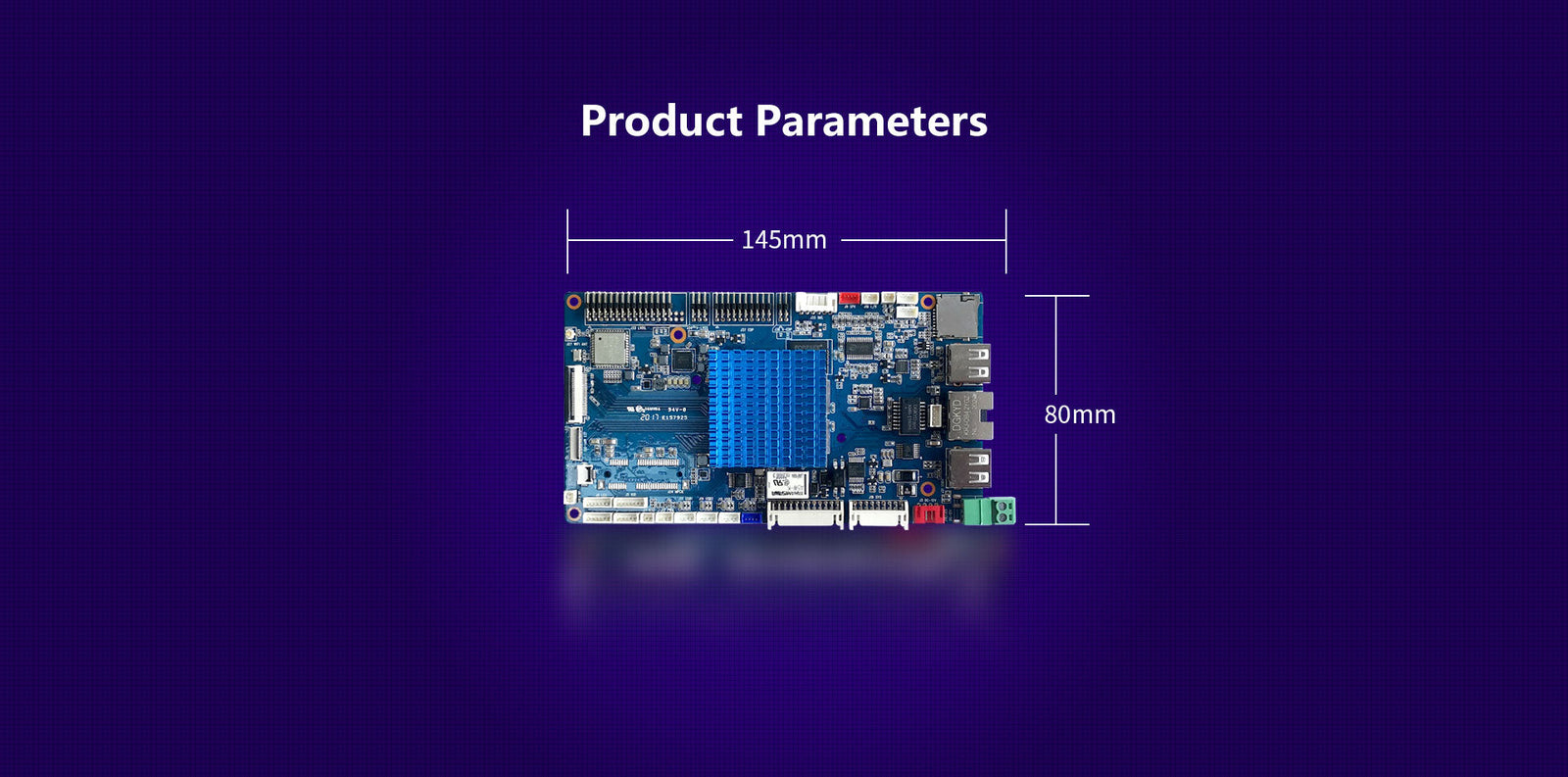

  • Form Factor: 145mm × 80mm

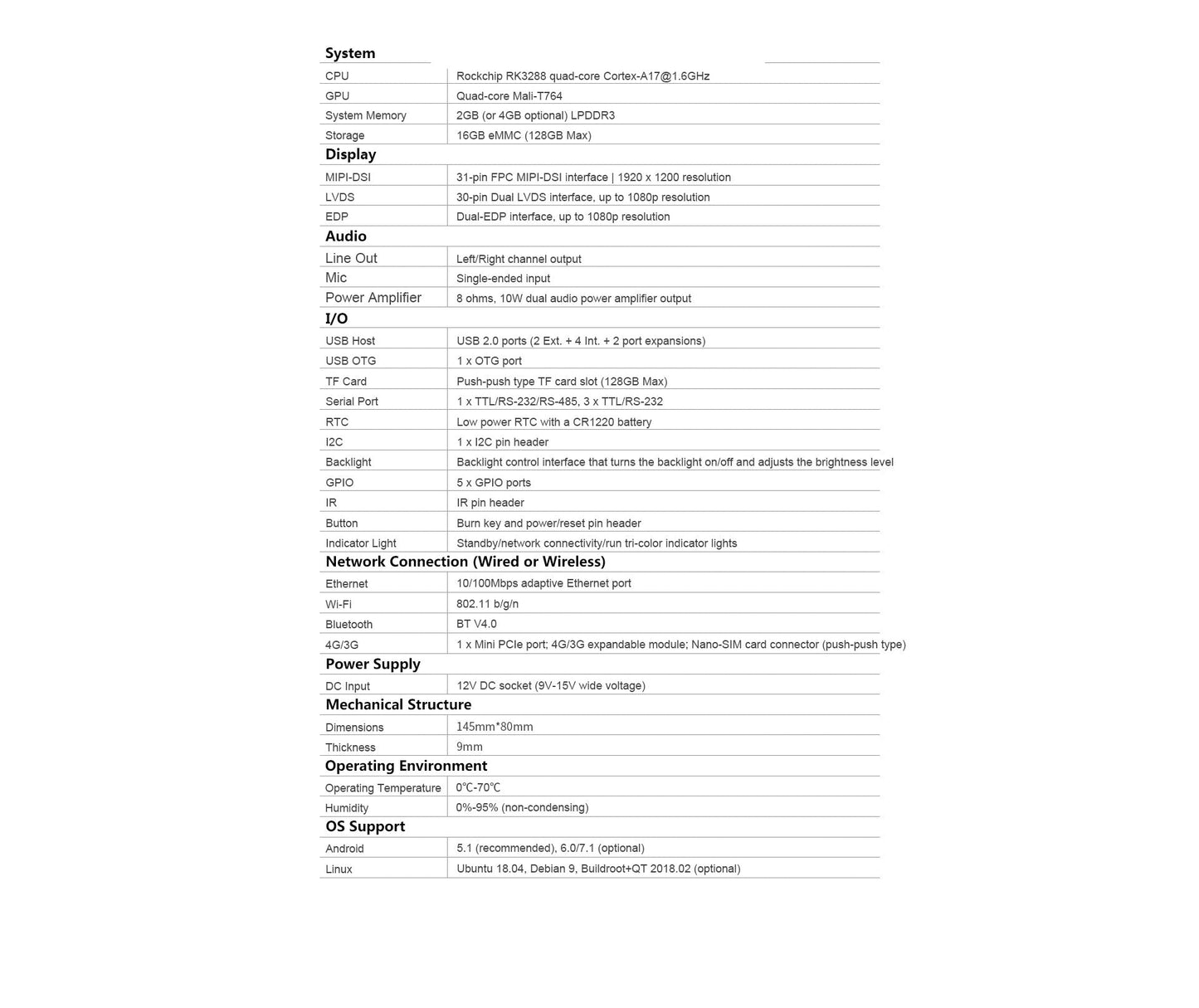

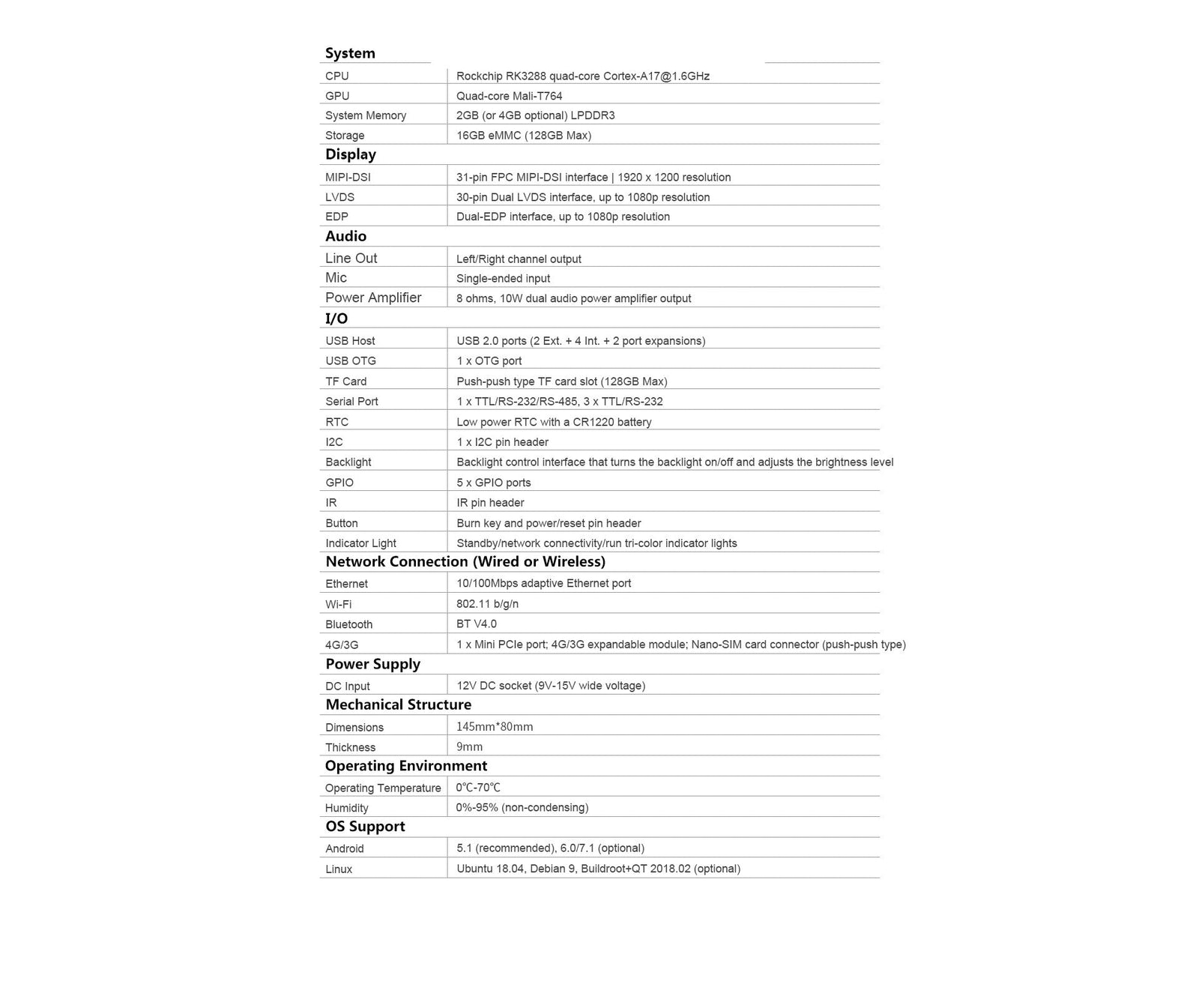

Technical specifications are loading…
