RK3288 Dual-Screen POS Terminal Android Board | LVDS / eDP Options | P3X

$92.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

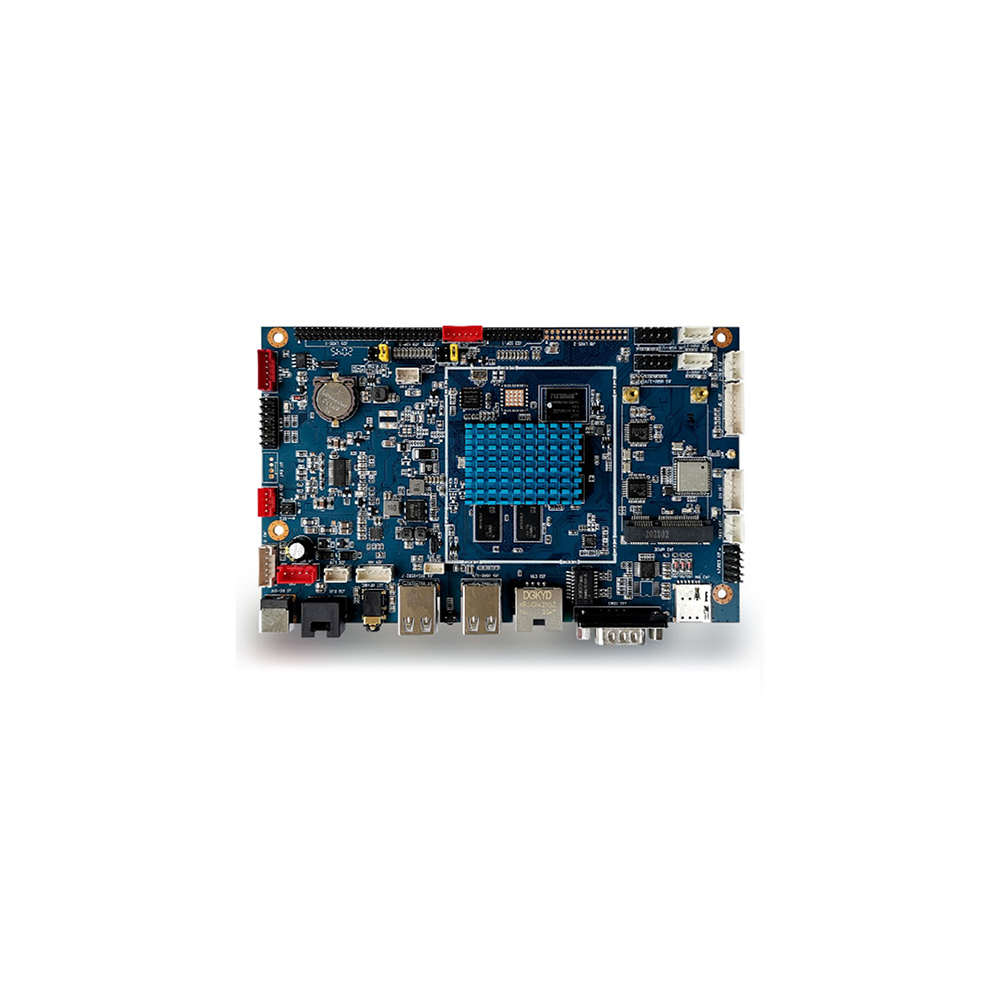

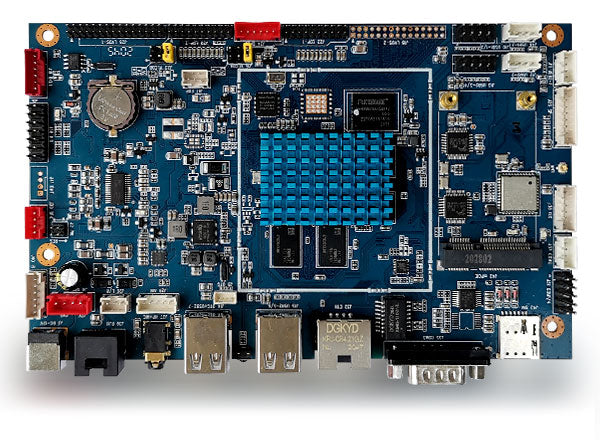

RK3288 POS Terminal Board 2GB RAM 16GB eMMC P3X

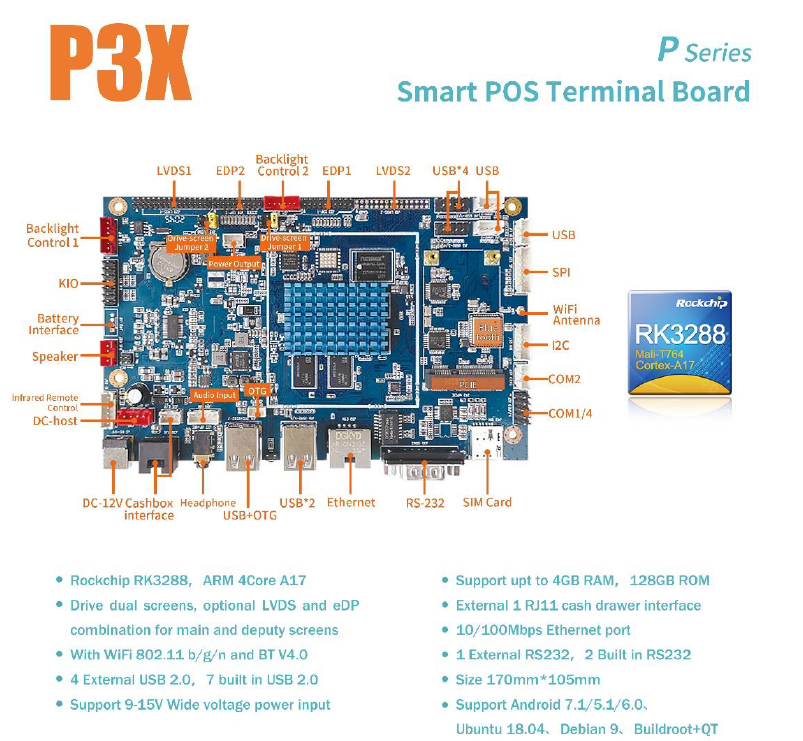

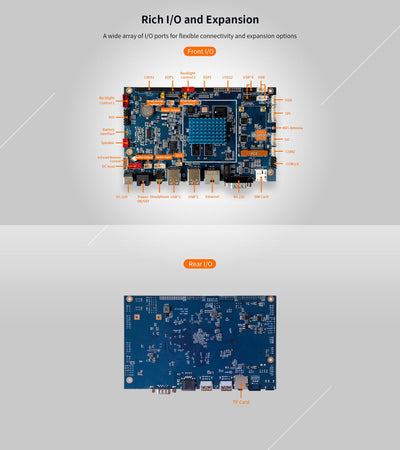

P3X is a dual-display embedded board designed for smart POS terminals, powered by the RK3288 Cortex-A17 processor. With 4K graphics support, a wide range of I/O, and dedicated retail features, it’s a reliable platform for modern checkout systems and self-service kiosks.



Key Features:

  • Processor: Rockchip RK3288, ARM quad-core Cortex-A17, up to 1.8GHz

  • Graphics: Mali-T764 GPU, supports 4K and 1080p decoding

  • Display Support: Dual-screen LVDS + eDP

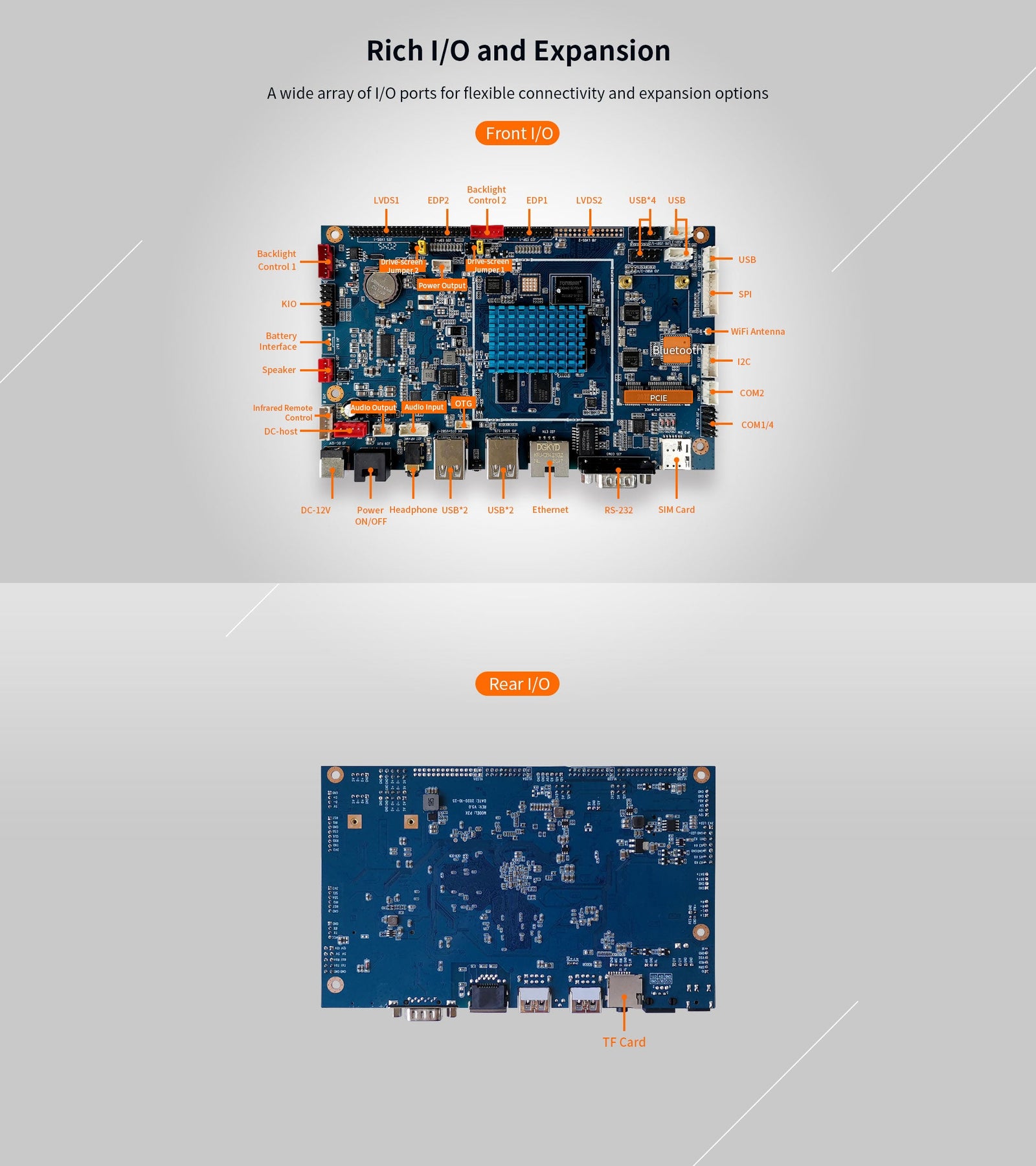

  • Connectivity:

    • 11 × USB 2.0 (4 external, 7 internal)

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

  • Serial Ports: 4 × RS232 (1 external, 3 internal)

  • Peripheral Control: RJ11 cash drawer interface

  • Memory & Storage: 2GB RAM, 16GB eMMC (up to 4GB/128GB supported)

  • Power Supply: 9V–15V wide voltage DC input

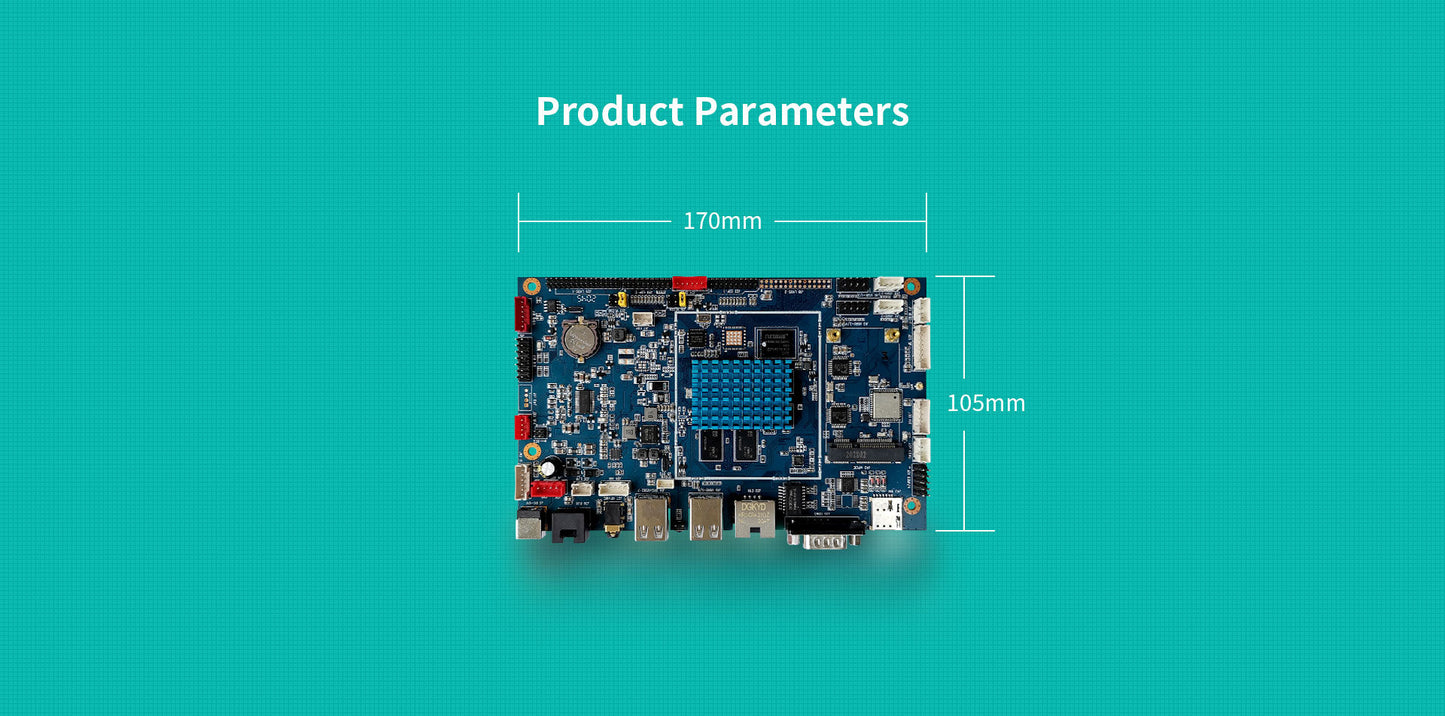

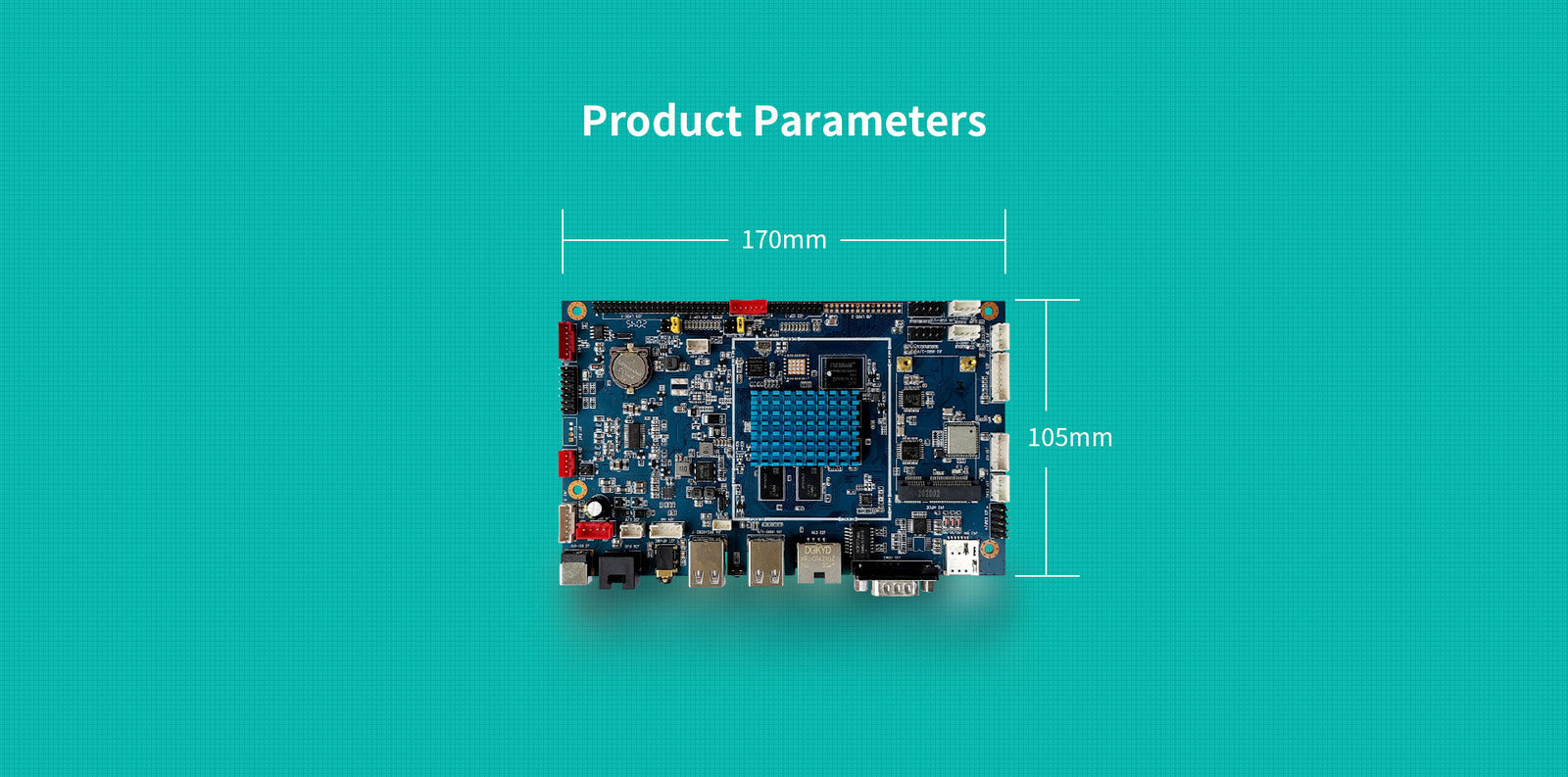

  • Form Factor: 170mm × 105mm

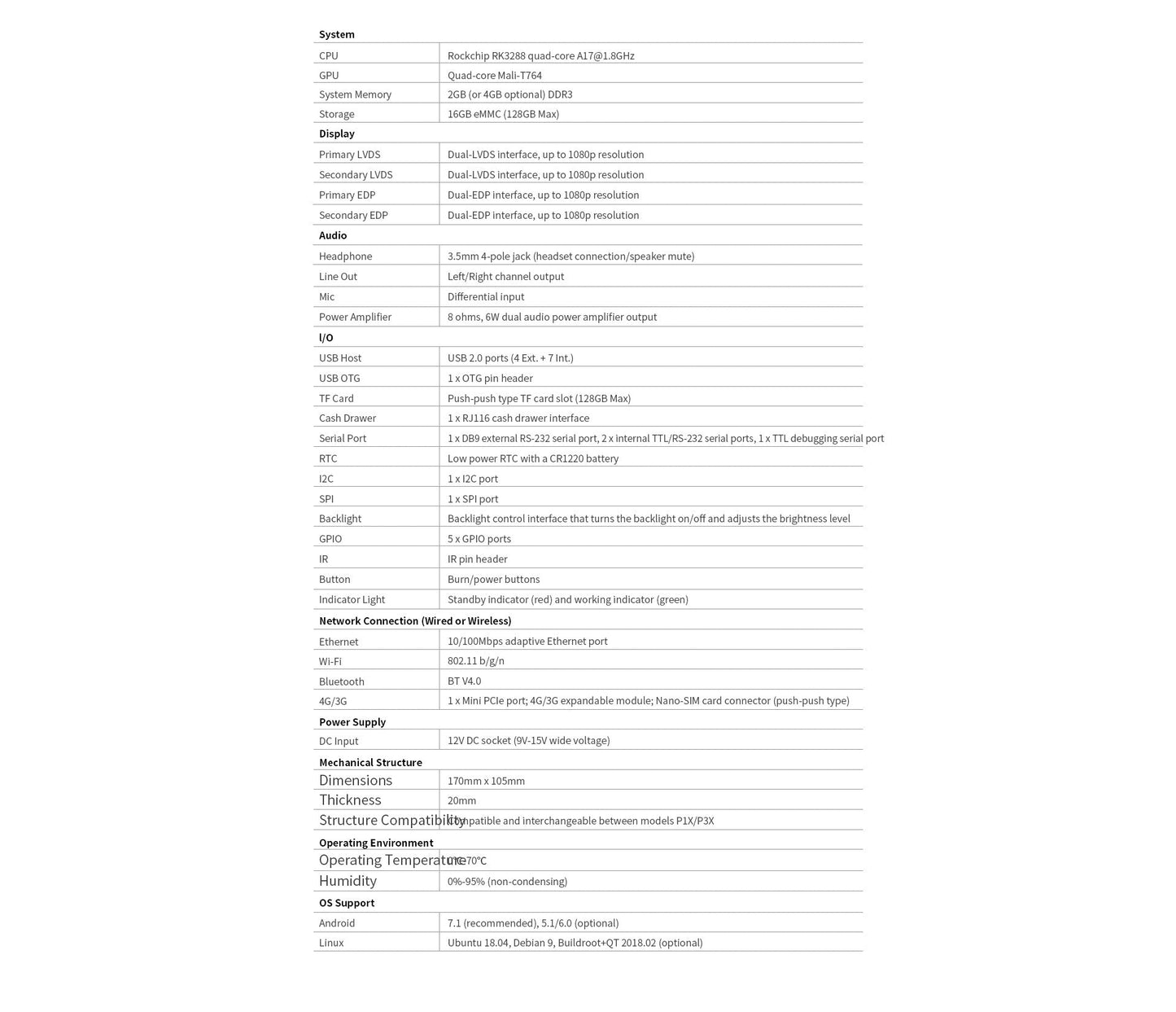

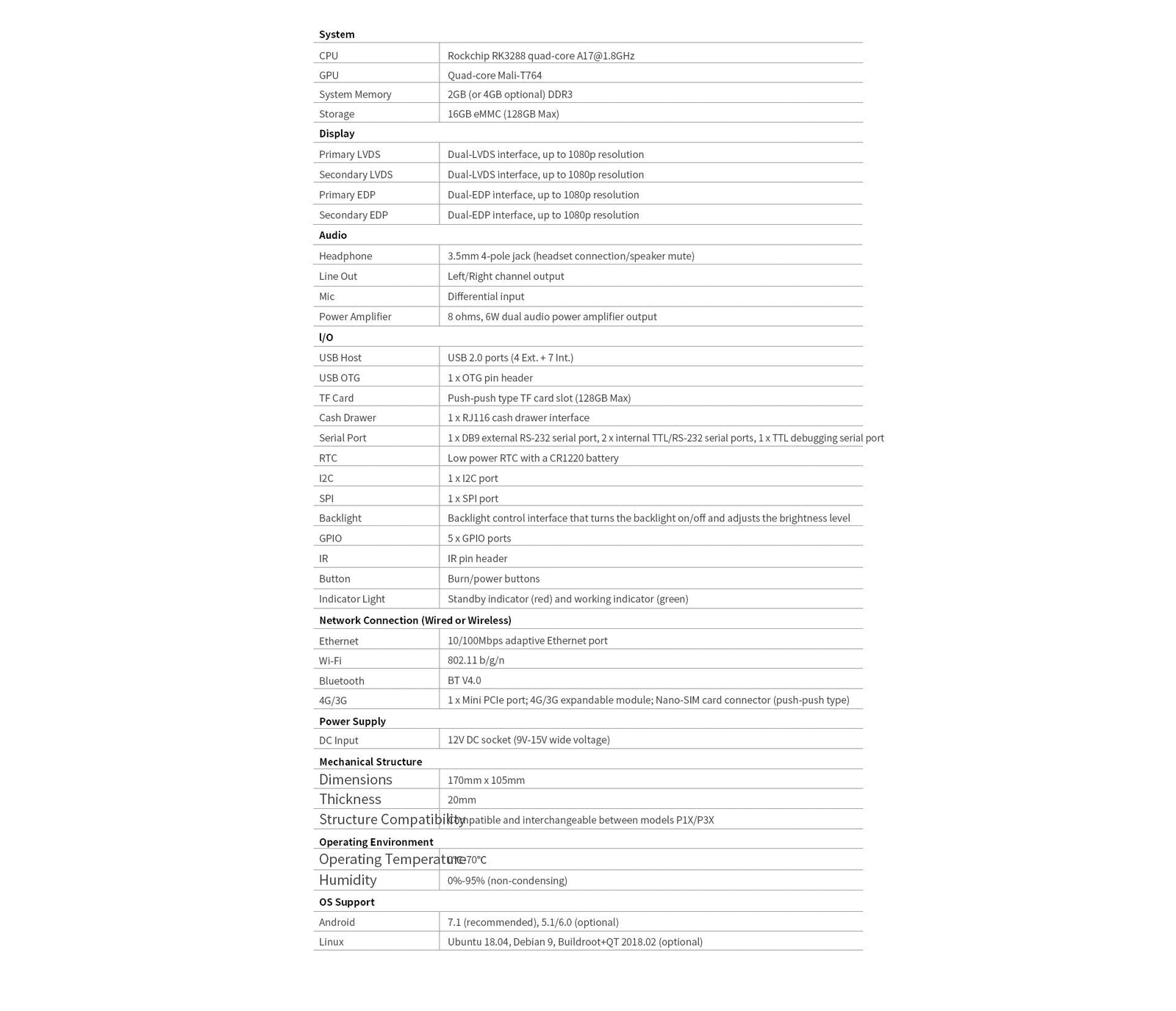

Technical specifications are loading…
