RK3288 Development Board for Vending Machine | HDMI-IN LVDS eDP | K3

$85.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

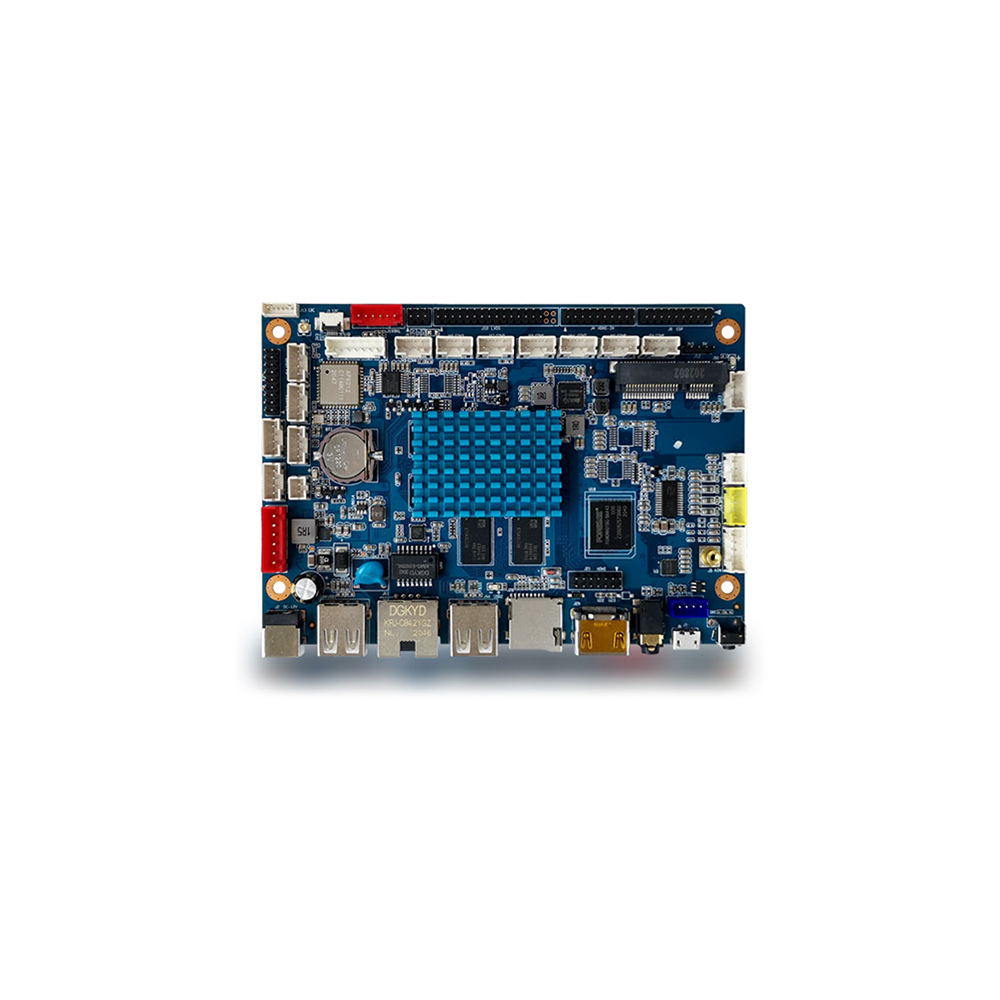

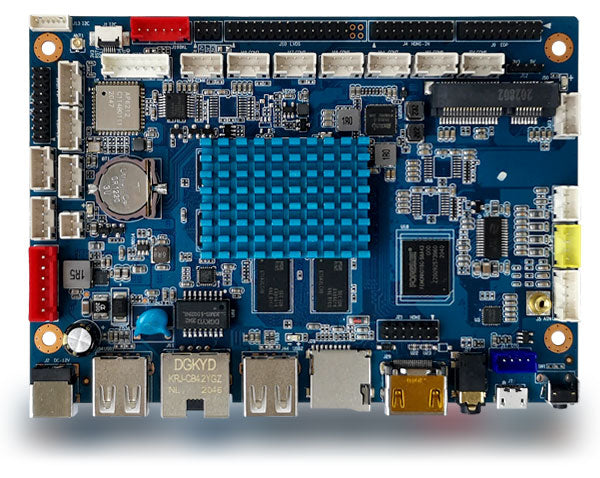

RK3288 Development Board for Vending Machine 2GB RAM 16GB eMMC K3

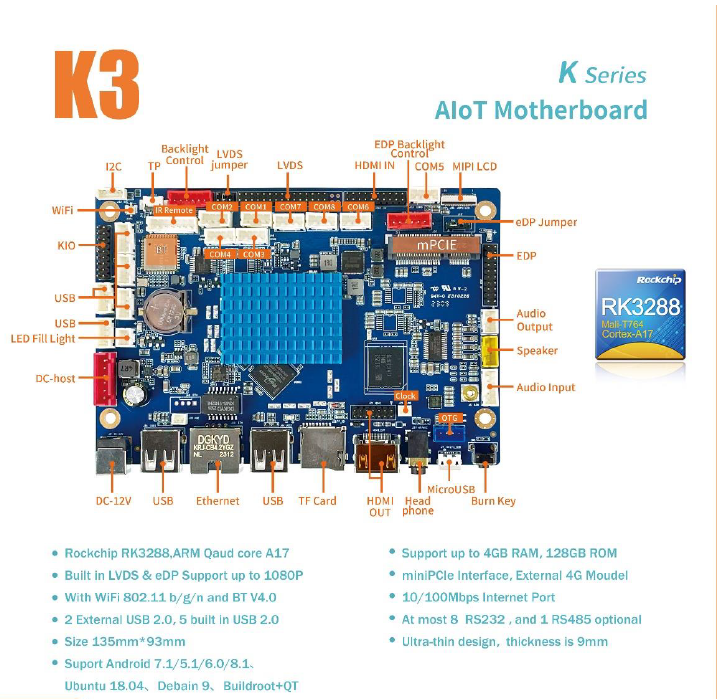

K3 is an Android development board based on Rockchip RK3288, engineered for smart vending machine integration. Supporting multiple displays, serial ports, and 4G communication, it’s built for advanced vending, HMI, and edge interfaces.



Key Features:

  • Processor: Rockchip RK3288, ARM quad-core Cortex-A17, up to 1.8GHz

  • Graphics: Mali-T764 GPU, supports OpenGL ES 1.1/2.0/3.1

  • Display Support: HDMI, LVDS, and eDP (up to 1080p)

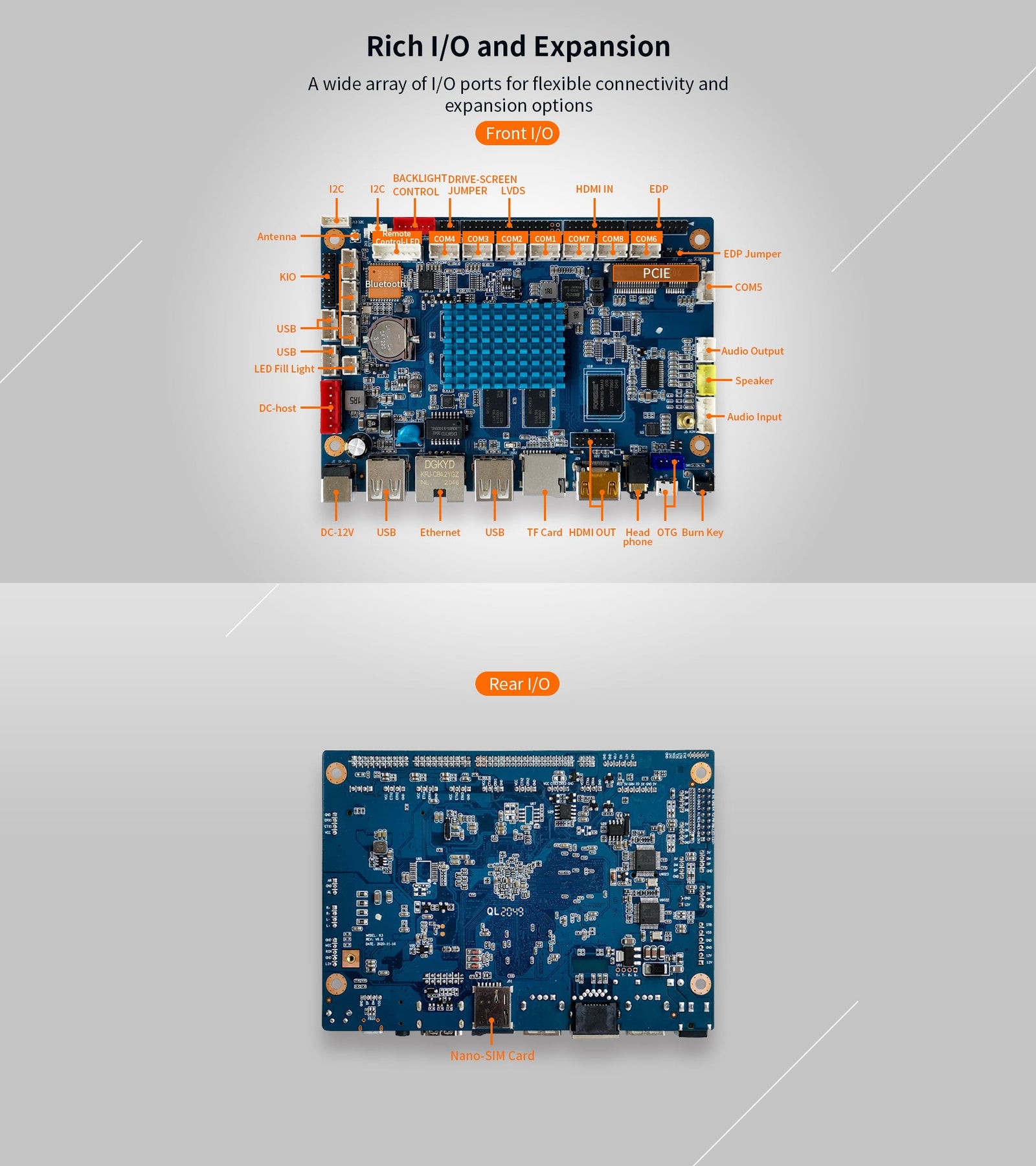

  • Connectivity:

    • 6 × USB 2.0 (2 external, 4 internal)

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

  • Serial Ports: 9 × RS232, 1 × RS485 (optional)

  • Expansion: Mini PCIe slot for 4G module

  • Memory & Storage: 2GB RAM, 16GB eMMC (up to 4GB/128GB supported)

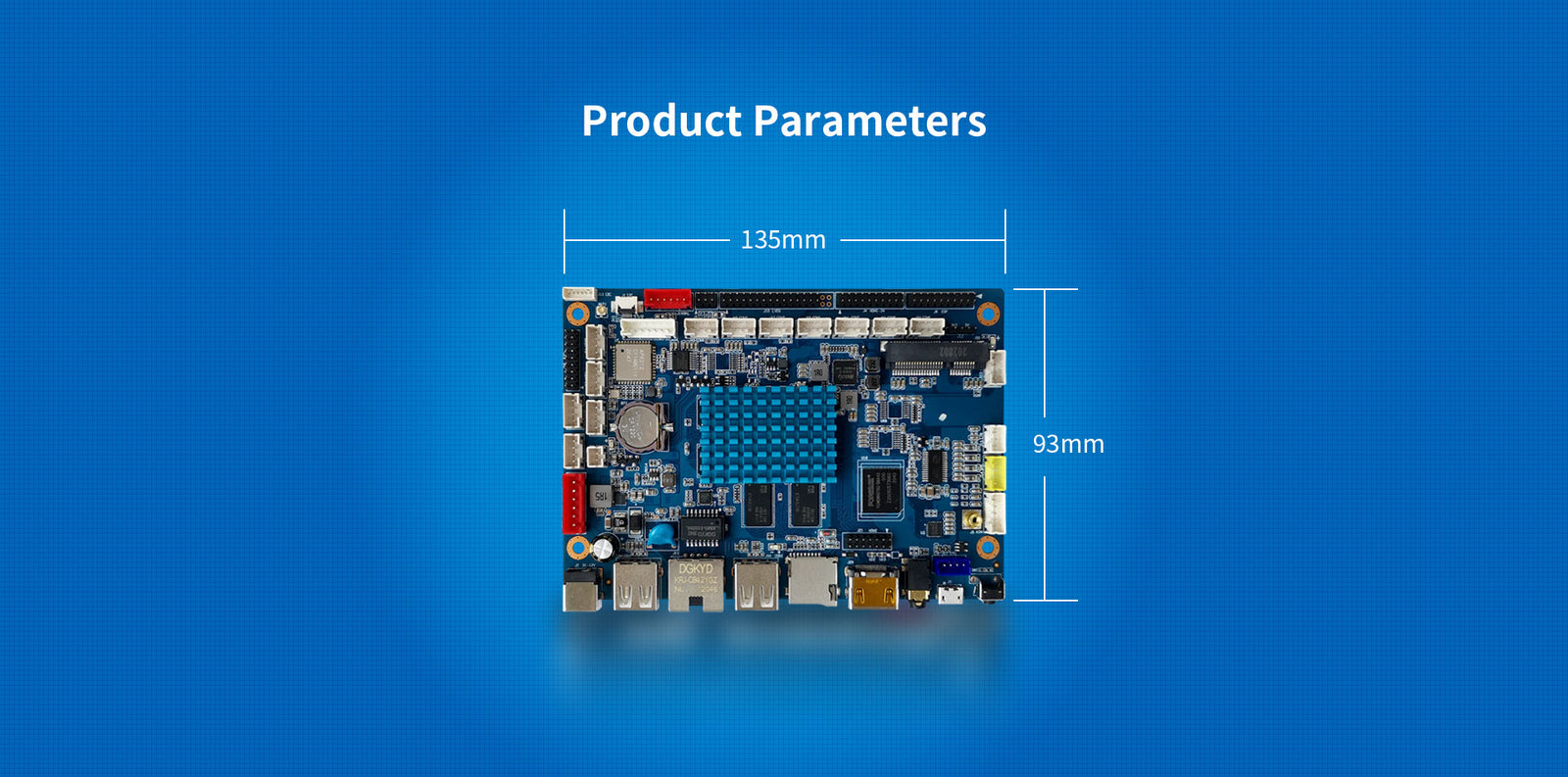

  • Form Factor: 135mm × 93mm, 9mm ultra-thin

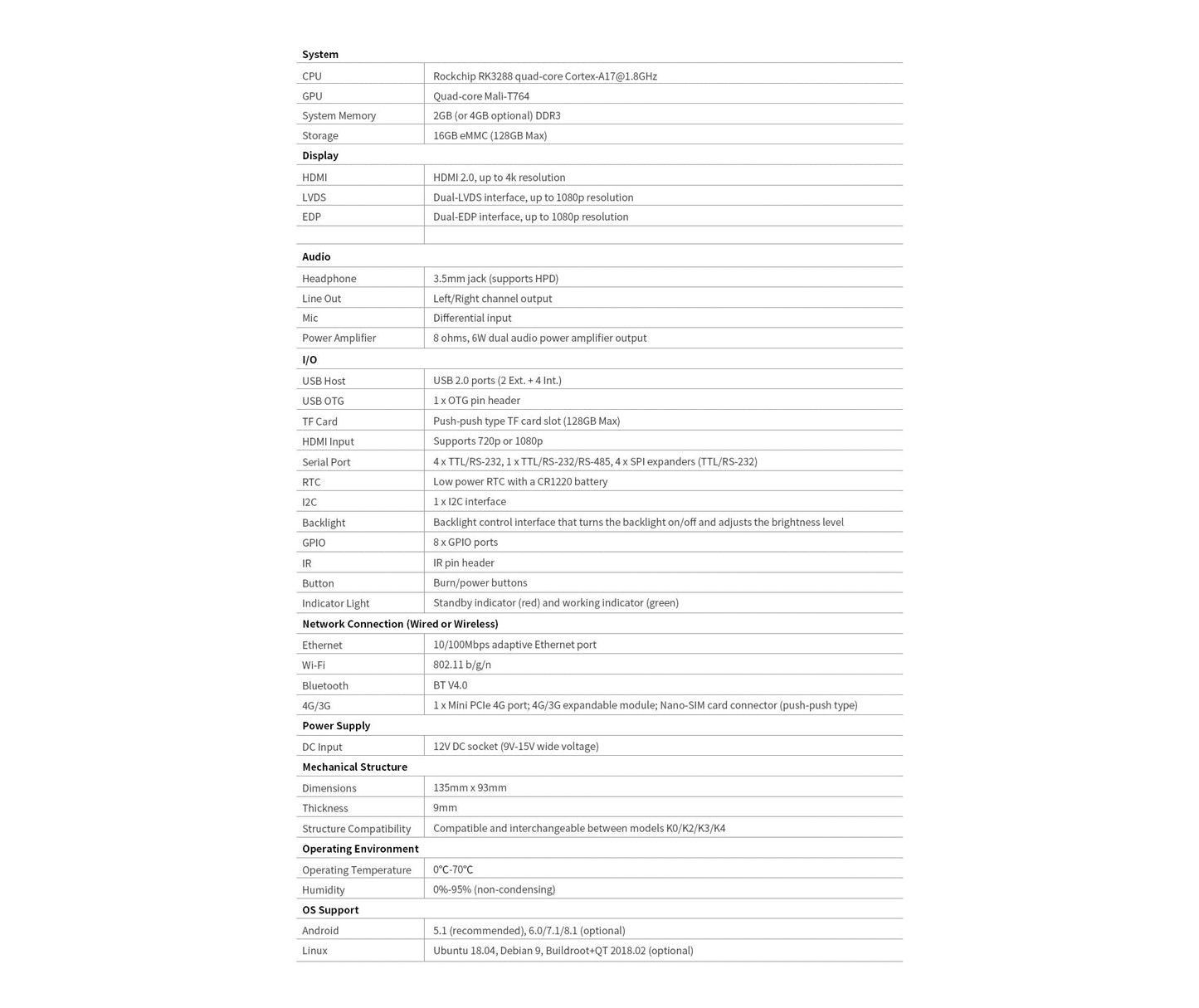

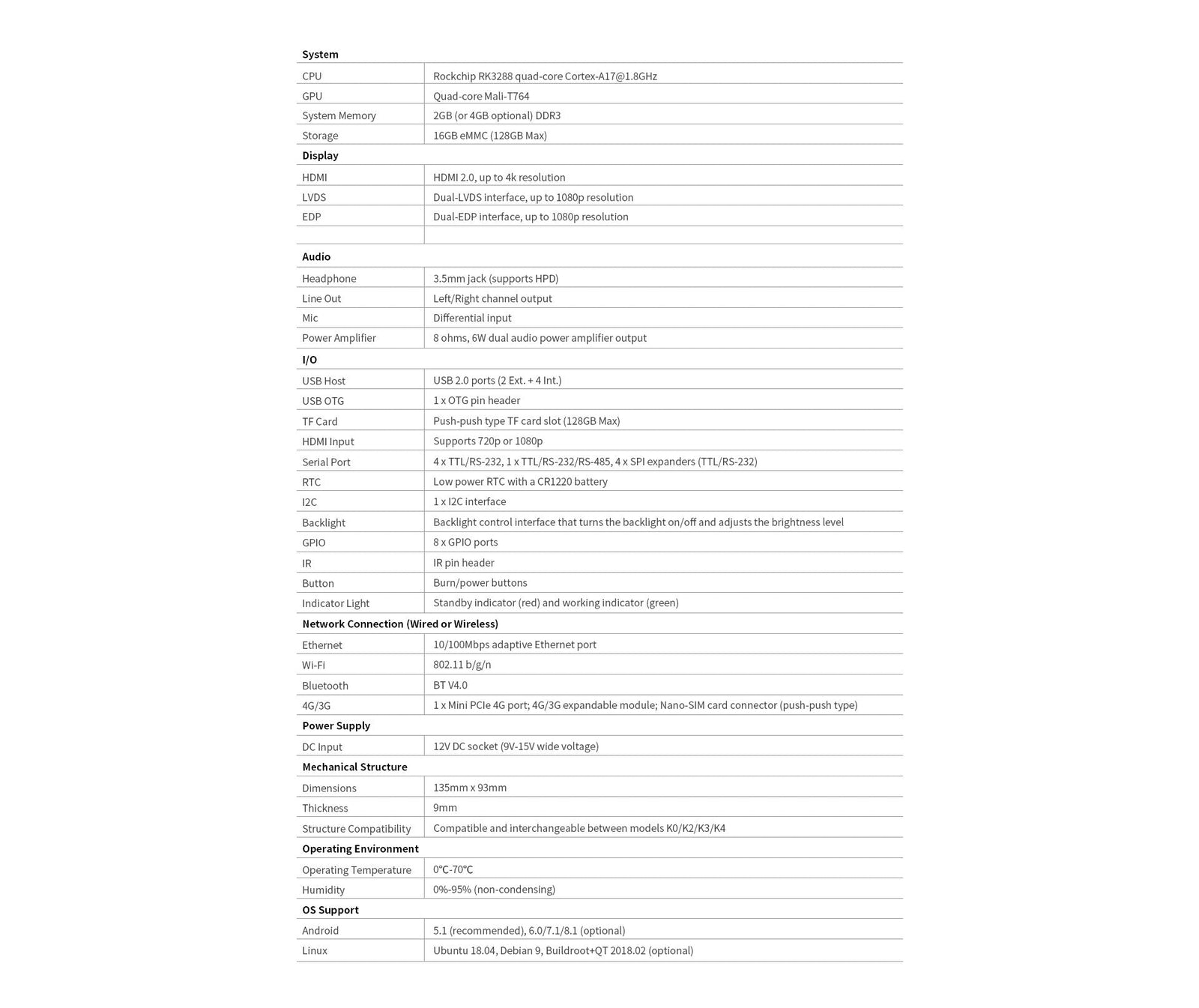

Technical specifications are loading…
