RK3188 Smart Display Android Board | LVDS HDMI | M1

$80.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

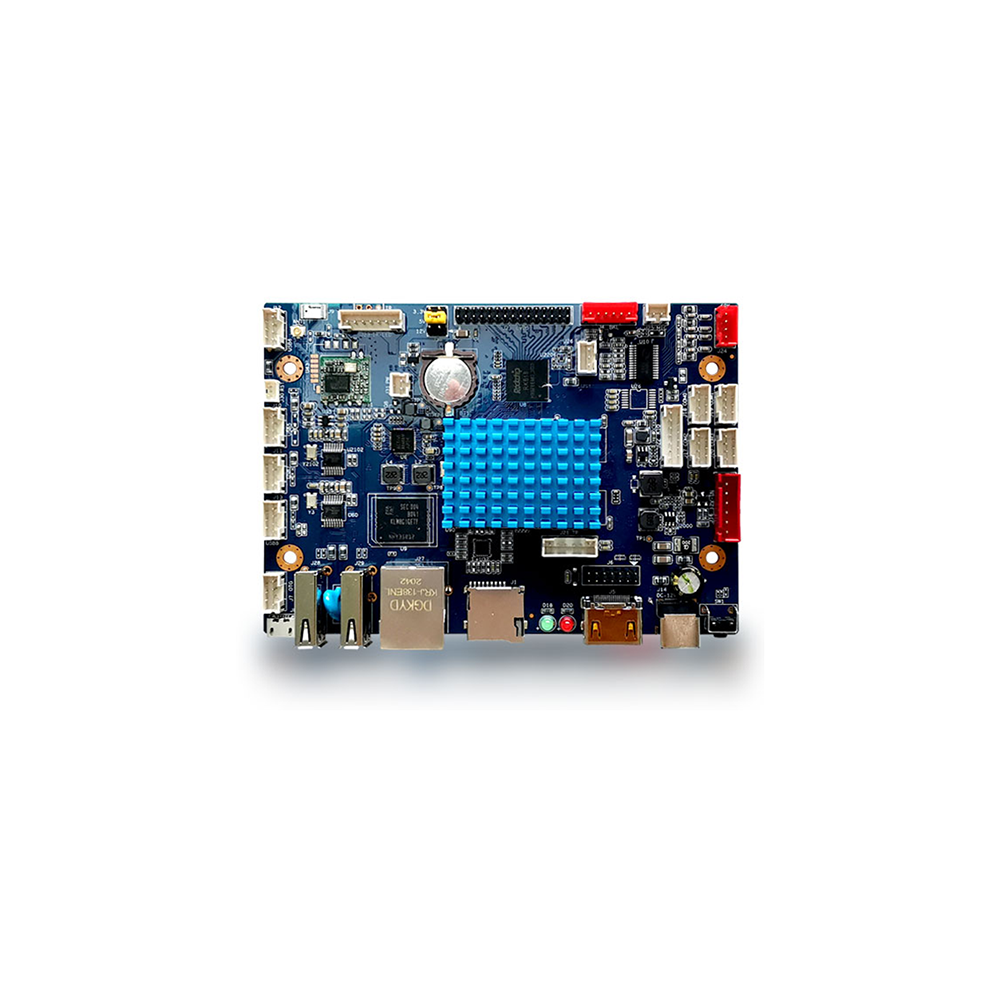

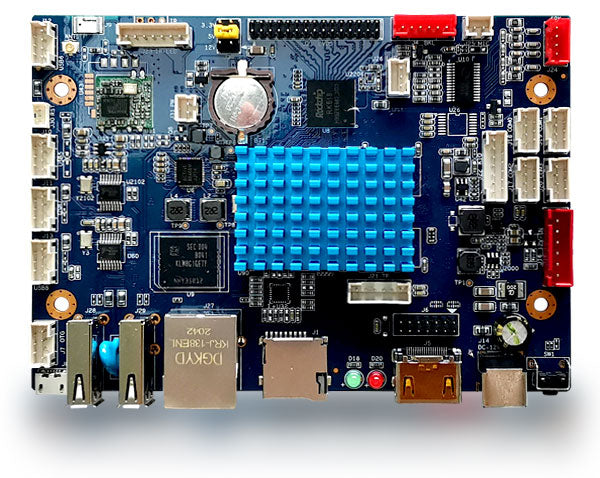

RK3188 Smart Display Board 1GB RAM 8GB eMMC M1


M1 is an embedded Android development board designed for smart commercial display applications. It is powered by the Rockchip RK3188 processor, which features a quad-core ARM Cortex-A9 CPU running at up to 1.6GHz. The integrated Mali400 MP4 GPU supports OpenGL ES 1.1/2.0 and is capable of hardware decoding and encoding of 1080p videos.

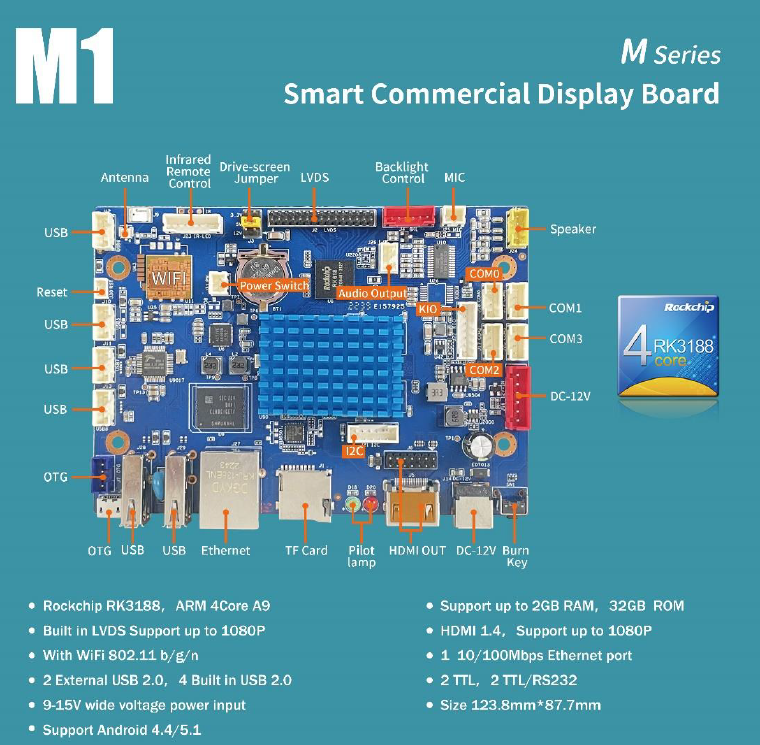

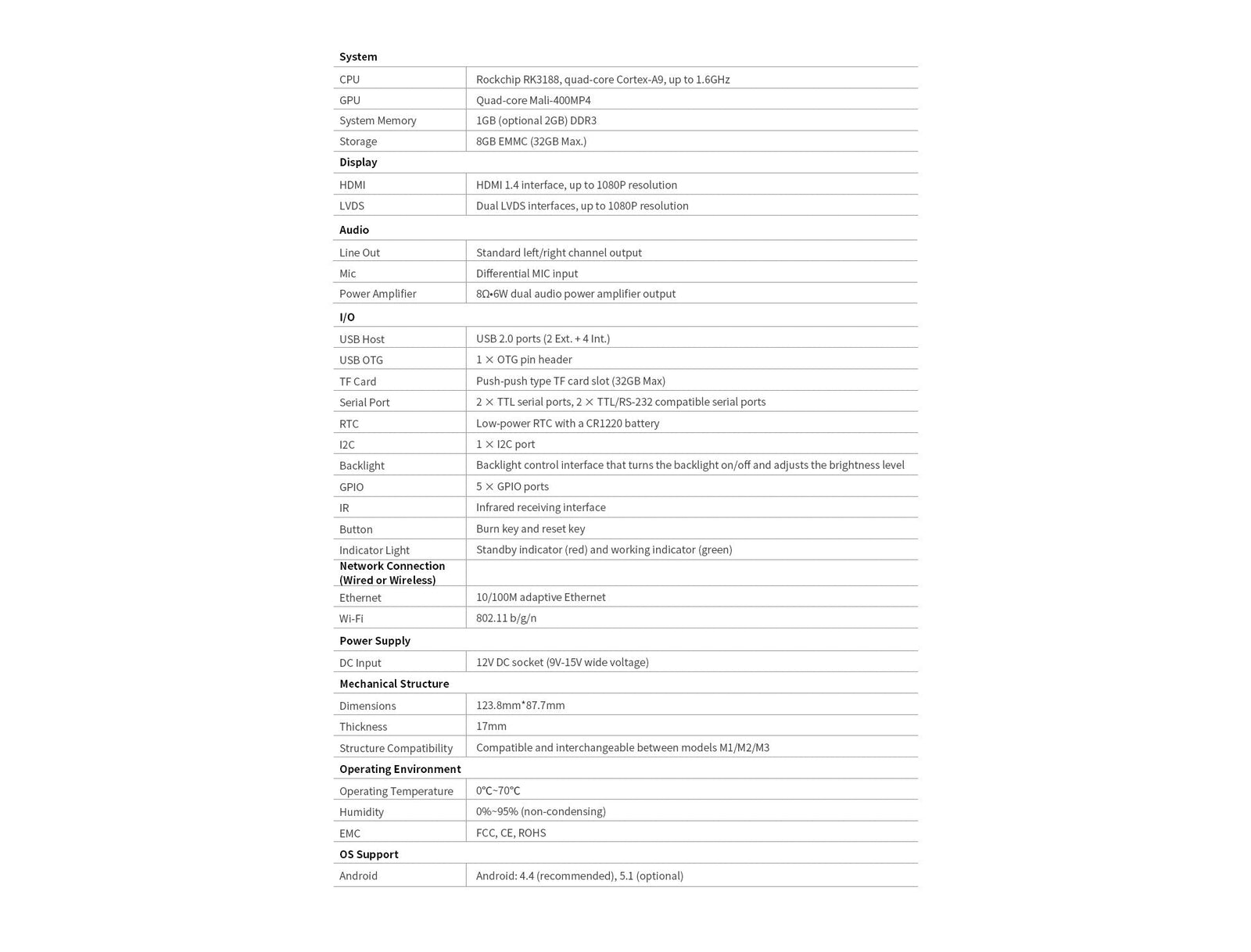

Key Features:

  • Processor: Rockchip RK3188, quad-core ARM Cortex-A9, up to 1.6GHz.

  • Memory: 1GB RAM.

  • Storage: 8GB eMMC flash.

  • Graphics: Mali400 MP4 GPU, supporting OpenGL ES 1.1/2.0, with 1080p hardware video decoding and encoding.

  • Display Support: Multiple interfaces including HDMI, LVDS, and eDP, supporting resolutions up to 1080p.

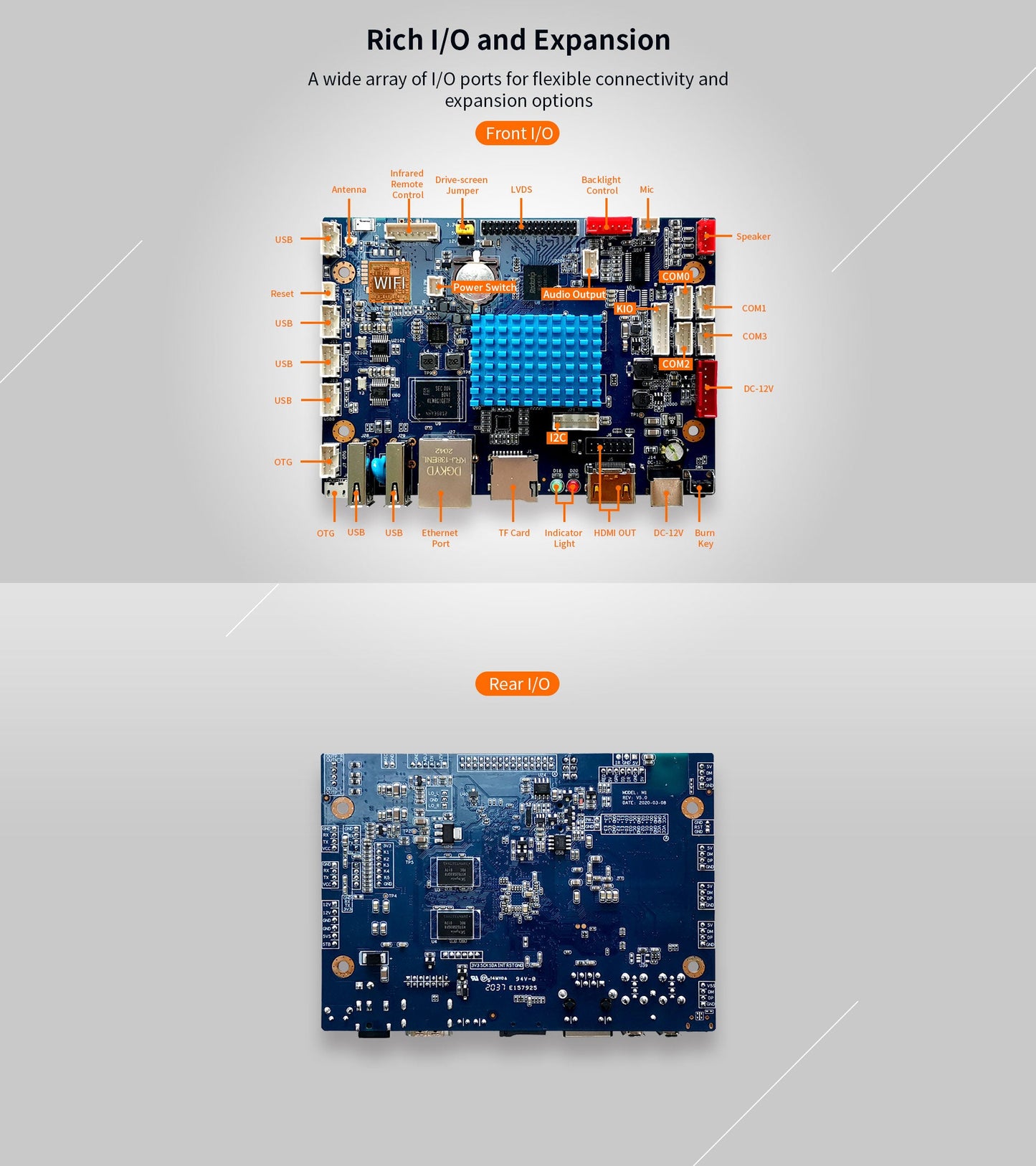

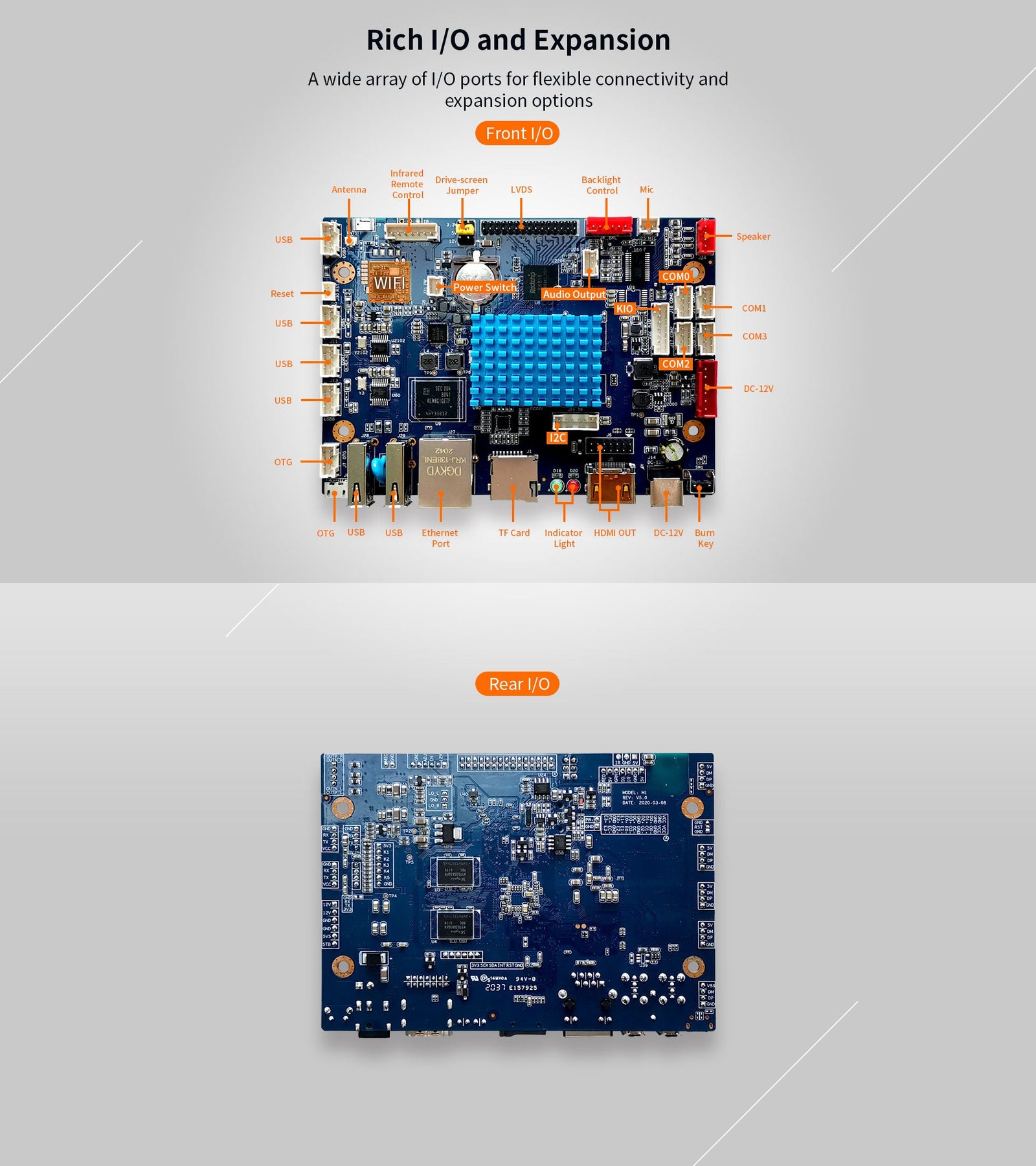

  • Connectivity: Various options such as USB ports, RS232, and RS485 serial communications.

  • Operating System: Compatible with Android 4.4.

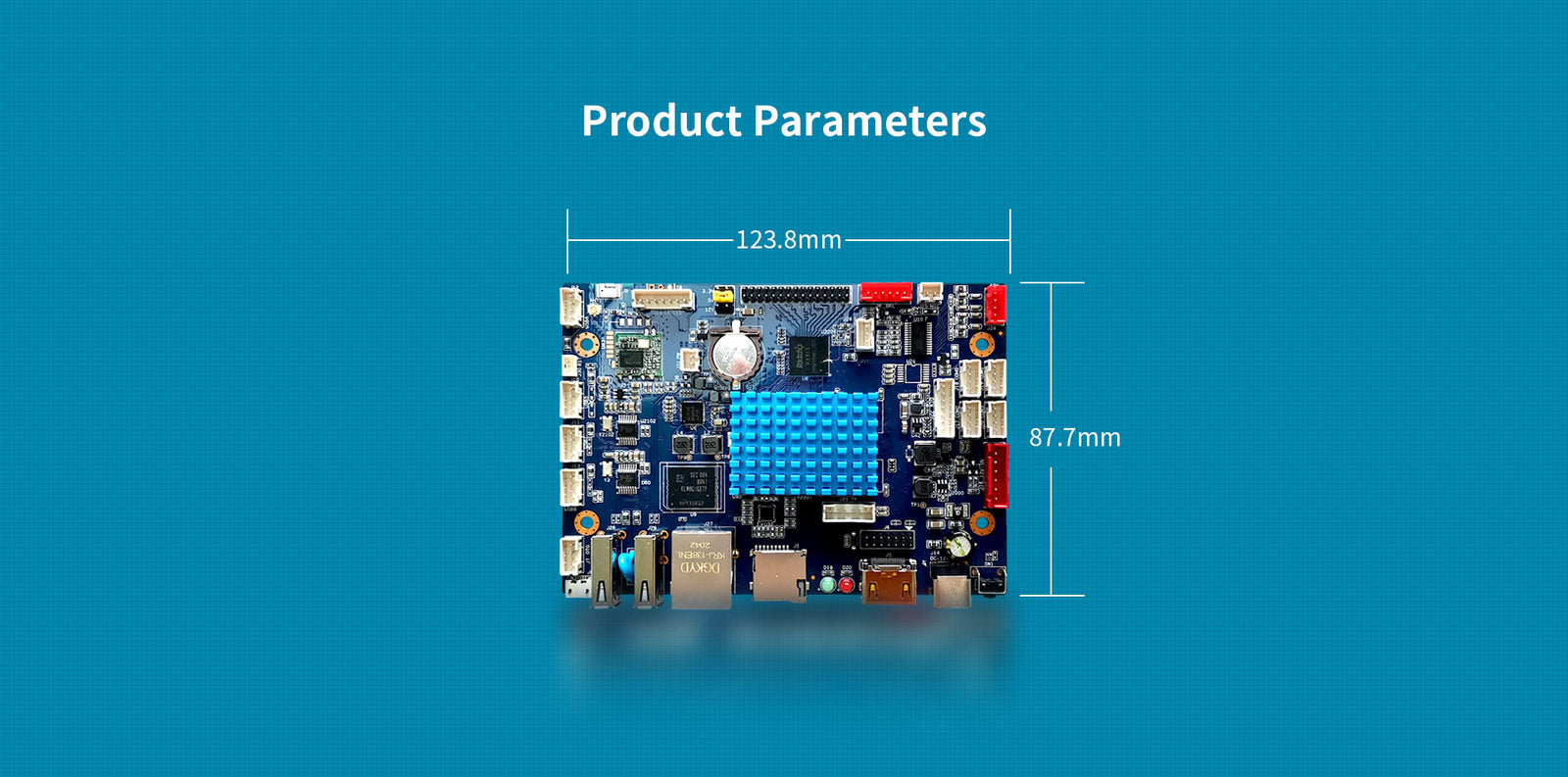

  • Dimensions: 123.8mm*87.7mm

Technical specifications are loading…
