BOE

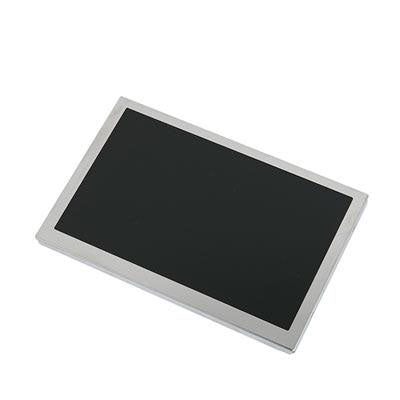

BOE QV070WSM-N60

$56.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:QV070WSM-N60
  • Brand:BOE
  • Size:7 inch
  • Resolution:1024*600
  • Brightness:400 cd/m²
  • Viewing angle:80/80/80/80
  • Interface:LVDS (1 ch, 8-bit) , 31 pins
  • CR:900 : 1
  • Operating Temp.: -20 ~60 °C
  • Parameters
Manufacturer BOE
Model Name QV070WSM-N60
Screen Size 7 inch
Pixel Number 1024(RGB)×600, WSVGA
Active Area(mm) 153.6(H)*90(V) mm (H×V)
Outline(mm) 164.05*100.86*2.35mm(H×V×D)
Bezel Area(mm)
Treatment
Luminance 400 cd/m² (Typ.)
Contrast Ratio 900 : 1 (Typ.) (TM)
Viewing Angle 80/80/80/80(CR≥10)
Left/Right/UP/Down
Response 30 (Typ.)(Tr+Td) ms
Work Mode ADS, Normally black, Transmissive
Color Depth 16.2M , 52% NTSC
Backlight 15K hours,without LED Driver
Net Weight 90 g (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 8-bit) , 31 pins
Voltage Supply 3.7V (Typ./Max.)
Max. Ratings Storage Temp.: -20 ~60 °C
Operating Temp.: -30 ~80 °C
Package



    BOE 7inch LCD screen QV070WSM-N60 with 400 luminance and -20-60 operating temp.

    QV070WSM-N60 has standard 1024*600 resolution.

    15000 hours backlight lifetime.

    QV070WSM-N60, often used in industrial facilities.
