PX30 Face Recognition & Face Payment Access Control Board | MIPI | F1i

$69.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

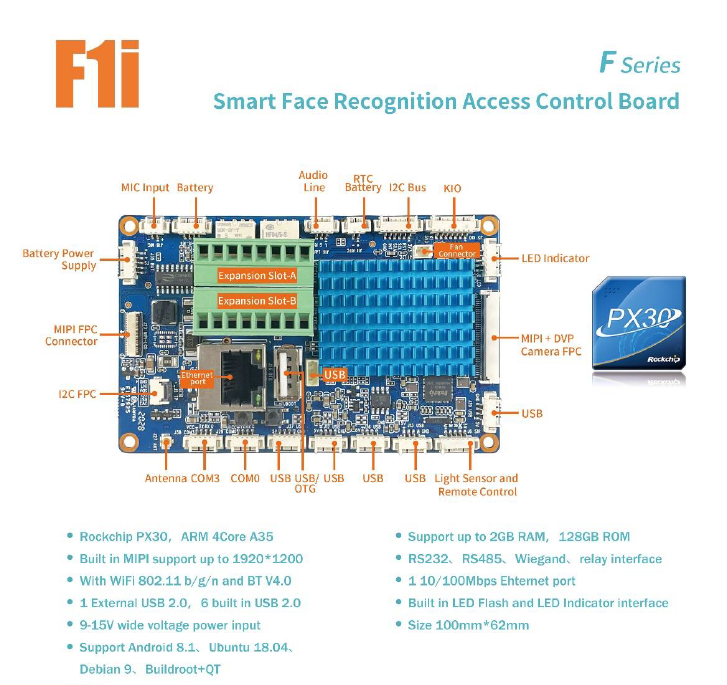

PX30 Face Recognition Access Control Board 1GB RAM 8GB eMMC F1i



F1i is a compact, intelligent access control board powered by the efficient Rockchip PX30 quad-core processor. With full HD MIPI-DSI display support, integrated Wi-Fi, Bluetooth, and a comprehensive set of I/O ports, it's tailored for face recognition terminals and other smart access solutions.

Its ultra-compact size and optimized layout make the F1i suitable for space-constrained environments such as wall-mounted or flush-mounted access control panels.

Key Features:

  • Processor: Rockchip PX30, ARM quad-core Cortex-A35, up to 1.5GHz

  • Graphics: Mali Dvalin-2EE GPU, supports OpenGL ES 3.2, Vulkan 1.0, OpenCL 2.0

  • Display Support: Full HD MIPI-DSI interface (1080p)

  • Connectivity:

    • 7 × USB 2.0 (1 external, 6 internal)

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

  • I/O Interfaces: RS-232, RS-485, Wiegand, relay control

  • Lighting Control: Fill light and indicator pin headers

  • Memory & Storage: Default 1GB RAM, 8GB eMMC (supports up to 2GB RAM, 128GB storage)

  • Power Supply: 9V–15V wide voltage DC input

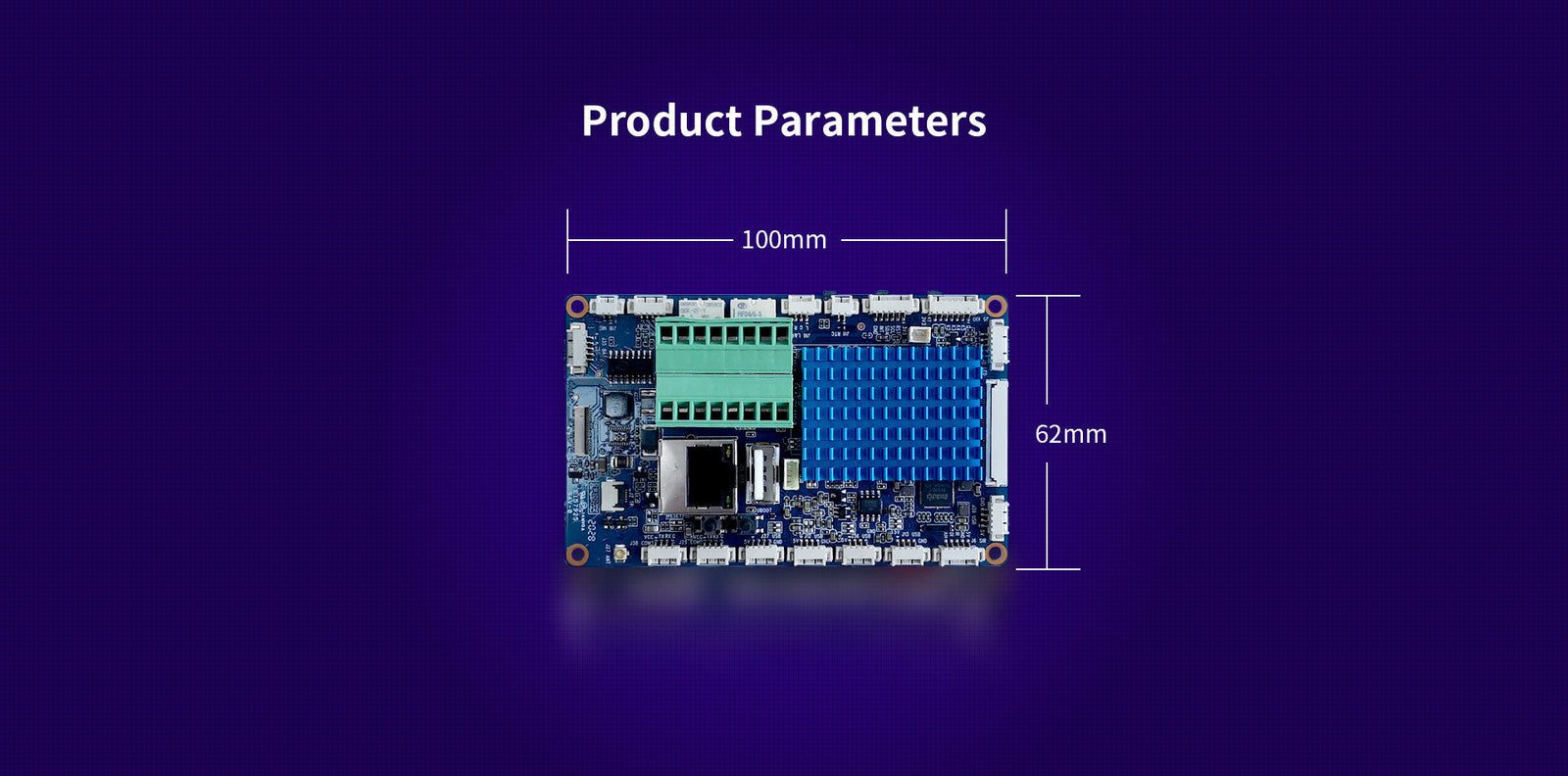

  • Form Factor: 100mm × 62mm

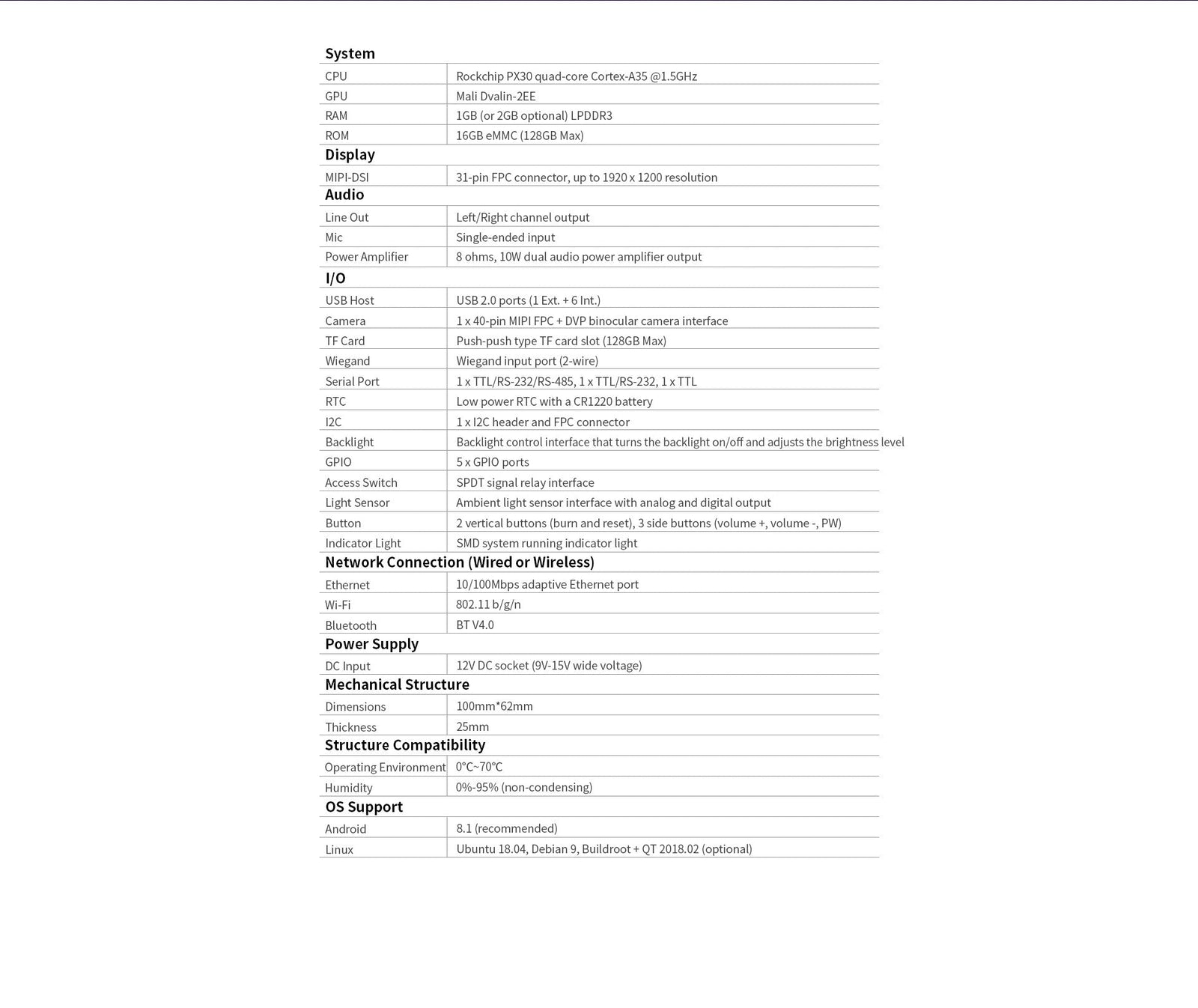

Technical specifications are loading…
