PX30 Face Recognition Access Control Board | MIPI + LVDS | F1

$70.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

PX30 Face Recognition Access Control Board 1GB RAM 8GB eMMC F1

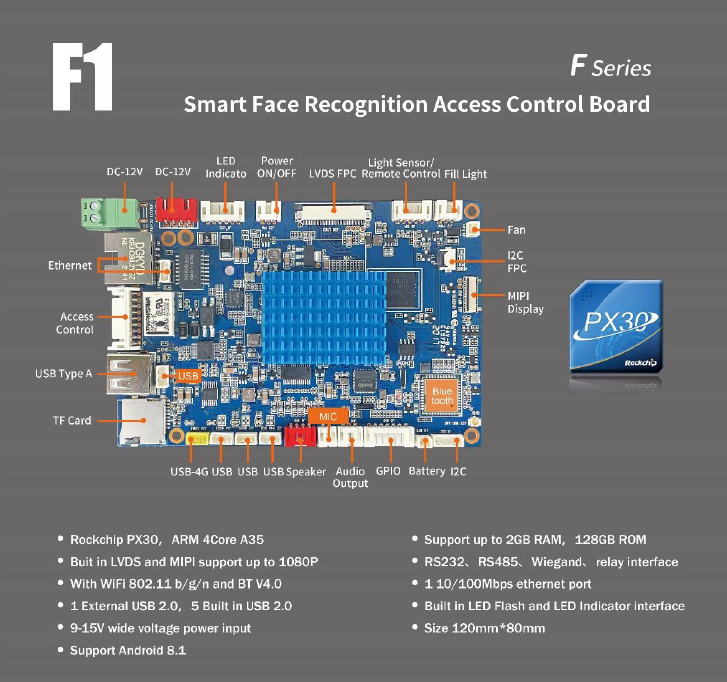

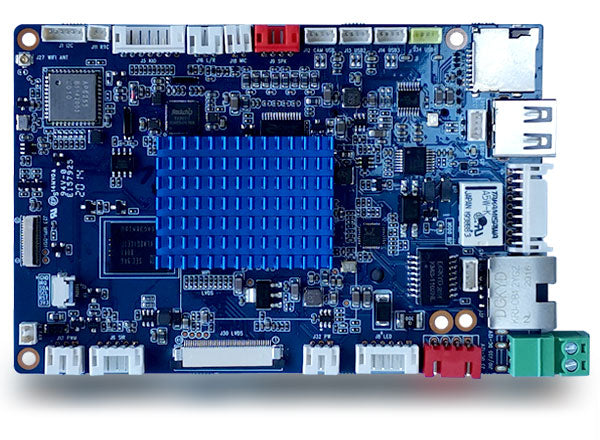

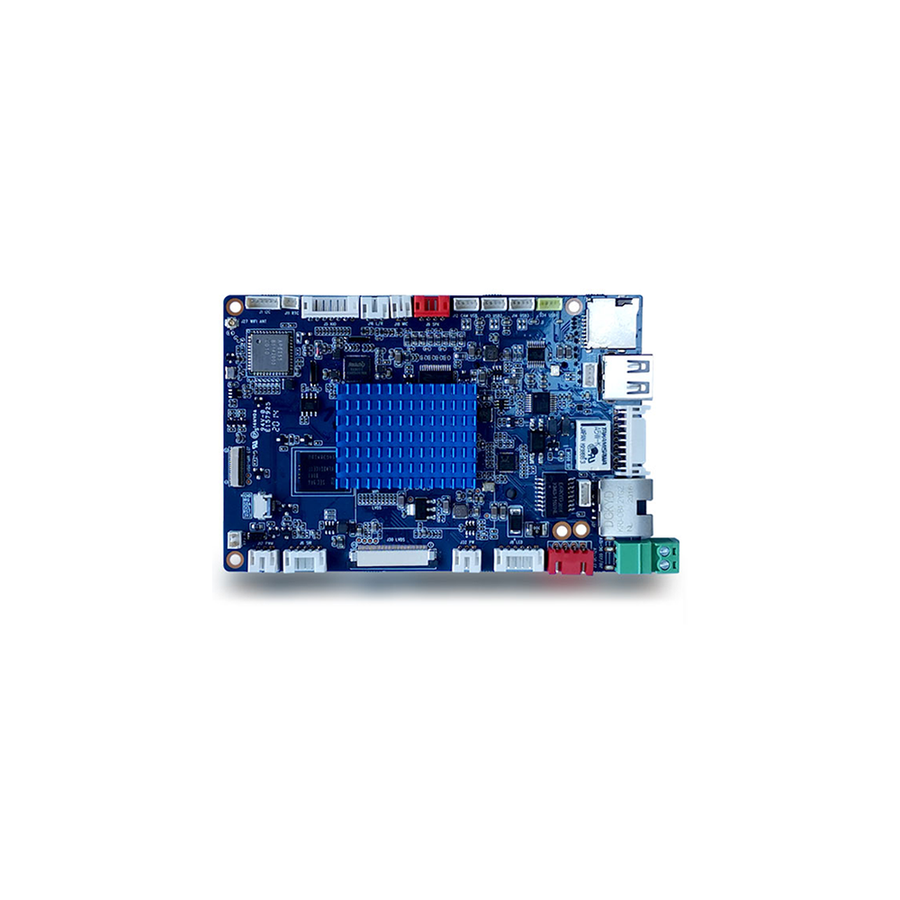

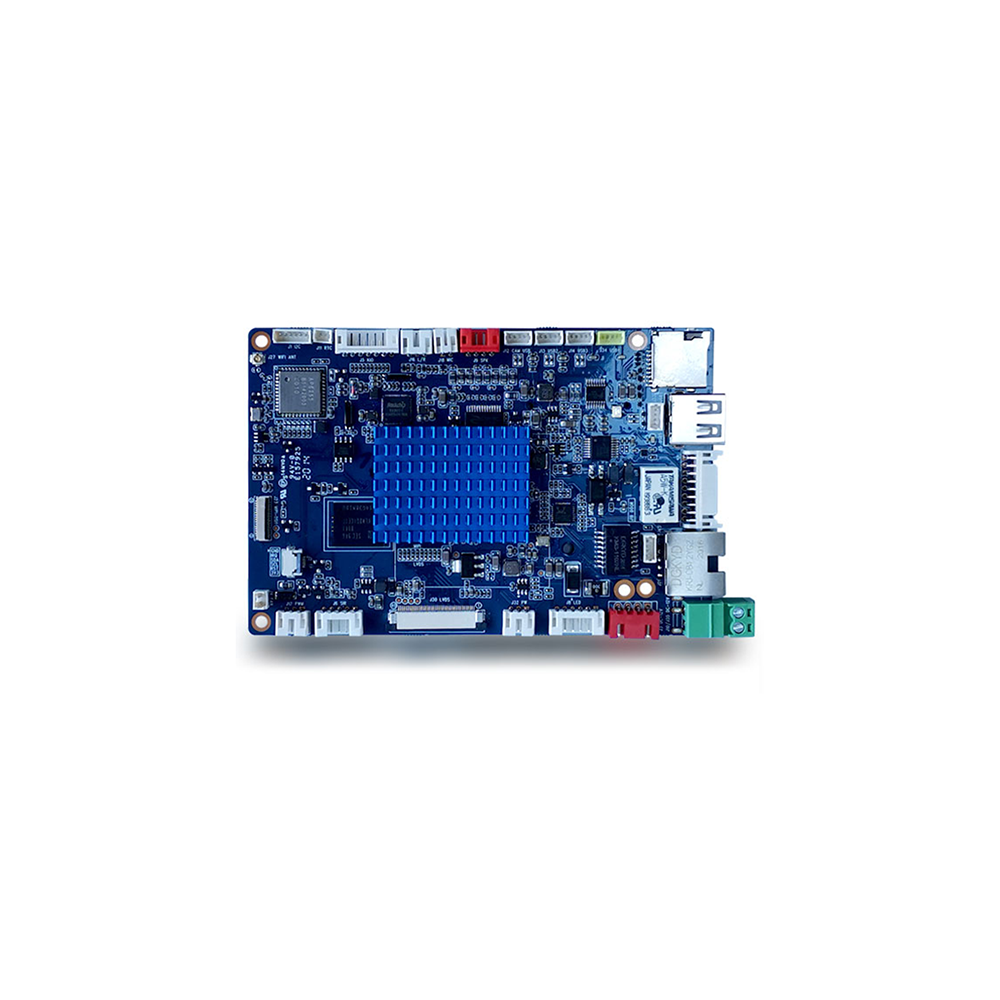

F1 is a compact face recognition motherboard powered by the Rockchip PX30 quad-core processor, designed specifically for smart access control systems. With support for 1080p video decoding, versatile display outputs, and rich peripheral interfaces including Wiegand, RS-485, and relay control, it is ideal for intelligent entry systems, time attendance devices, and door access terminals.

Integrated Wi-Fi, Bluetooth, and an optional fill light/LED control interface make it a ready-to-deploy board for modern security solutions.

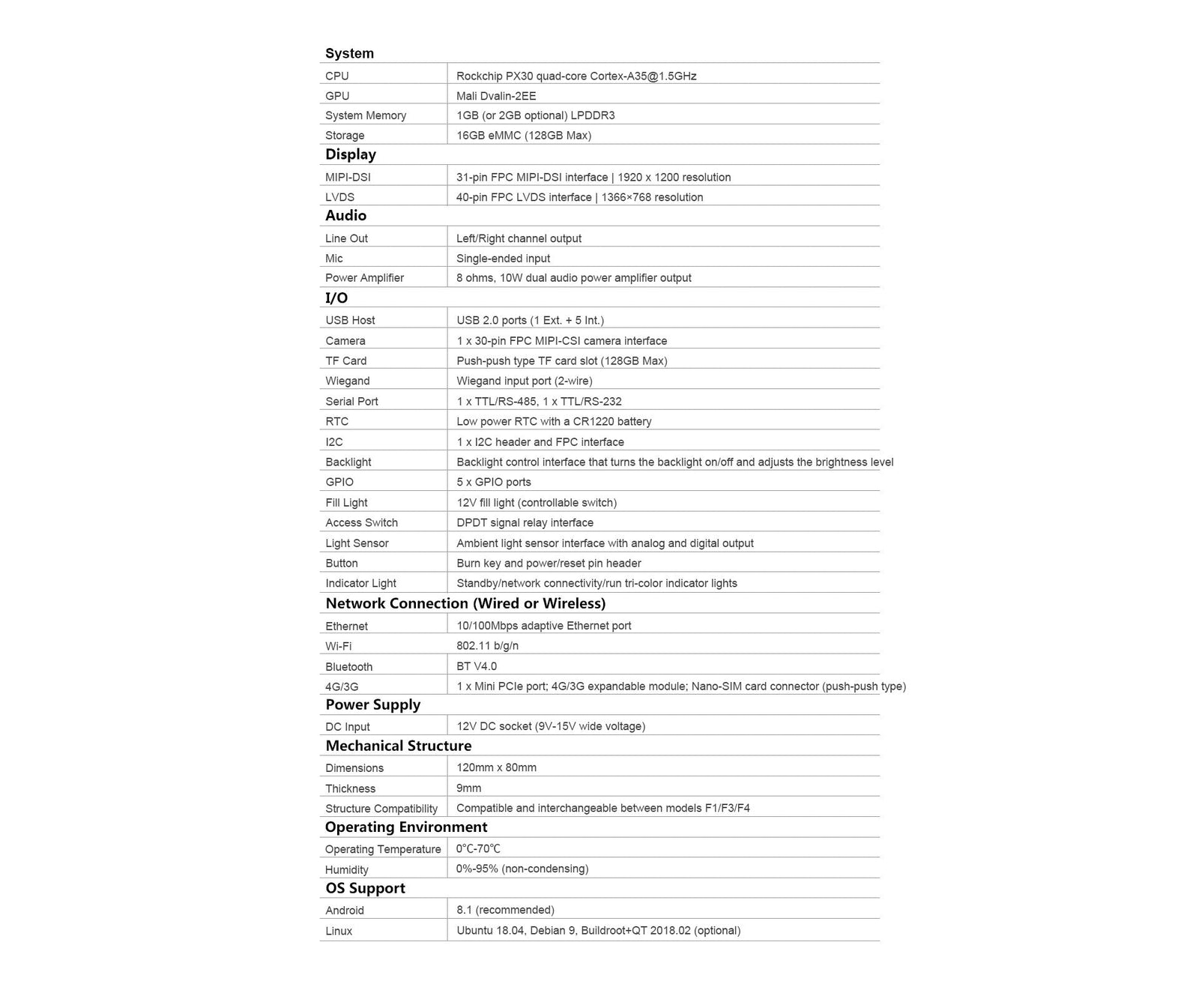

Key Features:

  • Processor: Rockchip PX30, ARM quad-core Cortex-A35, up to 1.5GHz

  • Graphics: Mali Dvalin-2EE GPU, supports OpenGL ES 3.2, Vulkan 1.0, OpenCL 2.0

  • Display Support: LVDS and MIPI interfaces for 1080p FHD output

  • Connectivity:

    • 6 × USB 2.0 (1 external, 5 internal)

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

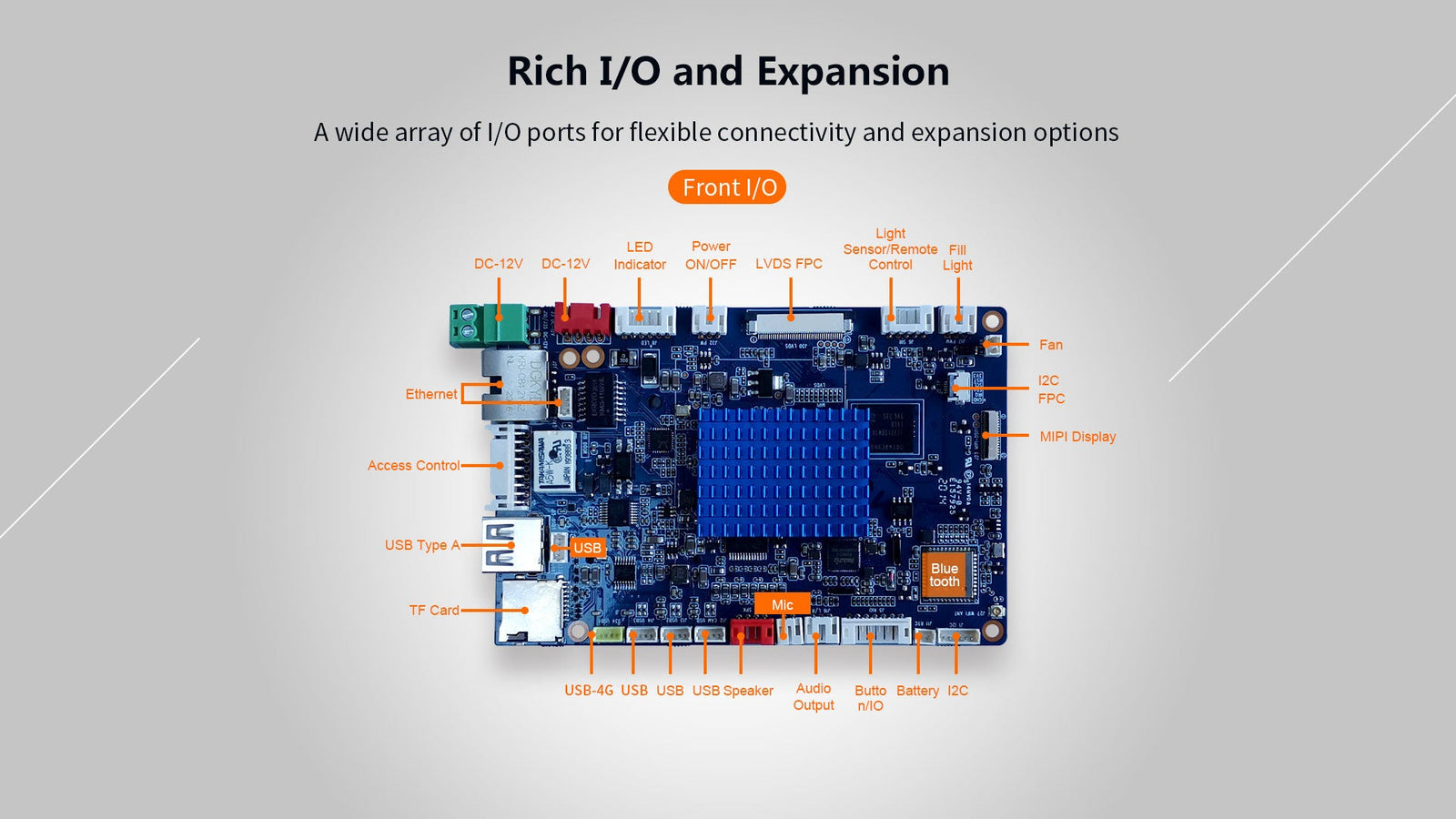

  • I/O Interfaces: RS-232, RS-485, Wiegand, relay control

  • Lighting Control: Fill light and indicator pin interfaces

  • Memory & Storage: Default 1GB RAM, 8GB eMMC (supports up to 2GB RAM, 128GB storage)

  • Power Supply: 9V–15V wide voltage DC input

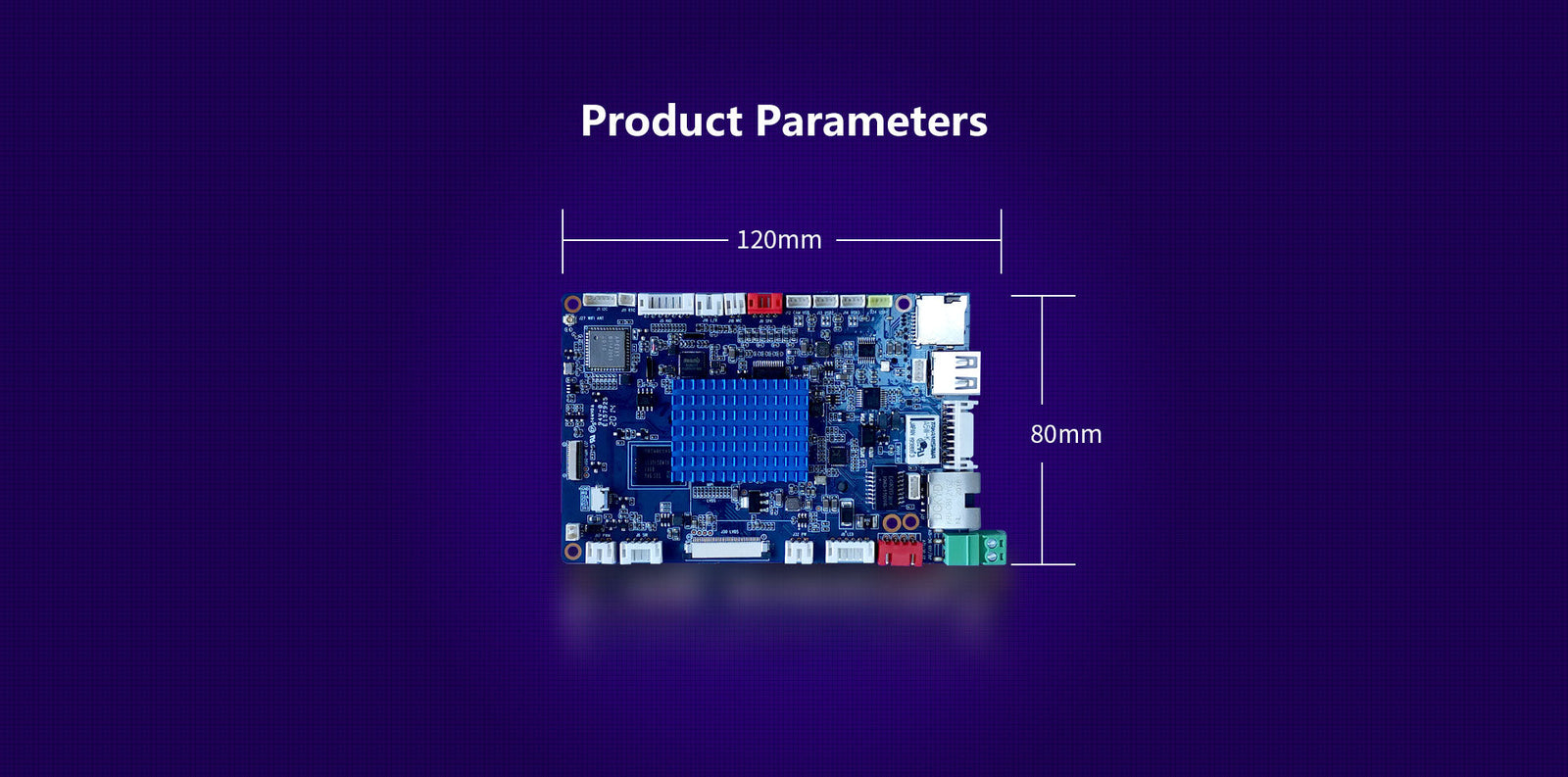

  • Form Factor: 120mm × 80mm
