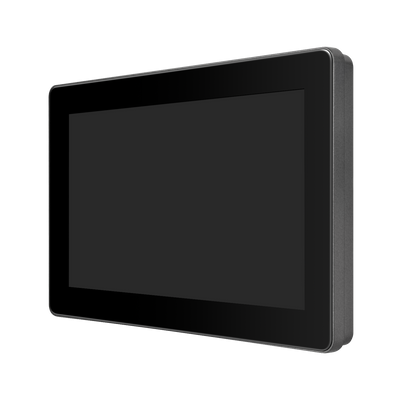

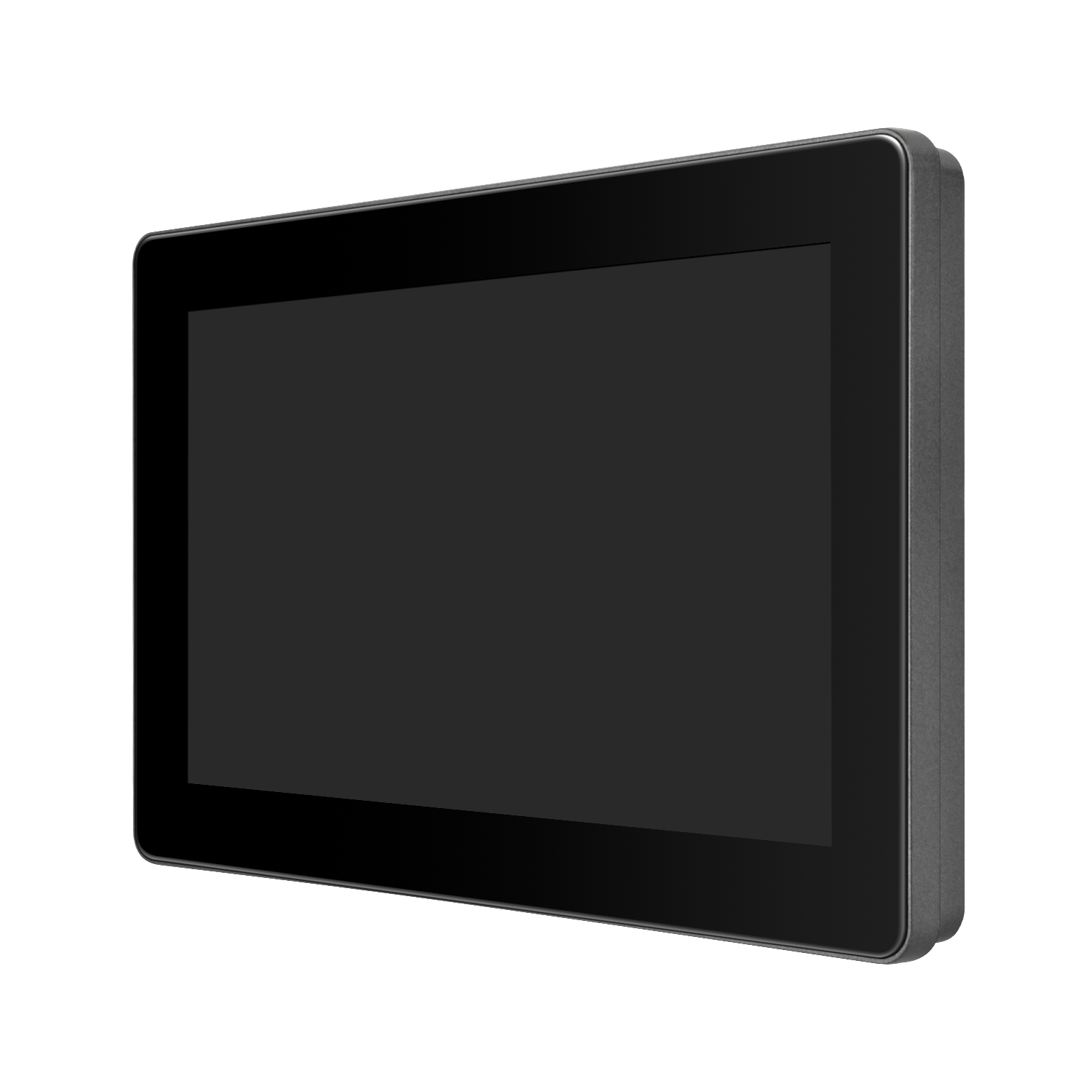

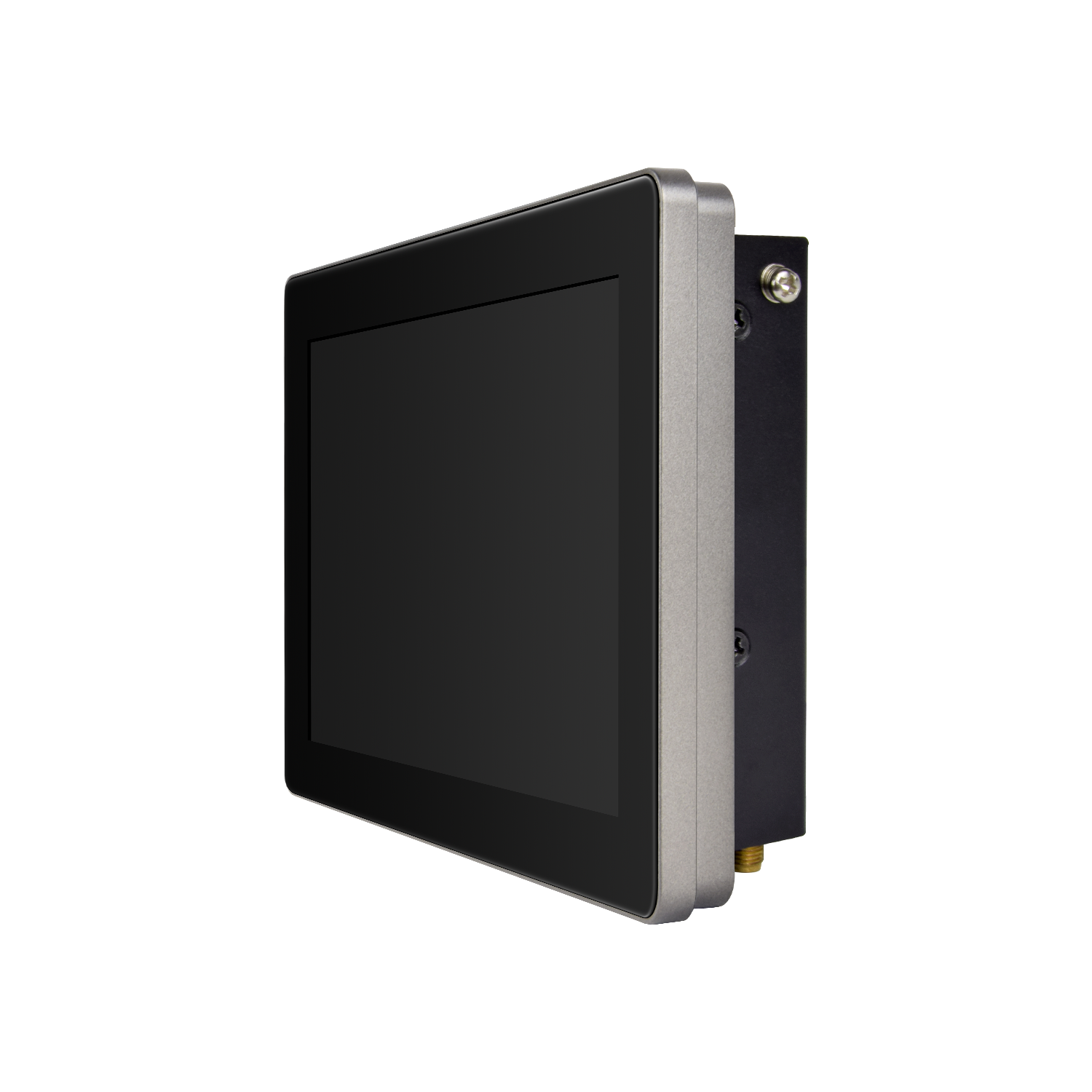

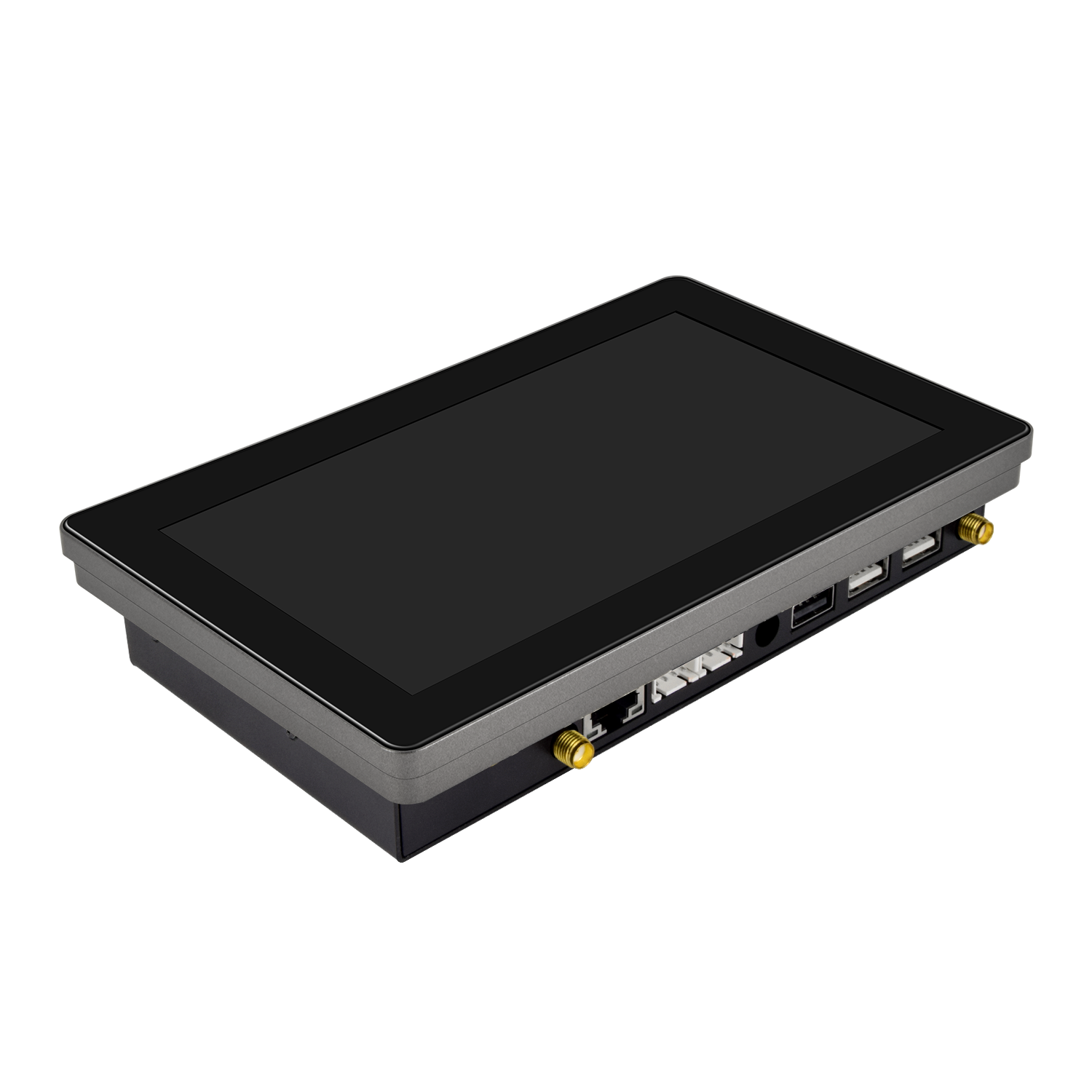

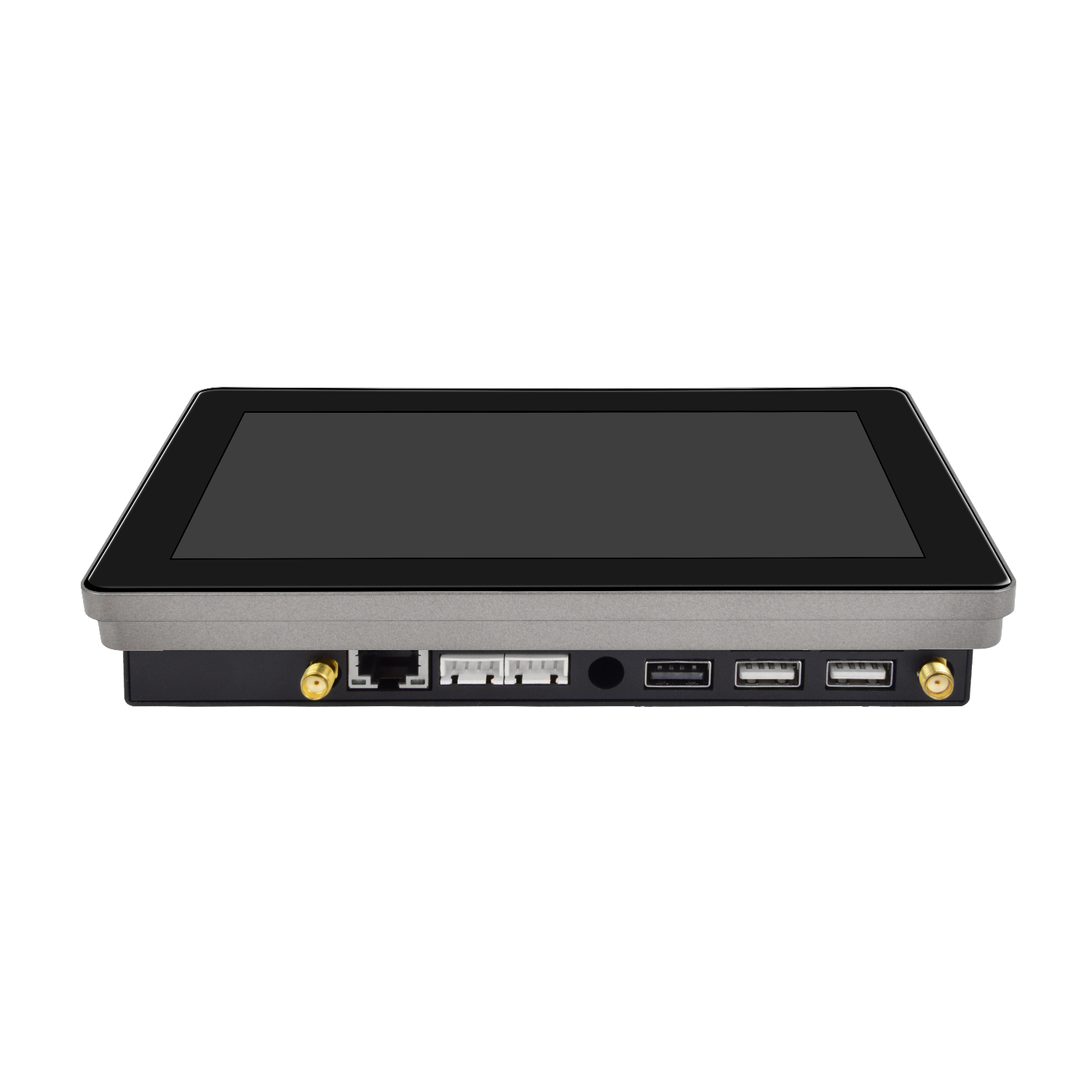

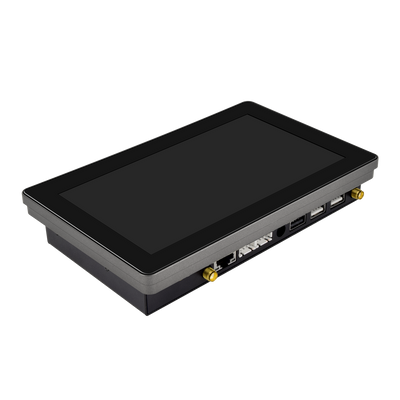

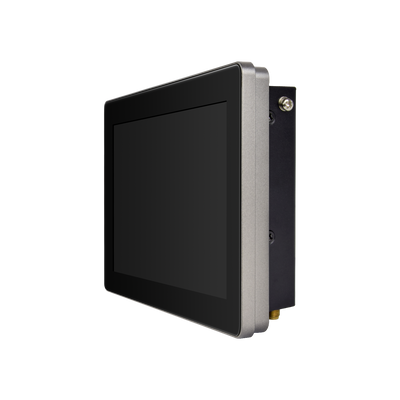

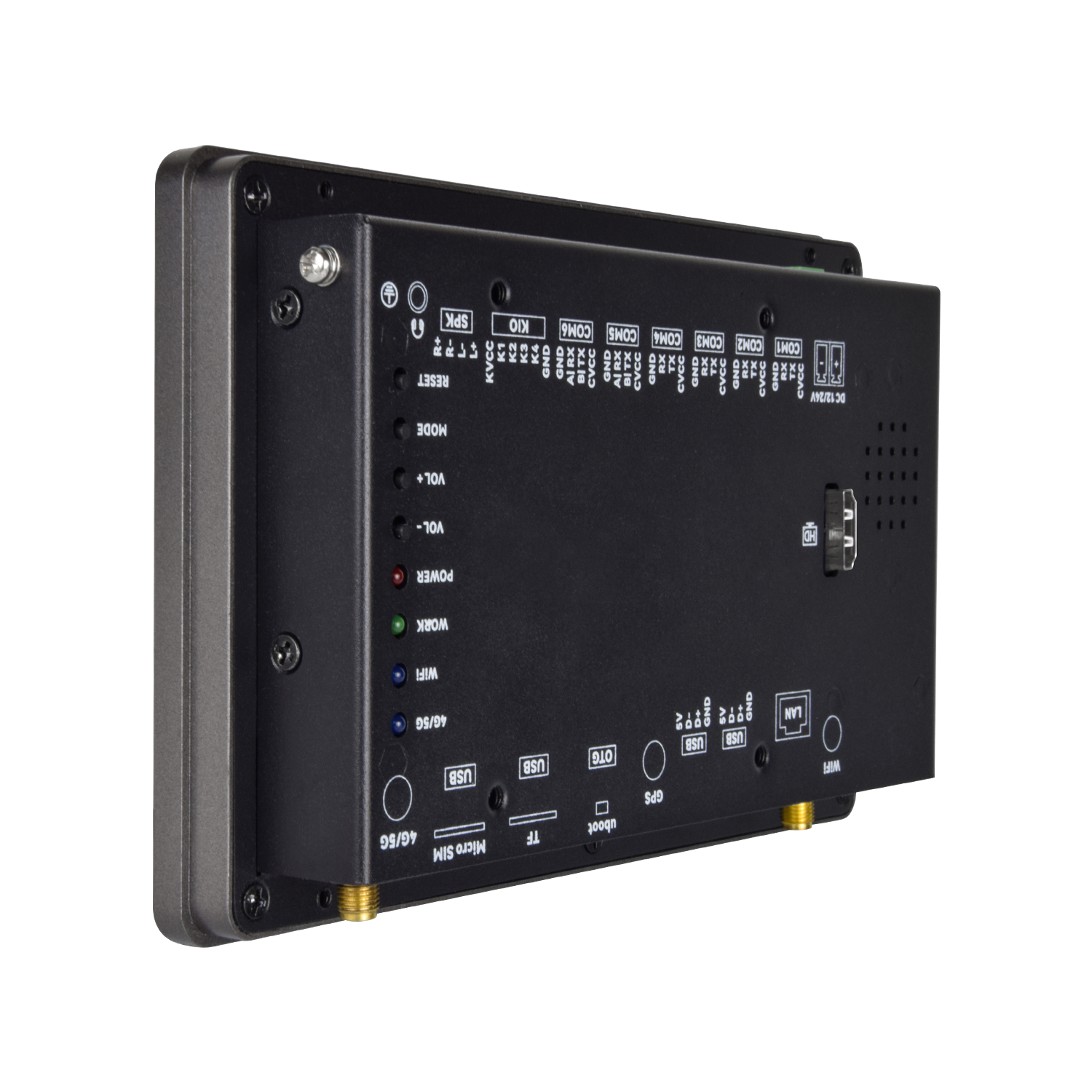

7" inch RK3568 2x INT SPK All in One HMI Android Panel PC, IPS, ABS Frame

$153.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

GeniusCore Embedded Systems "ControlHUB Series" Plastic Frame Multiport Panel PC


7" inch IPS Screen, All in One HMI Android Panel PC, RK3568 2GB RAM 16GB ROM, Configurable 6COM TTL RS232 RS485, Optional CAN Port



Model: GFCX-A070P3568-2G16

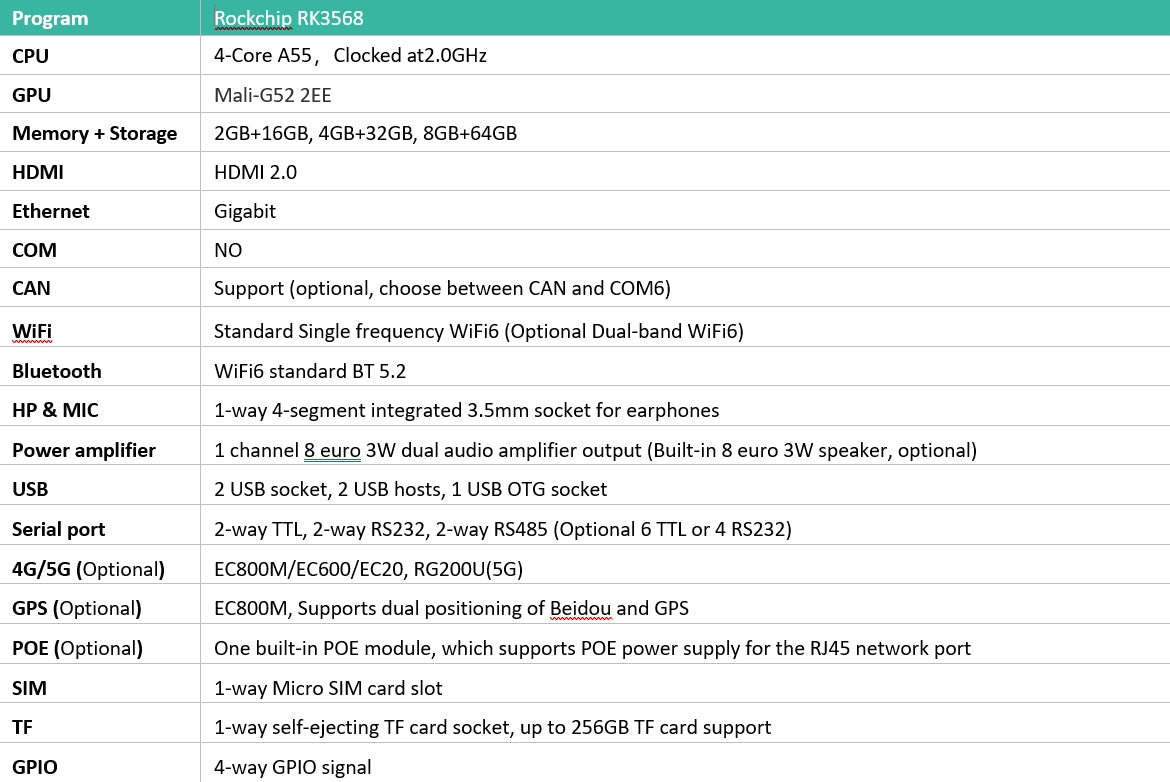

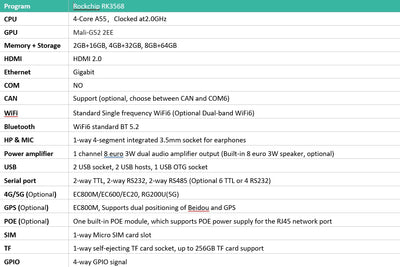

ControlHUB Series RK3568 Standard Configuration:

- CPU: RK3568 Quadcore A55, 2GB RAM 16GB ROM Quad Core A17, Up to 1.8GHz

- GPU: Mali-G52 2EE

- Operating System: Android 11/12 / Ubuntu 20.04 / Linux QT / Debian 10

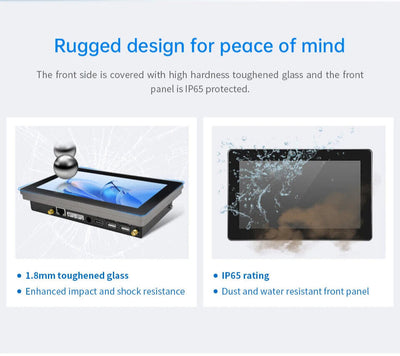

- IP65 Waterproof Front Panel

- Memory: Default 2GB RAM +16GB ROM (4G+32G, 8G+64G Optional)

- Storage: Default 16GB EMMC NAND Chips, Expandable Up to 256GB

- External Storage: Self-ejecting TF Card Up to 256GB

Ethernet: 1000Mbps

- Wifi: default Wifi6 2.4GHz Single-frequency (5GHz dual frequency optional)

- Bluetooth: Default WiFi6 BT 5.2

- 4G/5G Optional: EC800M/EC600/EC20,RG200U(5G)

- 1-way Micro SIM card slot

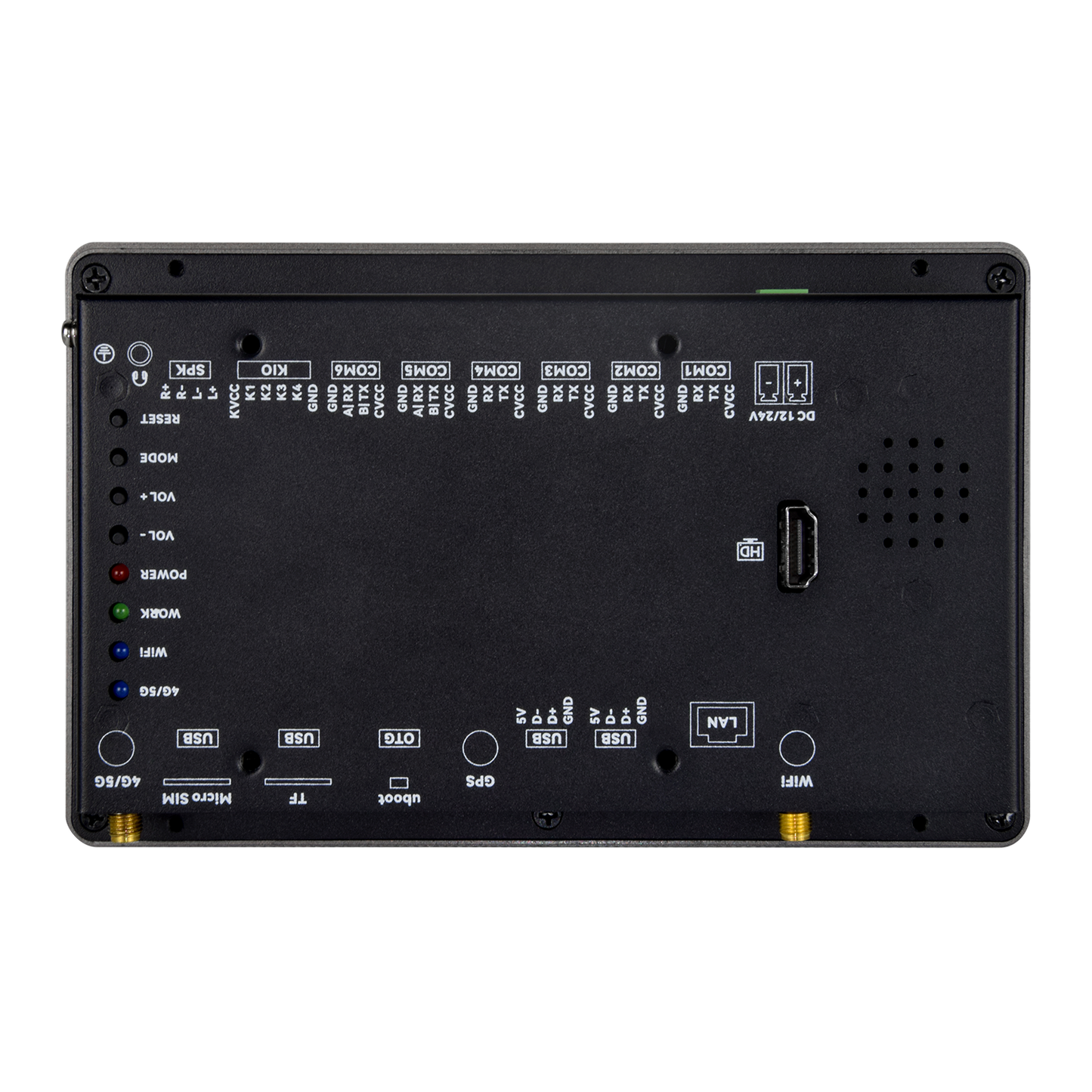

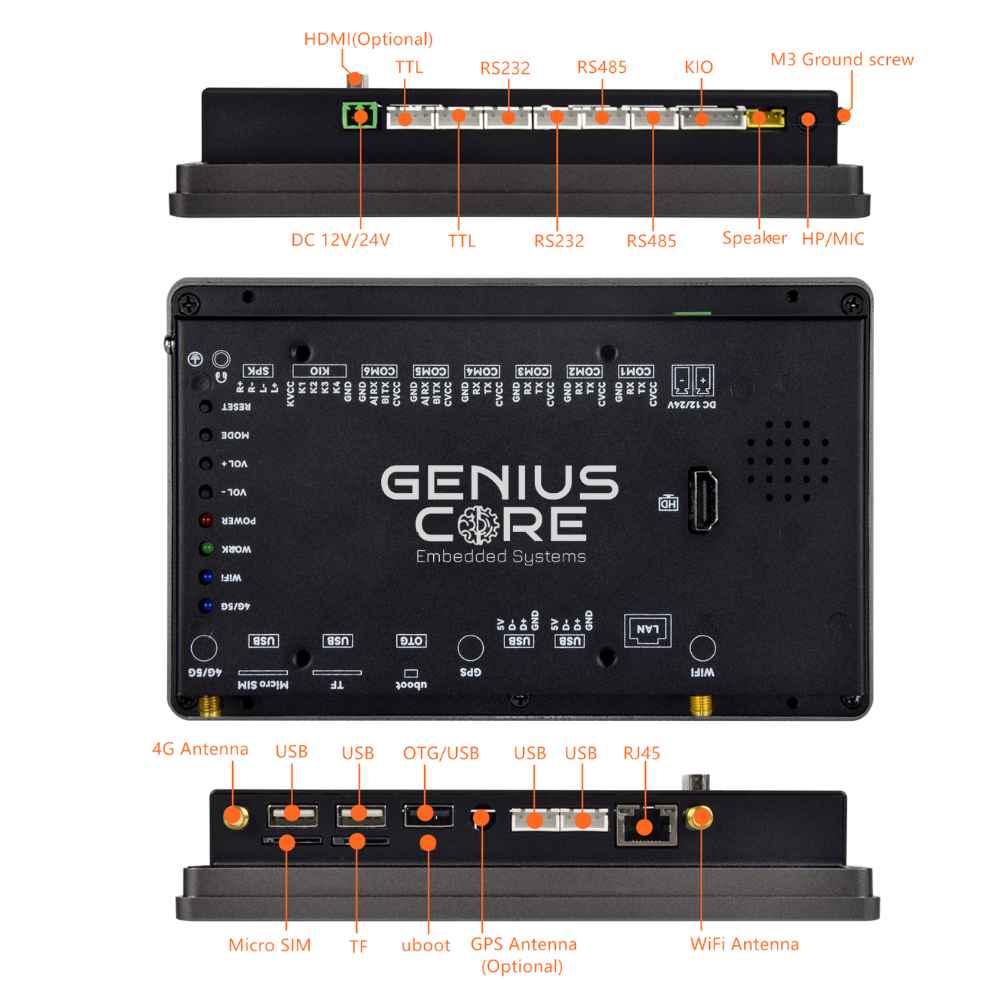

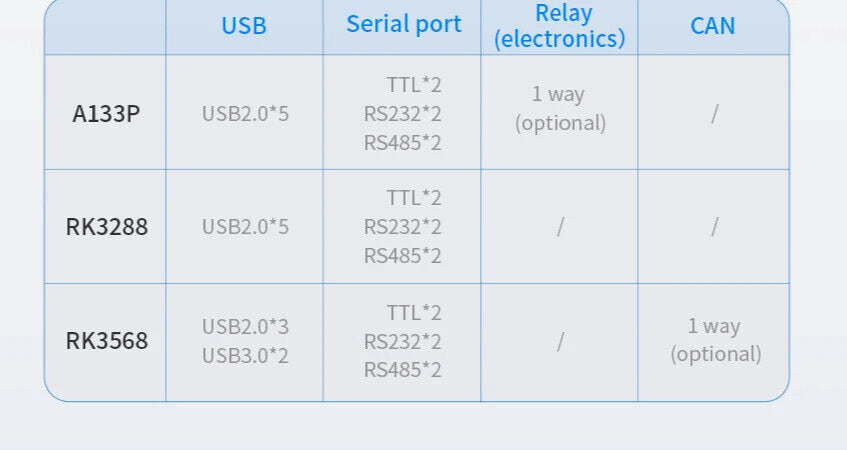

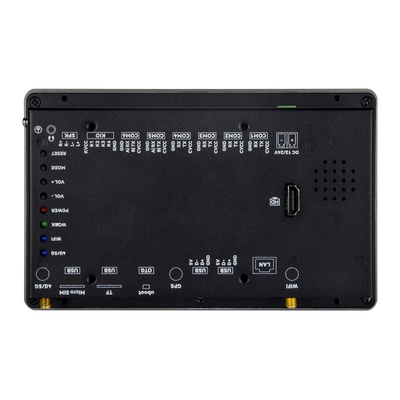

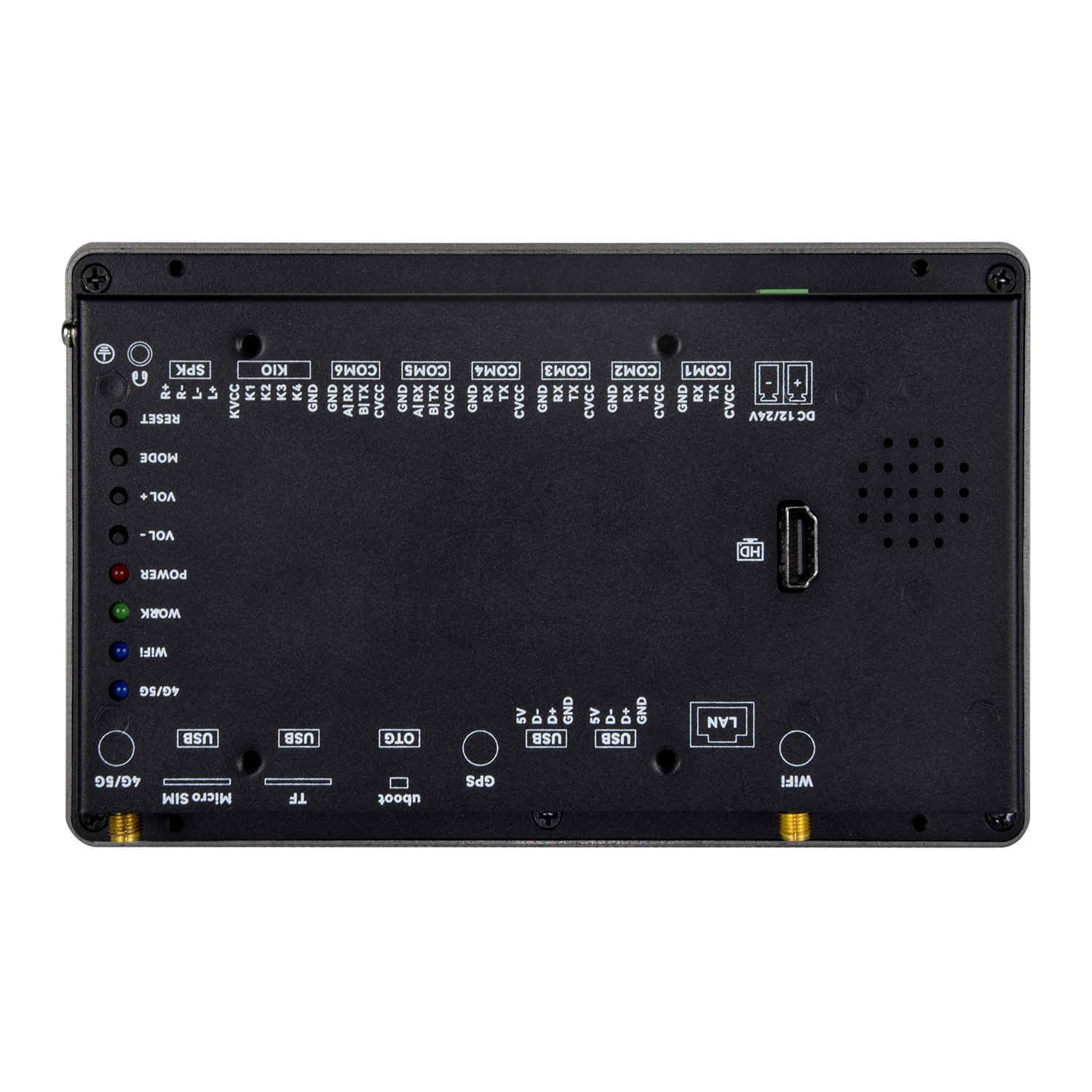

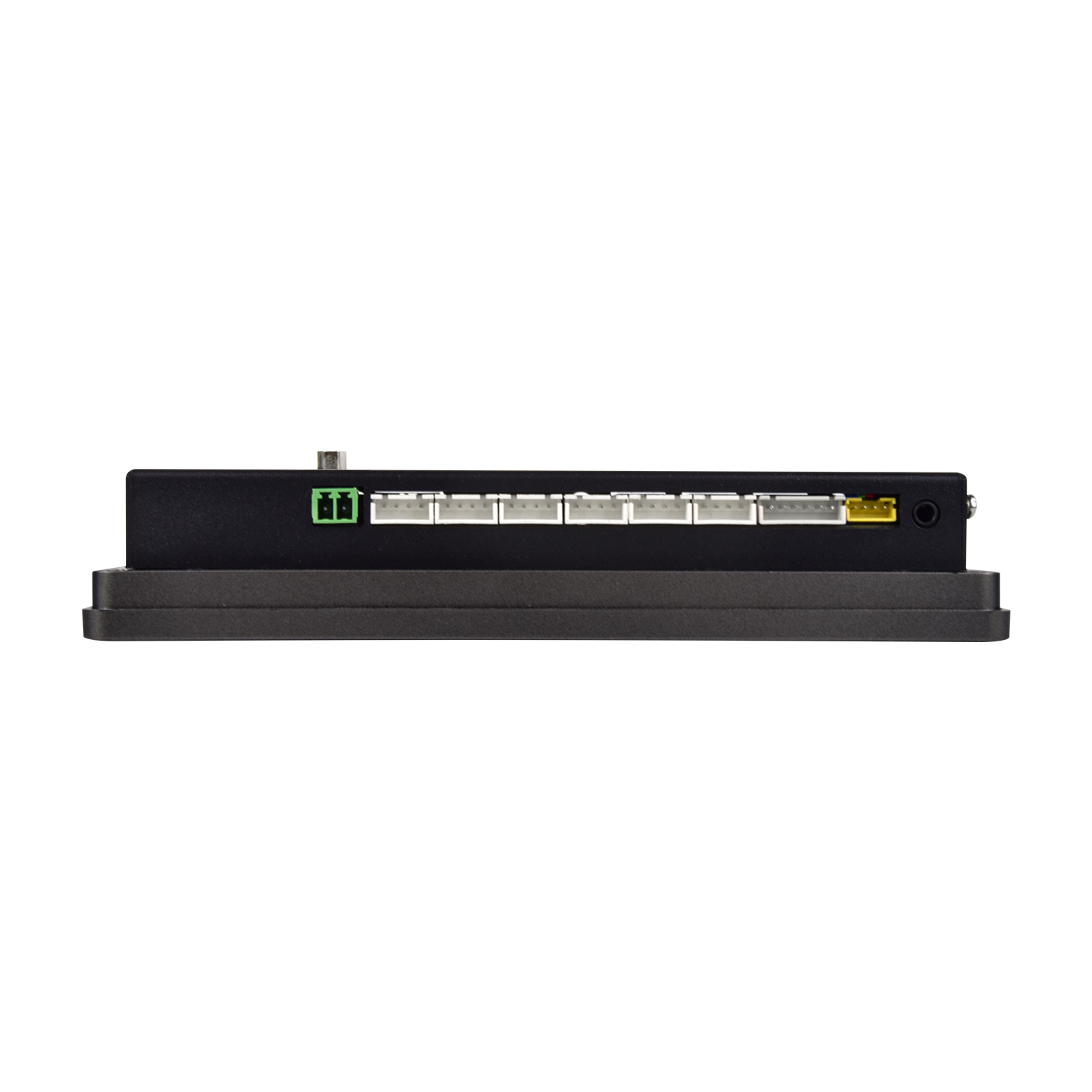

- Serial Interface: 2-way TTL, 2-way RS232, 2-way RS485

- CAN (Optional): COM6 can be configured as CAN

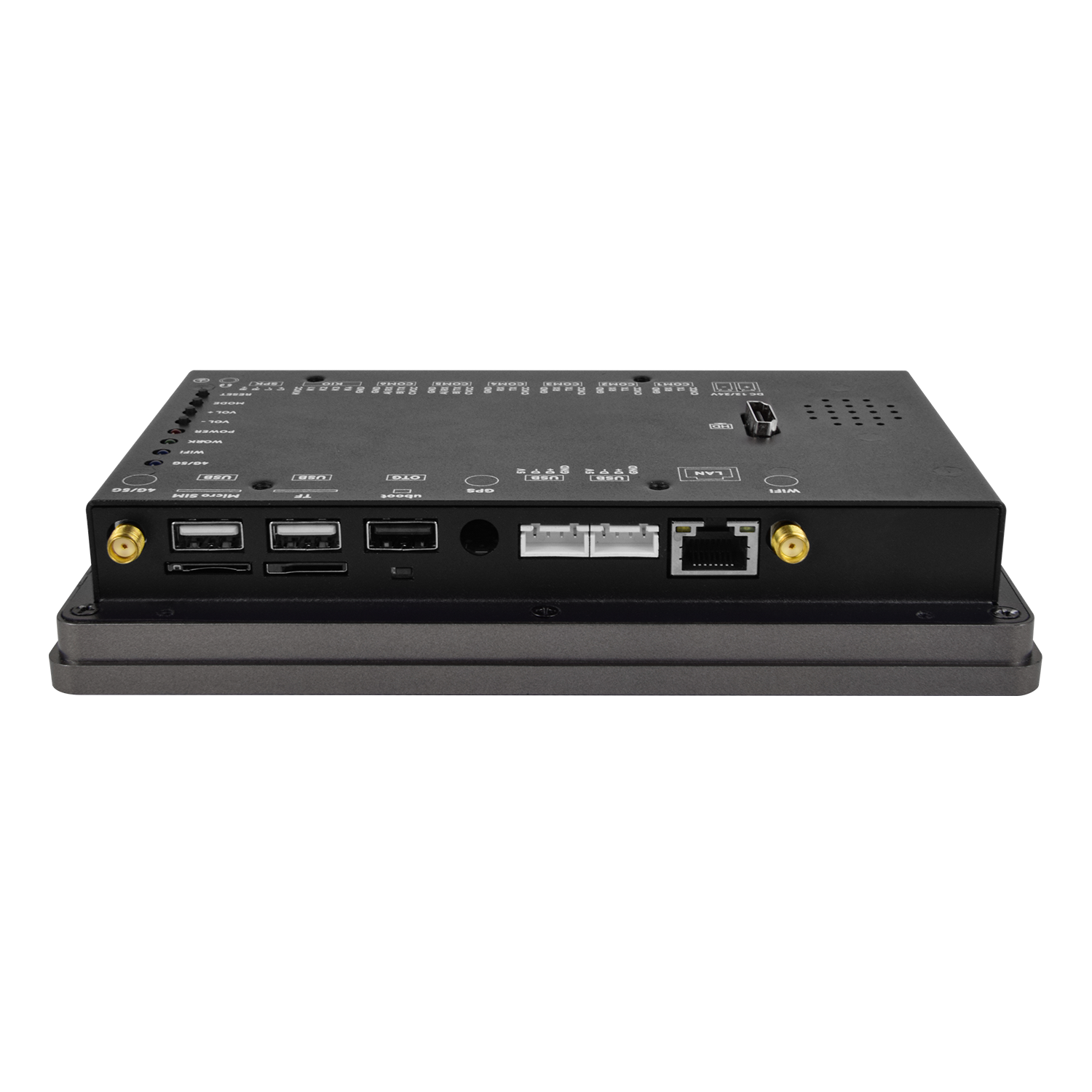

- USB: 1*USB3.0 , 3*USB2.0 , 1*USB3.0 OTG

- GPIO: 4-way GPIO Signal, Expandable GPIO Button or 3.3V Input / Output

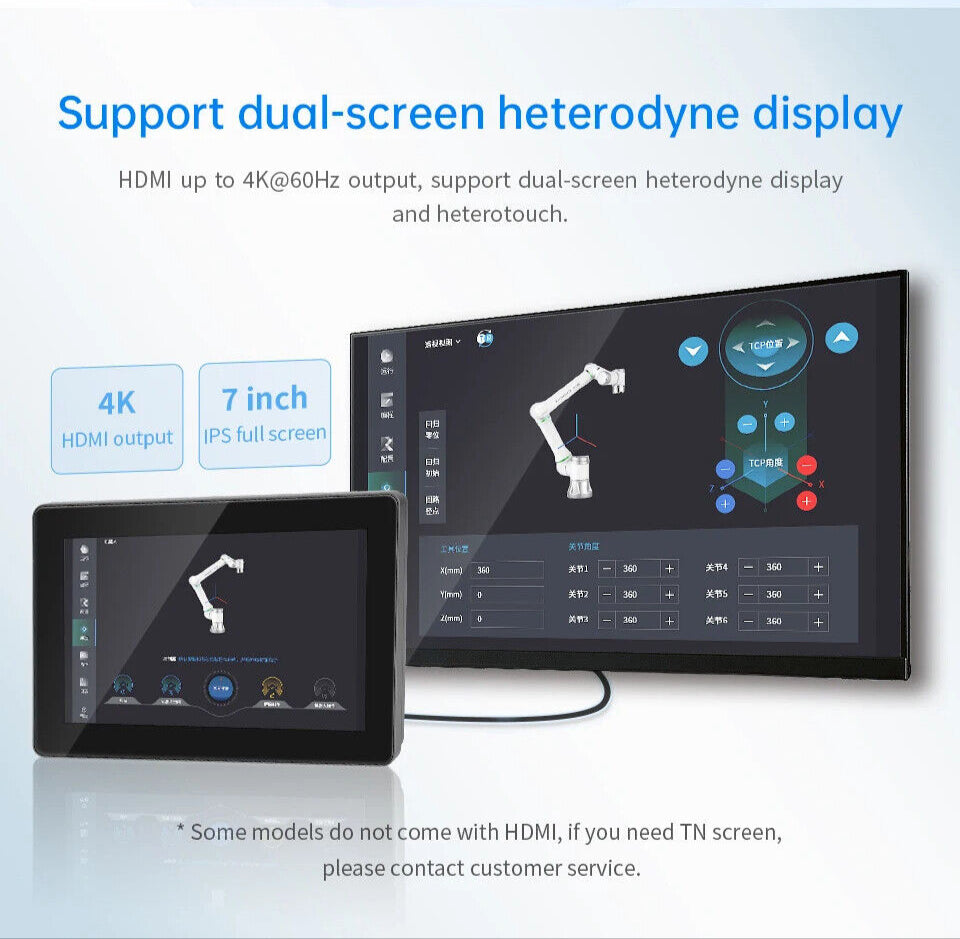

- HDMI 2.0 Built in, up to 4K resolution, supports Dual screen display

- GPS (Optional): EC800M,Supports dual positioning of Beidou and GPS

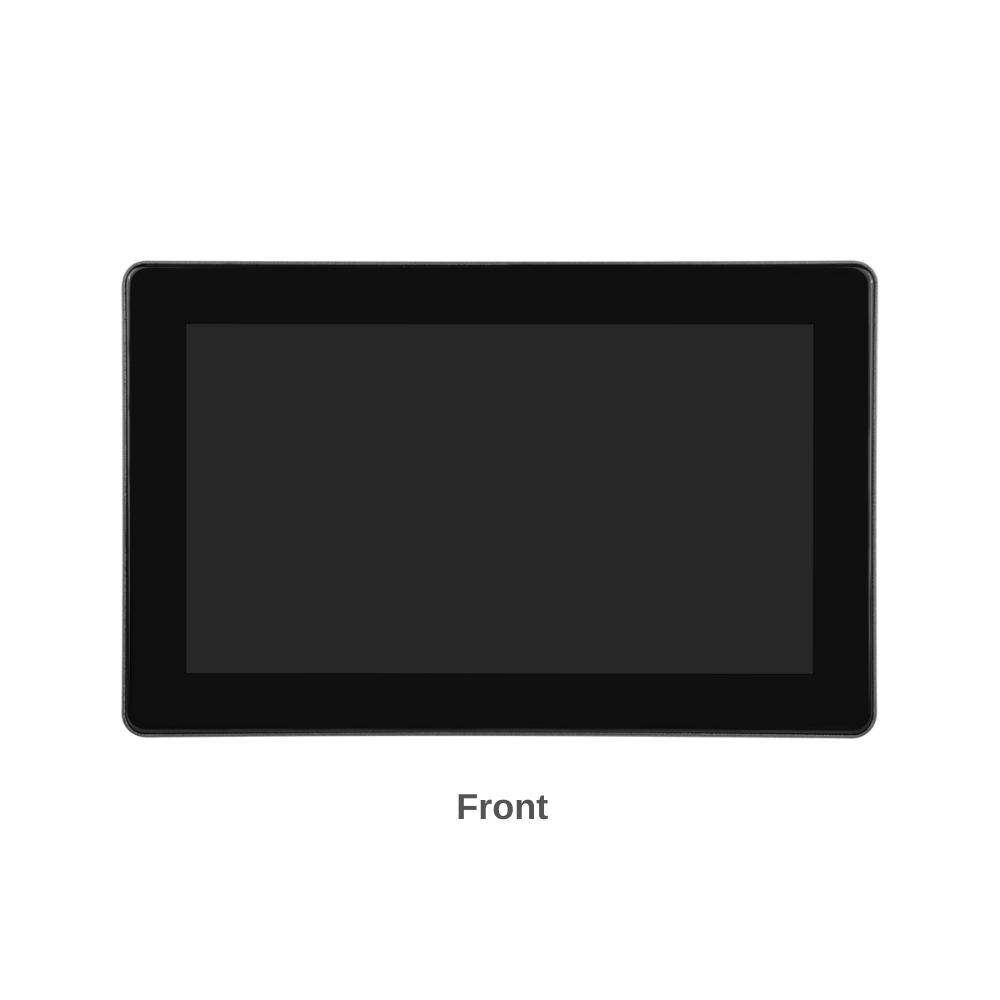

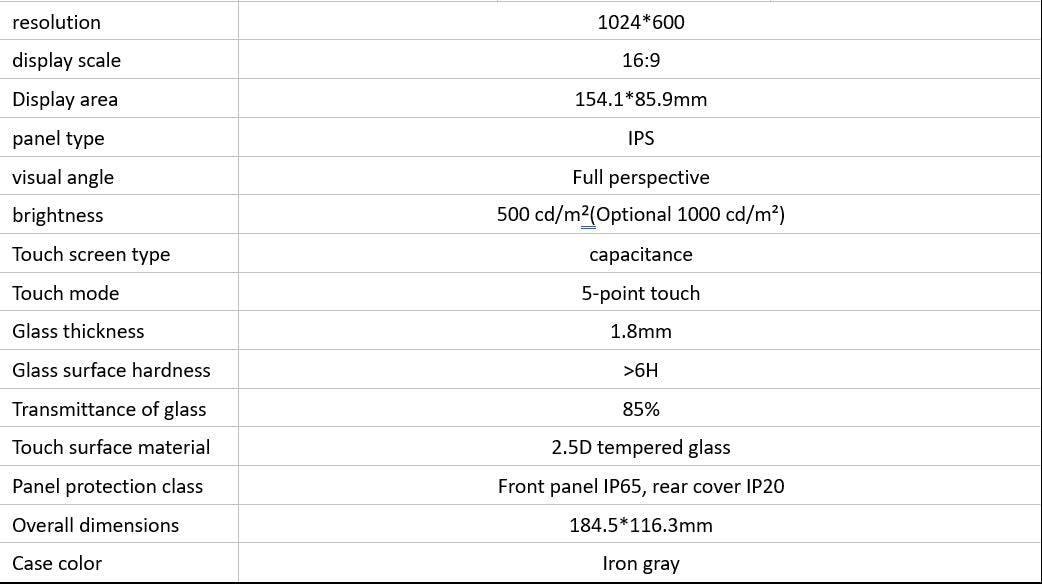

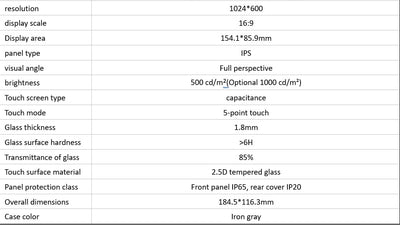

- Screen: 7" inch, 1024*600 Pixel, IPS Capacitive LCD Panel, display scale 5:8

- Brightness: 500 cd/m2 (Optional 1000cd/m2)

- Buttons: Reset button, back button, volume + and volume -, burn button

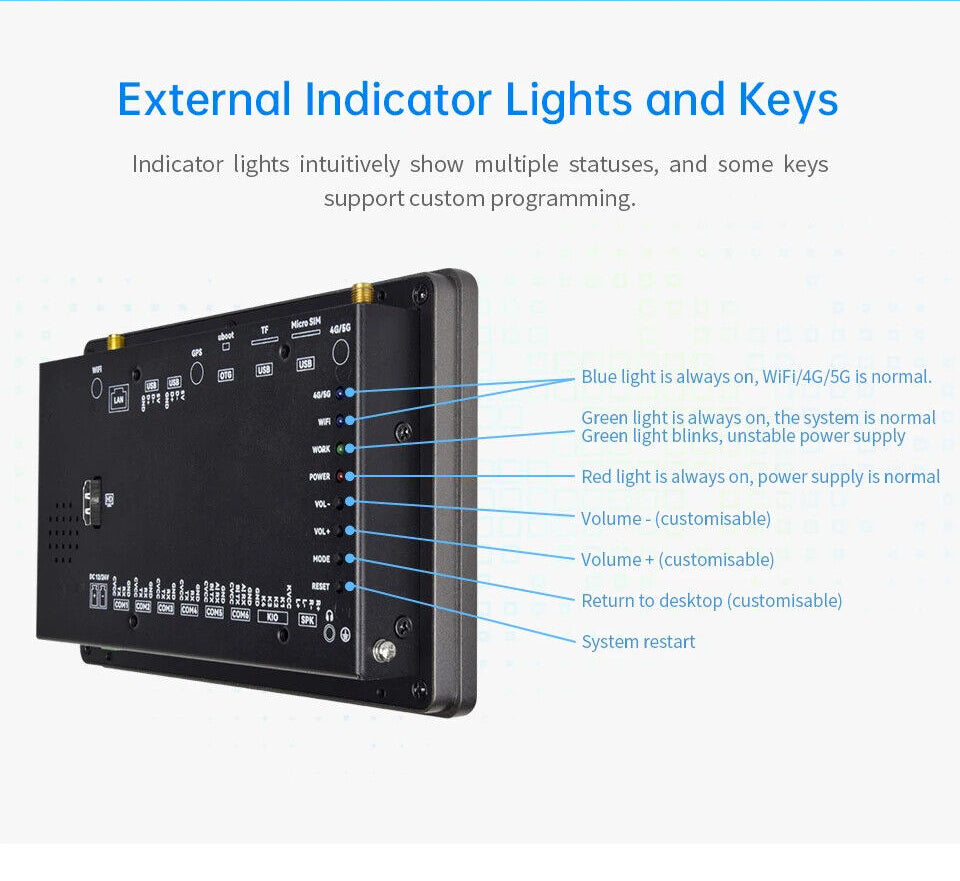

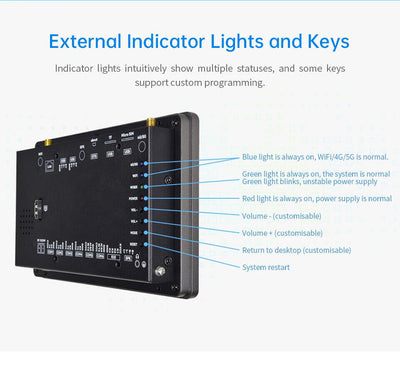

- LED: Power indicator, operation indicator, Wifi indicator, 4G/5G network indicator

- Amplifier: 8 ohm 6W Dual-channel Audio Amplifier Output

- Earphone:  4-band headset integrated 3.5mm socket

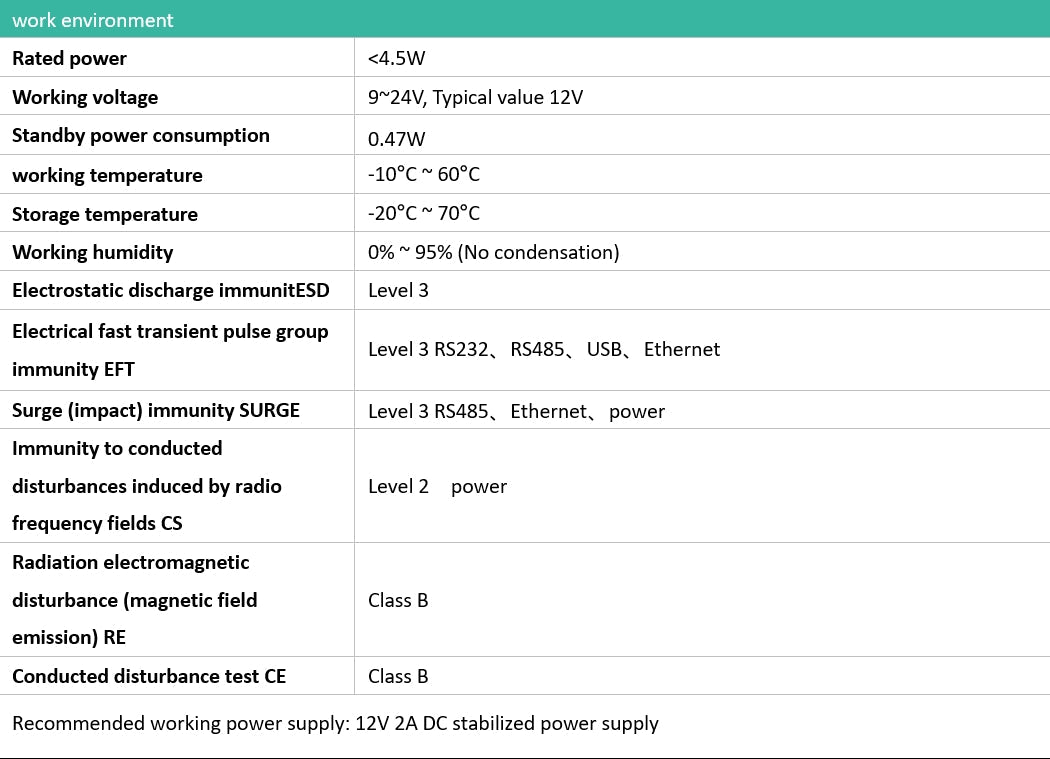

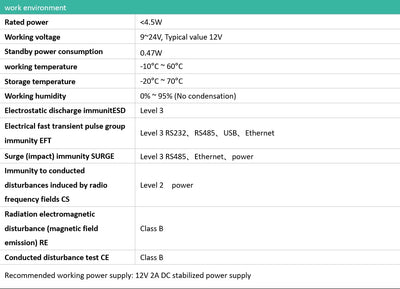

- Power: 1 circuit, DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM

- Working Voltage: 9-24V, typical value 12V

- Working Temparature: Temperature

- Working Temperature:-10°C-60°C

- Storage Temperature: -20°C-70°C

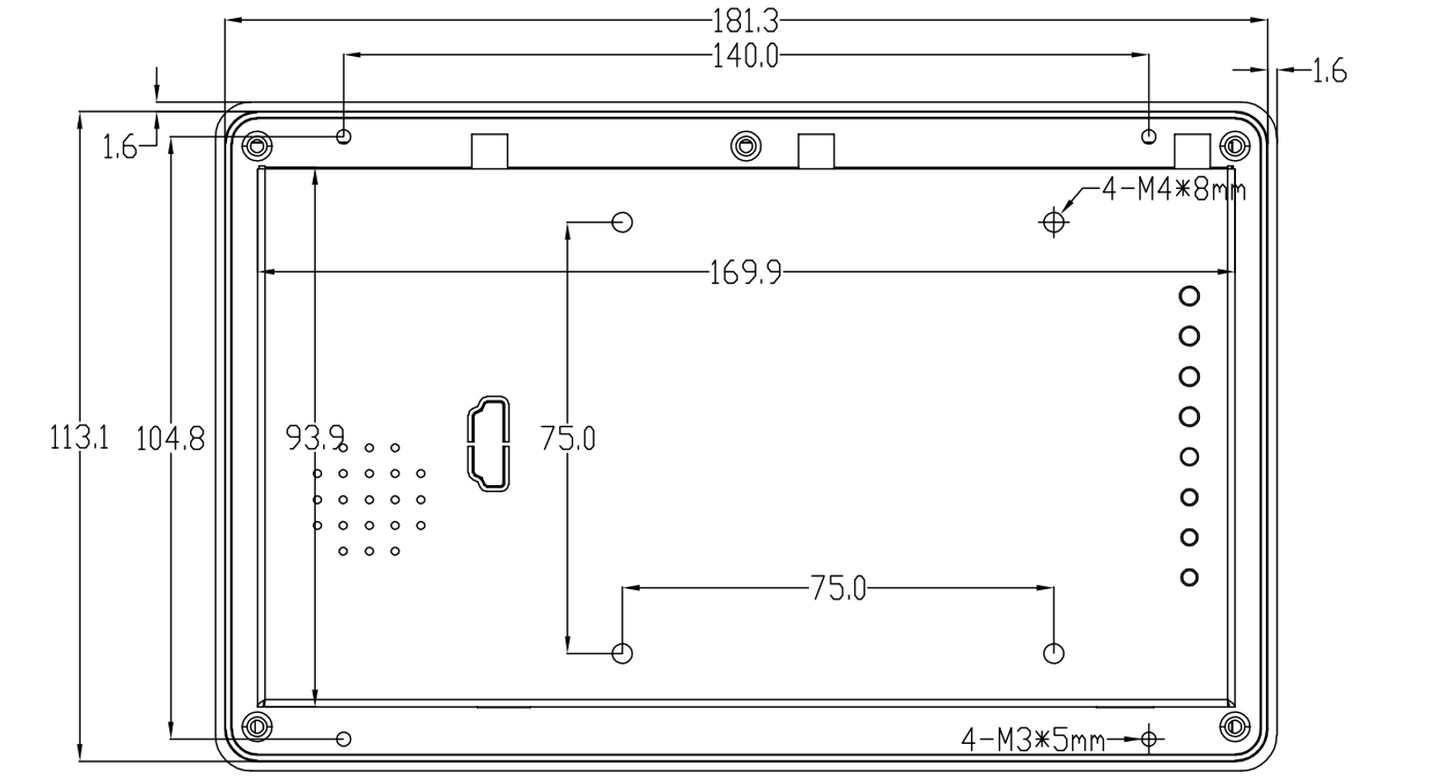

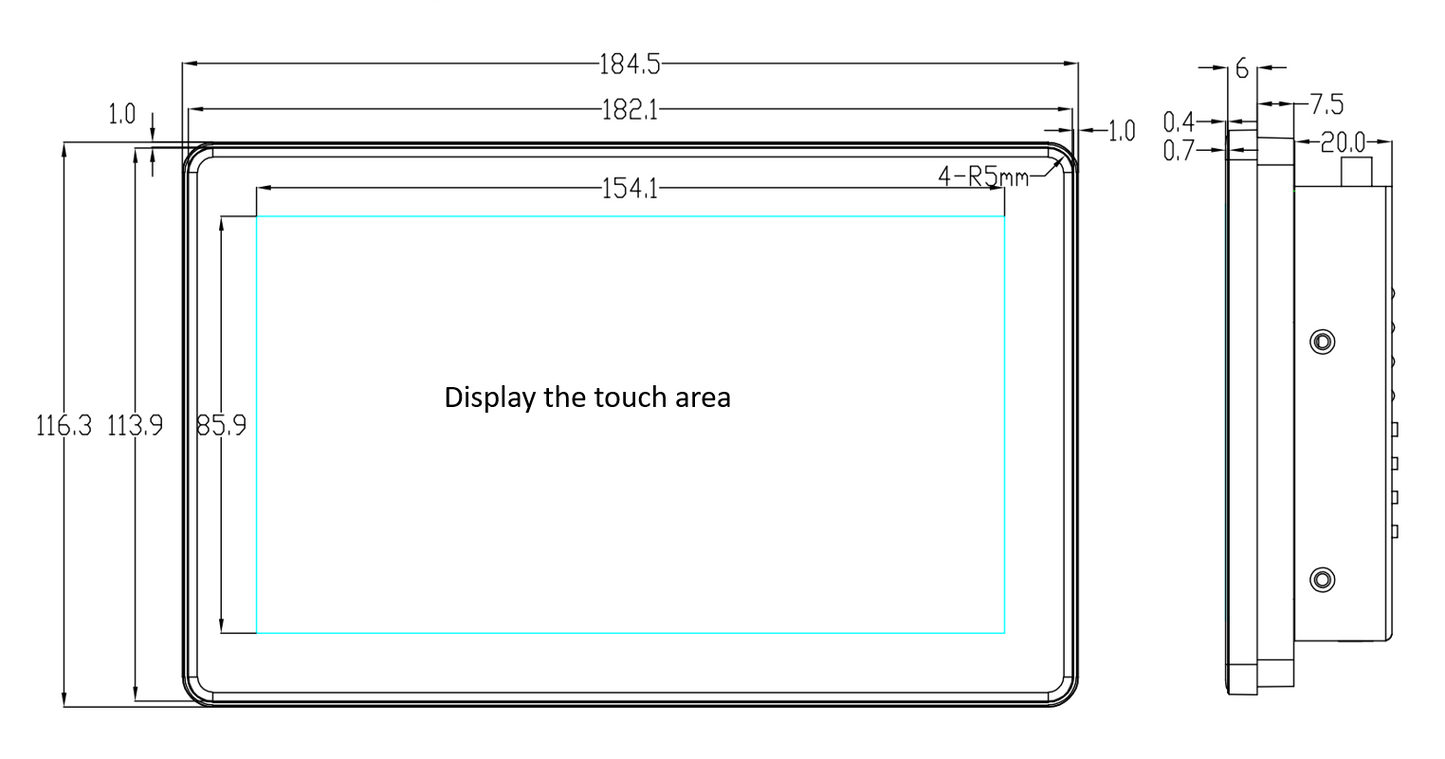

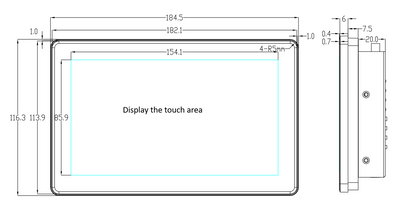

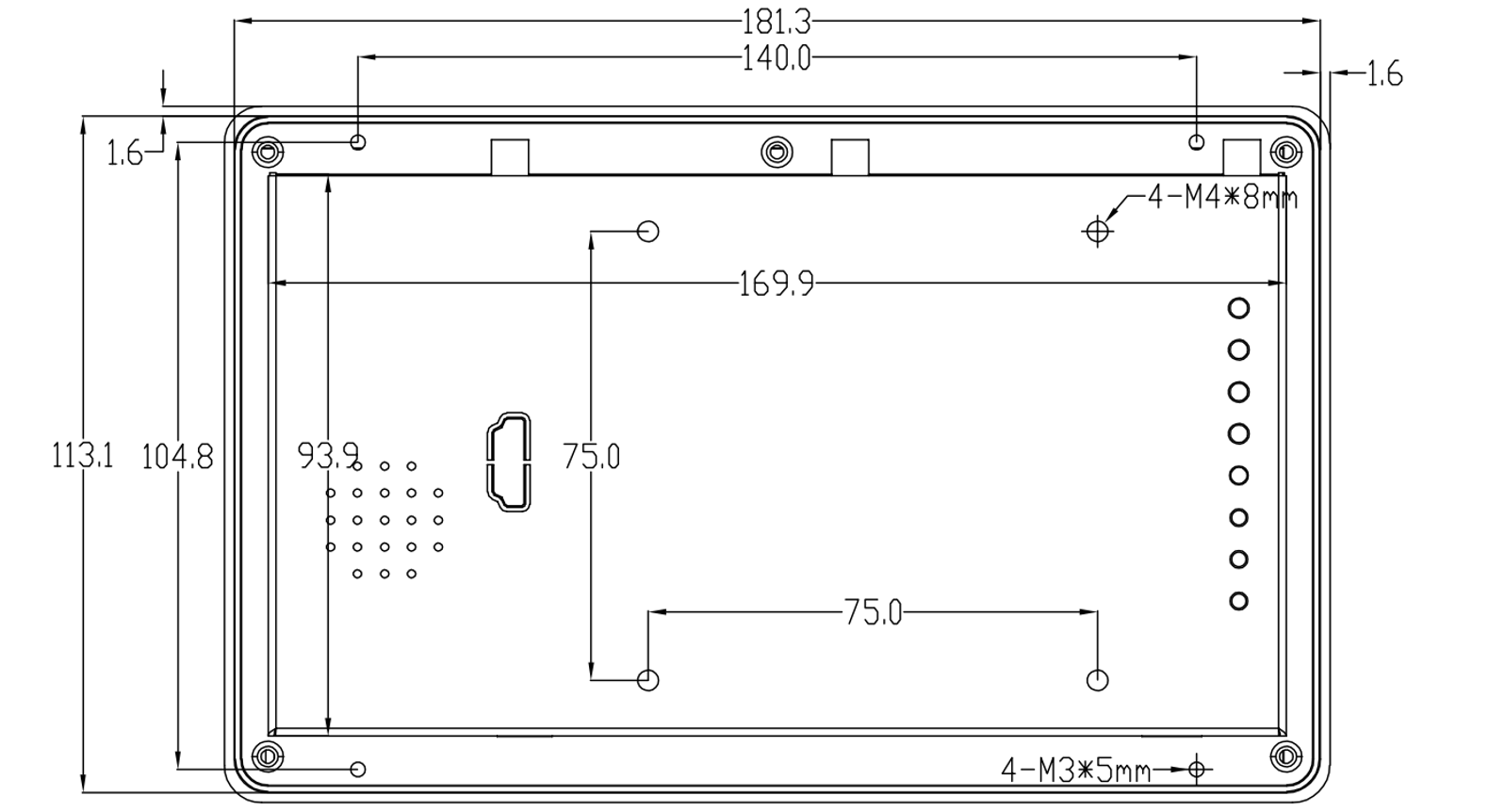

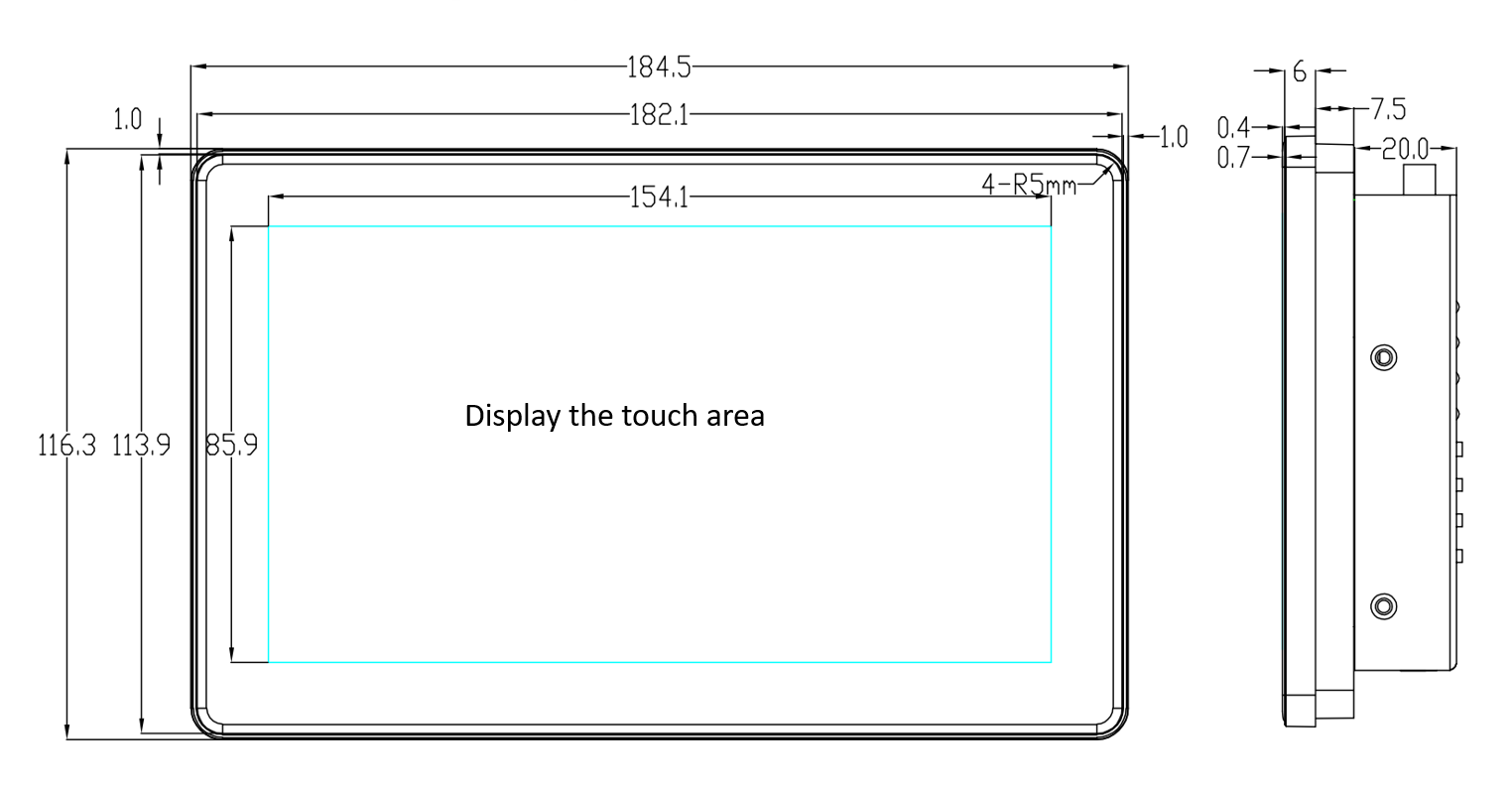

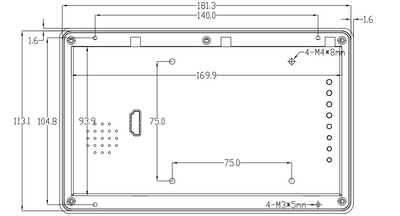

- Overall Dimension: L*W*H 184,5*116,3*34,2mm

- Display Dimension: 182,8*114,6mm
