BOE

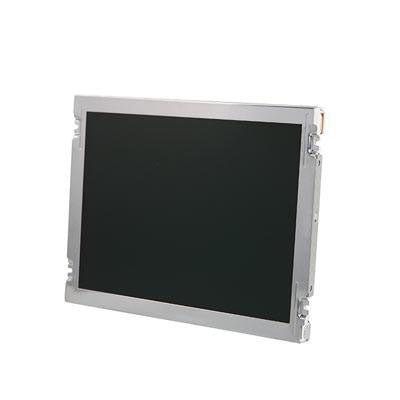

BOE NE156QUM-N63

$158.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:NE156QUM-N63
  • Brand:BOE
  • Size:15.6"
  • Resolution:3840x2180
  • Brightness:340
  • Viewing angle:85/85/85/85
  • Interface:eDP
  • CR:1000:1
  • Operating Temp.: 0 ~ 50 °C
  • Parameters
Manufacturer BOE
Model Name NE156QUM-N63
Screen Size 15.6
Pixel Number 3840x2160
Active Area(mm) 344.2176 X 193.6224 (HxV)
Outline(mm) 350.66x216.45x2.6(HxVxD)
Treatment Anti-Glare
Luminance 1000 cd/m² (Typ.)
Contrast Ratio 340 : 1 (Typ.) (TM)
Viewing Angle 85/85/85/85(CR≥10) Left / Right / Up / Down
Response 25 (Typ.)(Tr+Td) ms
Work Mode Normally black, Transmissive
Color Depth 16.7M , 72% (NTSC)
Backlight 15K hours,With Driver
Net Weight 380g (Typ.)
operating frequency 60Hz
Touchscreen without
Signal Type/interface Type eDP( 4 lanes) , 40 pins
Voltage Supply 3.3V (Typ.)
Temperature Storage Temp.: 0 ~ 50 °C
Operating Temp.: -20 ~ 60 °C
Package As request


NE156QUM-N63 V5.0 is a color active matrix TFT LCD module using amorphous silicon.

TFT's (Thin Film Transistors) as an active switching devices.
This module has a 15.6 inch diagonally measured active area with UHD resolutions (3840 horizontal by 2160vertical pixel array).
Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical Stripe and this module can display 16,777,216 colors.
The TFT-LCD panel used for this module is a low reflection and higher color type. This module is suitable for Notebook PC.
The LED Driver for back-light driving is built in this model. All input signals are eDP 1.4a interface compatible.
