TinyC110 CPU Board (Mini210S - Mini6410 Equivalent)

MOQ 200

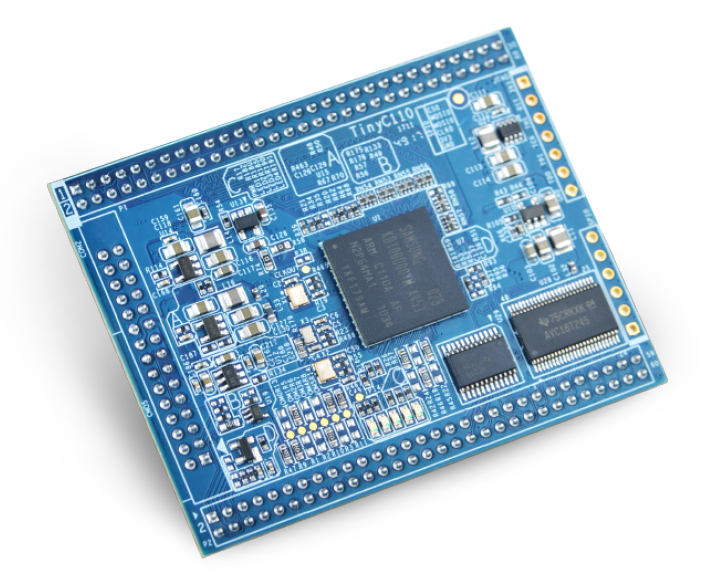

FriendlyElec's TinyC110 CPU board uses Samsung S5PC110 Cortex-A8 SoC up to 800MHz. It is a cost-effective, low power consumption , and high performance microprocessor. This board can be used for quick prototyping of various applications. On a 64 x 50mm size the module has all the necessary interfaces populated to its pin headers

APPLICATIONS: Industrial Control, Monitoring Systems, Portable Devices, Robots, Game Machines, IoT & Smart Home Appliances.

CPU

Samsung S5PC110

Cortex-A8 up to 800MHz

Memory

Internal 464M DRAM

FLASH

internal 512M ONENAND Flash

Pin-header

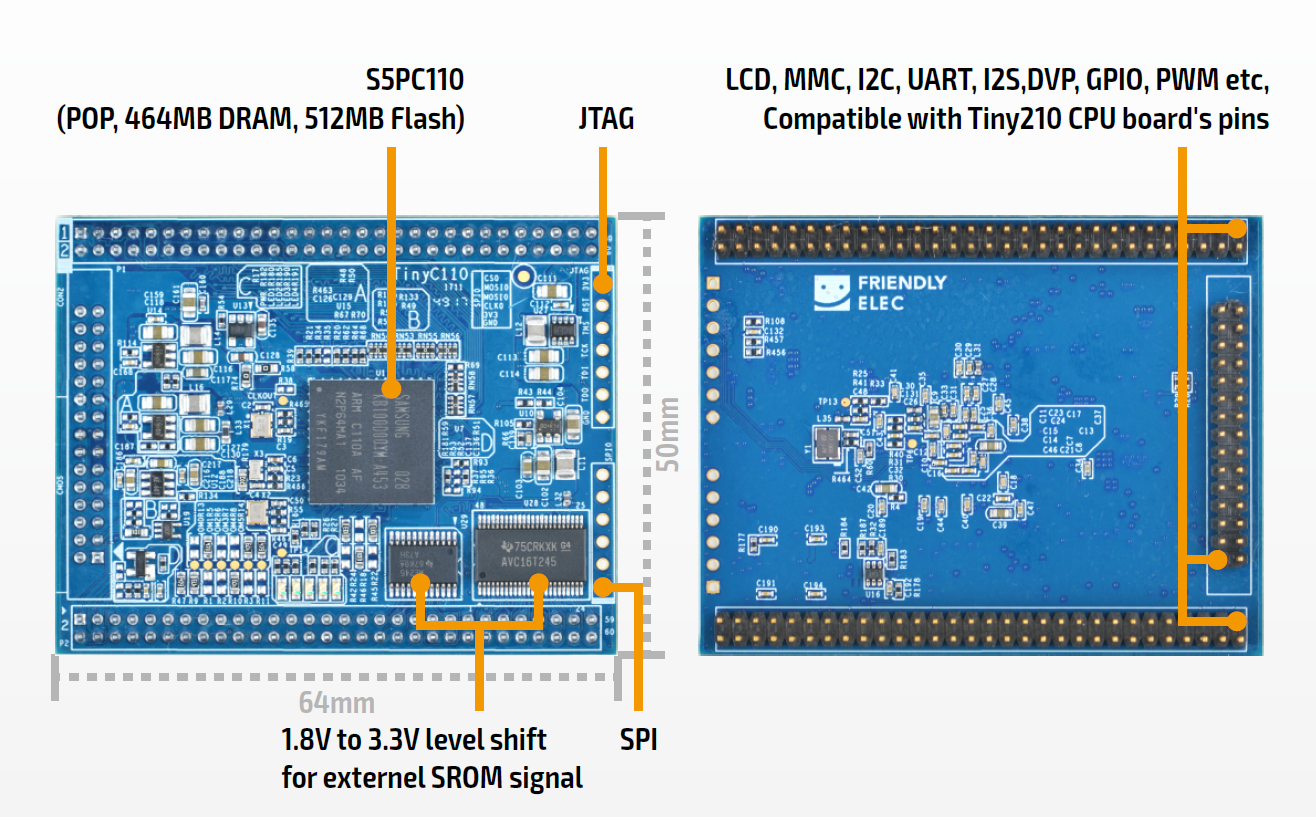

Pin-Headers: two 2.00mm spacing  30 x 2 pin headers and one 2.00mm spacing 15 x 2 pin header. They contain LCD, MMC, I2C, UART, I2S, DVP, GPIO, PWM, ADC, SROM, USB, SDIO and etc, which are compatible with Tiny210 CPU board's pins

Power

DC 5V/1A

Dimension

64 x 50mm

OS Support

Linux (QtE 4.8.5 + Kernel 3.0.8 , Qtopia 2.2.0 + Kernel 3.0.8)

TinyC110 SPECIFICATIONS

HIGHLIGHTS

  • ARM Cortex-A8 up to 800MHz
  • RAM: Internal 464M DRAM
  • FLASH: internal 512M ONENAND Flash
  • Pin compatible with Tiny210,

    Tiny6410, Tiny2451 and

    Tiny2416 CPU boards

  • High performance, cost effective, low power consumption solution
  • Compact size 64 x 50mm

FriendlyARM was established in 2005 in Guangzhou, Guangdong Province, CHINA. Since we were established we have always been focusing on ARM board development. The main focus is on design and development of both low level software and hardware. FriendlyElec’s expertise has brought out various product lines based on Samsung, Allwinner, Amlogic and Rockchip processors.

FriendlyElec delivers quality solutions and provides timely customer service. The company has established long term relationships with various customers from North America, EU, Australia, Japan and South Korea.
