SmartC110 CPU Board (Mini210S - Mini6410 Equivalent)

MOQ 200

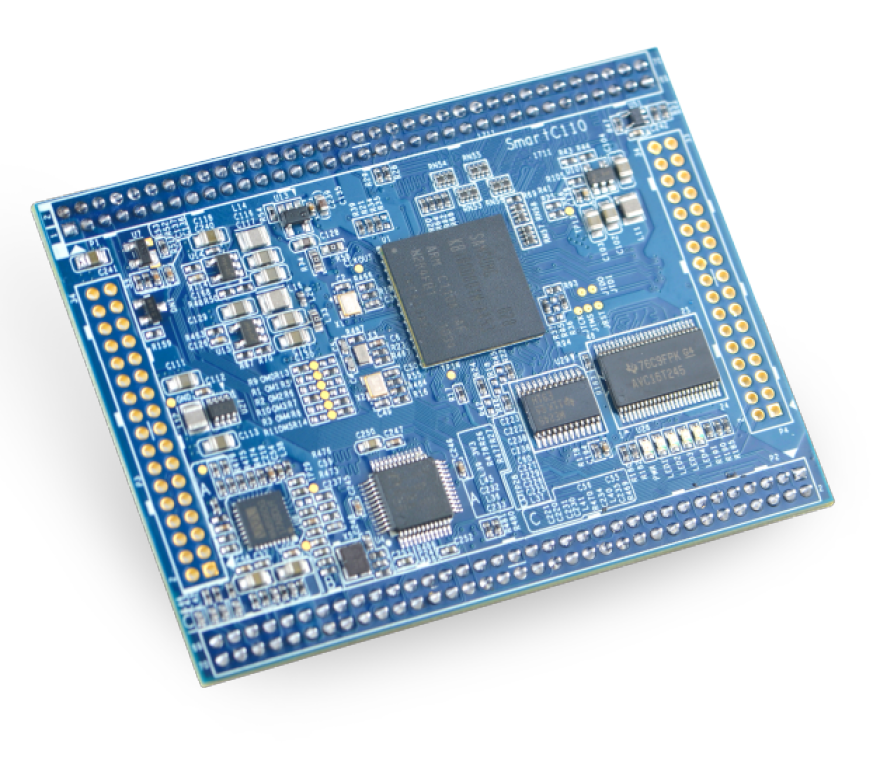

FriendlyElec's SmartC110 CPU board uses Samsung S5PC110 Cortex-A8 (up to 800MHz). This SoC is a cost-effective, low power consumption , and high performance microprocessor. The CPU board has onboard audio codec and Fast Ethernet controller. It can be used for quick prototyping of various applications. On a 74x55mm size the module has all the necessary interfaces populated to its pin headers.

APPLICATIONS: Industrial Control, Monitoring Systems, Portable Devices, Robots, Game Machines, IoT & Smart Home Appliances.

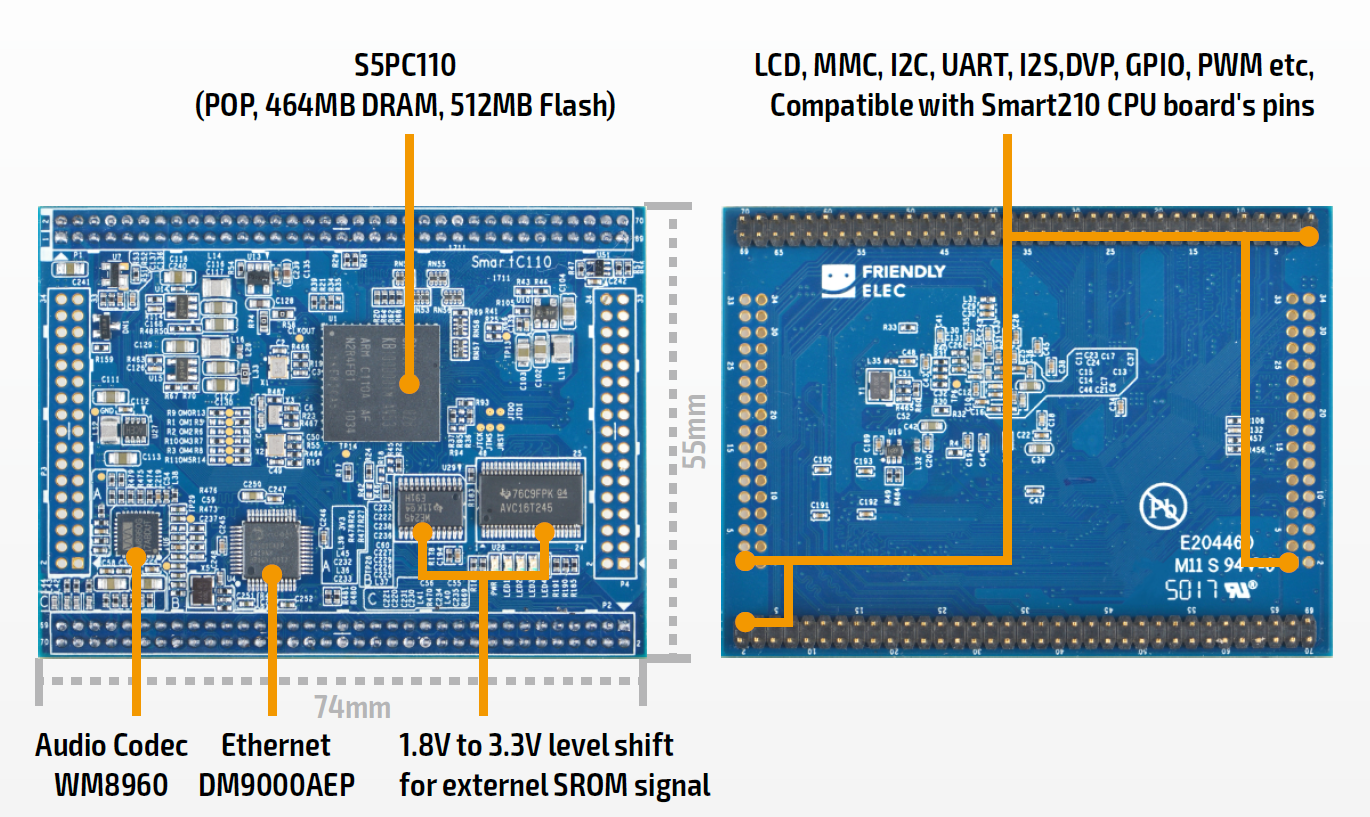

CPU

Samsung S5PC110

Cortex-A8 up to 800MHz

Memory

Internal 464M DRAM

FLASH

internal 512M ONENAND Flash

Pin-header

Pin-Headers: two 2.00mm spacing  35 x 2 pin headers and two 2.00mm spacing 17 x 2 pin header. They contain LCD, MMC, I2C, UART, I2S, DVP, GPIO, PWM, ADC, SROM, USB, SDIO and etc, which are compatible with Smart210 CPU board's pins

Audio

WM8960, Mic In, Headphone  Out, Speaker Out

Ethernet

DM9000AEP, full-duplex 10/100Mbps LAN

Power

DC 5V/1A

Dimension

74 x 55mm

OS Support

Linux (QtE 4.8.5 + Kernel 3.0.8 , Qtopia 2.2.0 + Kernel 3.0.8)

SmartC110SPECIFICATIONS

HIGHLIGHTS

  • ARM Cortex-A8 up to 800MHz
  • RAM: Internal 464M DRAM
  • FLASH: internal 512M ONENAND Flash
  • Pin compatible with Smart210 CPU boards
  • High performance, cost effective, low power consumption solution
  • Compact size 74 x 55mm
