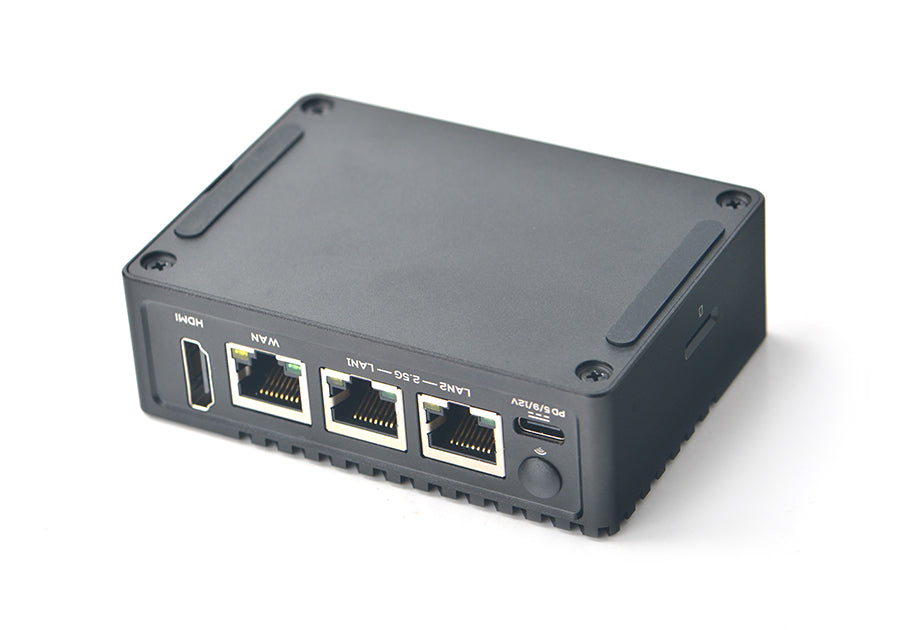

NanoPi R5S-LTS: Open-Source Mini IoT Gateway with 2.5G Ethernet

$117.50
Opens WhatsApp with this product and current options


NanoPi R5S-LTS: Open-Source Mini IoT Gateway with 2.5G Ethernet

SKU R5S-4GB

NanoPi R5S-LTS: Open-Source Mini IoT Gateway with 2.5G Ethernet

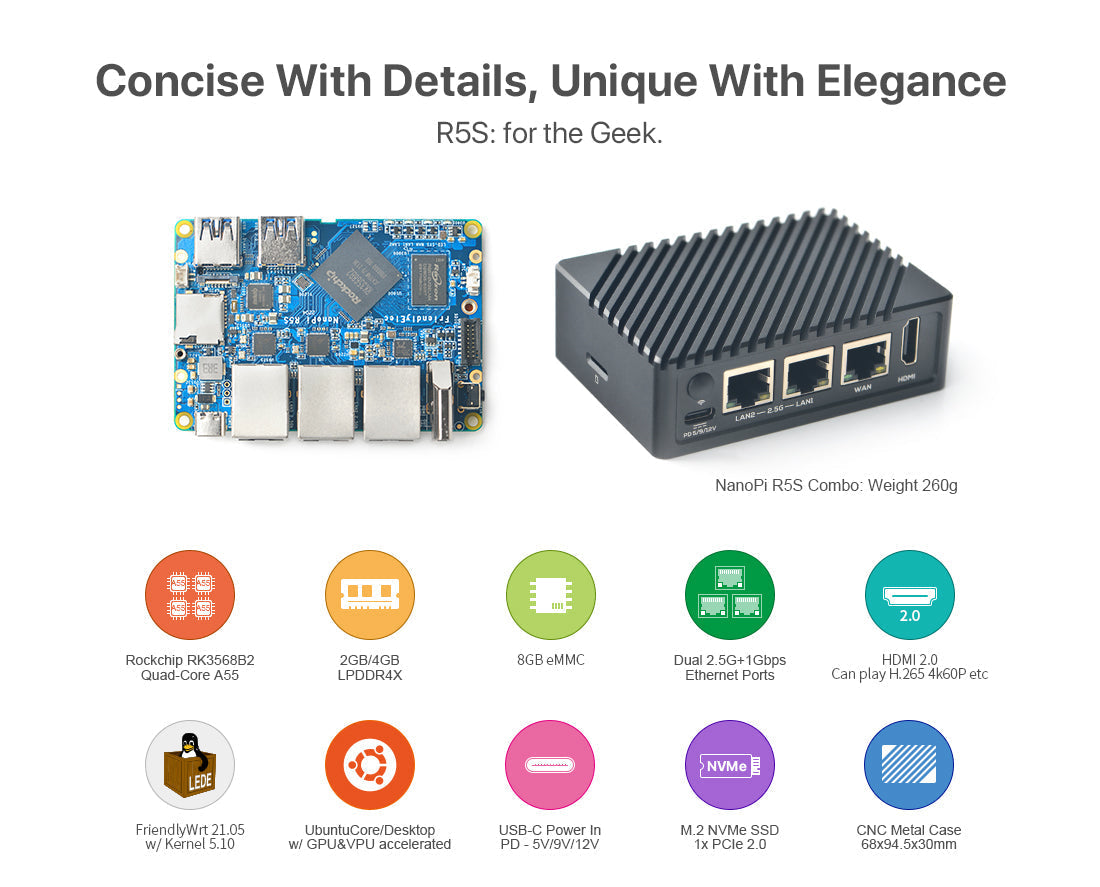

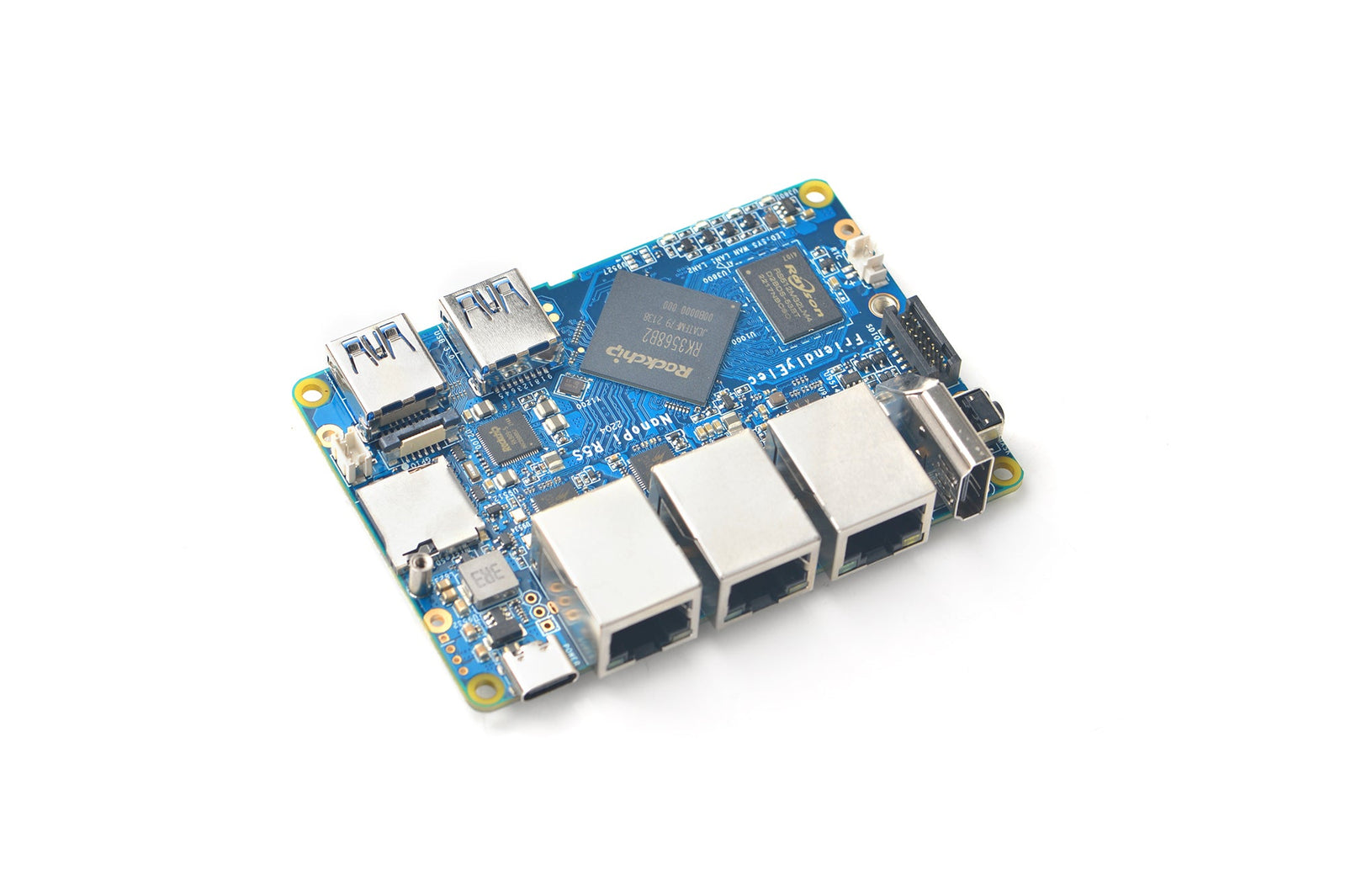

The NanoPi R5S-LTS is an open-source mini IoT gateway device featuring two 2.5G and one Gigabit Ethernet ports. Powered by the Rockchip RK3568B2 CPU, it offers options for 2GB or 4GB LPDDR4x RAM and 8GB or 16GB eMMC flash storage. With support for various operating systems and a compact design, it is ideal for developers and enthusiasts alike.

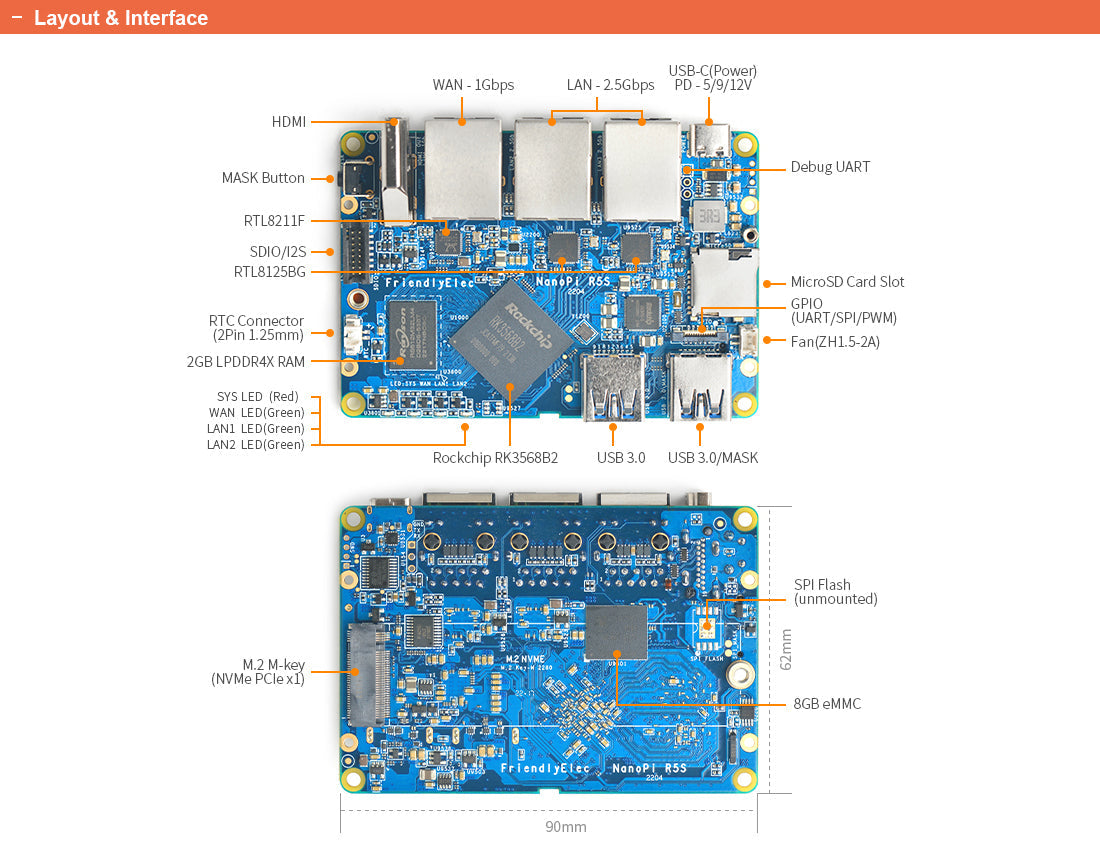

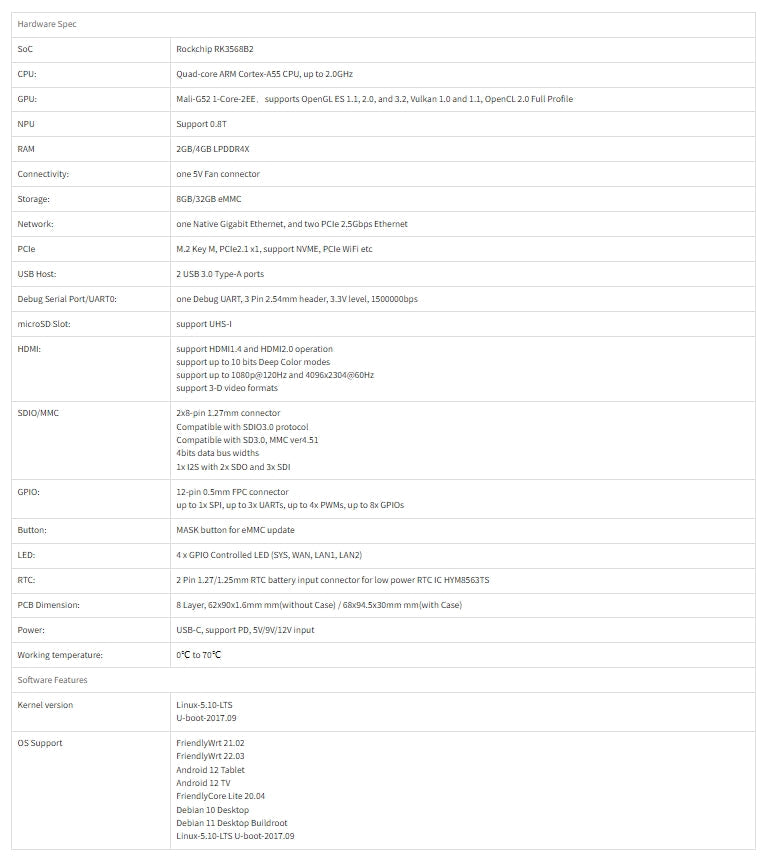

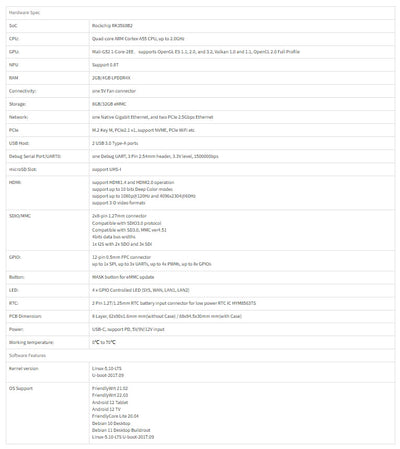

Technical specifications
RAM 2GB/4GB LPDDR4X
Flash 8GB/16GB eMMC

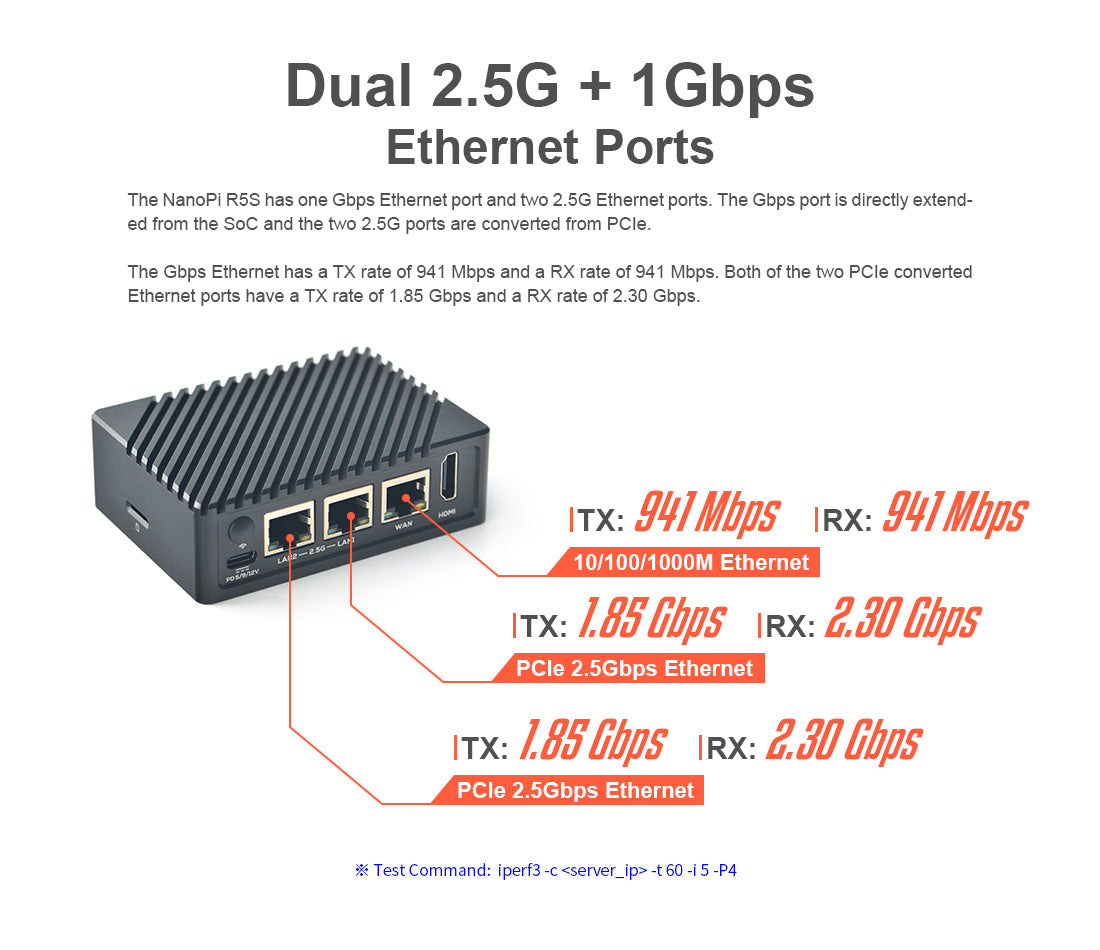

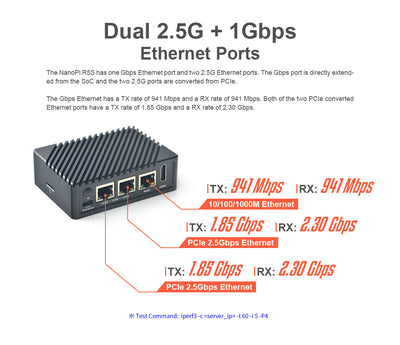

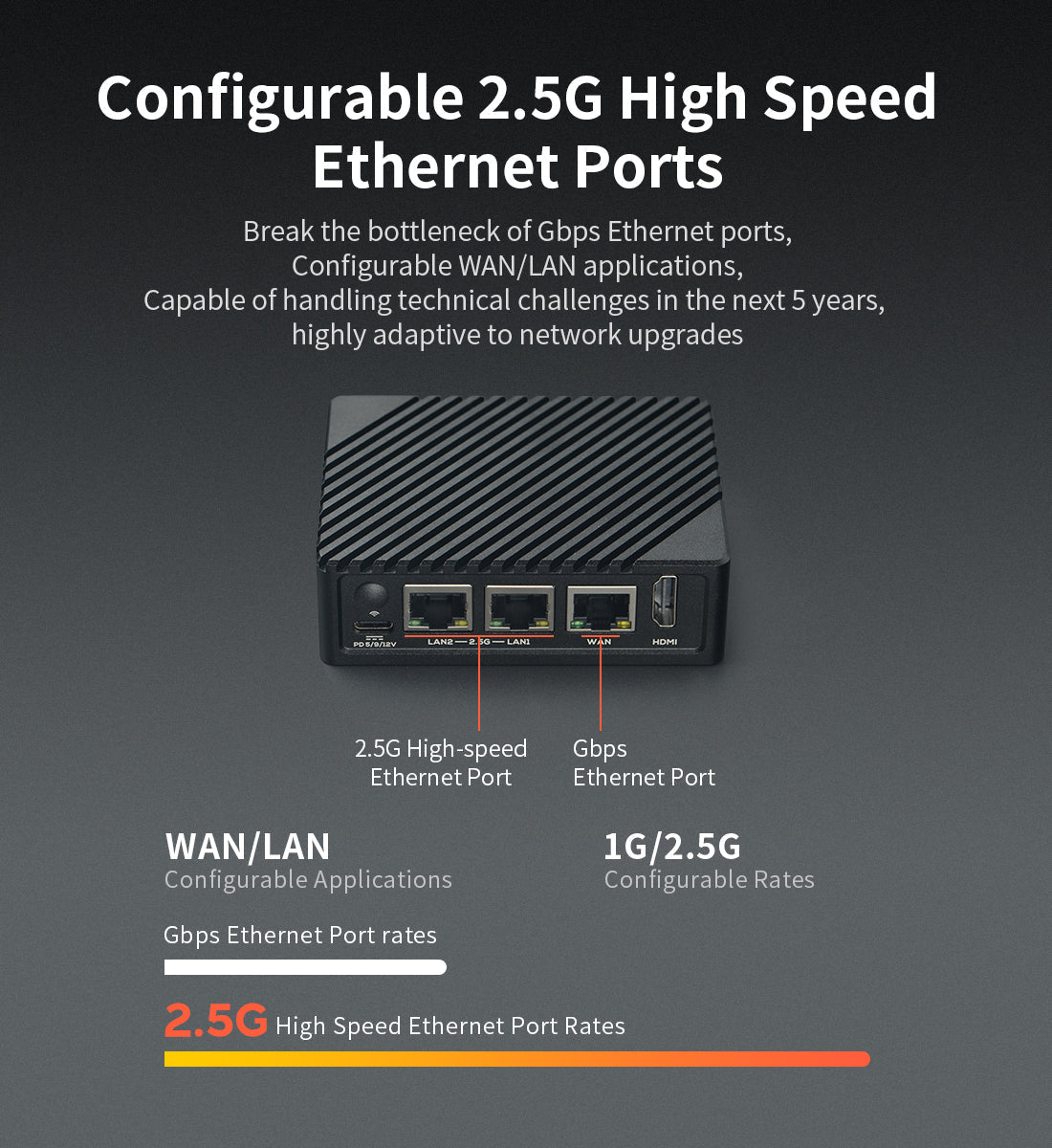

Ethernet one Native Gigabit Ethernet, and two PCIe 2.5Gbps Ethernet
USB two USB 3.2 Gen 1 Type-A ports
Özellik HDMI:

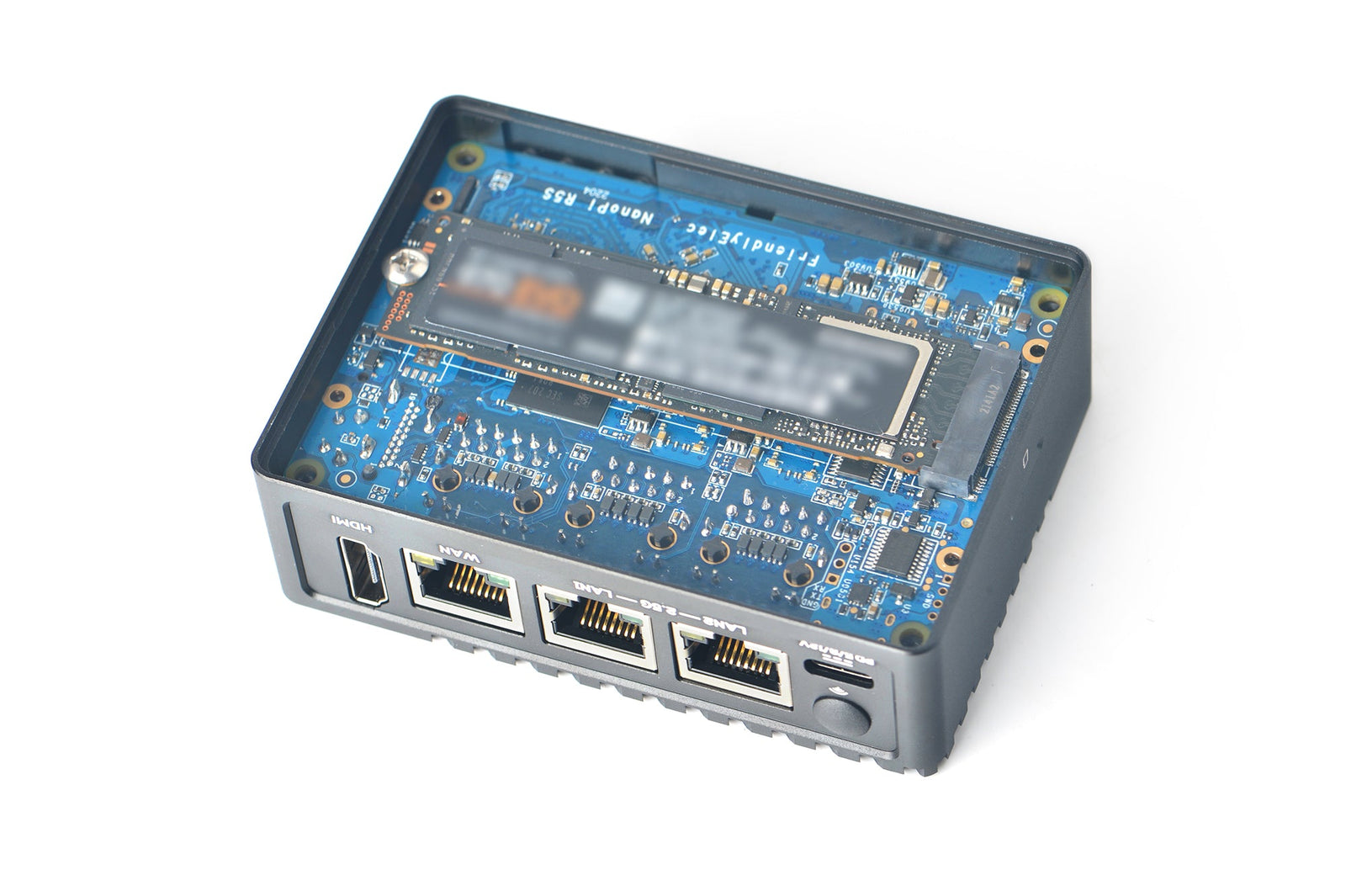

PCIe M.2 Key M, PCIe2.1 x1, support NVME, PCIe WiFi etc
microSD support UHS-I
Özellik GPIO:
Özellik SD/MMC/SDIO/I2S:
Debug one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps

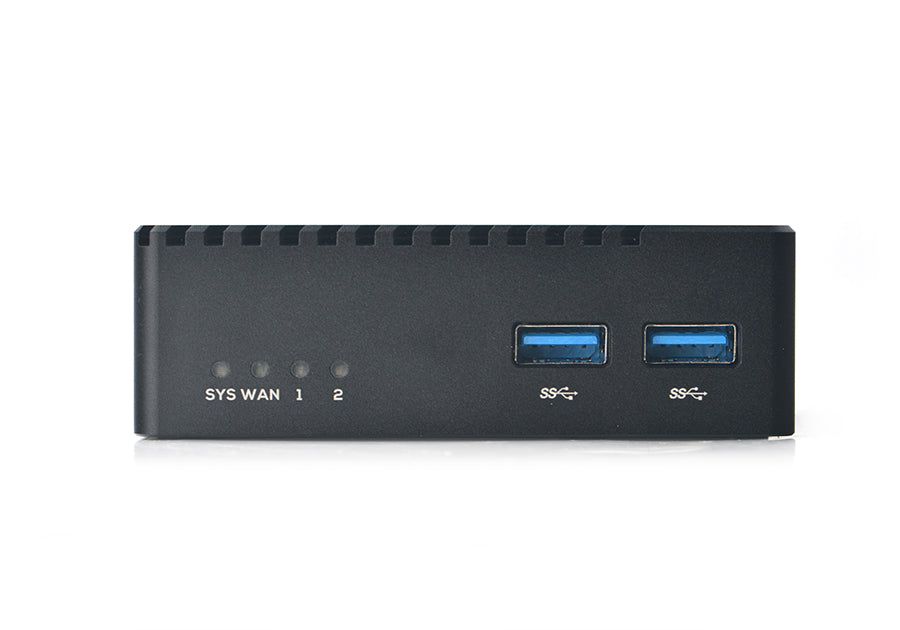

LEDs 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)
Özellik others:
Power supply USB-C, support PD, 5V/9V/12V input
PCB 8 Layer, 62x90x1.6mm

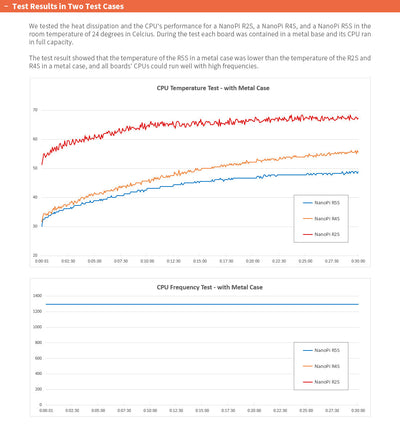

Ambient Operating Temperature 0℃ to 70℃

Specifications may vary by configuration. Contact us for project-specific options.

Specification Details

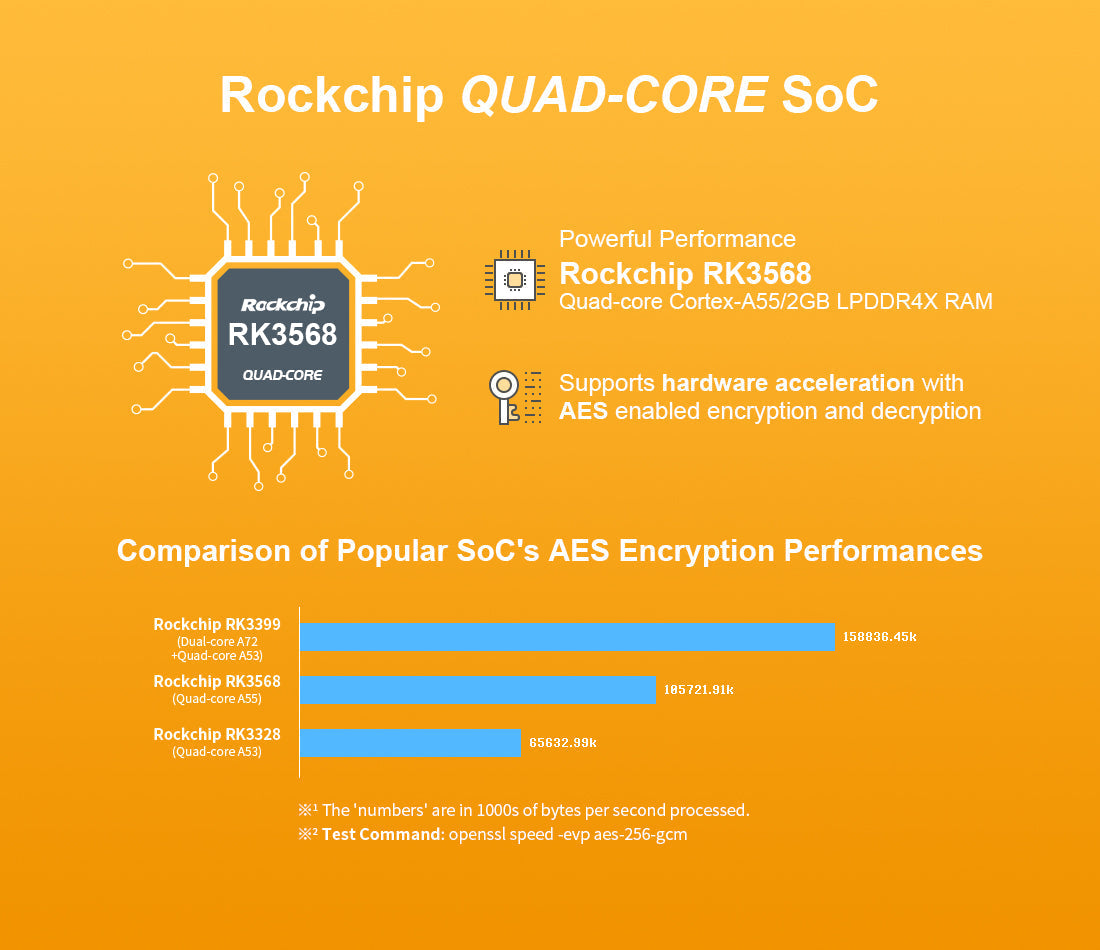

CPU / SoC RK3568
