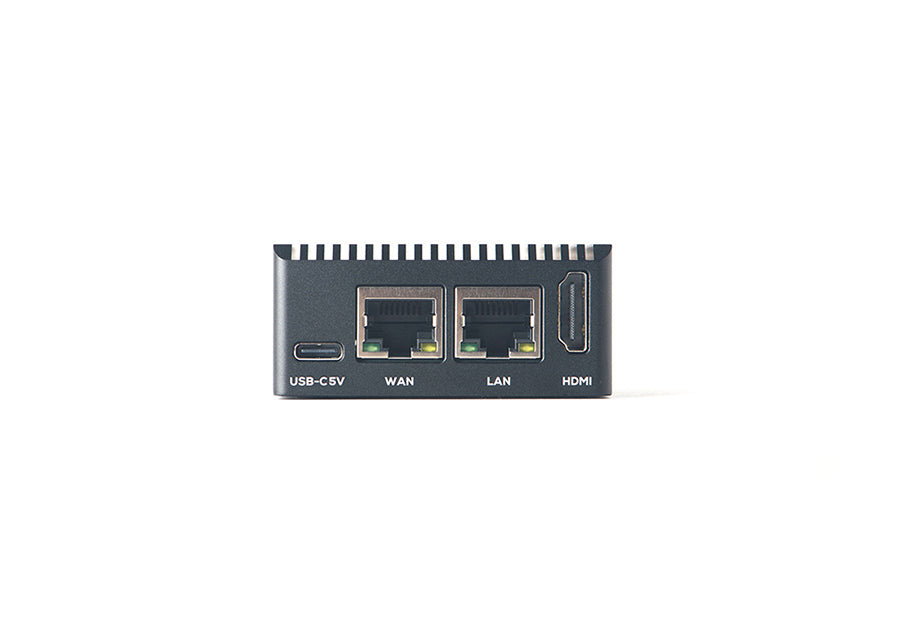

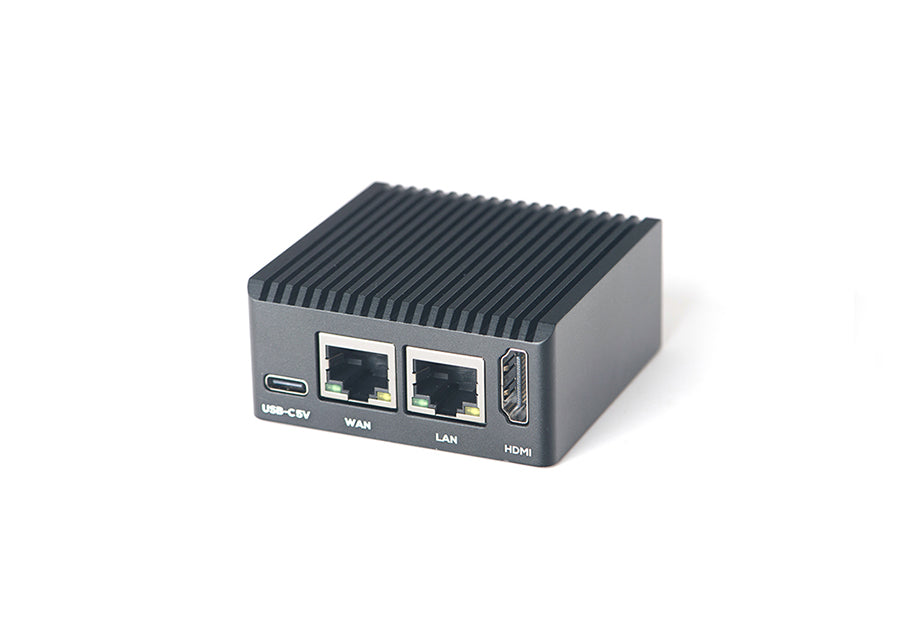

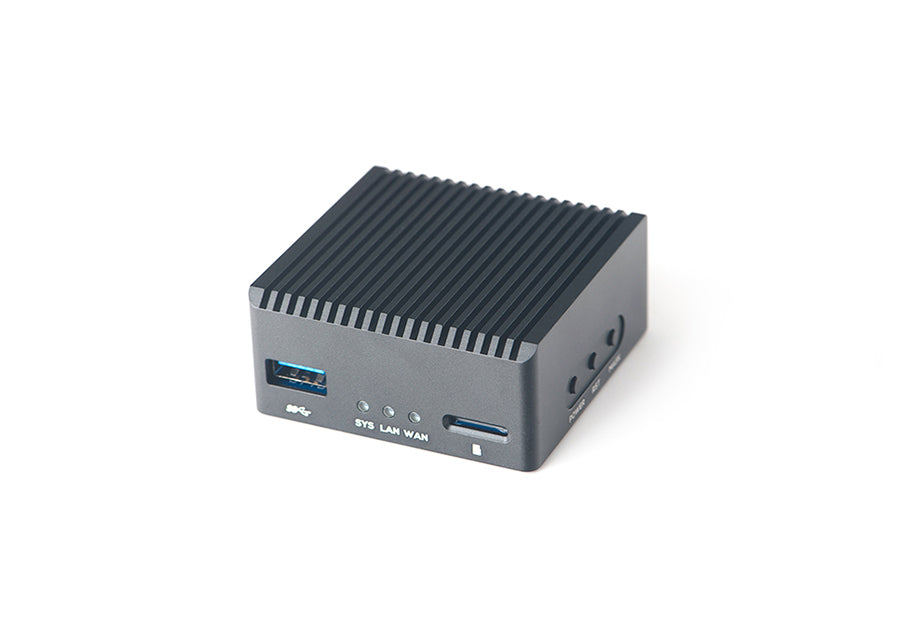

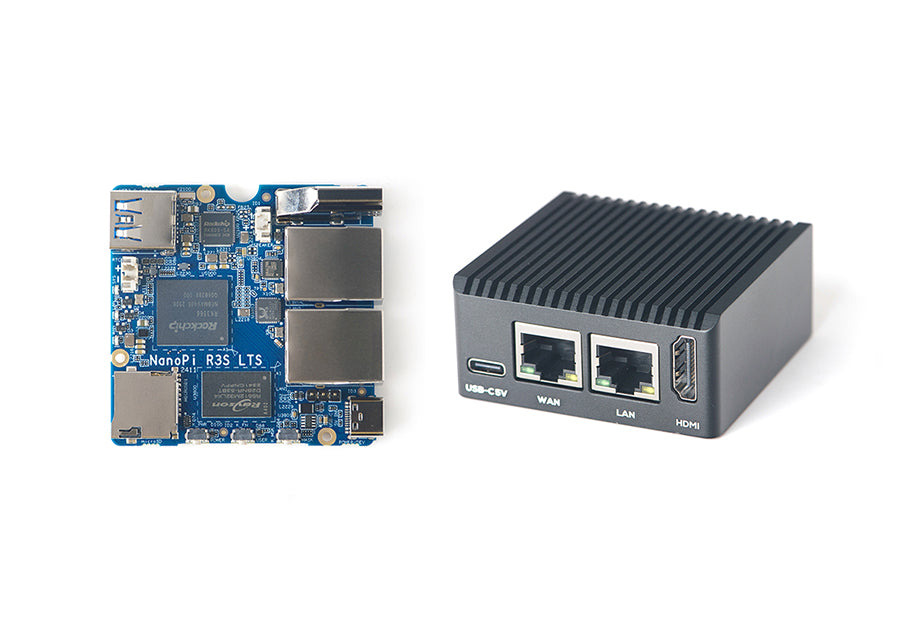

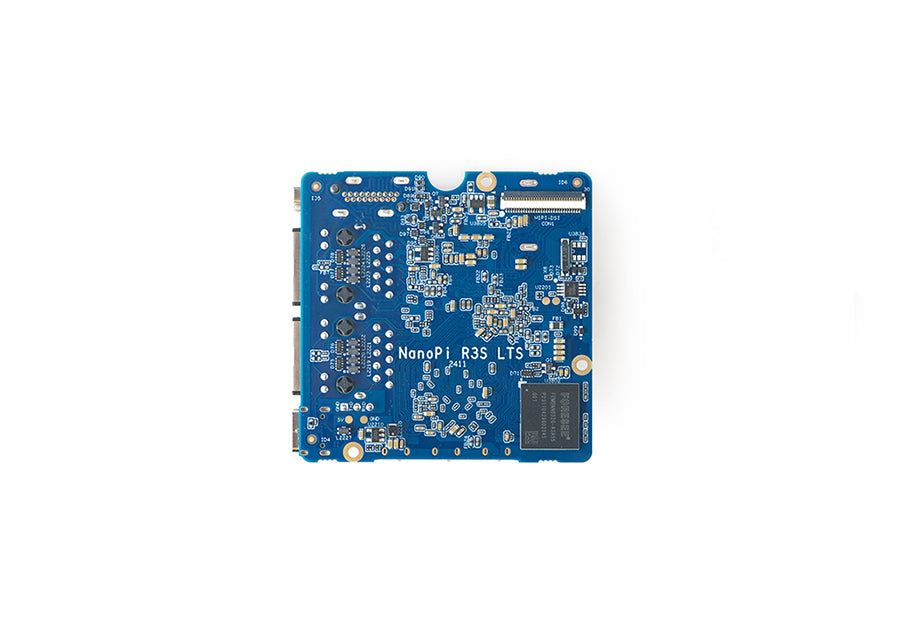

The NanoPi R3S-LTS is a compact single board computer designed for soft-router, IoT gateway, edge networking and lightweight server applications.

It is powered by the Rockchip RK3566 quad-core Cortex-A55 processor (up to 1.8GHz) with a built-in 1 TOPS NPU, making it suitable for intelligent routing, protocol processing and container-based services.

✔ Dual Gigabit Ethernet Router SBC
✔ RK3566 Quad-Core Cortex-A55 + NPU
✔ Optimized for OpenWrt & Linux

CPU & Memory

Rockchip RK3566 SoC
Quad-core Cortex-A55 up to 1.8GHz
1 TOPS NPU for edge workloads
1GB / 2GB LPDDR4 / LPDDR4X

Networking

1× Native Gigabit Ethernet (RTL8211F)
1× PCIe Gigabit Ethernet (RTL8111H)
Optimized for routing & firewall use

Storage & I/O

microSD (UHS-I SDR104)
Optional 32GB eMMC
USB 3.2 Gen1 Type-A
USB-C for power & data

System & Development

HDMI 2.0 & MIPI-DSI display support (LTS model)
UART debug header & MASK button
User buttons and status LEDs
USB-C 5V / 2A power input

Operating Systems: Debian, Ubuntu, OpenWrt / FriendlyWrt, OpenMediaVault
Kernel: Linux 6.1 LTS baseline (vendor supported)

NanoPi R3S-LTS is intended for development, networking and gateway applications. Specifications may vary depending on configuration.
