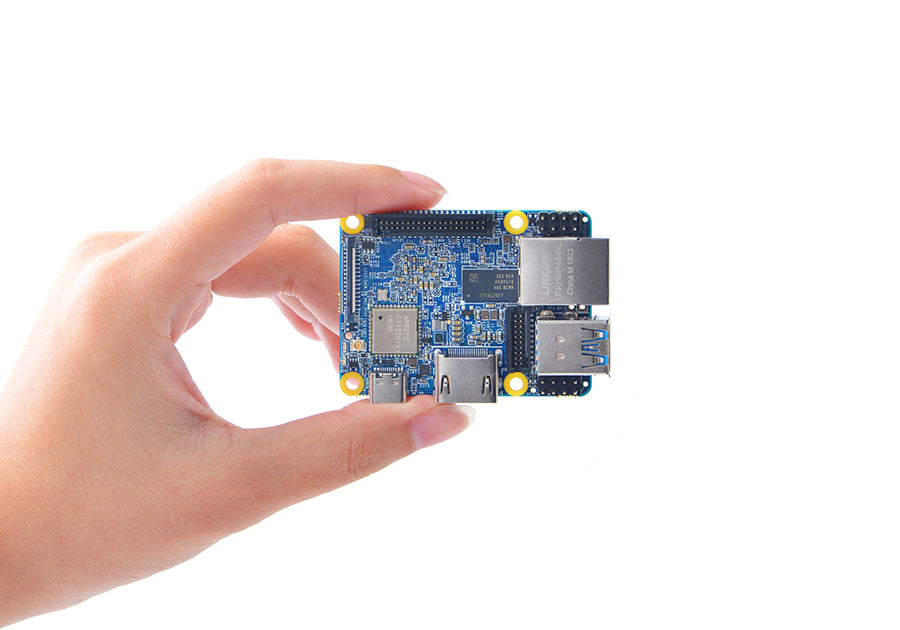

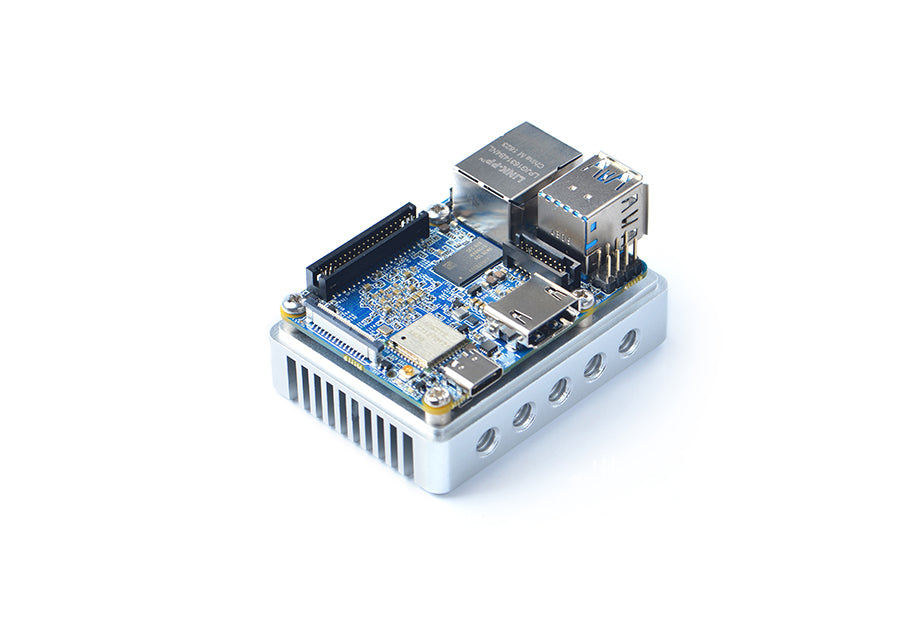

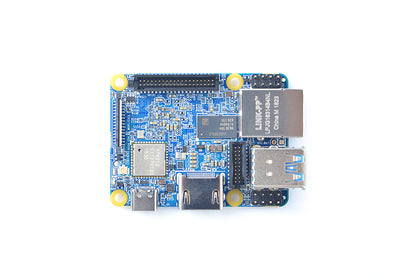

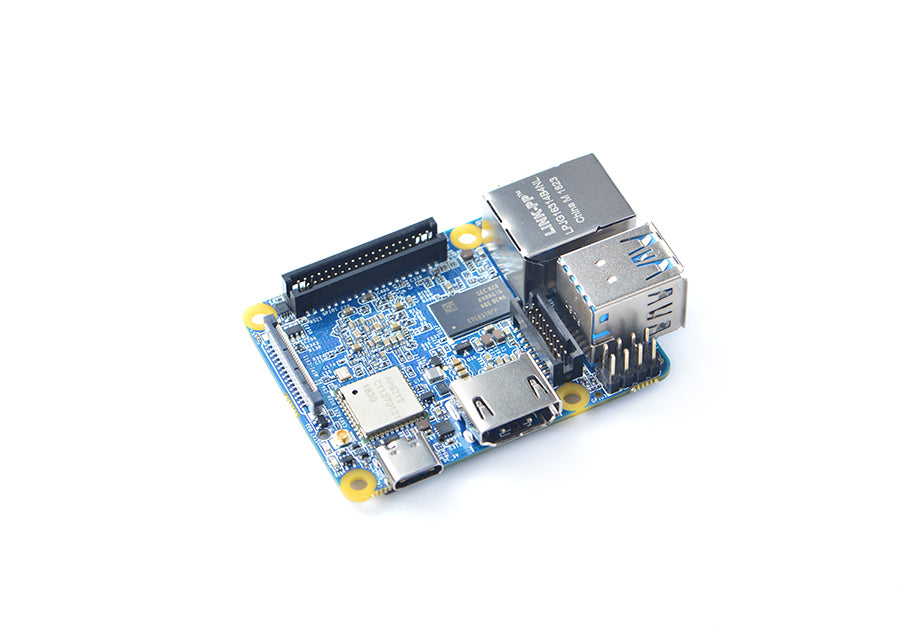

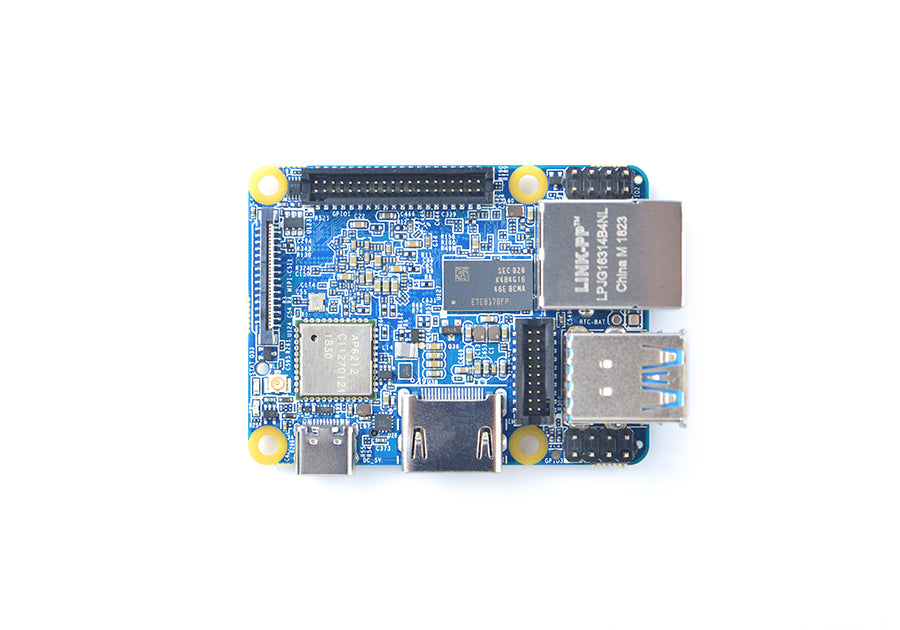

NanoPi NEO4 - Compact and Powerful Single Board Computer

$49.50

Product overview based on official FriendlyElec documentation

Prepare the following items before using your NanoPi NEO4. This guide will help you set up your device efficiently.

Product code: NanoPi NEO4

Package contents
  • NanoPi NEO4
  • Type-C cable
  • TF Card: Class 10 or Above, minimum 8GB SDHC
  • USB to serial adapter (optional, for debugging or access from PC host)
  • 5V/3A Power adapter
  • HDMI monitor or LCD
  • USB keyboard, mouse, and possibly a USB hub (or a TTL to serial board)
  • A host computer running Ubuntu 18.04 64-bit system
  • sd: Use it when you need to boot the entire OS from the SD card
  • eflasher: Use it when you need to flash the OS to eMMC via TF card
  • usb: Use it when you need to flash the OS to eMMC via USB
  • Get an 8G microSD card
  • Visit the download link to download image files (in the '01_Official images/01_SD card images' directory)
  • Download the win32diskimager tool (in the '05_Tools' directory), or use your preferred tool
  • Extract the .gz format compressed file to get the .img format image file
  • Run the win32diskimager utility under Windows as administrator. On the utility's main window, select your SD card's drive, the desired image file, and click on 'write' to start flashing the SD card
  • Take out the SD and insert it into NanoPi NEO4's microSD card slot
  • Power on NanoPi NEO4 and it will boot from your TF card; some models may require pressing the Power button to start
  • Prepare a TF card with a capacity of 32GB or larger
  • Visit [the download link here](http://download.friendlyelec.com/NanoPiNEO4) to download the firmware file named XXXX-eflasher-multiple-os-YYYYMMDD-30g.img.gz (located in the '01_Official images/02_SD-to-eMMC images' directory)
  • Flash the firmware to the TF card, connect the storage device you intend to use on NanoPi NEO4, insert the TF card, and power on. We need to perform the operations in the eFlasher GUI. If your NanoPi NEO4 does not have a display interface, you can use VNC; refer to Using VNC to Operate eFlasher
  • In the eFlasher GUI, select the OS to install, and in the OS settings interface, choose the destination for boot installation (typically eMMC), then choose the destination for system installation (options include eMMC, M.2 hard drive, USB storage, etc.)
  • If no eMMC is available, the TF card can serve as the boot by inserting another TF card into the USB port via a USB card reader and selecting it as the boot destination, enabling booting from the TF card with the system stored on the M.2 or USB drive
  • After flashing, eject the SD card from NanoPi NEO4. If booting from eMMC, NanoPi NEO4 will automatically restart into the newly flashed system. If boot installation is on a TF card, power off, insert the boot TF card, and power on again
  • For a more detailed installation guide, please refer to this link.
Hardware specifications
Parameter Value

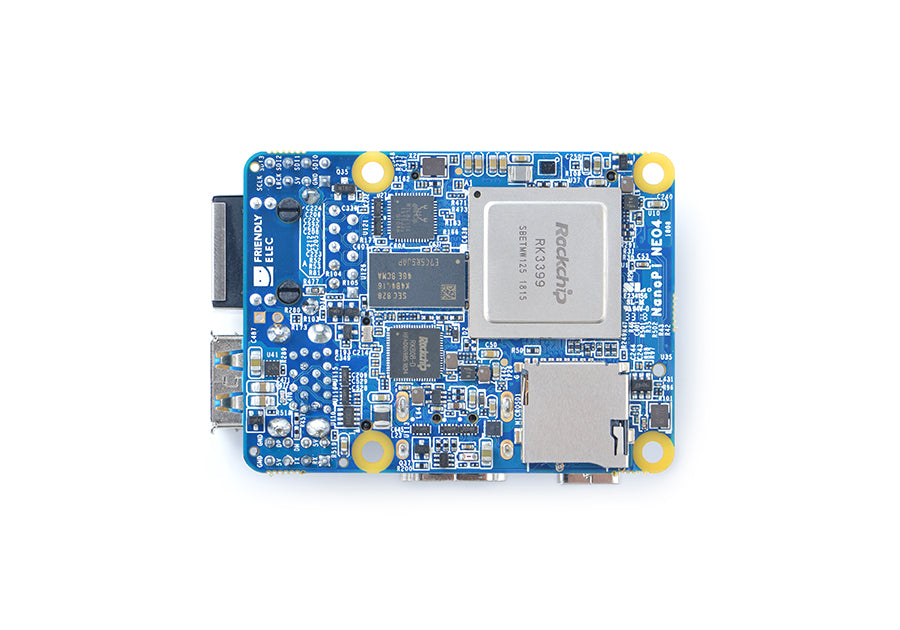

SoC Rockchip RK3399
PMU RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, sofeware power-down, RTC wake-up, system sleep mode
RAM 1GB DDR3-1866
Flash no Onboard eMMC, but has a eMMC socket
Ethernet Native Gigabit Ethernet
Wi-Fi/BT 802.11 b/g/n, Bluetooth 4.0 combo module
Video Input one 4-Lane MIPI-CSI, up to 13MP
Video output HDMI: HDMI 2.0a, supports 4K@60Hz,HDCP 1.4/2.2
Audio Out HDMI
USB 3.0 1x USB 3.0 Host Type-A
USB 2.0 2x USB 2.0 Host, one is Type-A, the other is 2.54mm header
USB Type-C Supports USB2.0 OTG and Power input
Özellik microSD Slot x 1
Özellik GPIO1, 40Pin GPIO:
Özellik GPIO2:
Özellik GPIO3:
LED 1 x power LED and 1 x GPIO Controled LED
RTC Battery 2 Pin 2.54mm pitch through-hole pads
Power supply 5V/3A
PCB 8 Layer, 60 mm x 45 mm
Ambient Operating Temperature -20℃ to 70℃

Technical specifications are loading…
