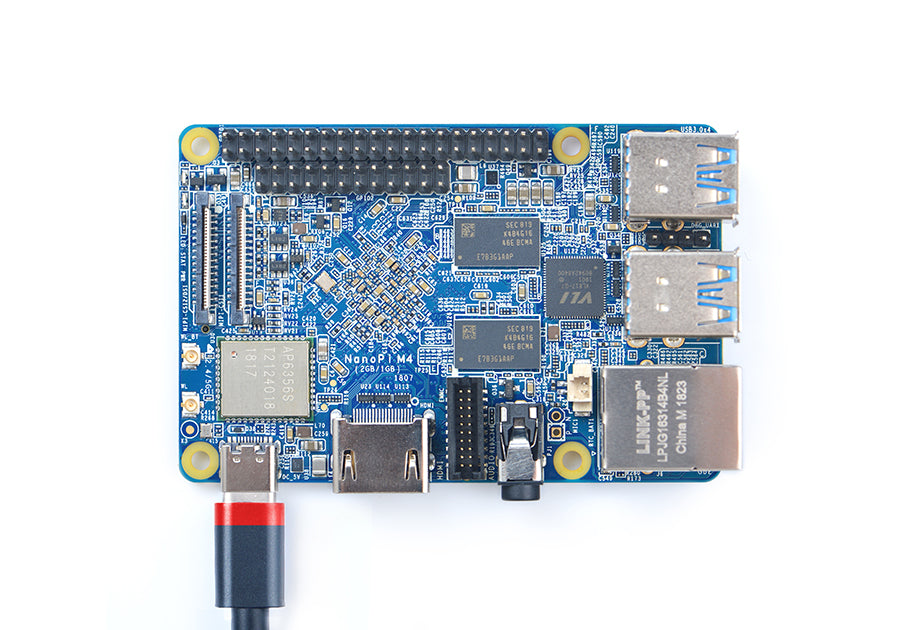

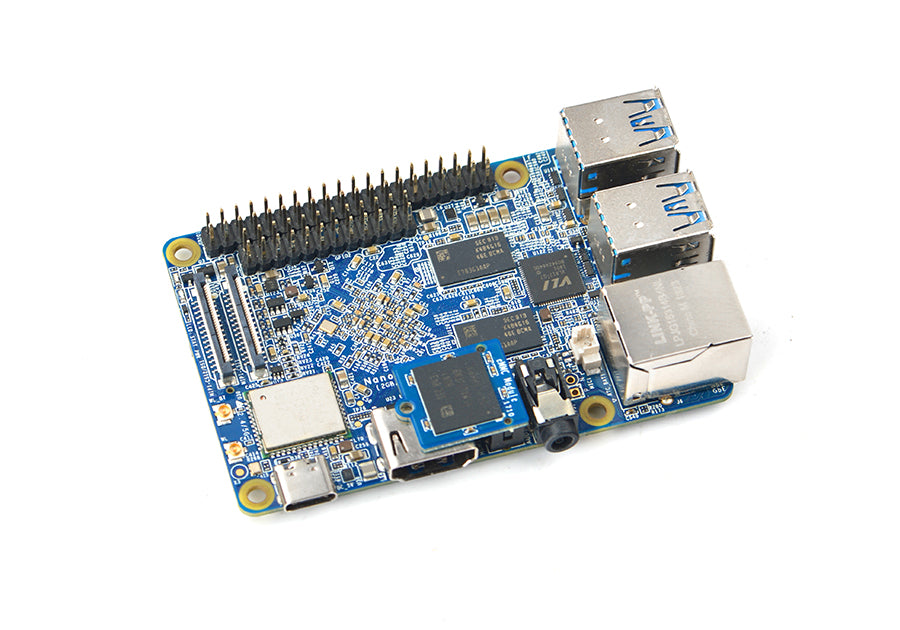

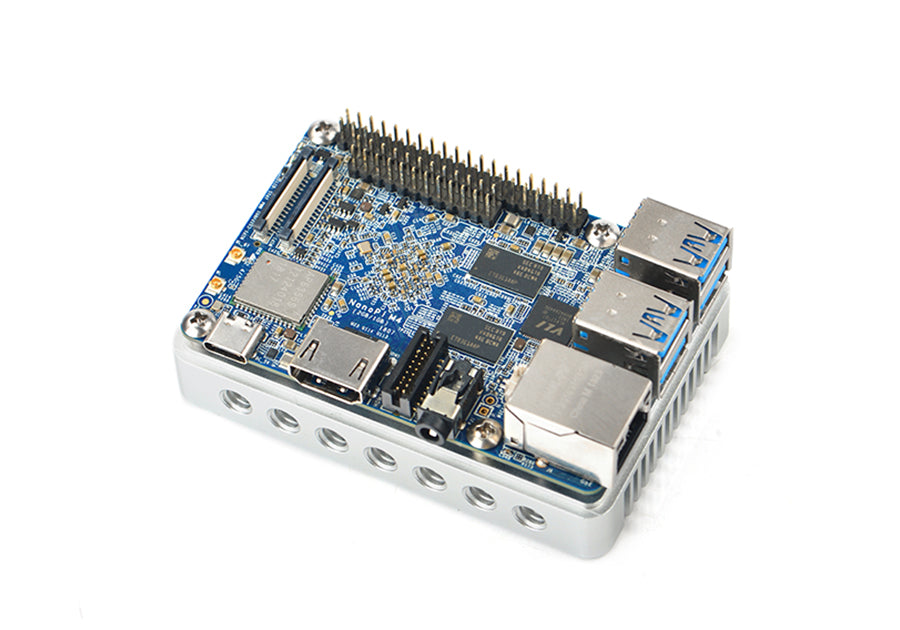

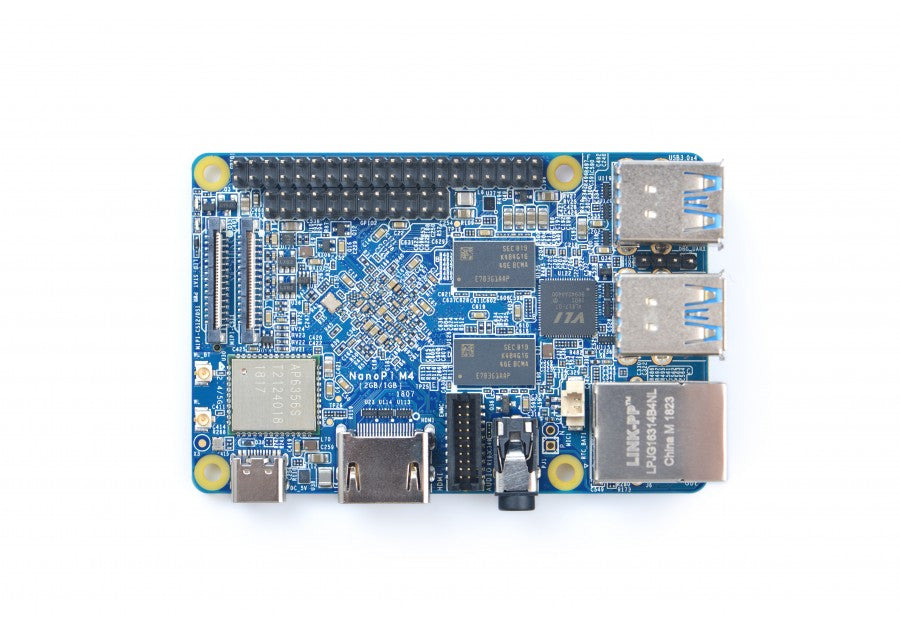

NanoPi M4 - Versatile Single Board Computer for Your Projects

$49.50

Product overview based on official FriendlyElec documentation

Before using your NanoPi M4, ensure you have the necessary items ready for setup. This guide will help you prepare everything you need to get started with your NanoPi M4.

Product code: NanoPi M4

Package contents
  • NanoPi M4
  • Type-C cable
  • TF Card: Class 10 or Above, minimum 8GB SDHC
  • USB to serial adapter (optional, for debugging or access from PC host)
  • 5V/3A Power adapter
  • HDMI monitor or LCD
  • USB keyboard, mouse, and possibly a USB hub (or a TTL to serial board)
  • A host computer running Ubuntu 18.04 64-bit system
  • sd: Use it when you need to boot the entire OS from the SD card
  • eflasher: Use it when you need to flash the OS to eMMC via TF card
  • usb: Use it when you need to flash the OS to eMMC via USB
  • Get an 8G microSD card
  • Visit the download link to download image files (in the '01_Official images/01_SD card images' directory)
  • Download the win32diskimager tool (in the '05_Tools' directory), or use your preferred tool
  • Extract the .gz format compressed file to get the .img format image file
  • Run the win32diskimager utility under Windows as administrator. On the utility's main window, select your SD card's drive, the wanted image file, and click on 'write' to start flashing the SD card
  • Take out the SD and insert it into NanoPi M4's microSD card slot
  • Power on NanoPi M4 and it will boot from your TF card; some models may require pressing the Power button to start
  • Prepare a TF card with a capacity of 32GB or larger
  • Visit [the download link here](http://download.friendlyelec.com/NanoPiM4) to download the firmware file named XXXX-eflasher-multiple-os-YYYYMMDD-30g.img.gz (located in the '01_Official images/02_SD-to-eMMC images' directory)
  • Flash the firmware to the TF card, connect the storage device you intend to use on NanoPi M4, insert the TF card and power on; we need to perform the operations in the eFlasher GUI. If your NanoPi M4 does not have a display interface, you can use VNC; refer to Using VNC to Operate eFlasher
  • In the eFlasher GUI, select the OS to install, and in the OS settings interface, choose the destination for boot installation (typically eMMC), then choose the destination for system installation (options include eMMC, M.2 hard drive, USB storage, etc.)
  • If no eMMC is available, the TF card can serve as the boot by inserting another TF card into the USB port via a USB card reader and selecting it as the boot destination, enabling booting from the TF card with the system stored on the M.2 or USB drive
  • After flashing, eject the SD card from NanoPi M4. If booting from eMMC, NanoPi M4 will automatically restart into the newly flashed system. If boot installation is on a TF card, power off, insert the boot TF card, and power on again
  • For a more detailed installation guide, please refer to this link.
Hardware specifications
Parameter Value

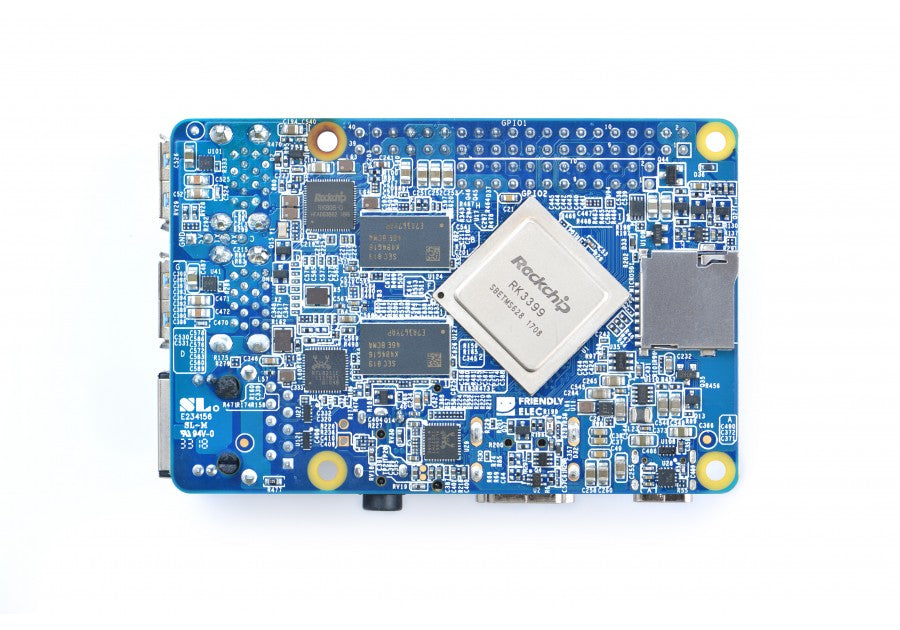

SoC Rockchip RK3399
PMU RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, sofeware power-down, RTC wake-up, system sleep mode
RAM Dual-Channel 4GB LPDDR3-1866, or Dual-Channel 2GB DDR3-1866
Flash no Onboard eMMC, but has a eMMC socket
Ethernet Native Gigabit Ethernet
Wi-Fi/BT 802.11a/b/g/n/ac, Bluetooth 4.1, Wi-Fi and Bluetooth combo module, 2x2 MIMO, dual antenna interface
Video Input one or two 4-Lane MIPI-CSI, dual ISP, up to 13MPix/s,supports simultaneous input of dual camera data
Özellik Video output
Audio Out 3.5mm Dual channel headphone jack, or HDMI
Audio In one microphone input interface
USB 3.0 four USB 3.0 Type-A ports
USB Type-C Supports USB2.0 OTG and Power input
Özellik microSD Slot x 1
Özellik 40Pin GPIO Extension ports:
Özellik 24Pin Extension ports:
Debug one Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps
LED 1 x power LED and 1 x GPIO Controlled LED
RTC Battery 2 Pin 1.27/1.25mm RTC battery input connector
Power supply DC 5V/3A
PCB 8 Layer, 85 mm x 56 mm
Ambient Operating Temperature -20℃ to 70℃

Technical specifications are loading…
