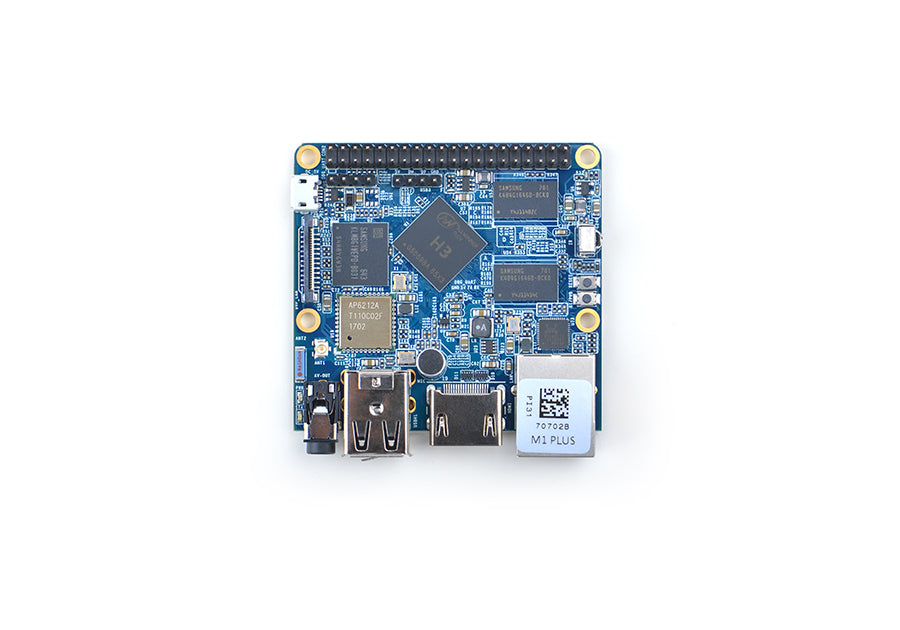

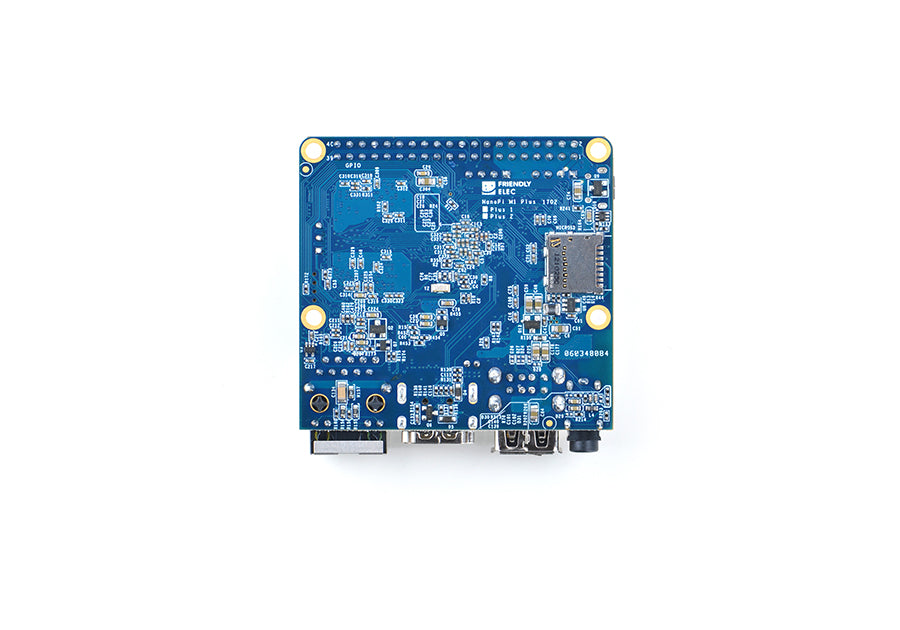

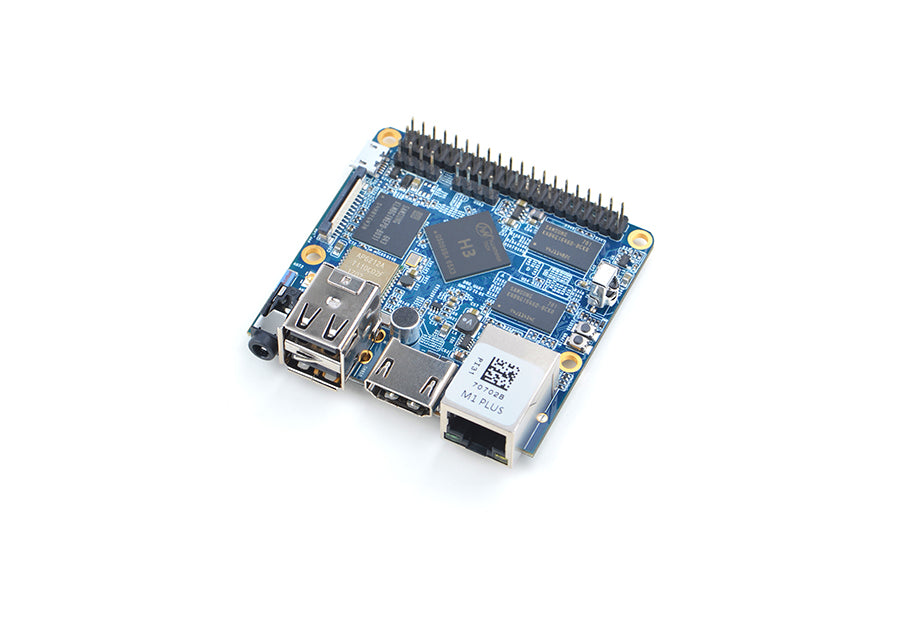

NanoPi M1 Plus - Versatile Single Board Computer

$74.50

Product overview based on official FriendlyElec documentation

Prepare the following items before using your NanoPi M1 Plus. This guide will help you set up your board efficiently.

Product code: H3 V1.0 1702

Package contents
  • NanoPi M1 Plus
  • microSD Card/TFCard: Class 10 or Above, minimum 8GB SDHC
  • microUSB power supply: 5V/2A required
  • HDMI monitor
  • USB keyboard, mouse, and possibly a USB hub (or a TTL to serial board)
  • A host computer running Ubuntu 18.04 64-bit system
  • SanDisk MicroSDHC V30 32GB Extreme Pro (Developer choice)
  • SanDisk 32GB High Endurance Video MicroSDHC Card with Adapter for Dash Cam and Home Monitoring Systems (High reliability)
  • SanDisk TF 8G Class 10 Micro/SD High Speed TF card
  • SanDisk TF128G MicroSDXC TF 128G Class 10 48MB/S
  • 川宇 8G C10 High Speed Class 10 micro SD card
  • sd: Use it when you need to boot the entire OS from the SD card
  • eflasher: Use it when you need to flash the OS to eMMC via TF card
Hardware specifications
Parameter Value
CPU Allwinner H3, Quad-core Cortex-A7@1.2GHz
GPU Mali400MP2@600MHz,Supports OpenGL ES2.0
DDR3 RAM 1GB
eMMC 8GB
Wireless 802.11 b/g/n
Bluetooth 4.0 dual mode
Antenna Interface Shared by WiFi and Bluetooth, IPX interface
Connectivity 10/100/1000M Ethernet
Audio 3.5mm jack/Via HDMI
Microphone onboard microphone
IR onboard IR receiver
USB Host USB 2.0 x 3, 2 x USB Type A and 1 x 2.54mm pitch pin-header
MicroSD Slot x1
MicroUSB power input and data transmission, OTG
Audio Output HDMI 1.4 1080P, CVBS
DVP Camera Interface 24pin, 0.5mm pitch FPC seat
Serial Debug Port 4Pin, 2.54mm pitch pin-header
Özellik GPIO: 40pin, 2.54mm pitch pin-header, compatible with RasberryPi 2's GPIO. It contains UART, SPI, I2C, I2S/PCM, SPDIF-OUT and IO
User Button 1 x Power Button and 1 x Reset Button
LED 1 x Power LED and 1 x System Status LED
PCB Dimension 64 x 60 mm, ENIG
Power Supply DC 5V/2A
Working Temperature -30℃ to 80℃
OS/Software u-boot, Debian, Ubuntu-Core, eflasher, Android
