NanoPC-T6 Plus: High-Performance Open Source Edge Computing Platform

$358.50

Product overview based on official FriendlyElec documentation

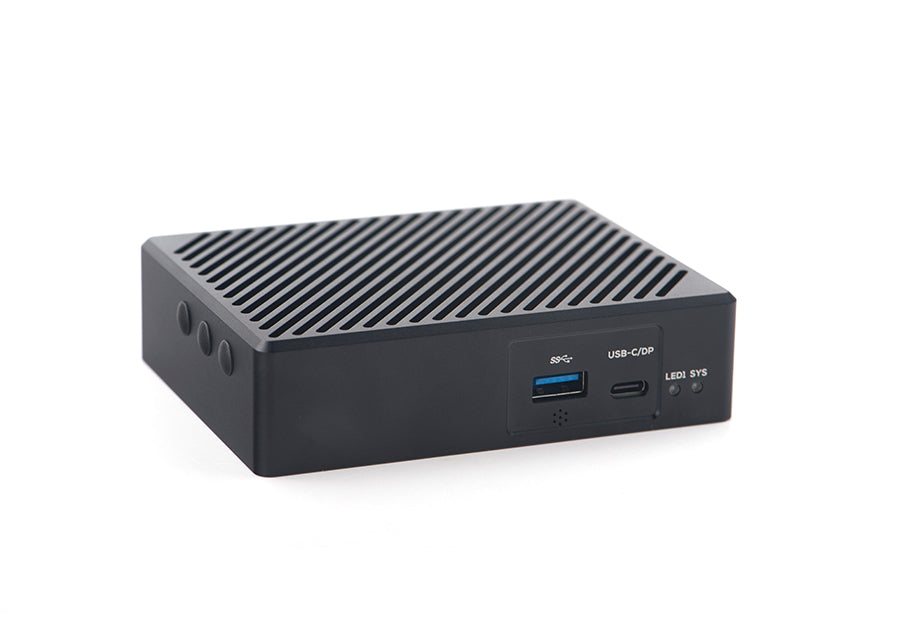

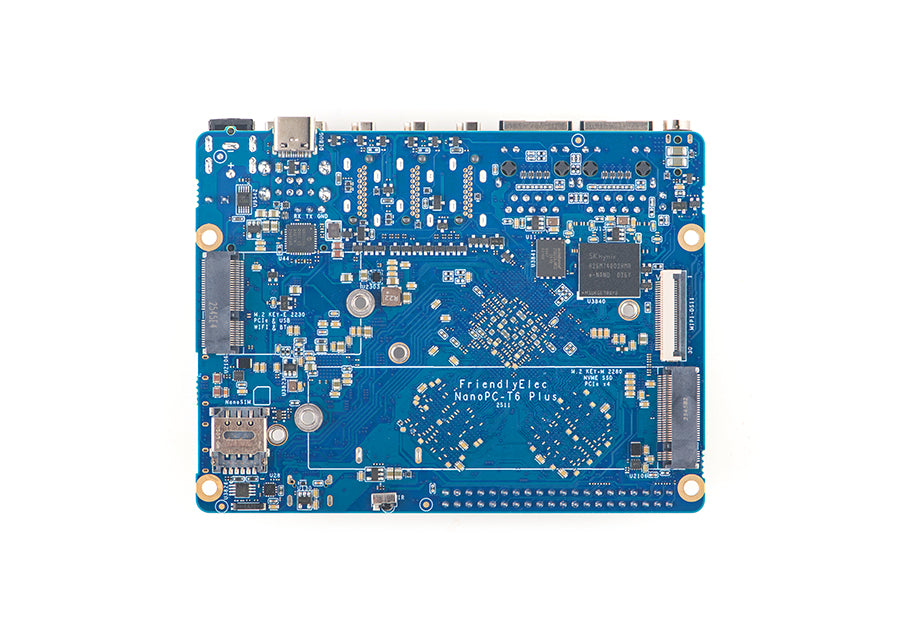

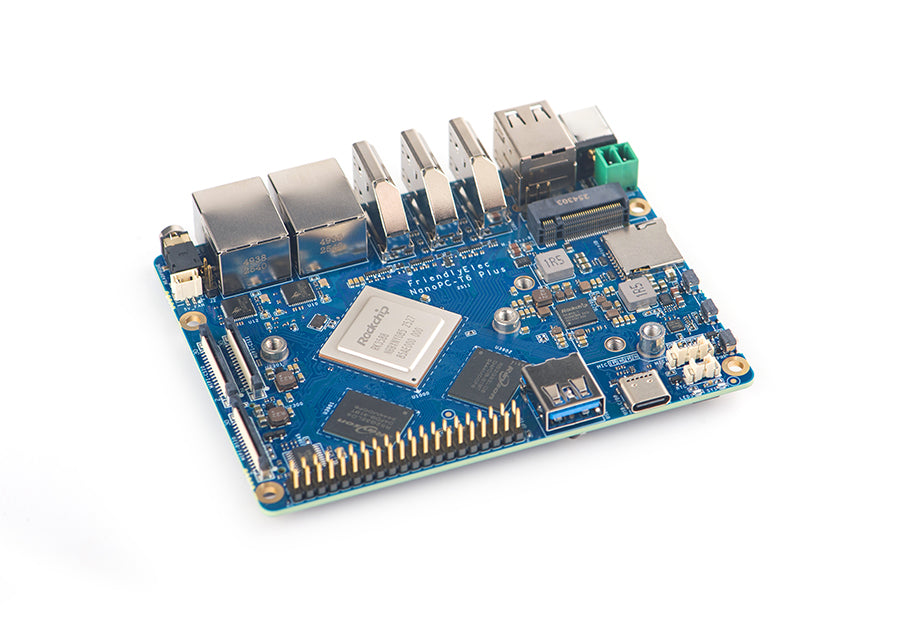

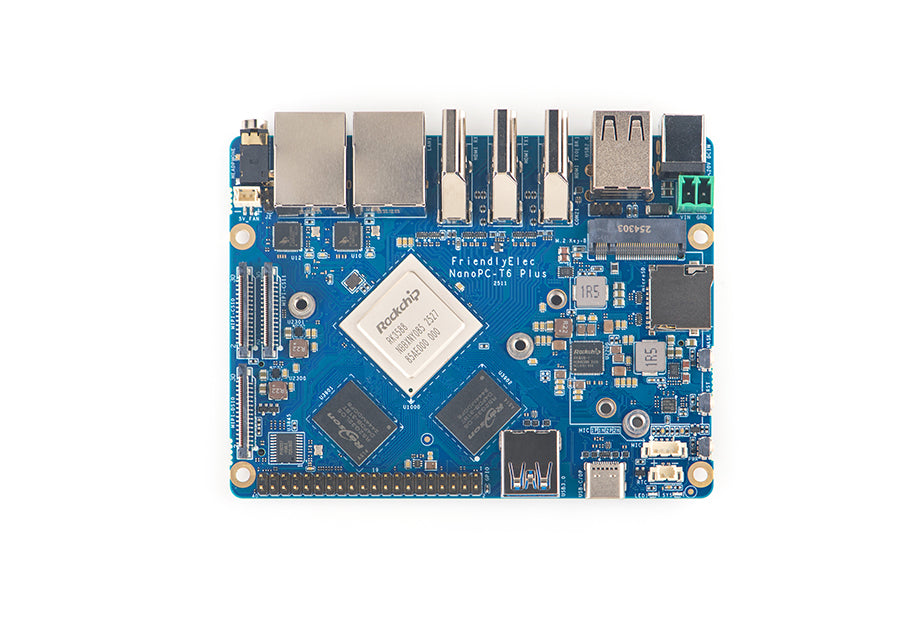

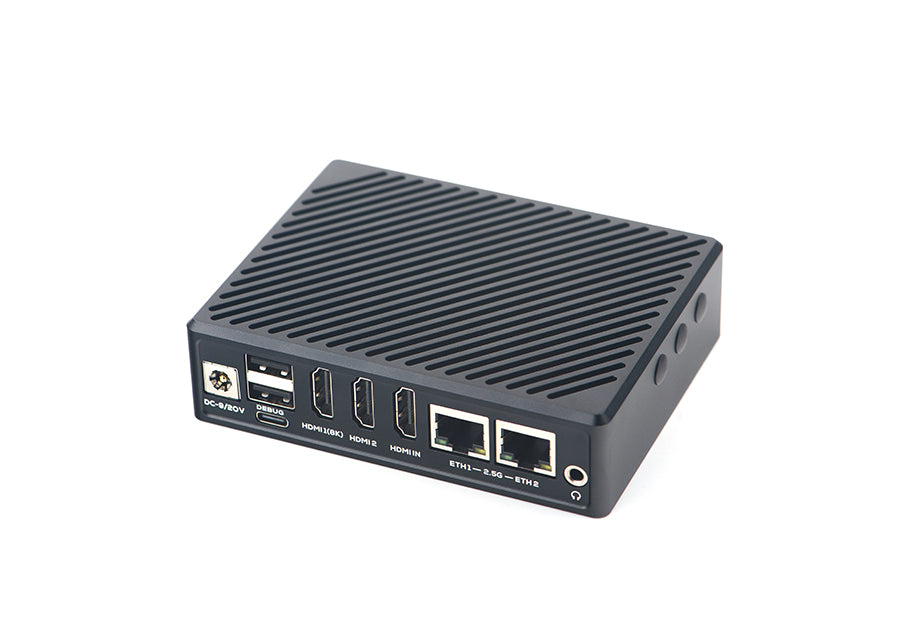

The NanoPC-T6 Plus (referred to as 'T6 Plus') is a versatile, high-performance open-source platform designed for edge computing, developed by the FriendlyElec team. It features dual 2.5G Ethernet ports and is powered by the Rockchip RK3588 SoC, with options for 8GB, 16GB, or 32GB of LPDDR5 RAM and various eMMC flash capacities. The T6 Plus supports multiple operating systems and is equipped with advanced video playback and recording capabilities, making it ideal for both enterprise and hobbyist applications.

Product code: RK3588 NanoPC-T6 Plus

Package contents
  • NanoPC-T6 Plus
  • MicroSD Card/TF Card: Class 10 or Above, minimum 8GB SDHC
  • DC 12V/2A power adapter
  • For development and compilation, a computer with internet access is required. It is recommended to install Ubuntu 20.04 64-bit and use the provided script to initialize the development environment or utilize a Docker container.
  • sd: Use this when you need to boot the entire OS from the SD card.
  • eflasher: Use this to flash the OS to eMMC via TF card.
  • usb: Use this to flash the OS to eMMC via USB.
  • Obtain an 8GB microSD card.
  • Visit the download link to access image files (found in the '01_Official images/01_SD card images' directory).
  • Download the win32diskimager tool (located in the '05_Tools' directory) or use your preferred tool.
  • Extract the .gz format compressed file to obtain the .img format image file.
  • Run the win32diskimager utility under Windows as an administrator. In the utility's main window, select your SD card's drive, the desired image file, and click 'write' to begin flashing the SD card.
  • Remove the SD card and insert it into the NanoPC-T6 Plus's microSD card slot.
  • Power on the NanoPC-T6 Plus; it will boot from the TF card. Some models may require pressing the Power button to start.
  • Acquire an SDHC card with a minimum capacity of 8GB.
  • Visit the download link to access image files (found in the '01_Official images/02_SD-to-eMMC images' directory) and the win32diskimager tool (in the '05_Tools' directory).
  • Extract the .gz format compressed file to obtain the .img format image file.
  • Run the win32diskimager utility under Windows as an administrator. In the utility's main window, select your SD card's drive, the desired image file, and click 'write' to begin flashing the SD card.
  • Eject the SD card and insert it into the NanoPC-T6 Plus’s microSD card slot.
  • Turn on the NanoPC-T6 Plus; it will boot from the SD card and automatically run EFlasher to install the OS to the board’s eMMC.
  • After flashing is complete, remove the SD card from the NanoPC-T6 Plus; it will automatically reboot and boot from eMMC.
  • Auto Install (Default Behavior)
Hardware specifications
Parameter Value
SoC Rockchip RK3588
RAM 64-bit 8GB/16GB/32GB LPDDR5
eMMC Flash 32GB/64GB/256GB eMMC, at HS400 mode
Nor Flash 32MB SPI Nor Flash
microSD support up to SDR104 mode
Ethernet 2 x PCIe 2.5G Ethernet
Özellik 1 x USB 3.0 Type-A
Özellik 1 x Full function USB Type‑C™ port, support DP display up to 4Kp60, USB 3.0
Özellik 2 x USB 2.0 Type-A
Özellik Video input:
Özellik Video output:
Özellik Audio:
Özellik GPIO:
Özellik M.2 Connectors
Özellik others:
Power supply 5.5*2.1mm DC Jack & 2-Pin 3.5mm pitch connector, 12VDC input.
PCB 8 Layer, 110x82.5x1.6mm
Ambient Operating Temperature 0℃ to 70℃
