Friendly Elec NanoHat Hub for NanoPi NEO/NEO2/Air/NEO Plus2

$12.49

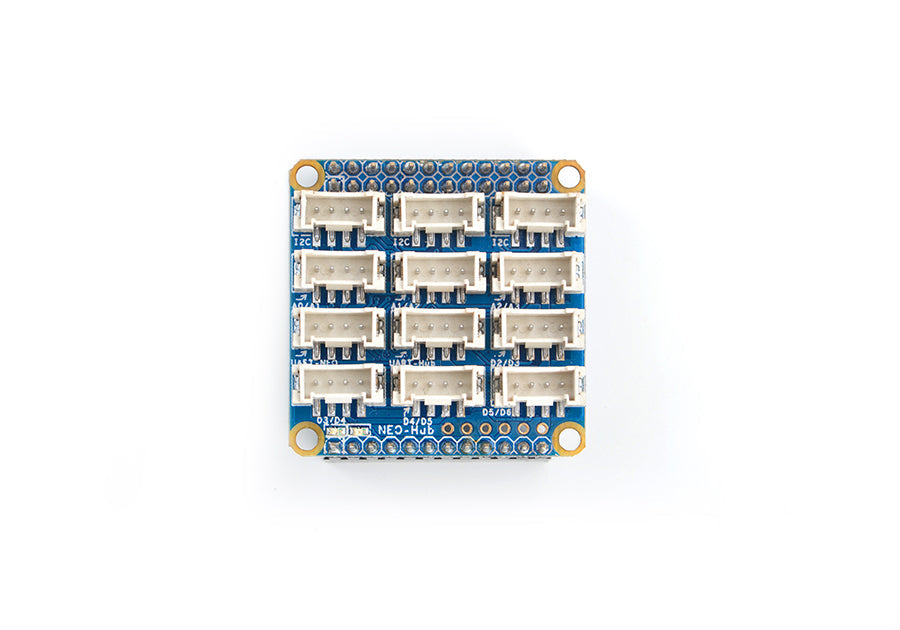

NanoHat Hub for NanoPi NEO/Air

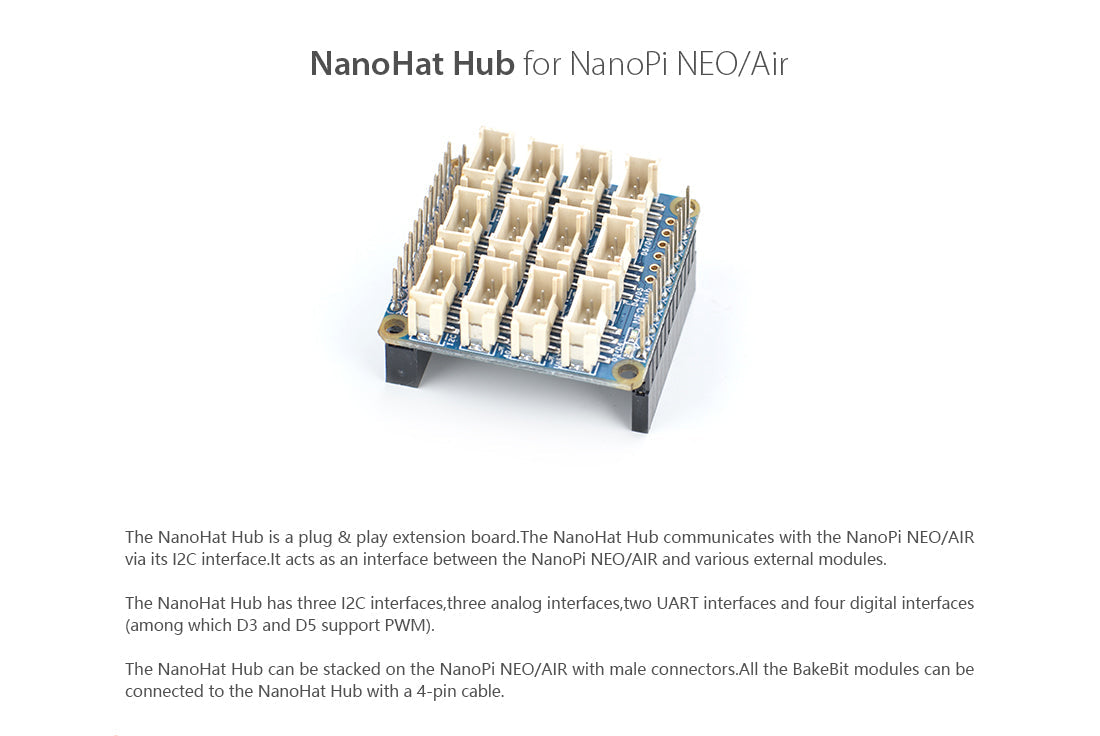

The NanoHat Hub is a plug & play extension board.The NanoHat Hub communicates with the NanoPi NEO/AIR via its I2C interface.It acts as an interface between the NanoPi NEO/AIR and various external modules.

The NanoHat Hub has three I2C interfaces,three analog interfaces,two UART interfaces and four digital interfaces (among which D3 and DS support PWM).

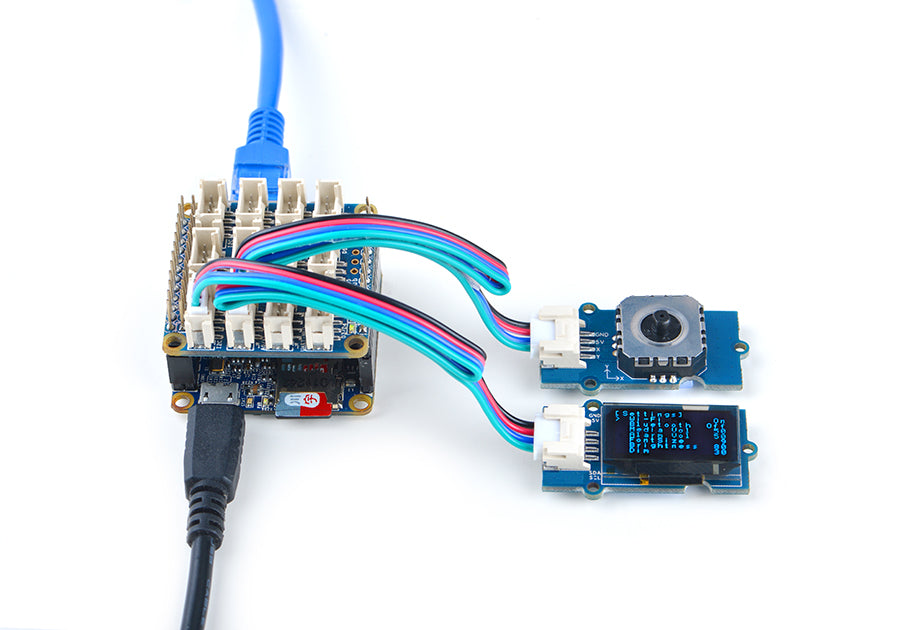

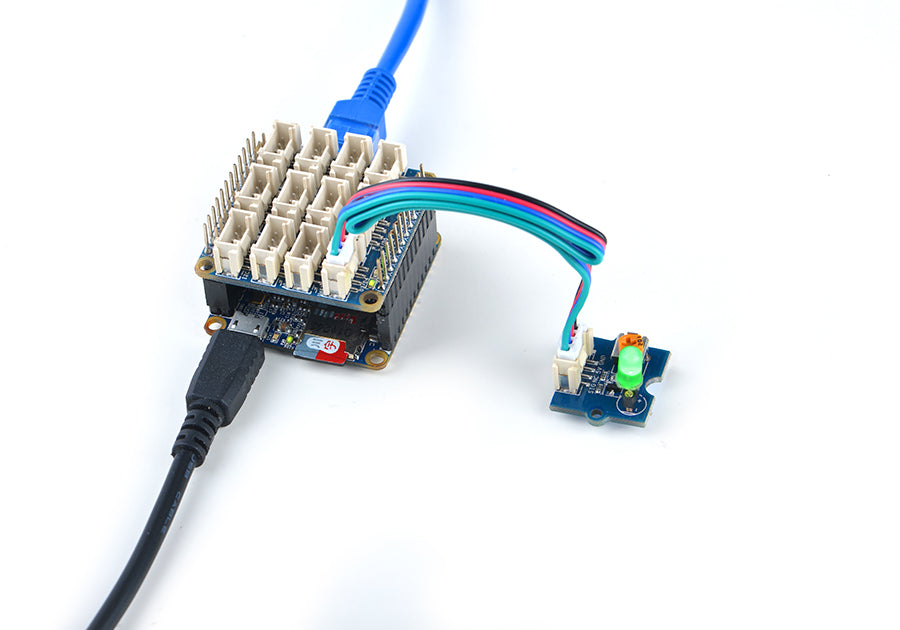

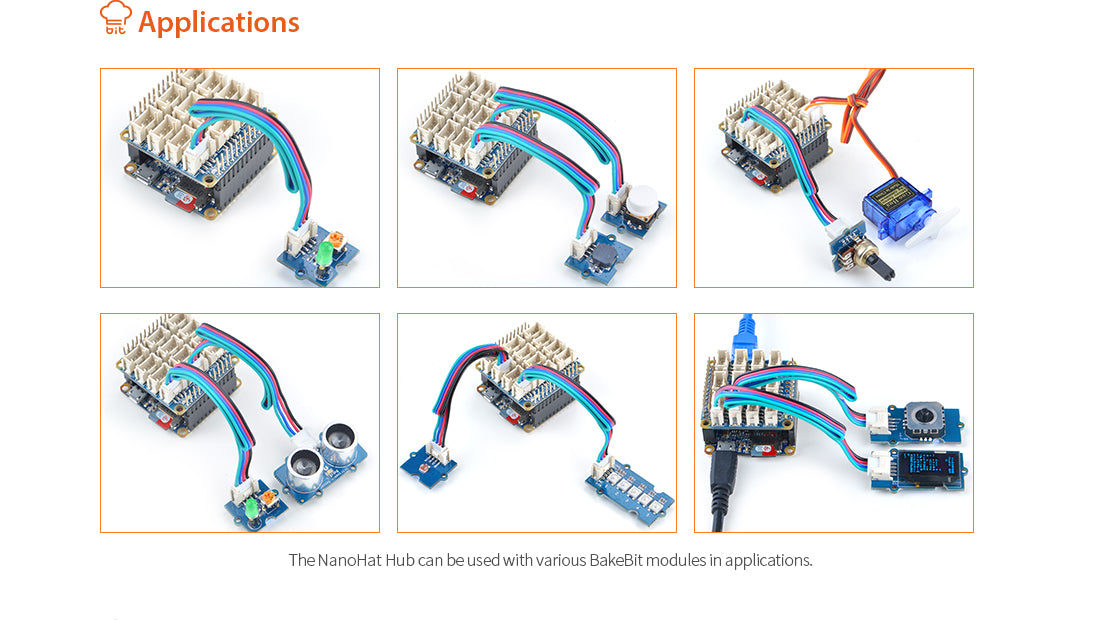

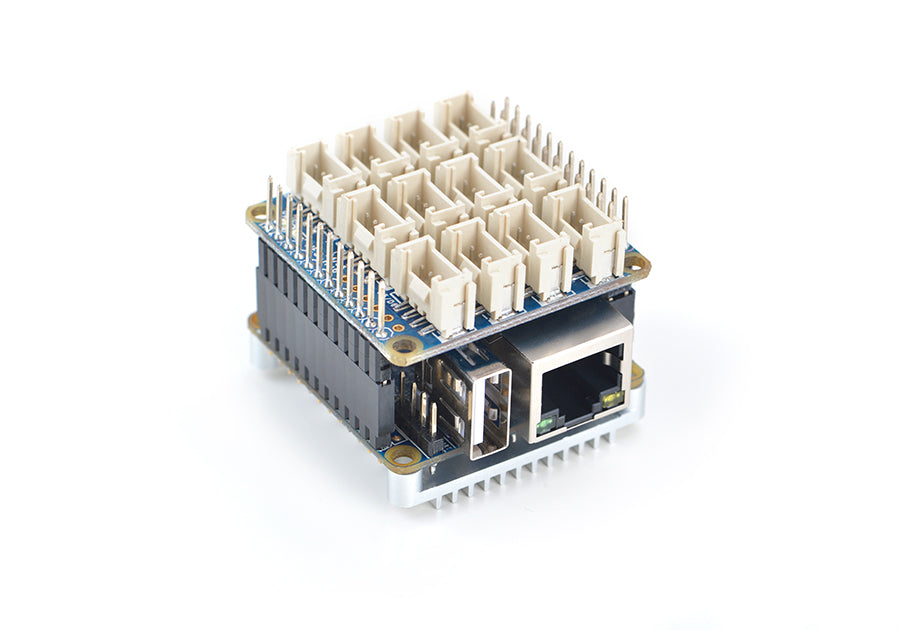

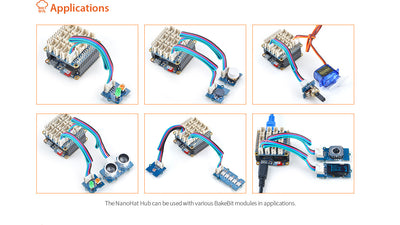

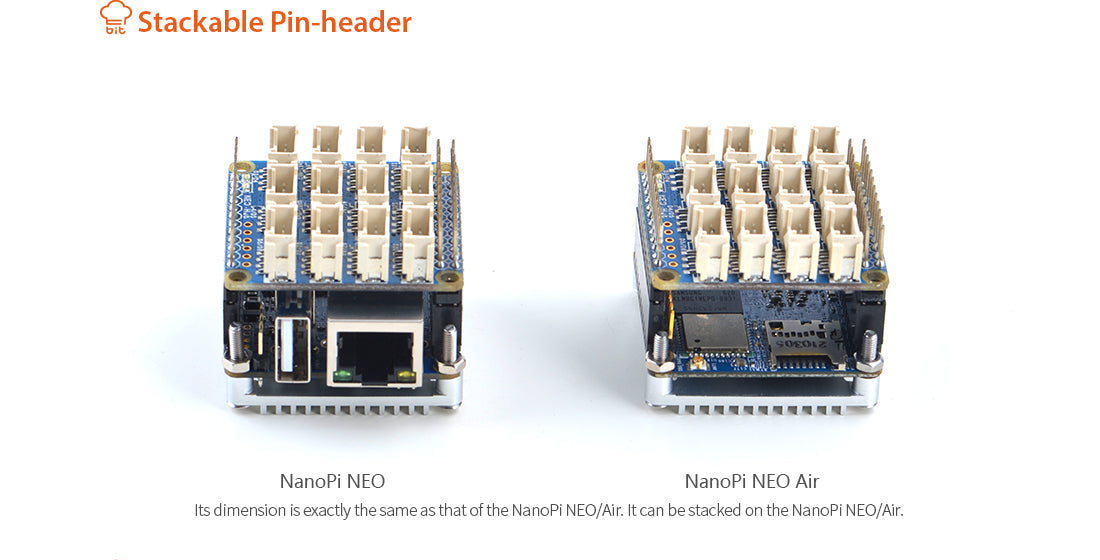

The NanoHat Hub can be stacked on the NanoPi NEO/AIR with male connectors.All the BakeBit modules can be connected to the NanoHat Hub with a 4-pin cable.

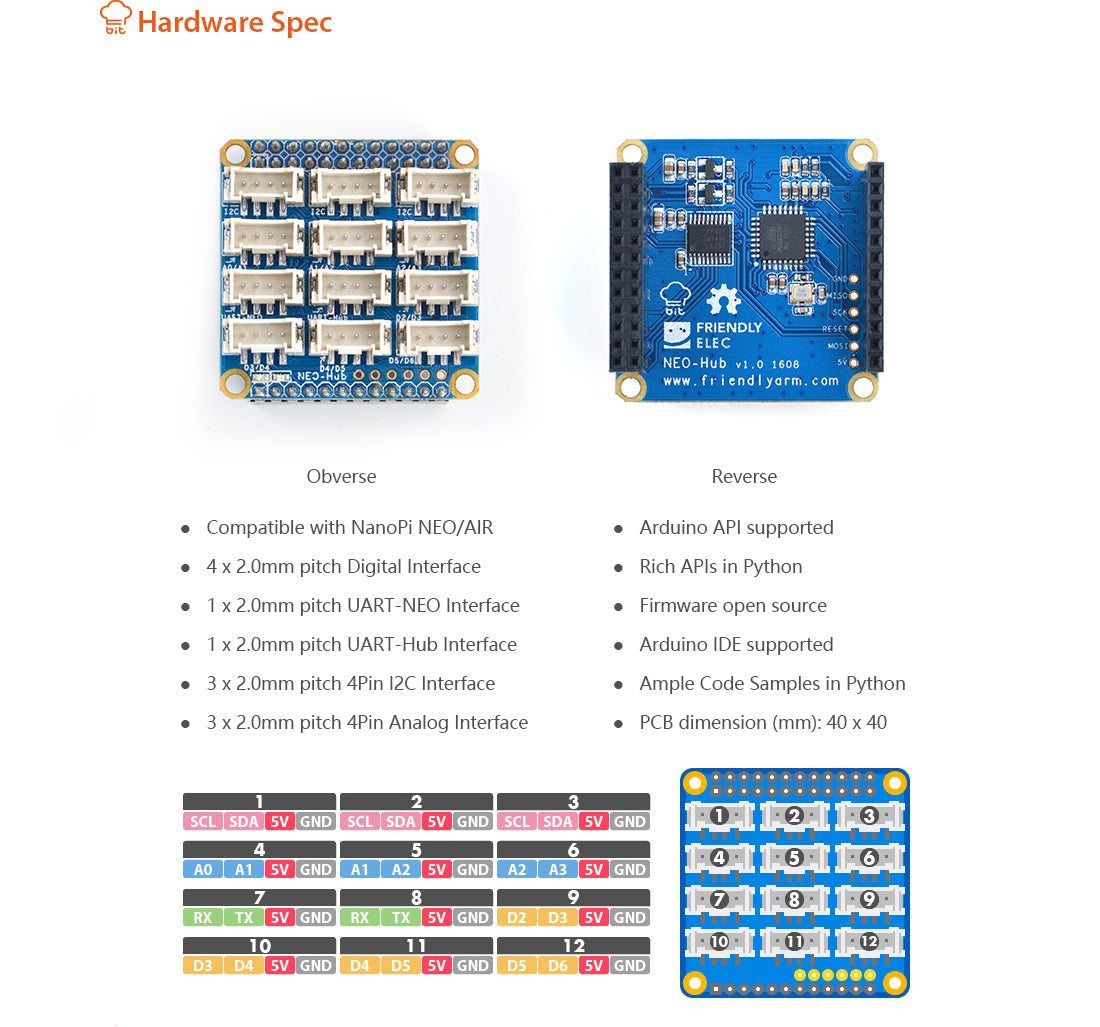

Hardware Spec

  • Compatible with NanoPi NEO/AIR
  • 4x 2.0mm pitch Digital Interface
  • 1x 2.0mm pitch UART-NEO Interface e Firmware open source
  • 1x 2.0mm pitch UART-Hub Interface e Arduino IDE supported
  • 3x 2.0mm pitch 4Pin I2C Interface
  • 3x 2.0mm pitch 4Pin Analog Interface
  • Arduino API supported
  • Rich APIs in Python
  • Firmware open source
  • Arduino IDE supported
  • Code Samples in Python
  • PCB dimension (mm): 40 x 40
