AUO

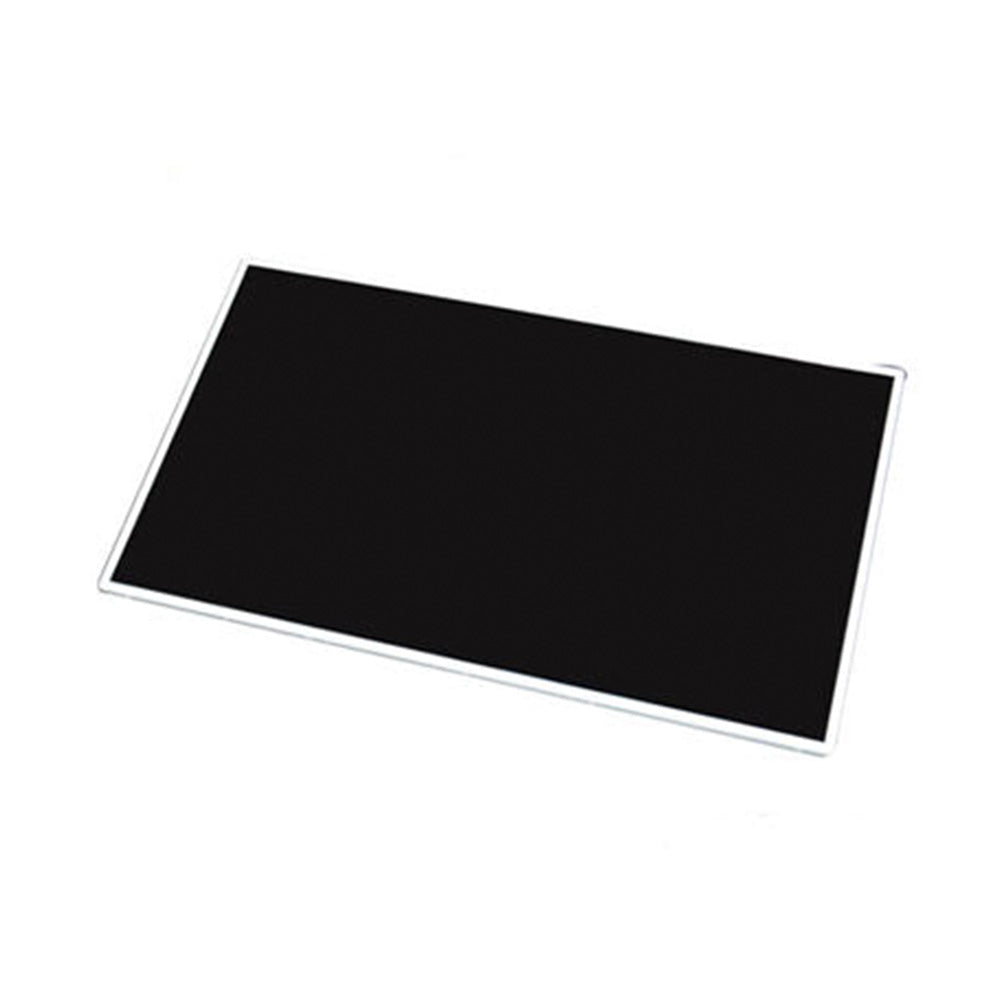

AUO M238HVN01.0

$260.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:M238HVN01.0
  • Brand:AUO
  • Size:23.8 inch
  • Resolution:1920*1080
  • Brightness:250 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:LVDS (1 ch, 8-bit) ,30 pins
  • CR:3000:1
  • Operating Temp.: 0 ~ 50 °C
  • Parameters

Manufacturer

AUO

Model Name

M238HVN01.0

Screen Size

23.8

Pixel Number

1920(RGB)×1080   [FHD]

Active Area(mm)

527.04×296.46 mm (H×V)

Outline(mm)

543×317.4 ×11.7 mm(H×V×D)

Bezel Area(mm)

530.2×299.6 mm (H×V)

Treatment

Hard coating (3H)

Luminance

250 cd/m² (Typ.)

Contrast Ratio

3000 : 1 (Typ.) (TM)

Viewing Angle

89/89/89/89 (CR≥10)

Left/Right/UP/Down

Response

10/16 (Typ.)(Tr+Td) ms

Work Mode

VA, Normally black,Transmissive

Color Depth

16.7M , 72% NTSC

Backlight

30K hours,withOUT LED Driver

Net Weight

2.28Kgs (Typ.)

Touchscreen

without

Signal Type/interface Type

LVDS (2 ch, 8-bit) ,30 pins

Voltage Supply

5.0V (Typ./Max.)

Max. Ratings

Storage Temp.: 0 ~ 50 °C

Operating Temp.: -20~60°C

Package

10 pcs/ carton


AUO 23.8 inch LCD screen M238HVN01.0 with 250 luminance and 0-50°C operating temp.

M238HVN01.0,has standard 1920*1080 resolution.

30000 hrs backlight lifetime.

Often used in commercial devices.
