Allwinner A133 Smart HMI Android Motherboard | MIPI Display | SS-A133

$46.00

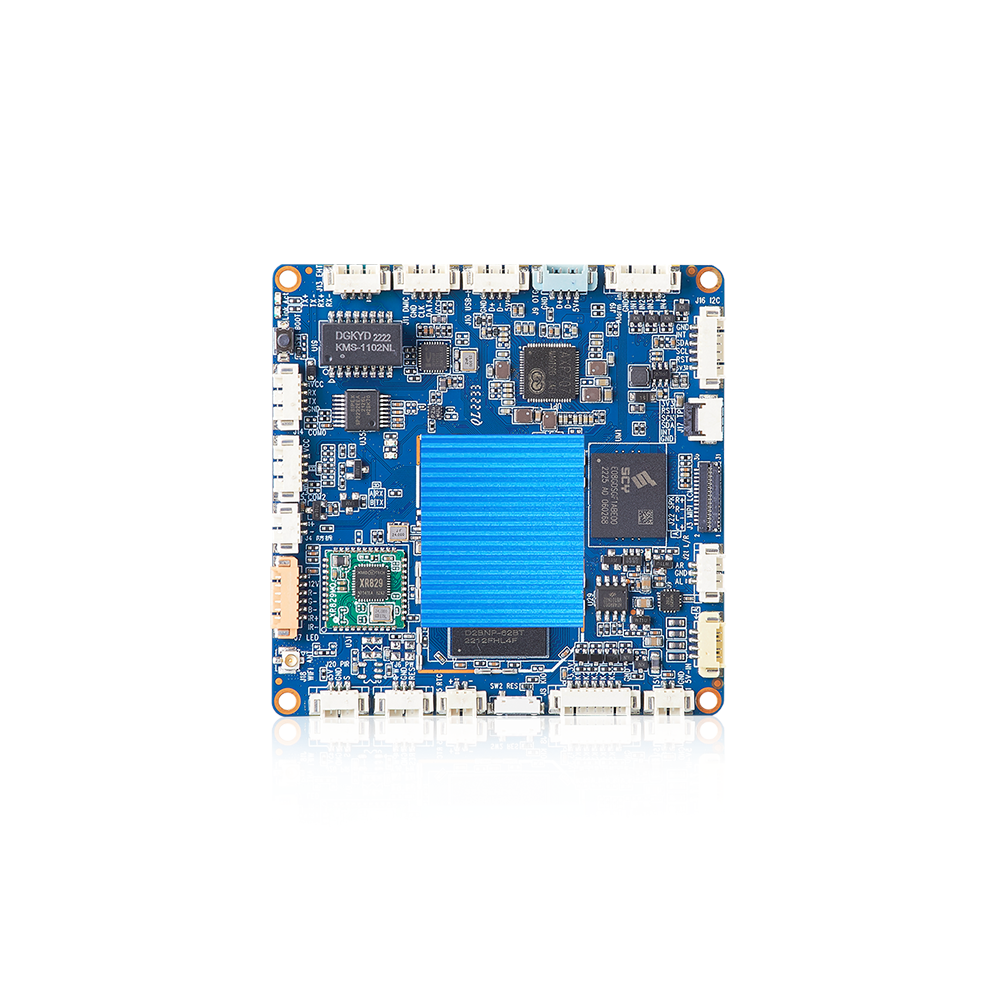

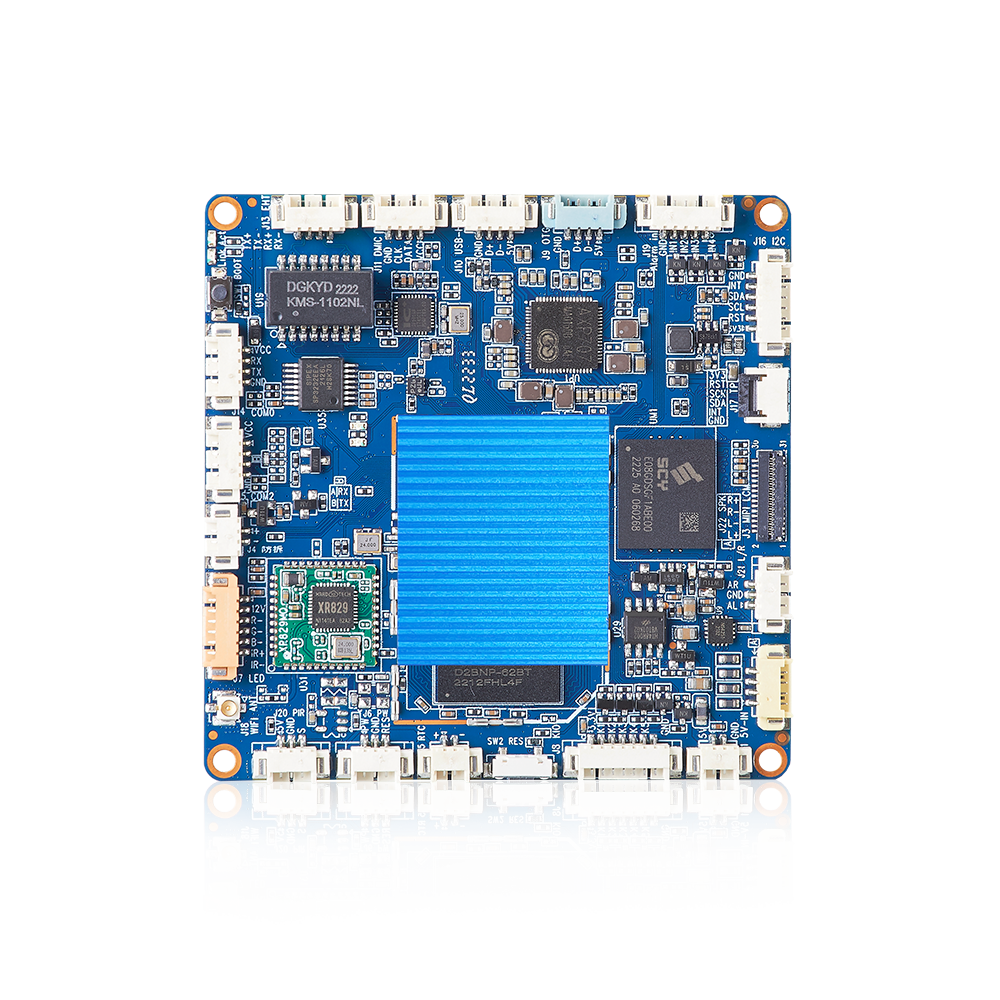

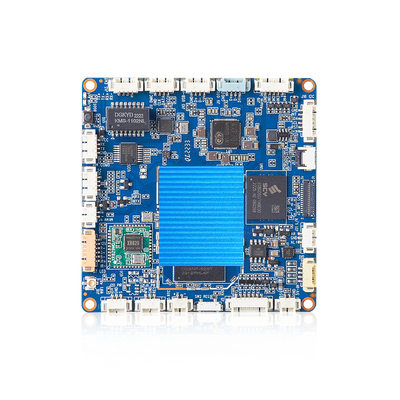

Allwinner A133 Smart HMI Motherboard 1GB RAM 8GB eMMC SS-A133

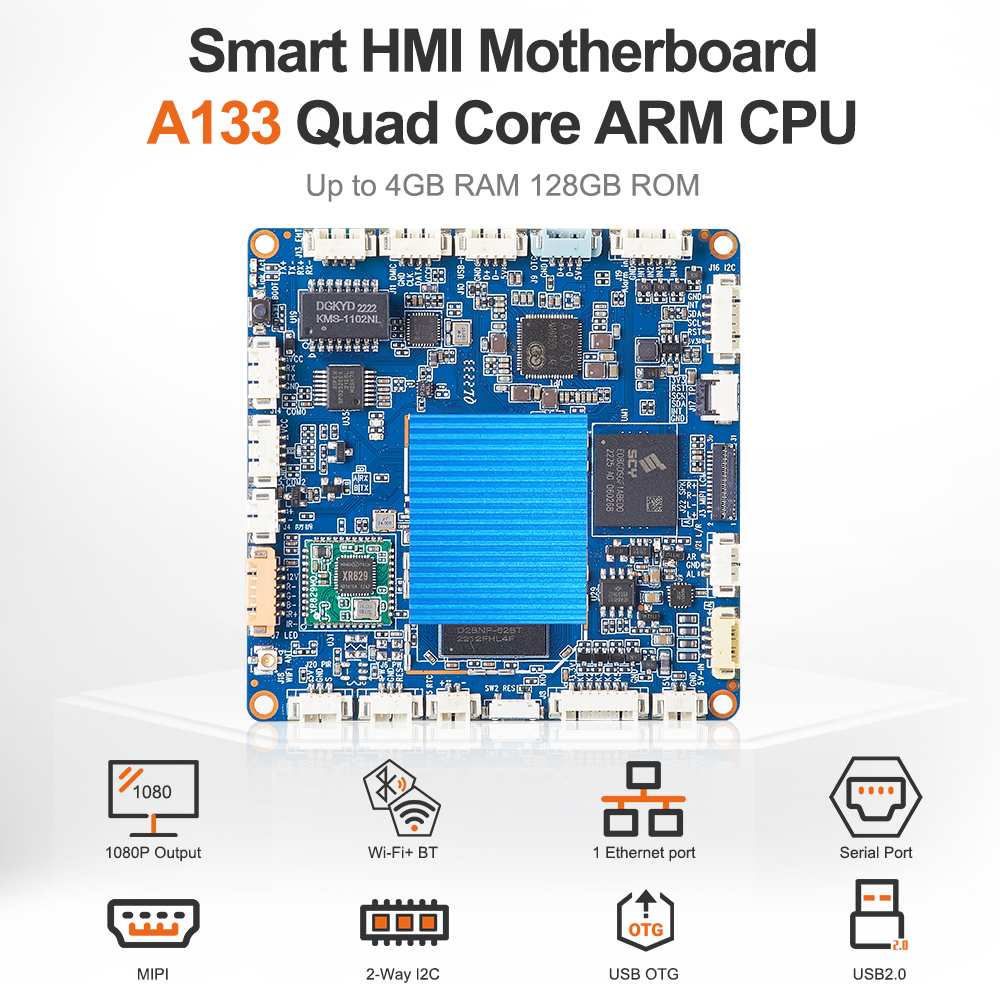

SS-A133 is an embedded Android motherboard designed for intelligent human-computer interaction interfaces, such as smart switches, robots, and self-service terminals. It is powered by the Allwinner A133 processor, featuring a quad-core ARM Cortex-A53 CPU running up to 1.6GHz. The board supports Android and Linux operating systems, making it versatile for various applications.

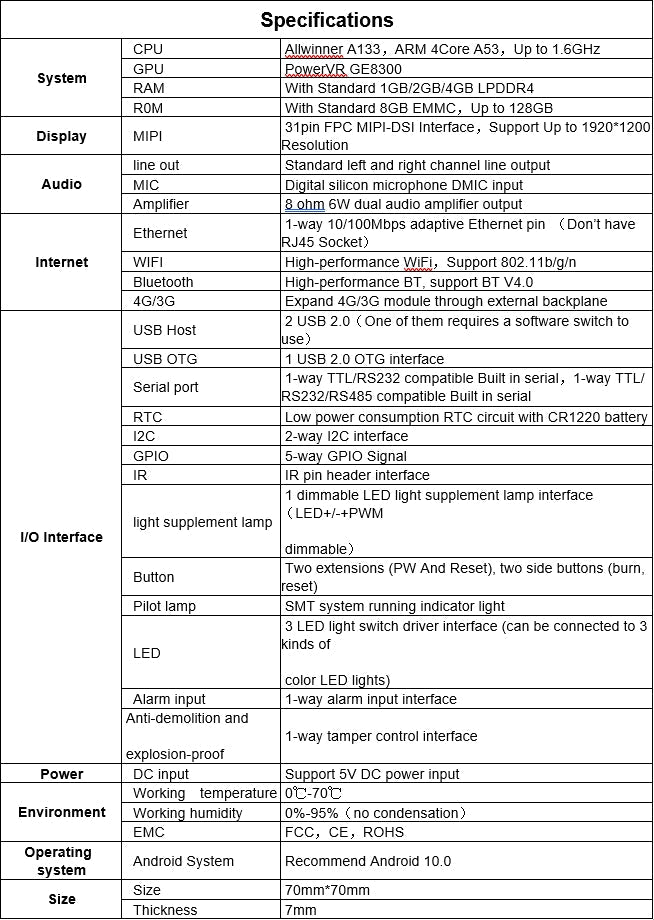

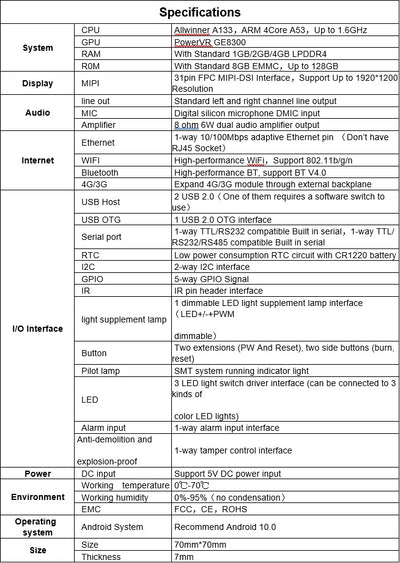

Key Features:

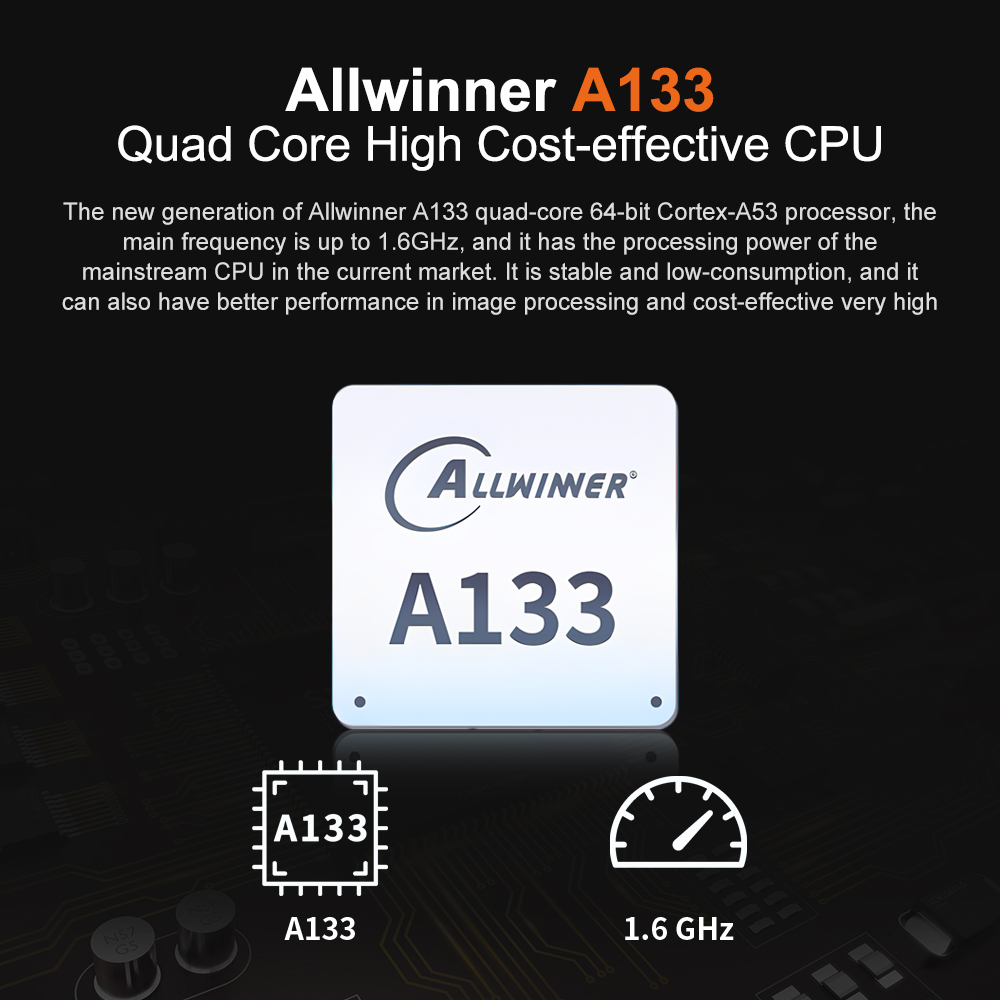

  • Processor: Allwinner A133, ARM quad-core Cortex-A53, up to 1.6GHz.

  • Memory: Options for 1GB, 2GB, or 4GB LPDDR4 RAM.

  • Storage: Standard 8GB eMMC, expandable up to 128GB.

  • Display Support: Built-in MIPI or RGB display interfaces, supporting resolutions up to 1080p.

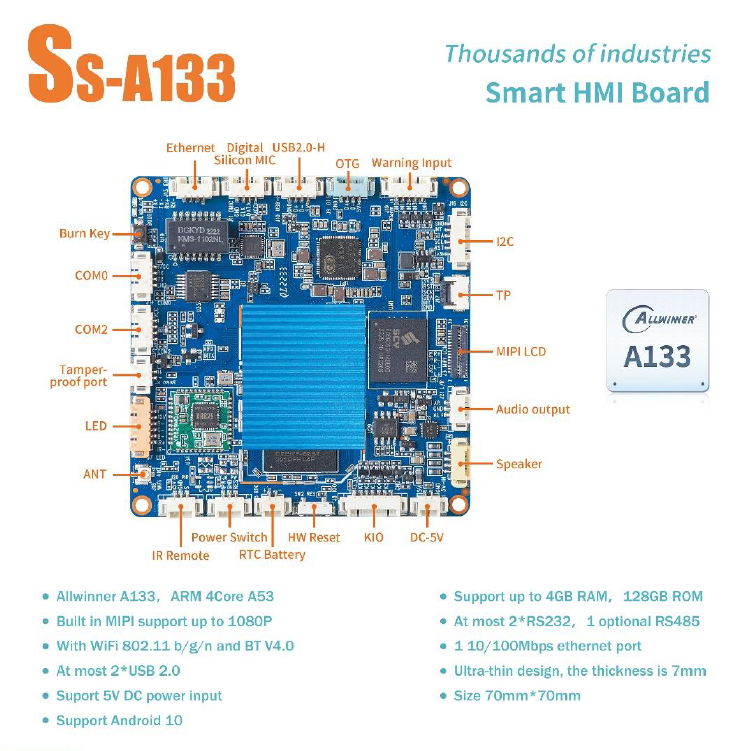

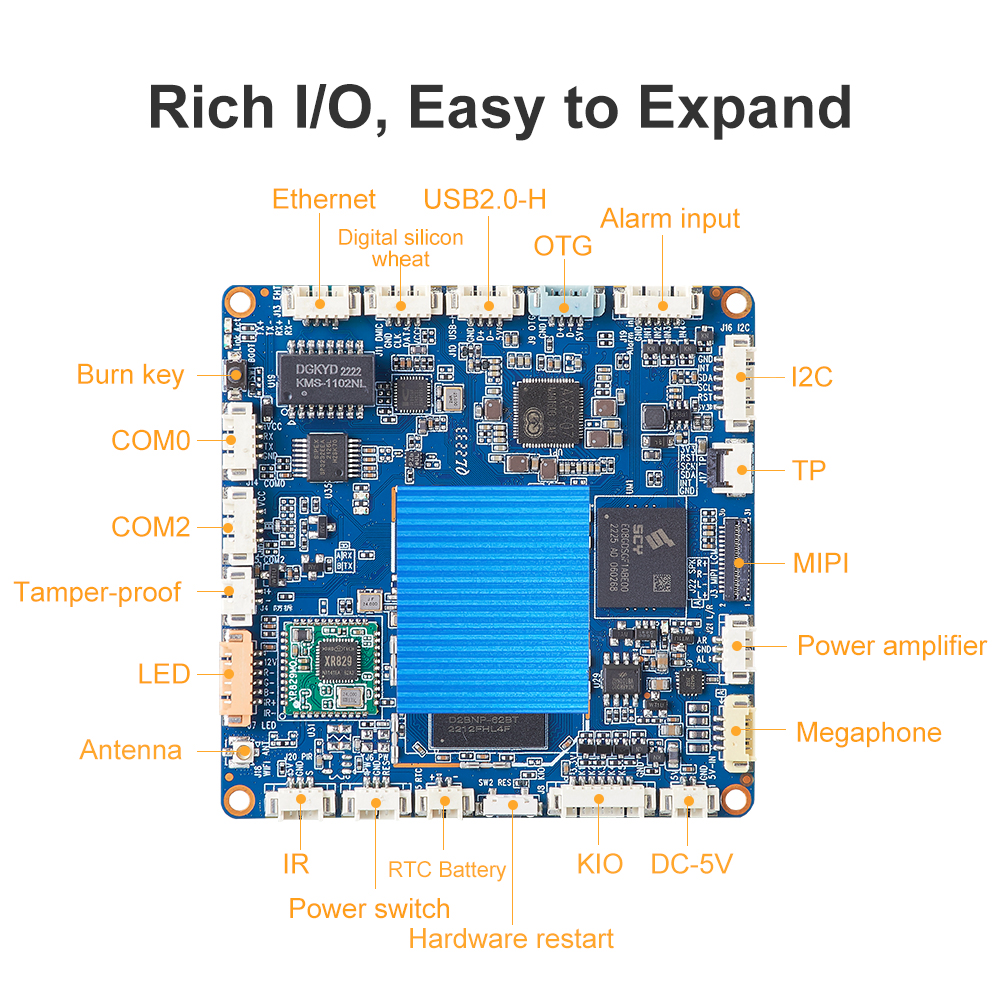

  • Connectivity:

    • Wi-Fi: 802.11b/g/n.
    • Bluetooth: V4.2.
    • Ethernet: One 10/100Mbps adaptive Ethernet port.
    • USB: Two USB 2.0 ports and one USB OTG 2.0 port.
    • Serial Ports: One TTL/RS232 and one TTL/RS232/RS485 serial port.

  • Additional Interfaces:

    • Two I²C interfaces.
    • Five GPIO signals.
    • Relay interface for access control.
    • LED light switch driver interfaces.
    • Alarm input and tamper control interfaces.
  • Audio:

    • Standard left and right channel line output.
    • Differential MIC input.
    • 8-ohm 2W dual audio amplifier output.
  • Power Supply: 12V DC input, supporting a wide voltage range of 9V to 15V.

  • Operating Systems: Compatible with Android 10.

  • Dimensions: 105mm x 67mm.

These features make the SS-A133 suitable for a variety of embedded applications requiring efficient human-computer interaction capabilities.
