Allwinner A40i Android Development Board | LVDS HDMI VGA | WiFi BT | K0

$64.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

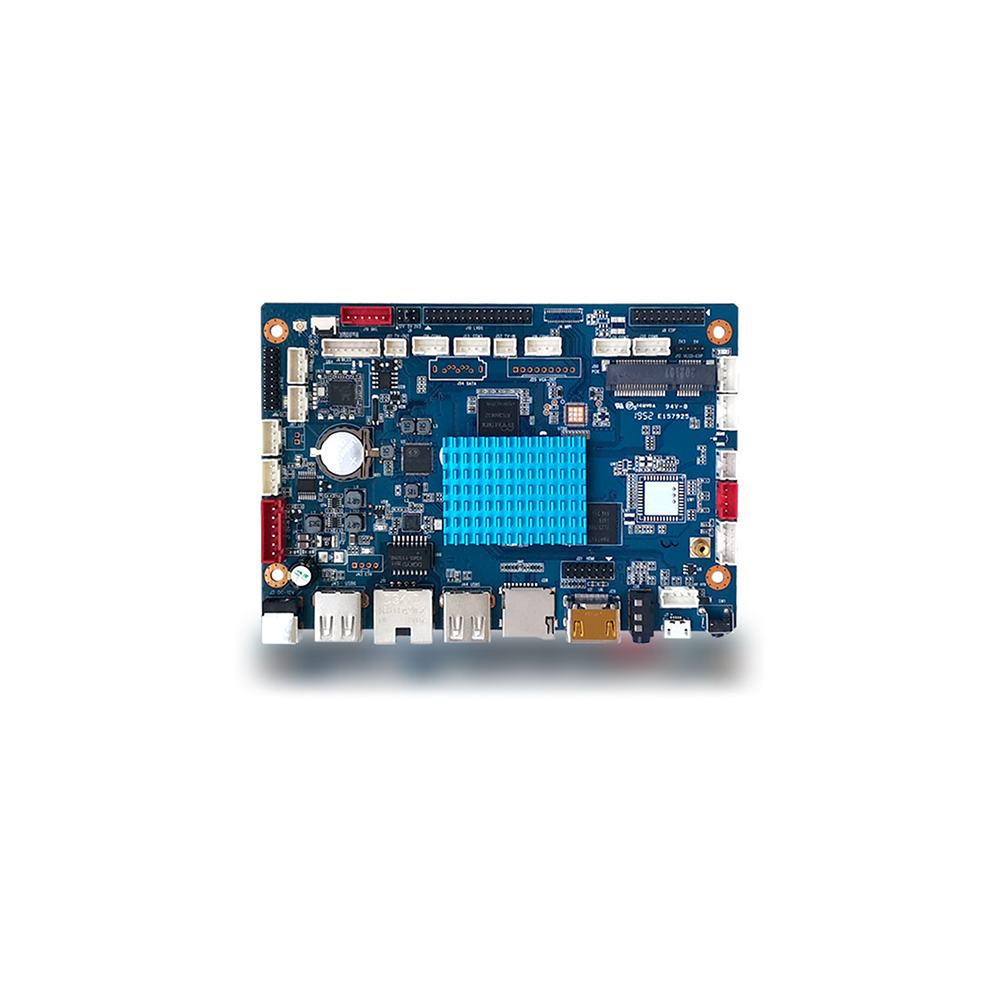

Allwinner A40i Android Development Board 1GB RAM 8GB eMMC K0

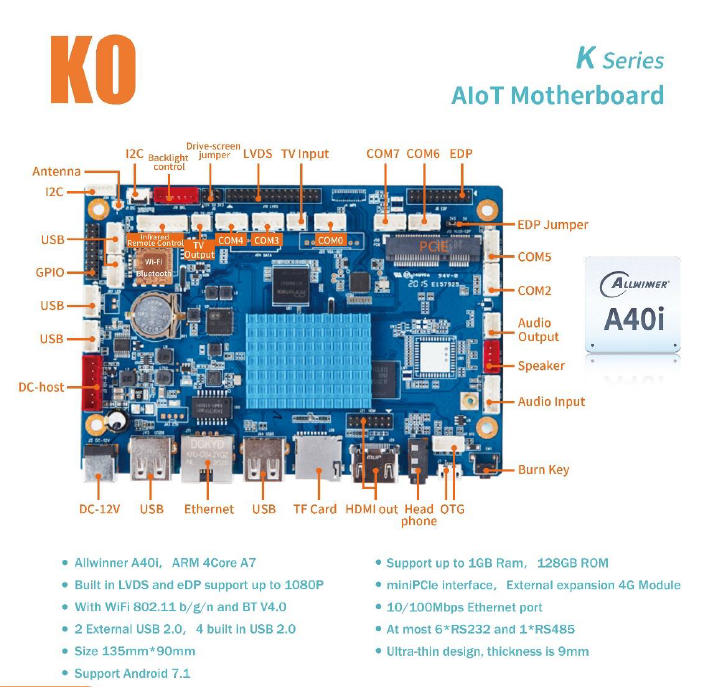

K0 is an Android development board built on the Allwinner A40i quad-core CPU. With support for HDMI, LVDS, and EDP displays, and expandable via Mini PCIe for 4G, it is an excellent choice for vending machines, kiosks, and other embedded Android applications.



Key Features:

  • Processor: Allwinner A40i, ARM quad-core Cortex-A7, up to 1.2GHz

  • Graphics: Mali-400MP2 GPU, supports OpenGL ES 2.0 / OpenVG 1.1

  • Display Support: LVDS and eDP (up to 1080p)

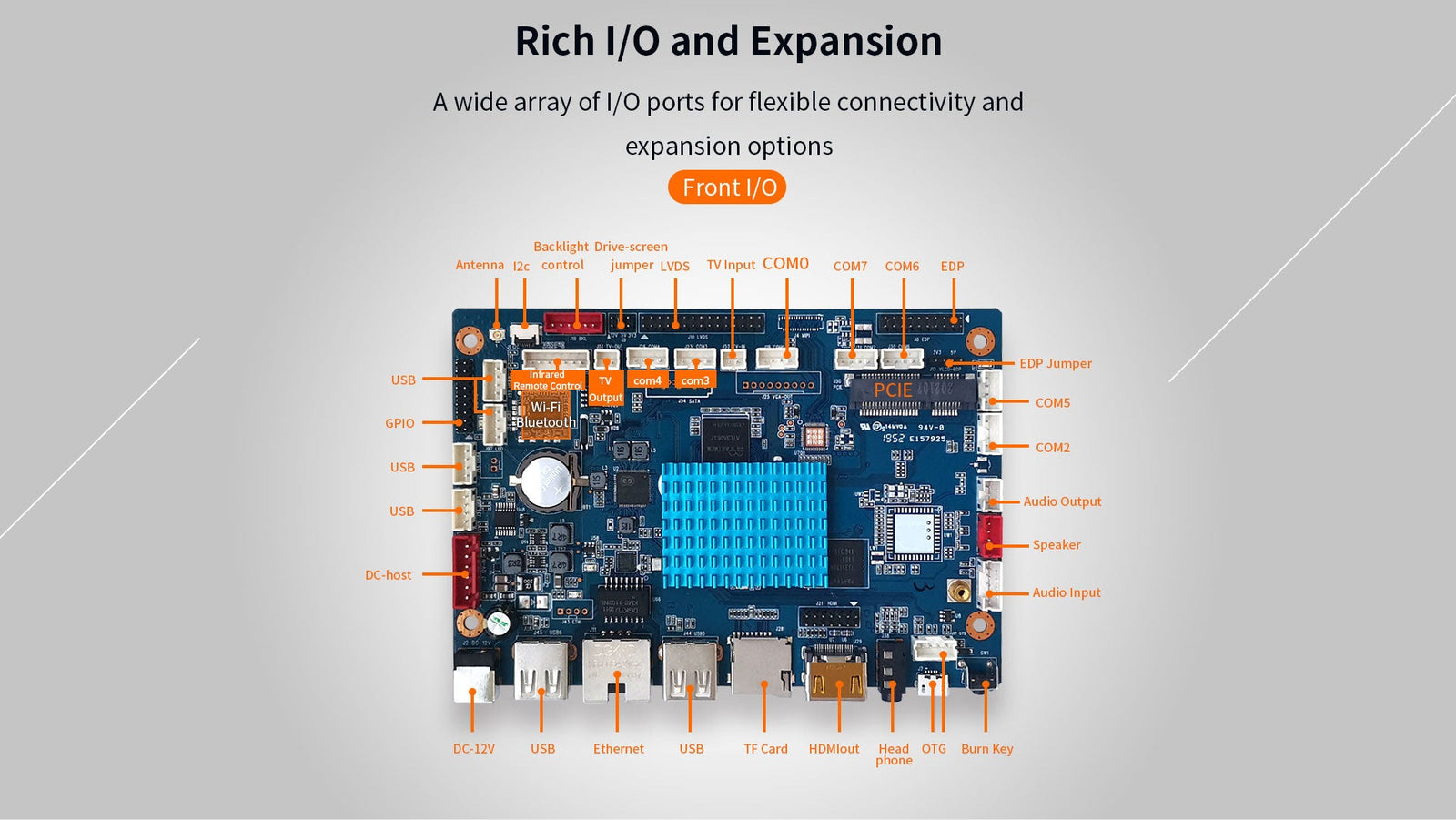

  • Connectivity:

    • 6 × USB 2.0 (2 external, 4 internal)

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

  • Serial Ports: 6 × RS232, 1 × RS485

  • Expansion: Mini PCIe for 4G module

  • Memory & Storage: 1GB RAM, 8GB eMMC (up to 128GB supported)

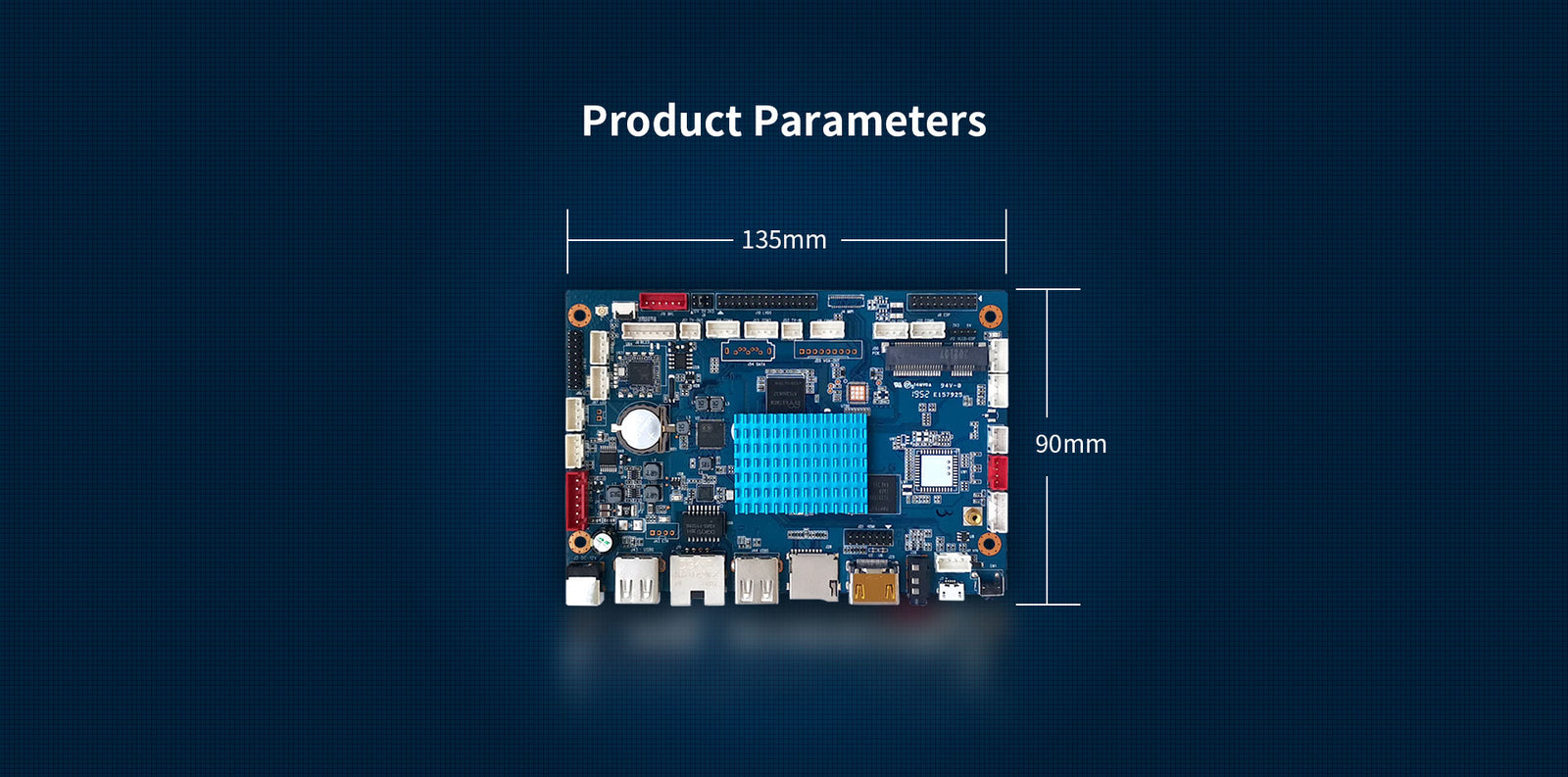

  • Form Factor: 135mm × 90mm, 9mm ultra-thin

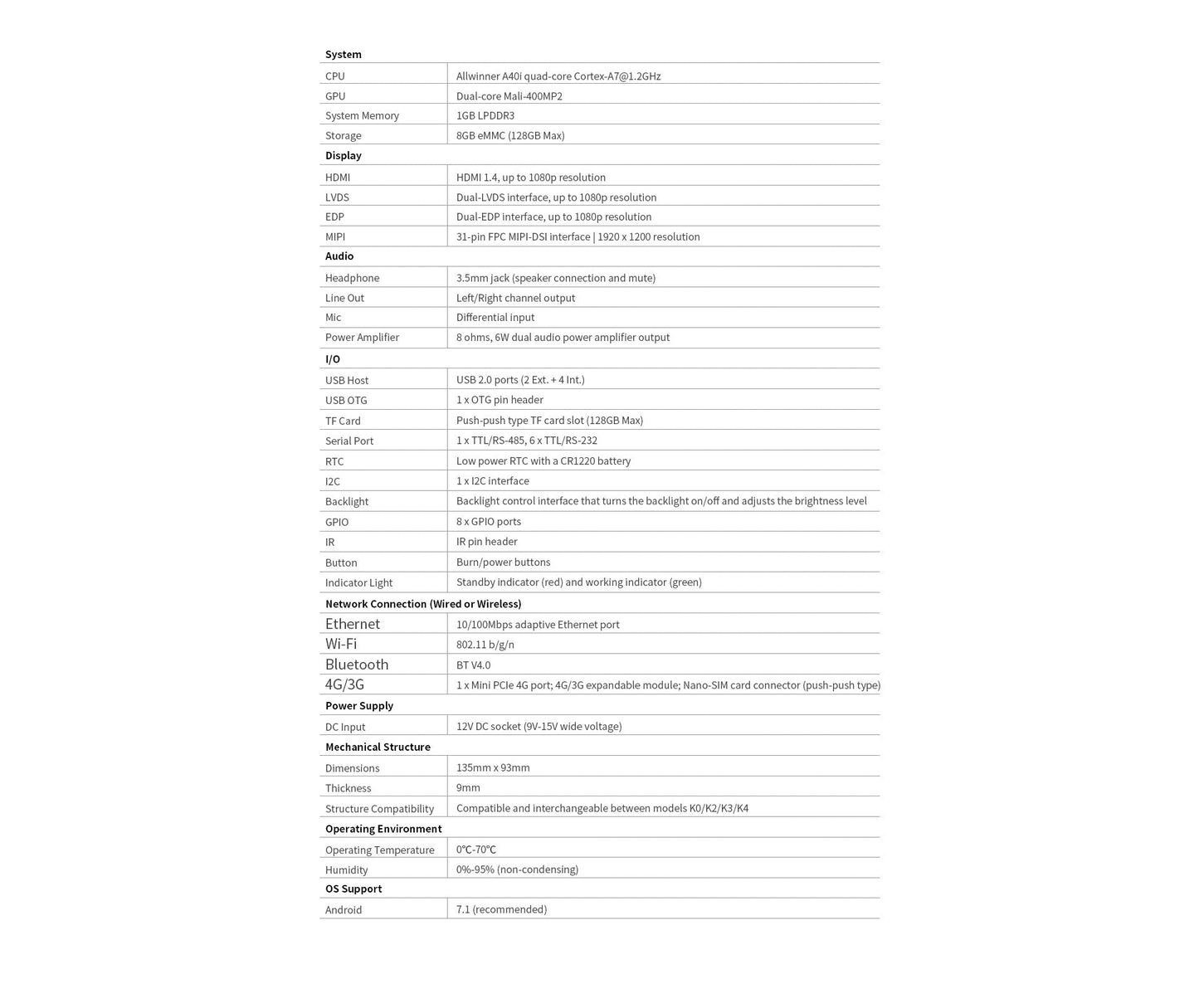

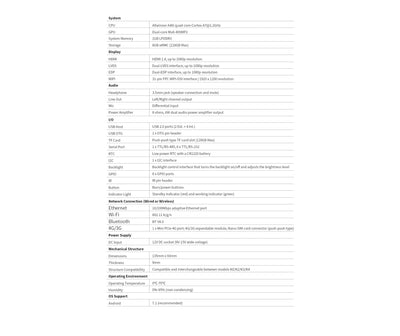

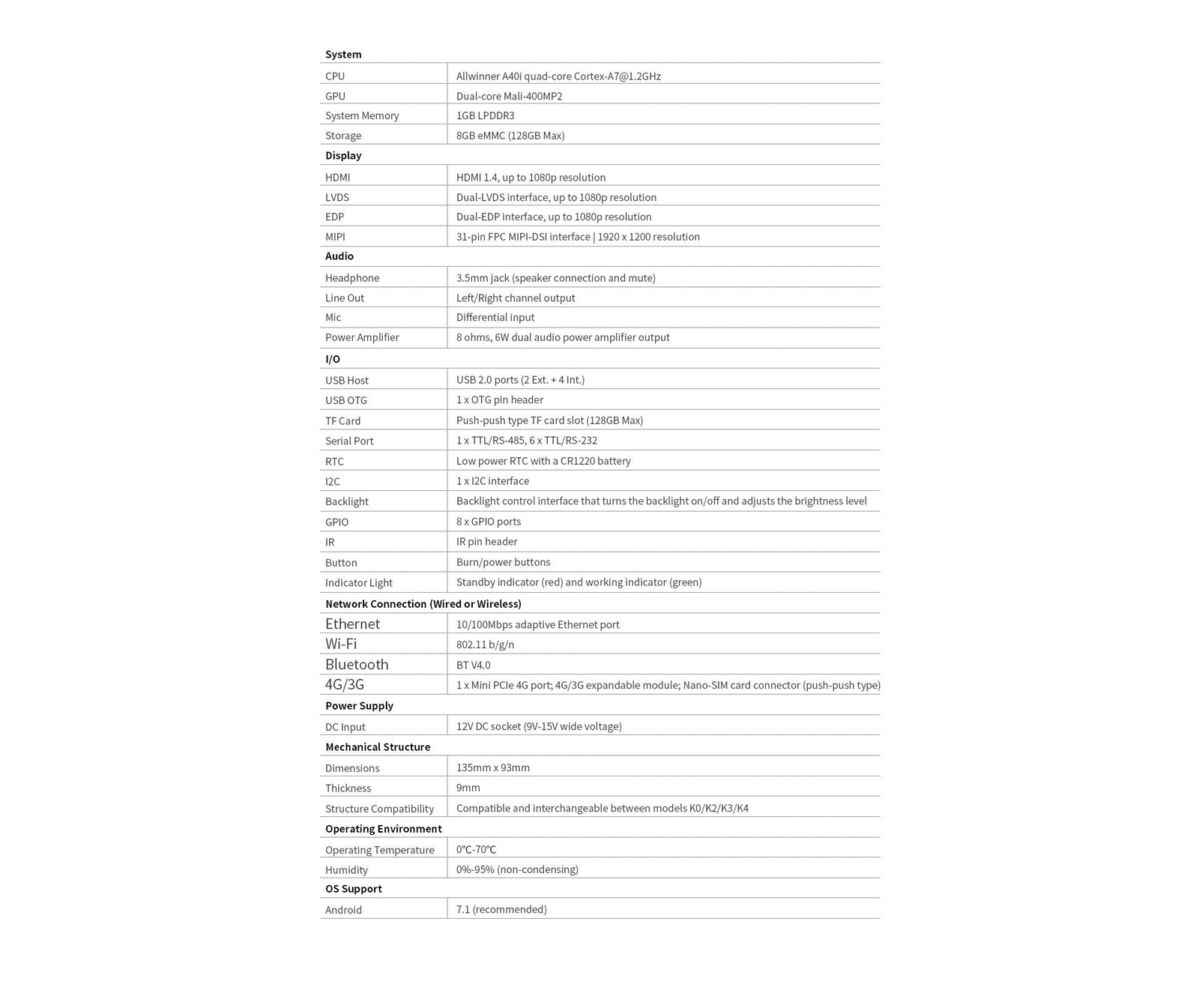

Technical specifications are loading…
