Genius Core Embedded Systems

RK3288 Embedded SBC for Industrial Control (2GB RAM, 32GB eMMC) (Android / Linux)

$91.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

RK3288 Smart Minicomputer Single Board Computer 2GB RAM 16GB eMMC C3

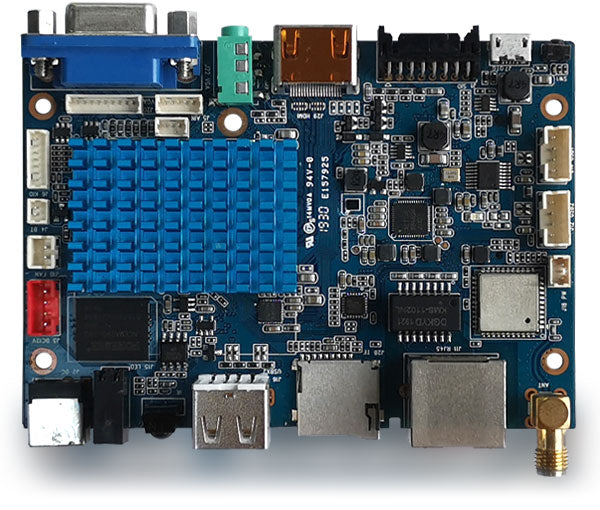

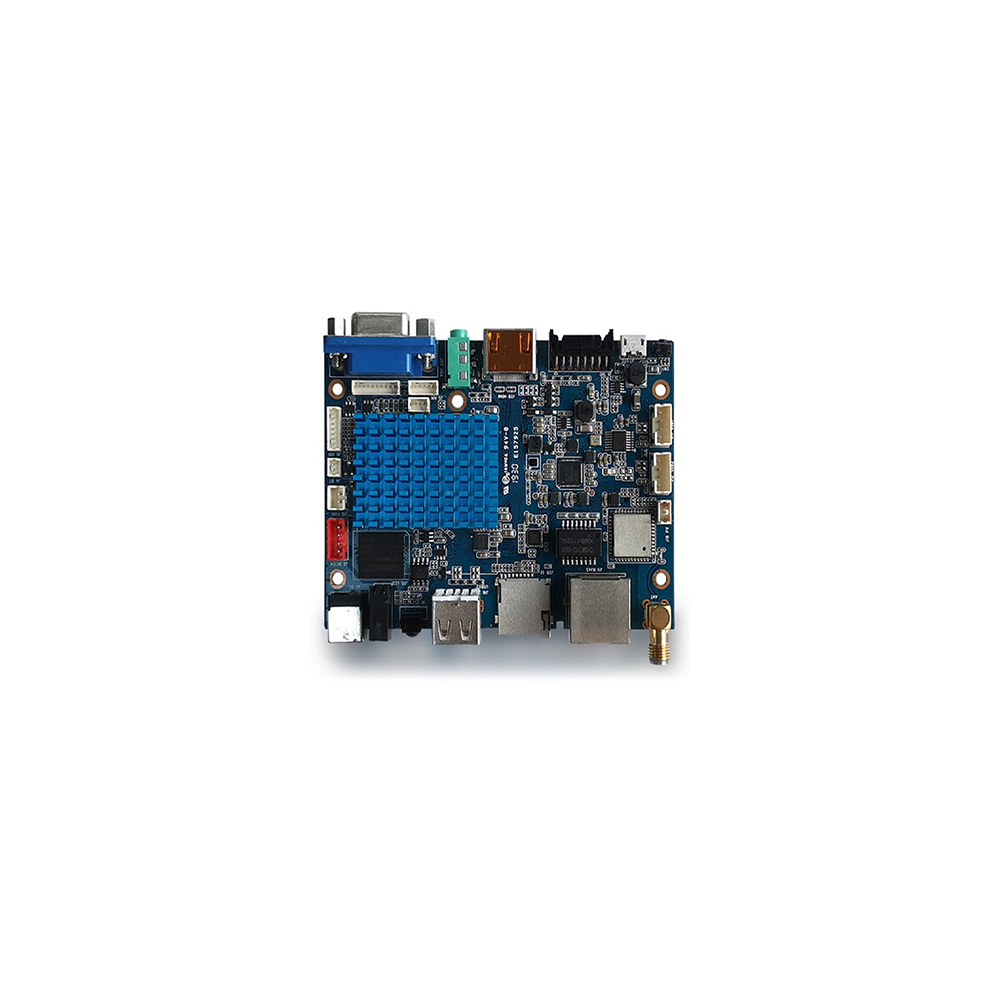

C3 is a smart minicomputer single board computer powered by the Rockchip RK3288 processor, featuring a high-performance ARM Cortex-A17 quad-core CPU clocked up to 1.6GHz. The integrated Mali-T764 GPU supports 4K and 1080P hardware decoding, making it ideal for multimedia, digital signage, and embedded industrial solutions.

Designed with a compact footprint and essential connectivity, the C3 is well-suited for a variety of smart applications requiring display output and control capabilities.

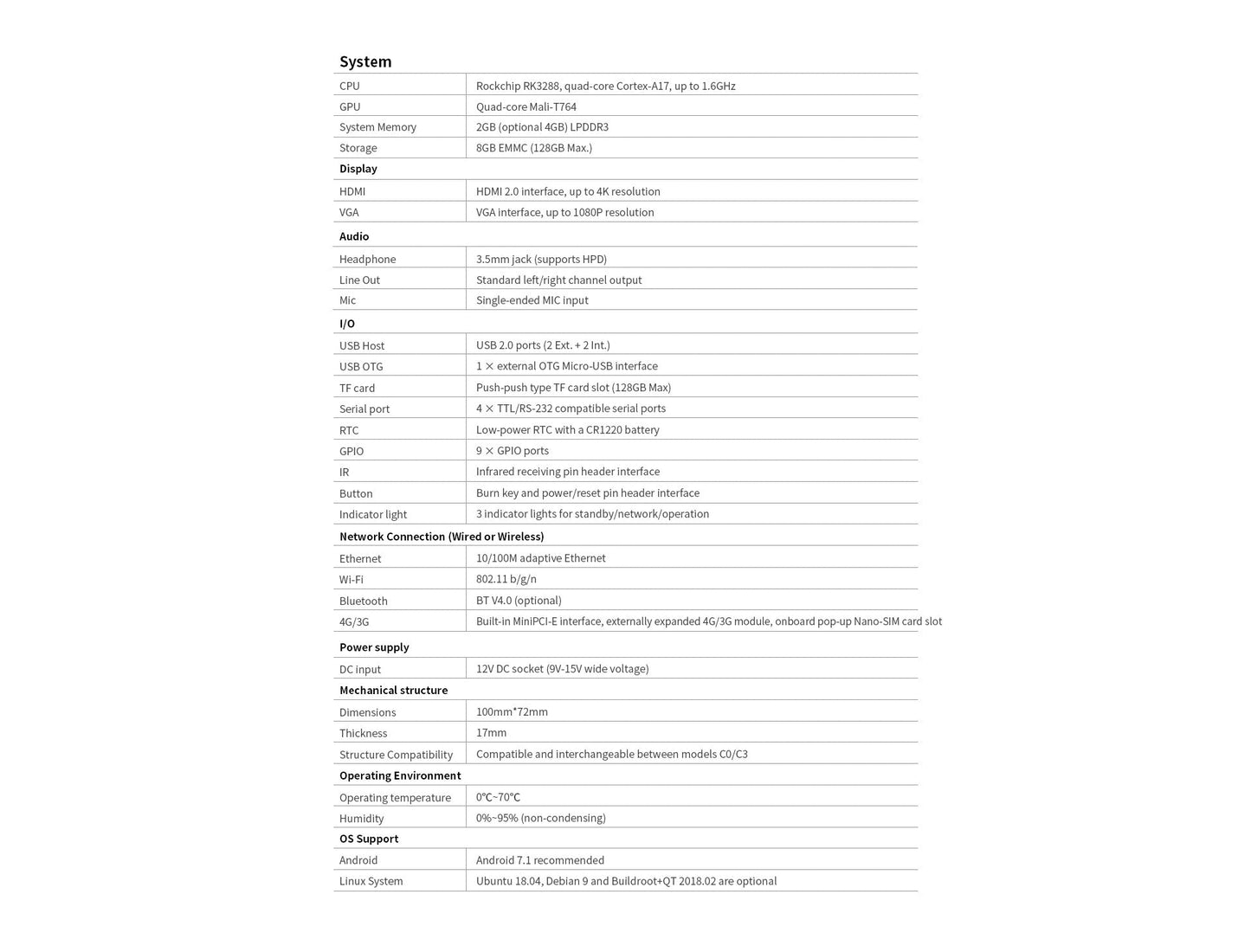

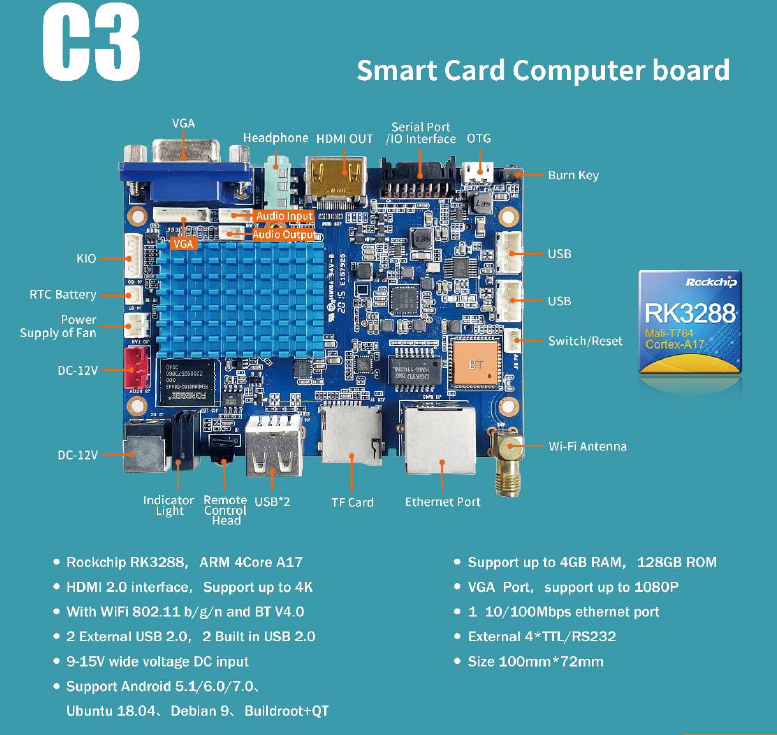

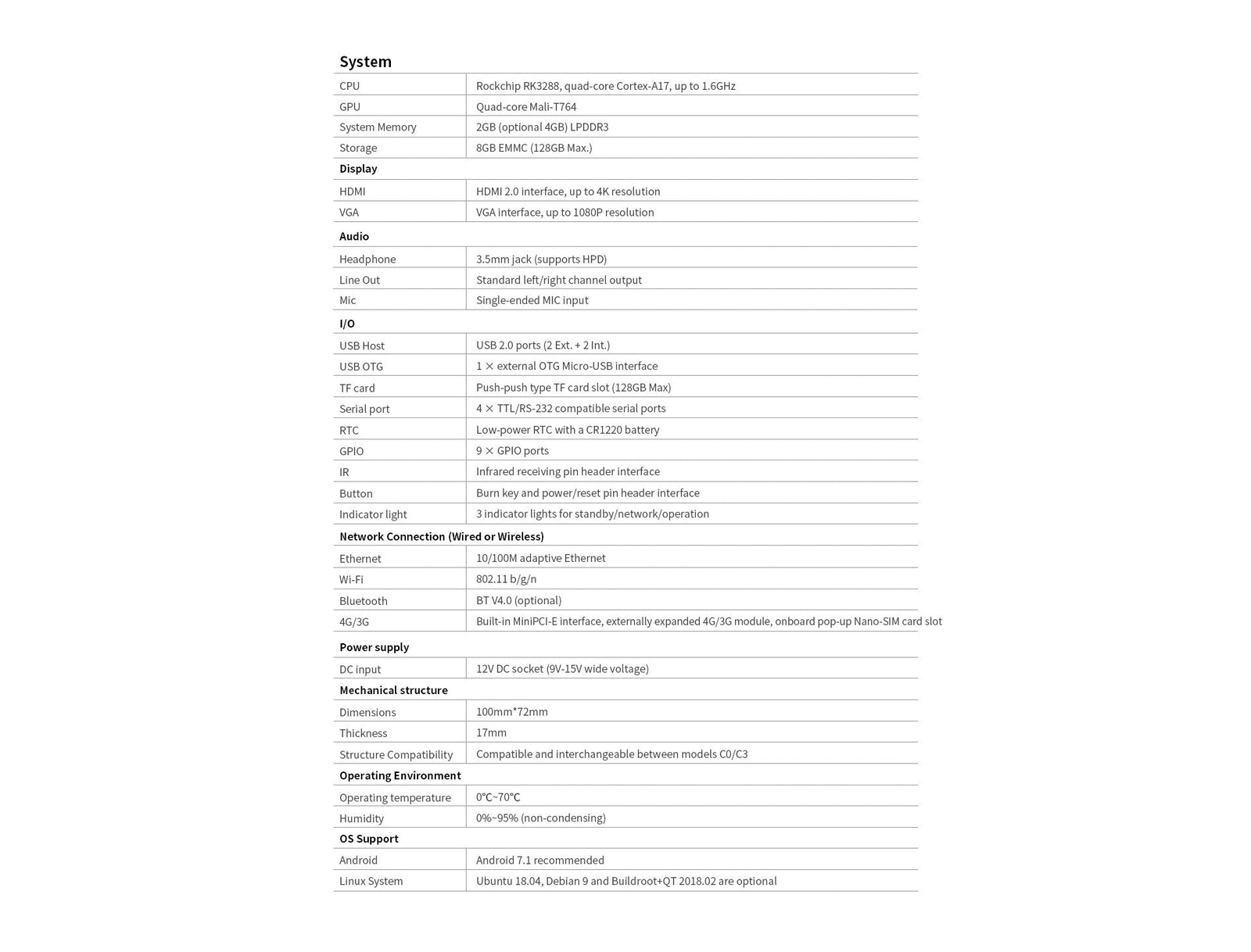

Key Features:

  • Processor: Rockchip RK3288, ARM quad-core Cortex-A17, up to 1.6GHz

  • Graphics: Mali-T764 GPU, supports OpenGL ES 1.1/2.0/3.1

  • Display Support:

    • HDMI 2.0 (up to 4K)

    • VGA (up to 1080P)

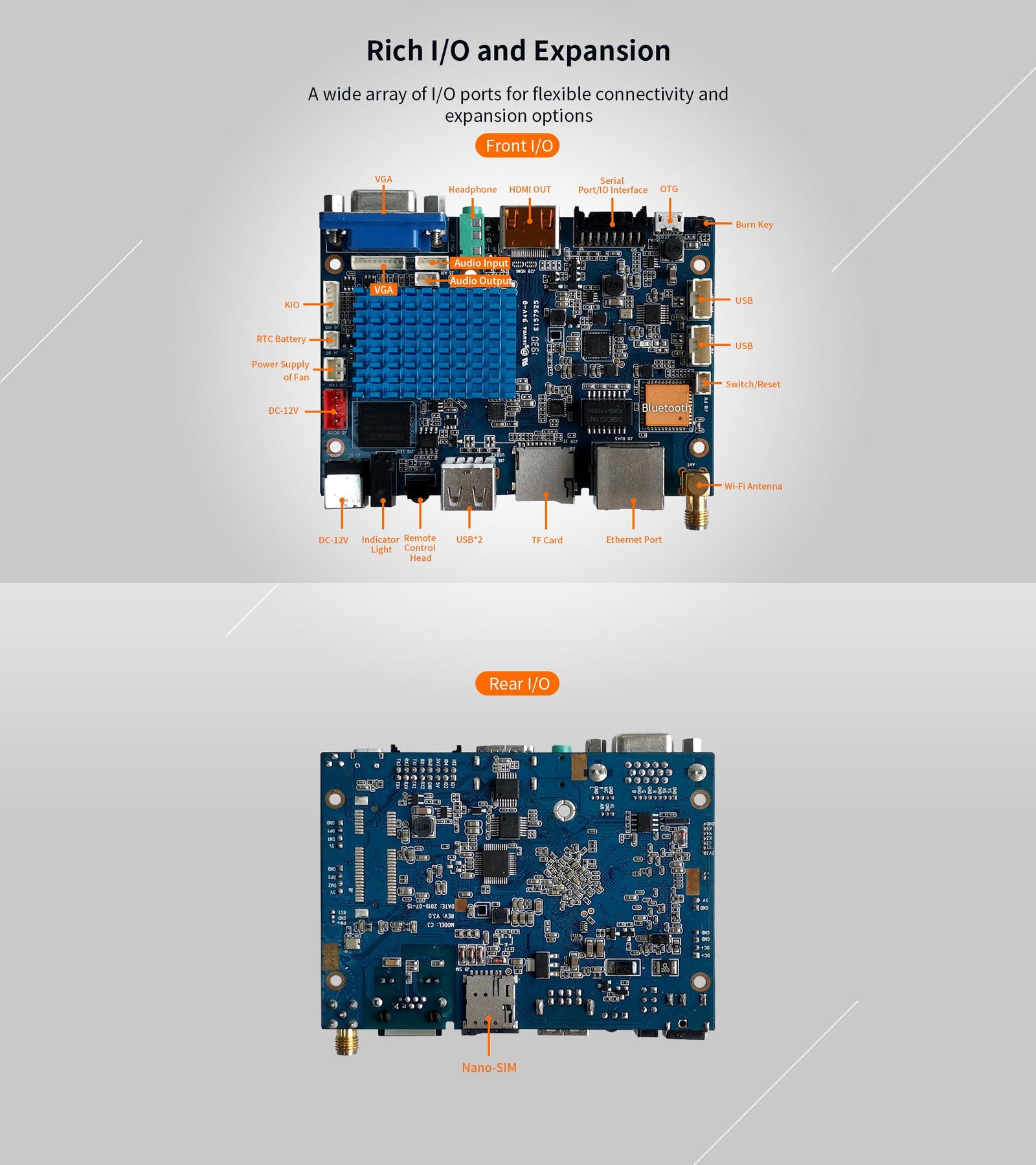

  • Connectivity:

    • 4 × USB 2.0 (2 external, 2 internal)

    • 1 × 10/100Mbps Ethernet

    • Wi-Fi 802.11 b/g/n

    • Bluetooth 4.0

  • Serial Ports: 4 × TTL/RS232

  • Memory & Storage: Default 2GB RAM, 16GB eMMC (supports up to 128GB)

  • Power Supply: 9V–15V wide voltage DC input

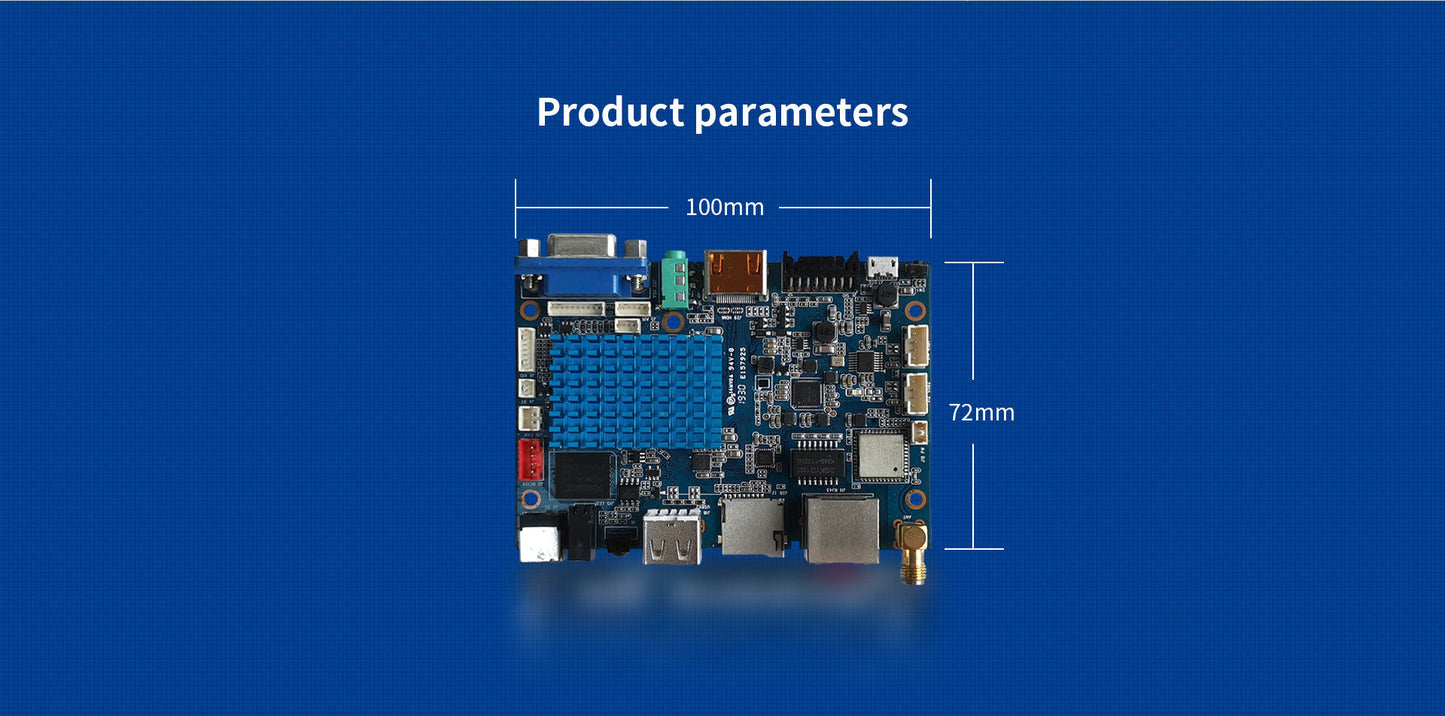

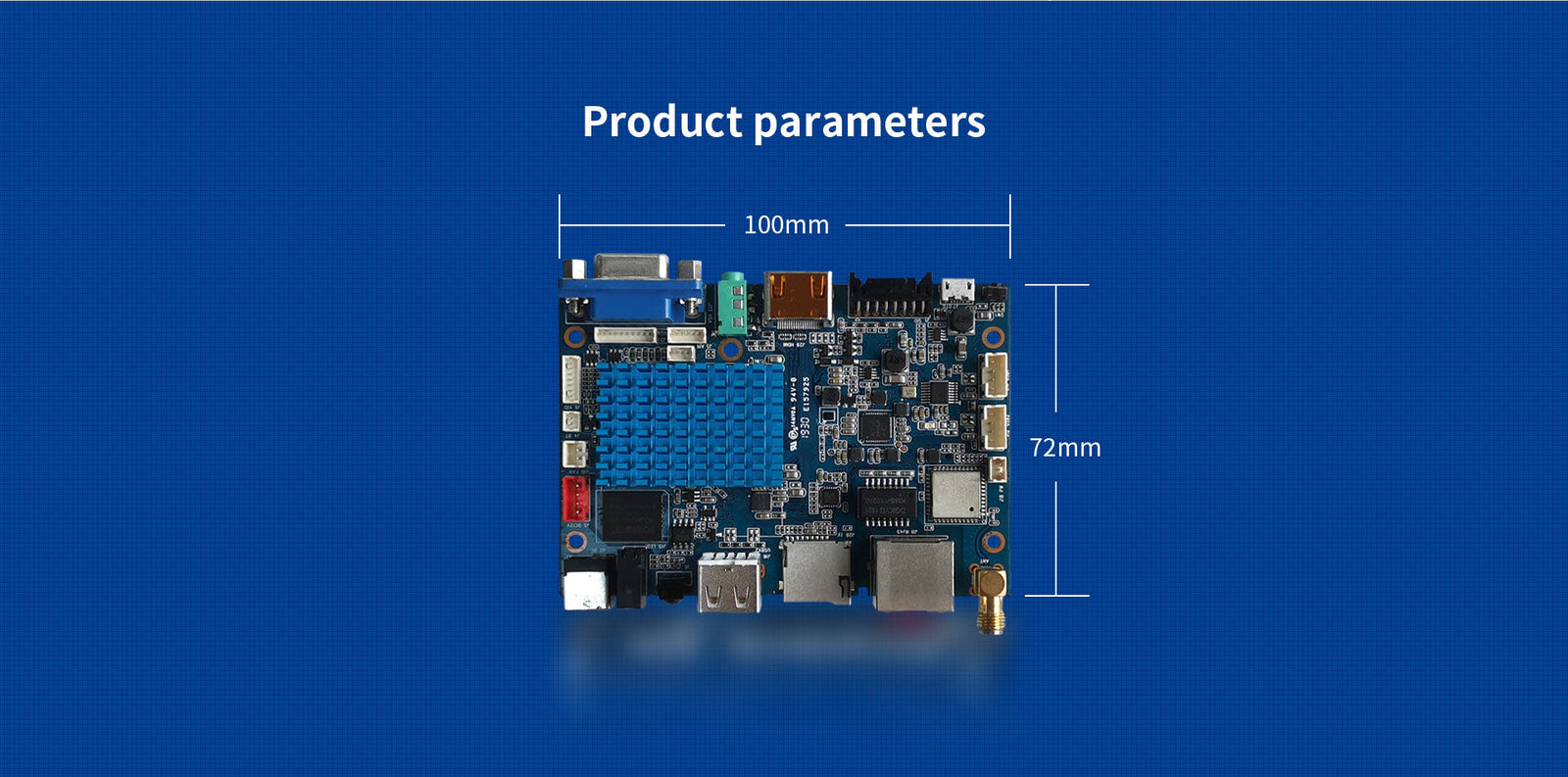

  • Form Factor: Compact 100mm × 72mm

Technical specifications are loading…
