K116E 11.6″ eDP FHD LCD Display | Capacitive Touch | 1920×1080 | eDP 30-Pin | Android Ubuntu

$104.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

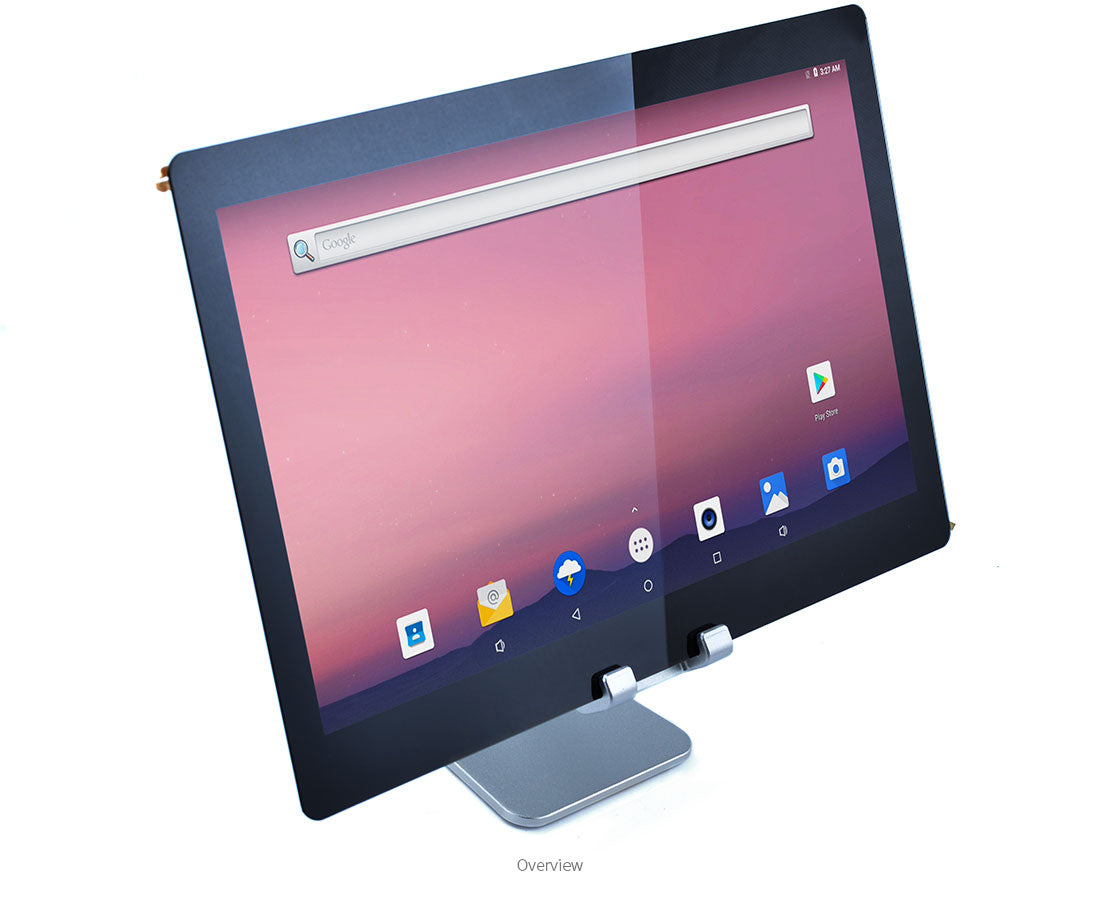

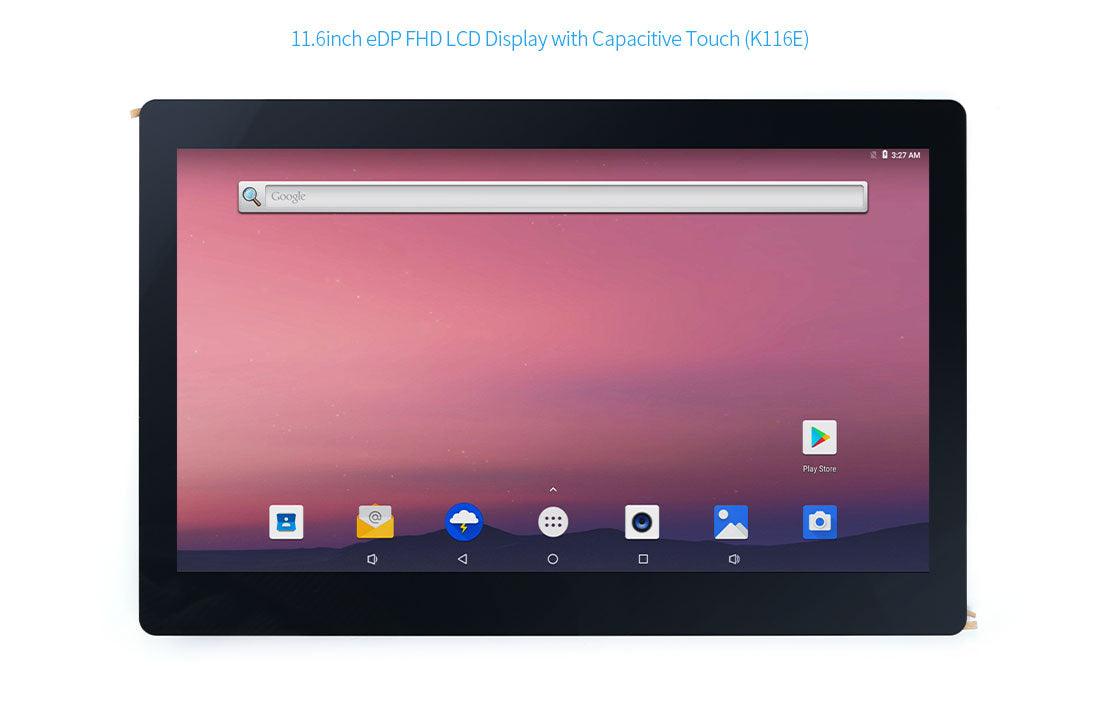

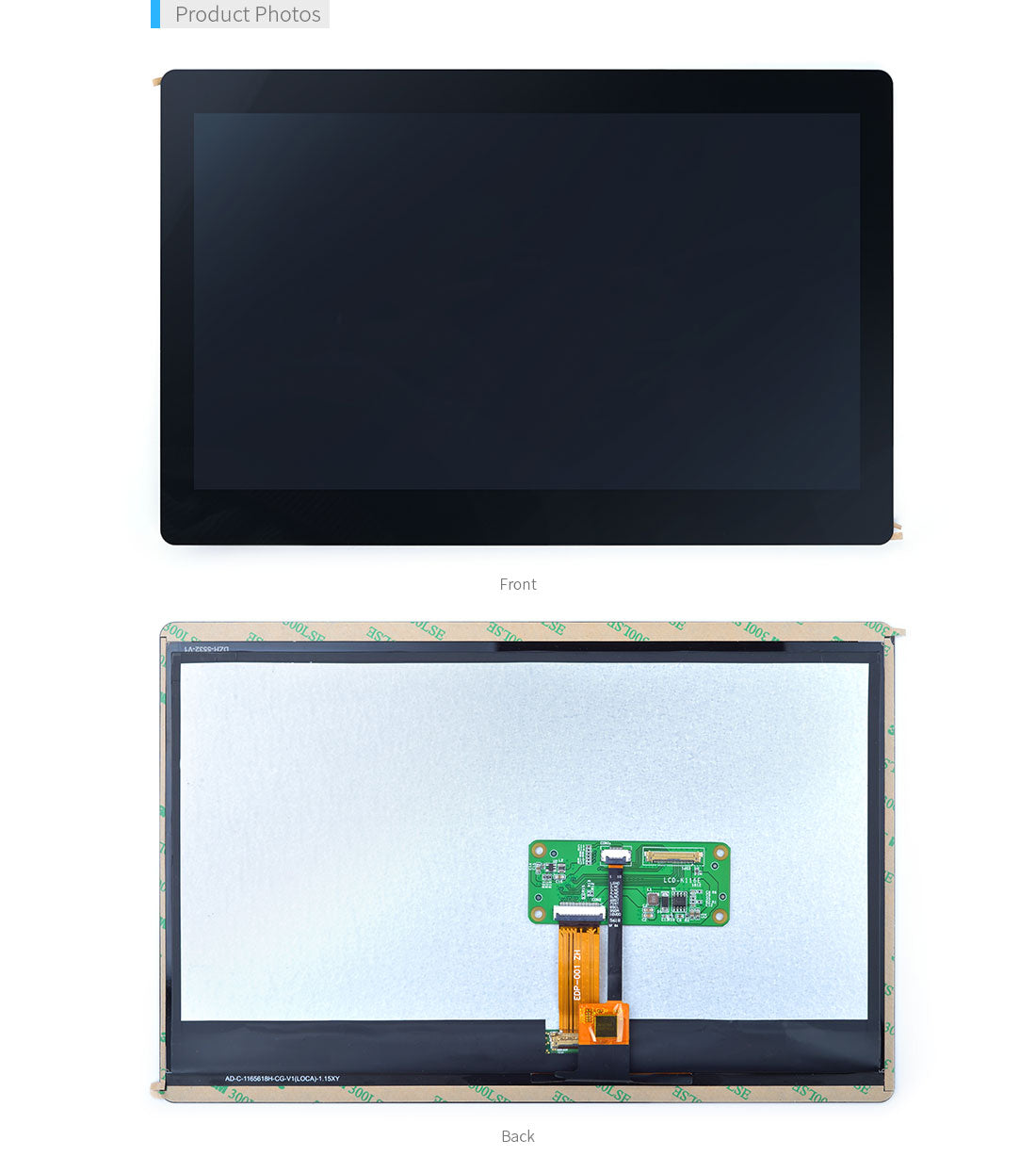

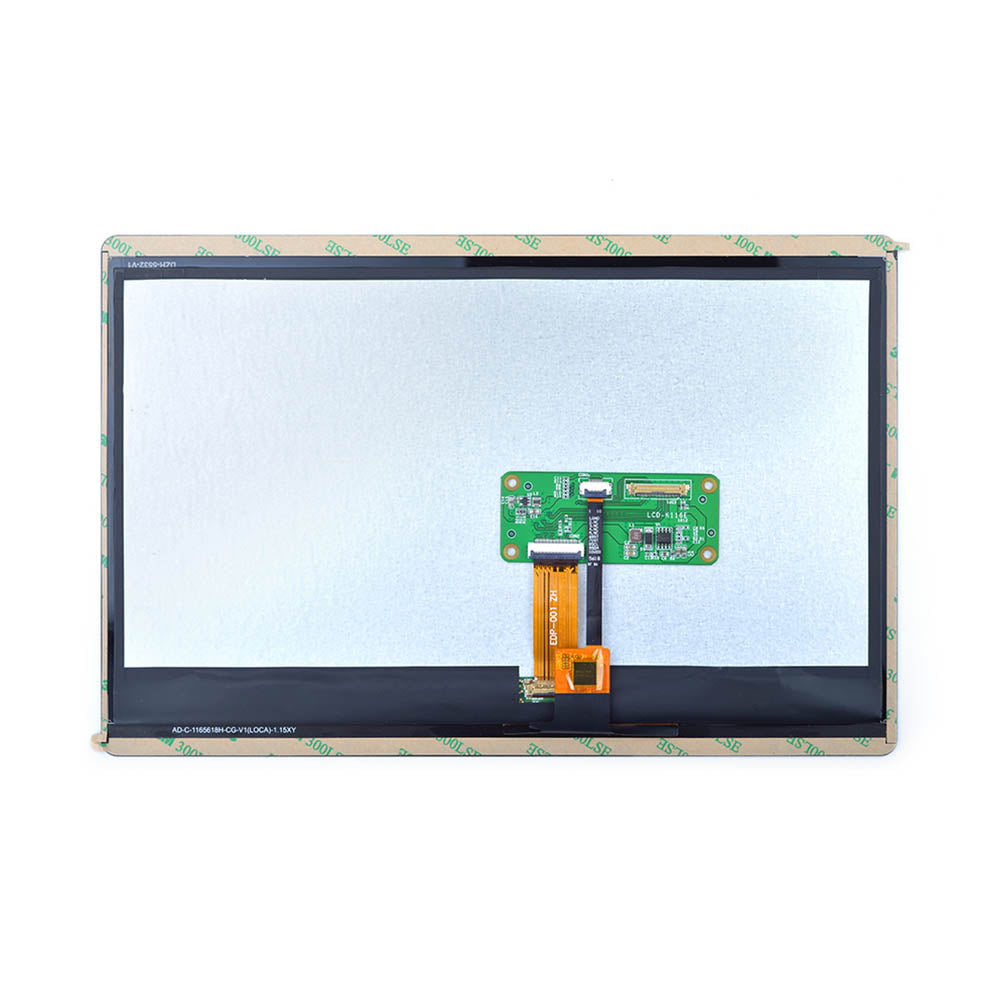

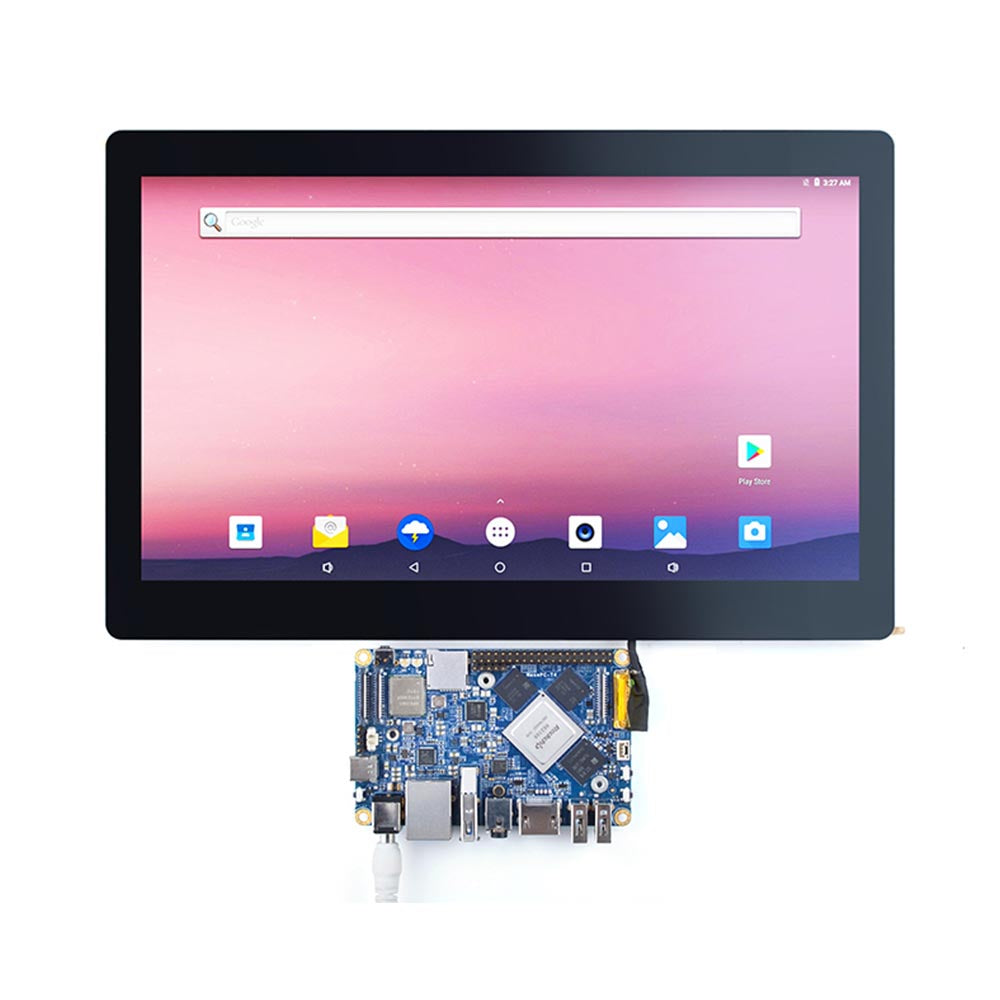

The K116E 11.6″ eDP FHD LCD Display by Friendly Elec is a high-resolution eDP display module with capacitive touch designed for embedded platforms, HMI systems, and development boards running Android or Ubuntu.

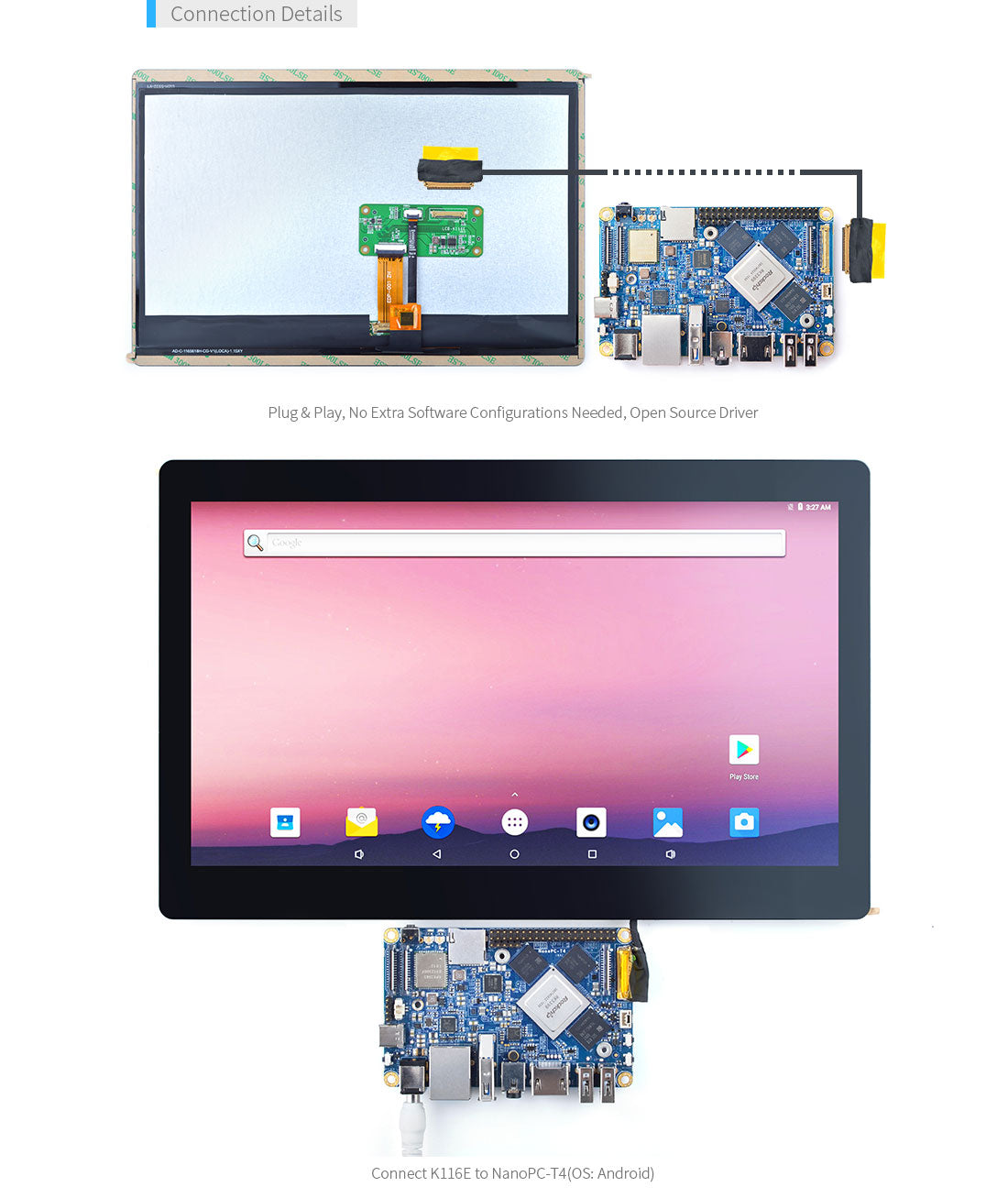

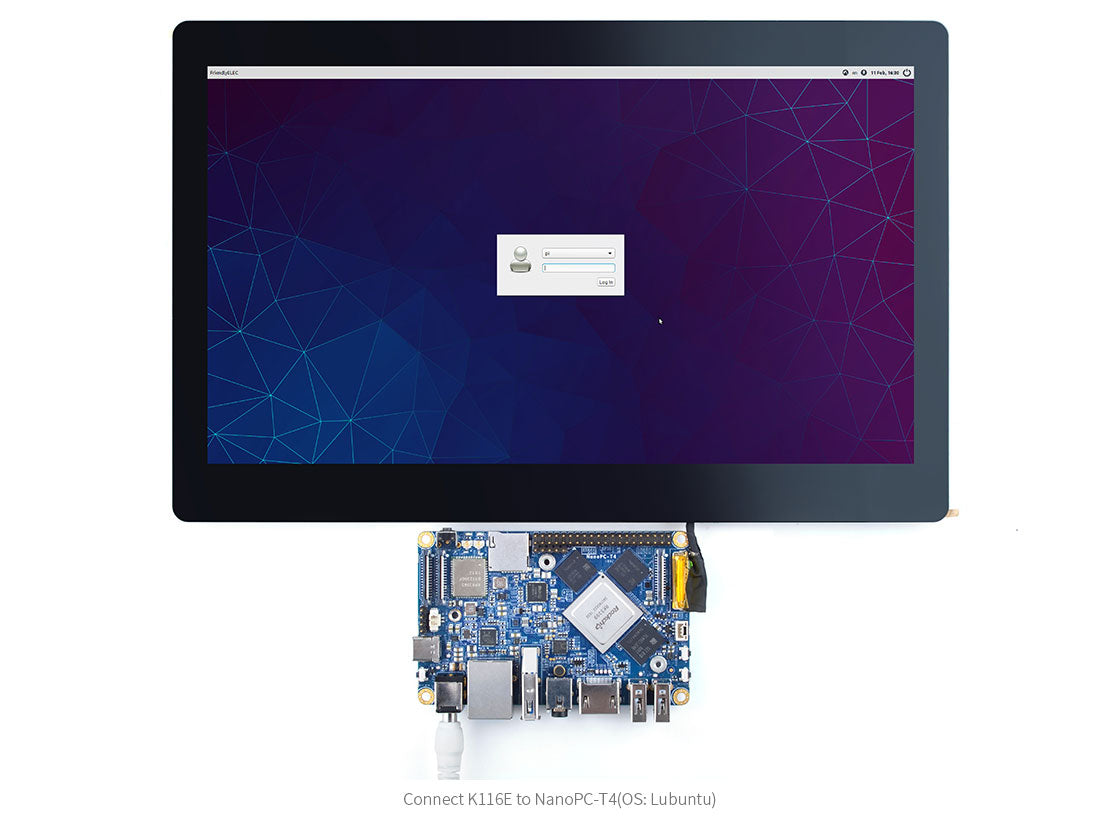

Featuring a 1920 × 1080 Full HD resolution and a standard 30-pin eDP receptacle connector (I-PEX-20455-030E), the K116E offers sharp visuals and reliable compatibility with FriendlyELEC boards such as NanoPC-T4.

✔ 11.6″ a-Si TFT LCD • 1920×1080 (FHD)
✔ Five-Point Capacitive Touch Panel
✔ eDP Interface • Open-Source Driver

Display Specifications

Screen size: 11.6 inches
Resolution: 1920 × 1080 (FHD)
Panel technology: a-Si TFT
Response time: 20 ms (max)

Touch & Interface

Five-point capacitive touch
eDP video interface

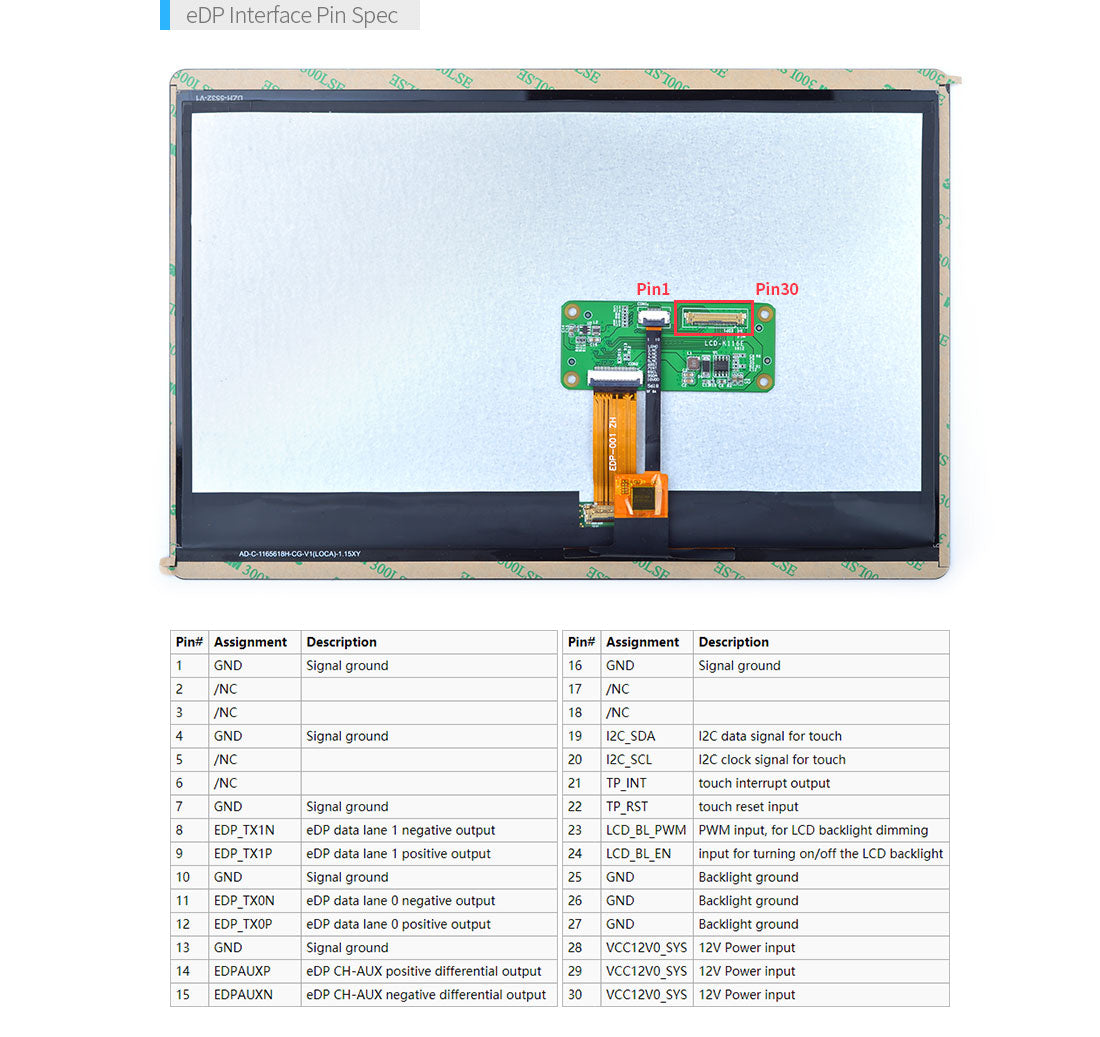

30-pin I-PEX-20455-030E connector
Backlight adjustable via PWM

Power & Environment

Operating voltage: 3.3V
Operating temp: −20 °C to +70 °C
Storage temp: −20 °C to +70 °C

Mechanical & Compatibility

Outline dimensions: 105.5 × 67.1 × 8.5 mm
Touch panel O.D: 282.0 × 183.2 × 4.13 mm
Display area: 256.32 × 144.18 mm
Weight: approx. 963 g

The K116E is well suited for industrial HMIs, control panels, embedded terminals, and multimedia development platforms that require a sharp Full HD display with open-source driver support.

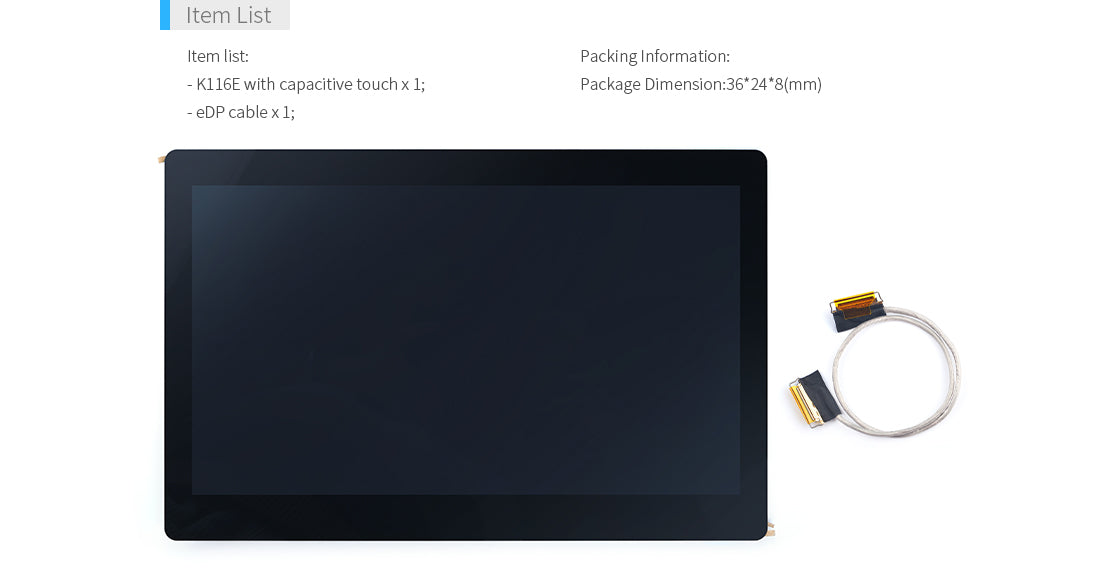

This product is a display module only. Host boards, cables, and mounting accessories are not included unless stated otherwise.
