Industrial Weatherproof Telephone

$0.00
Opens WhatsApp with this product and current options

Yellow industrial weatherproof telephone for voice communication in outdoor and heavy industrial sites. The housing is die-cast aluminum with a polyurethane finish. It is built for humidity, dust, vibration, shock, extreme temperature, salt water and abuse.

Typical sites include outdoor areas, highways, tunnels, mines, offshore wind farms, production floors, chemical plants, power stations, quay cranes and ship loaders.

Body

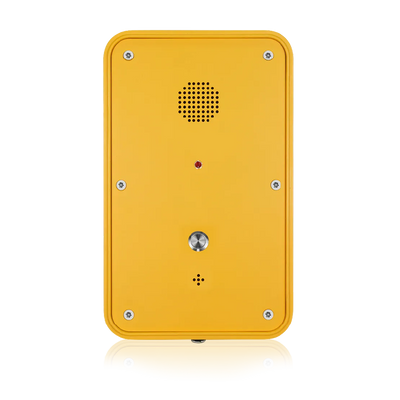

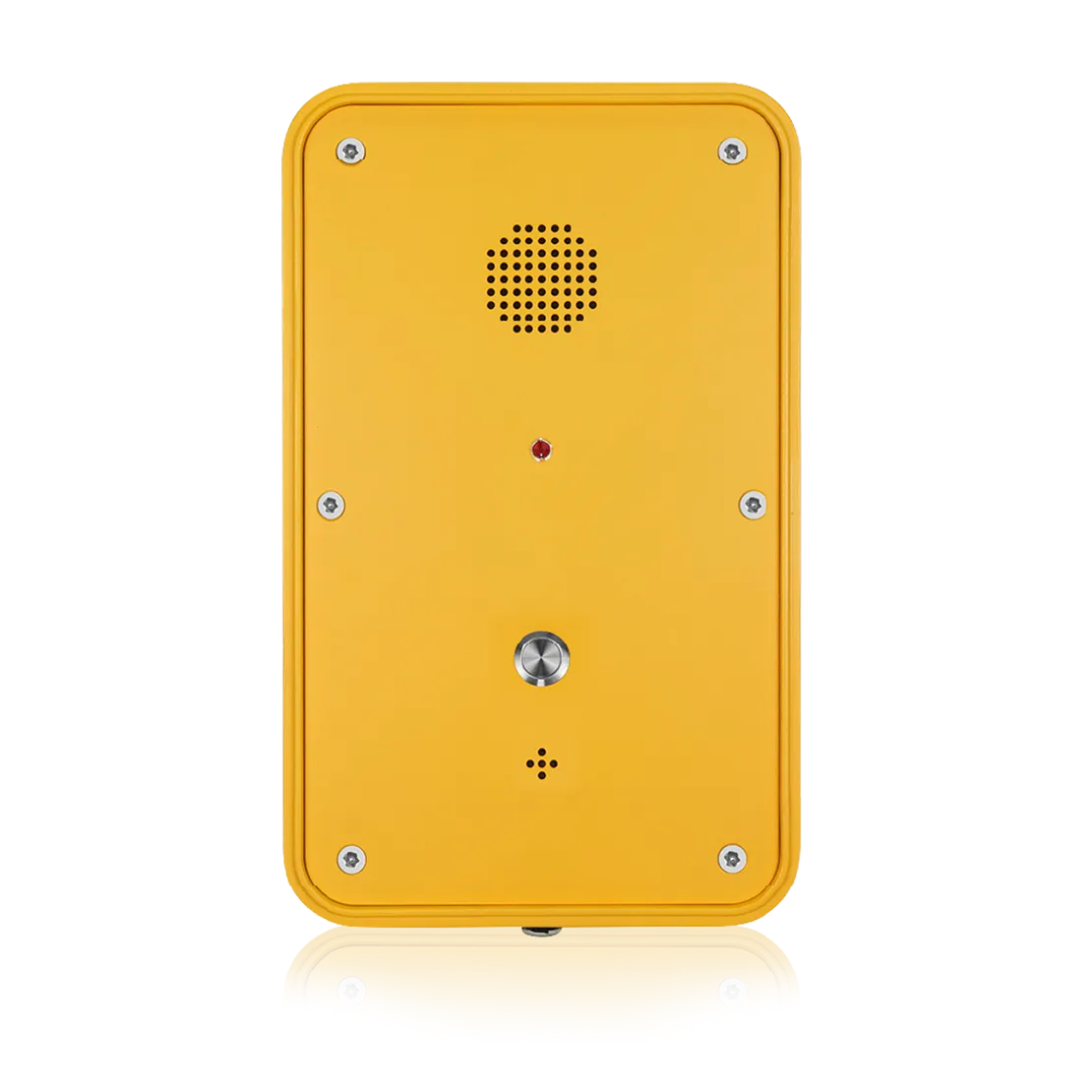

  • The base is hands-free and without a door, with one metal call button.
  • Incoming-call LED, noise-cancelling microphone and a 2 W speaker.
  • Wall mounting and three M20 cable entries.
  • IP66 / IP67 enclosure. IK10 impact resistance.

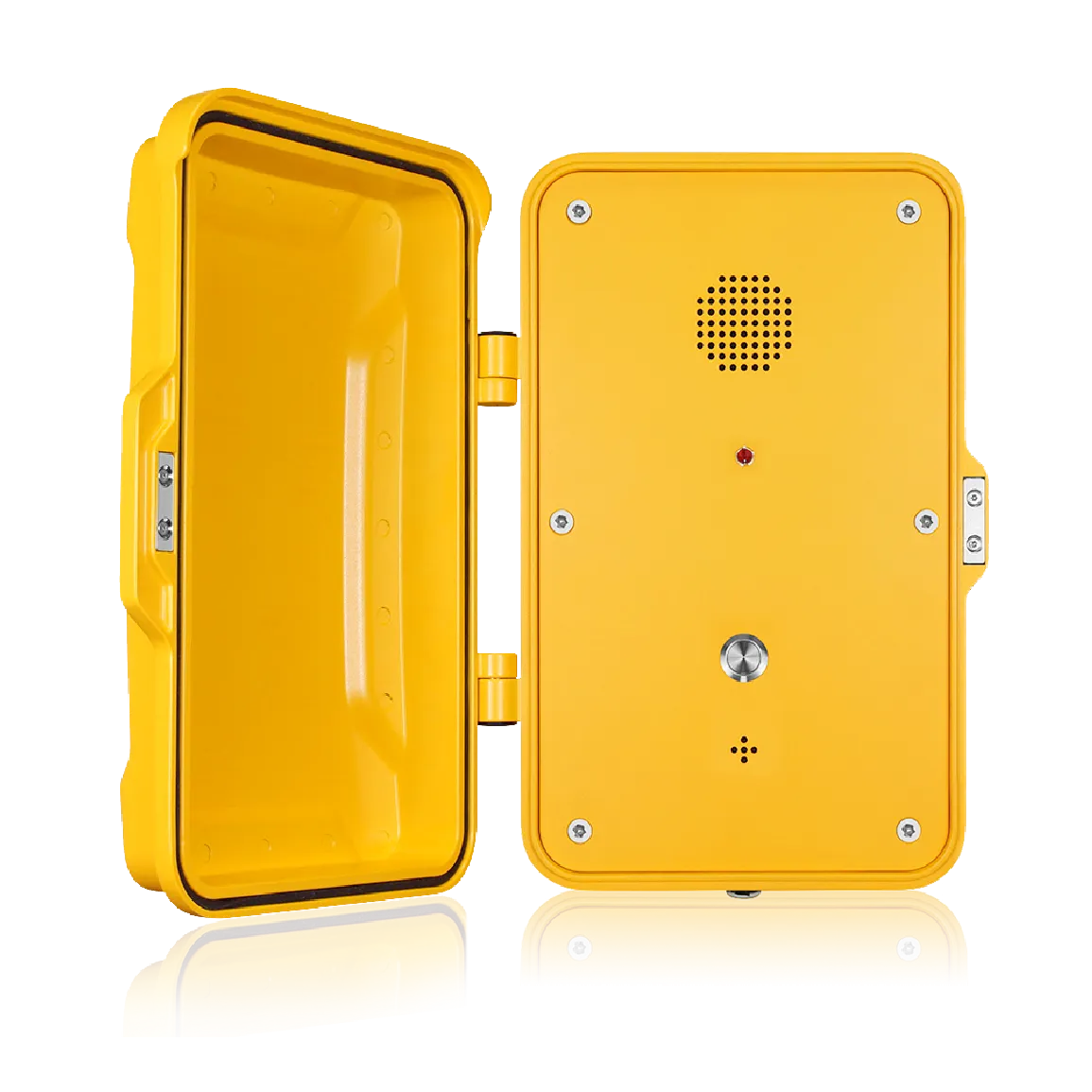

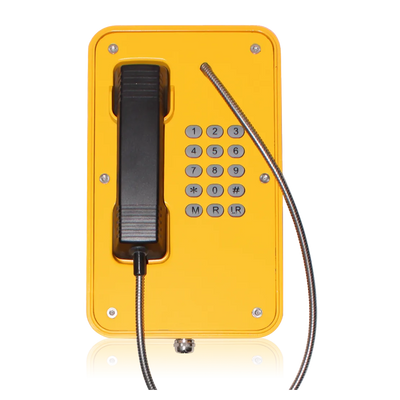

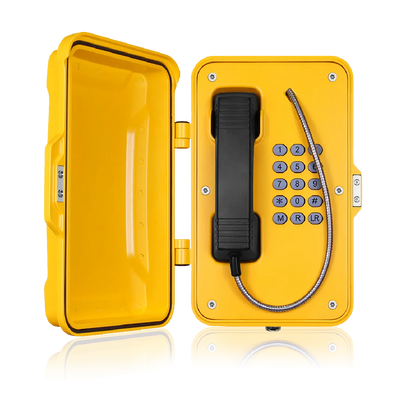

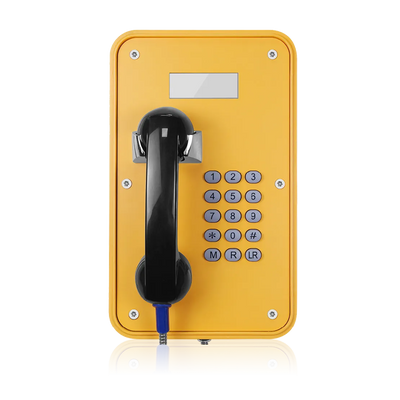

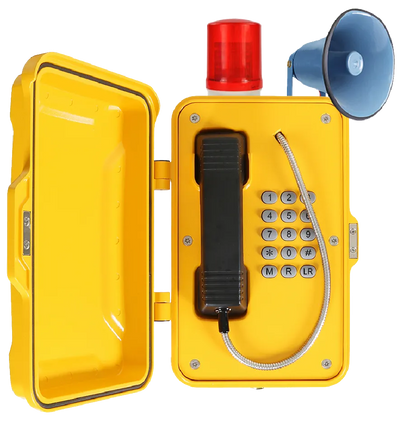

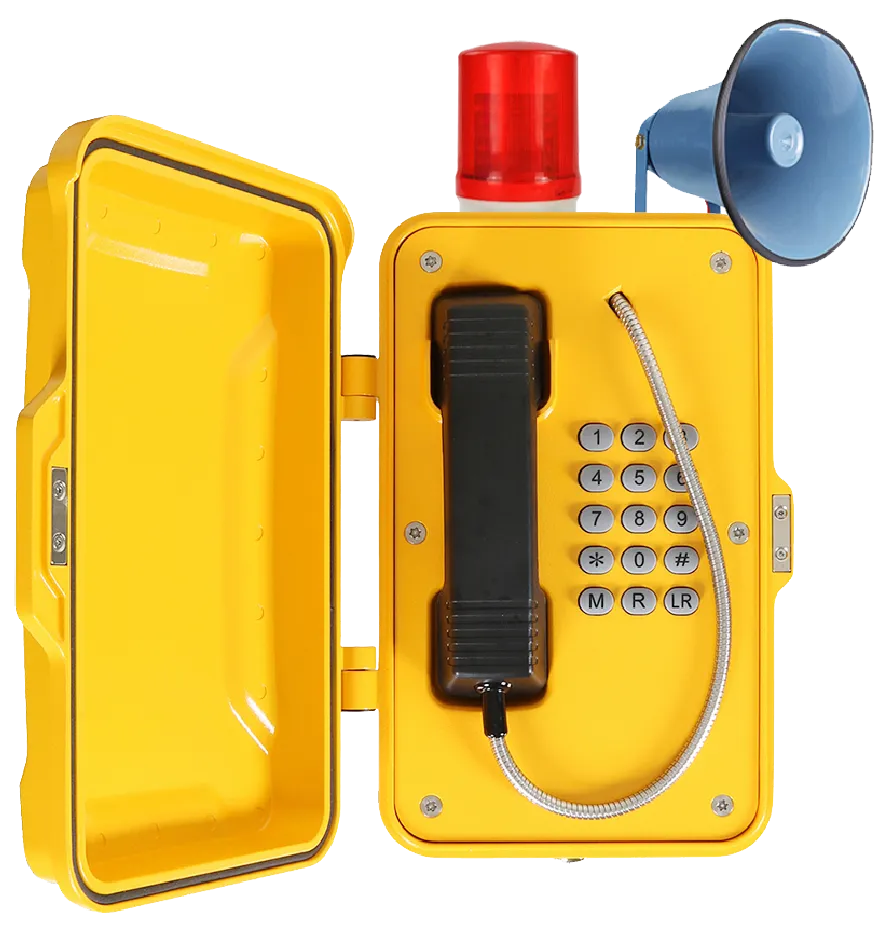

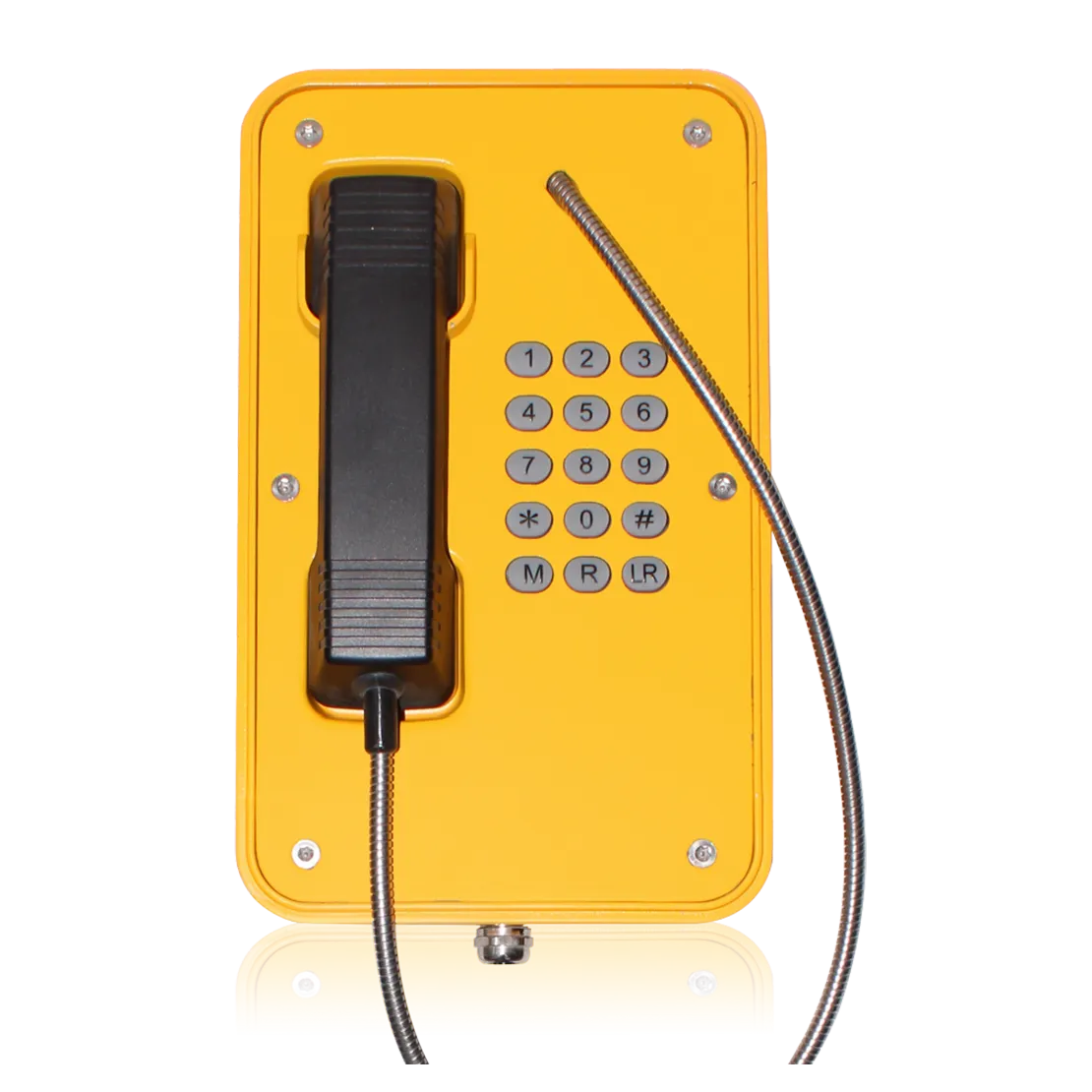

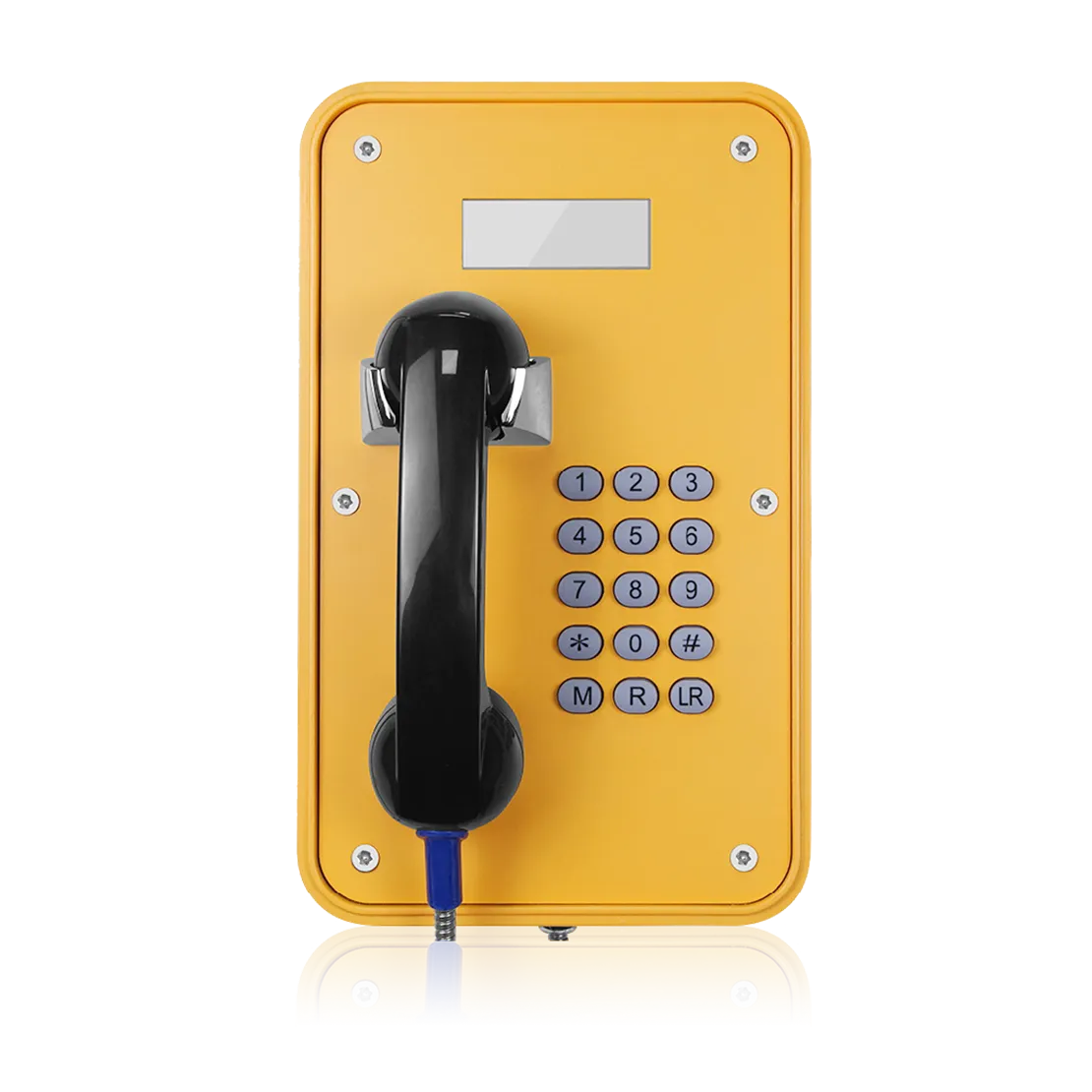

  • Door, keypad, hot line, LCD, horn and beacon are quote options.

GJ-WP-AL, analog

  • Powered from the telephone line.
  • Line voltage 24 to 65 VDC, current 20 to 100 mA.
  • Ringer 48 to 90 VAC, 21 to 54 Hz. Volume 80 dB(A) at 1 m.

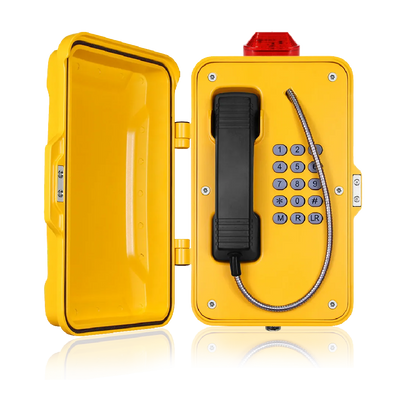

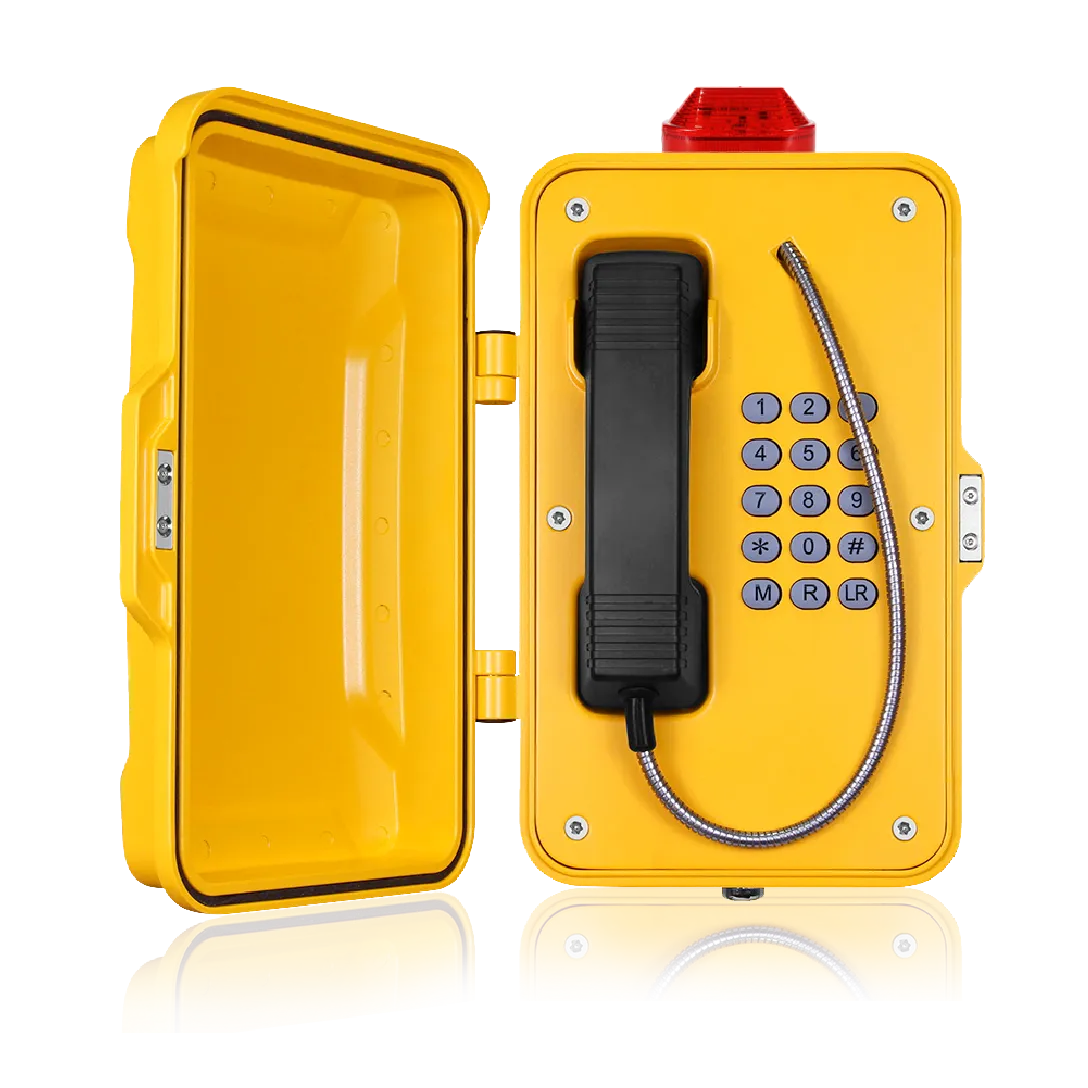

  • Pulse or DTMF dialing. The line can power an external lamp on top.

GJ-WP-SIP

  • PoE 802.3af or 12 V DC.
  • SIP 2.0 (RFC 3261), 10/100 WAN and LAN.
  • Codecs G.711, G.722, G.723 and G.729.
  • Ring volume 90 to 95 dB(A) at 1 m. Idle 1 W, working 2.4 W.

GJ-WP-4G

  • 12 V DC. Input range 7.4 to 12 V.
  • Remote setup by SMS and auto-dial numbers.
  • External SMA antenna with a 2 m cable.
  • Ring volume 90 dB(A) at 1 m. Call limit 6 to 8 minutes, configurable.
  • Idle 0.3 W, working 1.5 W.

Operating temperature -40 C to 65 C. Storage -40 C to 75 C. MTBF is above 50,000 hours in normal use.

Datasheets: GJ-WP-AL, GJ-WP-SIP, GJ-WP-4G.

Specification Details
Product family GJ-WP
Body Die-cast aluminum, polyurethane finish
Ingress IP66 / IP67
Impact IK10
Mounting Wall, 3x M20 cable entries
Microphone Noise cancelling
Speaker 2 W
Operating temperature -40 C to 65 C
Storage temperature -40 C to 75 C
Service life MTBF above 50,000 hours
GJ-WP-AL power Drawn from the telephone line
GJ-WP-AL line voltage 24 to 65 VDC, 20 to 100 mA
GJ-WP-AL ringer 48 to 90 VAC, 21 to 54 Hz
GJ-WP-AL ring volume 80 dB(A) at 1 m
GJ-WP-AL dialing Pulse or DTMF
GJ-WP-SIP power PoE 802.3af or 12 V DC
GJ-WP-SIP protocol SIP 2.0 (RFC 3261)
GJ-WP-SIP network 10/100 WAN and LAN
GJ-WP-SIP codecs G.711, G.722, G.723, G.729
GJ-WP-SIP ring volume 90 to 95 dB(A) at 1 m
GJ-WP-SIP consumption Idle 1 W, working 2.4 W
GJ-WP-4G power 12 V DC, input 7.4 to 12 V
GJ-WP-4G setup Remote SMS, auto-dial numbers
GJ-WP-4G antenna External SMA, 2 m cable
GJ-WP-4G ring volume 90 dB(A) at 1 m
GJ-WP-4G call limit 6 to 8 minutes, configurable
GJ-WP-4G consumption Idle 0.3 W, working 1.5 W
