Industrial Explosion-Proof Telephone

$0.00
Opens WhatsApp with this product and current options

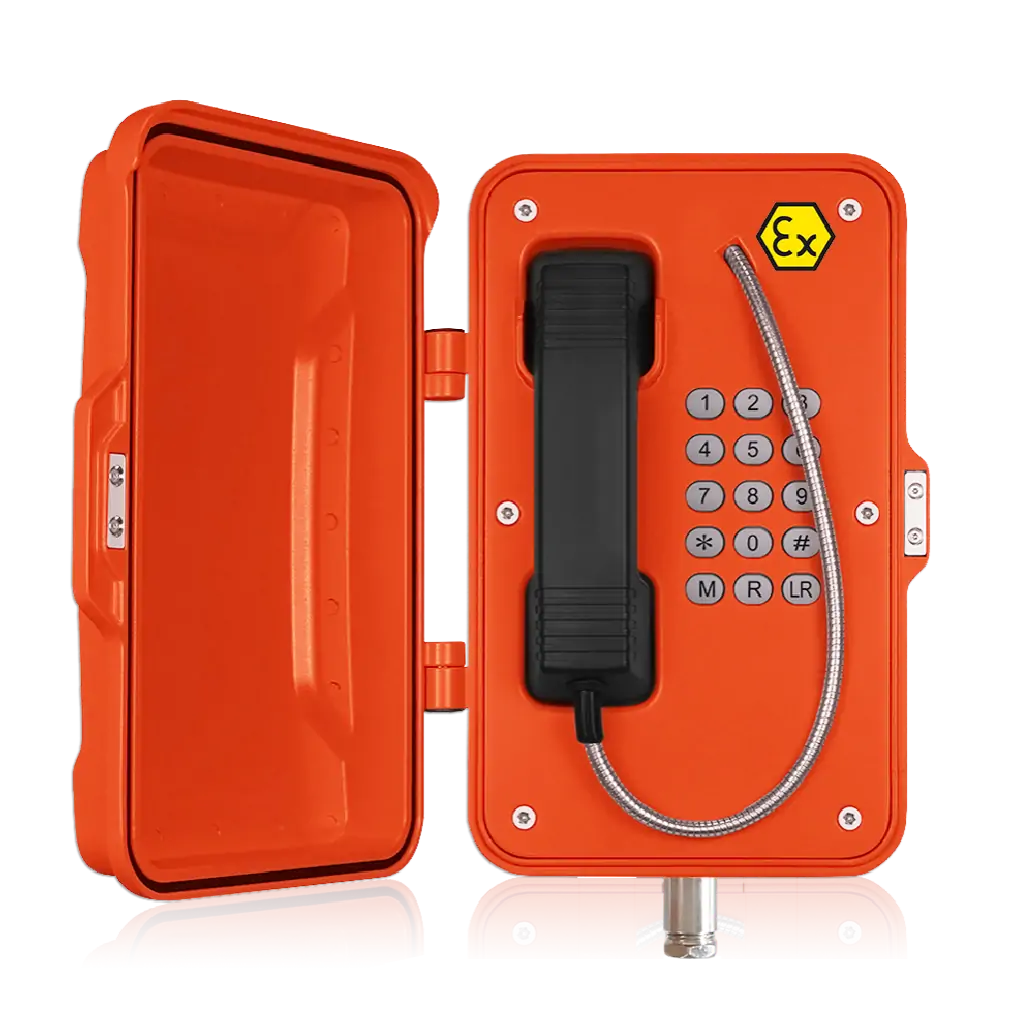

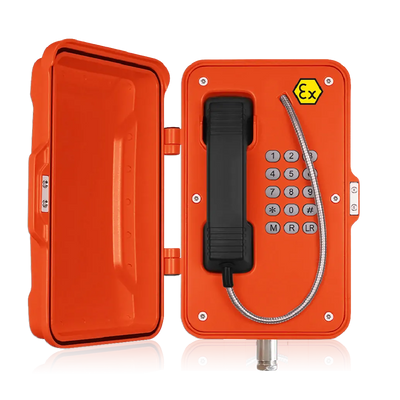

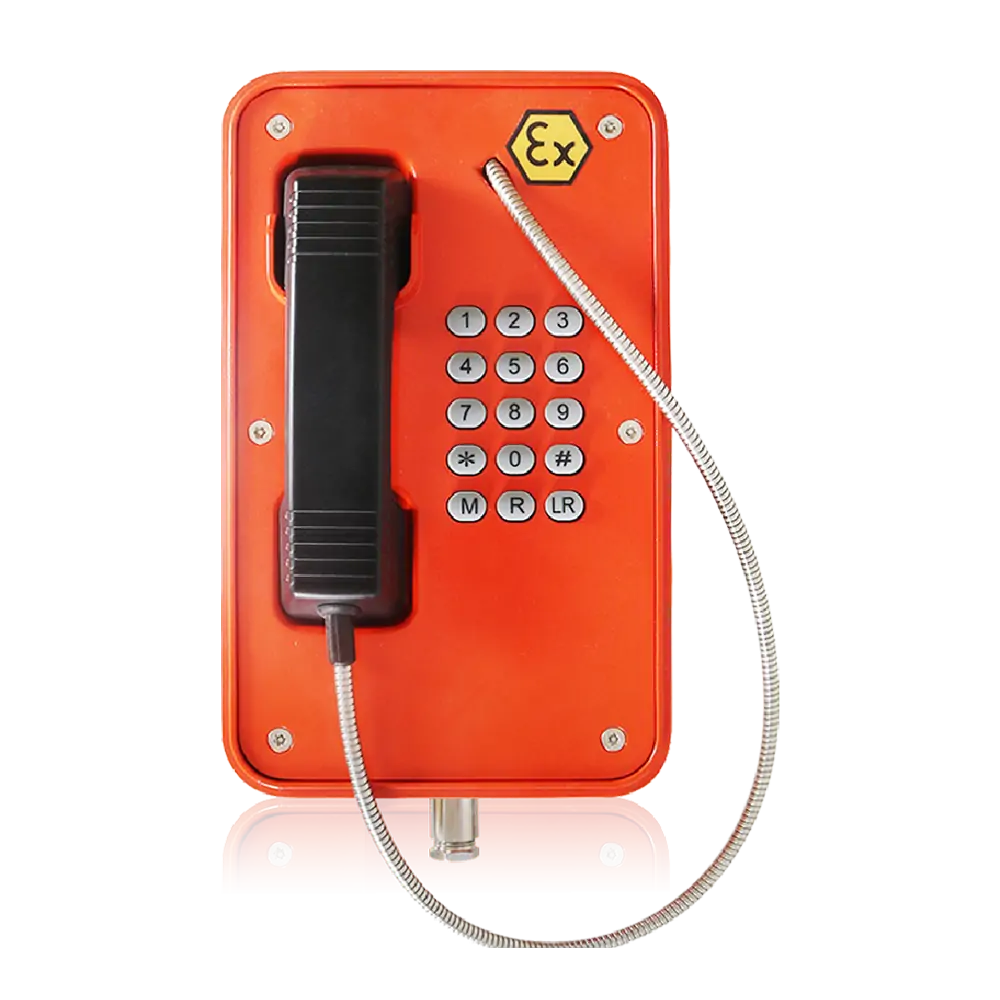

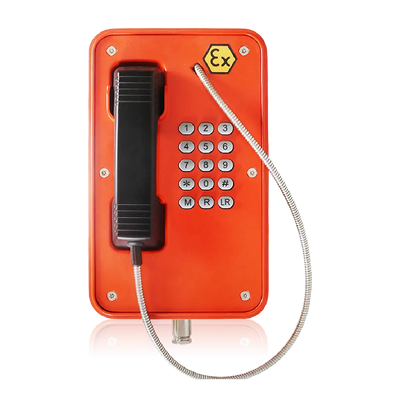

Orange explosion-proof telephone for voice communication where explosive gas or dust can be present. It is built for wide outdoor temperature swings, high humidity, sea water, dust, corrosive air and mechanical wear.

Typical sites include chemical plants, oil and gas, onshore and offshore drilling, refineries, mines, power stations and heavy industry.

Protection

  • Zone 1, Zone 2 and Zone 22.
  • Gas: Ex eb ib [ib Gb] mb IIC T6/T5 Gb.
  • Dust: Ex ib [ib Db] tb IIIC T80/T95 C Db.
  • T6 / T80 C class from -40 C to +40 C. T5 / T95 C class from -40 C to +55 C.
  • IP66 to IEC 60529.

Body

  • Door cover, wall mounting and three M20 cable entries.
  • Handset with a noise-cancelling microphone, 42 cm armored cord and hearing-aid compatibility.
  • Magnetic hook switch. Full keypad, mute, flash and last-number redial.

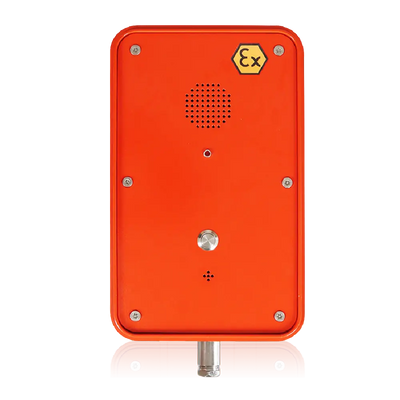

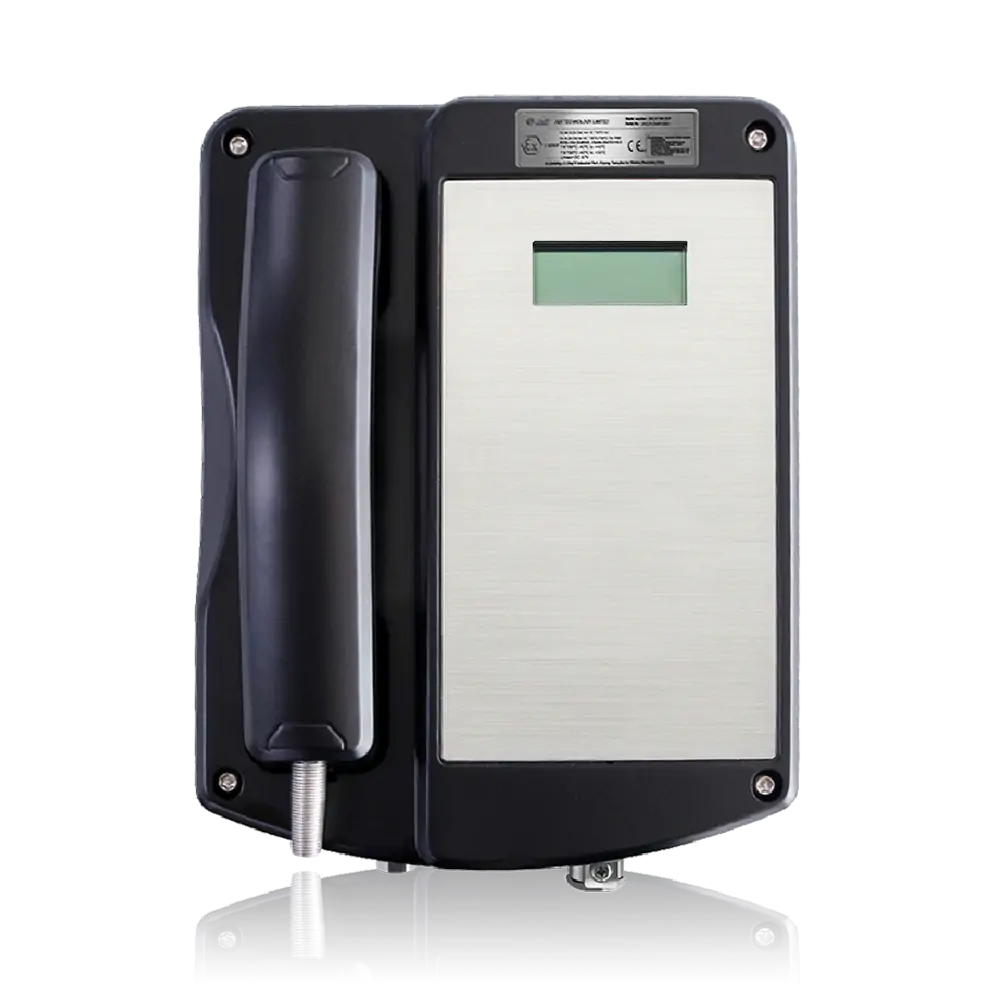

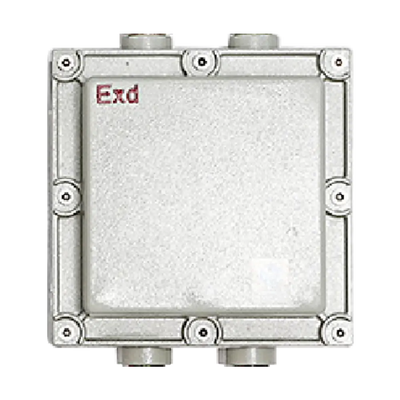

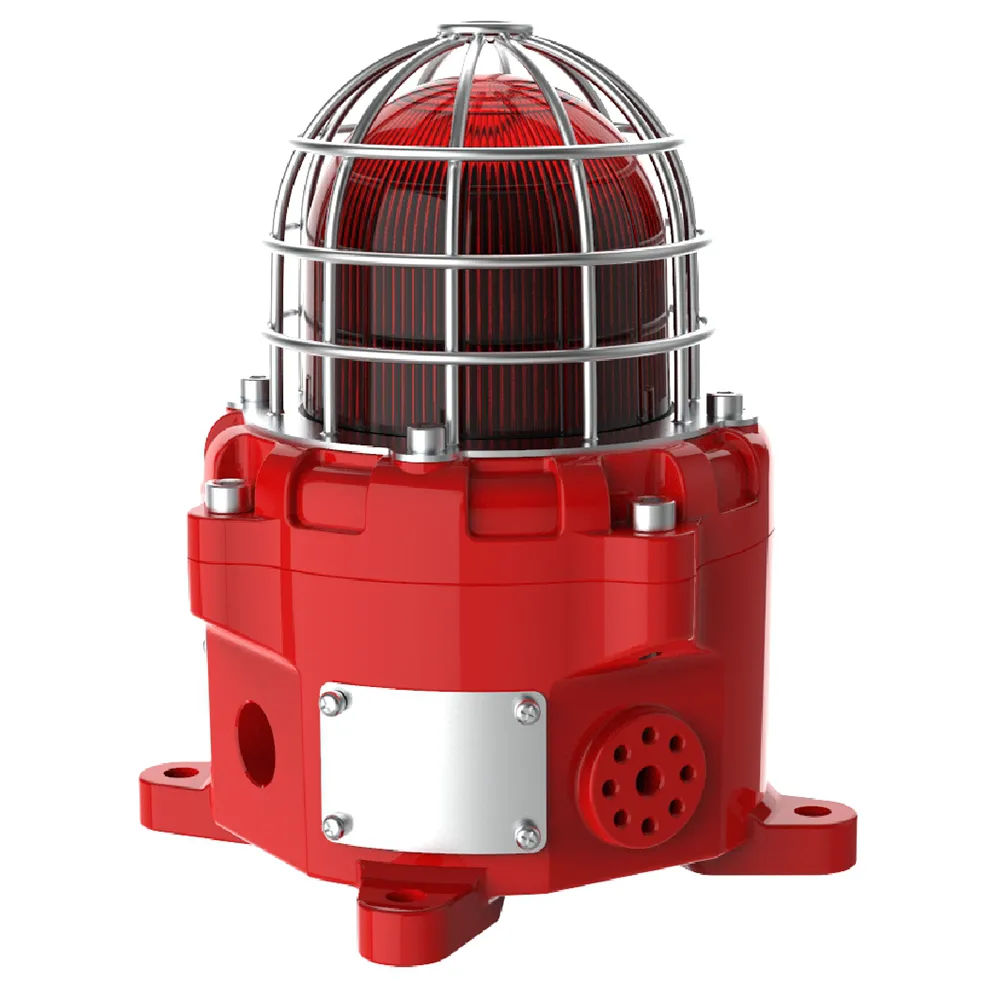

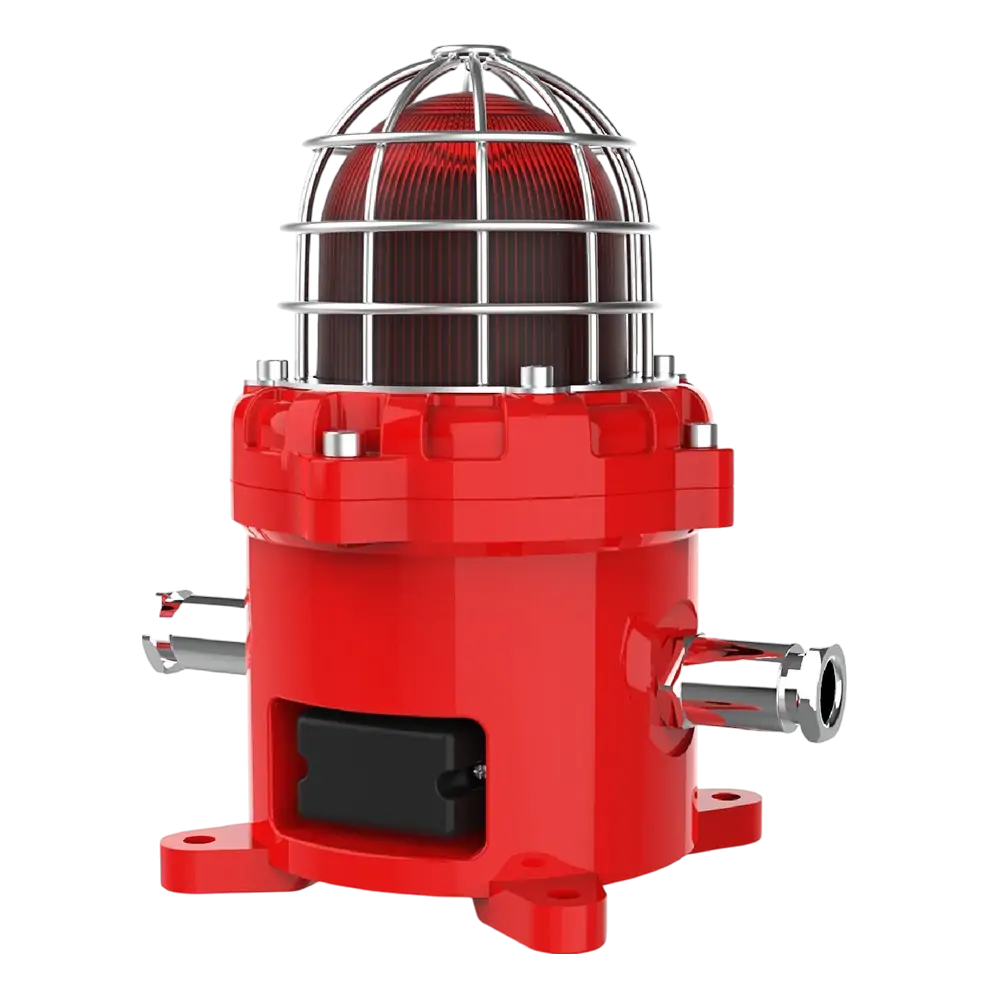

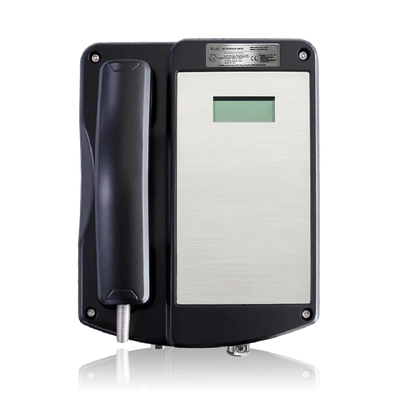

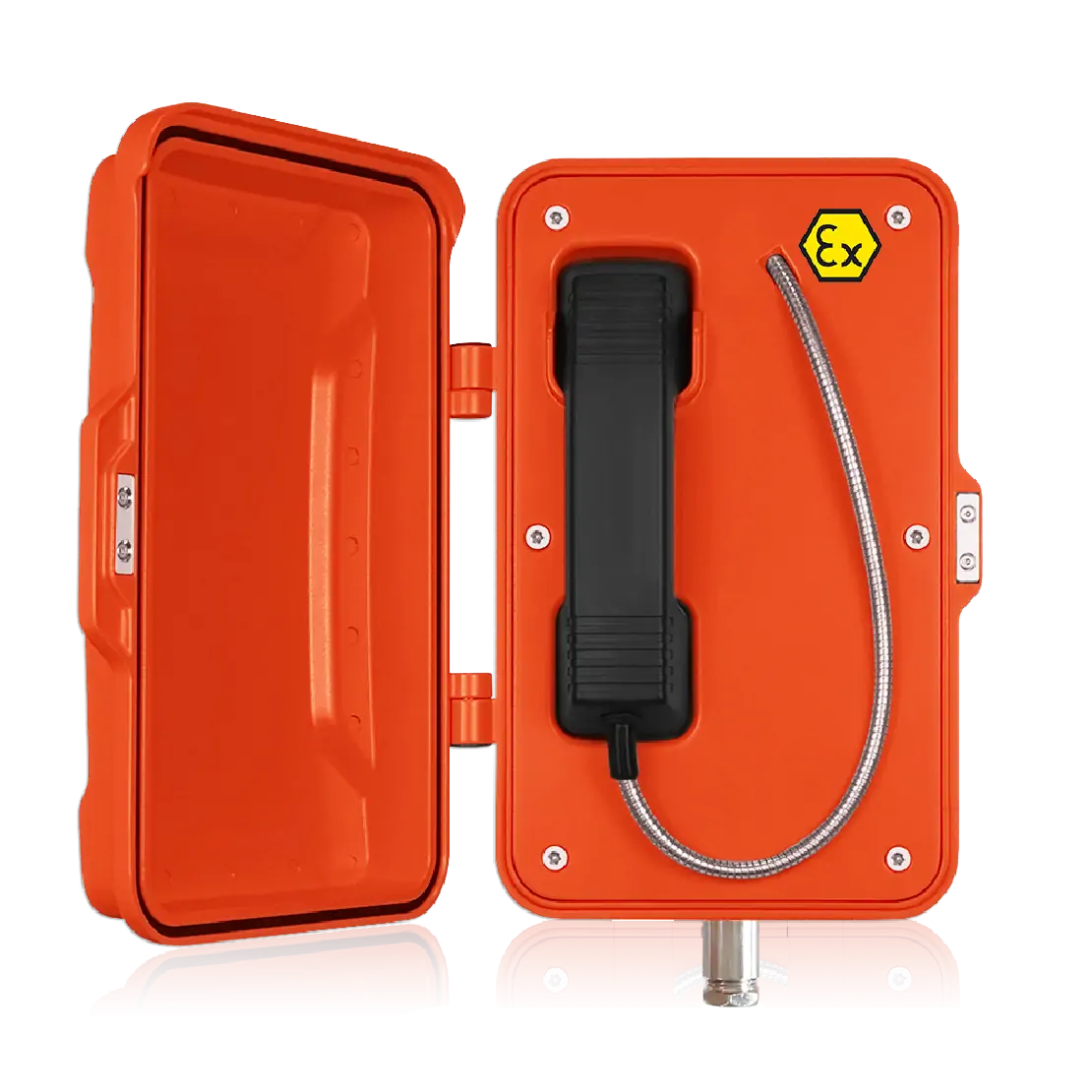

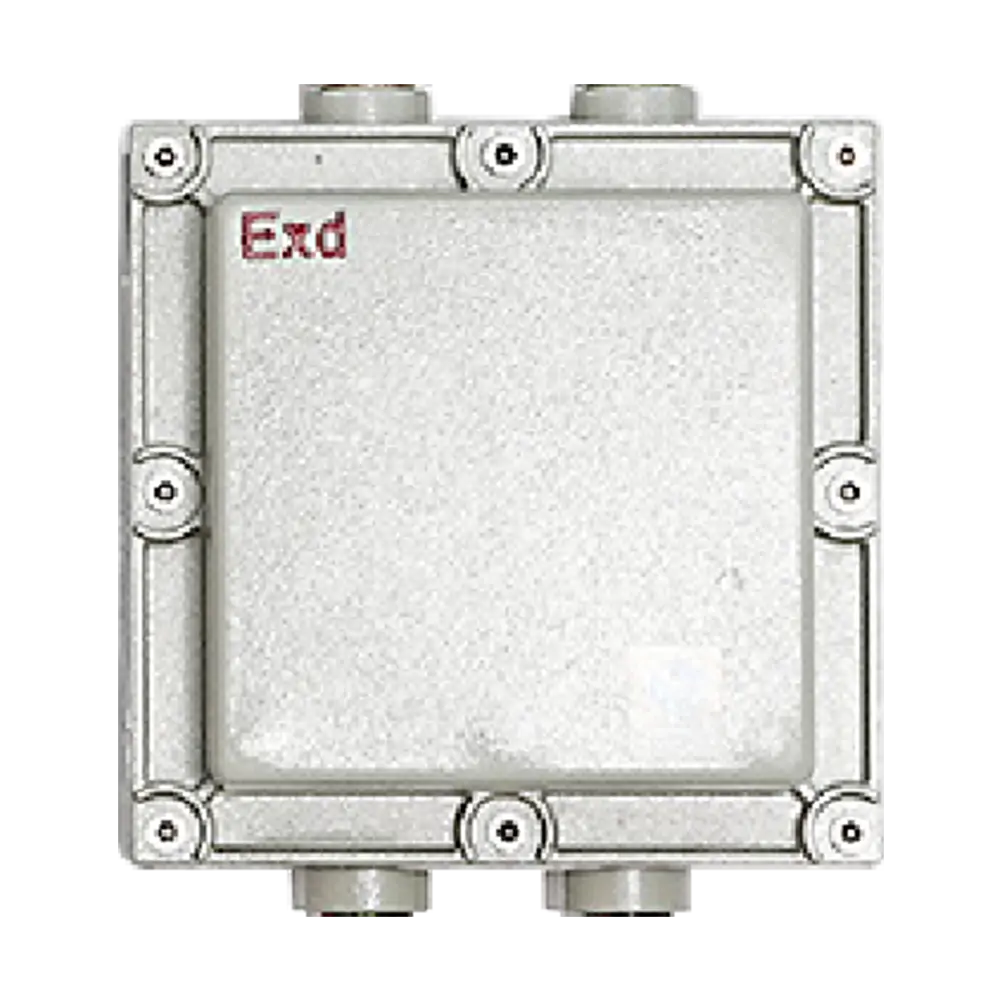

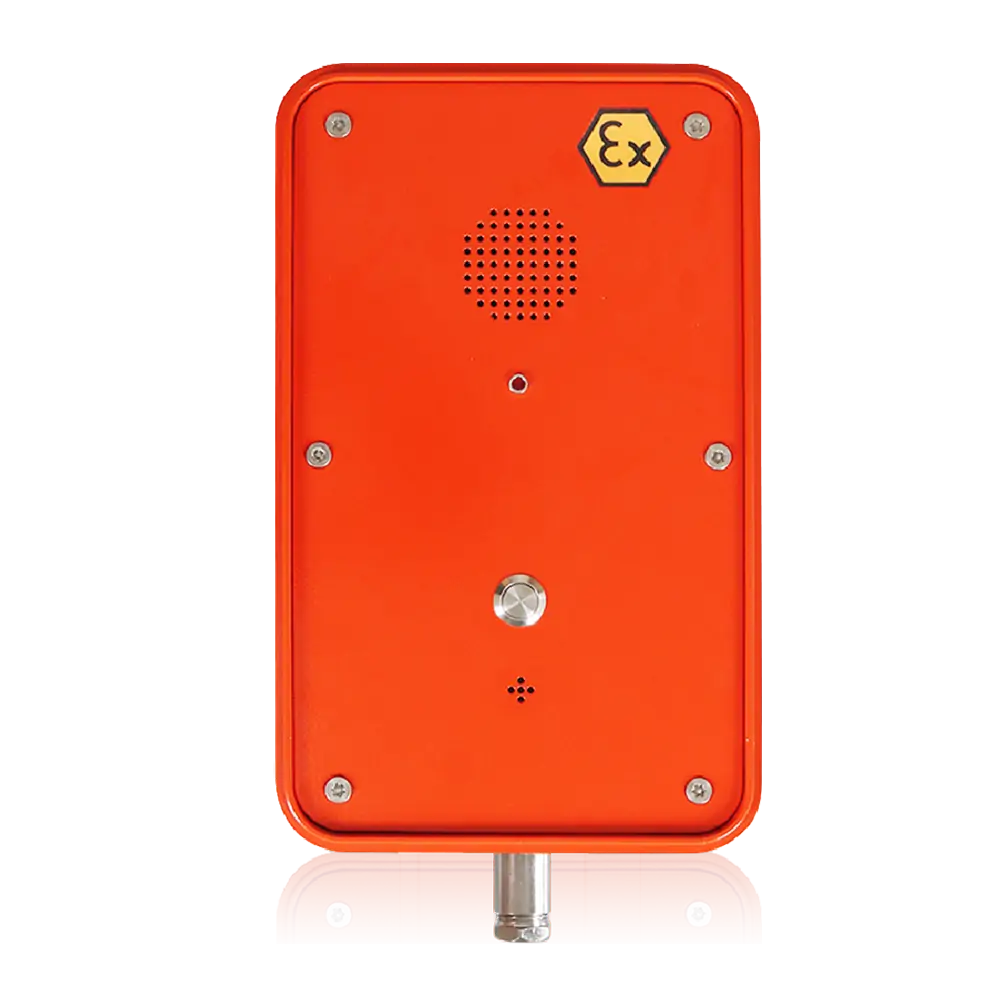

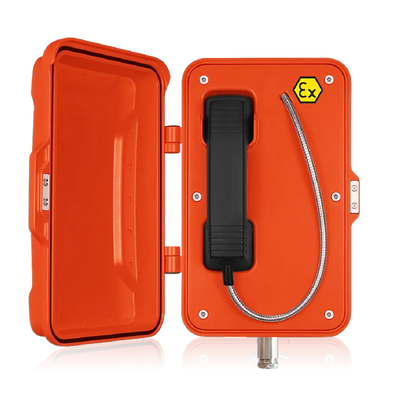

  • Hot line, hands-free use, LCD, Ex horn, Ex beacon and Ex junction box are quote options.

GJ-EX-AL, analog

  • Powered from the telephone line.
  • Line voltage 24 to 65 VDC, current 20 to 100 mA.
  • Ringer 48 to 90 VAC, 21 to 54 Hz. Volume 80 dB(A) at 1 m.
  • Pulse or DTMF dialing.

GJ-EX-SIP

  • PoE 802.3af or 12 V DC.
  • SIP 2.0 (RFC 3261), 10/100 WAN and LAN.
  • Codecs G.711, G.722, G.723 and G.729.
  • Ring volume 90 to 95 dB(A) at 1 m. Idle 1.5 W, working 1.8 W.

Operating temperature -40 C to 65 C. Storage -40 C to 75 C. MTBF is above 50,000 hours in normal use.

Datasheets: GJ-EX-AL, GJ-EX-SIP.

Specification Details
Product family GJ-EX
Hazardous area Zone 1, Zone 2, Zone 22
Gas marking Ex eb ib [ib Gb] mb IIC T6/T5 Gb
Dust marking Ex ib [ib Db] tb IIIC T80/T95 C Db
Ingress IP66, IEC 60529
Temperature class T6 / T80 C: -40 C to +40 C. T5 / T95 C: -40 C to +55 C
Handset Noise-cancelling microphone, 42 cm armored cord, hearing-aid compatible
Hook switch Magnetic reed
Keypad Full keypad, mute, flash, last-number redial
Mounting Door cover, wall, 3x M20
Operating temperature -40 C to 65 C
Storage temperature -40 C to 75 C
Service life MTBF above 50,000 hours
GJ-EX-AL power Drawn from the telephone line
GJ-EX-AL line voltage 24 to 65 VDC, 20 to 100 mA
GJ-EX-AL ringer 48 to 90 VAC, 21 to 54 Hz
GJ-EX-AL ring volume 80 dB(A) at 1 m
GJ-EX-AL dialing Pulse or DTMF
GJ-EX-SIP power PoE 802.3af or 12 V DC
GJ-EX-SIP protocol SIP 2.0 (RFC 3261)
GJ-EX-SIP network 10/100 WAN and LAN
GJ-EX-SIP codecs G.711, G.722, G.723, G.729
GJ-EX-SIP ring volume 90 to 95 dB(A) at 1 m
GJ-EX-SIP consumption Idle 1.5 W, working 1.8 W
