BOE

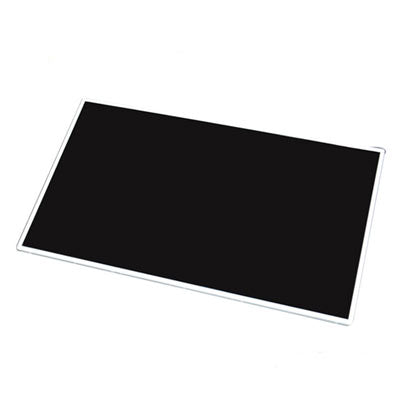

BOE HV320FHB-N00

$348.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:HV320FHB-N00
  • Brand:BOE
  • Size:32 inch
  • Resolution:1920x1080
  • Brightness:250 cd/m2
  • Viewing angle:89/89/89/89
  • Interface:LVDS
  • CR:1200:1
  • Operating Temp.: 0 ~ 50 °C
  • Parameters
Manufacturer BOE
Model Name HV320FHB-N00
Screen Size 32"
Pixel Number 1920(RGB)x1080
Active Area(mm) 698.4x392.85 (HxV)
Outline(mm) 725x423x14.55(HxV)
Bezel Area(mm) /
Treatment Anti-glare, 3H
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1200 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10) Left / Right / Up / Down
Response 8 (Typ.)(Tr+Td) ms
Work Mode Normally black, Transmissive
Color Depth 16.7M(8bits-true)
Backlight 30K hours,With Driver
Net Weight 3500g (Typ.)
operating frequency 60Hz
Touchscreen without
Signal Type/interface Type LVDS(2 ch, 8 bit) , 51 pins,connector
Voltage Supply 12V (Typ.)
Temperature Storage Temp.: 0 ~ 50 °C
Operating Temp.: -20 ~ 60 °C
Package As request



BOE 32 inch IPS lcd screen HV320FHB-N00 with resolution 1920x1080 and brightness 250nits.

Integrated LED driver, free view angle and good color depth very suitable for TV and kiosk ads.

Easy to connect, can enhance brightness to 1000cd/m2 optional.
