BOE

BOE HR215WU1-120

$248.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:HR215WU1-120
  • Brand:BOE
  • Size:21.5
  • Resolution:1920x1080
  • Brightness:250 cd/m2
  • Viewing angle:89/89/89/89
  • Interface:LVDS
  • CR:1000:1
  • Operating Temp.: 0 ~ 50 °C
  • Parameters
Manufacturer BOE
Model Name HR215WU1-120
Screen Size 21.5
Pixel Number 1920(RGB)x1080
Active Area(mm) 476.64x268.11 (HxV)
Outline(mm) 459.6x292.2×10.7(HxV)
Bezel Area(mm) 479.8x271.3(HxV)
Treatment Anti-glare, 3H
Luminance 250 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10) Left / Right / Up / Down
Response 14 (Typ.)(Tr+Td) ms
Work Mode Normally black, Transmissive
Color Depth 16.7M
Backlight 30K hours,No Driver
Net Weight 1900g (Typ.)
operating frequency 60Hz
Touchscreen without
Signal Type/interface Type LVDS(2 ch, 8 bit) , 30 pins,connector
Voltage Supply 5V (Typ.)
Temperature Storage Temp.: 0 ~ 50 °C
Operating Temp.: -20 ~ 60 °C
Package As request

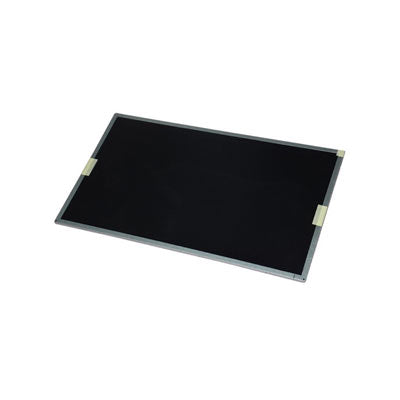

    BOE 21.5 inch IPS lcd display HR215WU1-120 with 1920x1080 resolution.

    Good contrast and free view, fast response time, very suitable for kiosk advertising  and desktop monitor.

    LED driver and accessories are optional.
