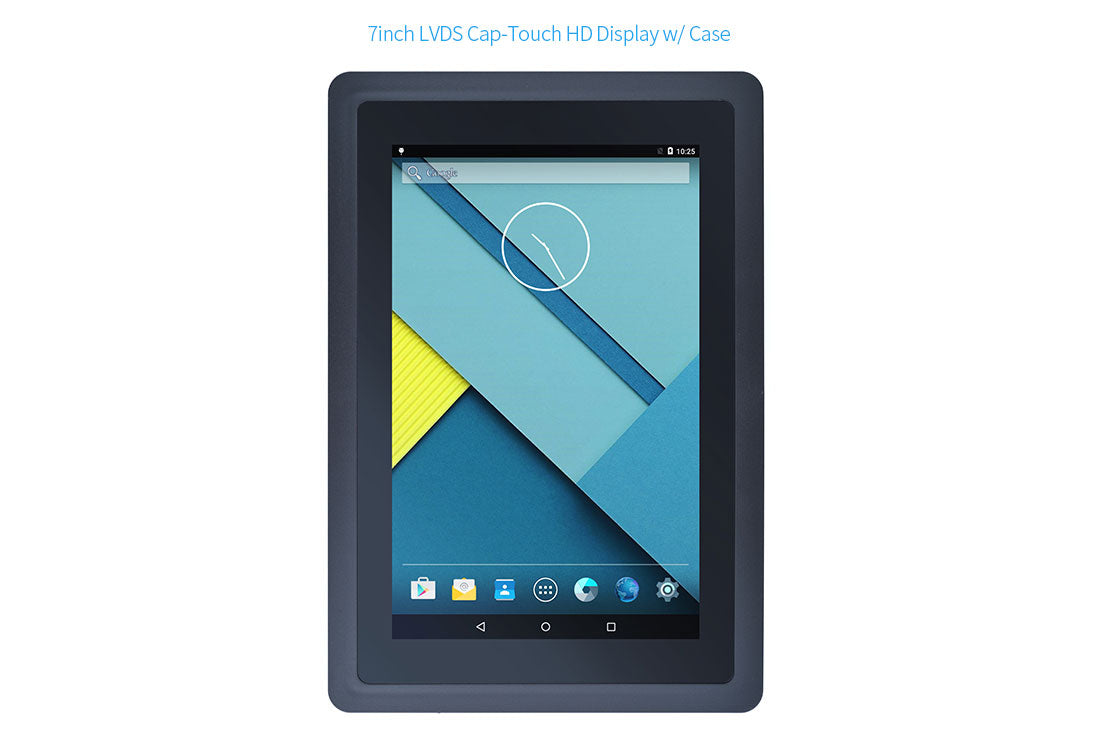

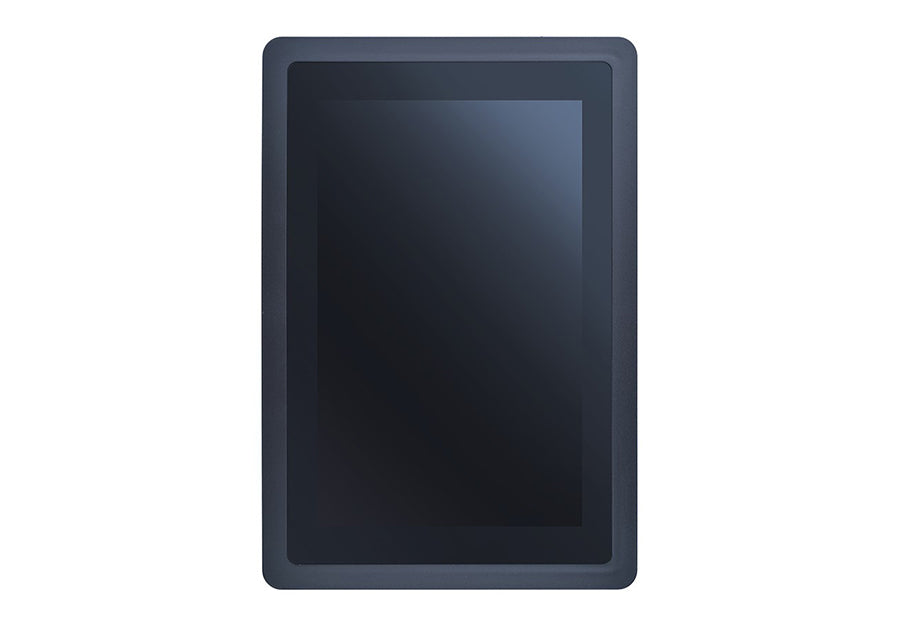

The HD702V 7″ LVDS HD Display by Friendly Elec is a high-resolution LCD module with capacitive touch designed for embedded HMIs, industrial interfaces, and ARM-based development platforms.

With a native 1280 × 800 HD resolution and a stable LVDS interface, the HD702V delivers sharp visuals and reliable signal integrity for long-term Android and Linux deployments.

✔ 7″ HD LCD • 1280×800 Resolution
✔ Capacitive Touch Panel
✔ LVDS Interface • Open-Source Driver

Display Specifications

Screen size: 7 inches
Resolution: 1280 × 800 (HD)
Display mode: Normally black
Response time: 50 ms (max)

Touch & Interface

Capacitive touch panel

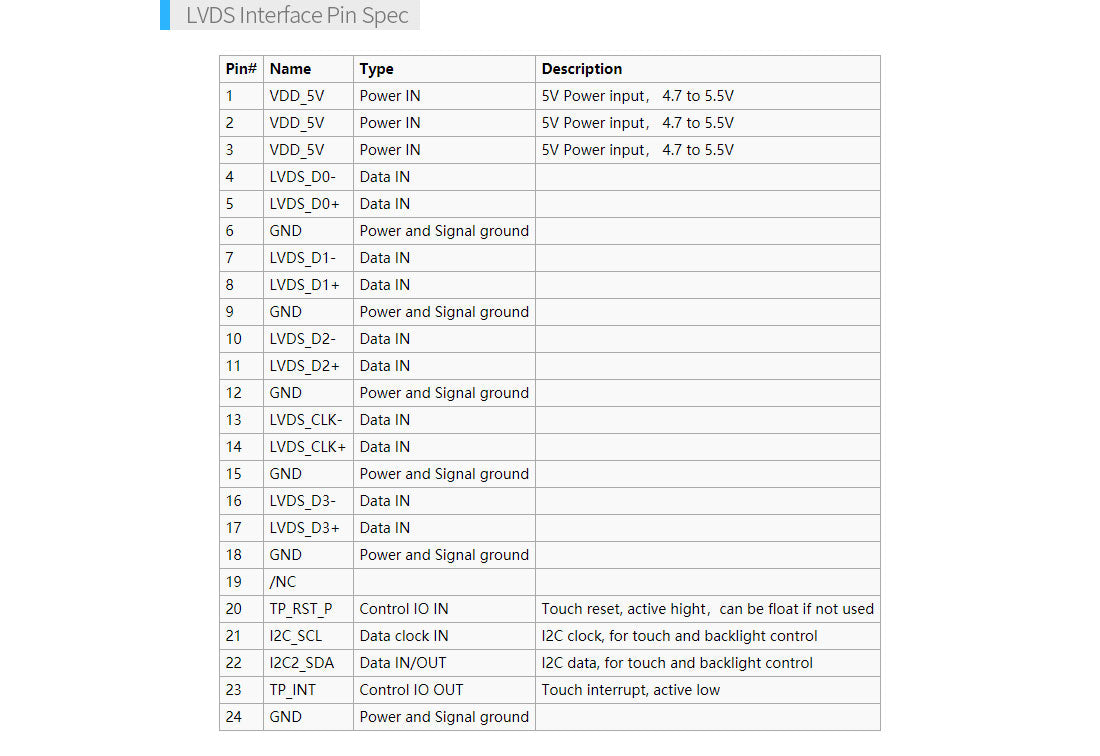

LVDS display interface
Backlight adjustable via I2C

Optics & Color

Pixel pitch: 0.11775 × 0.11775 mm
Color arrangement: RGB vertical stripe
Color depth: 262K (6-bit) / 16.7M (8-bit)

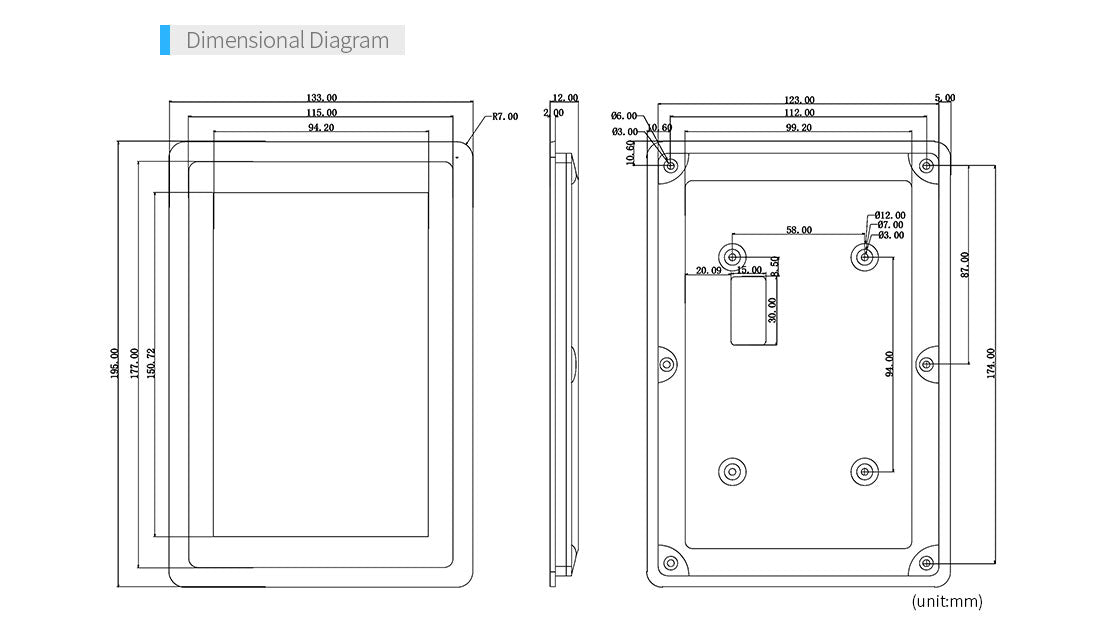

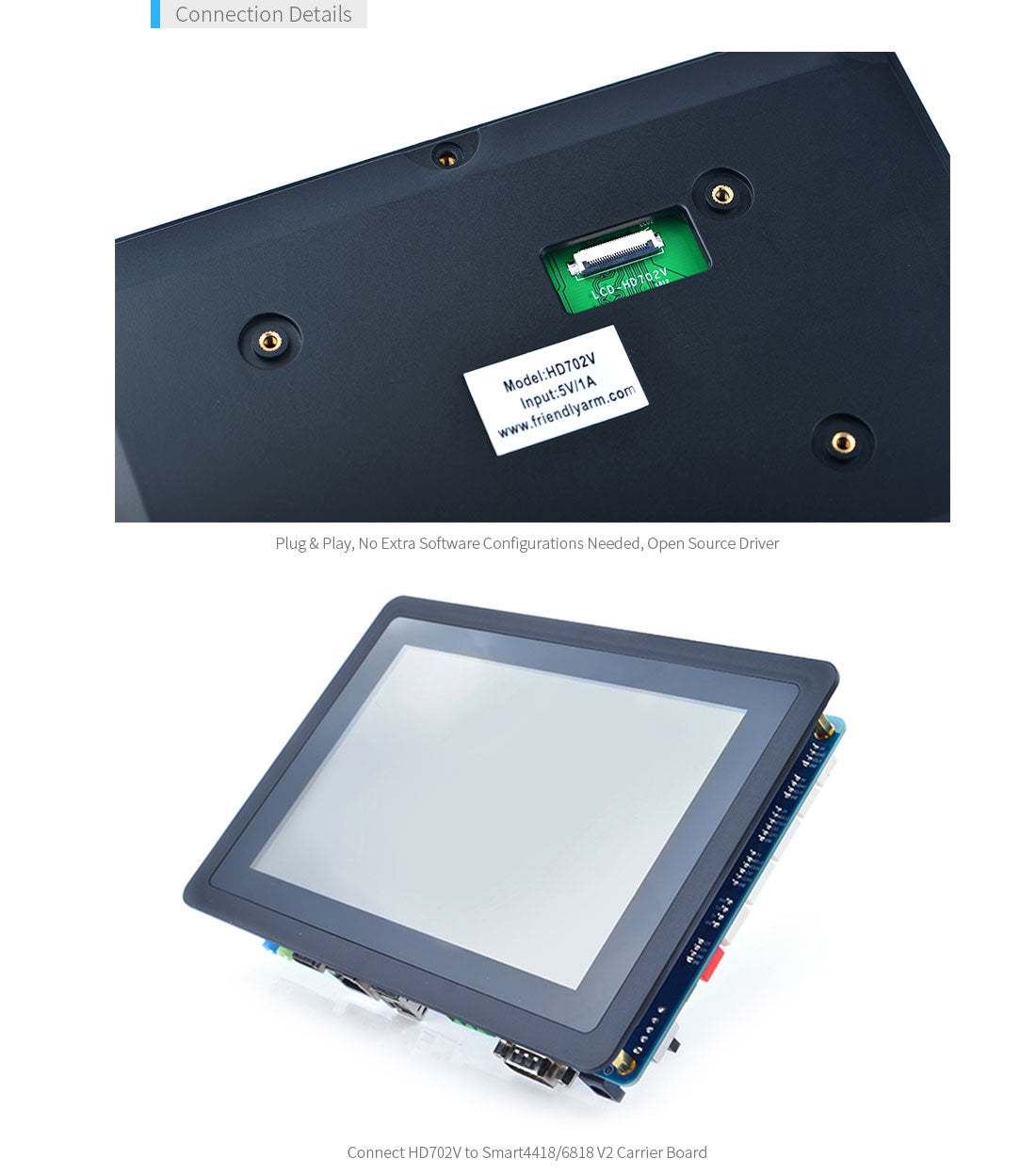

Mechanical Design & Compatibility

Active display area: 94.2 × 150.72 mm
Customized ABS enclosure

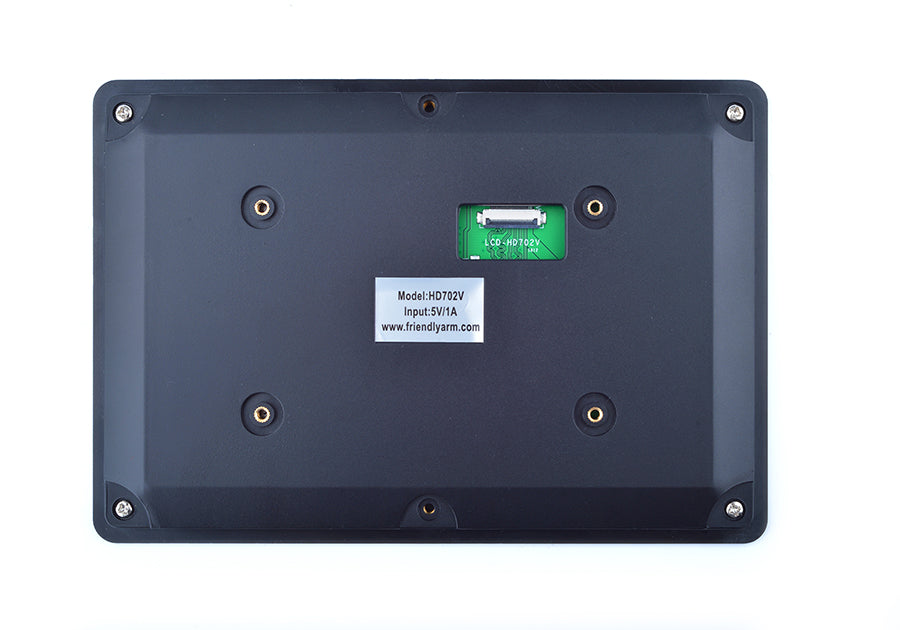

Mounting holes on all four corners for easy installation

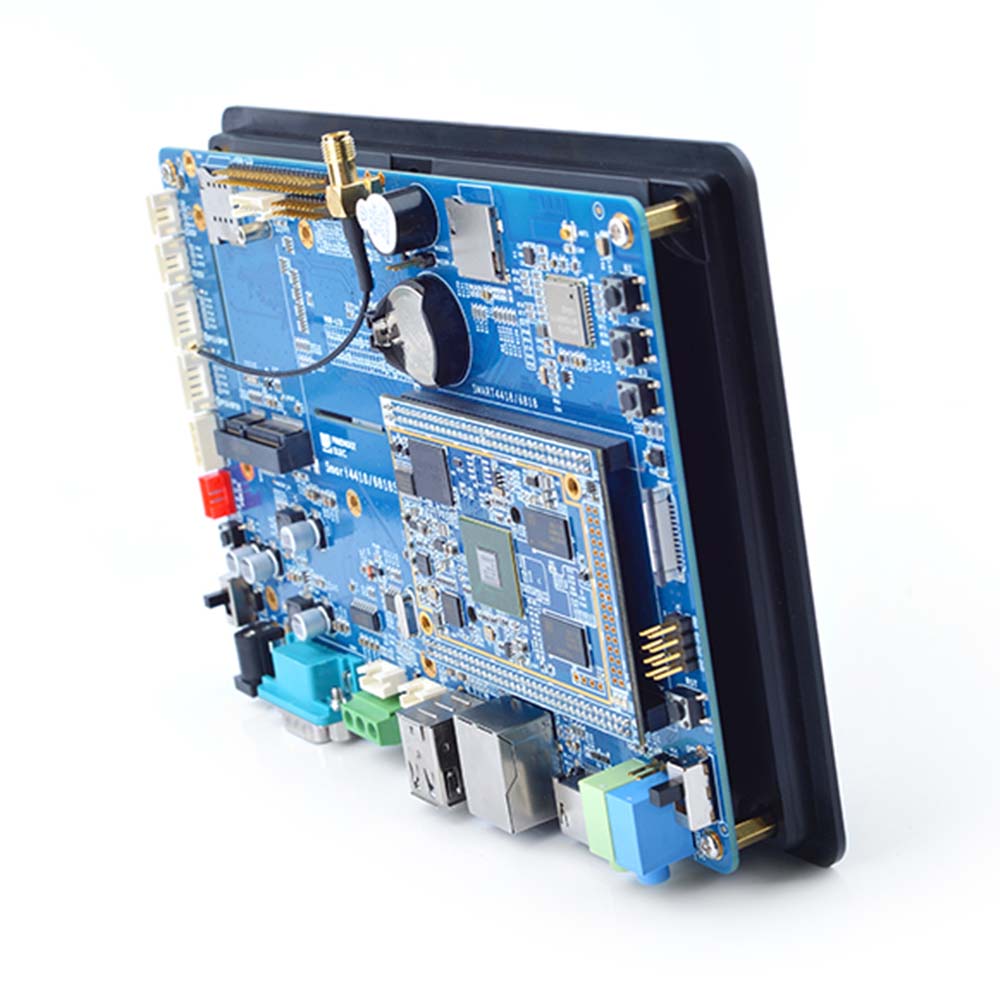

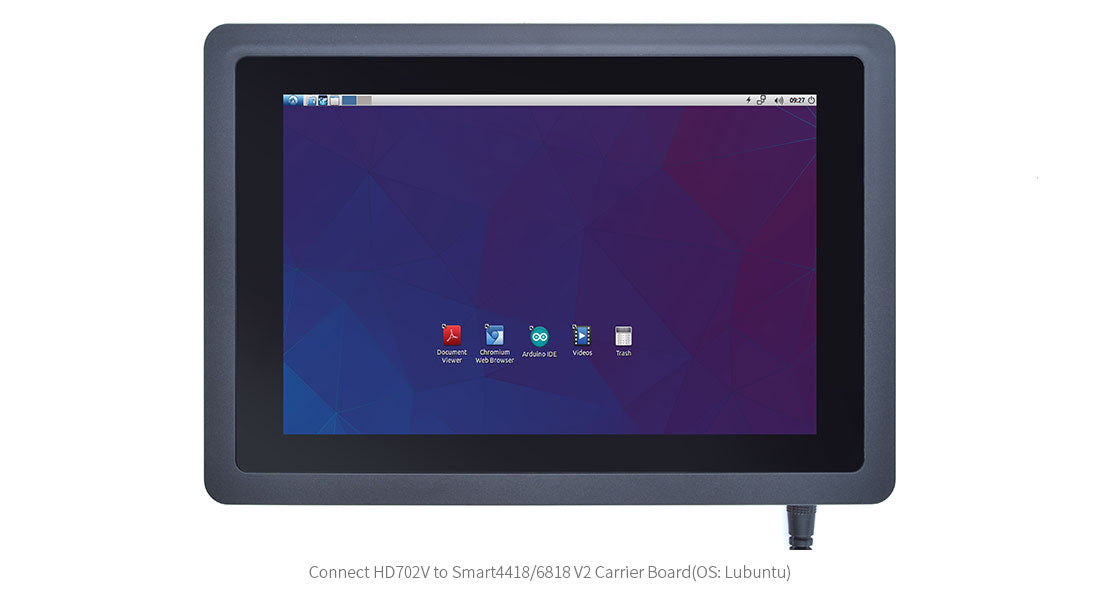

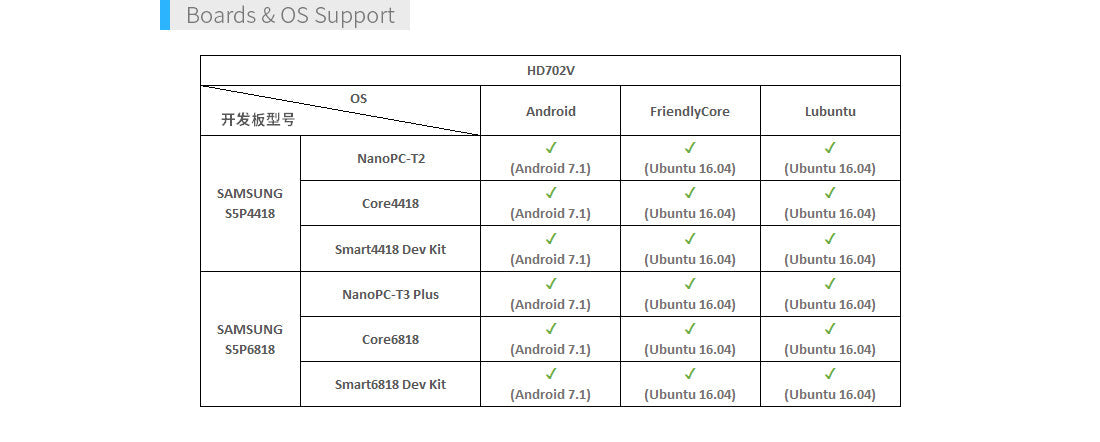

The HD702V is compatible with FriendlyELEC platforms including NanoPi S2, NanoPC-T2 / T3 / T3 Plus, Smart4418 and 6818, making it ideal for portable HMIs, control terminals, and embedded visualization systems.

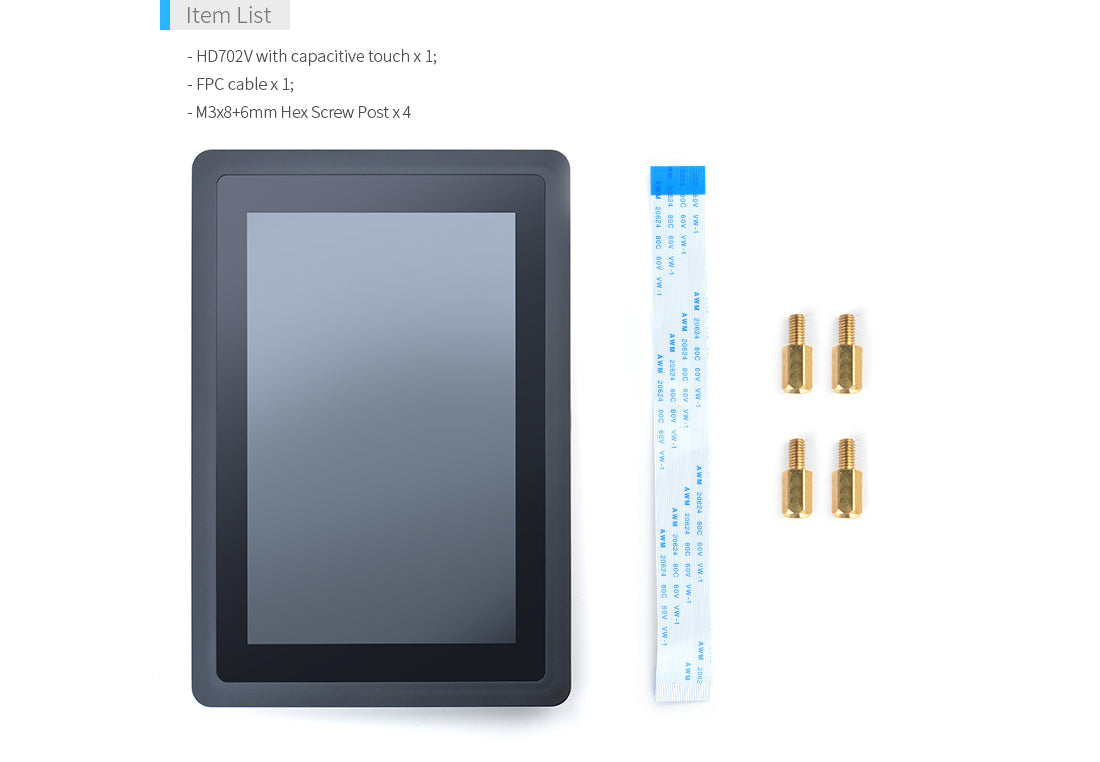

This product is supplied as a complete display module with enclosure. Host boards and connection cables are not included unless specified.
