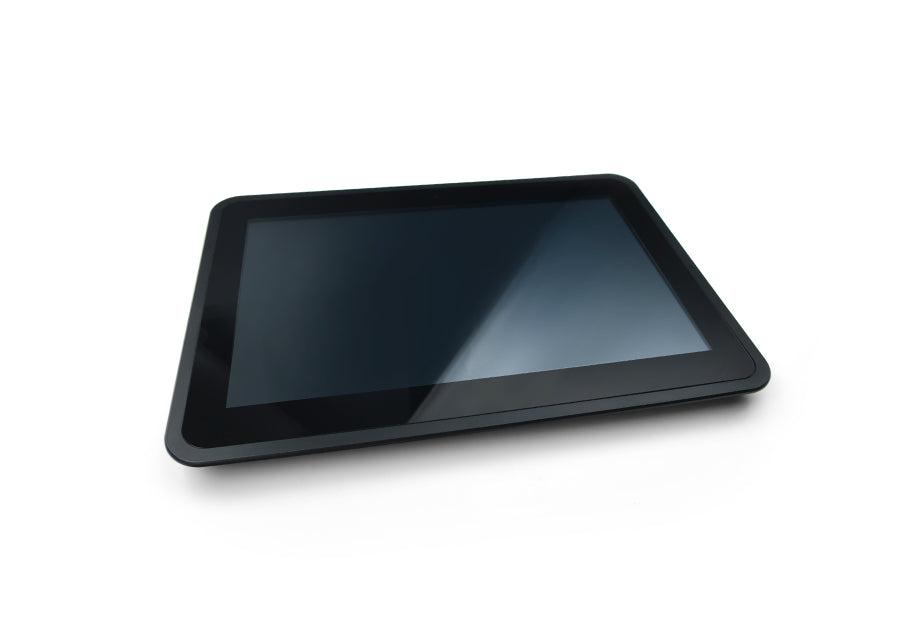

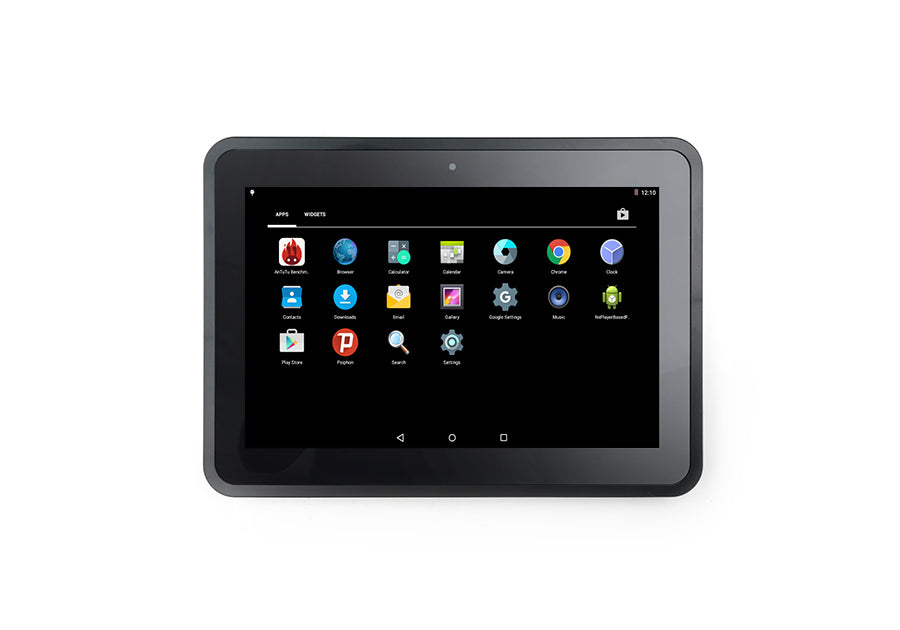

The HD101 10.1″ Capacitive Touch LCD by Friendly Elec is a large-format industrial LCD module designed for embedded HMIs, control panels, and visualization systems running Linux or Android.

With a native 1280 × 800 HD resolution, a stable LVDS interface, and a durable capacitive touch panel, HD101 delivers clear visuals and responsive interaction for long-term industrial deployments.

✔ 10.1″ HD LCD • 1280×800 Resolution
✔ Capacitive Touch Panel
✔ LVDS Interface • One-Wire Backlight Control

Display Specifications

Screen size: 10.1 inches
Resolution: 1280 × 800
Panel type: a-Si TFT active matrix
Display mode: Normally black, transmissive

Touch & Optics

Capacitive touch panel
Surface treatment: AG (anti-glare)
Pixel pitch: 0.1695 × 0.1695 mm

Interface & Power

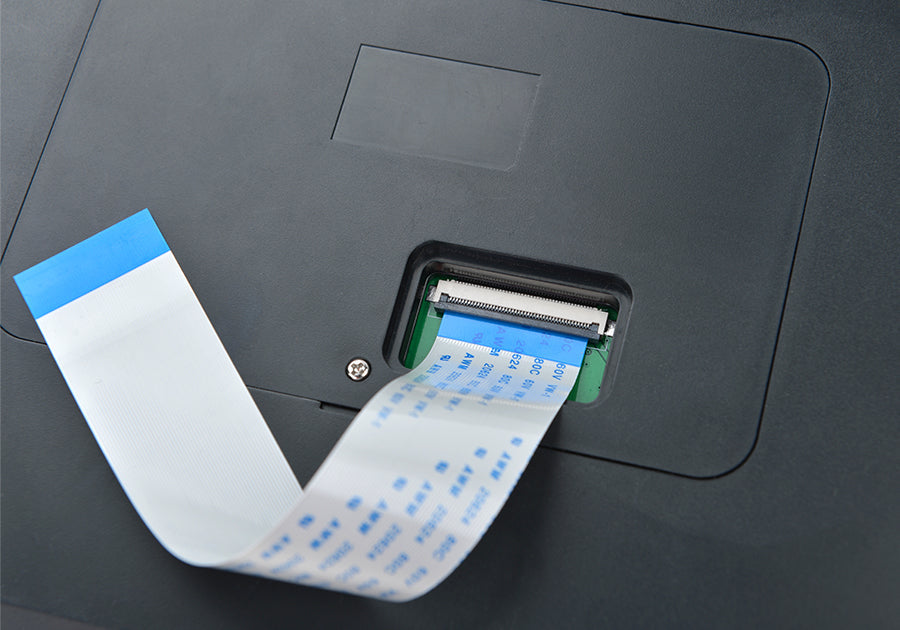

LVDS display interface
Backlight: 6× LED series / parallel array
Typical backlight power: ~2.1 W

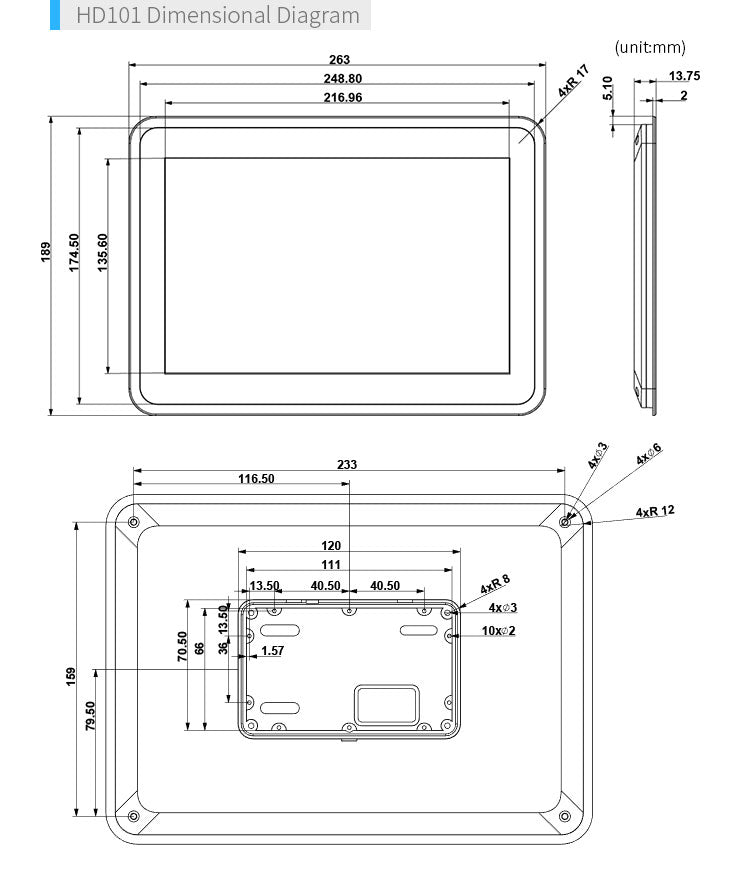

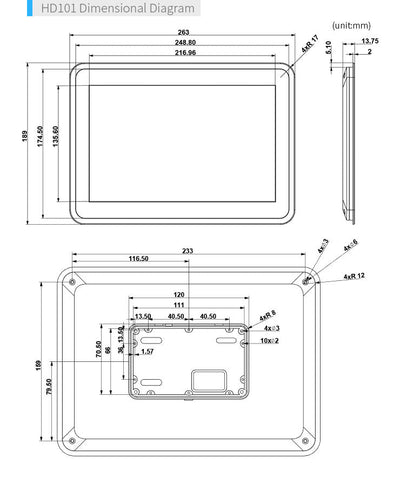

Mechanical Design & Compatibility

Active display area: 216.96 × 135.6 mm

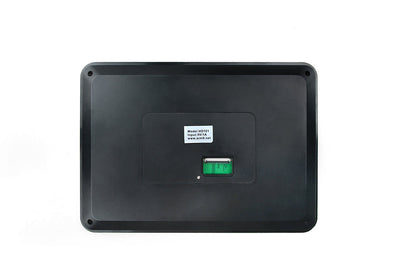

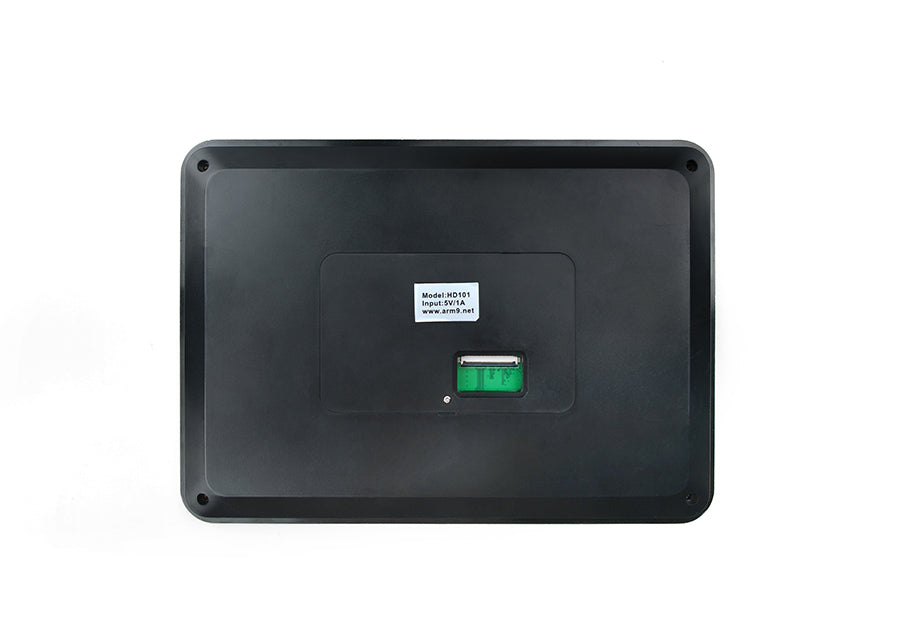

Black bezel with integrated mounting holes
Designed for panel mounting and enclosure integration

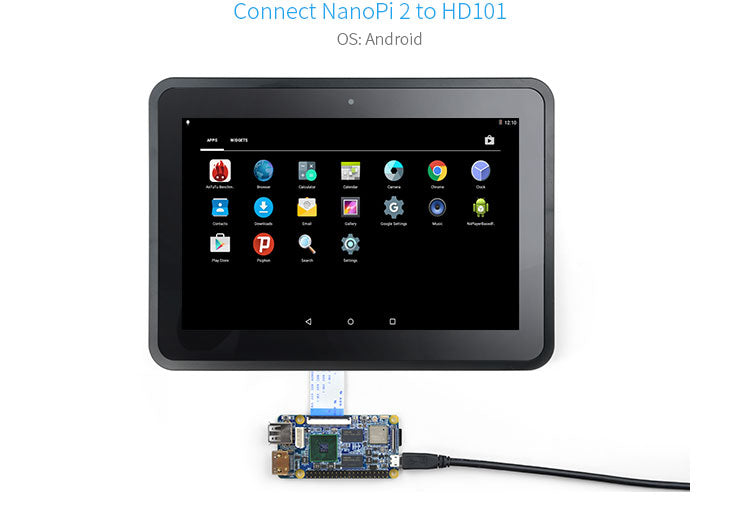

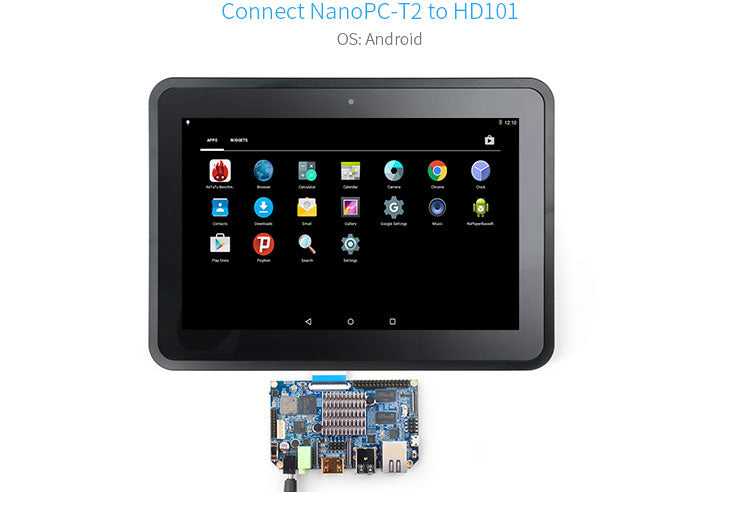

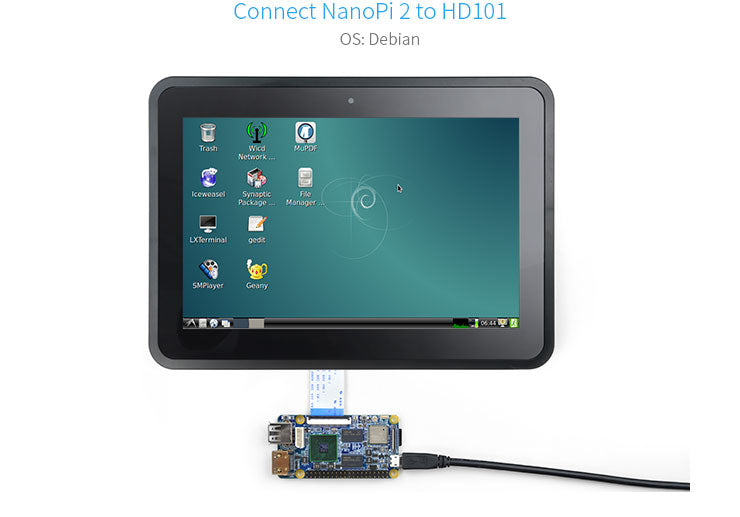

HD101 is compatible with FriendlyELEC platforms including Tiny4412, Super4412, NanoPC-T1, NanoPC-T2, NanoPi 2, and NanoPi 2 Fire, making it suitable for industrial HMIs, kiosks, monitoring panels, and control terminals.

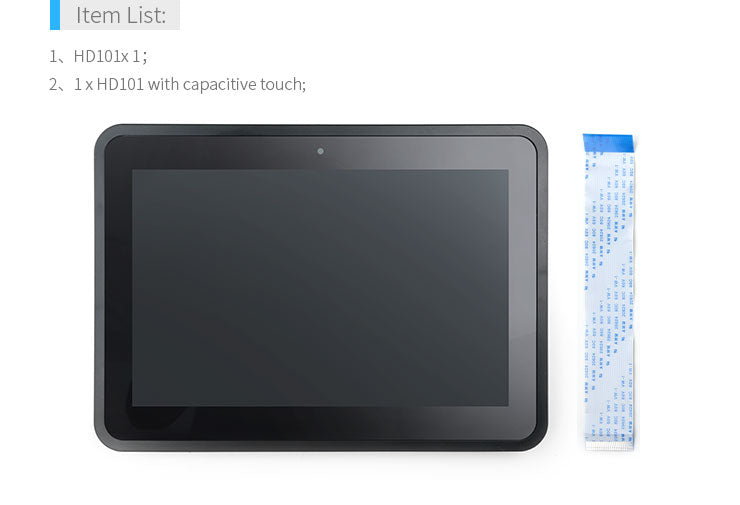

This product is supplied as a display module only. Host boards, LVDS cables, and mounting accessories are not included unless specified.
