H43 4.3″ LCD Display | Resistive Touch | 480×272 | RGB Interface | One-Wire Backlight

$38.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address

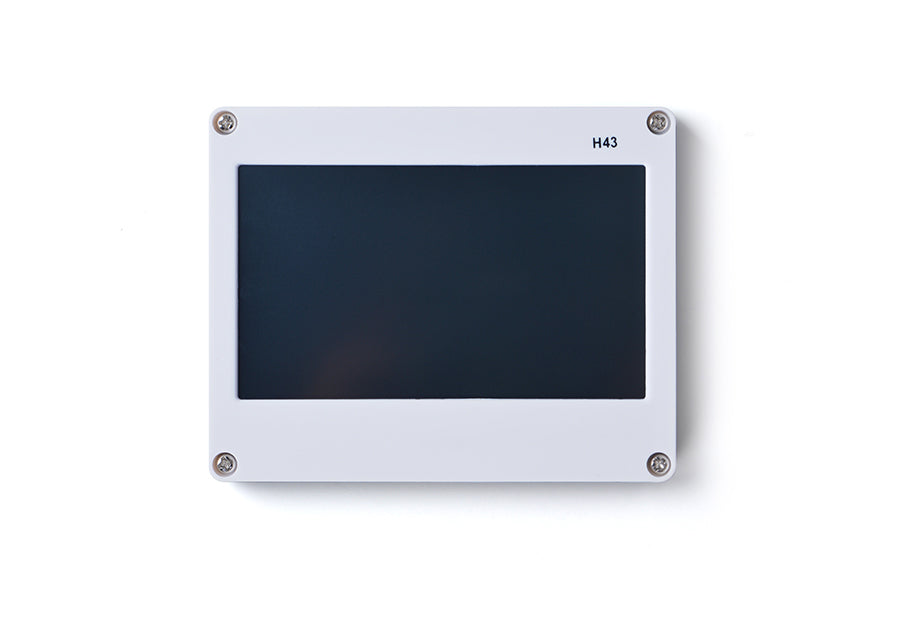

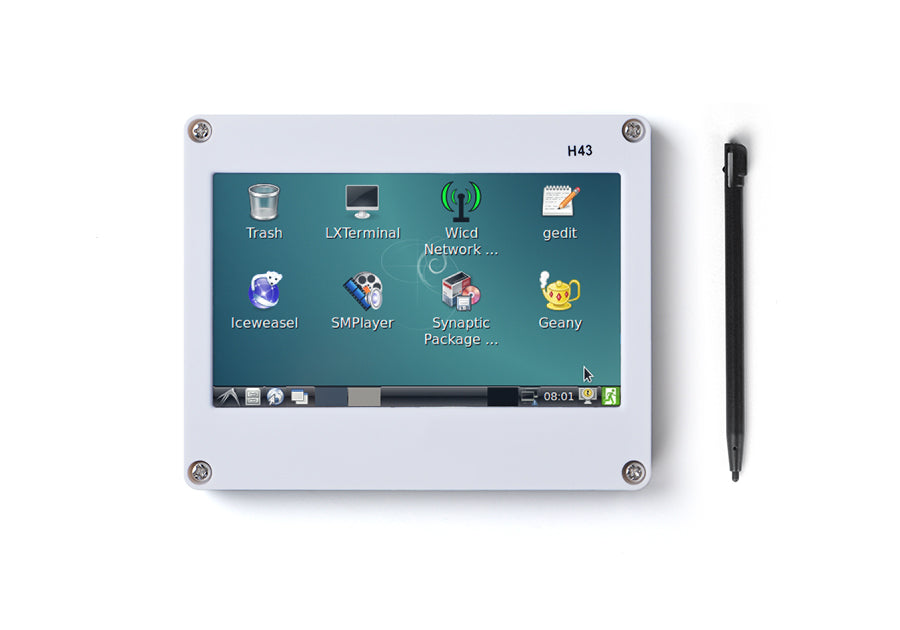

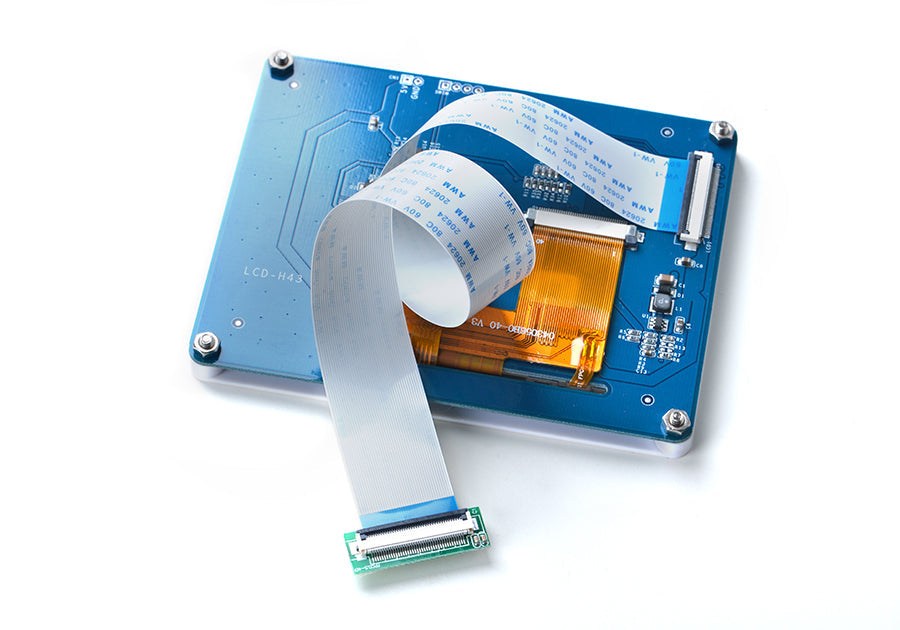

The H43 4.3″ Resistive Touch LCD by Friendly Elec is a compact LCD module with resistive touch panel designed for embedded control interfaces, industrial HMIs, and development boards running Linux, Android, or WinCE.

With a native resolution of 480 × 272 and an RGB interface, H43 is optimized for stable, low-power display deployments where a robust touch solution is required.

✔ 4.3″ LCD • 480×272 Resolution
✔ Resistive Touch Panel • Reliable in Industrial Use
✔ One-Wire Backlight Control • Open-Source Driver

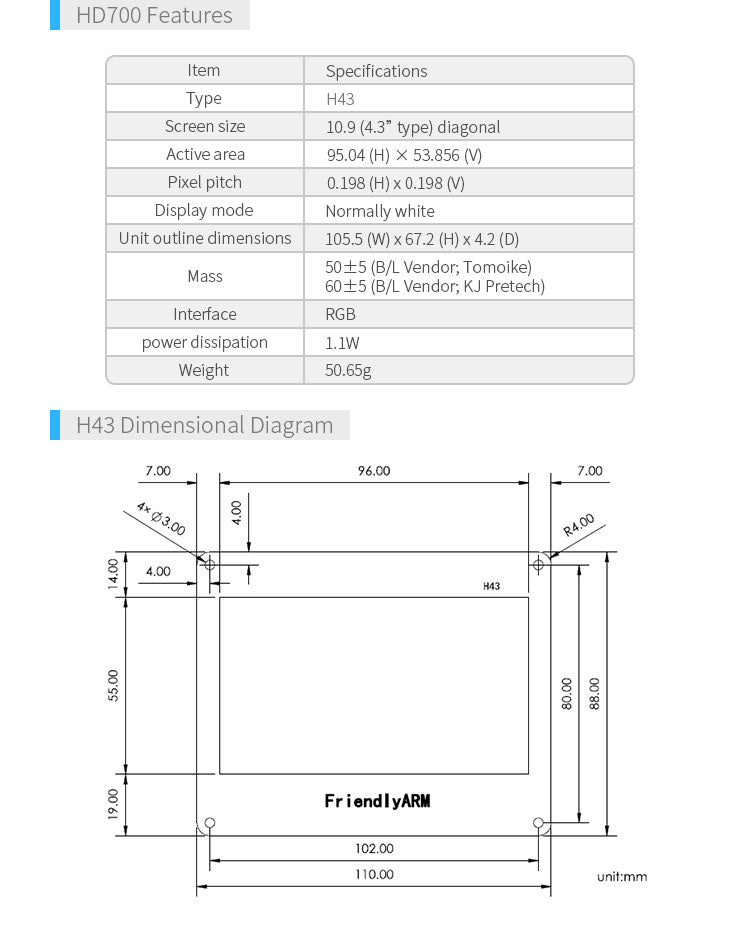

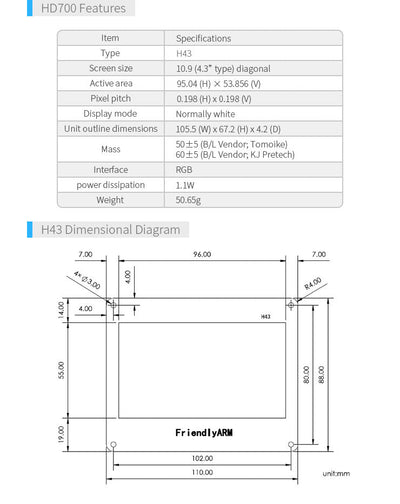

Display Specifications

Screen size: 4.3 inches
Resolution: 480 × 272
Interface: RGB
Pixel pitch: 0.198 (H) × 0.198 (V)

Touch & Mechanics

Resistive touch panel
White ABS bezel
M3.5 mounting holes for easy install

Power & Dimensions

Power consumption: 1.1W
Active area: 95.04 × 53.856 mm
Outline: 105.5 × 67.2 × 4.2 mm

One-Wire Backlight Technology

FriendlyELEC one-wire technology enables backlight adjustment using a single GPIO pin, simplifying wiring and improving reliability in embedded systems. The driver stack is open source, supporting streamlined integration across compatible boards.

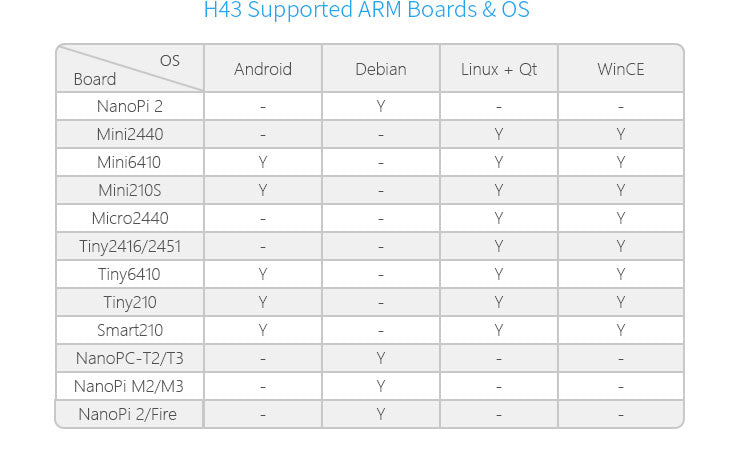

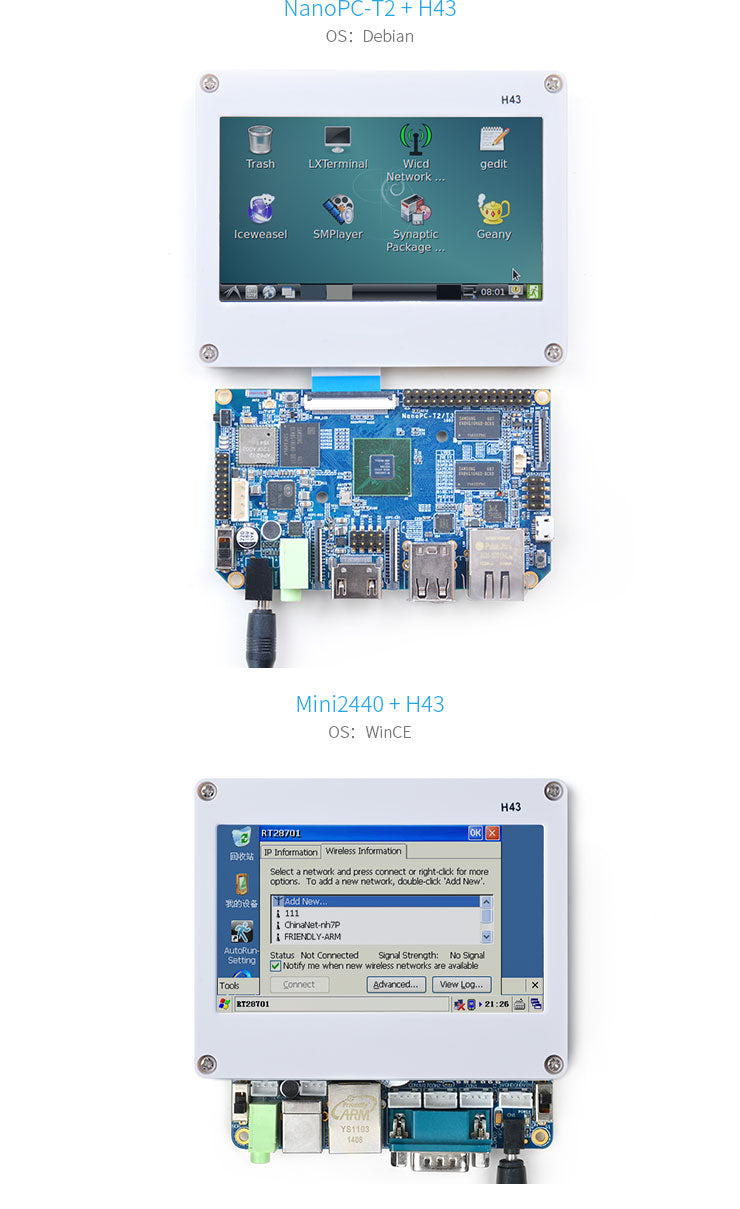

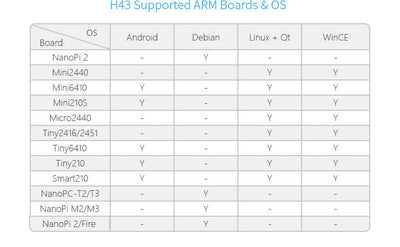

Compatible with FriendlyELEC boards including Mini2440, Mini6410, Mini210S, and 4418.

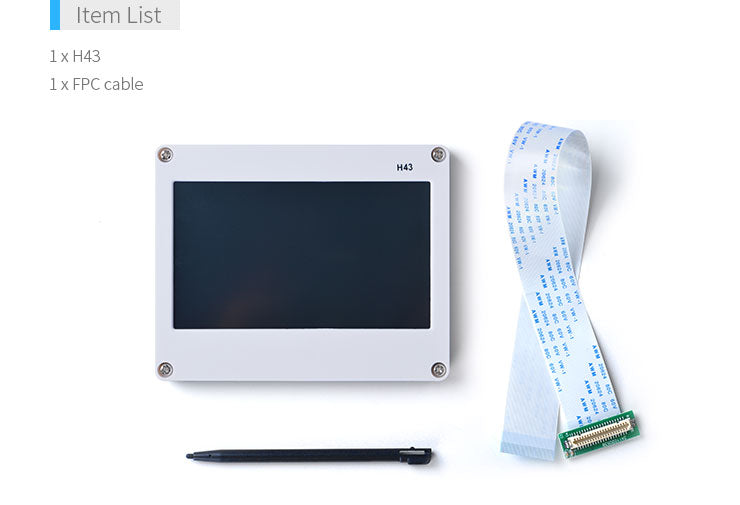

This product is a display module only. Host boards, cables, and mounting accessories are not included unless explicitly stated.
