BOE

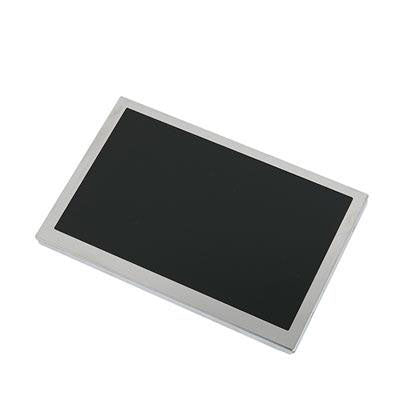

BOE GT070WVM-N10

$60.00
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:GT070WVM-N10
  • Brand:BOE
  • Size:7 inch
  • Resolution:800*480
  • Brightness:500 cd/m²
  • Viewing angle:70/70/70/70
  • Interface:Parallel RGB (1 ch, 6/8-bit) , 50 pins
  • CR:600 : 1
  • Operating Temp.: 20-70
  • Parameters
Manufacturer BOE
Model Name GT070WVM-N10
Screen Size 7
Pixel Number 800(RGB)×480, WVGA
Active Area(mm) 154.08×85.92mm (H×V)
Outline(mm) 164.9×100×6 (H×V×D)
Bezel Area(mm) 157.08×89.33 mm (H×V)
Treatment (Haze 25%),Hard coating (3H)
Luminance 500 cd/m² (Typ.)
Contrast Ratio 600 : 1 (Typ.) (TM)
Viewing Angle 70/70/70/70(CR≥10) Left / Right/UP /Down
Response 25 (Typ.)(Tr/Td) ms
Work Mode TN, Normally white, Transmissive
Color Depth 262K/16.7M , 50% NTSC
Backlight 30K hours,without LED Driver
Net Weight
Touchscreen without
Signal Type/interface Type Parallel RGB (1 ch, 6/8-bit) , 50 pins
Voltage Supply
Max. Ratings Storage Temp.: -30 ~ 80 °C
Operating Temp.: -20 ~70 °C
Package



BOE 7inch LCD screen GT070WVM-N10 with 500 luminance and -20-70 operating temp.

GT070WVM-N10 has standard 800*480 resolution.

30000 hrs backlight lifetime.

GT070WVM-N10 often used in industrial facilities.

    Technical specifications are loading…
