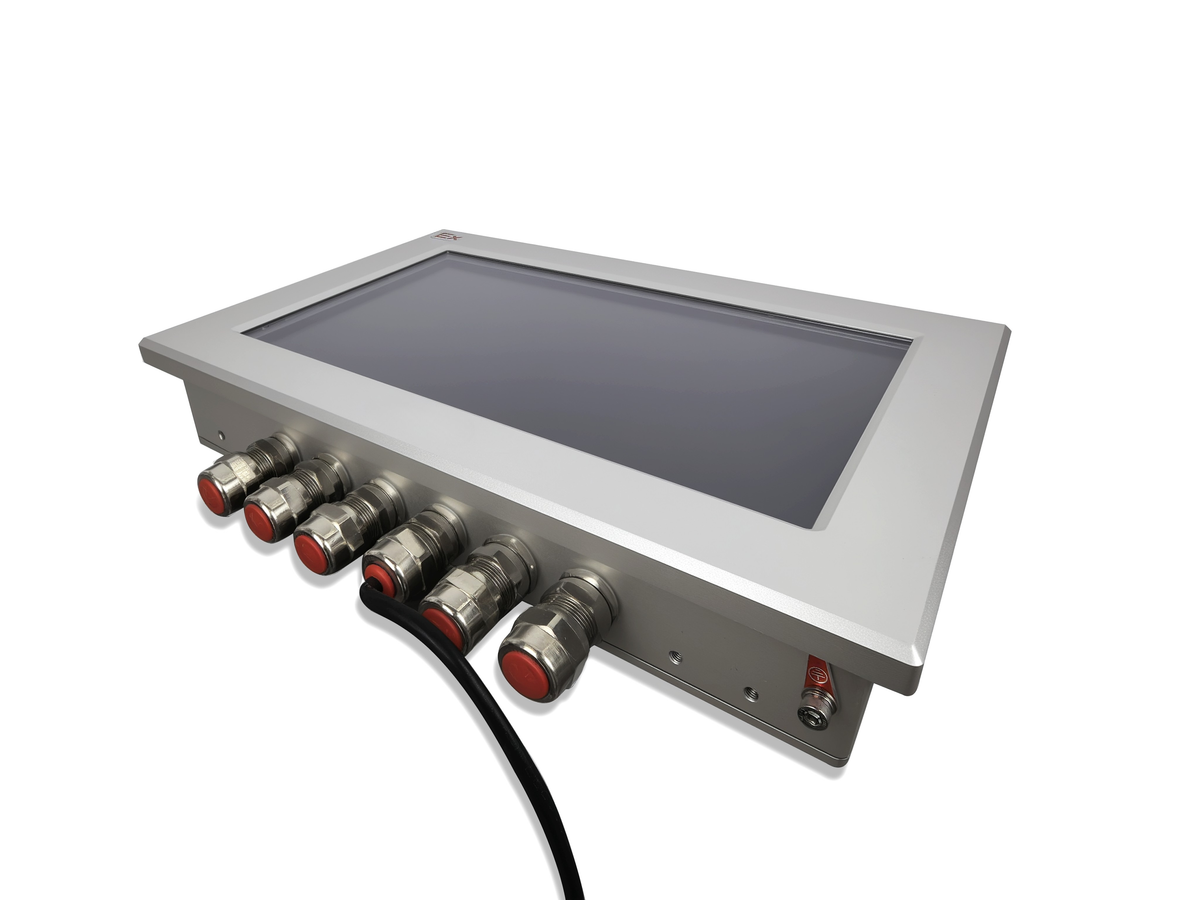

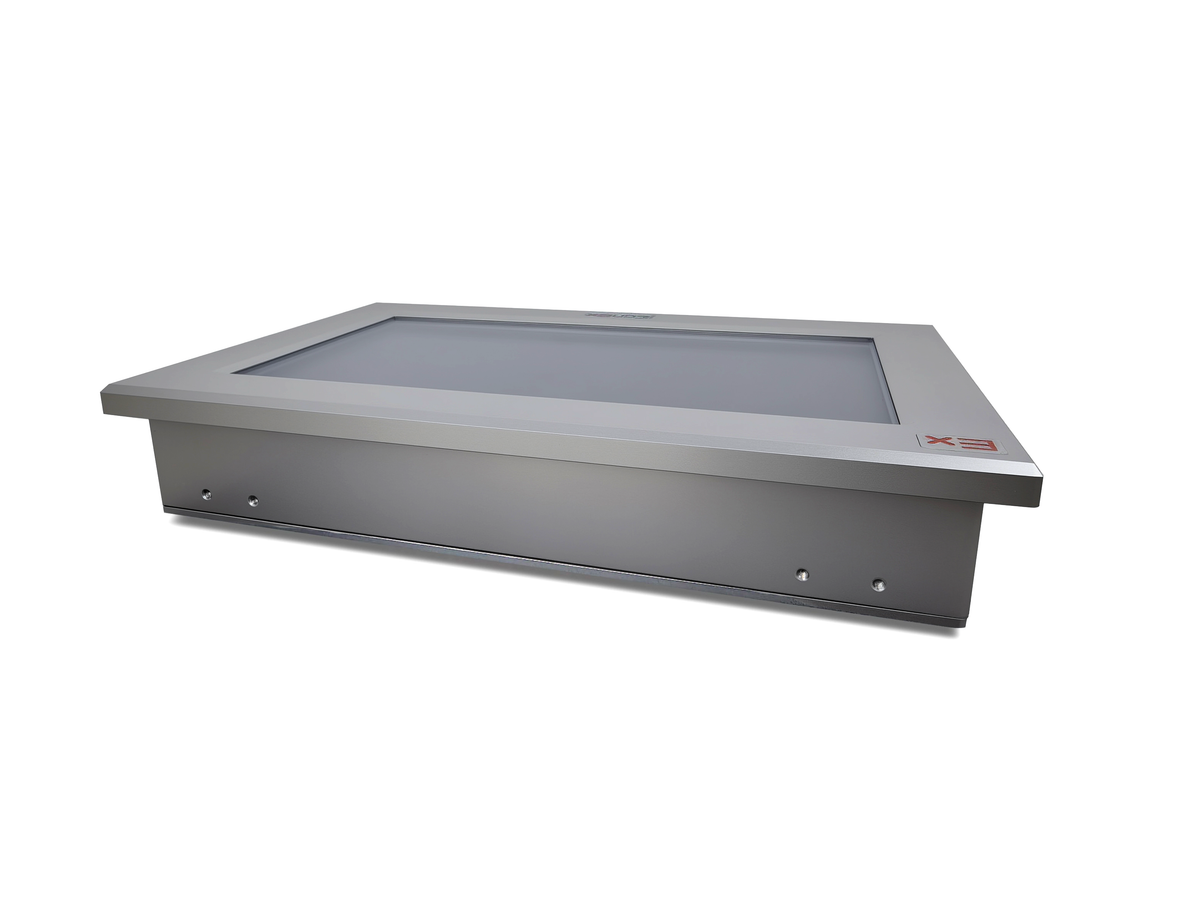

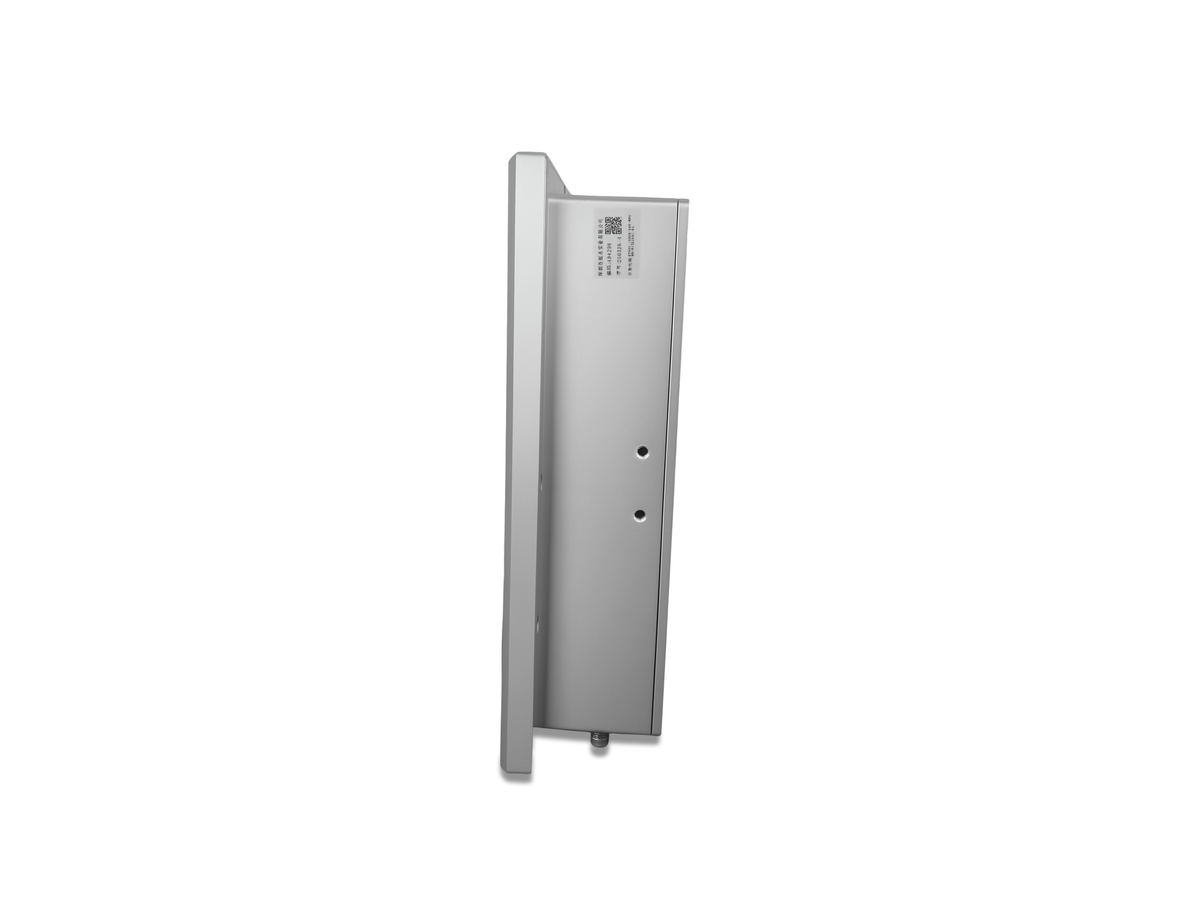

Exproof HMI Panel – ATEX Zone 2

SKU GEX-XY900

Exproof HMI Panel – ATEX Zone 2 is engineered for hazardous-area operator and access applications. Pricing is quote-based.

Highlights
Operator HMI for hazardous-area control rooms and field stations
Suitable for process visualization and machine interface projects
Industrial Ex enclosure ready for Zone-rated installations
Certification: ATEX Zone 2
Project-based pricing — request a quote
Technical specifications
SKU GEX-XY900
Product type Exproof HMI
Certification ATEX Zone 2
Hazardous area Zone 2 class applications
Pricing Quote only — project based

Detailed technical specifications from manufacturer datasheet

Values may vary by display size and order configuration. Confirm the exact model code, certification marking and interface options during quotation.

Model GEX-XY900
Product type Exproof HMI
Hazardous area Zone 2 / Zone 21 / Zone 22
ATEX II 3G Ex nR IIC T6 Gc; II 2D Ex tb IIIC T80 C Db
IECEx Ex nR IIC T6 Gc; Ex tb IIIC T80 C Db
Sizes 4.3" / 7" / 10.4" / 12.1" / 15" / 17" / 19" / 15.6" / 18.5" / 21.5" / 23.8"
Resolution 480x272 to 1920x1080 (by model)
Brightness 300 cd/m2 (high brightness optional)
Touch Capacitive, anti-static
Color 65,536 colors on compact models; 16.7 million colors on larger models
LCD lifespan 50,000 hours
CPU 32-bit 800 MHz / 1 GHz RISC
Memory 256 MB Flash + 256 MB DDR3 or 4 GB Flash + 512 MB DDR3
Ethernet 1x 10/100M RJ45
Serial 2x RS232/RS485/RS422
USB USB Host 1.1 + USB Device 2.0
Configuration XYFD2000 V4.1; USB or Ethernet program download; C-language macro support
Input 24 VDC (21-28 VDC)
Rated power 4 W to 40 W nominal; 6 W to 85 W maximum by display size
Cable entries 3 to 8 x M20x1.5H by display size
Weight Approximately 3 kg to 22 kg by display size
IP rating IP66
Operating temp. NT 0~50 C; LT/WT options
Storage temp. -40~70 C
Humidity 10~90% RH, non-condensing
Specification Details
Model GEX-XY900
Product type Exproof HMI
Hazardous area Zone 2 / Zone 21 / Zone 22
ATEX II 3G Ex nR IIC T6 Gc; II 2D Ex tb IIIC T80 C Db
IECEx Ex nR IIC T6 Gc; Ex tb IIIC T80 C Db
Sizes 4.3" / 7" / 10.4" / 12.1" / 15" / 17" / 19" / 15.6" / 18.5" / 21.5" / 23.8"
Resolution 480x272 to 1920x1080 (by model)
Brightness 300 cd/m2 (high brightness optional)
Touch Capacitive, anti-static
Color 65,536 colors on compact models; 16.7 million colors on larger models
LCD lifespan 50,000 hours
CPU 32-bit 800 MHz / 1 GHz RISC
Memory 256 MB Flash + 256 MB DDR3 or 4 GB Flash + 512 MB DDR3
Ethernet 1x 10/100M RJ45
Serial 2x RS232/RS485/RS422
USB USB Host 1.1 + USB Device 2.0
Configuration XYFD2000 V4.1; USB or Ethernet program download; C-language macro support
Input 24 VDC (21-28 VDC)
Rated power 4 W to 40 W nominal; 6 W to 85 W maximum by display size
Cable entries 3 to 8 x M20x1.5H by display size
Weight Approximately 3 kg to 22 kg by display size
IP rating IP66
Operating temp. NT 0~50 C; LT/WT options
Storage temp. -40~70 C
Humidity 10~90% RH, non-condensing
