AUO

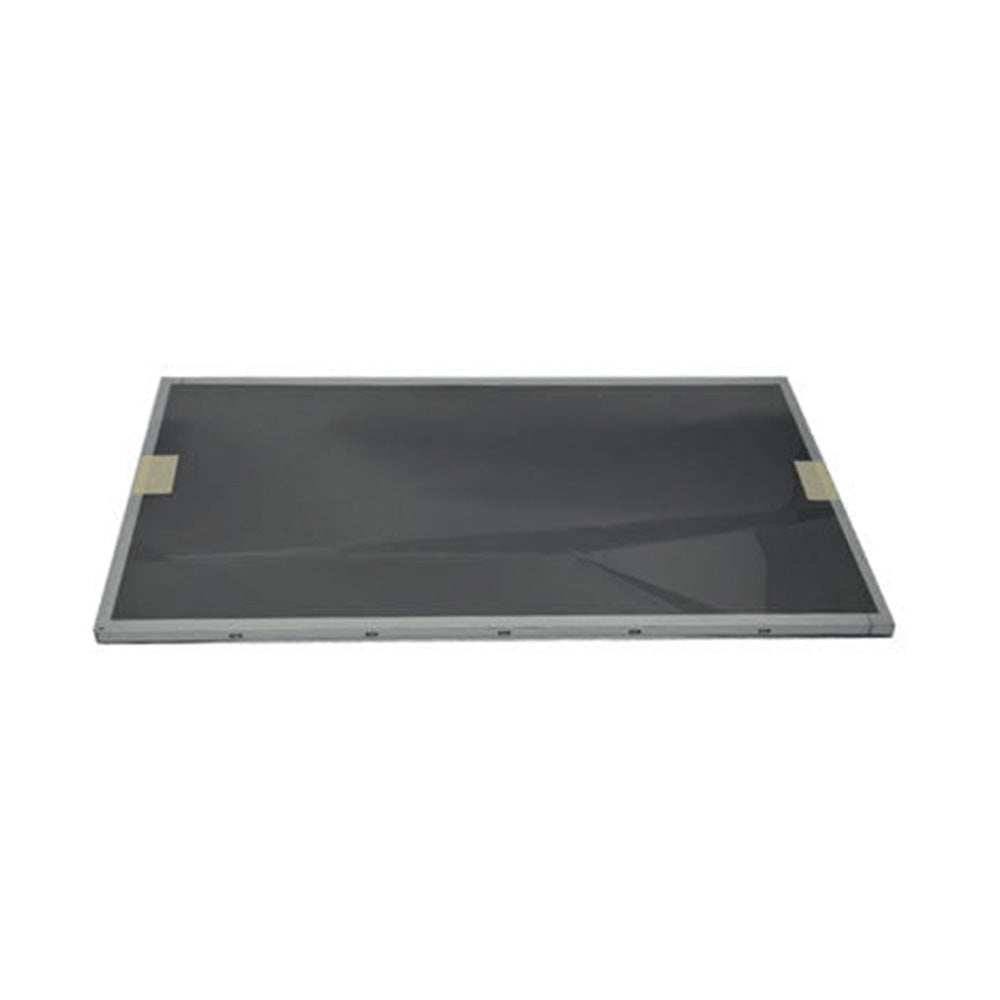

AUO G215HVN01.0

$294.80
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G215HVN01.0
  • Brand:AUO
  • Size:21.5 inch
  • Resolution:1920*1080
  • Brightness:300 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)(CR≥10)
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:5000:1
  • Operating Temp.: 0 ~ 60 °C
  • Parameters
  • Manufacturer AUO
    Model Name G215HVN01.0
    Screen Size 21.5
    Pixel Number 1920(RGB)×1080  [FHD]
    Active Area(mm) 476.64×268.11 mm (H×V)
    Outline(mm) 495.6×292.2×13.2 mm(H×V×D)
    Bezel Area(mm) 479.84×271.31 mm (H×V)
    Treatment Hard coating (3H)
    Luminance 300 cd/m² (Typ.)
    Contrast Ratio 5000 : 1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (CR≥10)
    Left/Right/UP/Down
    Response 20/5 (Typ.)(Tr+Td) ms
    Work Mode AMVA3, Normally black,Transmissive
    Color Depth 16.7M , 75% NTSC
    Backlight 50K hours,with LED Driver
    Net Weight 1.85Kgs (Typ.)
    Touchscreen without
    Signal Type/interface Type LVDS (2 ch, 8-bit) , 30 pins
    Voltage Supply 5.0V (Typ./Max.)
    Max. Ratings Storage Temp.: 0 ~ 60 °C
    Operating Temp.: -20~60°C
    Package 9 pcs/ carton

AUO 21.5 inch LCD screen G215HVN01.0, with 300 luminance and 0-60°C operating temp.

G215HVN01.0,has standard 1920*1080 resolution.

50000 hrs backlight lifetime, can support long term operating.

G215HVN01.0 often used in industrial monitors.
