AUO

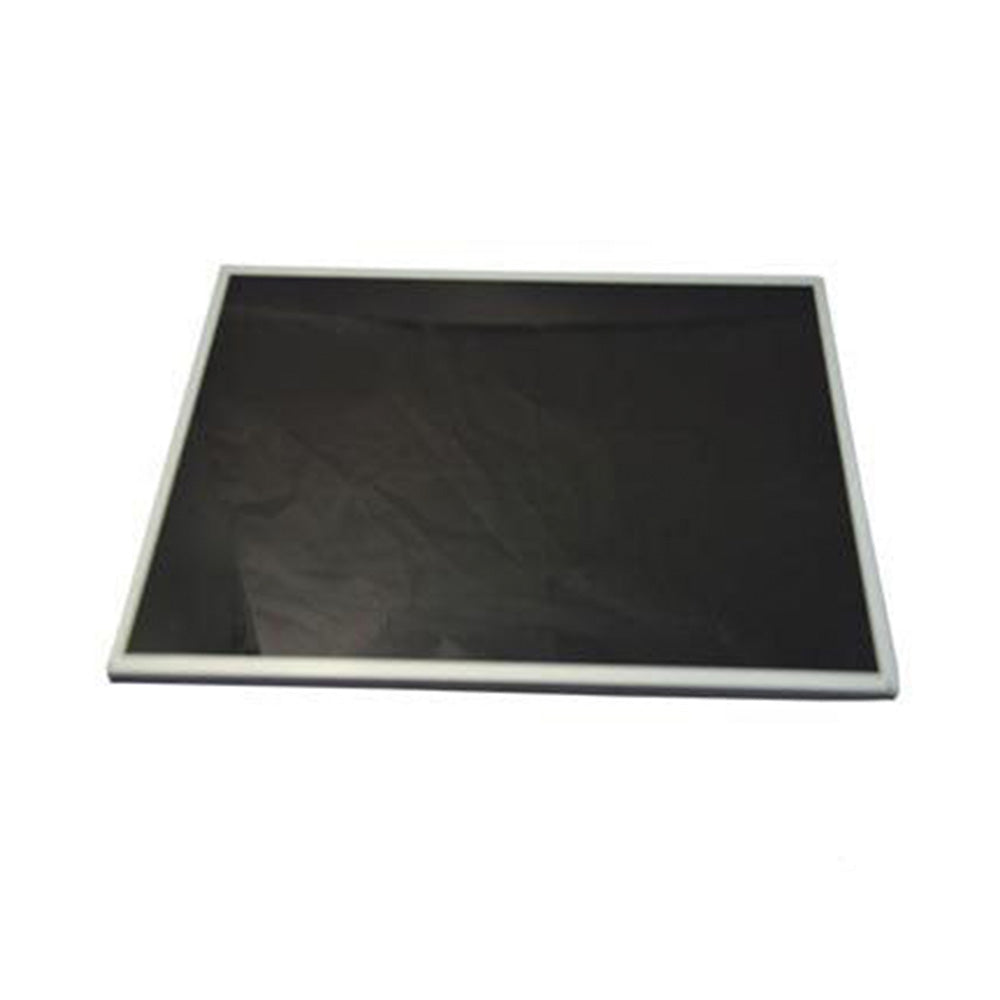

AUO G190ETN01.601

$402.48
Payment is charged in full automatically at checkout
  • Shipping costs are calculated at checkout based on product weight, destination, and selected carrier
  • Orders are shipped from China
  • Customs duties, taxes, or handling fees may apply
  • Returns are accepted at our U.S. address
  • Module No:G190ETN01.601
  • Brand:AUO
  • Size:19 inch
  • Resolution:1280*1024
  • Brightness:1600 cd/m²
  • Viewing angle:85/85/80/80
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:1000: 1
  • Operating Temp.: -30-70℃



  • Parameters
Manufacturer AUO
Model Name G190ETN01.601
Screen Size 19
Pixel Number 1280(RGB)×1024   [SXGA]
Active Area(mm) 376.32 × 301.056 mm (H×V)
Outline(mm) 396 × 324 × 26.59 mm(H×V×D)
Bezel Area(mm)
Treatment Hard coating (3H)
Luminance 1600 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (CR≥10)
Left/Right/UP/Down
Response 10 (Typ.)(Tr+Td) ms
Work Mode TN, Normally white,Transmissive
Color Depth 16.7M , 72% NTSC
Backlight 50K hours,with LED Driver
Net Weight 2.12Kgs (Typ.)
Touchscreen without
Signal Type/interface Type LVDS (2 ch, 8-bit) , 30 pins
Voltage Supply 5 V (Typ./Max.)
Max. Ratings Storage Temp.: -30 ~ 70°C
Operating Temp.: -30~85°C
Package 8 pcs/ carton


AUO 19inch G190ETN01.601 is a high brightness LCD of 1600nits.

Designed for high-end applications, there is touch screens for this 19inch LCD.

Optical bonding available, has backlight lifetime 50K hours, without LED driver.
